Amana FDU1862WW (BOM: P1131909)

Model: FDU1862WW (BOM: P1131909)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

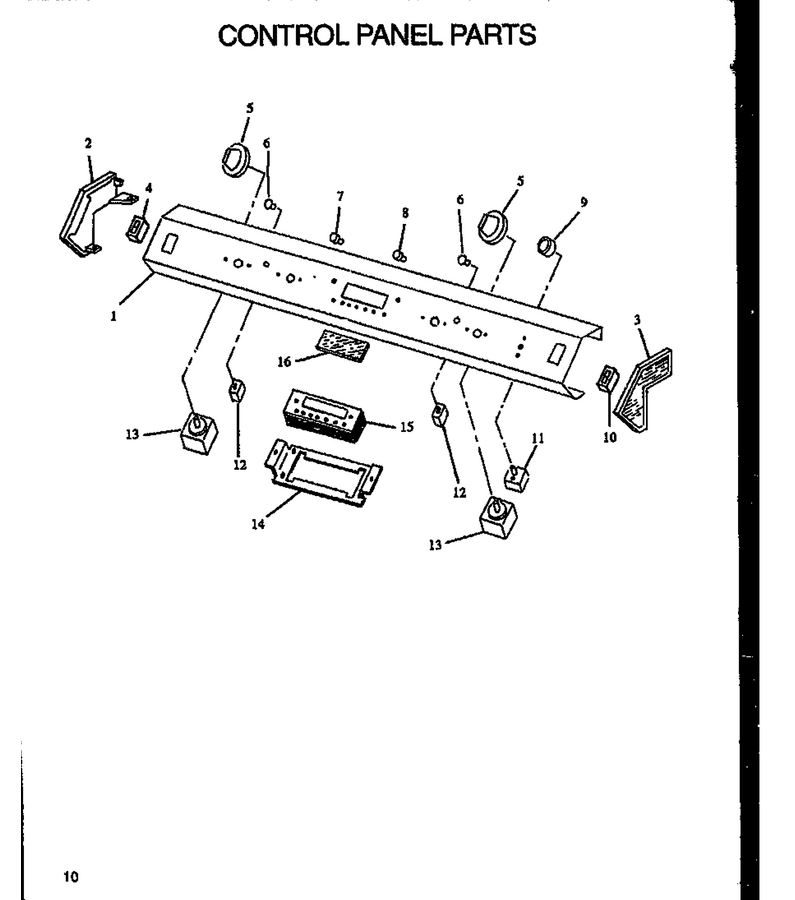

01 - Control Panel Parts

...
...
NI
Screw WPL-WP3400882
...
1
Panel, Control (White) WPL-307983W
...
2
End Cap, Lt K WPL-308171K
...
3
End Cap, Rt WPL-308172K
...
4
Switch, Slo Cook, Lt.gray WPL-0303181
...
5
Kit,top Burner Knob(White) WPL-Y0303179
...
6
Lens, Indicator Clear WPL-0303163
...
7
Knob, Set Button (Lt Gray) WPL-Y0305330
...
8
Knob- Cloc WPL-308956T
...
9
Knob, Fan Switch (Lt. Gray) WPL-Y0303165
...
10
Switch, Oven Light (Gray) WPL-Y0303167
...
11
Switch, Fan WPL-Y0300574
...
12
Light Indicator WPL-0306895
...
13
Switch-Inf WPL-W11121639
...
14
Bracket,erc Mount WPL-308085B
...
15
Control, Erc Elec. WPL-Y0308480
...
16
Glass, Clock WPL-Y0308107

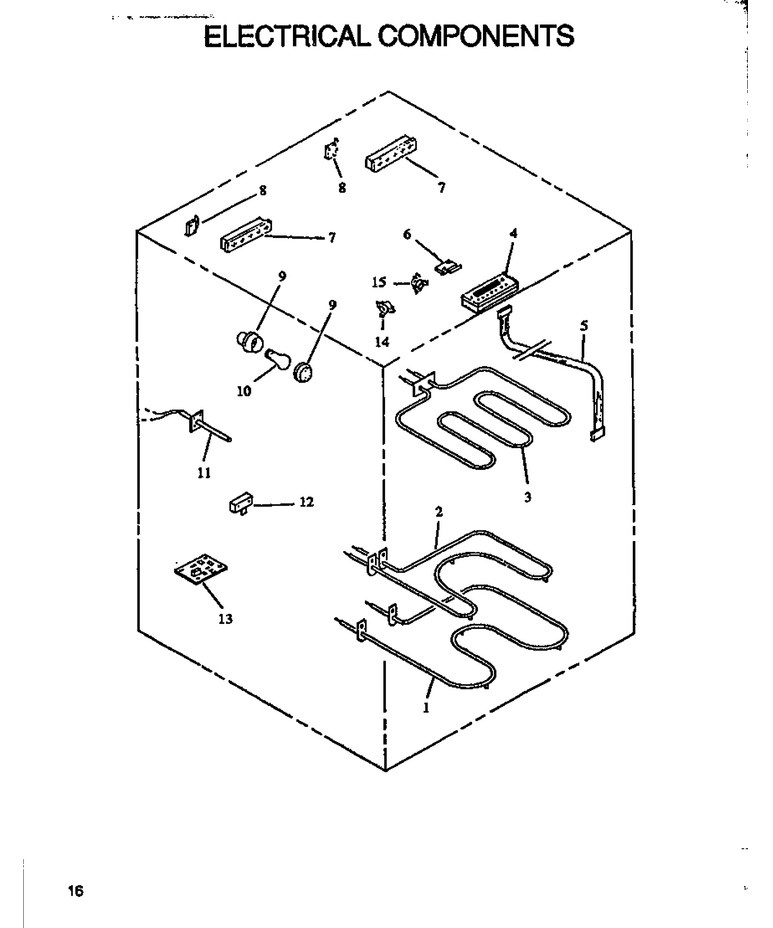

02 - Electrical Components

...
...
NI
Harness, Wire (Pc Brd 23``) WPL-Y0308192
...
1
Element- B WPL-WP77001096
...
2
Element, Slo-Cook WPL-Y0300539
...
3
Element- B WPL-77001097
...
4
Control, Erc Elec. WPL-Y0308480
...
5
Harness, Wire (Clock/pcb) WPL-Y0308189
...
6
Switch, Clean, Primary Interl WPL-Y0042052
...
7
Plug Block Modular Top WPL-Y0042210
...
8
Switch, Fan WPL-Y0054254
...
9
Light- Ove WPL-WP74011278
...
10
Light Bulb WPL-8009
...
11
Sensor WPL-WPY0314907
...
12
Block-Term WPL-WP8203546
...
13
Circuit Board, Erc-Electric WPL-Y0301277
...
14
Switch, Limit Cont. WPL-Y0308416
...
15
Control, Fan WPL-Y0308417

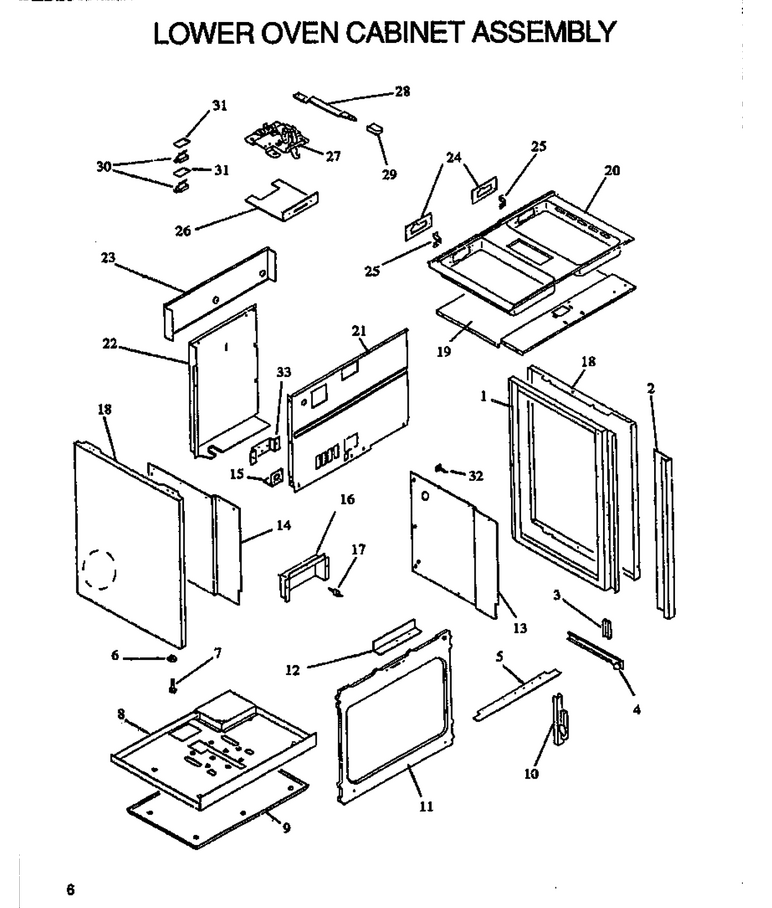

03 - Lower Oven Cabinet Assy

...
...
NI
Screw 6 32x5/16 Ph Fh WPL-Y0041769
...
1
Frame, Side Panel Rh WPL-61231CG
...
2
Trim, Side Panel (Wht) WPL-303144W
...
3
Support, Stg Dwr Trk WPL-Y0315150
...
4
Track, Drawer, L.h. WPL-Y0058558
...
5
Filler, Front Frame WPL-062750G
...
6
Retainer Nut WPL-0076204
...
7
Leg, Leveling WPL-Y0307594
...
8
Retainer, Bot. Insulation WPL-Y0307240
...
9
Heat Shield, Storage Drawer WPL-Y0301706
...
10
Hinge-Door WPL-R0706011
...
12
Heat Shield, Clock WPL-0061443
...
13
Retainer, Insul., Rh WPL-Y0057443
...
14
Retainer, Insul., Lh WPL-0057442
...
15
Bracker, Conduit WPL-Y0058556
...
16
Cover, Control Board WPL-Y0308367
...
17
Support-Circuit Board WPL-Y0306900
...
18
Panel, Side Lt (Wht) WPL-058542W
...
19
Retainer Insulation Top X WPL-Y0301560
...
20
Box, Burner WPL-31898201CG
...
21
Panel, Rear WPL-0308186
...
22
Cover, Rear - Wire WPL-Y0058543
...
23
Shield, Rear WPL-Y058544
...
24
Plate Mtg. Plug Block WPL-Y0300498
...
25
Plug Block Mtg Brkt Et590 595 WPL-Y0040965
...
26
Bracket, Latch Mounting WPL-0068101
...
27
Latch, Oven Door WPL-Y0300327
...
28
Latch Arm WPL-303039W
...
29
Knob, Door Latch Lt Gray WPL-Y0300044
...
30
Switch, Clean, Primary Interl WPL-Y0042052
...
31
Insulation, Esm WPL-Y0091523
...
32
Screw WPL-W11245710
...
33
Brkt., Mounting WPL-Y0307664

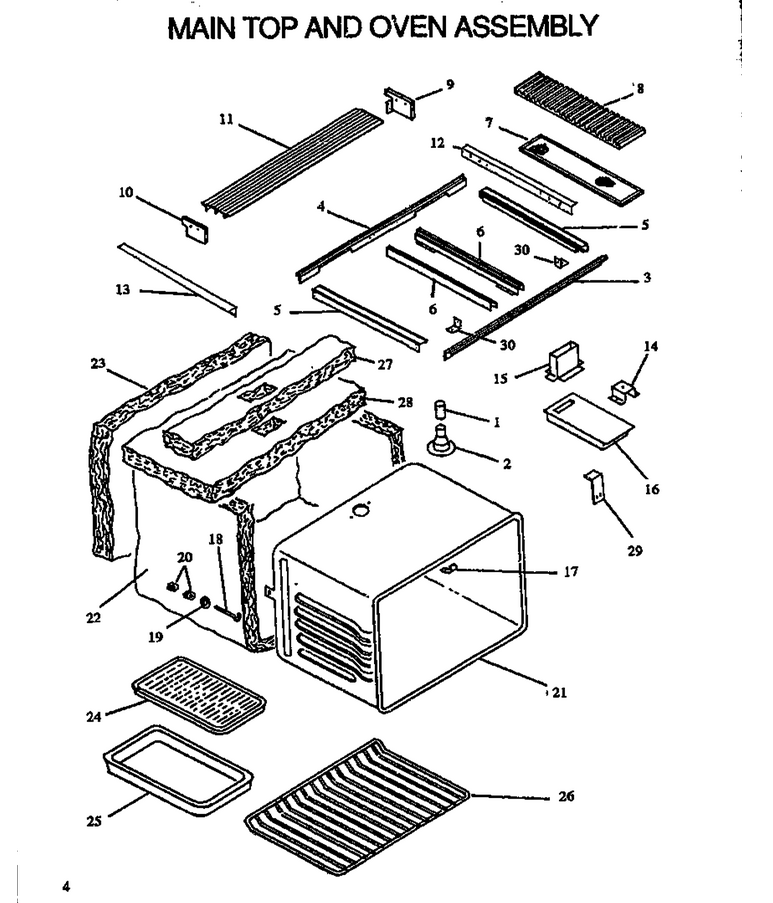

04 - Main Top And Oven Assy

...
...
NI
Capillary Hole Cover WPL-Y0063351
...
1
Tube, Vent Extension WPL-0060633
...
2
Smoke Eliminator WPL-Y0058526
...
3
Frame Front, Main Top WPL-0303146
...
4
Frame, Rear-Electric (Wht) WPL-0303147
...
5
Frame, Side R.h. WPL-0303149
...
6
Frame, Center WPL-0303145
...
7
Filtr-Grse WPL-WPY0307363
...
8
Cover, Vent (Blk) WPL-Y0058902
...
11
Lo-Backrail, Elec-W WPL-0303174
...
12
Trim, Countertop WPL-Y0305204
...
13
Trim, Countertop WPL-Y0305204
...
14
Mtg. Bracket, Vent WPL-Y0300632
...
15
Flue Box, Rear WPL-Y0059431
...
16
Flue Box WPL-Y0300641
...
17
Cover, Chip WPL-Y0315022
...
18
Hook Bolt WPL-Y0091536
...
19
Washer WPL-Y0071876
...
20
Hex Nut No.10-32 Nickel WPL-0041847
...
21
Oven Shell WPL-303913E
...
22
Insulation, Wrapper WPL-Y0301713
...
23
Insulation, Back WPL-0301712
...
24
Procelain Broiler (Pan And Grid) WPL-4396923
...
25
Procelain Broiler (Pan And Grid) WPL-4396923
...
26
Rack-Oven WPL-WP314763J
...
27
Insulation, Latch WPL-0058319
...
28
Insulation, Top WPL-0301711
...
29
Bracket, Vent Support WPL-Y0300943
...
30
Bracket, Frame Trim WPL-Y0301154

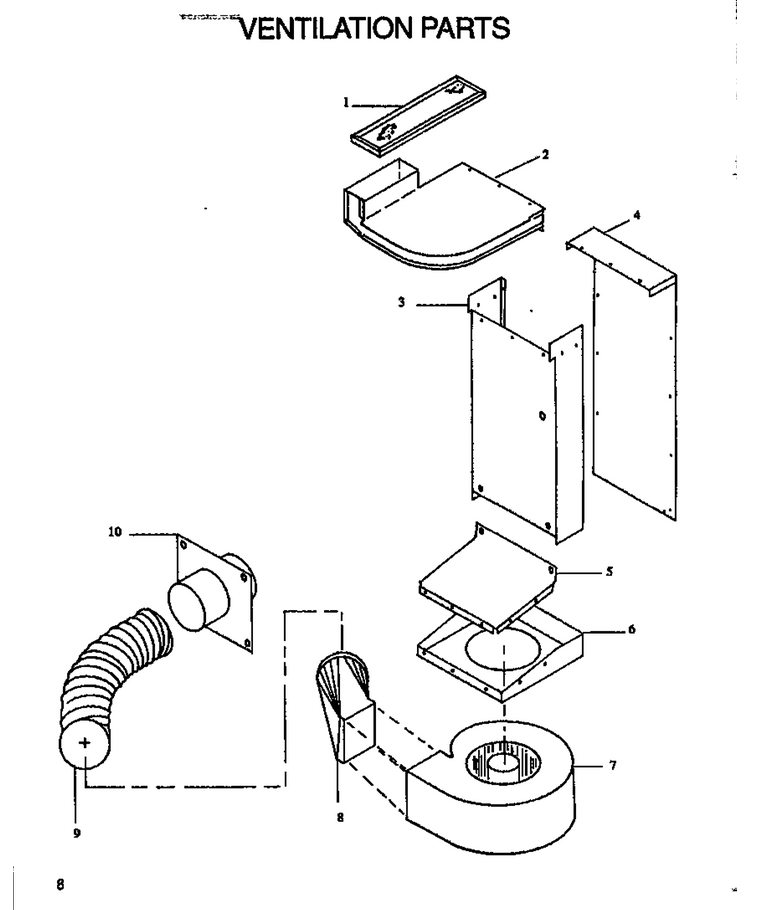

07 - Ventilation Parts

...
...
NI
Capacitor WPL-10099906
...
1
Filtr-Grse WPL-WPY0307363
...
2
Top, Plenum WPL-58576CG
...
3
Plenum, Rear WPL-0307100
...
4
Cover, Rear Panel WPL-0307101
...
5
Assy- Blow WPL-Y0307923
...
6
Assy- Blow WPL-Y0307923
...
7
Assy- Blow WPL-Y0307923
...
8
Duct, Blower WPL-Y0307508
...
9
Duct, Flex WPL-Y0307945
...
10
Thimble, 6`` Duct WPL-Y0307592

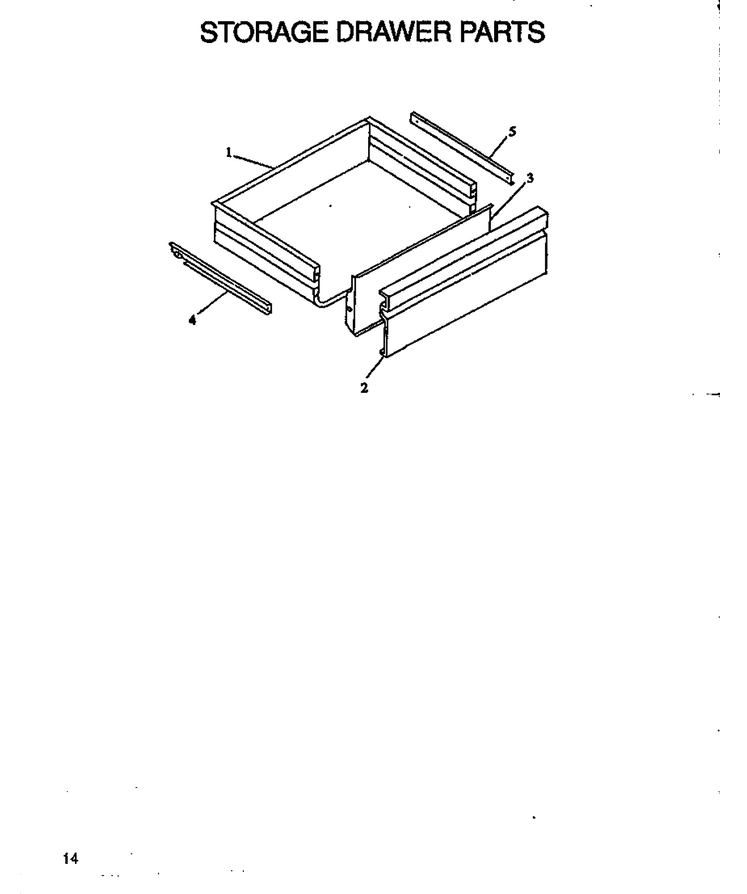

06 - Storage Drawer Parts

...
...
NI
Rivet, Pop WPL-Y0076357
...
1
Drawer, Storage (Blk) WPL-Y058562B
...
2
Panel, Drawer Wht WPL-063702W
...
3
Liner Drawer Panel WPL-057441G
...
4
Runner, Drawer, L.h. WPL-Y0058560
...
5
Runner, Storage Drawer Rt WPL-Y0314669

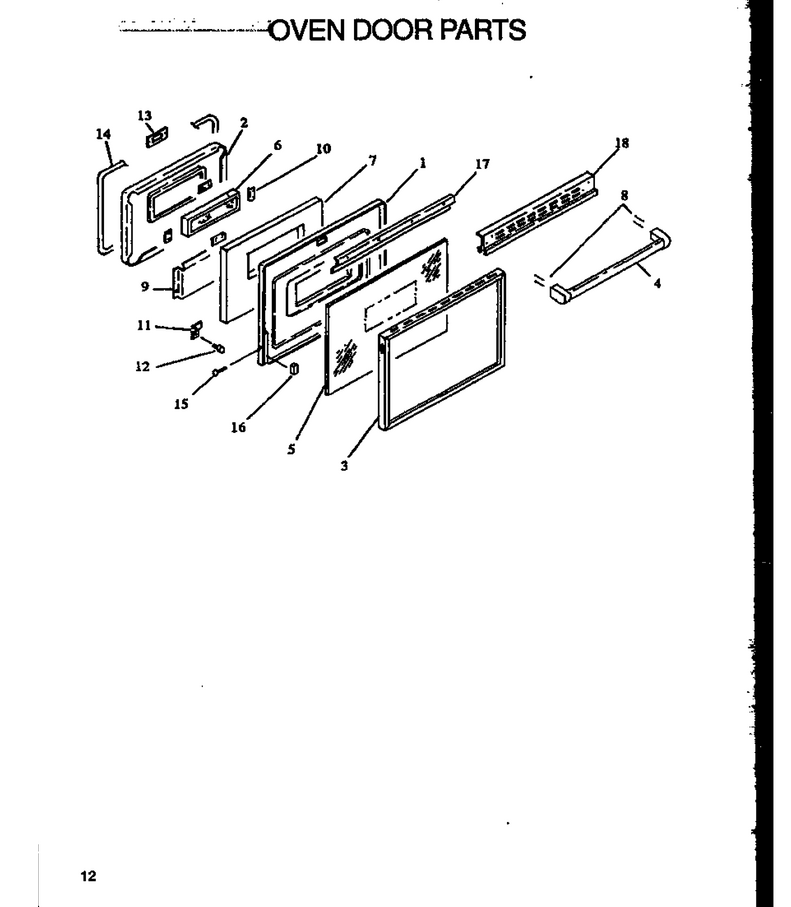

05 - Oven Door Parts

...
...
NI
Support, Door Glass WPL-Y0307910
...
1
Door Backer, Electric (Cg) WPL-302725E
...
2
Pad, Ov Dr W/window WPL-314693CG
...
3
Frame, Glass Door (White) WPL-306538W
...
4
Kit, Dr Hndl/trim (White) WPL-0305520
...
5
Glass, Oven Door, White WPL-Y0302446
...
6
Window Assy WPL-0304831
...
7
Insulation,door-Sub Backer WPL-0062614
...
8
Screw, No.10-24x3/8 (Ph Trs Hd) WPL-Y0079863
...
9
Heat Baffle, Glass (Black) WPL-306449B
...
10
Retainer, Door Glass WPL-Y0052629
...
11
Support Bracket, Glass WPL-Y0062439
...
12
Bumper, Oven Door WPL-Y0063661
...
13
Latch Plate WPL-Y0052039
...
14
Gasket, Oven Dr 82`` WPL-Y0300432
...
15
Rivet, Pop WPL-Y0302648
...
16
Bumper, Rubber WPL-Y0060247
...
17
Back, Heat Baffle (Black) WPL-306450B
...
18
Kit, Dr Hndl/trim (White) WPL-306499W
