Amana FDO-250-2D (BOM: FDO-250-2 D)

Model: FDO-250-2D (BOM: FDO-250-2 D)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

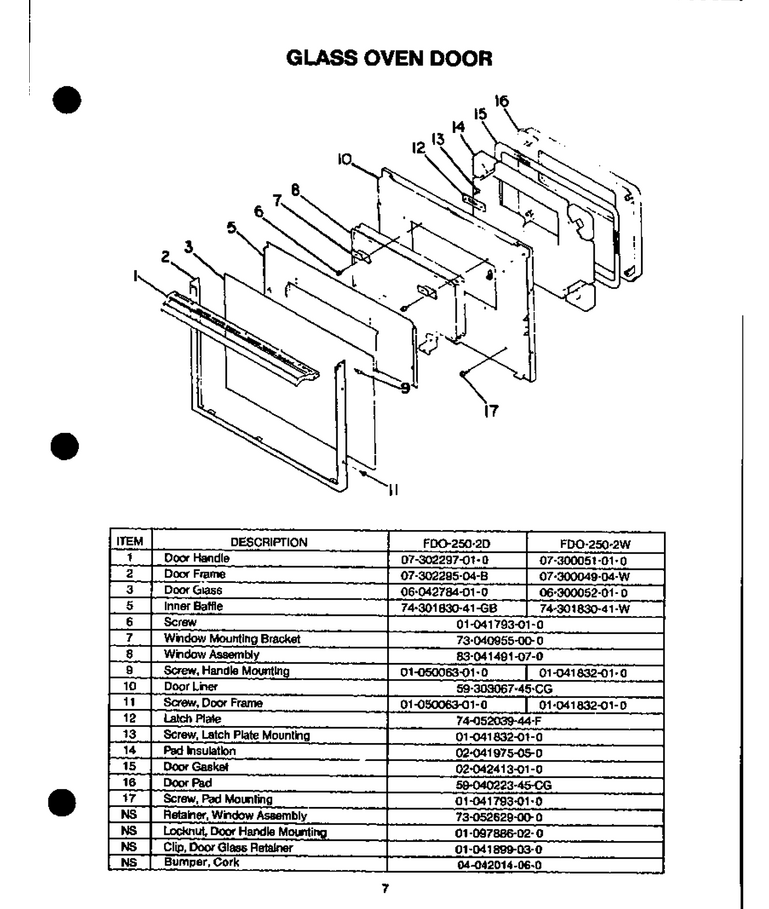

04 - Glass Oven Door

...
...
NI
Glass Clip WPL-Y0041899
...
1
Oven Door Handle WPL-0302297
...
2
Frame, Oven Door WPL-302295B
...
3
Door Glass D Doors Pk411 WPL-0042784
...
5
See Note Inner Baffle WPL-Y00000000
...
6
Tapping Screw 8 18 Hex WPL-Y0041793
...
7
Window Mtg. Brkt. Pk411 WPL-Y0040955
...
8
Window Assy WPL-0041491
...
9
Screw- 8- WPL-31750418
...
10
See Note Door Liner WPL-Y00000000
...
11
Screw- 8- WPL-31750418
...
12
Latch Plate WPL-Y0052039
...
13
Screw No.8x3/8 Sq. Drive WPL-Y0041832
...
14
Insulation, Wrapper WPL-31975801
...
15
Gasket, Door (76``) WPL-Y0042413
...
16
Backer, Oven Door (cg) WPL-40223CG
...
17
Tapping Screw 8 18 Hex WPL-Y0041793

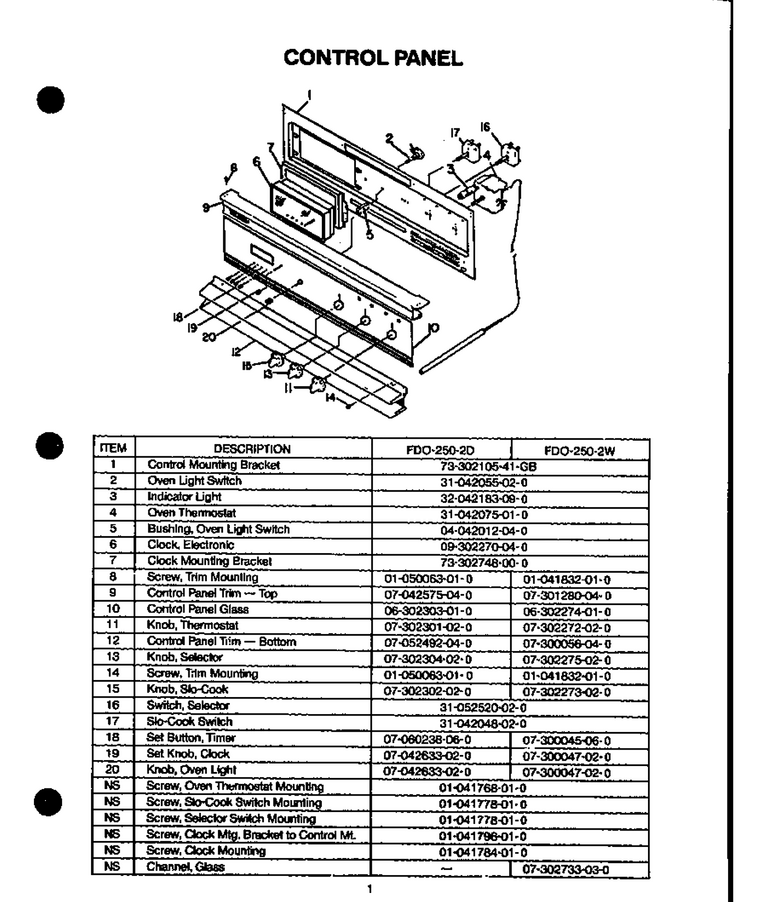

06 - Page 1

...
...
NI
Screw WPL-WP3400882
...
1
Mounting Bracket, Control WPL-302105G
...
2
Switch, Oven Light WPL-Y0042055
...
3
Indicator Light WPL-Y0042183
...
4
Pyro. Thermostat With Top Heat WPL-0042075
...
5
Switch Bushing ,metal WPL-Y0042012
...
6
Clock, Electronic WPL-Y0302270
...
7
Bracket, Clock WPL-0302748
...
8
Screw- 8- WPL-31750418
...
9
Control Panel Top Trim (black) WPL-0042575
...
10
Glass, Control Panel WPL-Y0302303
...
11
Thermostat Knob WPL-0302301
...
12
Trim, Bottom, Control Panel WPL-Y0052492
...
13
Selector Knob WPL-0302304
...
14
Screw- 8- WPL-31750418
...
15
Slo/cook Knob WPL-0302302
...
16
Switch, Selector WPL-0052520
...
17
Switch, Rotary-10a,120v WPL-0042048
...
18
Knob, Clock WPL-0060238
...
19
Knob- Cloc WPL-315210B
...
20
Knob- Cloc WPL-315210B

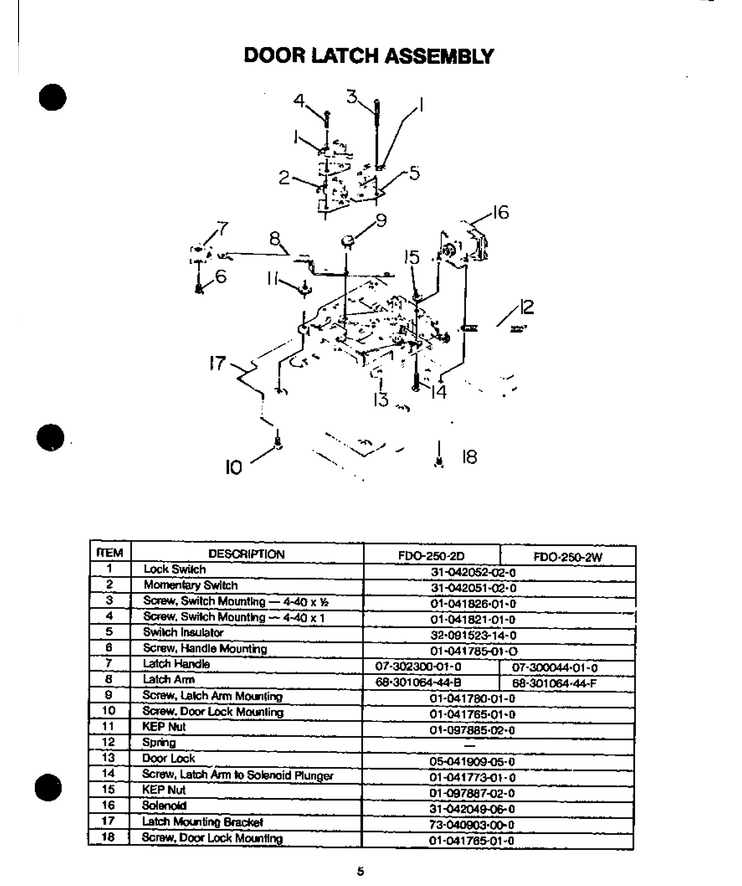

03 - Door Latch Assy

...
...
1
Switch, Clean, Primary Interl WPL-Y0042052
...
2
Main Contact Switch WPL-0042051
...
3
Screw 4 X 40x.500 Dyro T (blk) WPL-Y0041826
...
4
Screw 4-40x15/16`` WPL-Y0041821
...
5
Insulation, Esm WPL-Y0091523
...
6
Screw, No.6-32 X .250 Pan Hd Ph WPL-Y0041785
...
7
Knob, Latch Handle (blk) WPL-0302300
...
8
Latch Arm WPL-301064B
...
9
Screw 10-24 WPL-0041780
...
10
Screw WPL-WP4159193
...
11
Nut WPL-M0282009
...
12
See Note Spring WPL-Y00000000
...
13
Door Latch Assy Wo WPL-Y0041909
...
14
Screw 6 32x1 Slotted Rn Brass WPL-0041773
...
15
Nut K WPL-M0282005
...
16
Solenoid Eaton Pyro Th Wo WPL-Y0042049
...
17
Latch Mtg. Brkt Pyro W/o WPL-Y0040903
...
18
Screw WPL-WP4159193

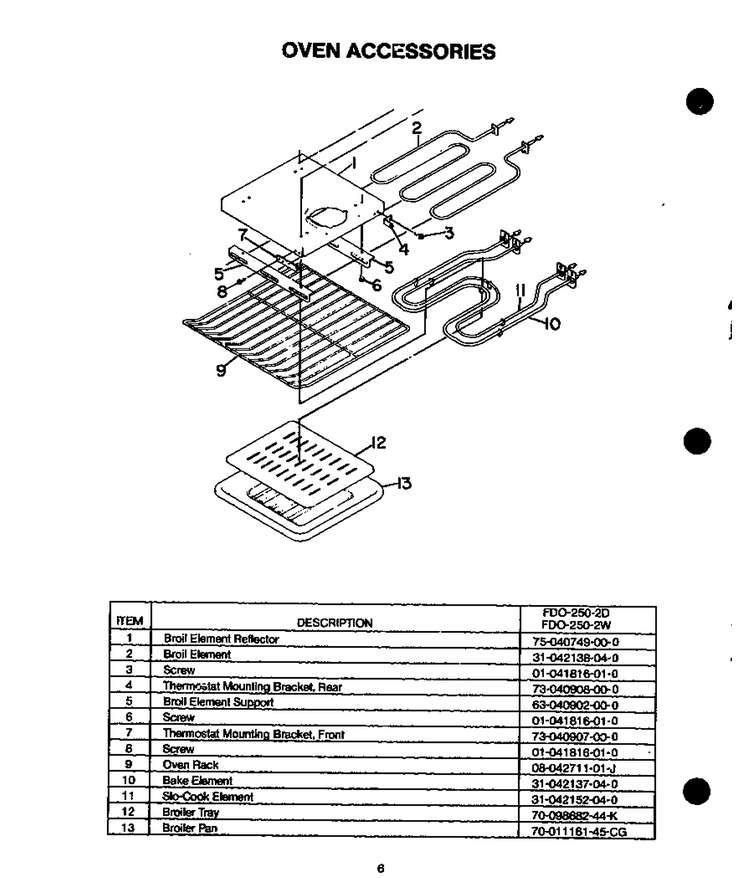

05 - Oven Accessories

...
...
1
Broil Element Reflector Pyro WPL-0040749
...
2
Element, Broil (240v-2800w) WPL-Y0042138
...
3
Screw WPL-WP90767
...
4
Thermostat Mtg Brkt Rear Pyro WPL-0040908
...
5
Broil Element Support Pyro WPL-Y0040902
...
6
Screw WPL-WP90767
...
7
Thermostat Mtg Brkt Frt Pyro WPL-0040907
...
8
Screw WPL-WP90767
...
9
Rack, Oven 19 3/16`` X 16 1/2`` WPL-314762J
...
10
Element- B WPL-WP77001092
...
11
Slo/cook Element 1000w-240v WPL-Y0042152
...
12
Procelain Broiler (pan And Grid) WPL-4396923
...
13
Sub 11161cg, Broiler Pan WPL-Y0011161

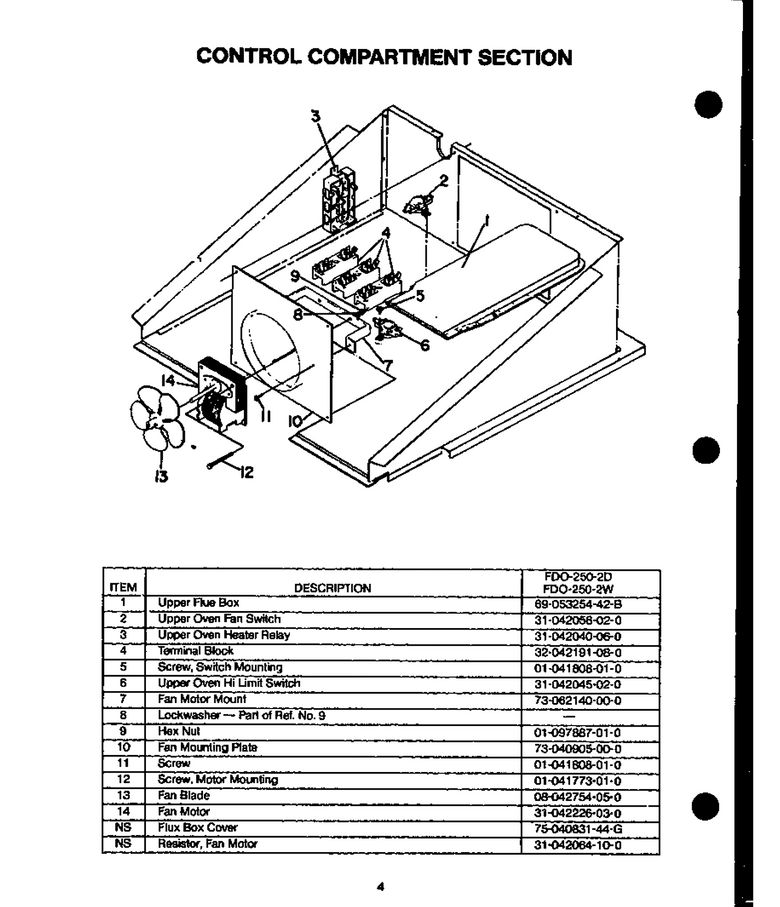

02 - Control Compartment Section

...
...
NI
Flue Box Cover WPL-0040831
...
1
Flue Box, Upper WPL-Y0053254
...
2
Switch Fan Spdt WPL-Y0042056
...
3
Sub 91669, Relay WPL-Y0042040
...
4
Term Blk Eo&go 1m-2.5m-5m-10m WPL-Y0042191
...
5
Screw WPL-WP90767
...
6
Limit Control-Upper Oven-200 WPL-Y0042045
...
7
Bracket, Motor Mount WPL-0062140
...
9
Nut K WPL-M0282005
...
10
Back, Control Compartment WPL-Y0315557
...
11
Screw WPL-WP90767
...
12
Screw 6 32x1 Slotted Rn Brass WPL-0041773
...
13
Blade, Fan WPL-Y0042754
...
14
Fan Motor WPL-Y0042226

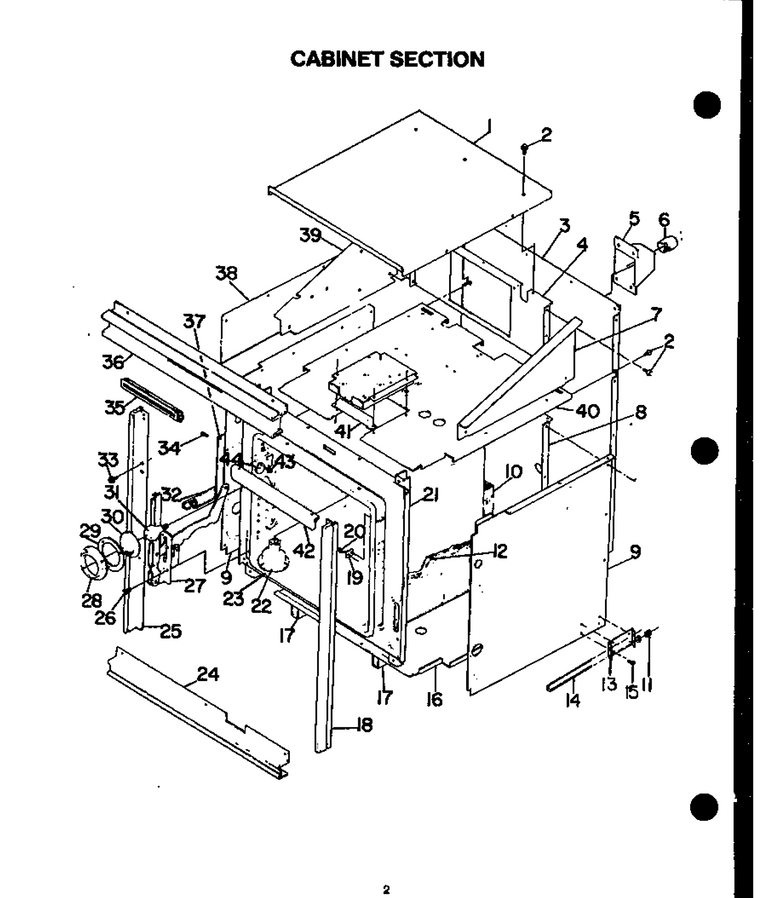

01 - Cabinet Section

...
...
NI
Smoke Eliminator Vent Tube WPL-Y0042409
...
1
Cabinet Top Pyro W.o. Mm WPL-Y0040286
...
2
Screw WPL-WP90767
...
3
Cabinet Back, Upper WPL-Y0059744
...
4
Cont. Comp. Back Pyro W/o WPL-Y0040745
...
5
Lamp, Cup WPL-0060778
...
6
Sub 90264,kit Light Socket WPL-0073028
...
7
Control Cover WPL-Y0060777
...
8
Retainer, Insul-Rear WPL-Y0054079
...
9
Retainer, Insulation-Side WPL-Y0316868
...
10
Insulation, Wrapper WPL-31975801
...
11
Nut K WPL-M0282005
...
12
Insulation, Wrapper WPL-31975801
...
13
Bracket, Mounting WPL-0040990
...
14
Spring Adjustment Rod WPL-0052964
...
15
Screw WPL-WP90767
...
16
Oven Bottom-Lower WPL-Y0316867
...
17
Runner, Base-Pyro W/o WPL-Y0041019
...
18
Side Trim Right (black)do750 WPL-Y0042583
...
19
Capillary Hole Cover WPL-Y0063351
...
20
Screw WPL-WP90767
...
21
Main Front WPL-W10124593
...
22
Smoke Eliminator WPL-Y0058526
...
23
Oven Cavity WPL-311145E
...
24
Bottom Trim (black) WPL-0042576
...
25
Side Trim Left (black) Do750 WPL-Y0042584
...
26
Screw, No.8-32 X 3/8 Hex Wsh Hd WPL-Y0041825
...
27
Hinge Assy WPL-Y0052095
...
28
Lens Retainer Stainless Steel WPL-0040995
...
29
Gasket,oven Light WPL-Y0041987
...
30
Lens, Oven Light WPL-0052276
...
31
Light Bulb WPL-8009
...
32
Spring, Oven Door-Pyro W/o WPL-Y0042740
...
33
Screw- 8- WPL-31750418
...
34
Screw WPL-WP90767
...
35
Latch Handle Guide Pyro W.o. WPL-Y0042018
...
36
Trim, Bottom, Control Panel WPL-Y0052492
...
37
Panel, Side WPL-Y0052856
...
38
Side, Upper Cabinet WPL-0052855
...
39
Control Compartment, Lh WPL-Y0060776
...
40
Upper Oven Top WPL-Y0052848
...
41
Shield, Terminal WPL-0060827
...
42
Shield, Reflector (cg) WPL-40850CG
...
43
Screw WPL-WP90767
...
44
Probe Recept. Cover Stainless WPL-Y0040848
