Amana FDC2902WW (BOM: P1132325NWW)

Model: FDC2902WW (BOM: P1132325NWW)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

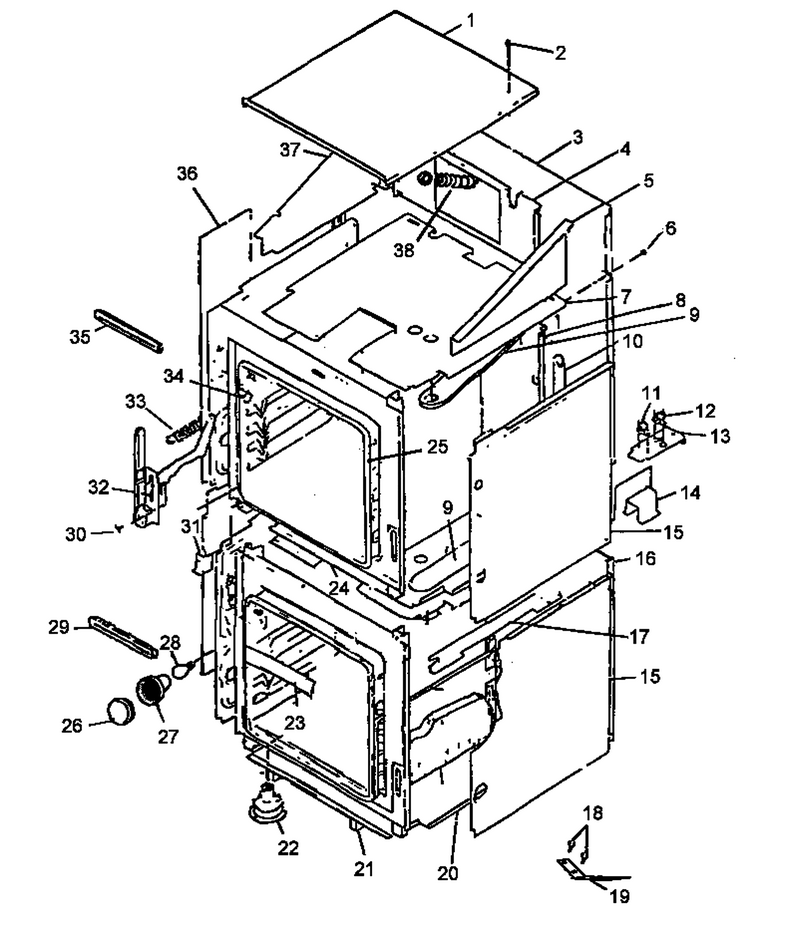

01 - Cabinet

...
...
1
Cabinet Top Pyro W.o. Mm WPL-Y0040286
...
2
Screw No.8-18x3/8 Hex Hd. WPL-0305423
...
3
Back, Upper Cabinet WPL-Y0305628
...
4
Cont. Comp. Back Pyro W/o WPL-Y0040745
...
5
Compartment, Control Rt WPL-Y0314834
...
6
Screw No.8-18x3/8 Hex Hd. WPL-0305423
...
7
Top, Lower Oven WPL-0046325
...
8
Retainer, Insulation-Rear WPL-0305420
...
9
Lower Oven Flue Box W/a Pyro WPL-Y0040581
...
10
Tube, Lower Oven Vent-Pyro W/o WPL-Y0042406
...
11
Switch Fan Spdt WPL-Y0042056
...
12
Hi Limit, Lower Oven WPL-Y0302959
...
13
Switch Plate Qdo-240 WPL-Y0040783
...
14
Support, Rear Oven-Pyro W/o WPL-0041021
...
15
Retainer, Insulation-Side WPL-Y0316868
...
16
Back Cabinet WPL-Y0059743
...
17
Air Channel, Lower Oven-Pyro WPL-0040755
...
18
Screw No.8-18x3/8 Hex Hd. WPL-0305423
...
19
Retainer, Spring WPL-Y0060759
...
20
Oven Bottom-Lower WPL-Y0316867
...
21
Runner, Base-Pyro W/o WPL-Y0041019
...
22
Smoke Eliminator WPL-Y0058526
...
23
Shield, Reflector (Cg) WPL-40850CG
...
24
Upper Oven Bottom Pyro W/o WPL-Y0040741
...
25
Oven Shellwall Oven WPL-305621CG
...
26
Light- Ove WPL-WP74011278
...
27
Light- Ove WPL-WP74011278
...
28
Light Bulb WPL-8009
...
29
Latch Handle Guide Pyro WPL-Y0042015
...
30
Screw No.8-18x3/8 Hex Hd. WPL-0305423
...
31
Support, Front Oven-Pyro W/o WPL-0041020
...
32
Hinge Assy WPL-Y0052095
...
33
Spring, Oven Door-Pyro W/o WPL-Y0042740
...
34
Probe Recept. Cover Stainless WPL-Y0040848
...
35
Latch Handle Guide Pyro W.o. WPL-Y0042018
...
36
Panel, Side WPL-Y0052856
...
37
Compartment, Control Lt WPL-Y0314835
...
38
Assy, Conduit WPL-Y0315607
...
99
Chip Cover Pyro Wo WPL-0040405

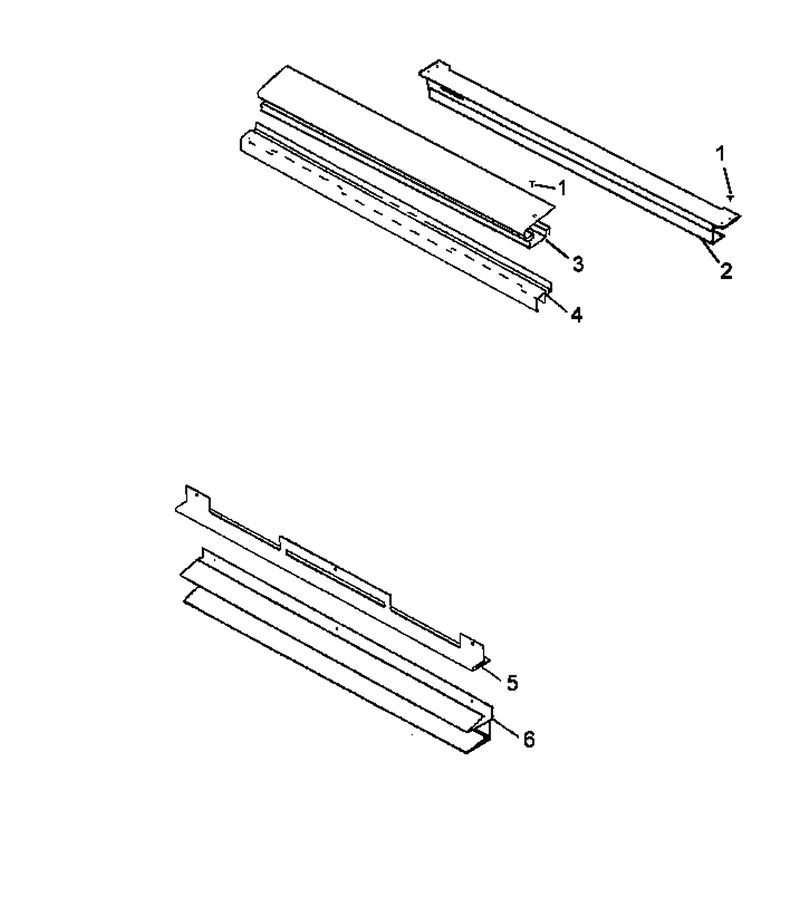

05 - Control Panel Trim

...
...
1
Screw- 8- WPL-31750418
...
2
Top Trim WPL-0304432
...
6
Trim, Cont Pnl Bottom WPL-0305647

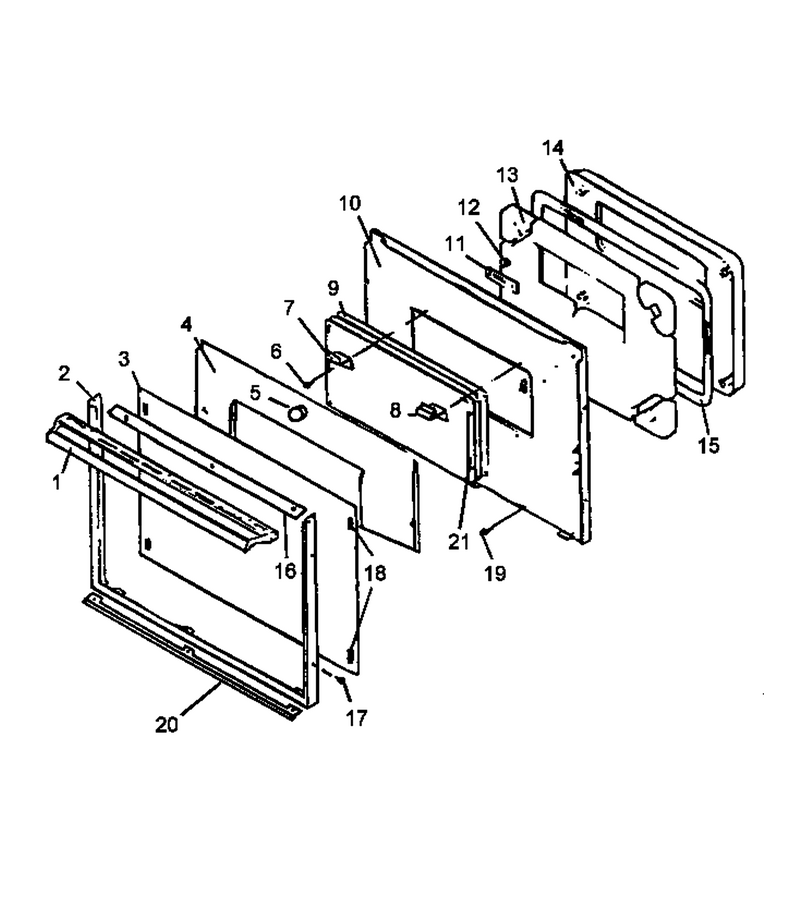

08 - Oven Door

...
...
1
Oven Door Handle WPL-0300051
...
2
Frame, Oven Door WPL-305584W
...
3
Glass, Door (White) WPL-0305632
...
4
Baffle, Inner WPL-306093W
...
5
Bumper, Oven Door WPL-Y0063661
...
6
Screw No.8-18x3/8 Hex Hd. WPL-0305423
...
7
Window Mtg. Brkt. Pk411 WPL-Y0040955
...
9
Window Assy WPL-0304831
...
10
W/a Door Liner WPL-Y0303067
...
11
Latch Plate WPL-Y0052039
...
12
Screw WPL-W11245710
...
13
Insulation, Wrapper WPL-31975801
...
14
Backer, Oven Door (Cg) WPL-40223CG
...
15
Gasket, Oven Dr 82`` WPL-Y0300432
...
18
Tape, Foam WPL-0043184
...
19
Screw No.8-18x3/8 Hex Hd. WPL-0305423
...
20
Angle, Glass Support (Wht) WPL-305586W
...
21
Retainer, Door Glass WPL-Y0052629
...
99
Label,cleaning Instr. WPL-0300584

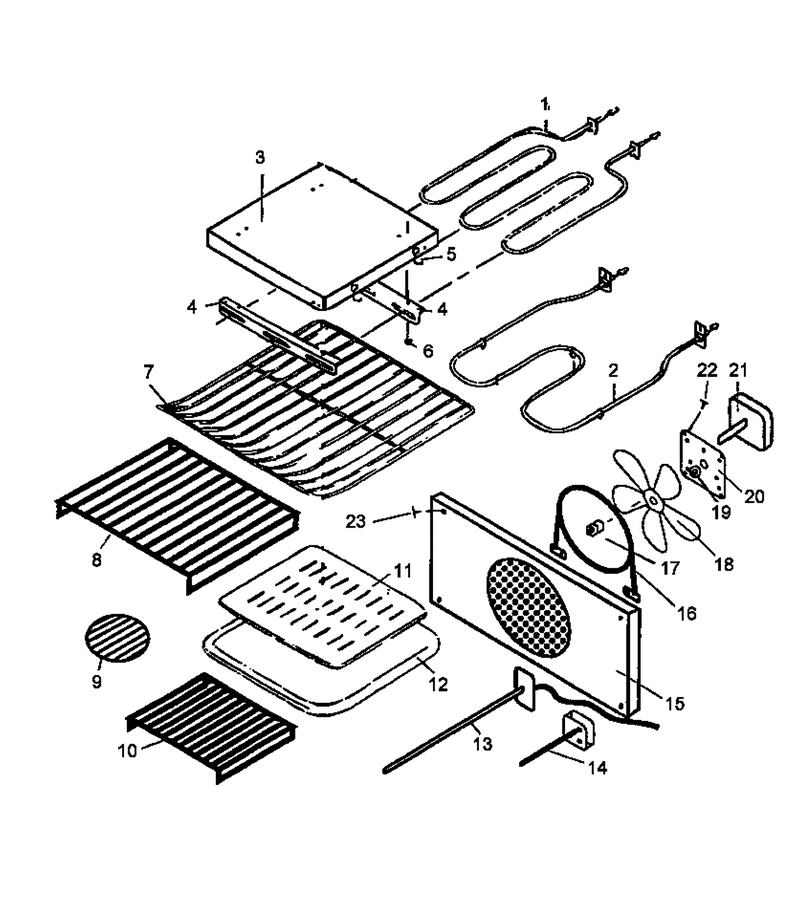

07 - Oven Accessories

...
...
1
Element, Broil (240v-2800w) WPL-Y0042138
...
2
Element- B WPL-WP77001092
...
3
Reflector, Broil Element WPL-Y0306503
...
4
Broil Element Support Pyro WPL-Y0040902
...
5
Clip, Thermo Capillary WPL-Y0067053
...
6
Screw WPL-WP90767
...
7
Rack, Oven 19 3/16`` X 16 1/2`` WPL-314762J
...
8
Rack, Oven 19 3/16`` X 14 3/4`` WPL-314781J
...
9
Meat Rack Slo/cook WPL-Y0042713
...
10
Rack, Broiler WPL-Y0306531
...
11
Procelain Broiler (Pan And Grid) WPL-4396923
...
12
Procelain Broiler (Pan And Grid) WPL-4396923
...
14
Sensor, Erc WPL-Y0300769
...
15
Fan Cover WPL-305623CG
...
16
Element, Conv Oven(240v-2200w) WPL-77001135
...
17
Nut, Lt Hand Thread WPL-0307037
...
18
Blade, Fan WPL-Y0307036
...
19
Washer (Zn) WPL-0307038
...
20
Bracket, Fan Mtg. WPL-0305627
...
21
Fan Assy, Convection (W/blade) WPL-Y0307035
...
22
Screw, No.10-32x1/2 (Ph Taptite) WPL-Y0091599
...
23
Screw, No.8-18x 1 1/4 Flthd(Blk) WPL-31750408

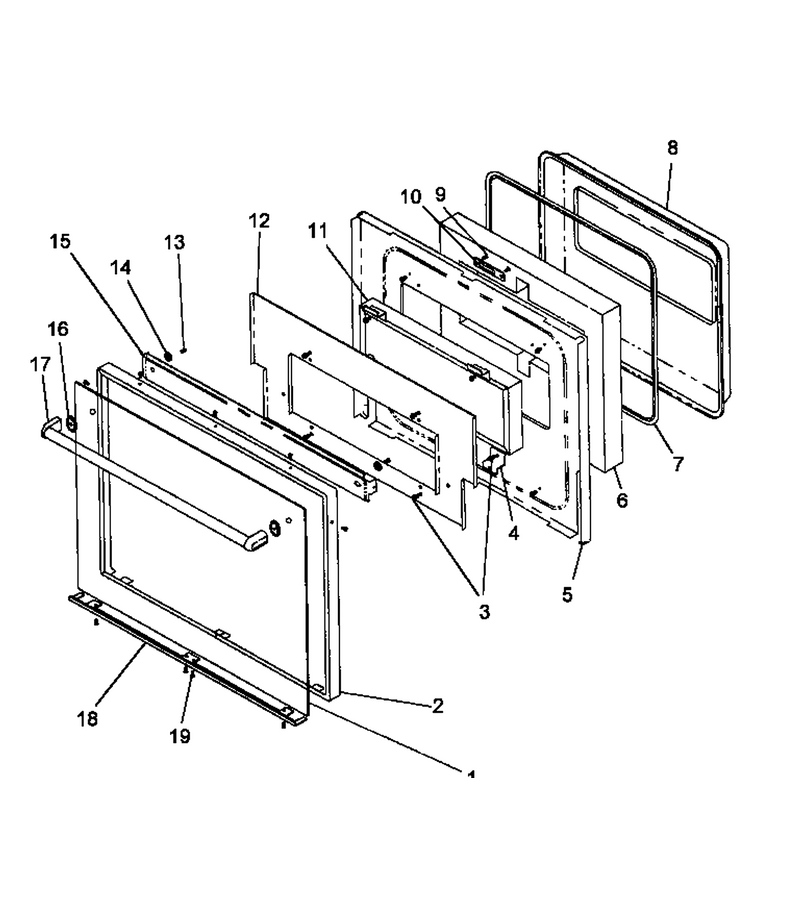

09 - Oven Door, Frameless

...
...
99
Tape, Foam WPL-0043184

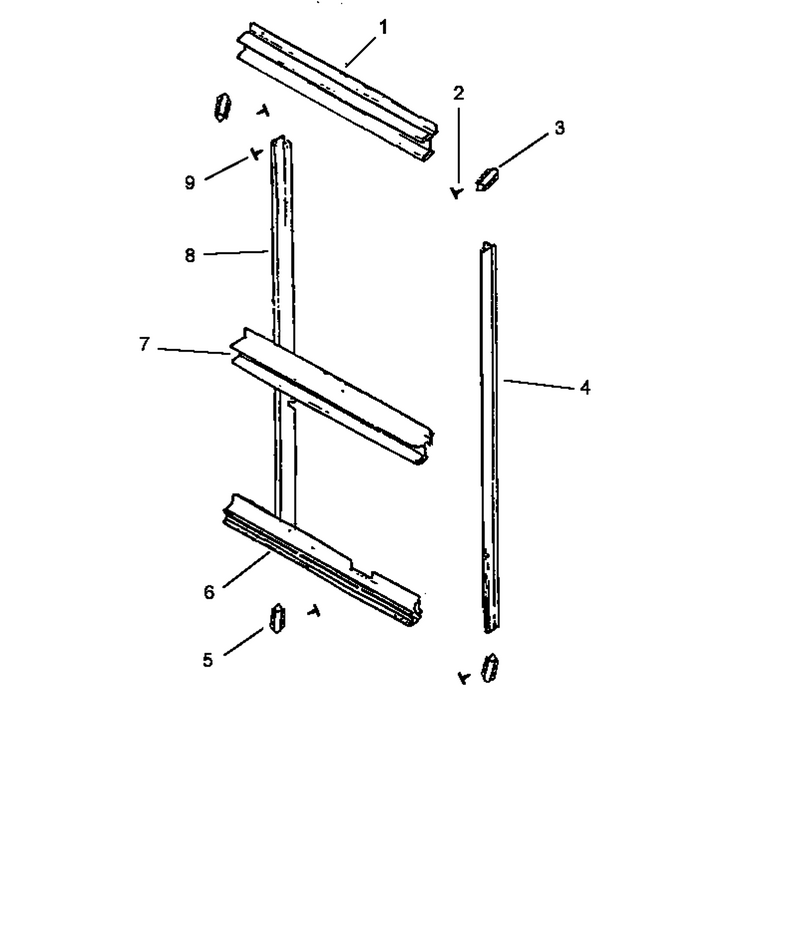

02 - Cabinet Trim

...
...
1
Trim, Cont Pnl Bottom WPL-0305647
...
2
Screw 6-32 X 3/8 WPL-Y0066765
...
4
Side Trim, Right WPL-0303347
...
6
Bottom Trim WPL-0301244
...
7
Trim, Center WPL-0305649
...
8
Trim, L. H. Side WPL-0307058
...
9
Screw WPL-W11245710

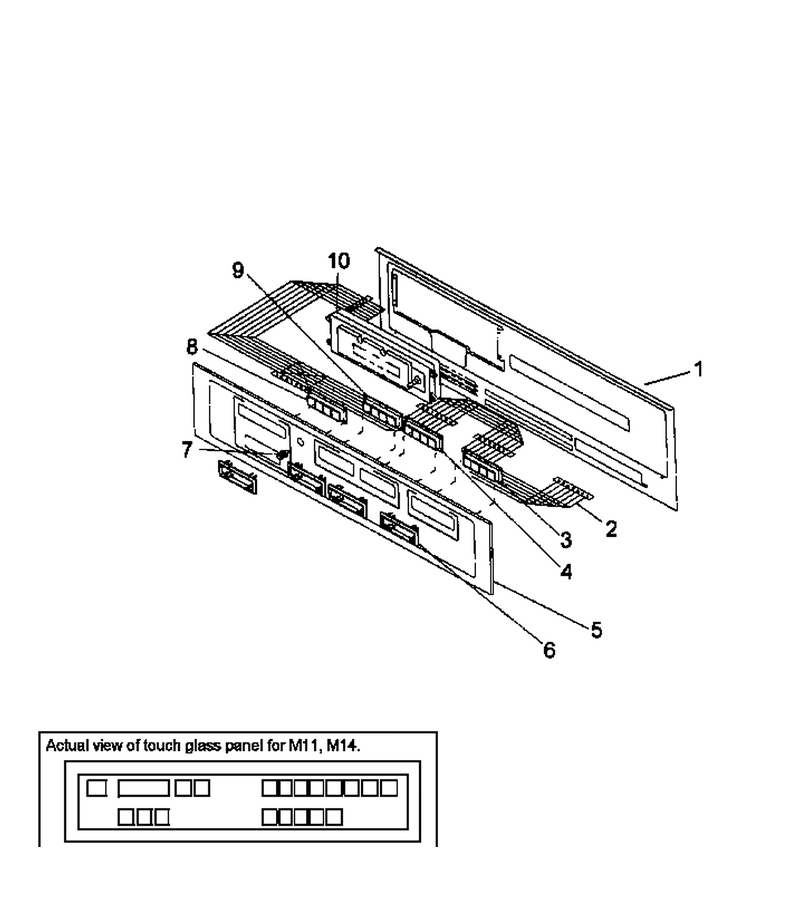

04 - Control Panel

...
...
1
Bracket, Cont. Mtg. WPL-305633G
...
2
Harness, Ribbon WPL-0305452
...
3
Assy, Rubber Button (Black) WPL-Y0305693
...
4
Circuit Board, W/buttons WPL-0306980
...
5
Glass, Cont Pnl WPL-0305571
...
6
Kit- Bezel WPL-R9900102
...
7
Knob- Cloc WPL-308956T
...
8
Circuit Board W/buttons WPL-0306978
...
9
X Circuit Board, W/buttons WPL-0306979
...
10
Erc 5800, Dbl Oven WPL-Y0305159
...
99
Channel, Glass WPL-0302733

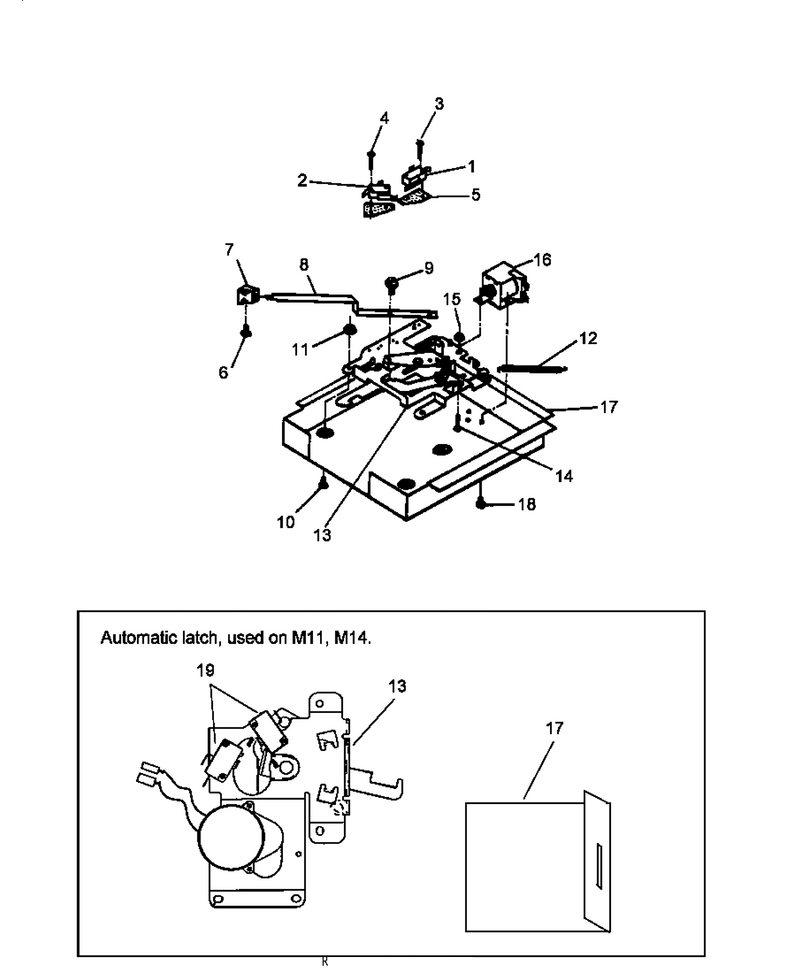

06 - Door Latch

...
...
1
Switch, Clean, Primary Interl WPL-Y0042052
...
2
Main Contact Switch WPL-0042051
...
3
Screw 4-40x15/16`` WPL-Y0041821
...
4
Screw 4 X 40x.500 Dyro T (Blk) WPL-Y0041826
...
5
Insulation, Esm WPL-Y0091523
...
6
Screw 10-32 X.250 Hex WPL-0041774
...
7
Knob, Door Latch Lt Gray WPL-Y0300044
...
8
Latch Arm WPL-301064B
...
9
Screw Latch Arm Mounting WPL-Y0078780
...
10
Screw WPL-WP4159193
...
11
Nut WPL-M0282009
...
12
Spring WPL-0044513
...
13
Door Latch Assy Wo WPL-Y0041909
...
14
Screw 6 32x1 Slotted Rn Brass WPL-0041773
...
15
Nut K WPL-M0282005
...
17
Latch Mtg. Brkt Pyro W/o WPL-Y0040903
...
18
Screw 10-32 X.250 Hex WPL-0041774

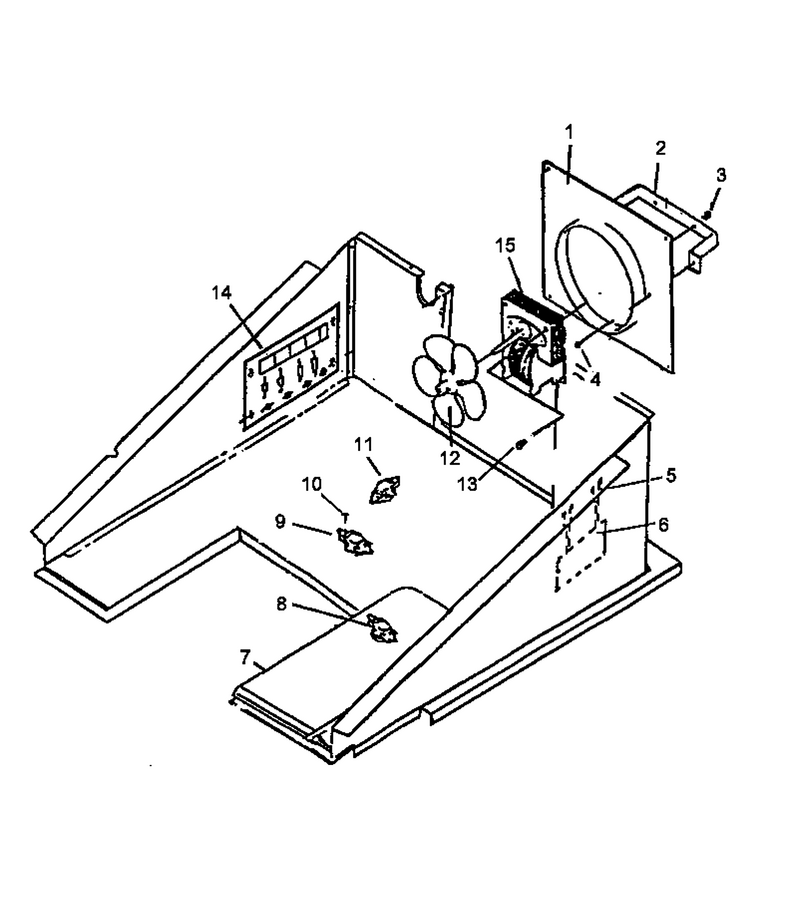

03 - Control Compartment

...
...
1
Back, Control Compartment WPL-Y0315557
...
2
Bracket-Motor Mount WPL-Y0305242
...
3
Screw WPL-W11245710
...
4
Grommet-Fan WPL-Y0305243
...
5
Resistor WPL-Y0042064
...
6
Relay Module No.2 WPL-Y0305699
...
7
Box, Upper Oven Flue WPL-306384B
...
8
Limit Switch-Open 90 WPL-Y0042066
...
9
Limit Control-Upper Oven-200 WPL-Y0042045
...
10
Screw WPL-W11245710
...
11
Switch Fan Spdt WPL-Y0042056
...
12
Blade, Fan WPL-Y0042754
...
13
Screw 6 32x1 Slotted Rn Brass WPL-0041773
...
14
Trans. Relay Module No.1 WPL-Y0305698
...
15
Fan Motor WPL-Y0042226
