Amana FC18-3H (BOM: P5465501R)

Model: FC18-3H (BOM: P5465501R)

Save Part Not Listed?
product name

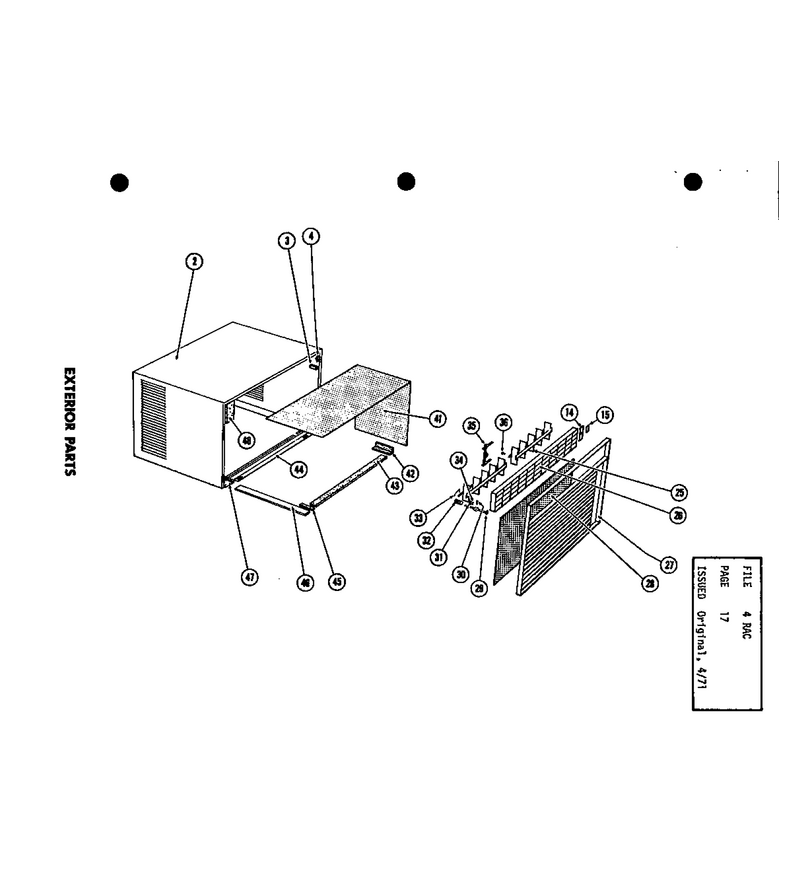

01 - Exterior Parts

...
...
NI
Filter, Retainer WPL-A4542802
...
2
Outer Case Weld WPL-D5378320
...
3
Guide WPL-A4607401
...
4
Clip WPL-M0100306
...
14
Friction Clip WPL-A4664503
...
15
Clip WPL-M0115701
...
25
Louvers WPL-C5286601
...
26
Horizontal Louver Box WPL-D5396425
...
27
Front, Cabinet WPL-D5421505
...
28
Filter-Air WPL-WP876775
...
29
Lever, Vertical Louvers, Cabin WPL-B5139703
...
30
Clinch WPL-M0590201
...
32
Spring,lever WPL-A4624102
...
33
Linkage Bar WPL-A4623801
...
34
Screw WPL-M0229004
...
35
Center Support WPL-B5175010
...
36
Screw WPL-M0229004
...
41
Insulation WPL-C5245001
...
42
Gasket WPL-B5107607
...
43
Gasket, Closure Plate Flange, WPL-A3030325
...
45
Gasket, Closure Plate Flange, WPL-A3030325
...
46
Glide WPL-B5169802
...
47
Gasket, Polyethylene, Outer Ca WPL-A4591111
...
48
Gasket-Per Ft WPL-A3030319

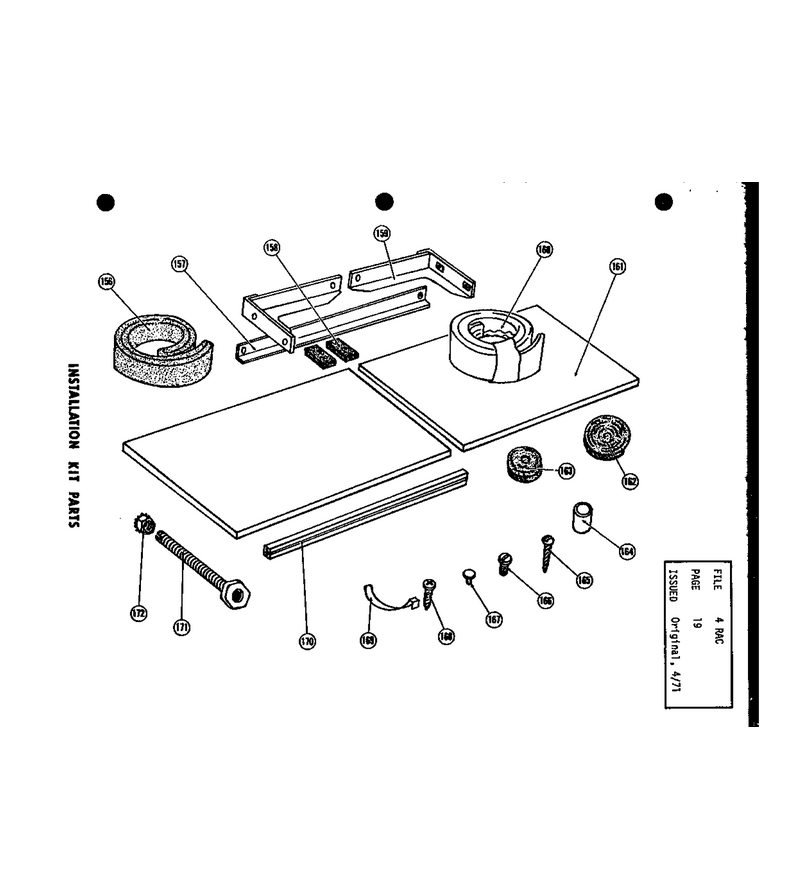

02 - Installation Kit Parts

...
...
156
Gasket WPL-10839702
...
157
Secondary Stop WPL-B1101701
...
159
Angle Support Weld WPL-C5872103
...
160
Gasket WPL-B1100301
...
161
Window Board WPL-A4607701
...
162
Gasket WPL-10839708
...
163
Gasket, Closure Plate Flange, WPL-A3030325
...
164
Spacer K WPL-A4065501
...
165
Screw WPL-M0212062
...
167
Plug WPL-M0310312
...
168
Screw WPL-M0211530
...
169
Spring WPL-B1100601
...
170
Gasket WPL-B4764402
...
171
Screw Adjusting WPL-M0200003
...
172
Nut-Keps WPL-M0282019

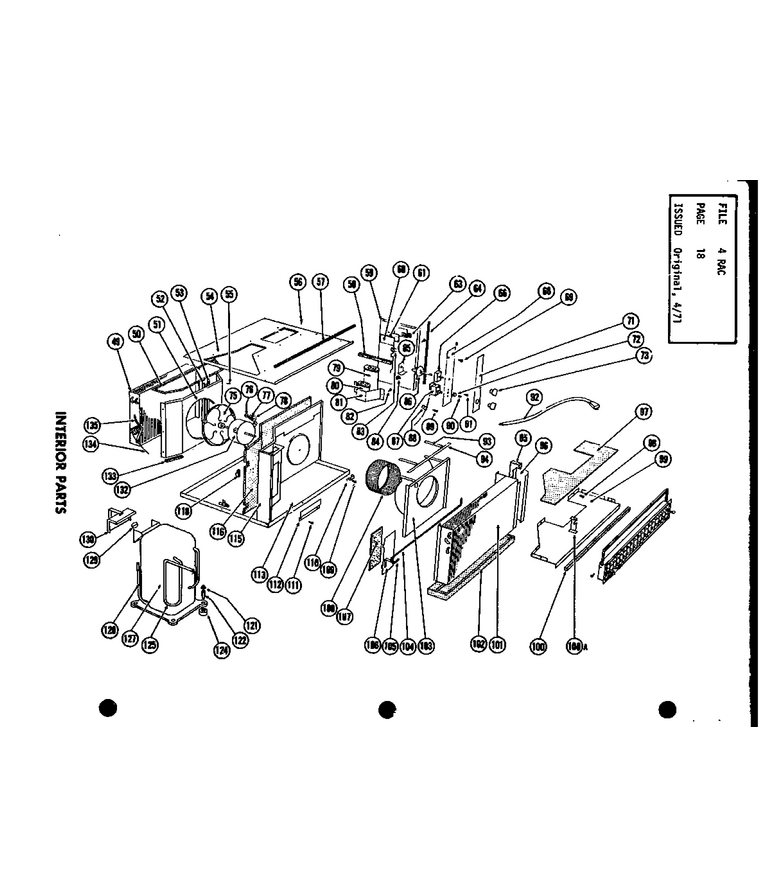

03 - Interior Parts

...
...
NI
Insulation, Top Cover WPL-B5170701
...
49
Condenser Coil Assembly WPL-D5351302
...
50
Gasket WPL-A3030302
...
51
Shroud WPL-D5349401
...
52
Screen WPL-B5117101
...
53
Gasket WPL-10839708
...
54
Top Cover WPL-D5349801
...
55
Screw WPL-W11233072
...
56
Kit, Screw WPL-R9800670
...
57
Gasket WPL-A3030302
...
58
Gasket WPL-A3030302
...
59
Panel, Access WPL-D5349301
...
60
Damper Door WPL-B5110501
...
61
Gasket WPL-B5107602
...
63
Spring WPL-B4778001
...
64
Gasket (1=1ft.) WPL-10839713
...
66
Rotary Switch WPL-B5131601
...
68
Bracket-Control WPL-D5349603
...
69
Screw WPL-M0211530
...
70
Bushing WPL-A3073601
...
71
Escutheon Control WPL-C5832913
...
72
Bushing WPL-A3073601
...
73
Knob WPL-D7009804
...
75
Fan Blade WPL-D5353102
...
76
Nut WPL-M0282009
...
77
Washer WPL-M0270504
...
78
Grommet WPL-M0500501
...
79
Capacitor, Comp. Run, 30 Mfd, WPL-C5825019
...
80
Capacitor, Fan Motor Run, 5 M. WPL-C5825010
...
81
Strap WPL-B5115801
...
82
Screw WPL-M0211545
...
83
Clamp WPL-A4598401
...
84
Clip WPL-M0110503
...
85
Bearing WPL-A4615401
...
86
Damper Cam WPL-C5271801
...
87
Thermostat WPL-B4763502
...
88
Clamp WPL-M0102702
...
89
Screw WPL-W11233072
...
90
Clip,retainer WPL-M0115902
...
91
Screw WPL-M0232012
...
92
Cord, Appliance WPL-8215269
...
93
Gasket WPL-A3030302
...
94
Gasket WPL-A3030302
...
95
Insulation WPL-A4622001
...
96
Barrier, Fiber WPL-B5107001
...
97
Insulation, Evaporator Cover WPL-B5170602
...
98
Kit, Screw WPL-R9800670
...
99
Evap Cover WPL-D5349901
...
100
Gasket (per Foot) WPL-A3030313
...
100A
Spacer,plenum WPL-B5170401
...
101
Evaporator Coil Assembly WPL-D5397001
...
102
Filler Block WPL-D5350101
...
103
Scroll, Evaporator WPL-D5349701
...
104
Damper Rod WPL-A4615501
...
105
Clip WPL-M0110901
...
106
Damper Door WPL-C5236701
...
107
Gasket WPL-B5107601
...
108
Blower Wheel, Evaporator WPL-D5352001
...
109
Screw WPL-M0211545
...
110
Clamp WPL-M0102101
...
111
Kit, Screw WPL-R9800670
...
112
Handle, Chassis WPL-A4591401
...
113
Weldment, Base Pan And Assembl WPL-D5444701
...
115
Weldment, Partition Panel WPL-D5352901
...
116
Insulation, Partition Panel, O WPL-C5239301
...
118
Clamp, Tube WPL-M0102305
...
119
Screw WPL-M0211545
...
121
Nut WPL-M0283610
...
122
Sleeve WPL-A4588801
...
124
Grommet WPL-B1315401
...
125
Tube, Suction WPL-B5195701
...
127
Compressor, Srb4-0200-Pfv, 230 WPL-D5320106
...
128
Tube, Discharge WPL-D5400105
...
129
Overload WPL-D4976658
...
132
Fan Mtr, Franklin, Cy641192/87 WPL-C5262704Q
...
133
Seal Strip WPL-A4017201
...
134
Capillary WPL-C4804561
...
135
Strainer WPL-B5159301
...
136
Kit, Screw WPL-R9800670
