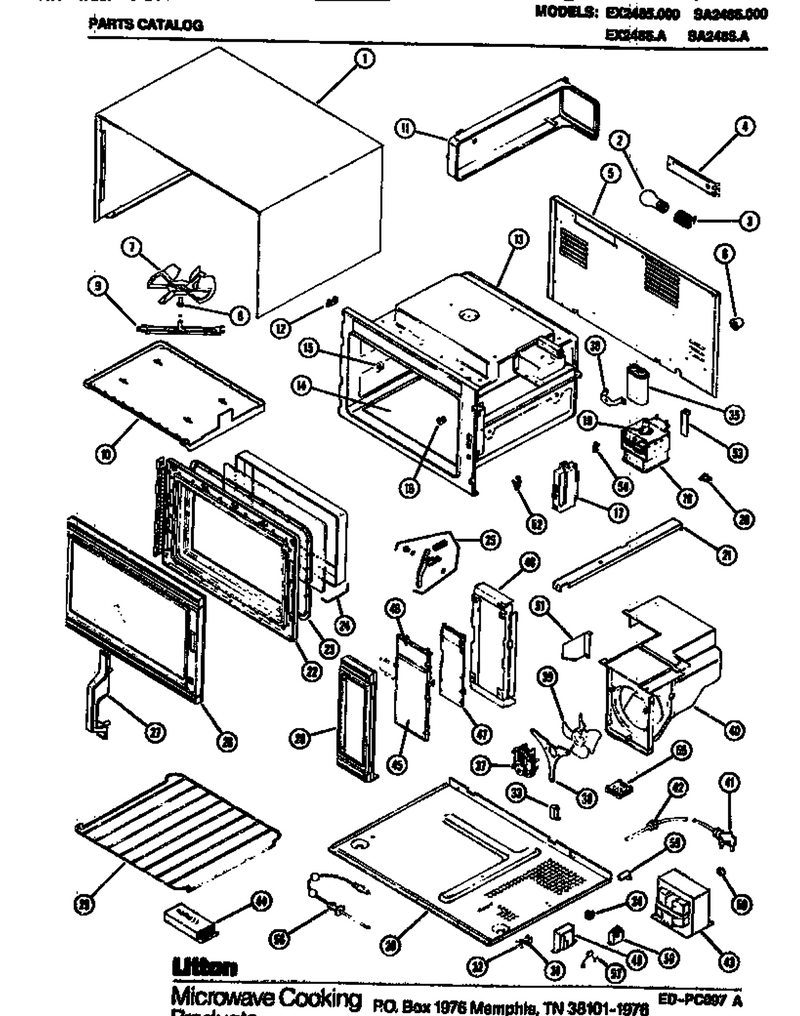

Amana EX2485.000 (BOM: EX2485.00 0)

Model: EX2485.000 (BOM: EX2485.00 0)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

01 - Page 1

...
...
NI
M95d11-Centigrade Thermo WPL-M95D11
...
1
Screw WPL-WP90767
...
2
Lamp, Cavity WPL-M9D54
...
3
Lamp Holder WPL-40082P01
...
4
Cover Lamp WPL-M7D309
...
5
Screw WPL-WP90767
...
6
Foot, Outer Case WPL-C8960601
...
7
Stirrer Blade Kit WPL-M35D44
...
8
Insert Stirrer Kit WPL-M2D571
...
9
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
10
Cover, Stir WPL-M45D32
...
11
Screw Plastc (25) WPL-M1D897
...
12
Fuse- Ther WPL-59001951
...
13
Cavity Assy WPL-M77D132
...
14
Adhesive WPL-W10841140
...
15
Rack Support C-Type Wht WPL-3010010002
...
16
Support Rack WPL-B8371001
...
17
No.8 Flat Washer WPL-M1D136
...
18
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
19
Gasket-Rf WPL-M2D296
...
20
Cutout-Thermal-Control WPL-31866P01
...
21
Not Available WPL-M20D217
...
22
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
23
Gasket-R.f. WPL-38874P01
...
24
Cap Inner Door Assy Kit WPL-M55D23
...
25
Kit, Latch Hook WPL-M2D739
...
26
Outer Door Assembly WPL-M70D143
...
27
Screw, Handle Mtg WPL-Y05600099
...
28
Screw (25) WPL-M1D902
...
29
Rack (White) Kit WPL-M67D32
...
30
Screw WPL-WP90767
...
31
Fuse, 10 Amp WPL-M0805106
...
32
Ia Screw WPL-M1D329
...
33
Screw WPL-WPW10001160
...
34
Foot WPL-M2D179
...
35
Capacitor-Doubler WPL-10366913
...
36
Bracket WPL-10825501
...
37
Nut K WPL-M0282005
...
38
Bracket Blower WPL-M20D219
...
39
Fan Blade WPL-M35D40
...
40
Screw Plastc (25) WPL-M1D897
...
41
Screw WPL-WPW10001160
...
42
Bush, Strain Relf (10) WPL-M2D586
...
43
No.10 T X 3/8`` Screw WPL-M1D479
...
44
H.v. Lead Kit WPL-M5D350
...
45
Touch Panel Assembly WPL-M7D846
...
46
Display Window WPL-M2D722
...
47
Net-Assy,ckt Bd(Rework) WPL-M32R51
...
48
Control Panel Housing WPL-M7D816
...
49
Nut K WPL-M0282005
...
50
Relay WPL-38806P01
...
51
Baffle Cav Upper WPL-M65D337
...
52
3/8 Int Tooth Lockwasher WPL-M1D598
...
53
Air Deflector WPL-M8D344
...
54
Wire Clip (10) WPL-M2D741
...
55
Int`l Lst Iv WPL-4070001101
...
56
Probe-Temp WPL-45584P01
...
57
Varistor Asm WPL-M3D49
...
58
Toroid (Arc Suppressor) WPL-44780P01
...
59
Line Filter Kit WPL-M10D90
