Amana EX2010.013 (BOM: EX2010.01 3)

Model: EX2010.013 (BOM: EX2010.01 3)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

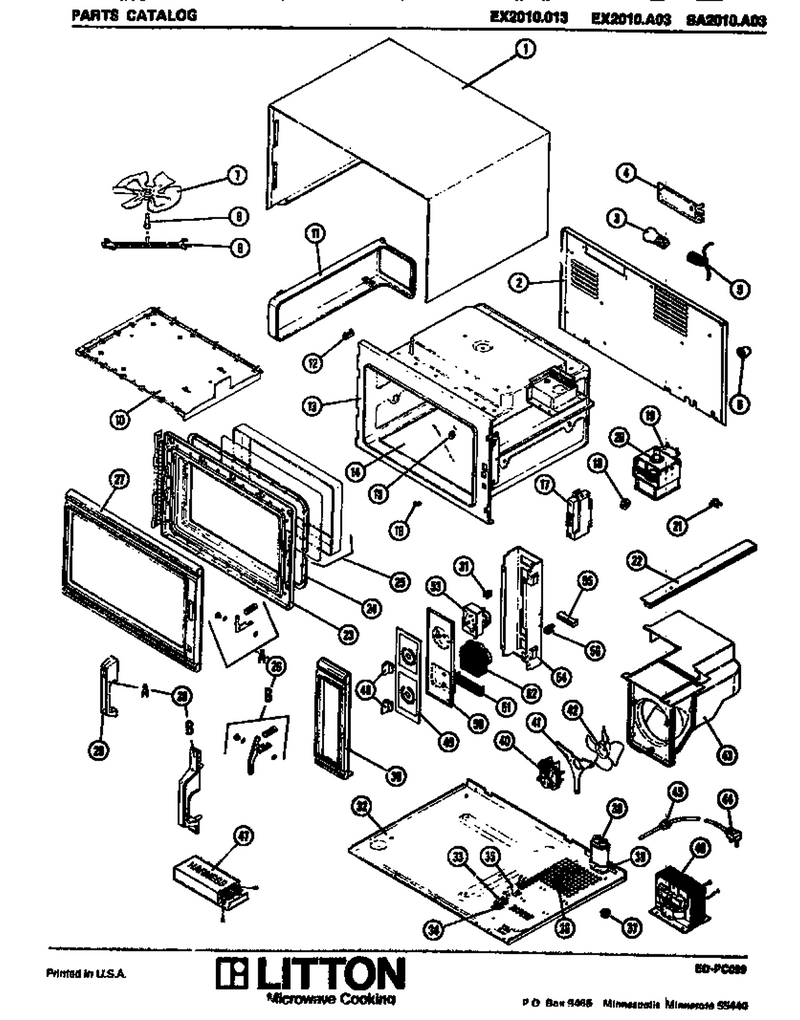

01 - Page 1

...
...
NI
Paint-Blac WPL-R0197056
...
1
Outer Case WPL-M80D121
...
2
Screw WPL-WP90767
...
3
Lamp, Cavity WPL-M9D54
...
4
Cover Lamp WPL-M7D309
...
5
Screw (25) WPL-M1D356
...
6
Screw WPL-WP489474
...
7
Stirrer Blade Kit WPL-M35D44
...
8
Ball WPL-38321P01
...
9
Support-Stir WPL-M20D236
...
10
Poly Button WPL-M1D832
...
11
Exhaust Duct WPL-M65D282
...
12
Sensor Magnetron Kit WPL-M4D101
...
13
Cavity Assy WPL-M77D132
...
14
Adhesive WPL-W10841140
...
15
Rack Support Set WPL-M2D601
...
16
Cavity Plug (10) WPL-M1D755
...
17
U-Clip WPL-M2D575
...
18
Toroid (Arc Suppressor) WPL-44780P01
...
19
Kit, Magnetron WPL-M57D36
...
20
Gasket-Rf WPL-M2D296
...
21
Screw Thrm WPL-M1D666
...
22
Screw WPL-WP90767
...
23
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
24
Gasket-R.f. WPL-38874P01
...
25
Cap Inner Door Assy Kit WPL-M55D23
...
26
Kit, Latch Hook WPL-M2D739
...
27
No.8 Ab X 3/8`` Screw WPL-M1D900
...
28
No.10 Flat Hd Machine Screw M1d9 WPL-M1D901
...
29
Insert Kit WPL-M7D588
...
30
No.8 Ab X 3/8`` Screw WPL-M1D900
...
31
Speed Clip WPL-41657P01
...
32
Rivet, Pop WPL-A4539629
...
33
Fuse, 10 Amp WPL-M0805106
...
34
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
35
Lock Washer WPL-M0272803
...
36
Lock Washer WPL-M0272803
...
37
Foot WPL-M2D179
...
38
Capacitor-Doubler WPL-10366913
...
39
Bracket WPL-10825501
...
40
Mtr Blwr WPL-42508P01
...
41
Screw (25) WPL-M1D903
...
42
Fan Blade WPL-M35D40
...
43
Screw Plastc (25) WPL-M1D897
...
44
Pwr Cord WPL-M26D36
...
45
Bush, Strain Relf (10) WPL-M2D586
...
46
H.v. Xfmr WPL-M60D134
...
47
Wire Harness WPL-M27D360
...
48
Knob, Timer/controller WPL-M6D298
...
49
M7d764 Dec Pnl Assy. WPL-42624P02
...
50
Not Available WPL-M7D592
...
51
Not Available WPL-M8D253
...
52
Pct Timerx WPL-30001P02
...
53
Screw Thrm WPL-M1D666
...
54
Frame WPL-M7D637
...
55
Surge Resistor WPL-M3D36
...
56
Nut WPL-WP488130
