Amana EX1010.000 (BOM: EX1010.00 0)

Model: EX1010.000 (BOM: EX1010.00 0)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

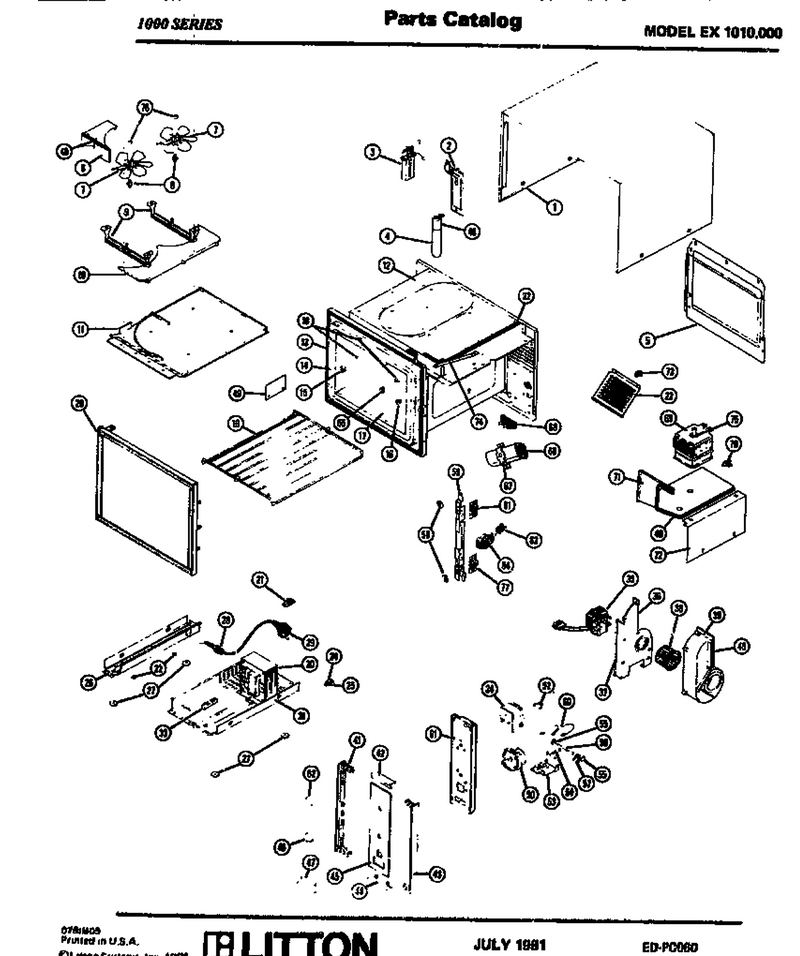

01 - Page 1

...
...
1
Not Available WPL-M80D94
...
2
Screw (25) WPL-M1D827
...
3
Harness Pkg WPL-M27D286
...
4
Bulb WPL-36637P01
...
5
Not Available WPL-M65D206
...
6
Air Baffle, Stirrer Kit WPL-M65D203
...
7
Blade, Fan WPL-M35D25
...
8
Insert, Stirrer WPL-M2D332
...
9
Tinnerman Clip (1) WPL-M1D833
...
10
Wave Director WPL-M65D204
...
11
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
12
Not Available WPL-M77D91
...
13
Gasket WPL-M25D59
...
14
Waveguide Assembly WPL-M65D15
...
15
Rack Support C-Type Wht WPL-3010010002
...
16
Support Rack WPL-B8371001
...
17
Shelf-W/snt Kit WPL-M50D35
...
18
Poly Button (10) WPL-M1D844
...
19
Bumper Rack WPL-M2D425
...
20
Screw (25) WPL-M1D571
...
21
Screw WPL-WPW10001160
...
22
Plastic Plug WPL-M2D485
...
23
Baffle, Intr WPL-M65D207
...
24
Fuse WPL-M4D70
...
25
Fuse Holder WPL-M4D71
...
26
Screw (25) WPL-M1D827
...
27
Screw, Foot Mtg. WPL-M1D828
...
28
Bush, Strain Relf (10) WPL-M1D600
...
29
Pwr Cord WPL-M26D36
...
30
No.10 T X 3/8`` Screw WPL-M1D479
...
31
Base Right WPL-M79D74
...
32
Gasket WPL-A3030302
...
33
Screw WPL-WPW10068250
...
34
Timer WPL-M30D59
...
35
Blower Motor WPL-M12D63
...
36
Screw (25) WPL-M1D827
...
37
Edge Guard A WPL-M2D374
...
38
Blower Wheel WPL-M35D28
...
39
Blower Housing WPL-M65D199
...
40
Gasket WPL-A3030302
...
41
End Cap-Lft WPL-M7D402
...
42
Screw WPL-WPW10001160
...
43
Screw WPL-WP90767
...
44
Bottom Cap WPL-M7D401
...
45
Dec Panel WPL-M7D499
...
46
Knob, Controller WPL-M6D284
...
47
Release Bar WPL-M11D53
...
48
Wire Harness WPL-M5D186
...
49
Air Baffle WPL-M8D207
...
50
Screw (25) WPL-M1D523
...
51
Back Panel WPL-M7D478
...
52
Snubber Assy WPL-35773P01
...
53
Not Available WPL-M8D185
...
54
No.8 T X 3/8`` Screw WPL-M1D402
...
55
Clip WPL-M2D445
...
56
Pivot Pin WPL-M2D446
...
57
Spring WPL-M2D447
...
58
M2d479 Bearing WPL-M2D479
...
59
Not Available WPL-M20D158
...
60
Ground Lead WPL-M5D266
...
61
Switch Assy M14d230 WPL-M14D210
...
62
Knob, Timer WPL-M6D283
...
63
Switch, Monitor WPL-35370P01
...
64
Guide-Sw WPL-M2D441
...
65
Cavity Plug (10) WPL-M1D755
...
66
Capacitor WPL-M10D68
...
67
Bracket WPL-10825501
...
68
Nut (25) WPL-M1D809
...
69
No.10 Hex Wshr Hd Mach Scr WPL-M1D114
...
70
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
71
Screw (25) WPL-M1D827
...
72
Screw (25) WPL-M1D827
...
73
Plug WPL-M2D466
...
74
H V Lead 35 WPL-M5D264
...
75
Gasket-Rf WPL-M2D296
...
76
Teflon Sleeve (1) WPL-M1D834
...
77
Switch Assy M14d230 WPL-M14D229
