Amana EU18K (BOM: P6025008W)

Model: EU18K (BOM: P6025008W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

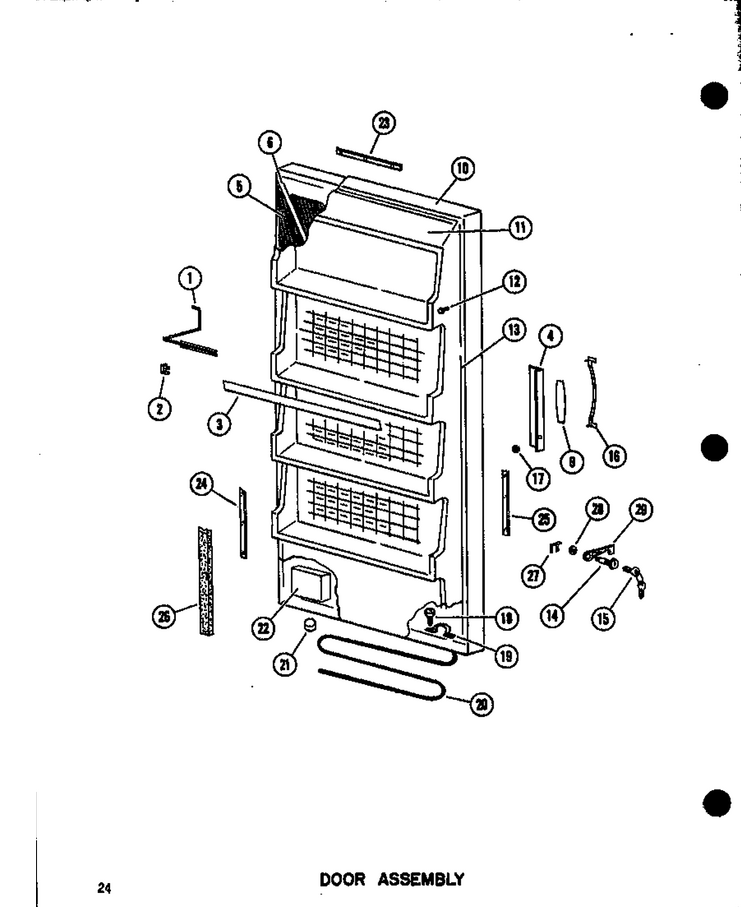

02 - Door Assy

...
...
U13k/p60250-5w These Models Have A Danfoss Compressor And Related Parts WPL-NOTE:
...
1
Retainer WPL-C3683101
...
2
End Cap WPL-B5687901
...
3
Retainer WPL-B5632008
...
4
Pad-Handle WPL-D7162501
...
5
Insulation WPL-B0573902
...
6
Tie Rod WPL-B0569803
...
9
Nameplate WPL-C3682703
...
10
Door G-Uf22k WPL-D7017036
...
11
Inner Door Panel WPL-D7156401
...
12
Screw-Sm WPL-M0241118
...
13
Gasket WPL-D7158703
...
14
Barrel Lock K WPL-B5688002
...
15
Key K WPL-A3199101
...
16
Handle WPL-D7096001
...
17
Nut WPL-M0289801
...
18
Sems Fastner WPL-M0243037
...
19
Spring Clip WPL-B0544001
...
20
Heater Wire WPL-C3643802
...
21
Vent Assy WPL-A3101901
...
22
Block-Air Vent WPL-C3684701
...
23
Retainer-Gasket WPL-D7158601
...
24
Retainer-Gasket WPL-D7158606
...
25
Retainer, Gasket WPL-D7158607
...
26
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
27
Clip K WPL-A3199001
...
28
Washer-Plastic WPL-M0274033
...
29
Bolt K WPL-C3682301

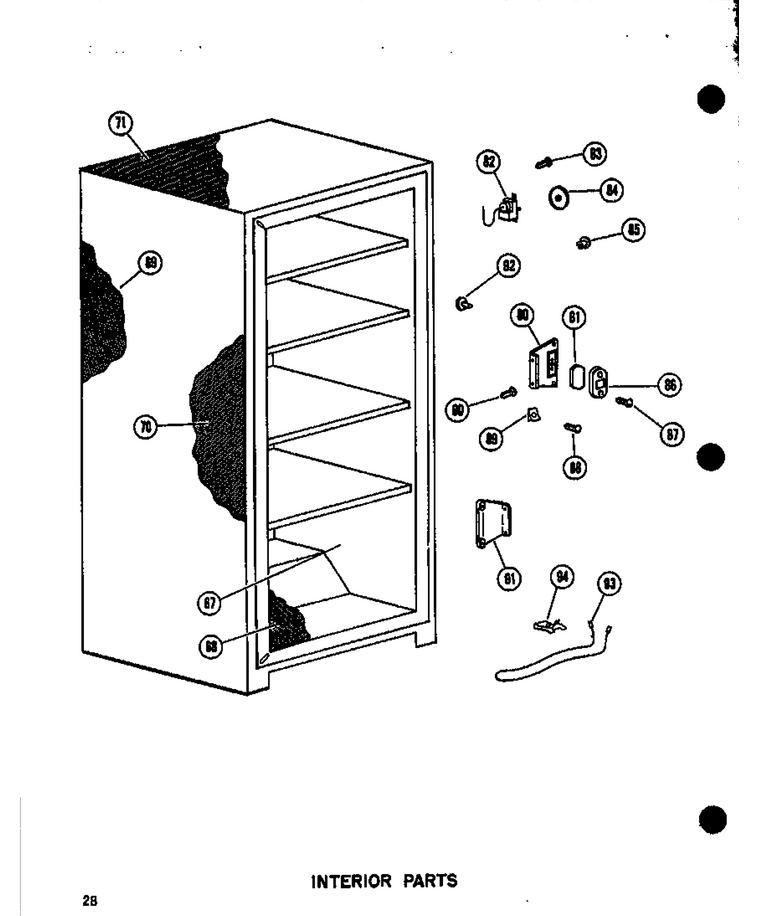

04 - Interior Parts

...
...
67
X$x Liner Assy U18k WPL-N6025903
...
68
Insulation, Bottom WPL-B0553902
...
69
Insulation, Batt Back WPL-B0572701
...
70
Insulation, Batt Side WPL-B0572901
...
71
Insulation Ft. K WPL-B0572828
...
80
Strike Pad WPL-D3913901
...
81
Shim WPL-A3063202
...
82
Control, Temperature WPL-B0543810
...
83
Screw WPL-M0202528
...
84
Knob, Control WPL-C3577902
...
85
Rivet Plastic WPL-A3032601
...
86
Strike Lock WPL-B0570101
...
87
Screw WPL-M0230834
...
88
Screw WPL-WP489464
...
89
Speed Nut WPL-M0288107
...
90
Screw WPL-WP90767
...
91
Tie Strip WPL-D3913801
...
92
Switch, Light WPL-D7101301
...
93
Heater Mullion WPL-C3684904
...
94
Clip WPL-M0113402

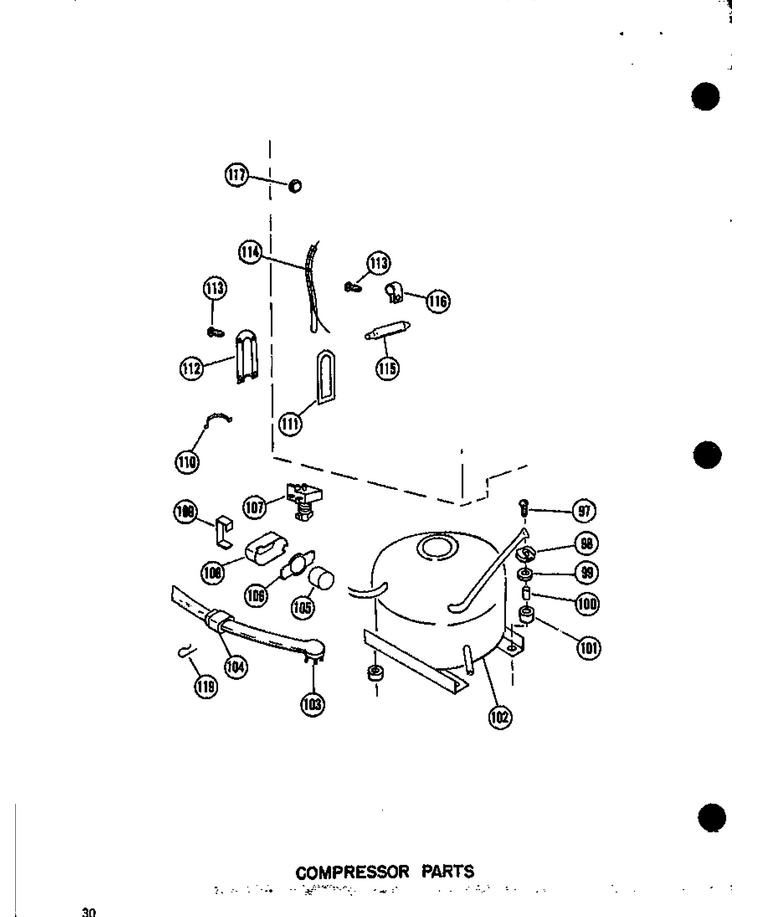

01 - Compressor Parts

...
...
98
Clip WPL-M0111001
...
101
Grommet K WPL-A4002702
...
102
Compressor, Tecumseh WPL-D3904401
...
103
Cord WPL-B0568501
...
104
Grommet, Cord WPL-211881
...
105
Overload WPL-C3568401
...
106
Spring K WPL-A3043601
...
107
Relay K WPL-C3568501
...
108
Terminal Cover WPL-B0551801
...
109
Strap K WPL-A3041801
...
110
Wall Spacer WPL-A3032901
...
111
Gasket WPL-A0382801
...
112
Cover Plate WPL-A0382903
...
113
Screw WPL-WP90767
...
114
Heat Exchange Assy WPL-D7164103
...
115
Drier WPL-WPB2150504
...
116
Clamp WPL-M0102315
...
117
Plug WPL-A0353901
...
119
Clip WPL-M0110502

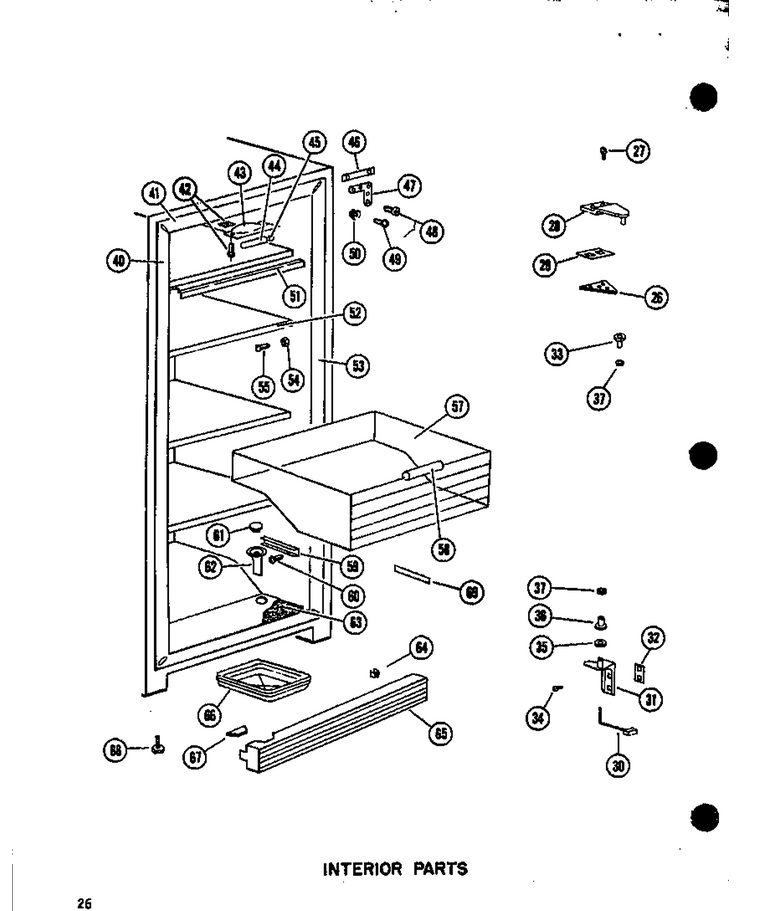

03 - Interior Parts

...
...
U16k/p60250-23w These Models Have A Danfoss Compressor And Related Parts WPL-NOTE:
...
26
Tap Strip WPL-A3139701
...
27
Kit, Screw WPL-R9800670
...
28
Hinge-Top WPL-B5721501
...
29
Shim WPL-A3143701
...
30
Hinge Wire WPL-C3685701
...
31
Hinge WPL-C3682102
...
32
Shim WPL-A3061902
...
33
Bearing Flat (Top Hinge) WPL-B0539806
...
34
Screw WPL-WP67006715
...
35
Washer K WPL-M0274013
...
36
Flat Bearing (Bottom Hinge) WPL-B0539807
...
37
Washer WPL-M0274027
...
40
Breaker Frame WPL-D3914103
...
41
Breaker Frame WPL-D3710305
...
42
Speed Nut WPL-M0288010
...
43
Housing, Light WPL-C3540303
...
44
Light Bulb (40w / 230v) WPL-A3079004
...
45
Socket-Light WPL-D7714407
...
46
Tap Strip WPL-A3013201
...
47
Liner Gusset WPL-C3523801
...
48
Screw WPL-M0250531
...
49
Sems Fastner WPL-M0252047
...
50
Grommet WPL-A0381802
...
51
Trim WPL-B5688802
...
52
Shelf Wldmt WPL-D3856911
...
53
Breaker Frame WPL-D7098601
...
54
Nut A WPL-M0281204
...
55
Screw WPL-M0207943
...
57
Basket K WPL-D7163101
...
58
Handle, Basket WPL-B0571805
...
59
Track Shelf K WPL-D7117102
...
60
Screw WPL-W11233072
...
61
Drain Screen WPL-A3113701
...
62
Drain-Valve WPL-A3044501
...
63
Insulation WPL-A3130001
...
64
Clip WPL-WPM0117303
...
65
Grille-Toe WPL-D7070202
...
66
Drain Pan WPL-C3523101
...
67
Grille-Toe WPL-B5641301
...
68
Glider Bolt WPL-M0266510
...
69
Tap Strip-Glide WPL-B5695201
