Amana EU18F (BOM: P6011708W)

Model: EU18F (BOM: P6011708W)

Save Part Not Listed?
product name

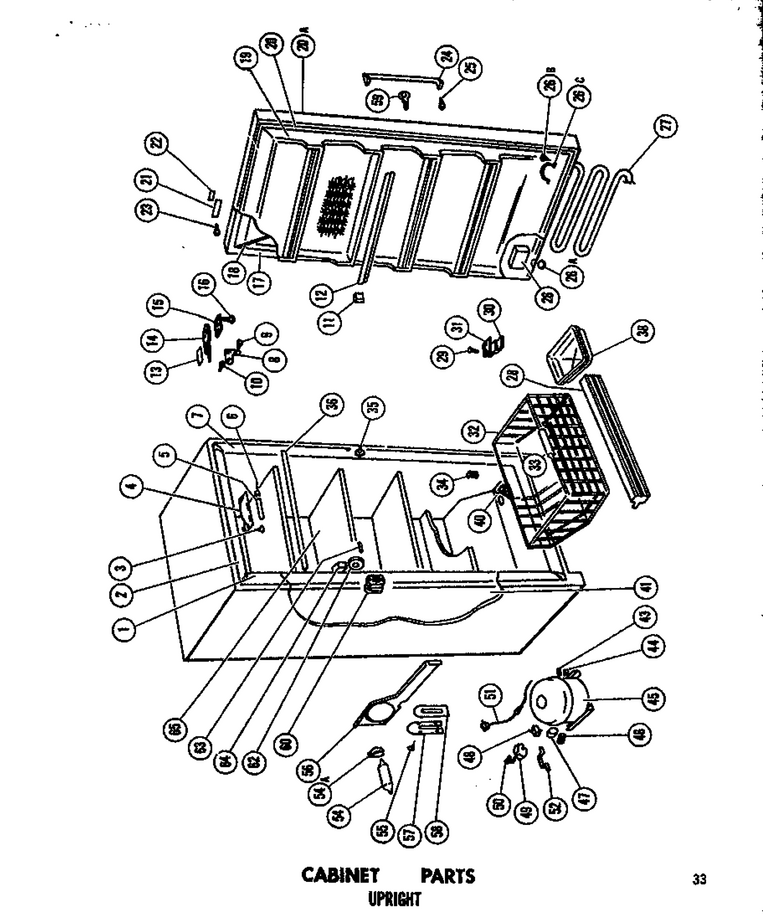

01 - Cabinet Parts

...
...
NI
Screw WPL-M0211530
...
1
Breaker Frame WPL-D3914103
...
2
Breaker Frame WPL-D3710305
...
3
Screw WPL-M0217516
...
4
Light Housing WPL-C3540301
...
5
Light Bulb (40w / 230v) WPL-A3079004
...
6
Socket WPL-B0542702
...
7
Breaker Frame WPL-D7098601
...
8
Liner Gusset WPL-C3523801
...
9
Screw WPL-M0250531
...
10
Sems Fastner WPL-M0252047
...
11
Support WPL-D3976806
...
12
Package Retainer WPL-D3976703
...
14
Top Hinge Plate WPL-B0525801
...
15
Top Hinge Shim WPL-A3009801
...
16
Screw WPL-M0247058
...
17
Insulation WPL-B0573902
...
18
Tie Rod WPL-B0569803
...
19
Inner Dr Panel WPL-D3913504
...
20
Door W-Eu18f-U WPL-D7017012
...
21
Nameplate WPL-C3578003
...
22
Escutcheon WPL-C3577601
...
23
Stud WPL-M0550001
...
24
Handle, Door WPL-D3890301
...
25
Screw WPL-M0248231
...
26
Vent Assy WPL-A3101901
...
27
Heater Wire WPL-C3643802
...
28
Grille-Toe WPL-C3574707
...
29
Screw WPL-WP67006715
...
30
Hinge, Bottom WPL-C3566701
...
31
Shim WPL-A3015201
...
32
Basket WPL-D3892001
...
33
Handle WPL-B0571801
...
34
Glide Basket WPL-B0543101
...
35
Switch, Light WPL-D7101301
...
36
Trim, Shelf WPL-B0560001
...
38
Drain Pan WPL-C3523101
...
40
Drain Screen WPL-A3113701
...
41
Insulation Batt, Top WPL-B0535213
...
43
Clip WPL-M0111001
...
44
Grommet K WPL-A4002702
...
45
Compressor, Tecumseh WPL-D3904401
...
46
Spring K WPL-A3043601
...
47
Overload WPL-C3568401
...
48
Relay K WPL-C3568501
...
49
Terminal Cover WPL-B0551801
...
50
Strap K WPL-A3041801
...
51
Wiring Harness WPL-D7103801
...
52
Wall Spacer WPL-A3032901
...
54
Drier WPL-WPB2150504
...
55
Screw WPL-M0216532
...
56
Fan Shroud WPL-D3768501
...
57
Cover Plate -G WPL-A0382904
...
58
Gasket WPL-A0382801
...
59
Lock Assembly WPL-C3571301
...
60
Strike Pad WPL-D3913901
...
62
Knob, Control WPL-C3577902
...
63
Rivet Plastic WPL-A3032601
...
64
Control, Temperature WPL-B0543810
...
65
Assy., Liner And Tubing WPL-D7050971
