Amana ETM18J (BOM: P6017808W)

Model: ETM18J (BOM: P6017808W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

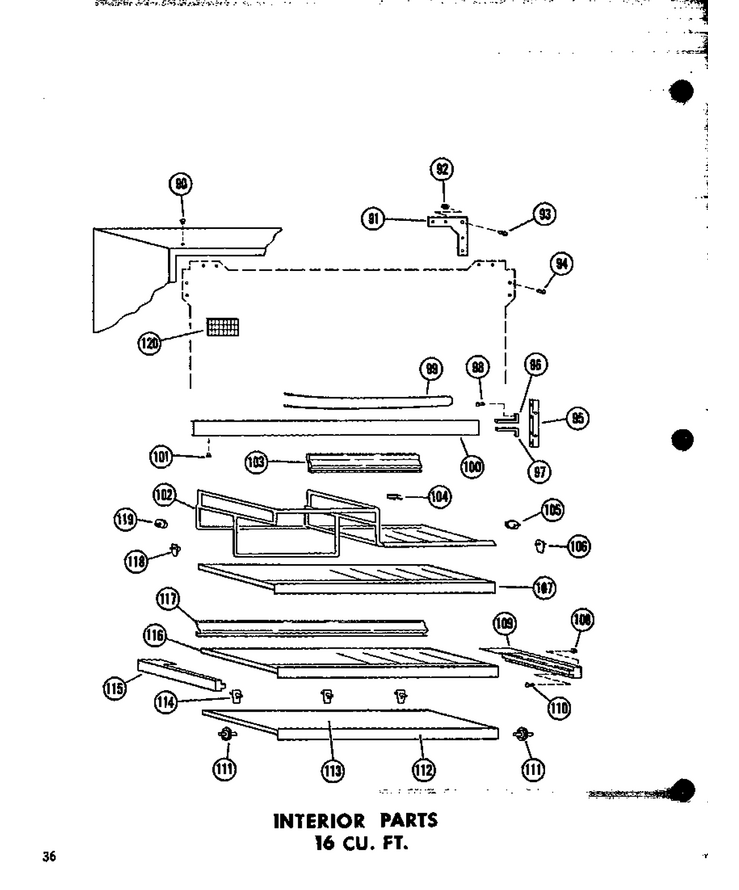

04 - Interior Parts 16 Cu. Ft.

...
...
130
Support WPL-A3147703

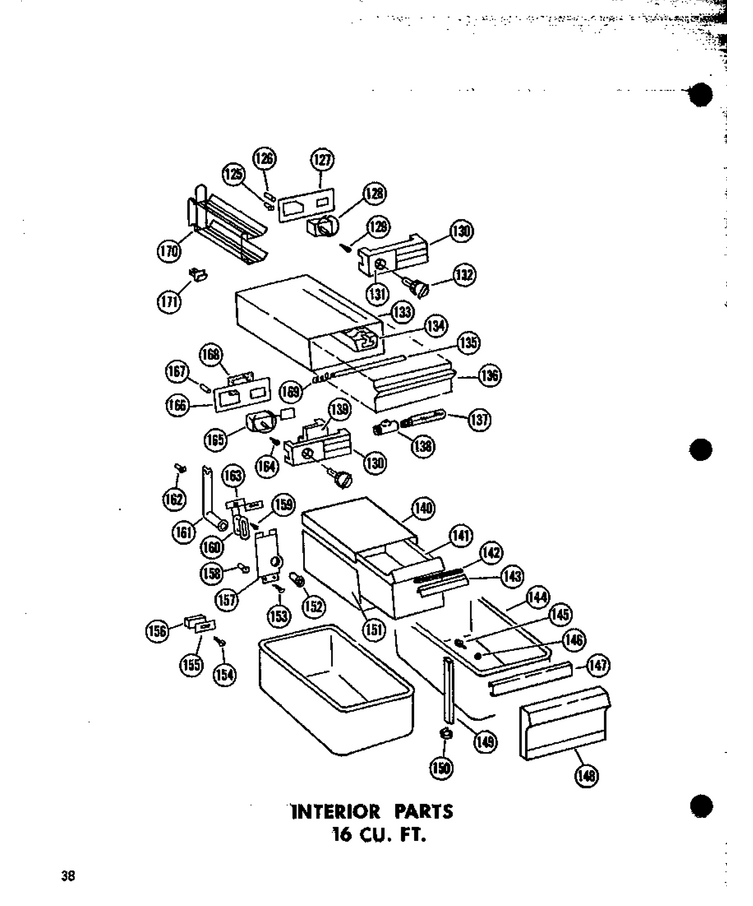

05 - Interior Parts 16 Cu. Ft.

...
...
144
Screw WPL-WP90767

06 - Interior Parts 18 Cu. Ft.

...
...
95
Button- Pl WPL-WP67001130
...
96
Gussett WPL-B0598101
...
97
Screw WPL-M0211530
...
98
Hanger Liner WPL-B0593901
...
100
Shelf Support WPL-C3638101
...
101
Tap Strip-Hinge WPL-A3140702
...
102
Screw WPL-M0250531
...
103
Drier Mullion WPL-D7541703
...
104
Center Mullion White WPL-C3633305
...
105
Button- Pl WPL-WP67001130
...
106
Shelf-Stationary WPL-D7141501
...
109
Support WPL-B5633002
...
110
Support WPL-M0560001
...
111
Shelf, Glide Out WPL-D7141401
...
113
Frame-Glide Out WPL-D3917302
...
114
Grommet, Screw WPL-M0580007
...
115
Screw (3) WPL-67006425
...
116
Support WPL-B5680001
...
117
Crisper Top WPL-D3984501
...
118
Support WPL-B0597601
...
122
Angle-Crisper Top WPL-B0596004
...
123
Screw WPL-M0230814
...
124
Trim A WPL-B0570904
...
125
Frame-Glide Out WPL-D3917301
...
126
Support WPL-B0595101
...
127
Support WPL-B5633001
...
128
Grille WPL-C3601801
...
129
Shelf WPL-C3638402
...
131
Support WPL-C3638501
...
132
Support WPL-B5647201

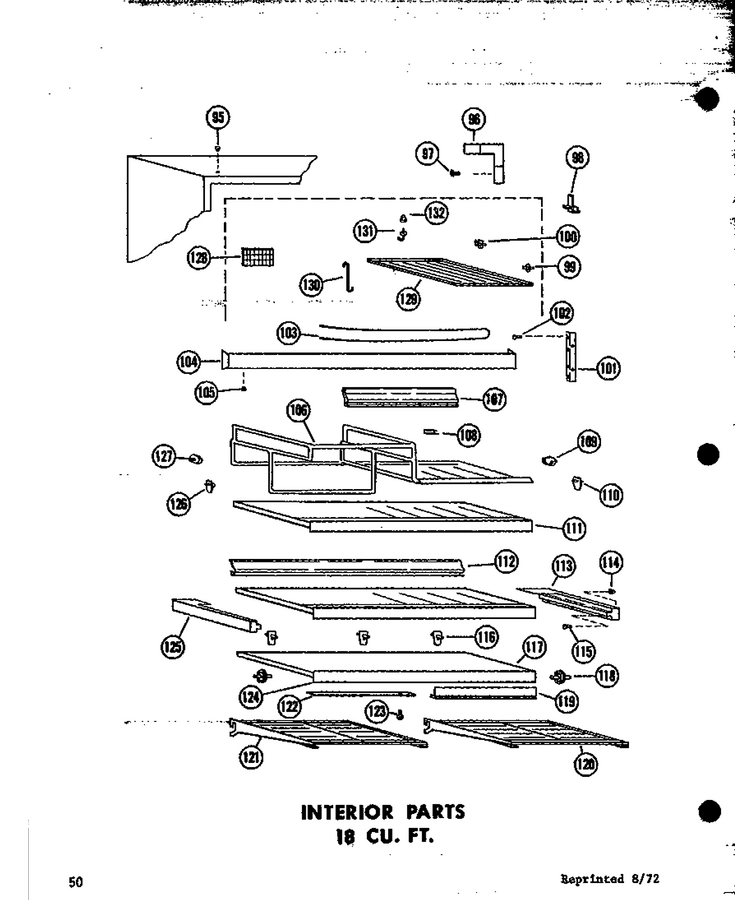

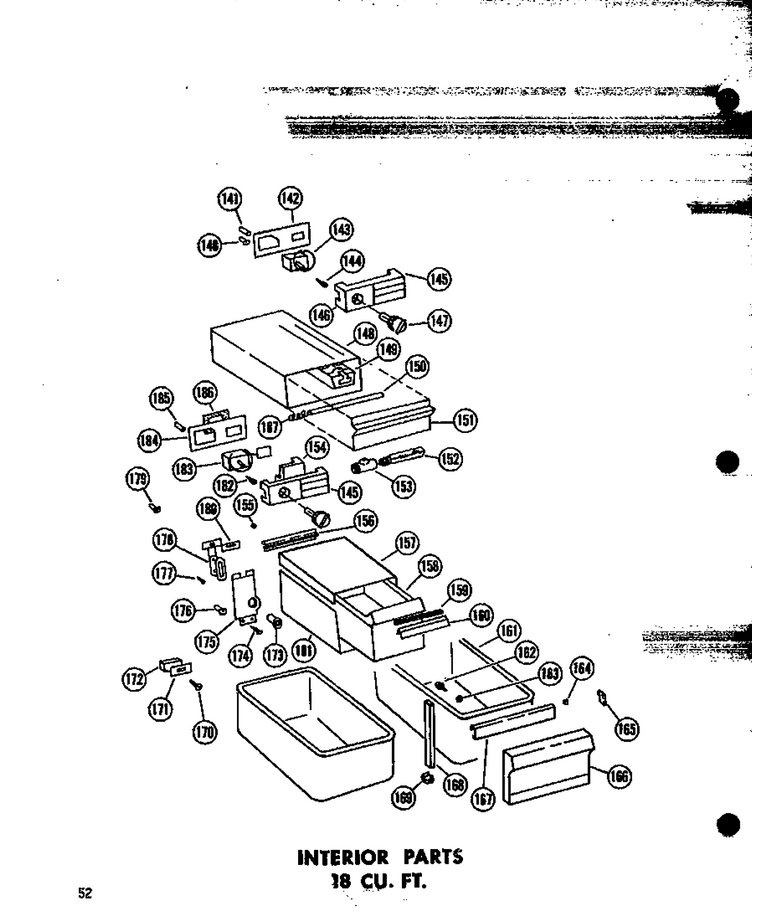

07 - Interior Parts 18 Cu. Ft.

...
...
140
Grommet, Screw WPL-M0580007
...
141
Clip WPL-M0113004
...
142
Backer Plate WPL-D7058201
...
143
Control-Temp WPL-B0592304
...
145
Air Deflector, Fz & Ref WPL-D3953303
...
146
Thin Plate WPL-B5634501
...
147
Knob WPL-D7009801
...
148
Tunnel WPL-D3969403
...
149
Tray WPL-WP841180A
...
150
Rod, Hinge WPL-A3099801
...
151
Door,tunnel WPL-C3625001
...
152
Light Bulb (40w / 230v) WPL-A3079004
...
153
Lamp Socket WPL-B5637201
...
154
Cap K WPL-C3617201
...
155
Rivot WPL-M0550401
...
156
Trim WPL-C3622702
...
157
Top, Meat Keeper WPL-D7001102
...
158
Pan, Meat WPL-D3975702
...
159
Gasket (per Foot) WPL-A3030313
...
160
Trim, Handle WPL-C3623002
...
161
Pan, Crisper WPL-D3966906
...
164
Clip WPL-M0115301
...
165
End Cap WPL-B0590703
...
167
Trim Crisper Handle WPL-C3623701
...
168
Support WPL-B0571002
...
169
Support WPL-B0571201
...
170
Screw WPL-M0215004
...
171
Escutheon WPL-C3612002
...
172
Switch WPL-A3116201
...
182
Screw WPL-M0218116
...
183
Control, Damper WPL-C8876602
...
184
Backer Plate WPL-D7058201
...
185
Clip WPL-M0113004
...
187
Spring WPL-A3100002

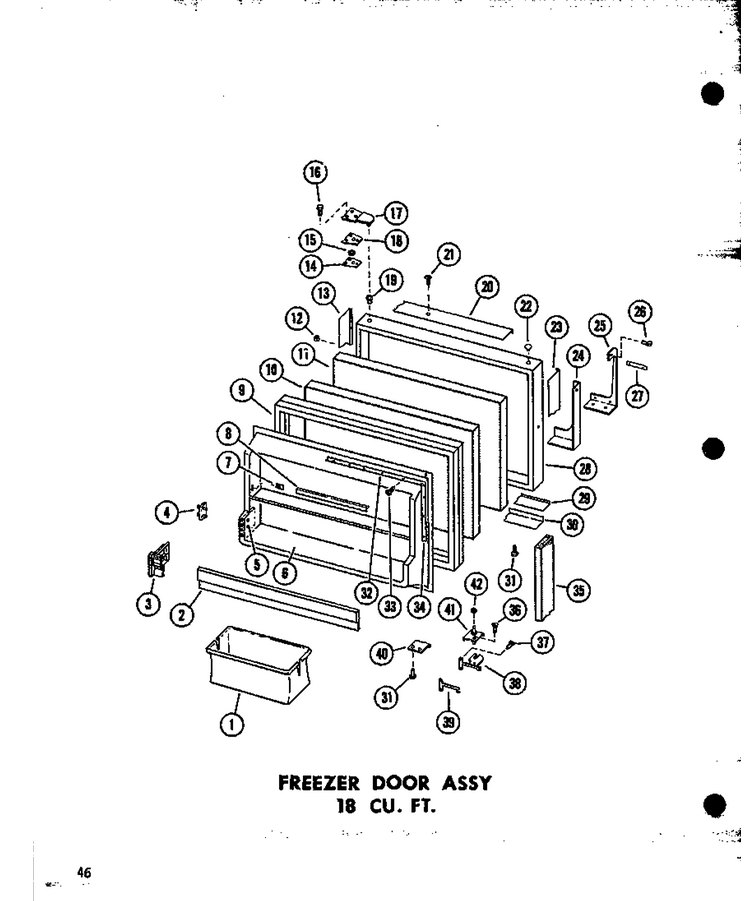

03 - Fz Door Assy 18 Cu. Ft.

...
...
1
Ice Container WPL-D3959403
...
2
Retainer WPL-D3976711
...
3
Support WPL-D3976808
...
4
Tie Bar WPL-B0577902
...
5
Support Bar Plate WPL-A3069801
...
6
Door Panel Assy Kit WPL-R0157098
...
9
Gasket WPL-D3928206
...
10
Insulation, Batt WPL-A3073027
...
11
Insulation WPL-B0566707
...
12
Button- Pl WPL-WP67001130
...
14
Tap Strip WPL-A3139701
...
15
Washer WPL-M0270502
...
16
Kit, Screw WPL-R9800670
...
17
Hinge, Top WPL-B5640704
...
18
Shim WPL-A3143702
...
19
Bushing, Hinge Pin WPL-C3652901
...
22
Plug WPL-M0310601
...
24
Pad-Handle WPL-D7146001
...
25
Handle K WPL-D7145801
...
26
Screw WPL-M0203458
...
27
Nameplate WPL-C3675304
...
28
Outer Door Shell, Fz, White WPL-D7057701
...
30
Trim WPL-D7145902
...
32
Retainer WPL-D3928101
...
33
Screw WPL-WP98165
...
34
Retainer Gasket WPL-D3928102
...
35
Insulation Ft. K WPL-A3195002
...
36
Screw, Nylock WPL-M0205442
...
37
Kit, Screw WPL-R9800670
...
38
Center Hinge Assy WPL-B5640501
...
39
Shim K WPL-A3143502
...
40
Stop Door WPL-A3139801
...
41
Center Hinge Assy WPL-B5640401
...
42
Washer WPL-M0274049

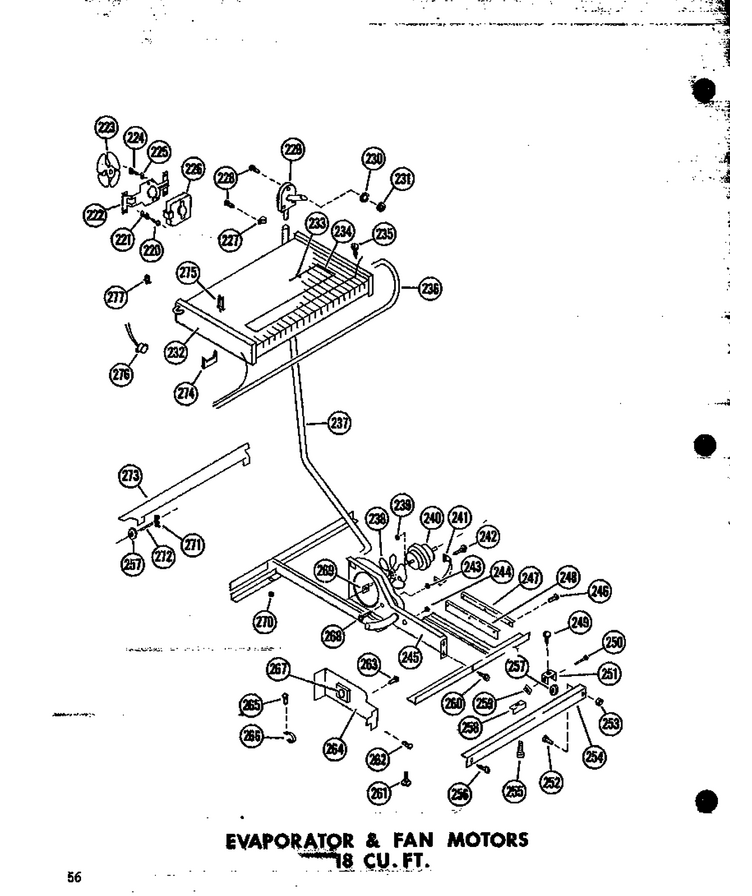

02 - Evap & Fan Motor 18 Cu. Ft.

...
...
220
Screw WPL-WP98165
...
221
Clip, Waterline WPL-12454802
...
222
Bracket WPL-C3536203
...
223
Fan Blade WPL-B5622101
...
224
Screw WPL-M0202642
...
225
Washer WPL-M0272605
...
226
Motor, Fan WPL-D7115702
...
227
Clamp, Drier WPL-M0102316
...
228
Screw WPL-M0214618
...
229
Elbow,drain Tube WPL-C3630901
...
230
Gasket WPL-A3132301
...
231
Grommet WPL-A3128101
...
232
Evaporator WPL-D7143120
...
233
Clip WPL-M0110301
...
234
Heater-Defrost WPL-C3660004
...
235
Screw WPL-M0211831
...
236
Heat Exchanger WPL-D7030302
...
237
Tube, Drain WPL-B5638801
...
238
Blade, Fan WPL-B5742603
...
239
Washer K WPL-M0274015
...
240
Fan Motor Assy Cond. WPL-C3661702
...
241
Bracket, Cond Motor WPL-B0598701
...
242
Screw WPL-WPM0223816
...
243
Grommet K WPL-M0500107
...
244
Grommet WPL-M0500102
...
245
Fan Shroud WPL-C3617601
...
246
Screw WPL-WP90767
...
247
Retainer WPL-B0599701
...
248
Seal WPL-B0599603
...
261
Glider Bolt WPL-M0266510
...
262
Screw WPL-WP489464
...
263
Screw WPL-M0216617
...
264
Bracket, Timer WPL-C3647901
...
265
Screw WPL-M0211532
...
266
Clamp WPL-M0102406
...
267
Kit- Defro WPL-R0168028
...
268
Screw Shoulder WPL-M0238833
...
269
Nut WPL-WP486692
...
270
Washer WPL-A4094001
...
274
Guide-Wiring WPL-B5670801
...
275
Clip,wire WPL-B5667401
...
276
Thermostat K WPL-C3686602
...
277
Clip,wire WPL-B5667301

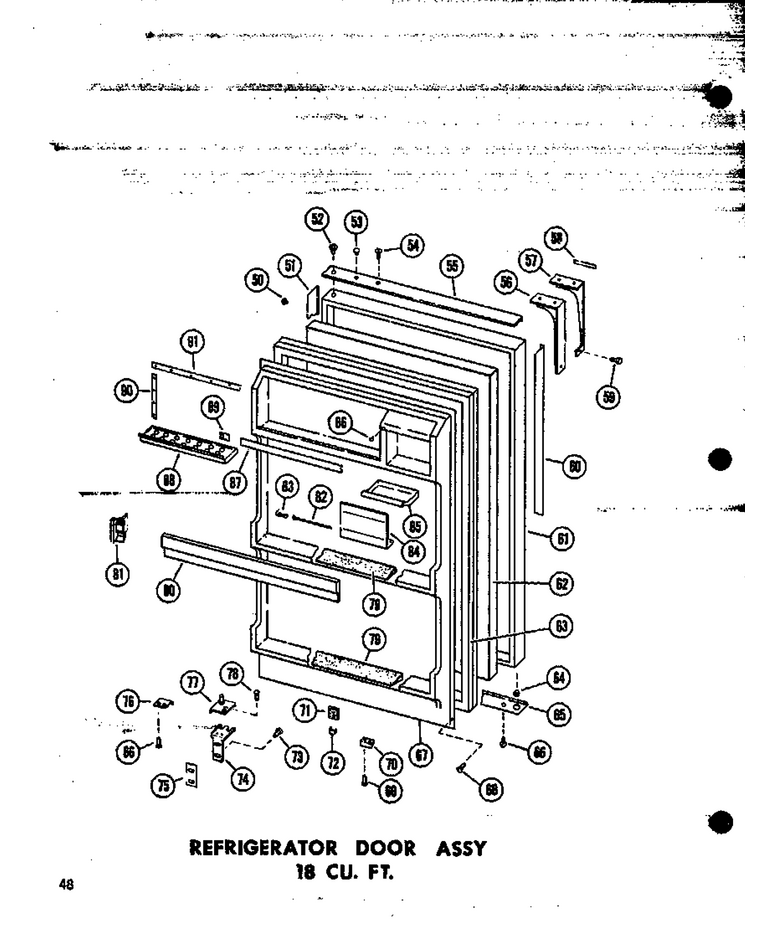

09 - Ref Door Assy 18 Cu. Ft.

...
...
50
Button- Pl WPL-WP67001130
...
52
Bushing, Hinge Pin WPL-C3652901
...
53
Plug WPL-M0310713
...
55
Door Cap WPL-D7145901
...
56
Handle Pad Kit WPL-D7146002
...
57
Handle K WPL-D7145802
...
58
Nameplate K WPL-C3675306
...
59
Screw WPL-M0203458
...
61
Outer Door Shell, Refrig, Whit WPL-D7057704
...
63
Gasket WPL-D3928205
...
64
Plug WPL-M0310602
...
67
Panel, Inner Door WPL-D7143202
...
68
Screw WPL-WP98165
...
69
Screw WPL-M0241205
...
70
Strike WPL-B5666401
...
71
Block Air Vent WPL-A3091901
...
72
Vent Assy WPL-A3101901
...
73
Screw WPL-WP67006715
...
74
Hinge Kit WPL-B5640201
...
75
Shim WPL-A3143601
...
76
Stop Door WPL-A3139801
...
77
Hinge Kit WPL-B5640901
...
78
Screw, Nylock WPL-M0205442
...
79
Support Block, Shelf Dike WPL-D7145102
...
80
Retainer WPL-D3976710
...
81
Support WPL-D3976805
...
82
Hinge Rod K WPL-A3056207
...
83
Spring A/k WPL-A3065201
...
84
Butter Door K WPL-C3622103
...
85
Buttertray WPL-67004412A
...
86
Rubber Bumper WPL-A3059002
...
90
Retainer Gasket WPL-D3928104
...
91
Retainer Gasket WPL-D3928102

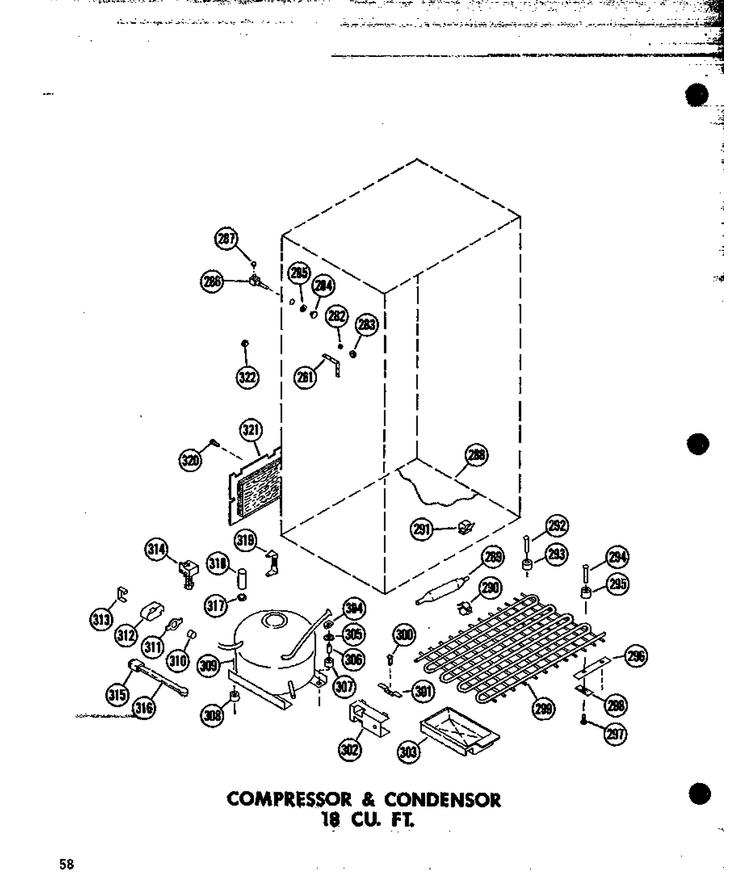

01 - Compressor & Condensor 18 Cu. Ft.

...
...
281
Tap Plate,i.m. WPL-B5639801
...
282
Button- Pl WPL-WP67001130
...
283
Cap WPL-B5636301
...
284
Cap Fill Tube WPL-B5631801
...
285
Grommet WPL-A3138301
...
286
Fill Tube WPL-R0182123
...
287
Plug WPL-M0310309
...
288
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
289
Drier WPL-WPB2150504
...
290
Clamp,drier WPL-M0104001
...
291
Clip WPL-M0110503
...
292
Sems Fastner WPL-M0257037
...
293
Spacer WPL-A3013906
...
294
Sems Fastner WPL-M0257039
...
295
Spacer WPL-A3013907
...
296
Bracket, Support WPL-A3085401
...
297
Screw-Sm WPL-M0241118
...
298
Nut A WPL-M0286003
...
299
Condenser Assy Pnt WPL-D7010701
...
300
Kit, Screw WPL-R9800670
...
301
Clip-Cond WPL-A3054502
...
302
Spacer WPL-B0544101
...
303
Pan, Drain WPL-D7001001
...
304
Clip K WPL-A3140801
...
305
Washer, Nylon K WPL-M0590101
...
306
Sleeve K WPL-A3072001
...
307
Grommet K WPL-A3026101
...
308
Vinyl Sleeve WPL-A3164301
...
309
Compressor Production WPL-M0401201
...
310
Overload WPL-C3568401
...
311
Spring K WPL-A3043601
...
312
Terminal Cover WPL-B0551801
...
313
Strap K WPL-A3041801
...
314
Relay WPL-M0300701
...
315
Grommet, Cord WPL-211881
...
316
Wiring Harness WPL-D7098801
...
317
End Cap WPL-M0301002
...
318
Capacitor WPL-M0301001
...
319
Bracket-Capacitor WPL-M0370803
...
320
Screw-Sm WPL-M0241118
...
321
Back, Mach Compt K WPL-C3655001
...
322
Plug, Button (blk) WPL-A3080001

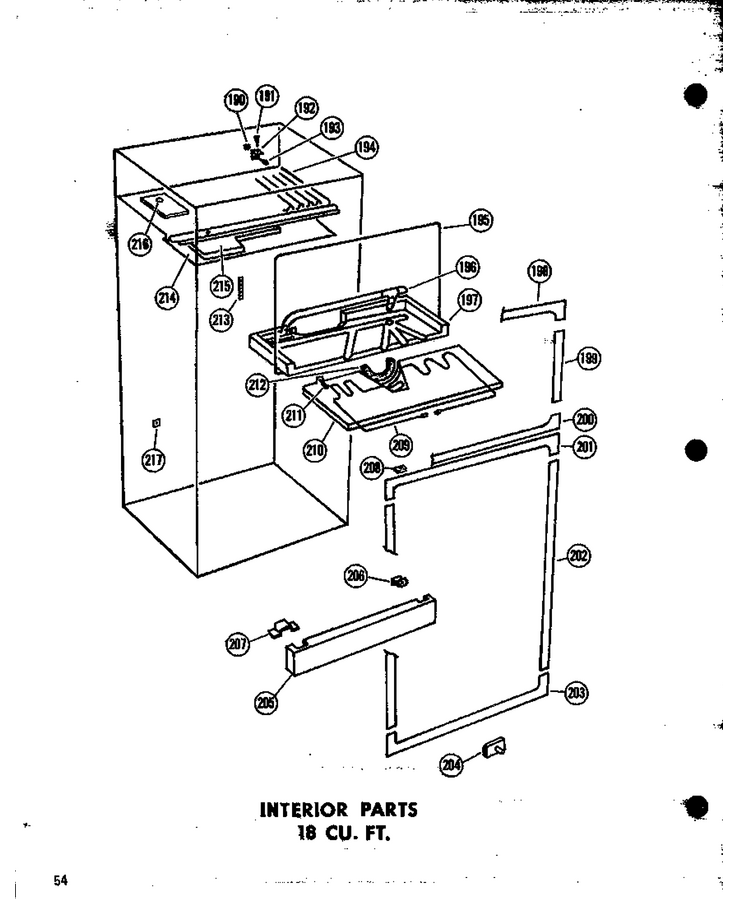

08 - Interior Parts 18 Cu. Ft.

...
...
190
Grommet, Screw WPL-M0580007
...
191
Screw (3) WPL-67006425
...
192
Clip WPL-M0116901
...
193
Screw WPL-M0211530
...
194
Bottom-Fr WPL-D7143601
...
195
Heater, Fz Flange WPL-D7132302
...
196
Heater-Drip Tray WPL-C3659402
...
197
Drain Block, Evaporator WPL-D7141201
...
198
Breaker Frame, Fz Top WPL-D3981001
...
199
Breaker Frame WPL-D3951715
...
200
Breaker Frame, Fz Bottom WPL-D3981201
...
201
Breaker Frame WPL-D3981002
...
202
Breaker Frame WPL-D7424105
...
203
Br Frame WPL-D3980601
...
204
Switch, Light WPL-C3658601
...
205
Grille-Toe WPL-D7070202
...
206
Clip WPL-WPM0117303
...
207
Grille-Toe WPL-B5641301
...
208
Clip WPL-M0113402
...
209
Heater WPL-D7058304
...
210
Top-Ref WPL-D7142801
...
211
Screw WPL-M0215617
...
212
Gasket (per Foot) WPL-A3030313
...
213
Clamp-Wiring WPL-A3195601
...
214
Barrier WPL-A3126001
...
215
Insulation WPL-B5682901
...
216
Plug WPL-A3069101
...
217
Grommet, Screw WPL-M0580007
