Amana ETM17G (BOM: P6010103W)

Model: ETM17G (BOM: P6010103W)

Save Part Not Listed?
product name

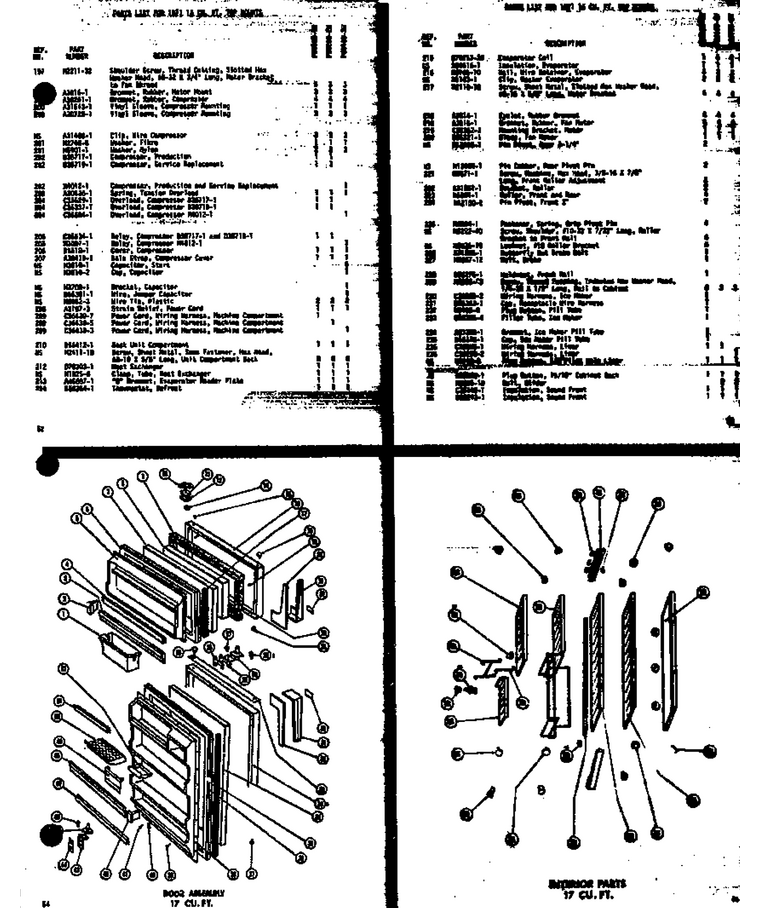

01 - Door Assy 17 Cu. Ft.

...
...
NI
Support Bar Plate WPL-A3069801
...
1
Ice Container WPL-D3959403
...
2
Support WPL-D3976807
...
3
Retainer WPL-D3976709
...
4
Retainer WPL-B5632004
...
5
Inner Dr Panel WPL-D7074802
...
6
Gasket, Door WPL-D3973702
...
7
Insulation, Batt WPL-A3073011
...
8
From Door Slab WPL-B5612001
...
9
Insulation Batt, 31`` Wide WPL-A3073012
...
10
Hinge, Top WPL-B5640704
...
11
Shim, Top Hinge .064 WPL-A3143703
...
12
Tap Strip WPL-A3139701
...
14
Washer WPL-M0270502
...
15
Bushing, Hinge Pin WPL-C3652901
...
16
Door-Fr-W-P-Tr20n WPL-D7057702
...
18
Plug Button, Hinge Bushing Avo WPL-M0310603
...
19
Screw-Sm WPL-M0241118
...
20
Pad, Door Handle WPL-D7056601
...
21
Handle, Door WPL-D7057101
...
22
Nameplate WPL-C3633801
...
23
Insulation, 14-3/8`` Wide WPL-A3073013
...
25
Bushing, Hinge Pin WPL-C3652901
...
26
Shim K WPL-A3143501
...
27
Screw, Nylock WPL-M0205442
...
28
Kit, Screw WPL-R9800670
...
29
Center Hinge Assy WPL-B5640501
...
30
Nameplate WPL-C3633802
...
31
Handle WPL-D7057102
...
32
Handle Pad Kit WPL-D7056602
...
33
Door Cap WPL-D3958303
...
34
Foam Slab, Ref Door WPL-B5612008
...
35
Insulation WPL-B5629014
...
36
Gasket, Door WPL-D3974202
...
37
Plug WPL-M0310601
...
38
Inner Dr Panel WPL-D7056901
...
39
Screw-Sm WPL-M0241118
...
40
Strike,light Switch WPL-A3079204
...
41
Screw A K WPL-M0211516
...
42
Support WPL-D3976805
...
43
Hinge Kit WPL-B5640201
...
44
Shim WPL-A3143601
...
45
Hinge Kit WPL-B5640901
...
46
Screw, Nylock WPL-M0205442
...
48
Retainer WPL-D3976709
...
49
Butter Door WPL-D7026401
...
52
Buttertray WPL-67004412A
...
53
Support WPL-A3147701
...
54
Support, Shelf Front WPL-B0560002
...
55
Shelf,stationary WPL-C3638201
...
56
Support WPL-C3638501
...
57
Shelf Support WPL-C3638101
...
58
Support WPL-B5633001
...
59
Support WPL-B5642101
...
60
Shelf WPL-D7051101
...
61
Shelf Support WPL-B5620401
...
62
Grommet WPL-A0288701
...
63
Screw (3) WPL-67006425
...
64
Frame-Glide Out WPL-D3917302
...
65
Trim WPL-B0570901
...
66
Support WPL-B0570501
...
67
Shelf WPL-D3977401
...
68
Shelf WPL-D3975601

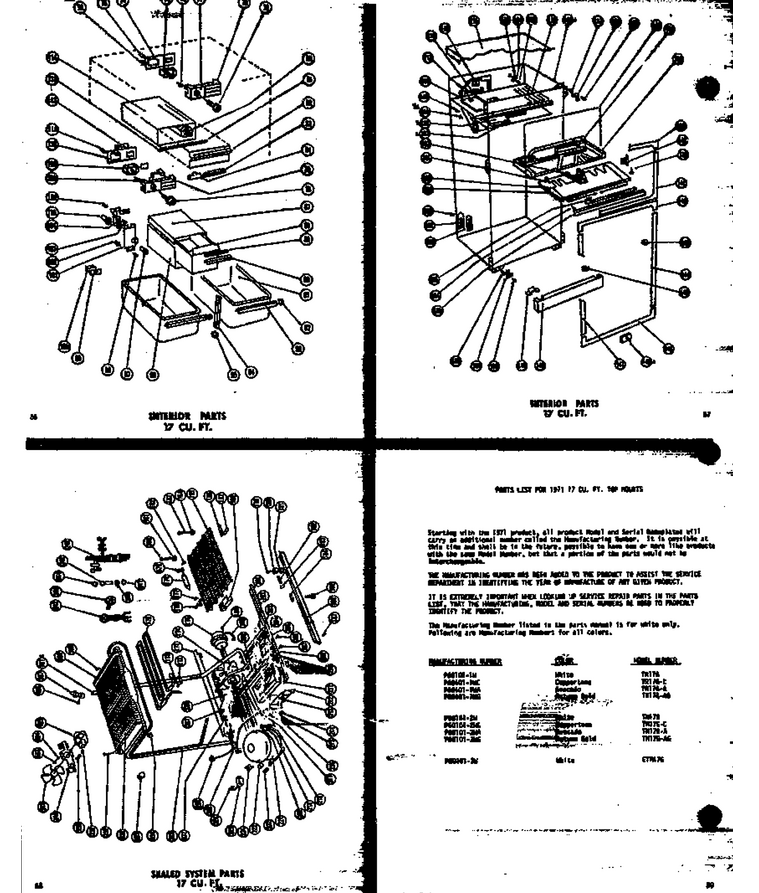

02 - Interior Parts 17 Cu. Ft.

...
...
NI
Bracket-Capacitor WPL-M0370803
...
72
Grommet, Screw WPL-M0580007
...
73
Clip WPL-M0113004
...
74
Backer Plate WPL-D7058201
...
75
Control-Temp WPL-B0592304
...
76
Screw WPL-WP90767
...
77
Thin Plate WPL-B5634501
...
78
Air Deflector, Fz & Ref WPL-D3953303
...
79
Knob WPL-D7009801
...
80
Tray WPL-WP841180A
...
81
Rod, Hinge WPL-A3099801
...
82
Door,tunnel WPL-C3625001
...
83
Light Bulb (40w / 230v) WPL-A3079004
...
84
Lamp Socket WPL-B5637201
...
85
Cap K WPL-C3617201
...
87
Top, Meat Keeper WPL-D7001102
...
88
Pan, Meat WPL-D3975702
...
89
Gasket (per Foot) WPL-A3030313
...
90
Trim, Handle WPL-C3623002
...
91
Pan Crisper WPL-D3937605
...
92
End Cap WPL-B0590704
...
93
Trim WPL-C3623703
...
94
Support WPL-B0571005
...
95
Support WPL-B0571201
...
99
Escutheon WPL-C3612002
...
100
Switch WPL-A3116201
...
108
Screw WPL-M0218116
...
109
Control, Damper WPL-C8876602
...
110
Backer Plate WPL-D7058201
...
111
Clip WPL-M0113004
...
112
Gasket WPL-A3104502
...
113
Spring WPL-A3100002
...
114
Tunnel WPL-D3969403
...
115
Grommet WPL-A0288701
...
116
Screw WPL-W11233072
...
117
Plug WPL-A3069101
...
118
Insulation WPL-B5609201
...
119
Gasket WPL-M0900201
...
120
Air Duct WPL-D3971104
...
121
Foam Slab WPL-B5612007
...
123
Screw (3) WPL-67006425
...
124
Clip WPL-M0116901
...
125
Screw WPL-M0211530
...
126
Freezer Bottom WPL-D7025401
...
127
Grommet WPL-A0381801
...
128
Gusset WPL-C3576901
...
129
Screw WPL-M0250531
...
130
Heater, Fz Flange WPL-C3627102
...
131
Heater WPL-C3626802
...
132
Drain Bloc WPL-D7097101Q
...
136
Breaker Frame WPL-D3917001
...
138
Angle,center Mullion WPL-B5645602
...
139
Screw WPL-M0225431
...
141
Breaker Frame WPL-D3916804
...
142
Breaker Frame, Top Ref WPL-D3916701
...
144
Breaker Frame WPL-D3914507
...
145
Clip WPL-WPM0117303
...
146
Breaker Frame WPL-D3916301
...
147
Breaker Frame WPL-D3914508
...
148
Grille-Toe WPL-D7070202
...
149
Grille-Toe WPL-B5641301
...
150
Screw WPL-M0250531
...
151
Gusset WPL-C3576901
...
152
Grommet WPL-B0565201
...
153
Center Mullion WPL-C3633505
...
154
Screw WPL-M0225431
...
155
Drier Mullion WPL-D7541703
...
156
Cover Plate -G WPL-A0382904
...
158
Screw WPL-WP90767
...
159
Top K WPL-D3972202
...
160
Heater, Refrig Top WPL-D7058302
...
161
Screw WPL-WPW10348409
...
162
Insulation WPL-B5651601
...
163
Screw WPL-M0202642
...
164
Washer WPL-M0272605
...
165
Motor, Evaporator WPL-C3575910
...
166
Screw WPL-M0214618
...
167
Connector-Drain A WPL-C3620101
...
168
Evaporator WPL-D7025320
...
169
Screw WPL-M0214731
...
170
Heater-Defrost WPL-C3660004
...
171
Screw WPL-M0214618
...
172
Clamp, Drier WPL-M0102316
...
173
Rail, Rear WPL-C3611301
...
174
Blade, Fan WPL-B5742603
...
175
Motor-Cond WPL-R0156788
...
176
Clip-Cond WPL-A3054502
...
177
Kit, Screw WPL-R9800670
...
178
Drier WPL-WPB2150504
...
179
Clamp,drier WPL-M0104001
...
180
Sems Fastner WPL-M0257037
...
181
Spacer WPL-A3013906
...
182
Rivet-Pop WPL-59002054
...
183
Sems Fastner WPL-M0257039
...
184
Spacer WPL-A3013907
...
185
Condenser Assy Pnt WPL-D7010701
...
186
Bracket, Support WPL-A3085401
...
187
Nut A WPL-M0286003
...
188
Spacer WPL-B0544101
...
197
Screw WPL-M0294459
...
198
Screw WPL-M0220114
...
199
Bracket, Cond Motor WPL-B0598701
...
200
Deflector WPL-A3116301
...
201
Angle WPL-C3617702
...
202
Screw WPL-WP90767
...
203
Retainer WPL-B0599701
...
204
Seal WPL-B0599603
...
205
Fan Shroud WPL-C3617601
...
206
Screw WPL-WP98165
...
207
Screw WPL-M0294459
...
210
Screw WPL-WP489069
...
211
Pan, Drain WPL-D7001001
...
212
Bracket, Timer WPL-C3647901
...
213
Kit- Defro WPL-R0168028
...
214
Clamp WPL-M0102406
...
215
Screw WPL-M0211532
...
216
Screw WPL-M0221132
...
217
Clip, Waterline WPL-12454802
...
218
Grommet K WPL-A3026101
...
219
Vinyl Sleeve WPL-A3164301
...
220
Washer, Nylon K WPL-M0590101
...
221
Compressor Production WPL-M0401201
...
222
Spring K WPL-A3043601
...
223
Overload WPL-C3568401
...
224
Relay WPL-M0300701
...
225
Terminal Cover WPL-B0551801
...
226
Strap K WPL-A3041801
...
227
Grommet, Cord WPL-211881
...
228
Power Cord WPL-C3643903
...
230
Back, Mach Compt K WPL-B5641201
...
233
Heat Exchanger WPL-D7030301
...
234
Grommet WPL-A4568701
...
235
Thermostat K WPL-C3686602
...
236
Evaporator WPL-D7025320
...
237
X$x Nail WPL-M0010510
...
238
Screw WPL-WP98165
...
239
Clip, Waterline WPL-12454802
...
240
Bracket WPL-C3536203
...
241
Fan Blade WPL-B5622101
...
242
Harness WPL-C3629202
...
243
Cap WPL-B5636301
...
244
Plug WPL-M0310309
...
245
Fill Tube WPL-R0182123
...
246
Grommet WPL-A3138301
...
247
Cap Fill Tube WPL-B5631801
...
248
Wiring Harness,liner WPL-C3625802
