Amana ESUF20JW (BOM: P1179621W)

Model: ESUF20JW (BOM: P1179621W)

Save Part Not Listed?
product name

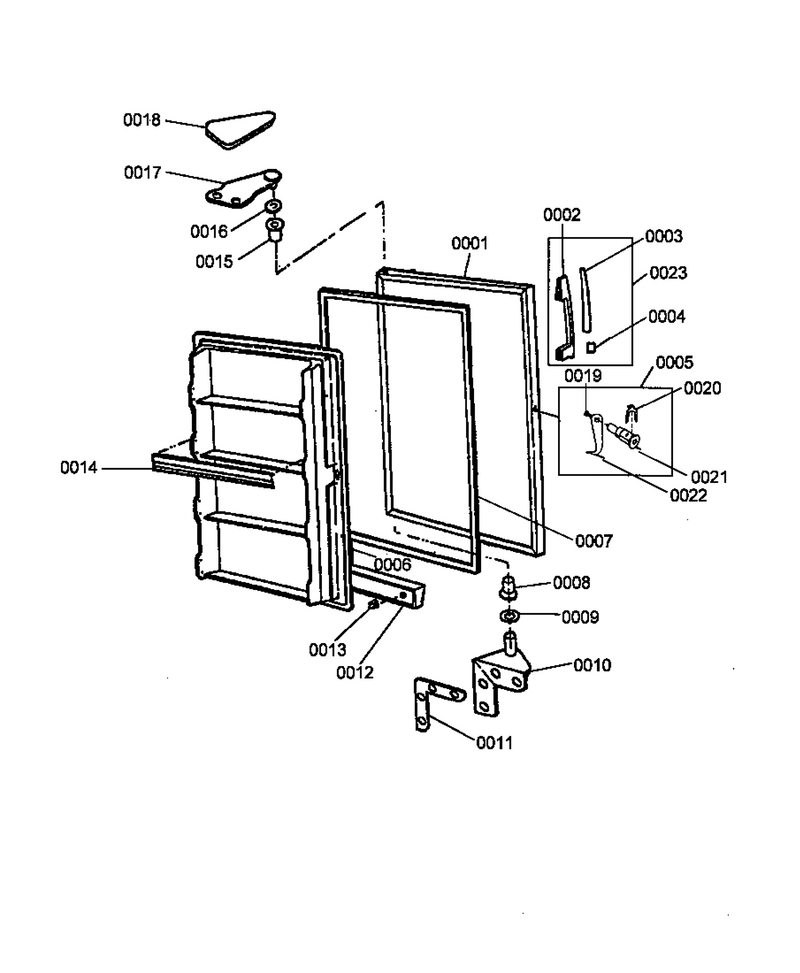

02 - Fz Door

...
...
NI
Kit, Screw WPL-R9800670
...
1
Door Shell WPL-R0213333
...
2
Handle, Door (White) WPL-12139304
...
3
Base, Nameplate WPL-10992001
...
4
Insert, Nameplate Amana WPL-R9800517
...
5
Lock Assembly (Includes Items 12, 13, 14, 15, 16, & 17) WPL-4357145
...
6
Liner Kit WPL-R0213253
...
7
Gasket-Dor WPL-WP4-81049-001
...
8
Bushing, Lower Hinge Mtg WPL-R0213123
...
9
Washer WPL-W10851331
...
10
Bottom Hinge (White) WPL-4357250
...
11
Shim, Bottom Hinge WPL-R0213127
...
12
Grille WPL-WP4-60461-006
...
13
Clip WPL-1-80247-101
...
14
Trim, Door Shelf WPL-R0213185
...
15
Bushing, Lower Hinge Mtg WPL-R0213123
...
16
Washer WPL-W10851331
...
17
Top, Hinge (White) WPL-4390673
...
18
Cover, Hinge (White) WPL-3-80838-003
...
19
Screw WPL-WP4159193
...
20
Clip, Lock WPL-68001073
...
21
Lock Body WPL-Y04689701
...
22
Hook, Lock WPL-68001072
...
23
Kit, Handle WPL-R0213327

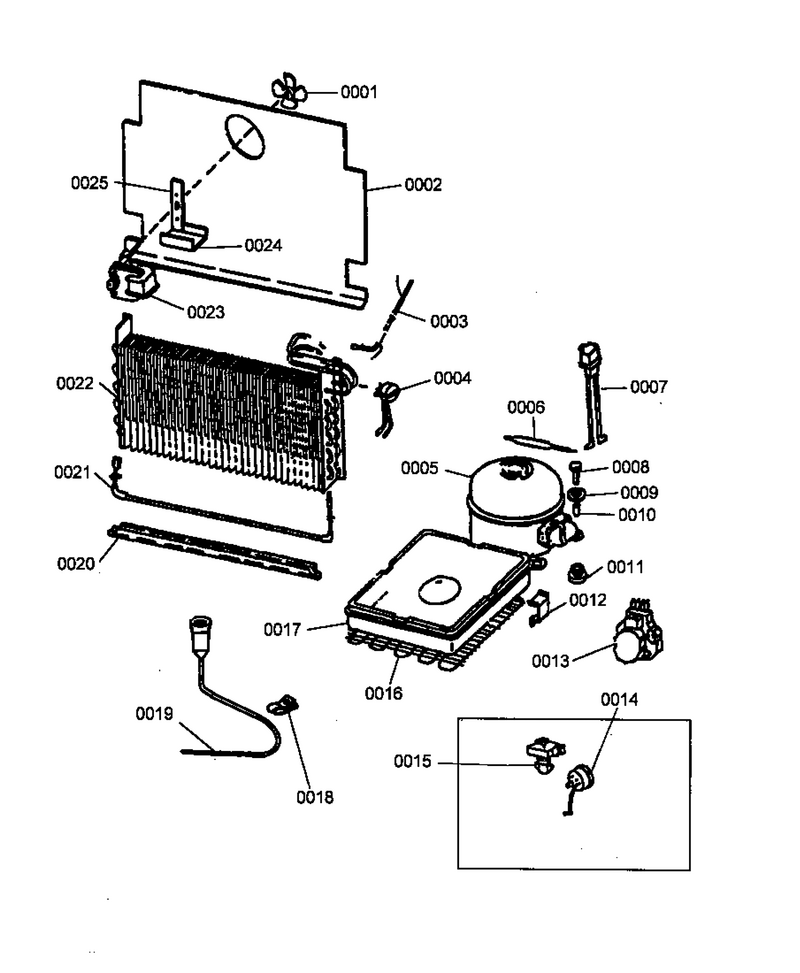

03 - Unit Compartment And System

...
...
NI
Kit, Comp Mtg WPL-R0213282
...
1
Blade, Evap Fan (4 Blades) WPL-R0213210
...
2
Plate, Evap Mtg WPL-R0213217
...
3
Heat Exchanger WPL-R0213334
...
4
Bimetl-Def WPL-WP1-81801-001
...
5
Kit, Compressor (R134a) WPL-68001422
...
6
Drier WPL-WPB2150504
...
7
Top, Hinge (White) WPL-4390673
...
8
Screw, Compressor Mtg WPL-R0213137
...
9
Washer, Compressor Mtg WPL-R0213138
...
10
Sleeve WPL-4356846
...
11
Compressor, Grommet WPL-4356335
...
12
Bracket, Drain Pan WPL-R0213213
...
13
Timer-Def WPL-WP10129301
...
14
Overload WPL-WP4344040
...
15
Relay-Ptc WPL-R0213307
...
16
Cond, Precooler (No Oil) WPL-R0213275
...
17
Kit, Drain WPL-R9800592
...
18
Clamp, Tube WPL-3-25095-011
...
19
Kit, Drain WPL-R9800592
...
20
Shield-Ht WPL-4357284
...
21
Heater WPL-W11175809
...
22
Evaporator WPL-WP4-81546
...
23
Motor-Evap WPL-WP3-80411-103
...
24
Shield, Motor WPL-4357128
...
25
Bracket, Fan WPL-2-80028-101

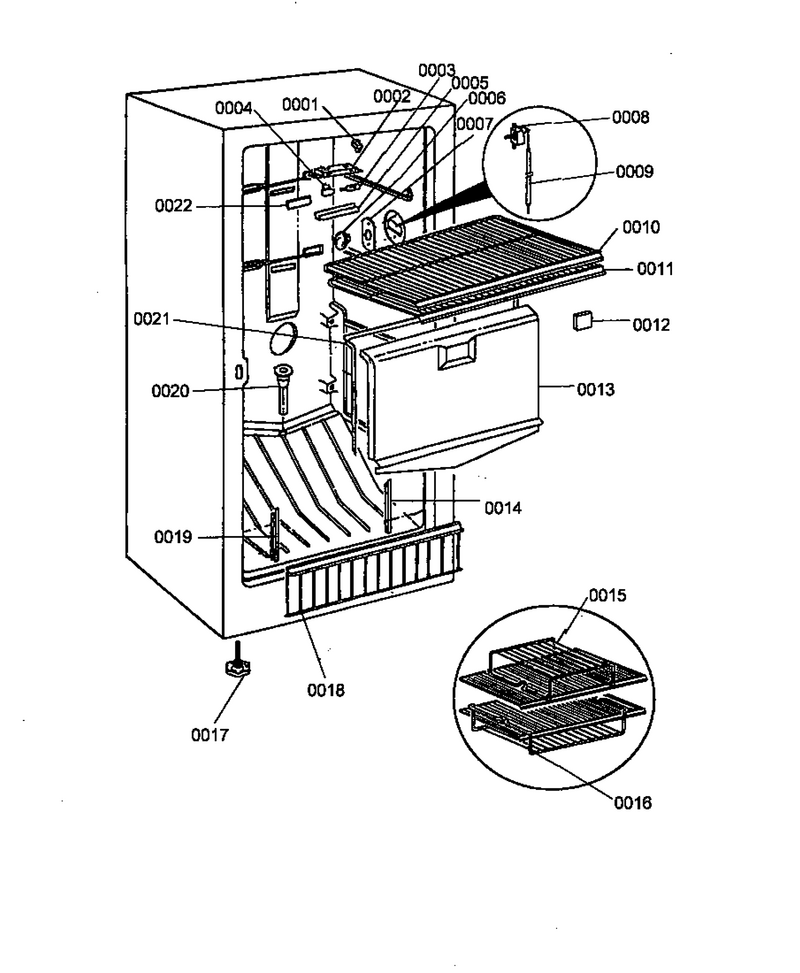

01 - Fz Compartment

...
...
NI
Screw WPL-WP90767
...
1
Switch WPL-W11384469
...
2
Bracket WPL-4357089
...
3
Bulb-Light WPL-WPA3073101
...
4
Socket WPL-R0213162
...
5
Shield, Light WPL-4357285
...
6
Knob, Temp. Control WPL-R0213101
...
7
Plate, Thermostat WPL-1-81154
...
8
Thermostat WPL-WP4-83053-003
...
9
Barrier WPL-WP2196003
...
10
Shelf WPL-R0213227
...
11
Shelf WPL-R0213226
...
12
Seal, Air Block WPL-R0213218
...
13
Cover, Evaporator WPL-4357272
...
14
Support Fence Rh WPL-4357293
...
15
Rack, Small Specialty WPL-R0213235
...
16
Rack, Large Specialty WPL-R0213236
...
17
Leveler WPL-W11117769
...
18
Gate, Fence WPL-R0213182
...
19
Support Lh WPL-4-80576-202
...
20
Kit, Drain WPL-R9800592
...
21
Gasket, Evap. Cover WPL-R0213198
...
22
Vent-Plug WPL-WP3-80414-103
