Amana ESUF17JW (BOM: P1311106W)

Model: ESUF17JW (BOM: P1311106W)

Save Part Not Listed?
product name

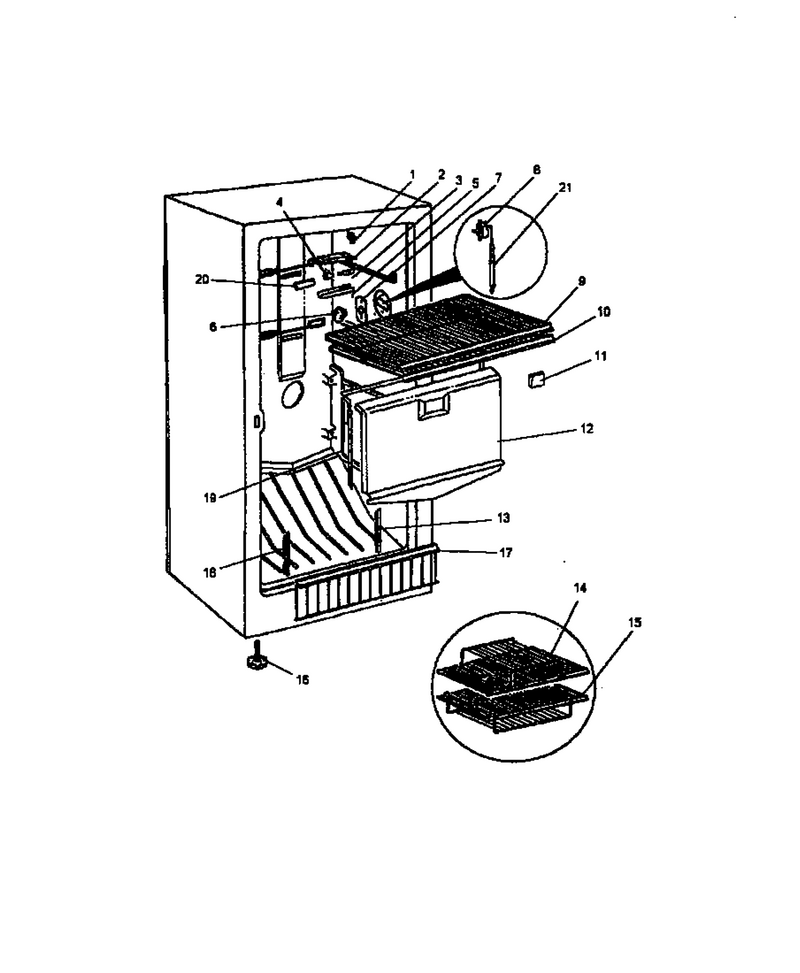

01 - Fz Compartment

...
...
NI
Screw WPL-W11233072
...
1
Switch WPL-W11384469
...
2
Bracket WPL-4357089
...
3
Bulb-Light WPL-WPA3073101
...
4
Socket WPL-R0213162
...
5
Shield, Light WPL-4357285
...
6
Knob, Temp. Control WPL-R0213101
...
7
Plate, Thermostat WPL-1-81154
...
8
Thermostat WPL-WP4-83053-003
...
9
Shelf, Wire WPL-R0213194
...
10
Shelf, Wire WPL-R0213193
...
11
Seal, Air Block WPL-R0213218
...
12
Cover, Evaporator WPL-4357272
...
13
Support Fence Rh WPL-4357293
...
14
Rack, Small Specialty WPL-R0213235
...
15
Rack, Large Specialty WPL-R0213236
...
16
Leveler WPL-W11117769
...
17
Gate, Fence WPL-R0213182
...
18
Support Lh WPL-4-80576-202
...
19
Gasket, Evap. Cover WPL-R0213198
...
20
Vent-Plug WPL-WP3-80414-103
...
21
Barrier WPL-WP2196003

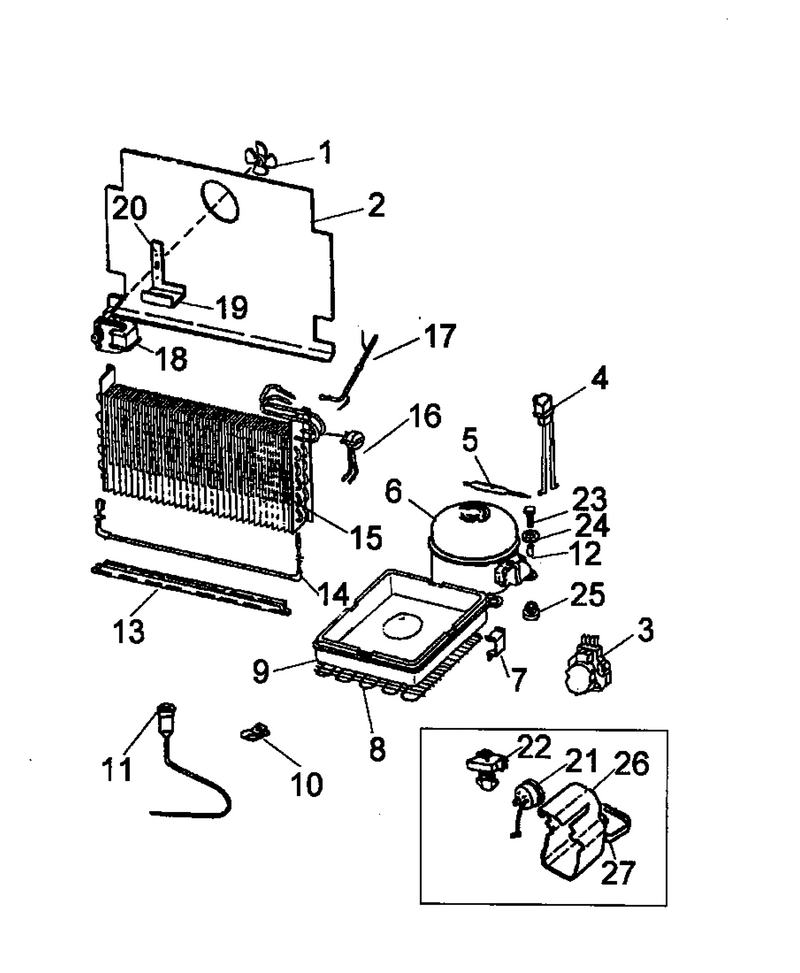

03 - Unit Compartment And System

...
...
NI
Wire, Ground WPL-R0213284
...
1
Blade, Evap Fan (4 Blades) WPL-R0213210
...
2
Plate, Evap Mtg WPL-R0213217
...
3
Timer-Def WPL-WP10129301
...
4
Capacitor WPL-WPW10662129
...
5
Drier WPL-WPB2150504
...
6
Compressor WPL-W10309994
...
7
Bracket, Drain Pan WPL-R0213213
...
8
Cond, Precooler (No Oil) WPL-R0213275
...
9
Kit,drain Tube WPL-R0213276
...
10
Clamp, Tube WPL-3-25095-011
...
11
Kit, Drain WPL-R9800592
...
12
Sleeve WPL-4356846
...
13
Shield-Ht WPL-4357284
...
14
Heater WPL-W11175809
...
15
Evaporator WPL-WP4-81546
...
16
Bimetl-Def WPL-WP1-81801-001
...
17
Exchanger WPL-WP4357245
...
18
Motor-Evap WPL-WP3-80411-103
...
19
Shield, Motor WPL-4357128
...
20
Screw-Fan Brkt Mt WPL-R0213281
...
21
Overload WPL-R0213342
...
22
Relay WPL-2154436
...
23
Screw, Compressor Mtg WPL-R0213137
...
24
Washer, Compressor Mtg WPL-R0213138
...
25
Compressor, Grommet WPL-4356335
...
26
Cover, Comp Term WPL-R0213144
...
27
Clamp, Term. Cover WPL-10899501

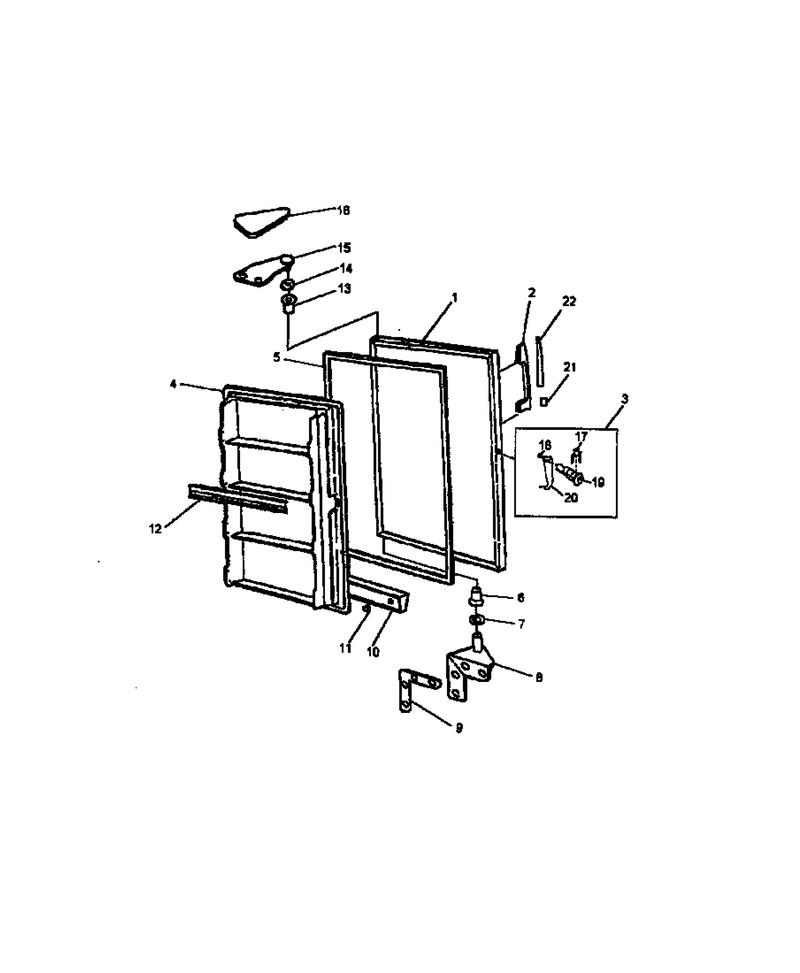

02 - Fz Door

...
...
NI
Trim-W Ctr Dr WPL-10810401
...
1
Door Shell WPL-R0213325
...
2
Kit, Handle WPL-R0213327
...
3
Lock Assembly (Includes Items 12, 13, 14, 15, 16, & 17) WPL-4357145
...
4
Kit, Door Liner WPL-R9800577
...
5
Gasket-Dor WPL-WP4357142
...
6
Bushing, Lower Hinge Mtg WPL-R0213123
...
7
Washer WPL-W10851331
...
8
Bottom Hinge (White) WPL-4357250
...
9
Shim, Bottom Hinge WPL-R0213127
...
10
Grille WPL-WP4-60461-005
...
11
Clip WPL-1-80247-101
...
12
Trim, Door Shelf WPL-R0213170
...
13
Bushing, Lower Hinge Mtg WPL-R0213123
...
14
Washer WPL-W10851331
...
15
Top, Hinge (White) WPL-4390673
...
16
Cover, Hinge (White) WPL-3-80838-003
...
17
Clip, Lock WPL-68001073
...
18
Screw WPL-WP4159193
...
19
Lock Body WPL-Y04689701
...
20
Hook, Lock WPL-68001072
...
21
Insert, Nameplate Amana WPL-R9800517
...
22
Base, Nameplate WPL-10992001
