Amana ESU15JW (BOM: P1179616W)

Model: ESU15JW (BOM: P1179616W)

Save Part Not Listed?
product name

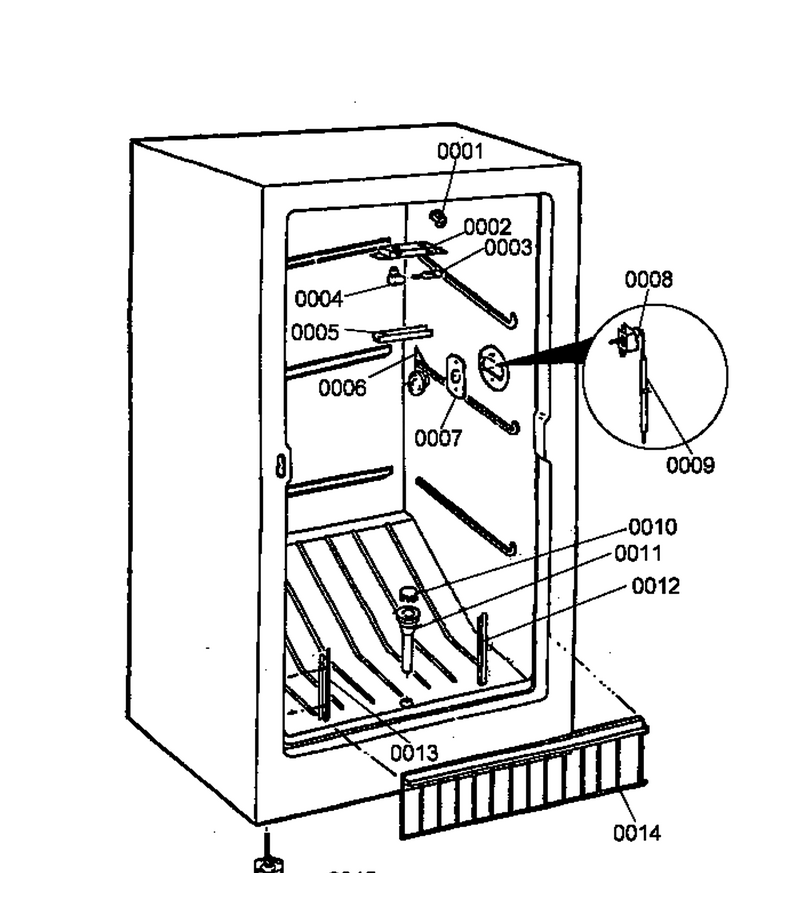

01 - Fz Compartment

...
...
NI
Screw WPL-WPW10068250
...
1
Switch WPL-W11384469
...
2
Bracket WPL-4357089
...
3
Bulb-Light WPL-WPA3073101
...
4
Socket WPL-R0213162
...
5
Shield, Light WPL-4357285
...
6
Knob, Temp. Control WPL-R0213101
...
7
Plate, Thermostat WPL-1-81154
...
8
Thermostat WPL-4356808
...
9
Barrier WPL-WP2196003
...
10
Plug, Drain WPL-R0213164
...
11
Kit, Drain WPL-R9800592
...
12
Support Fence Rh WPL-4357293
...
13
Support Lh WPL-4-80576-202
...
14
Gate, Fence WPL-R0213166
...
15
Leveler WPL-W11117769

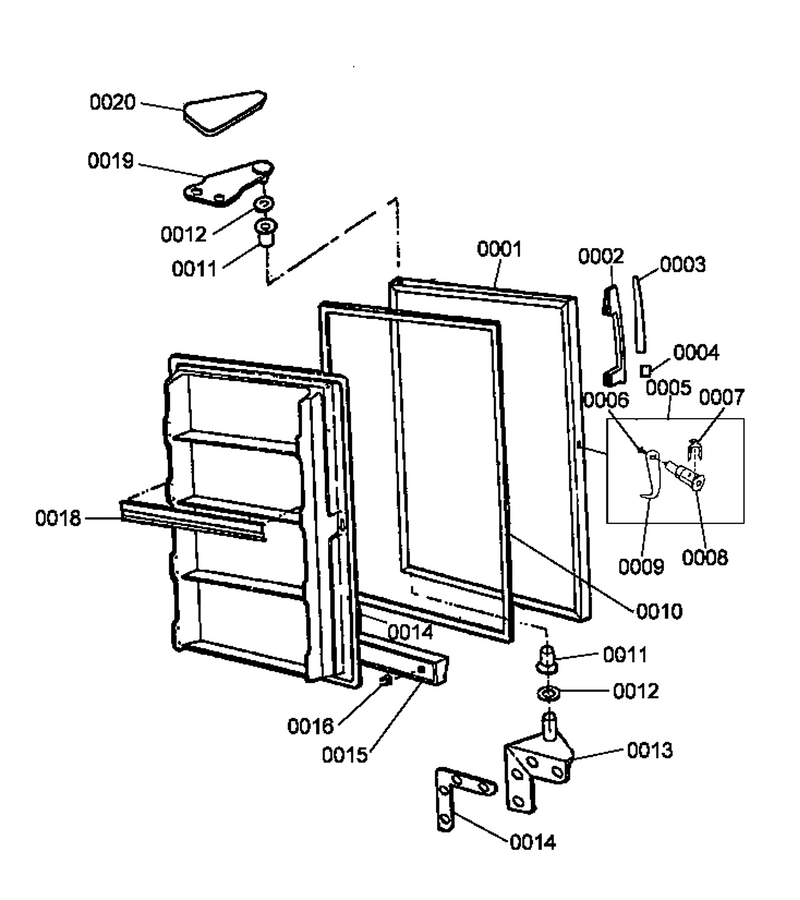

02 - Fz Door

...
...
NI
Kit, Handle WPL-R0213327
...
1
Door Shell WPL-R0213324
...
2
Handle, Door (White) WPL-12139304
...
3
Base, Nameplate WPL-10992001
...
4
Insert, Nameplate Amana WPL-R9800517
...
5
Lock Assembly (Includes Items 12, 13, 14, 15, 16, & 17) WPL-4357145
...
6
Screw WPL-WP4159193
...
7
Clip, Lock WPL-68001073
...
8
Lock Body WPL-Y04689701
...
9
Hook, Lock WPL-68001072
...
10
Gasket-Dor WPL-WP4357099
...
11
Bushing, Lower Hinge Mtg WPL-R0213123
...
12
Washer WPL-W10851331
...
13
Bottom Hinge (White) WPL-4357250
...
14
Shim, Bottom Hinge WPL-R0213127
...
15
Grille WPL-WP4-60461-005
...
16
Clip WPL-1-80247-101
...
17
Kit, Door Liner 15 WPL-R0213254
...
18
Trim, Door Shelf WPL-R0213170
...
19
Top, Hinge (White) WPL-4390673
...
20
Cover, Hinge (White) WPL-3-80838-003

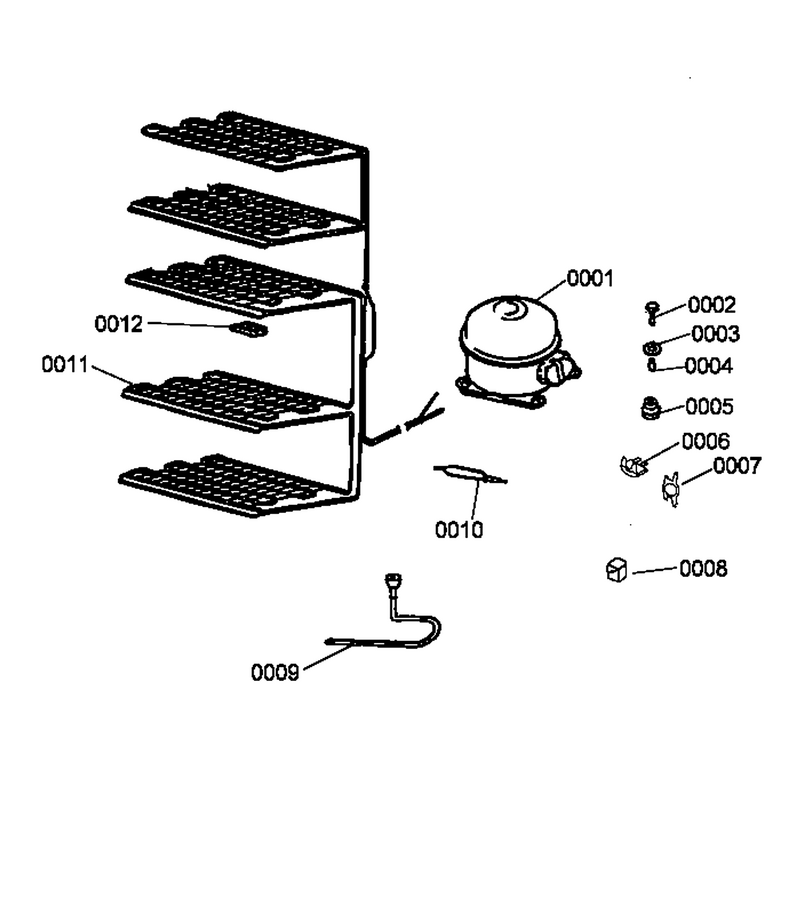

03 - Unit Compartment And System

...
...
NI
Screw, Compressor Mtg Pan WPL-R0213157
...
1
Compressor WPL-W10309989
...
2
Screw, Compressor Mtg WPL-R0213137
...
3
Washer, Compressor Mtg WPL-R0213138
...
4
Sleeve WPL-4356846
...
5
Compressor, Grommet WPL-4356335
...
6
Relay-Ptc WPL-R0213307
...
7
Overload WPL-WP4344040
...
8
Capacitor WPL-1185344
...
9
Kit, Drain WPL-R9800592
...
10
Drier WPL-WPB2150504
...
11
Assy, Evap/ht Exch WPL-R0213316
...
12
Clamp WPL-1-80308-101
