Amana EST3992L (BOM: P1132643N L)

Model: EST3992L (BOM: P1132643N L)

Save Part Not Listed?
product name

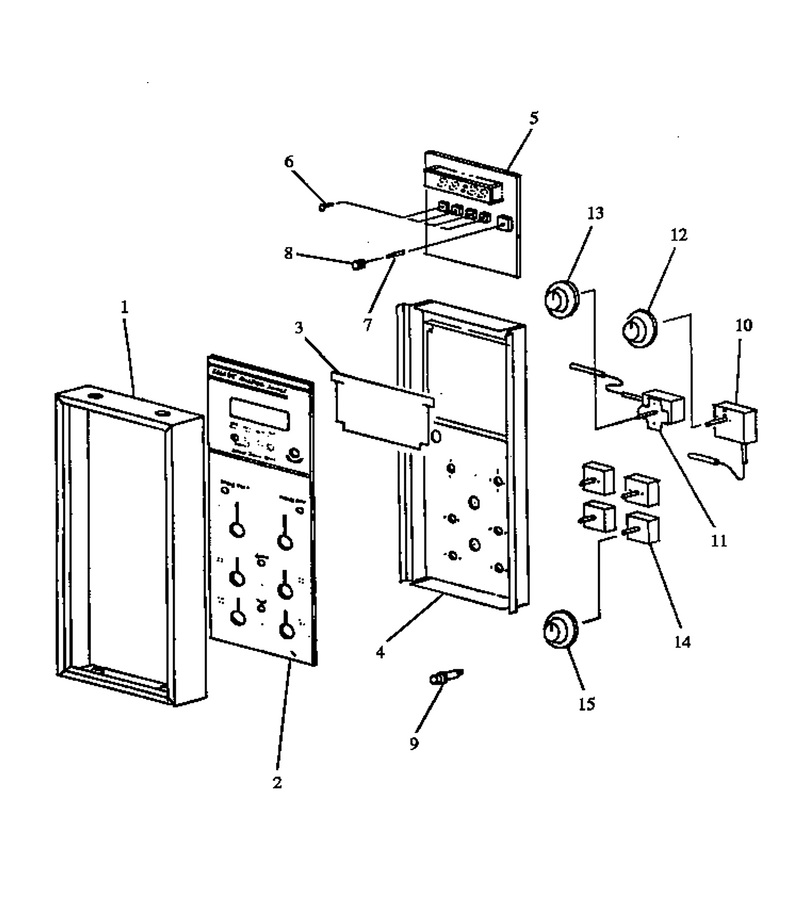

01 - Control Panel

...
...
NI
Screw WPL-WP3400882
...
1
Frame Control Panel WPL-0304035
...
2
Glass Control Panel WPL-0303688
...
3
Insulator, Electrical WPL-0304549
...
4
Brkt, Control Mtg WPL-Y0303689
...
5
Clock-Electronic WPL-Y0302803
...
6
Set Button Knob WPL-Y0304679
...
7
Shaft Bit Generator WPL-0304737
...
8
Knob- Cloc WPL-315210B
...
9
Light, Indicator, 240v WPL-Y0059797
...
10
Thermostat WPL-Y0071946
...
11
Oven Heat Control WPL-Y0071200
...
12
Knob T-Stat Lower WPL-Y0303685
...
13
Knob T-Stat Upper WPL-0303686
...
14
Switch, Infinite WPL-0071745
...
15
Knob Top Element WPL-0304355

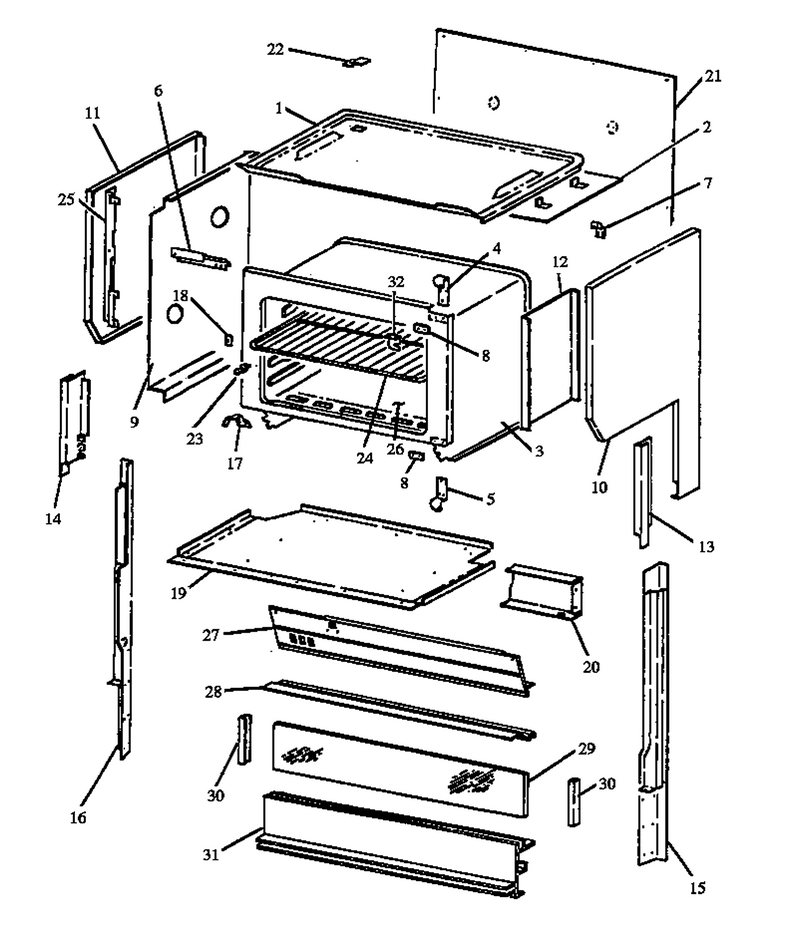

07 - Upper Oven

...
...
NI
Pop Rivet 1/8`` Diameter WPL-Y0096342
...
1
Jacket Top WPL-Y0304565
...
2
Insulation Retainer, Top WPL-Y0078701
...
4
Hinge, Top WPL-Y0094357
...
5
Hinge, Bottom WPL-Y0094356
...
6
Support Filler WPL-0304575
...
7
Spring Clip WPL-0079740
...
8
Cover Plate Front Frame WPL-0093625
...
9
Insulation Retainer Lh WPL-Y0304556
...
10
End Panel Rh WPL-303645L
...
11
End Panel Lh WPL-303646L
...
12
Retainer, Insulation WPL-Y0062256
...
13
Trim Support Lower Rh WPL-Y0303693
...
14
Trim Support Lower Lh WPL-Y0303694
...
15
Support Right WPL-Y0300414
...
16
Support Left WPL-0300413
...
17
Door Guide WPL-0071092
...
18
Plate, Door Strike WPL-0075826
...
19
Bottom, Jacket WPL-71317CG
...
20
Panel Surface Light WPL-0304537
...
21
Cover Wire Rear WPL-Y0304553
...
22
Receptacle Cover WPL-Y0073060
...
23
Strike, Door, Upper Oven WPL-Y0078034
...
24
Rack, Oven 19 7/8x 1117/32`` WPL-314780J
...
25
Support Brkt Control Panel WPL-0304550
...
26
Oven Bottom WPL-78002CG
...
27
Decorative Panel WPL-0303690
...
28
Trim, Rear WPL-0062230
...
29
Glass Splashplate WPL-0303680
...
30
Trim Glass Channel WPL-Y0303647
...
31
Trim, Lwr Plte W/light WPL-303681L
...
32
Brkt, Broil Elem Sup WPL-0073057

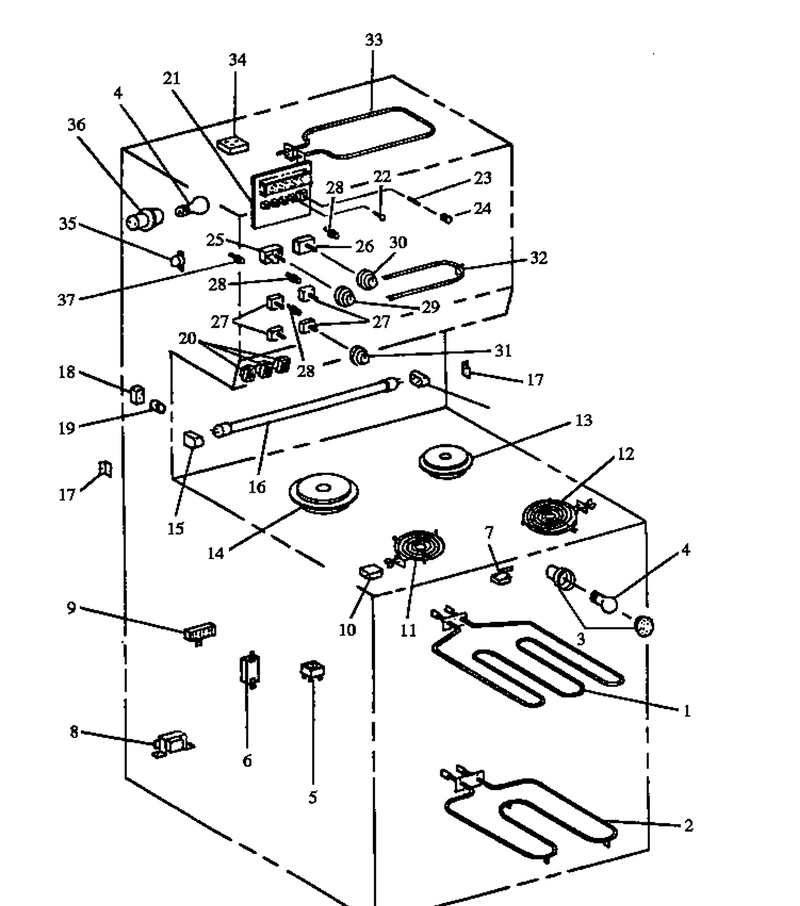

02 - Electrical Components

...
...
NI
Clip, Element Retainer WPL-Y0307930
...
1
Element- B WPL-WPY0061732
...
2
Element- B WPL-WP77001094
...
3
Light- Ove WPL-WP74011278
...
4
Light Bulb WPL-8009
...
5
Infinite Switch WPL-Y0061389
...
6
Relay, Oven WPL-Y0091669
...
7
Switch, Clean Circuit WPL-Y0065780
...
8
Ballast WPL-Y0071869
...
9
Term Blk 1m-Min WPL-0042185
...
10
Receptacle WPL-330031
...
11
Elmnt-Surf WPL-WPW10259868
...
12
Elmnt-Surf WPL-WPW10259865
...
13
Element Assy; Sm W/black X WPL-0060600
...
14
Element, Solid Disc, 8`` WPL-Y0060606
...
15
Light Socket WPL-Y0071924
...
16
Lamp-Fluor WPL-WP95292
...
17
Bracket, Socket, Fl. Lite WPL-Y0071265
...
18
Socket, Starter WPL-0071964
...
19
Starter, Flourescent WPL-0071920
...
20
Switch, Rocker WPL-Y0063997
...
21
Clock-Electronic WPL-Y0302803
...
22
Set Button Knob WPL-Y0304679
...
23
Shaft Bit Generator WPL-0304737
...
24
Knob- Cloc WPL-315210B
...
25
Oven Heat Control WPL-Y0071200
...
26
Thermostat WPL-Y0071946
...
27
Switch, Infinite WPL-0071745
...
28
Indicator Light WPL-Y0071820
...
29
Knob T-Stat Upper WPL-0303686
...
30
Knob T-Stat Lower WPL-Y0303685
...
31
Knob Top Element WPL-0304355
...
32
Bake Element, Upper Oven WPL-Y0064288
...
33
Kit- Broil WPL-Y0091221
...
34
Receptacle WPL-0073027
...
35
Hi Limit Switch WPL-Y0060713
...
36
Sub 90264,kit Light Socket WPL-0073028
...
37
Light, Indicator, 240v WPL-Y0059797

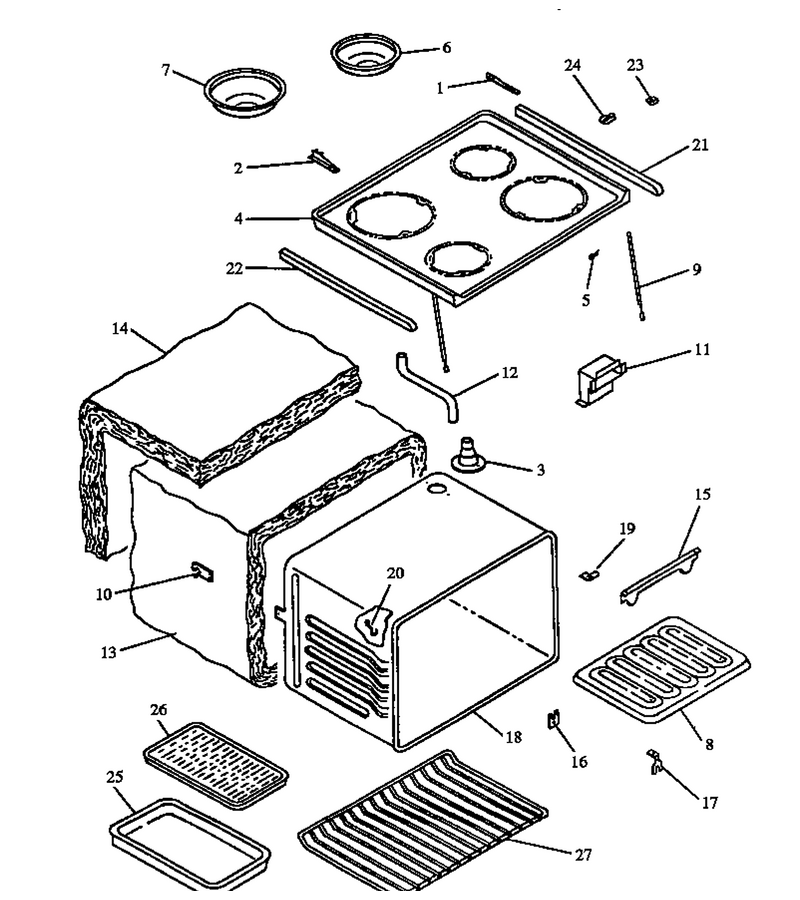

04 - Main Top And Oven Assy

...
...
NI
Rivet, Pop WPL-Y0076357
...
1
Bracket Assembly WPL-0091517
...
2
Bracket Assembly WPL-0091518
...
3
Smoke Eliminator WPL-Y0058526
...
4
Main Top, Almond WPL-059465L
...
5
Pin, Support Rod WPL-0071668
...
6
Bowl-Drip WPL-W10290353RW
...
7
Bowl-Drip WPL-WPW10196405
...
8
Reflector, Broil Element WPL-Y0315403
...
9
Support, Maintop WPL-Y0315430
...
10
Bracket, Oven Cavity WPL-Y0058852
...
11
Flue Box WPL-301288E
...
12
Tube, Vent WPL-0300024
...
13
Insulation, Wrapper WPL-0300973
...
14
Insulation, Wrapper WPL-31975801
...
15
Bracket, Reflector Mounting WPL-Y0061557
...
16
Capillary Hole Cover WPL-Y0063351
...
17
Bracket, Mounting WPL-0061556
...
18
Oven Shell (El. W/lt) WPL-31821101CG
...
19
Cover, Chip WPL-Y0315022
...
20
Clip- T-St WPL-R0000343
...
21
Trim, Main Top, Rh, Electric WPL-Y0302979
...
22
Trim, Main Top, Lh, Electric WPL-0302978
...
23
Nut, Type ``u`` WPL-Y0096604
...
24
Wire Clamp WPL-0071203
...
25
Procelain Broiler (Pan And Grid) WPL-4396923
...
26
Procelain Broiler (Pan And Grid) WPL-4396923
...
27
Rack-Oven WPL-WP314763J

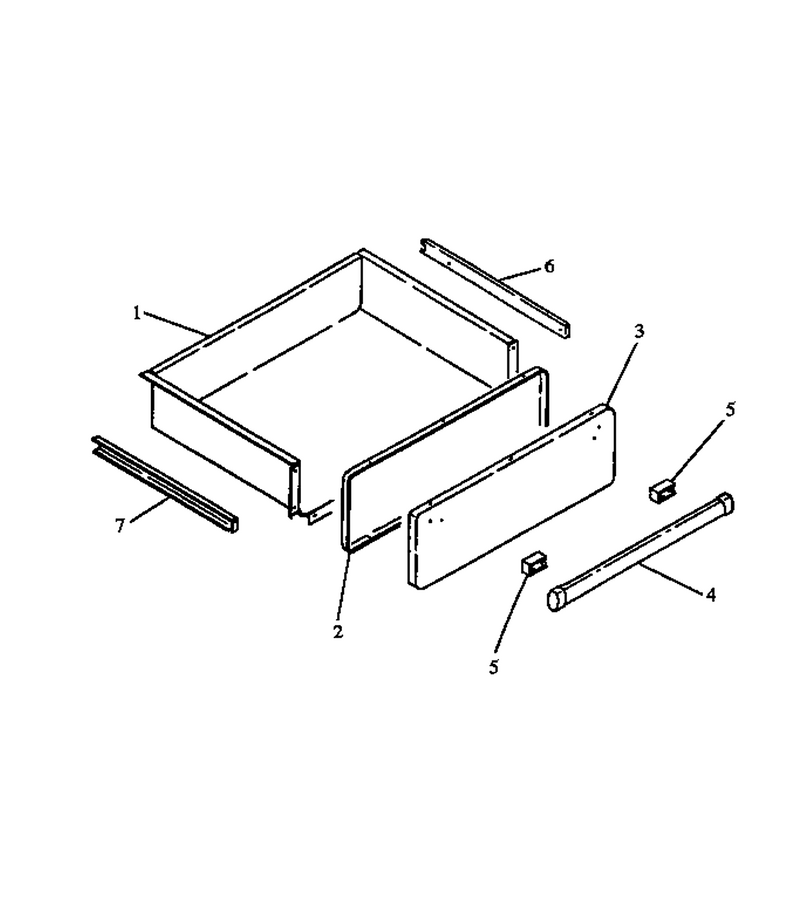

06 - Storage Drawer

...
...
NI
Screw, No.8 X .375 Wafer Hd(Blk) WPL-31750706
...
1
Wrapper, Stor Drawer WPL-306519W
...
2
Liner, Stor Drawer WPL-306521W
...
3
Drawer Panel Black WPL-Y063702B
...
4
Handle, Door WPL-0304491
...
5
Standoff, Door Handle WPL-0300980
...
6
Runner Storage Dwr-Rh WPL-Y0314665
...
7
Runner, Storage Door, L.h. WPL-Y0300476

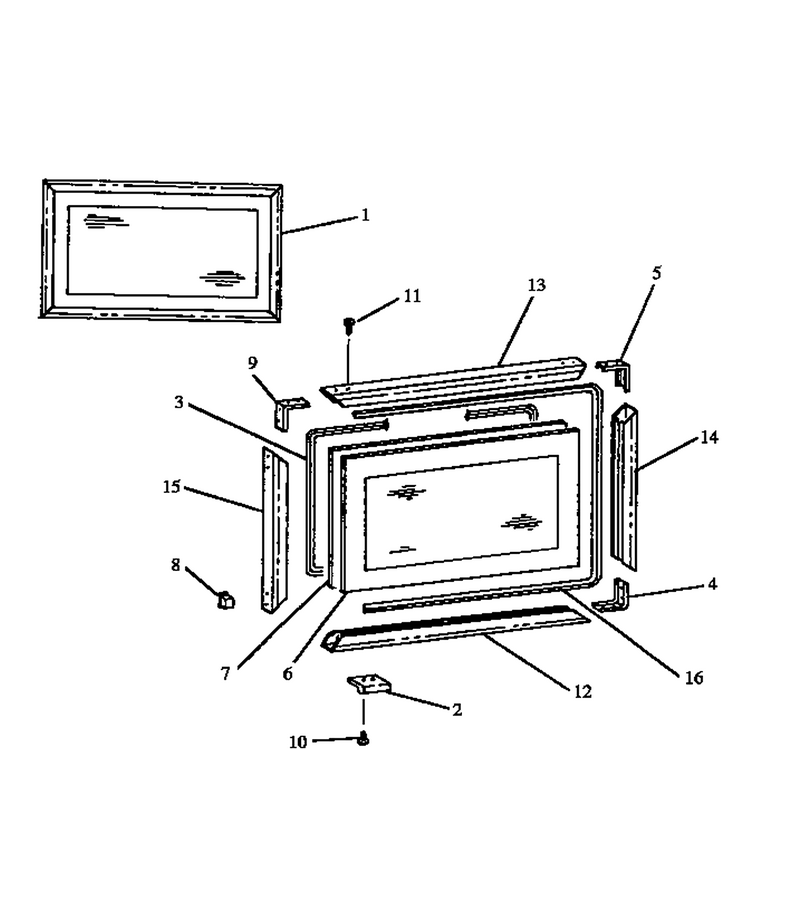

08 - Upper Oven Door

...
...
1
Door, Upper Oven WPL-309260D
...
2
Handle Upper Oven Door WPL-Y0304036
...
3
Door Gasket WPL-0072994
...
4
Corner Support Lower, R.h. WPL-0094239
...
5
Corner Support Upper, R.h. WPL-Y0094240
...
6
Window Oven Door WPL-0303692
...
7
Inner Glass Pane-Upper Door WPL-Y0094364
...
8
Catch, Upper Oven Door WPL-Y0078035
...
9
Corner Support, L.h. WPL-0094335
...
10
Screw 10-24x1/2 Ph Tr WPL-0098193
...
11
Screw, Extru. WPL-0304610
...
12
Extrusion Door Frame Bottom WPL-0304034
...
13
Extrusion Door Frame Top WPL-0304033
...
14
Extrusion Door Frame Rh WPL-0304032
...
15
Door, Extr L.h. WPL-0309390
...
16
Gasket 11.33` Lg WPL-0079598

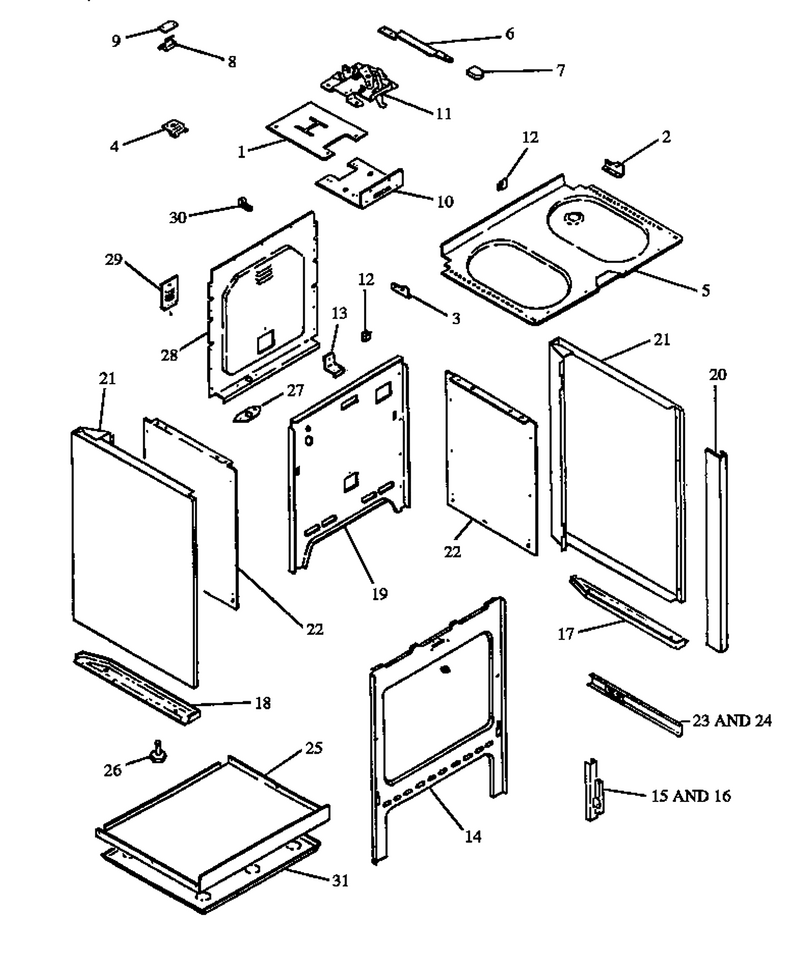

05 - Oven Cabinet Assy

...
...
NI
Screw 4-40x1 WPL-Y0092365
...
1
Retainer, Oven Light WPL-Y0063353
...
2
Bracket WPL-Y0091519
...
3
Bracket WPL-Y0091520
...
4
Bracket, Switch WPL-Y0302316
...
5
Baffle, Drip (Enamel) WPL-31836001CG
...
6
Latch Arm WPL-303039B
...
7
Knob, Latch Handle (Blk) WPL-0302300
...
8
Switch, Clean Circuit WPL-Y0065780
...
9
Insulation, Esm WPL-Y0091523
...
10
Bracket, Latch Mtg. WPL-Y0058918
...
11
Latch, Ov. Door WPL-Y0059565
...
12
Cable, Clip Esm WPL-Y0091587
...
13
Bracket, Switch Mtg. WPL-0061384
...
15
Hinge-Door WPL-R0706011
...
16
Kit, Door Hinge(Lh-Hs) WPL-Y0066953
...
17
Brace, Leveling Leg (Lt) WPL-31854501
...
18
Brace, Leveling Leg (Lt) WPL-31854501
...
19
Insulation Retainer Rear WPL-Y0303364
...
20
Trim, Side Panel, Lh WPL-Y0301639
...
21
Panel, Side (Alm) WPL-31825103L
...
22
Side Insulation Retainer WPL-Y0303572
...
23
Track, Storage Dwr Rh WPL-0306403
...
24
Track, Storage Drawer-L.h. WPL-Y0300474
...
25
Bottom Insulation Retainer WPL-Y0303838
...
26
Leg, Leveling WPL-Y0307594
...
27
Plate, Main Inlet Wire WPL-0058311
...
28
Cover, Rear WPL-Y0058434
...
29
Plate, Access WPL-31757201
...
30
Clamp, Wire-Insulate WPL-Y0068513
...
31
Shield, Heat WPL-Y0315146

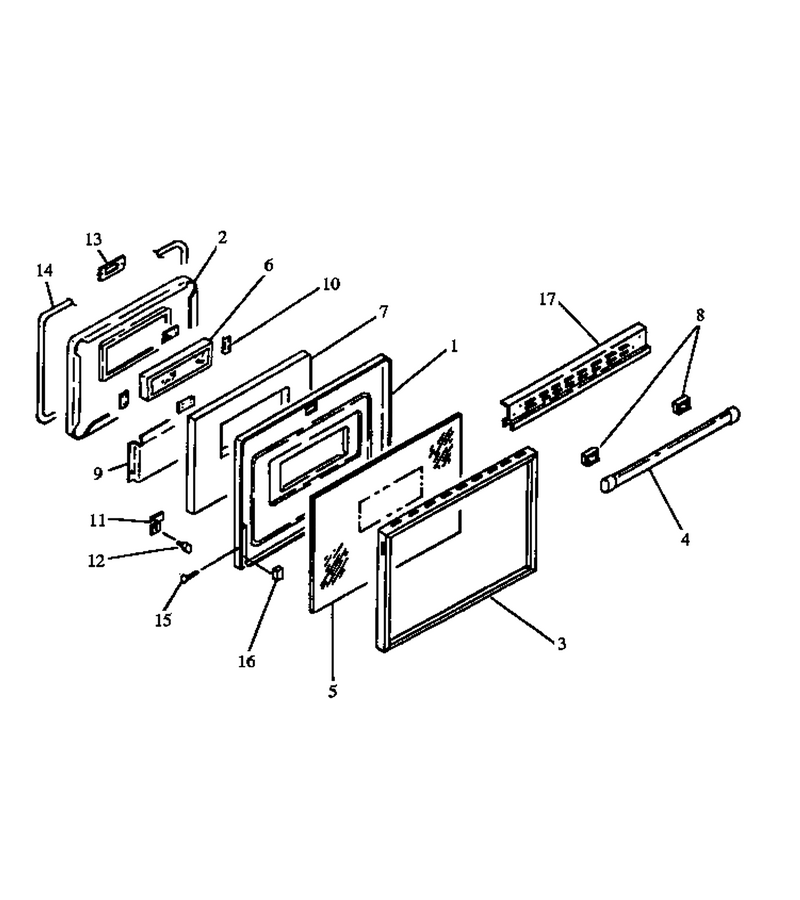

03 - Lower Oven Door

...
...
NI
Screw WPL-W11245710
...
1
Door Backer, Electric (Cg) WPL-302723E
...
2
Pad, Ov Dr W/window WPL-314693CG
...
3
Frame, Oven Door (Black) WPL-308071B
...
4
Handle, Door WPL-0304491
...
5
Glass, Oven Door WPL-Y0300791
...
6
Window Assy WPL-0304831
...
7
Insulation, Wrapper WPL-31975801
...
8
Standoff, Door Handle WPL-0300980
...
9
Heat Baffle, Glass (Black) WPL-306449B
...
10
Retainer, Door Glass WPL-Y0052629
...
11
Support Bracket, Glass WPL-Y0062439
...
12
Bumper, Oven Door WPL-Y0063661
...
13
Latch Plate WPL-Y0052039
...
14
Gasket, Oven Dr 82`` WPL-Y0300432
...
15
Rivet, Pop WPL-Y0302648
...
16
Bumper, Rubber WPL-Y0060247
...
17
Kit, Dr Hndl/trim (Black) WPL-Y0300723
