Amana ESRFC516C-C (BOM: P7395302W C)

Model: ESRFC516C-C (BOM: P7395302W C)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

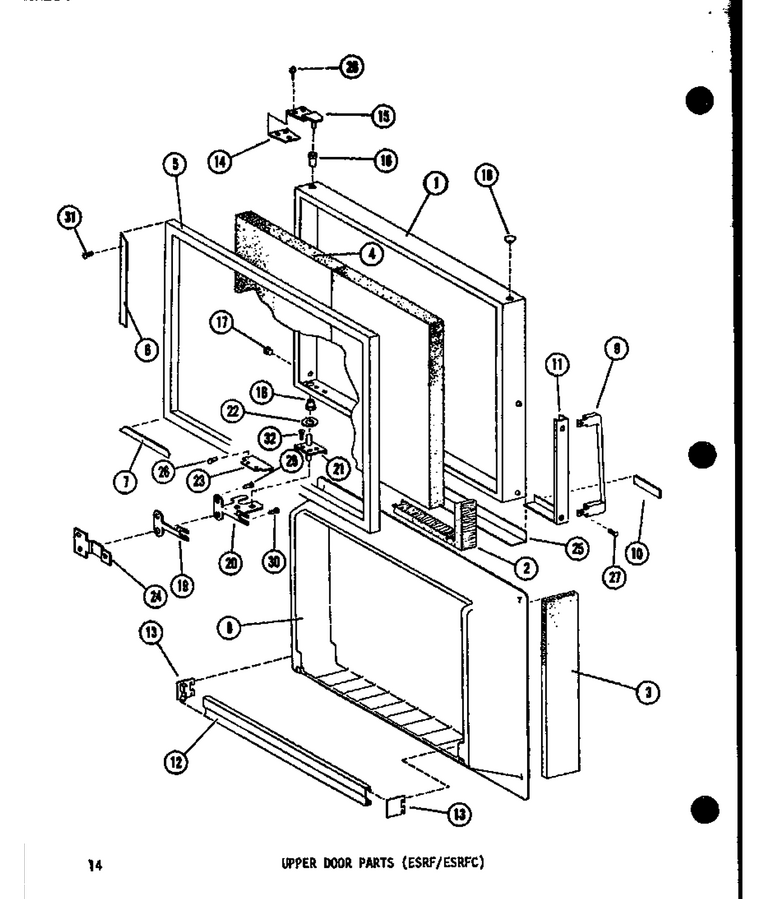

05 - Upper Door Parts (esrf/esrfc)

...
...
1
D00r Fr Av-T-Esr16c WPL-D7395708
...
2
Insulation Ft. K WPL-B0523563
...
3
Insulation WPL-B5629037
...
4
Foam Slab WPL-C8767002
...
5
Gasket WPL-D3928221
...
6
Retainer-Gasket WPL-D3928116
...
7
Retainer-Gasket WPL-D3928118
...
8
Inner Dr Panel Frz WPL-D7263102
...
9
Handle WPL-D7254201
...
10
Nameplate WPL-C8757304
...
11
Handle Pad Kit WPL-D7257902
...
12
Retainer, Package WPL-D3976702
...
13
Support K WPL-C3680903
...
14
Shim Kit WPL-A3270303
...
15
Hinge WPL-B5744301
...
16
Bushing, Hinge Pin WPL-C3652901
...
17
Plug WPL-M0310717
...
18
Plug WPL-M0310607
...
19
Shim K WPL-A3143503
...
20
Center Hinge Assy WPL-C8800201
...
21
Hinge Kit WPL-B5640902
...
22
Washer Hinge K WPL-B5779601
...
23
Stop Door WPL-A3139801
...
24
Kit- Tap P WPL-R0194684
...
25
Cap Door WPL-D7266502
...
26
Machine Screw WPL-M0205631
...
27
Screw WPL-M0222317
...
28
Kit, Screw WPL-R9800670
...
29
Screw WPL-M0226831
...
31
Screw WPL-WP98165
...
32
Screw K WPL-M0205441

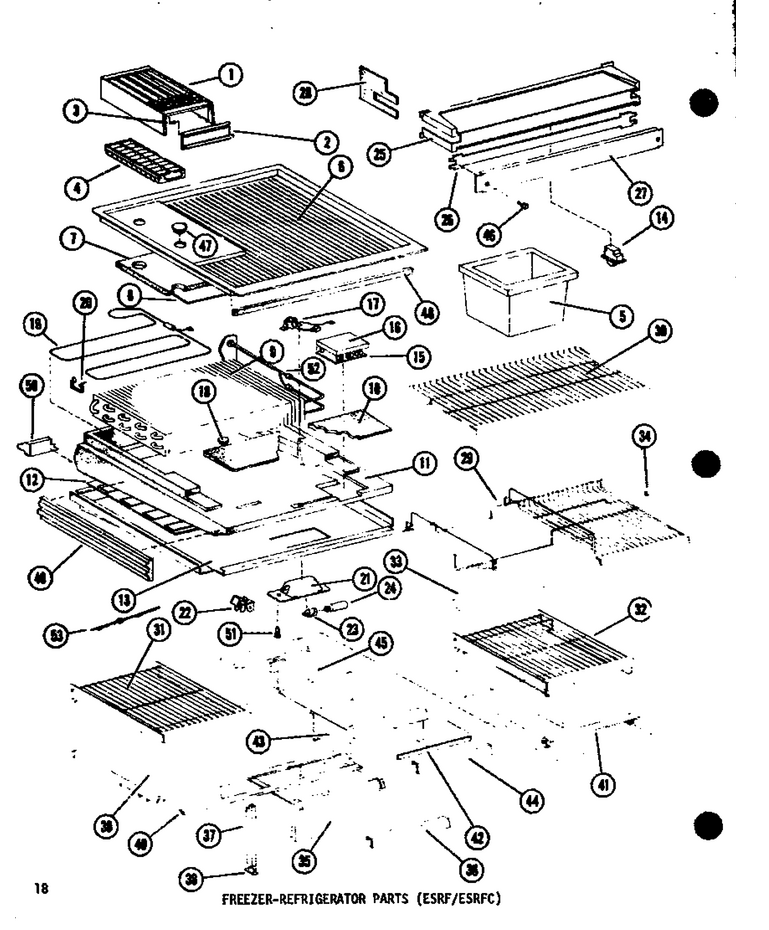

03 - Fz-Ref Parts (esrf/esrfc)

...
...
1
Tunnel-Ice Tray WPL-D7193004
...
2
Door, Tunnel WPL-C8706101
...
3
Hinge Pin WPL-A3214701
...
4
Tray WPL-WP841180A
...
5
Ice Container WPL-D7272701
...
6
Bottom Freezer WPL-D7255106
...
7
Insulation WPL-D7478101
...
8
Barrier Sheet WPL-A3126003
...
9
Evaporator WPL-D7316201
...
10
Insulation WPL-C8744801
...
11
Drain Block WPL-D7350902
...
12
Heater-Ref Top WPL-D7351202
...
13
Top-Ref WPL-D7257802
...
14
Switch, Light WPL-C3680305
...
15
Term Bd Assy WPL-B5749302
...
16
Cover, Terminal Board WPL-B5762601
...
17
Thermostat WPL-C8731903
...
18
Drain Screen WPL-A3113702
...
19
Heater-Evap WPL-D7316502
...
20
Clip WPL-M0110301
...
21
Shield, Light WPL-R0176034
...
22
Clip, Ground WPL-B5733302
...
23
Socket-Light WPL-D7714407
...
24
Bulb-Light WPL-WP67002552
...
25
Breaker-Mullion WPL-D7275201
...
26
Center Hea WPL-R0157366
...
27
Ctr Mullion-G WPL-C8807104
...
28
Gasket Lh Mullion K WPL-B5762801
...
31
Shelf Cantil. K WPL-D7345202
...
32
Shelf, Cantilever, Meat Keeper WPL-D7345303
...
33
Trim Shelf K WPL-D7344502
...
35
Pan, Crisper WPL-D7261805
...
36
Trim-Crisper Handle WPL-C3696504
...
37
Support WPL-B0571002
...
38
Support Post WPL-B5749401
...
39
Crisper Top WPL-D7261303
...
40
Trim-Crisper Top WPL-B0570905
...
41
Top, Meat Keeper WPL-D7001104
...
42
Gasket (per Foot) WPL-A3030313
...
43
Pan, Meat Keeper WPL-D3975703
...
44
Trim, Handle WPL-C3623002
...
45
Sleeve, Meat Keeper WPL-D7001302
...
46
Screw WPL-WP67006715
...
47
Plug WPL-A3069103
...
48
Gasket WPL-B5759602
...
49
Gasket K WPL-B5757801
...
50
Gasket, Sealing, Divider Block WPL-B5757701
...
51
Screw WPL-WP489464
...
52
Heat Ex WPL-D7319504
...
53
Wiring Harness WPL-C8744701

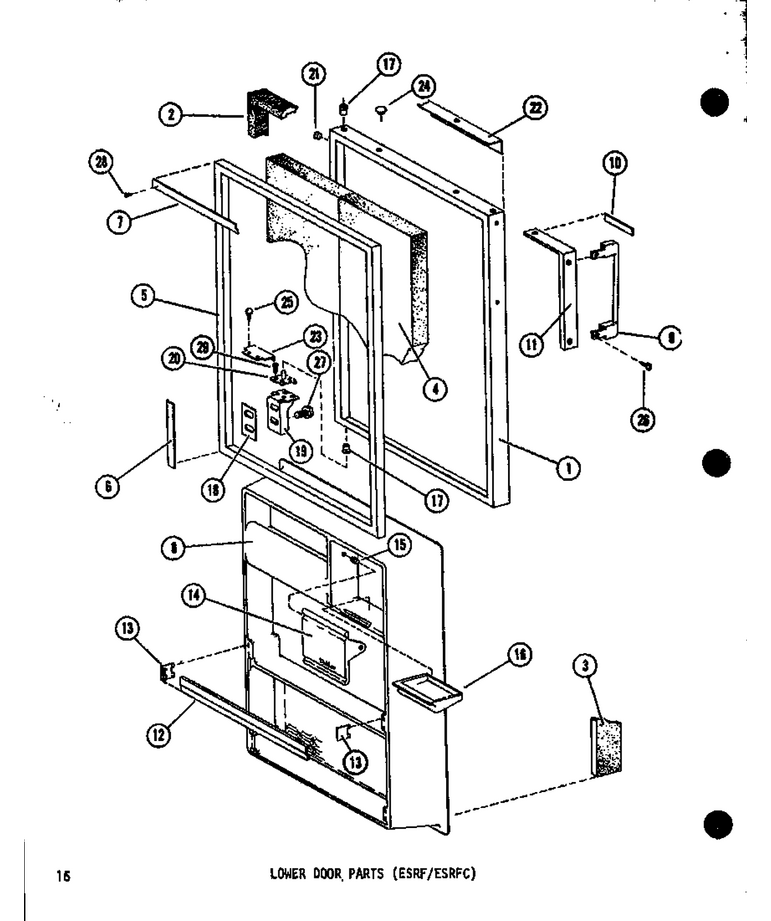

04 - Lower Door Parts (esrf/esrfc)

...
...
1
Door Ref W-T Esr16d WPL-D7395726
...
2
Insulation Ft. K WPL-B0523563
...
3
Insulation WPL-B5629037
...
4
Insulation WPL-B5683506
...
5
Gasket WPL-D7431906Q
...
6
Retainer-Gasket WPL-D3928117
...
7
Retainer-Gasket WPL-D3928118
...
8
Panel WPL-D7263202
...
9
Handle WPL-D7254202
...
10
Nameplate WPL-C8757301
...
11
Handle Pad Kit WPL-D7257901
...
12
Retainer WPL-D3976726
...
13
Support - Cream Lh WPL-B5631705
...
14
Door-Butter WPL-D7026403
...
15
Pivot WPL-A3084701
...
16
Buttertray WPL-67004412A
...
17
Bushing, Hinge Pin WPL-C3652901
...
18
Kit,btm Hinge Shim WPL-B5744801
...
19
Brkt-Btm Hinge WPL-C8800301
...
20
Hinge Kit WPL-B5640902
...
21
Plug WPL-M0310717
...
22
Cap Door WPL-D7266501
...
23
Stop Door WPL-A3139801
...
24
Plug WPL-M0310606
...
25
Machine Screw WPL-M0205631
...
26
Screw WPL-M0222317
...
27
Screw WPL-WP67006715
...
28
Screw WPL-WP98165
...
29
Screw K WPL-M0205441

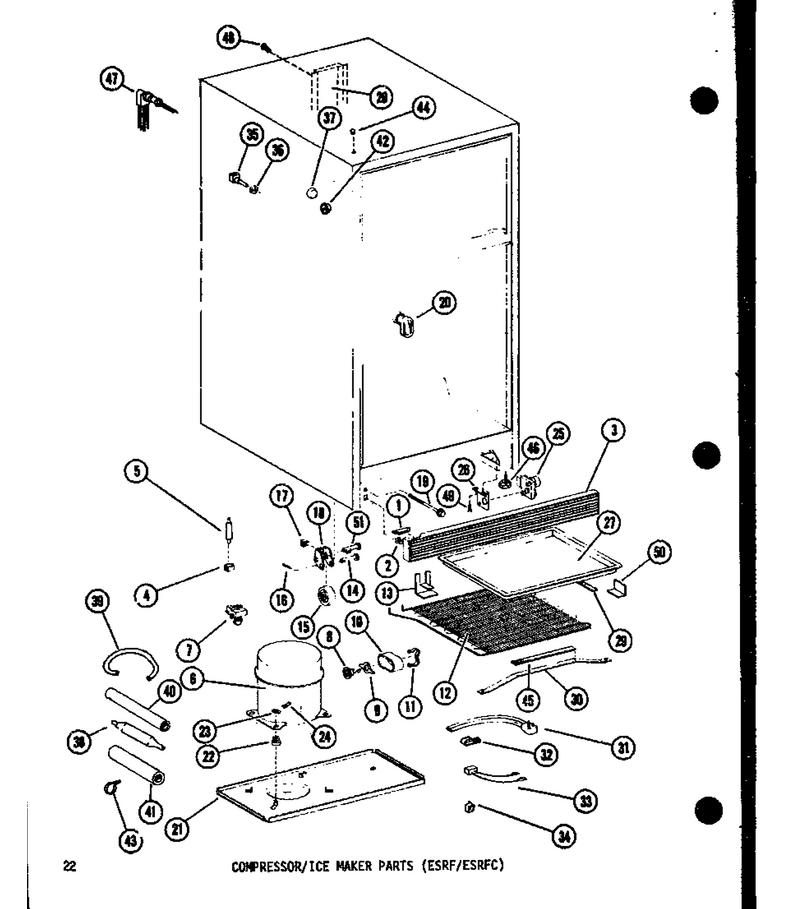

01 - Compressor/ice Maker Parts (esrf/esrfc)

...
...
NI
Wiring Harness WPL-C8744301
...
2
Clip WPL-WPM0117303
...
3
Grille Toe WPL-D7263302
...
4
Clamp-Drier WPL-M0104002
...
6
Compressor WPL-D7284203H
...
7
Relay WPL-C3584801
...
8
Overload WPL-B0589801
...
12
Pre-Cooler WPL-D7307601
...
14
Pin K WPL-M1200202
...
15
Roller WPL-M0520102
...
16
Cotter Pin K WPL-M1200004
...
17
Nut, Speed WPL-M0286708
...
18
Assy, Roller Bracket WPL-12452602Q
...
19
Bolt WPL-M0209235
...
20
Tunnel-Heat Ex WPL-B5749501
...
22
Grommet K WPL-A3026101
...
23
Washer, Nylon K WPL-M0590101
...
24
Clip K WPL-A3140801
...
25
Timer Defrost WPL-D7004108
...
26
Bracket-Timer WPL-C8821701
...
27
Drain Pan WPL-D3920001
...
28
Cover, O.c. Back, White WPL-C8807001
...
29
Gasket WPL-A3030327
...
30
Support WPL-D7308201
...
31
Wiring Harness WPL-D7391302
...
32
Clamp WPL-M0103901
...
33
Wiring Harness WPL-B5730802
...
34
Clip-Cable WPL-M0110505
...
35
Fill Tube WPL-R0182123
...
36
Gasket WPL-A3278101
...
37
Cap Fill Tube WPL-B5631801
...
38
Accumulator K WPL-B0488001
...
39
Tube K WPL-C8827201
...
40
Insul Tubing 1=12`` WPL-A0329806
...
41
Insulation Per Ft K WPL-A1004101
...
42
Cap WPL-B5636301
...
43
Tie-Wire WPL-WPW10339879
...
44
Plug WPL-M0310720
...
45
Felt Q WPL-A9008324
...
47
Wiring Harness WPL-D7274701
...
48
Screw WPL-WP489464
...
49
Screw WPL-WP90767
...
50
Bracket-Cond WPL-B5709101
...
51
Rivet WPL-M1205302

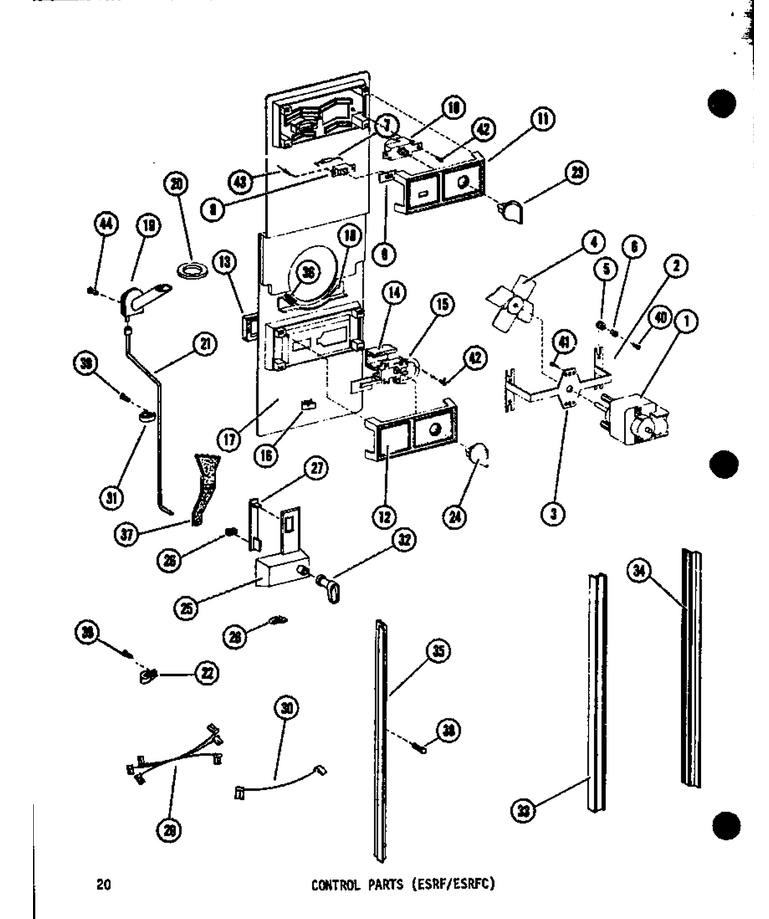

02 - Control Parts (esrf/esrfc)

...
...
1
Motor 50 Cy WPL-D7241408
...
2
Clip, Ground WPL-B5733302
...
3
Motor Mount WPL-C8722501
...
4
Fan Blade WPL-B5739301
...
5
Clip, Waterline WPL-12454802
...
6
Eyelet K WPL-A0381401
...
7
Diode WPL-M0305301
...
8
Switch WPL-M0341202
...
9
Plate-Switch Mtg WPL-A3259901
...
10
Control-Te WPL-WPB0592305
...
11
Deflector, Air, Ref WPL-D7272501
...
12
Deflector-Air WPL-D7273403
...
13
Gasket-Damper WPL-A3260901
...
15
Control WPL-C8761103
...
16
Clip WPL-M0117701
...
17
Cover-Air Duct WPL-D7272201
...
18
Drain Trough WPL-D7292901
...
21
Drain Tube WPL-C8743602
...
22
Clamp WPL-M0102303
...
25
Escutcheon WPL-D7273102
...
26
Gasket-Mt Kpr WPL-A3261001
...
27
Slide-Mt Kpr WPL-B5622803
...
28
Clip-Cable WPL-M0110505
...
29
Wire Harness WPL-C8760701
...
30
Wire-Jumper WPL-A3221101
...
31
Clamp, Tube WPL-M0102305
...
32
Grommet-Mt Kpr WPL-C8743002
...
33
Ladder-Ctr WPL-C8742202
...
34
Ladder-R Side WPL-C8741802
...
35
Ladder WPL-C8741804
...
36
Gasket WPL-A3189314
...
37
Gasket-Air Duct WPL-C8763602
...
38
Screw WPL-M0231117
...
39
Screw WPL-WP489069
...
40
Screw WPL-M0216539
...
41
Screw WPL-WP3400094
...
42
Screw WPL-M0218116
...
43
Rivet A WPL-M0010202
...
44
Screw WPL-M0214618
