Amana ESRFC316B (BOM: P7350002W)

Model: ESRFC316B (BOM: P7350002W)

Save Part Not Listed?
product name

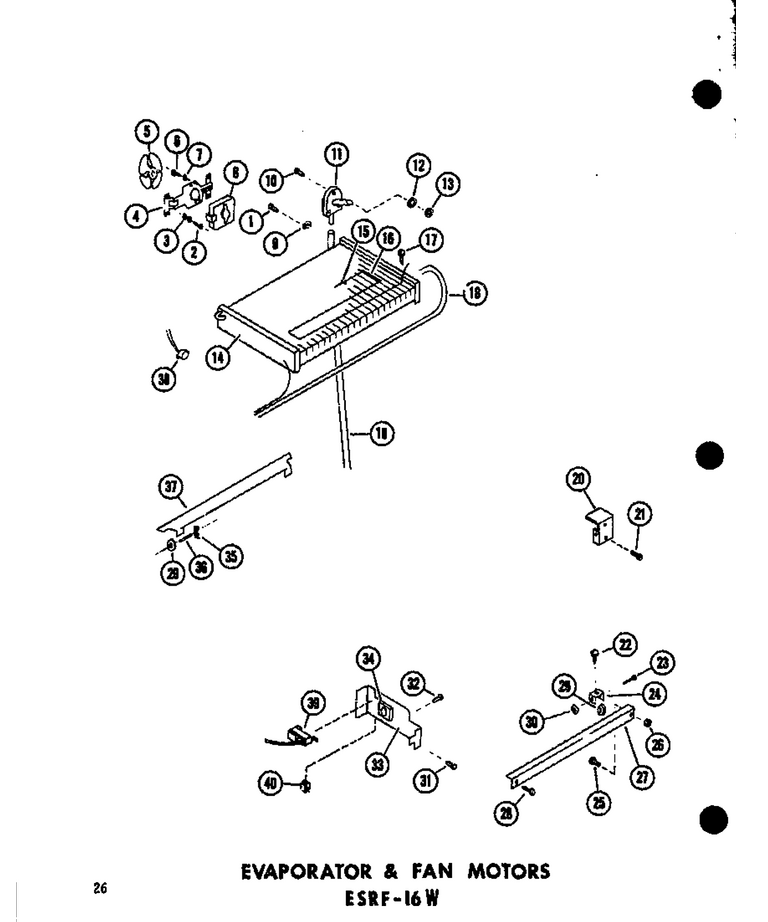

02 - Evap & Fan Motors

...
...
1
Screw WPL-WP489069
...
2
Screw WPL-WP98165
...
3
Clip, Waterline WPL-12454802
...
4
Bracket WPL-C3536203
...
5
Fan Blade WPL-B5622101
...
6
Screw WPL-M0202642
...
7
Washer WPL-M0272605
...
8
Motor WPL-D7256201
...
9
Clamp WPL-M0102303
...
10
Screw WPL-M0214618
...
11
Elbow WPL-C3630902
...
12
Gasket WPL-A3132301
...
13
Grommet WPL-A3128101
...
14
Evaporator WPL-D7143121
...
15
Clip WPL-M0110301
...
16
Heater Def K WPL-C3660003
...
17
Screw WPL-W11233072
...
18
Heat Exchanger WPL-D7030303
...
19
Tube-Drain WPL-C8721101
...
20
Bracket WPL-B5619901
...
21
Screw WPL-WP489069
...
22
Screw WPL-M0267101
...
23
Rivet WPL-M1205302
...
24
Bracket K WPL-A3125201
...
25
Roller Bracket Kit WPL-M0222240
...
26
Nut, Self Thread WPL-M0283801
...
27
Front Rail WPL-B5627601
...
28
Screw WPL-M0294459
...
29
Roller WPL-M0520102
...
30
Fastener WPL-M0289401
...
31
Screw WPL-WP489464
...
32
Screw WPL-M0218116
...
33
Timer Bracket WPL-C3647902
...
34
Timer-Def WPL-R0131577
...
35
Cotter Pin K WPL-M1200001
...
36
Pivot Pin K WPL-M1210001
...
37
Rail, Rear WPL-C3611301
...
38
Thermostat-Defrost WPL-C8731901
...
39
Control-Low Ambient WPL-C8718302
...
40
Clip K WPL-M0110501

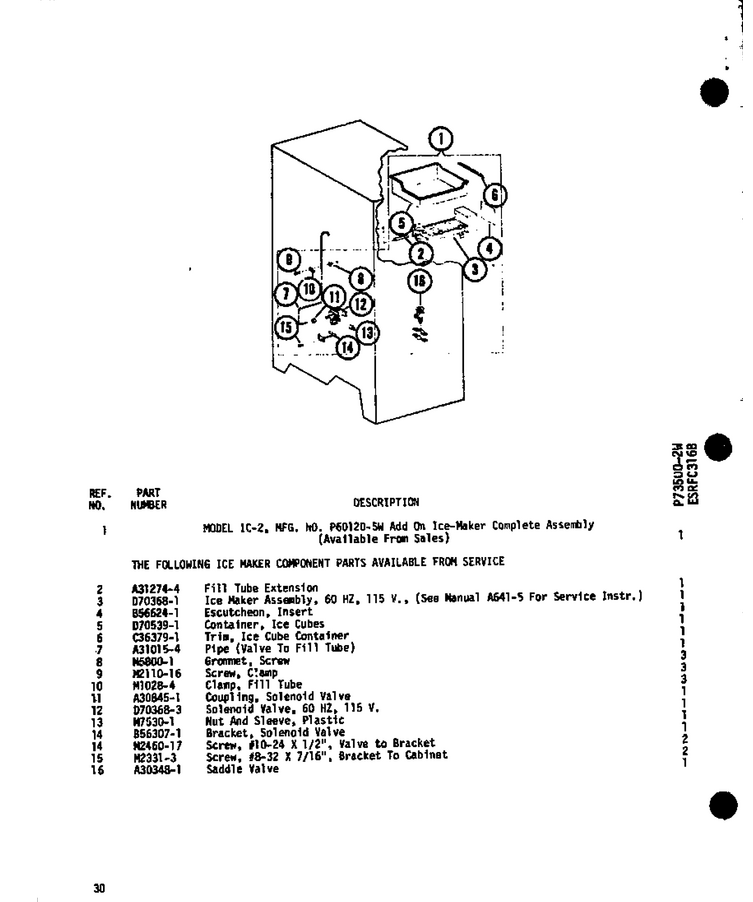

07 - Page 13

...
...
1
See Note Model Ic-2, Mfg. No. P60120-5w Add On Ice-Maker Completeassy -- (available From Sales) WPL-Y00000000
...
2
Tube WPL-A3127404
...
3
Ic2- Ice M WPL-C3641510
...
4
Insert-Im WPL-B5662401
...
5
Pan-Ice WPL-WP67001255
...
6
Trim K WPL-C3637901
...
7
Pipe WPL-A3101504
...
8
Grommet, Screw WPL-M0580007
...
9
Screw WPL-WP90767
...
10
Clamp WPL-M0102804
...
11
Coupling, Solenoid Valve And H WPL-A3084501
...
12
Valve-Inlt WPL-4318047
...
13
Nut WPL-WP627018
...
14
Screw WPL-M0246017
...
15
Screw WPL-WP489399
...
16
Saddle Valve WPL-A3034801

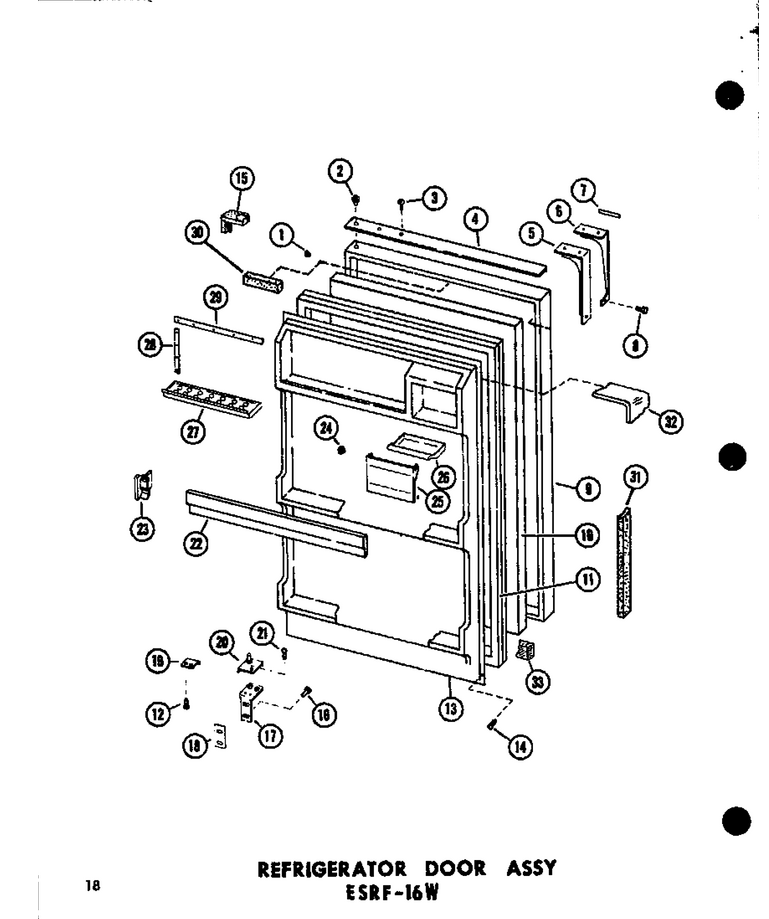

08 - Ref Door Assy

...
...
1
Plug WPL-M0310717
...
2
Bushing, Hinge Pin WPL-C3652901
...
3
Screw WPL-M0203216
...
4
Door Cap WPL-D3958303
...
5
Handle Pad Kit WPL-D7146002
...
6
Handle K WPL-D7145802
...
7
Nameplate K WPL-C3675306
...
8
Screw WPL-M0203458
...
9
Door Ref-G-P-Tc18b WPL-D7370520
...
10
Foam Slab WPL-B5612014
...
11
Gasket WPL-D3928205
...
12
Machine Screw WPL-M0205631
...
13
Door Panel K WPL-D7246301
...
14
Screw WPL-WP98165
...
15
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
16
Screw WPL-WP67006715
...
17
Hinge Kit WPL-C8800401
...
18
Shim WPL-A3143601
...
19
Stop Door WPL-A3139801
...
20
Hinge Kit WPL-B5640902
...
21
Screw K WPL-M0205441
...
22
Pkg Retainer K WPL-D3976724
...
23
Support- -Cream Rh WPL-B5631706
...
24
Pivot WPL-A3084701
...
25
Butter Door WPL-D7026401
...
26
Buttertray WPL-67004412A
...
27
Egg WPL-D7025701
...
28
Retainer Gasket WPL-D3928104
...
29
Retainer Gasket WPL-D3928102
...
30
Insulation WPL-B5629022
...
31
Insulation WPL-B5629021
...
32
Insulation (1 = 1ft.) WPL-A3195001
...
33
Insulation, Batt, 1-1/2`` X 4-1 WPL-B5629028

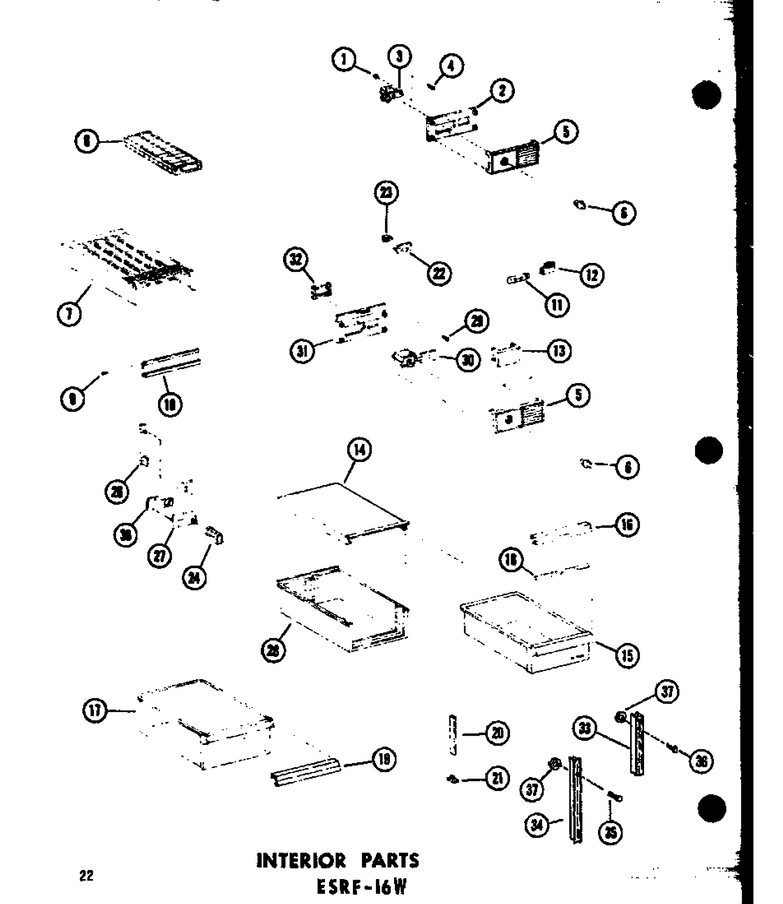

05 - Interior Parts

...
...
1
Grommet, Screw WPL-M0580007
...
2
Back Plate WPL-D7160901
...
3
Control-Temp WPL-B0592305
...
4
Screw WPL-WP90767
...
5
Deflector WPL-D7272503
...
6
Knob WPL-D7009801
...
7
Net Tunnel, Ice Tray WPL-D7193001
...
8
Tray WPL-WP841180A
...
9
Hinge Pin WPL-A3214701
...
10
Door, Tunnel WPL-C8706101
...
11
Bulb-Light WPL-WPA3073101
...
12
Socket WPL-B5637601
...
13
Cap K WPL-C3617201
...
14
Top, Meat Keeper WPL-D7001104
...
15
Pan, Meat Keeper WPL-D3975703
...
16
Trim, Handle WPL-C3623002
...
17
Pan, Crisper WPL-D7186701
...
18
Gasket (per Foot) WPL-A3030313
...
19
Trim A WPL-C3696502
...
20
Support WPL-B0571005
...
21
Support WPL-B0571201
...
22
Escutcheon-Htr Sw WPL-C8705702
...
23
Switch WPL-M0341202
...
24
Grommet WPL-C3614904
...
26
Slide-Mt Kpr WPL-B5622803
...
27
Escutcheon WPL-B5656704
...
28
Sleeve, Meat Keeper WPL-D7001302
...
29
Screw WPL-M0218116
...
30
Control, Damper WPL-C8876602
...
31
Backer Plate WPL-D7058201
...
32
Gasket WPL-A3104502
...
33
Ladder WPL-C3606103
...
34
Ladder WPL-C3606003
...
35
Screw, Machine WPL-M0209119
...
36
Screw WPL-M0207632
...
37
Nut WPL-WP486255
...
38
Gasket, Control, Meat Keeper WPL-A3253401

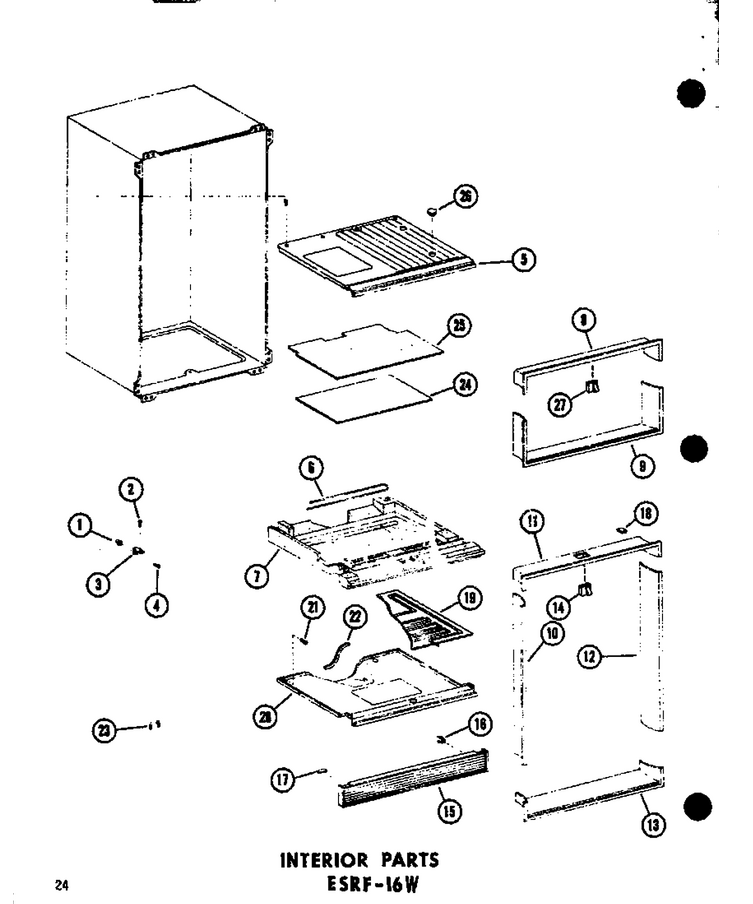

06 - Interior Parts

...
...
1
Grommet WPL-A0288701
...
2
Screw (3) WPL-67006425
...
3
Clip WPL-M0116901
...
4
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
5
Bottom-Fr WPL-D7143001
...
6
Heater-Drip Tray WPL-C8708201
...
7
Drain Block WPL-D7246701
...
8
Breaker Frame WPL-D3917002
...
9
Breaker Frame WPL-D3916801
...
10
Breaker Frame WPL-D3914516
...
11
Breaker Frame K WPL-D7246601
...
12
Breaker Frame WPL-D3914515
...
13
Breaker Frame WPL-D3916301
...
14
Switch, Light WPL-C3680305
...
15
Grille-Toe WPL-D7070211
...
16
Clip WPL-WPM0117303
...
17
Grille-Toe WPL-B5641301
...
18
Clip WPL-M0113402
...
19
Heater-Low Ambient WPL-D7220501
...
20
Ref Top WPL-D7244401
...
21
Screw WPL-WP489464
...
22
Gasket (per Foot) WPL-A3030313
...
23
Clamp-Wiring WPL-A3195601
...
24
Barrier WPL-A3126001
...
25
Insulation WPL-B5682901
...
26
Plug WPL-A3069103
...
27
Switch WPL-C3680306

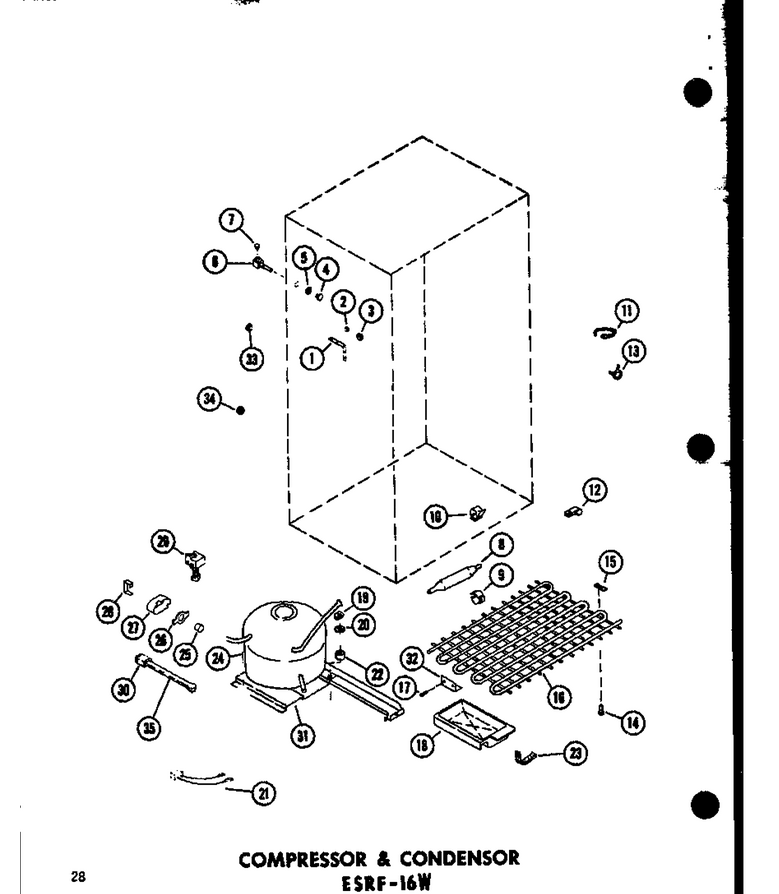

01 - Compressor & Condensor

...
...
1
Tap Plate,i.m. WPL-B5639801
...
2
Button- Pl WPL-WP67001130
...
3
Cap WPL-B5636301
...
4
Cap Fill Tube WPL-B5631801
...
5
Grommet WPL-A3138301
...
6
Fill Tube WPL-R0182123
...
7
Plug WPL-M0310309
...
8
Drier WPL-WPB2150504
...
9
Clamp-Drier WPL-M0104002
...
10
Clip WPL-M0110503
...
11
Tie-Wire WPL-WPW10339879
...
12
Clamp WPL-M0102506
...
13
Clip- Spee WPL-WPM0114003
...
14
Screw WPL-M0241131
...
15
Speed Nut WPL-M0288010
...
16
Precooler WPL-D7205601
...
17
Screw WPL-WP12990527
...
18
Drain Pan WPL-D3920001
...
19
Clip K WPL-A3140801
...
20
Washer, Nylon K WPL-M0590101
...
21
Wiring Harness WPL-B5730802
...
22
Grommet K WPL-A3026101
...
23
Gasket WPL-A3030327
...
24
Compressor WPL-W10439652
...
25
Overload WPL-C3561601
...
26
Spring K WPL-A3043601
...
27
Cover K WPL-B0559501
...
28
Strap K WPL-A3041801
...
29
Relay WPL-C3561701
...
30
Grommet, Cord WPL-211881
...
31
Weld Comp Supt Pnt WPL-C8820412
...
32
Bracket-Cond WPL-B5709101
...
33
Plug, Button (blk) WPL-A3080001
...
34
Plug, Button (wht) WPL-A3080002
...
35
Wiring Harness WPL-D7271302

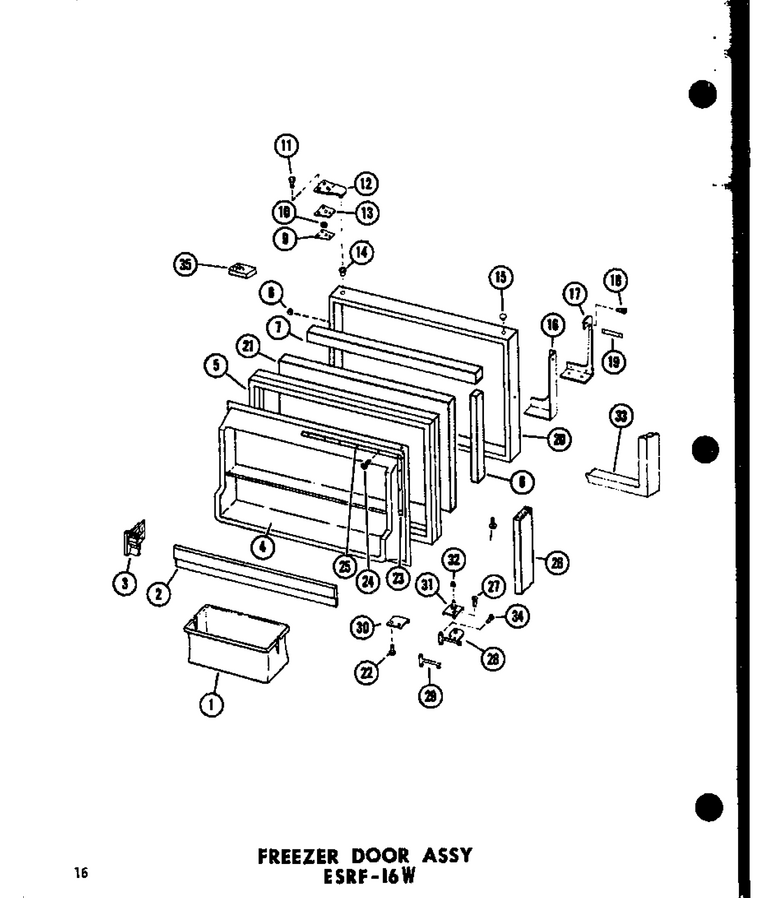

03 - Fz Door Assy

...
...
1
Ice Container WPL-D3959403
...
2
Retainer K WPL-D3976725
...
3
Support K WPL-C3680903
...
4
Inner Dr Panel K WPL-D7165402
...
5
Gasket, Door WPL-D3928225
...
6
Insulation WPL-B5629018
...
7
Insulation WPL-B5629022
...
8
Plug WPL-M0310719
...
9
Tap Strip WPL-A3139701
...
10
Washer WPL-M0270502
...
11
Kit, Screw WPL-R9800670
...
12
Hinge WPL-B5744301
...
13
Shim, Top Hinge WPL-B8389007
...
14
Bushing, Hinge Pin WPL-C3652901
...
15
Plug WPL-M0310607
...
16
Pad-Handle WPL-D7146001
...
17
Handle K WPL-D7145801
...
18
Screw WPL-M0203458
...
19
Nameplate Q WPL-C3675302
...
20
Door Fr-C-P-Tc18b WPL-D7370502
...
21
Foam Slab WPL-B5612015
...
22
Machine Screw WPL-M0205631
...
23
Retainer WPL-D3928101
...
24
Screw WPL-WP98165
...
25
Retainer Gasket WPL-D3928102
...
26
Insulation WPL-B5629008
...
27
Screw K WPL-M0205441
...
28
Center Hinge Assy WPL-C8800201
...
29
Shim K WPL-A3143501
...
30
Stop Door WPL-A3139801
...
31
Center Hinge Assy WPL-B5750901
...
32
Washer Hinge K WPL-B5779601
...
33
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
34
Screw Phillips WPL-M0205731
...
35
Insulation WPL-A3257701

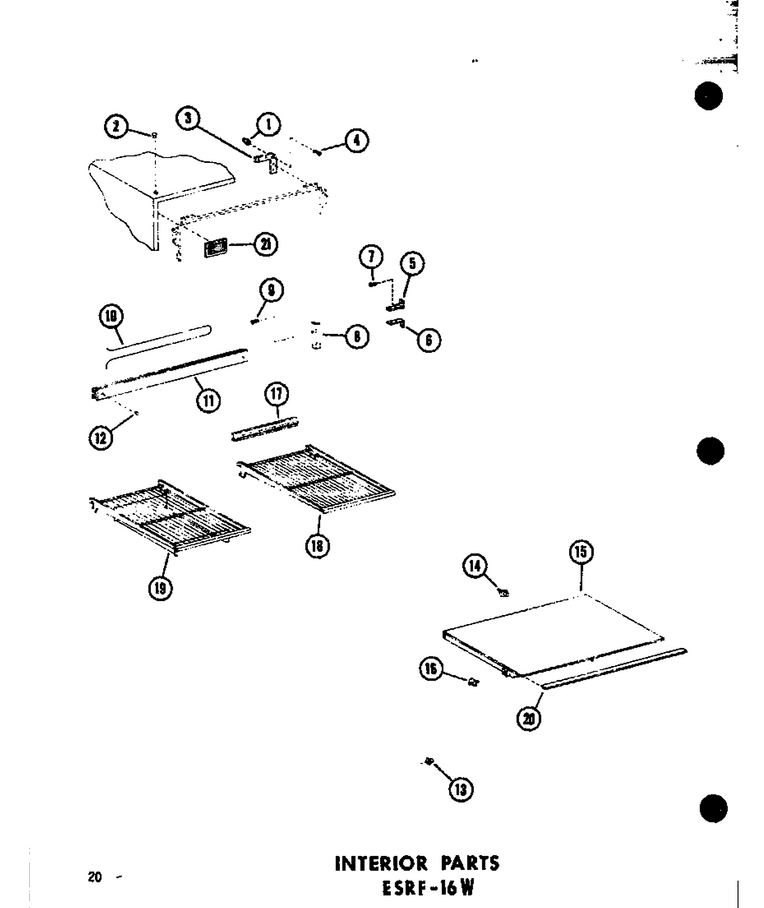

04 - Interior Parts

...
...
1
Grommet WPL-A0381801
...
2
Plug WPL-M0310723
...
3
Gusset WPL-C3576901
...
4
Sems Fastner WPL-M0252047
...
5
Angle,center Mullion WPL-B5645601
...
6
Angle,center Mullion WPL-B5645602
...
7
Screw WPL-M0250530
...
8
Top Strip Hinge WPL-B8353401
...
9
Screw WPL-M0253529
...
10
Drier, Mullion WPL-B5636001
...
11
Ctr Mullion WPL-C8808004
...
12
Plug WPL-M0310720
...
13
Grommet WPL-M0580003
...
14
Support WPL-B5680001
...
15
Crisper Top WPL-D3915103
...
16
Support WPL-B0570501
...
17
Trim-Shelf WPL-D7344504
...
18
Shelf-Cantilever WPL-D7349201
...
19
Shelf-Cantilever WPL-D7349101
...
20
Trim WPL-B0570901
...
21
Grille WPL-C3601801
