Amana ESRFC14D (BOM: P7464504W)

Model: ESRFC14D (BOM: P7464504W)

Save Part Not Listed?
product name

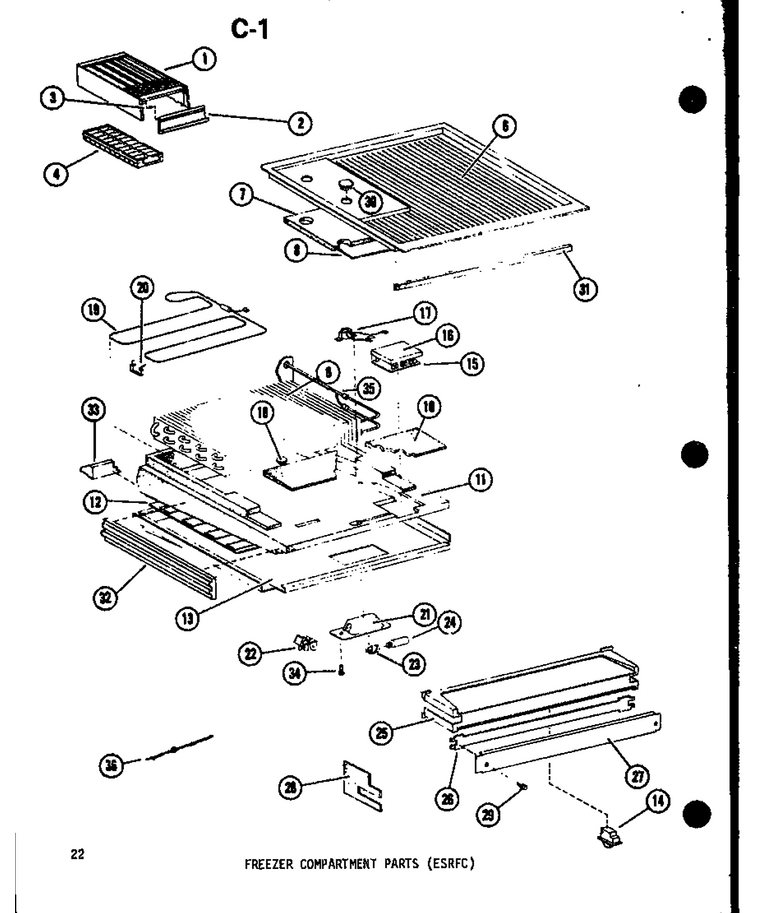

03 - Fz Compartment Parts (esrfc)

...
...
1
Net Tunnel, Ice Tray WPL-D7193001
...
2
Door, Tunnel WPL-C8706103
...
3
Hinge Pin WPL-A3214701
...
4
Tray WPL-WP841180A
...
6
Bottom Freezer WPL-D7255105
...
7
Insulation WPL-D7478101
...
8
Barrier Sheet WPL-A3126003
...
9
Evaporator WPL-D7316201
...
10
Insulation WPL-C8744801
...
11
Drain Block WPL-D7437601
...
12
Heater-Ref Top WPL-D7351201
...
13
Top-Ref WPL-D7257801
...
14
Switch WPL-W11384469
...
15
Term Bd Assy WPL-B8320001
...
16
Cover, Terminal Board WPL-B5762601
...
17
Thermostat WPL-C8731903
...
18
Drain Screen WPL-A3113702
...
19
Heater-Evap WPL-D7316501
...
20
Clip WPL-M0110301
...
21
Shield, Light WPL-R0176034
...
22
Clip, Ground WPL-B5733302
...
23
Socket-Light WPL-D7714407
...
24
Light Bulb WPL-8009
...
25
Breaker-Mullion WPL-D7275201
...
26
Center Heater Kit WPL-C8777701
...
27
Center Mull.-Pnt WPL-C8807105
...
28
Gasket Rh Mullion K WPL-B5762802
...
29
Screw WPL-WP67006715
...
30
Plug WPL-A3069103
...
31
Gasket WPL-B5759602
...
32
Gasket K WPL-B5757801
...
33
Gasket, Sealing, Divider Block WPL-B5757701
...
34
Screw (3) WPL-67006425
...
35
Heat Ex WPL-D7319503

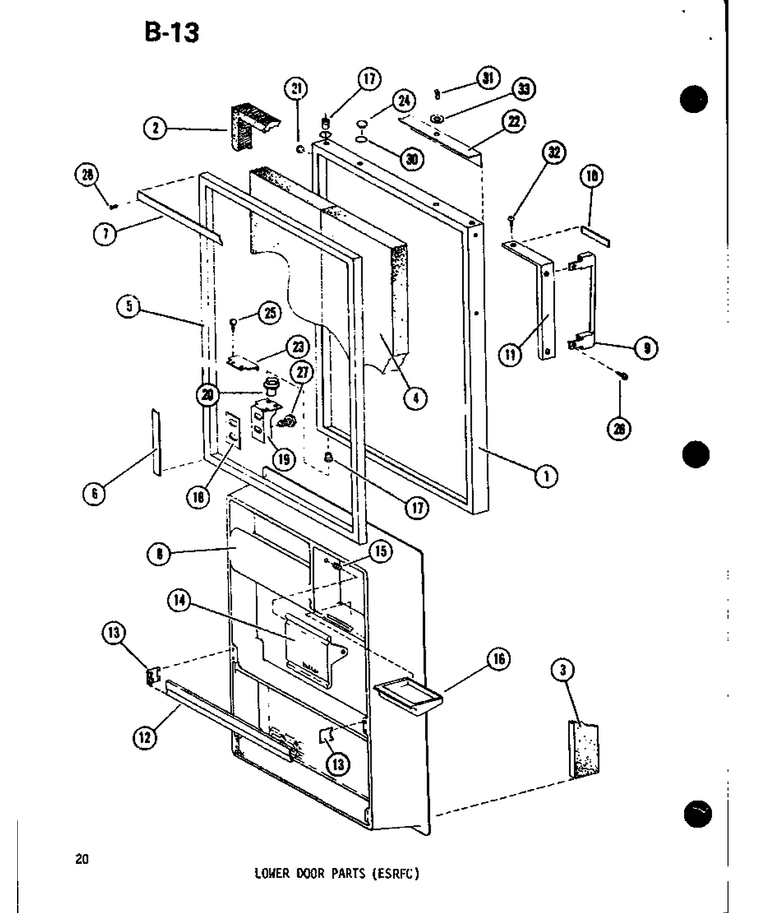

04 - Lower Door Parts (esrfc)

...
...
1
Door-Ref C-T-Esrfc14 WPL-D7395722
...
2
Insulation Ft. K WPL-B0523563
...
3
Insulation WPL-B5629037
...
4
Foam Slab WPL-D7293701
...
5
Gasket WPL-D3928220
...
6
Retainer-Gasket WPL-D3928115
...
7
Retainer-Gasket WPL-D3928118
...
8
Panel, Door WPL-D7263203
...
9
Handle WPL-D7254202
...
10
Name Plate Handle WPL-C8835801
...
11
Pad-Handle WPL-D7414601
...
12
Retainer WPL-D7415710
...
13
Support- -Cream Rh WPL-B5631706
...
14
Butter Door WPL-D7417701
...
15
Pivot WPL-A3084701
...
16
Buttertray WPL-67004412A
...
17
Bushing, Hinge Pin WPL-C3652901
...
18
Shim WPL-B5744802
...
19
Bracket Lower Hinge WPL-10163605
...
20
Pin, Hinge K WPL-C8814901
...
21
Plug Button (almond) WPL-M0310730
...
22
Door Cap WPL-C8833701
...
23
Stop Door WPL-A3139801
...
24
Plug WPL-M0310609
...
25
Machine Screw WPL-M0205631
...
26
Screw WPL-M0222317
...
27
Screw WPL-WP67006715
...
28
Screw WPL-WP98165
...
30
O Ring WPL-M0500902
...
31
Screw WPL-M0203216
...
32
Screw WPL-M0203458
...
33
Washer WPL-M0270501

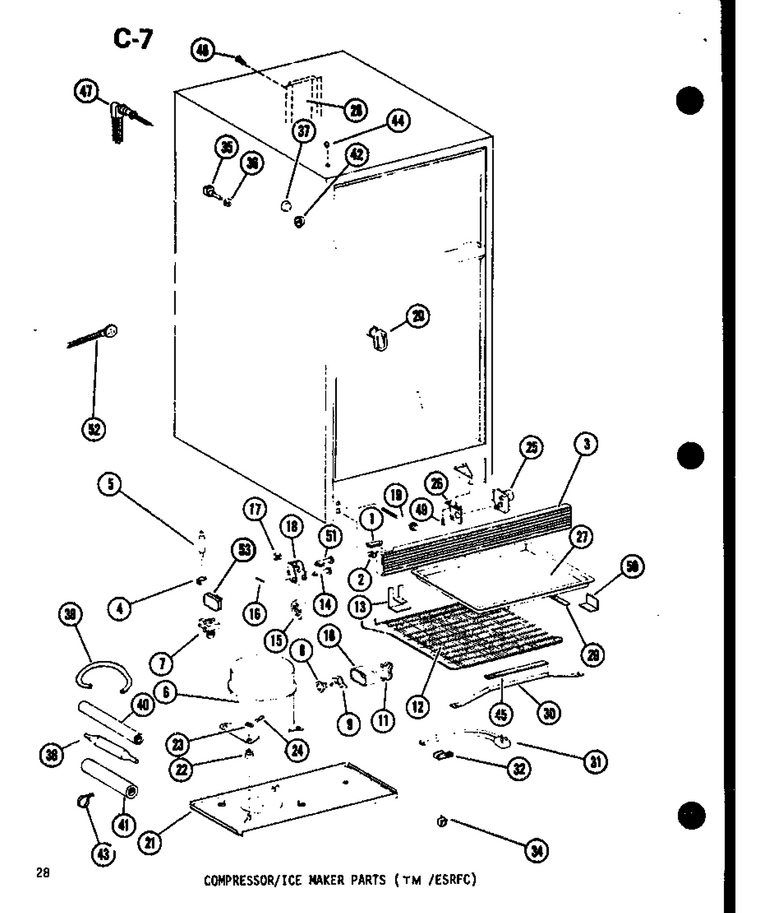

01 - Compressor/ice Maker Parts (tm /esrfc)

...
...
NI
Power Cord WPL-R0157154
...
1
Grille-Toe WPL-B5641302
...
2
Clip WPL-WPM0117303
...
3
Grille Toe WPL-D7263303
...
4
Clamp-Drier WPL-M0104002
...
5
Drier WPL-WPB2150504
...
6
Compressor WPL-W10439652
...
10
Terminal Cover WPL-C8851101
...
12
Pre-Cooler WPL-C8860801
...
13
Bracket WPL-B5747001
...
14
Pin K WPL-M1200202
...
15
Roller WPL-M0520102
...
16
Cotter Pin K WPL-M1200004
...
17
Nut, Speed WPL-M0286708
...
18
Assy, Roller Bracket WPL-12452602Q
...
19
Screw, Mach WPL-M0206313
...
20
Tunnel-Heat Ex WPL-B5749501
...
21
Support WPL-D7262802
...
22
Grommet K WPL-A3026101
...
23
Washer, Nylon K WPL-M0590101
...
24
Clip K WPL-A3140801
...
25
Timer-Def WPL-R0131577
...
26
Bracket-Timer WPL-C8821701
...
27
Drain Pan WPL-D3920001
...
28
Cover, O.c. Back, White WPL-C8807001
...
29
Gasket WPL-A3030327
...
30
Support WPL-D7308201
...
31
Wire Harness WPL-D7391301
...
32
Clamp WPL-M0103901
...
34
Clip-Cable WPL-M0110505
...
35
Fill Tube WPL-R0182123
...
36
Gasket WPL-A3278101
...
37
Cap Fill Tube WPL-B5631801
...
38
Accumulator K WPL-B0488001
...
41
Insulation Per Ft K WPL-A1004101
...
42
Cap WPL-B5636301
...
43
Tie-Wire WPL-WPW10339879
...
44
Plug WPL-M0310718
...
45
Felt Q WPL-A9008324
...
47
Wiring Harness WPL-D7274701
...
48
Screw WPL-WP489464
...
49
Screw WPL-WP90767
...
50
Bracket WPL-B5709102
...
51
Rivet WPL-M1205302
...
52
Wiring Harness WPL-C8744301
...
53
Ptc Device K WPL-B8315201

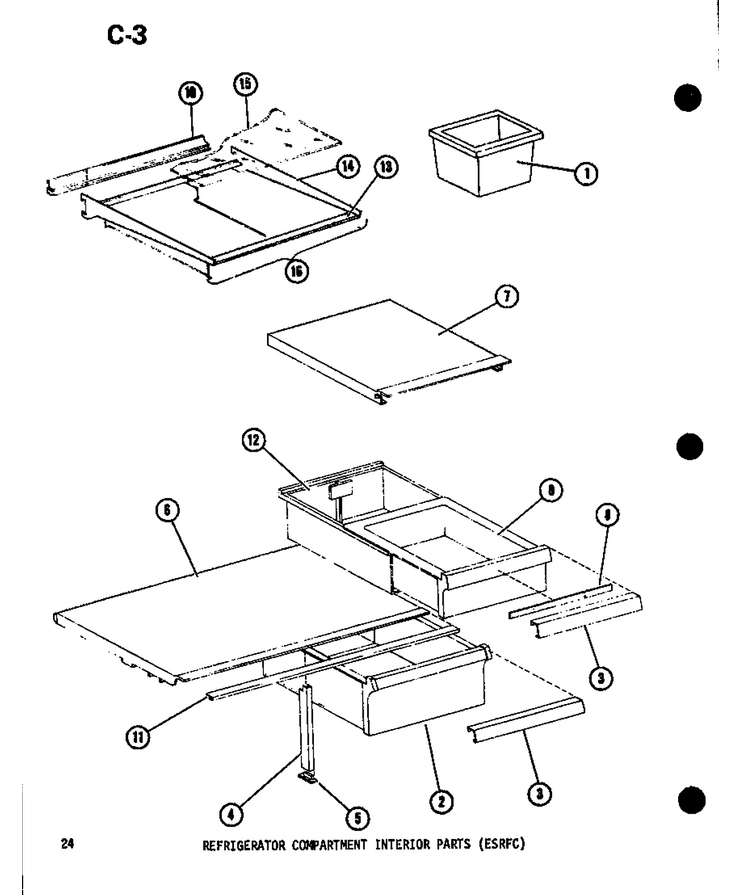

05 - Ref Compartment Parts

...
...
1
Ice Container WPL-D7442301
...
2
Pan, Crisper WPL-D7425601
...
3
Trim-Cr Handle WPL-C8831703
...
4
Support WPL-B0571002
...
5
Support Post WPL-B5749401
...
6
Crisper Top WPL-D7261306
...
7
Top-Mt Kpr WPL-D7343603
...
9
Pan, Meat Keeper WPL-D7425301
...
10
Trim-Rear WPL-D7415104
...
11
Trim-Crisper Top WPL-B0570905
...
12
Sleeve, Meat Keeper WPL-D7343702
...
13
Trim-Shelf WPL-C8835403
...
14
Frame WPL-D7421002
...
15
Glass Shelf WPL-D7421208
...
16
Glass Shelf Assy WPL-D7421411

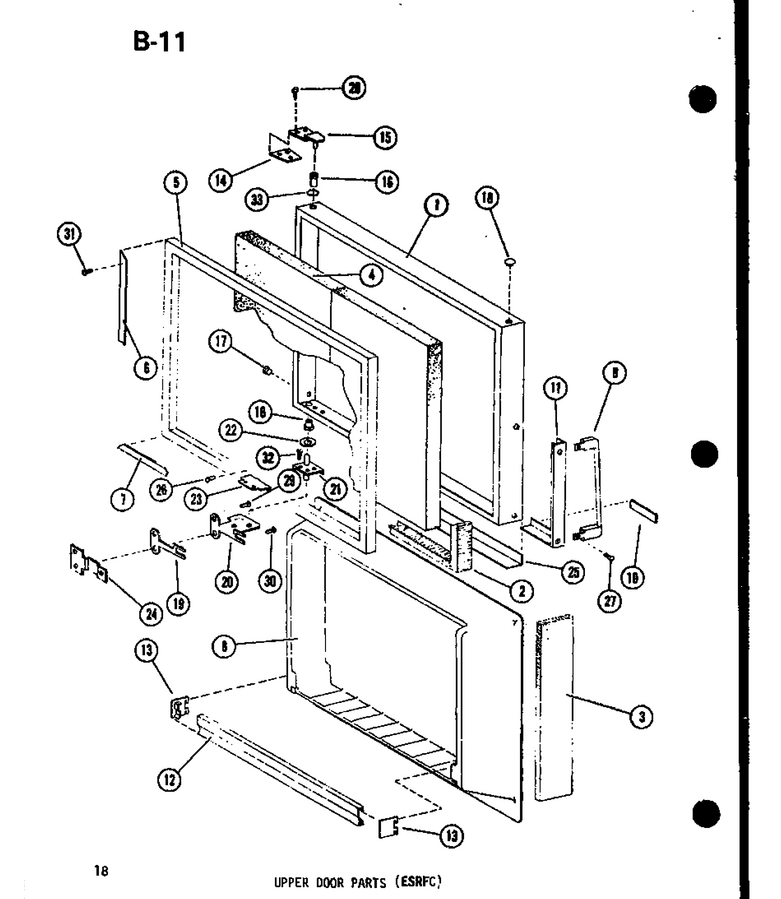

06 - Upper Door Parts (esrfc)

...
...
1
D00r Fr Alm-T-Esr14d WPL-D7395705
...
2
Insulation Ft. K WPL-B0523563
...
3
Insulation WPL-B5629037
...
4
Foam Slab WPL-C8767001
...
5
Gasket WPL-D3928219
...
6
Retainer-Gasket WPL-D3928114
...
7
Retainer-Gasket WPL-D3928118
...
8
Inner Dr Panel WPL-D7263103
...
9
Handle WPL-D7254201
...
10
Nameplate WPL-C8836702
...
11
Pad-Handle WPL-D7414602
...
12
Retainer WPL-D7415711
...
13
Support WPL-C3680908
...
14
Shim-Top Hinge K WPL-A3270302
...
15
Hinge WPL-B5744301
...
16
Bushing, Hinge Pin WPL-C3652901
...
17
Plug WPL-M0310719
...
18
Plug WPL-M0310606
...
19
Shim K WPL-A3143501
...
20
Center Hinge Assy WPL-C8800201
...
21
Center Hinge Assy WPL-B5750901
...
22
Washer Hinge K WPL-B5779601
...
23
Stop Door WPL-A3139801
...
24
Kit- Tap P WPL-R0194684
...
25
Door Cap WPL-C8833702
...
26
Machine Screw WPL-M0205631
...
27
Screw WPL-M0222317
...
28
Kit, Screw WPL-R9800670
...
29
Screw WPL-M0226831
...
30
Screw WPL-M0203458
...
31
Screw WPL-WP98165
...
33
O Ring WPL-M0500902

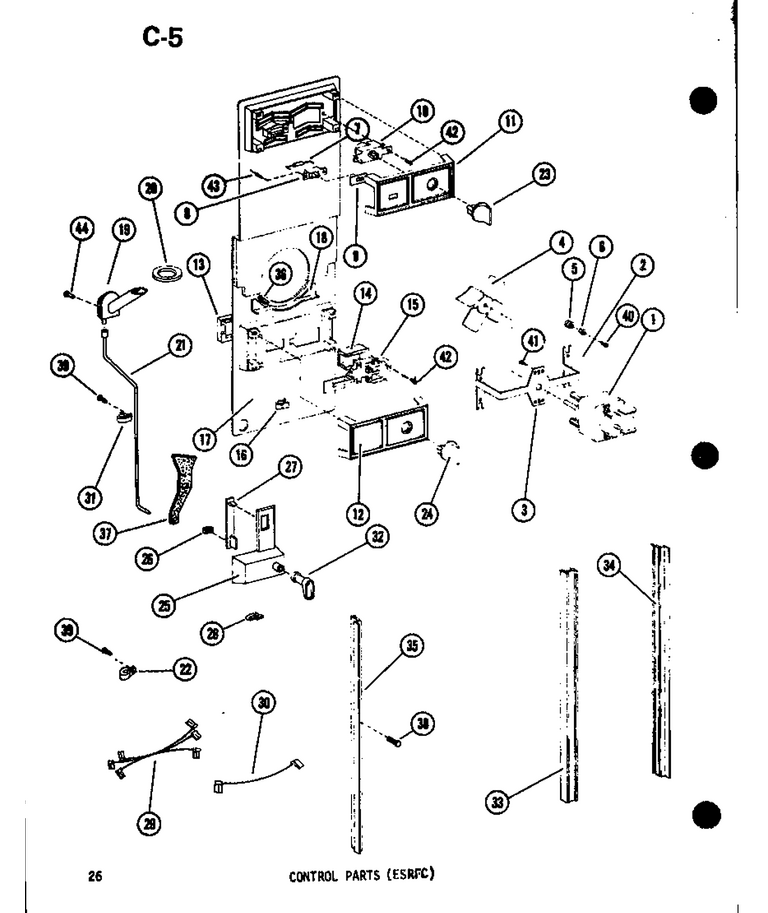

02 - Control Parts (esrfc)

...
...
1
Motor WPL-D7464903
...
2
Clip, Ground WPL-B5733302
...
3
Motor Mount WPL-C8722501
...
4
Fan Blade-Cw WPL-C8794901
...
5
Clip, Waterline WPL-12454802
...
6
Eyelet K WPL-A0381401
...
7
Diode WPL-M0305301
...
8
Switch WPL-M0341202
...
9
Plate-Switch Mtg WPL-A3259901
...
10
Control-Temp WPL-B0592307
...
11
Deflector WPL-D7417601
...
12
Deflector WPL-D7273405
...
13
Gasket-Damper WPL-A3260901
...
14
Insulation WPL-B5756502
...
15
Control Damper WPL-C8761101
...
16
Clip WPL-M0117701
...
17
Cover-Air Duct WPL-D7272205
...
18
Drain Trough WPL-D7292901
...
19
Elbow WPL-C3630902
...
20
Gasket WPL-A3132301
...
21
Drain Tube WPL-C8743601
...
22
Clamp WPL-M0102303
...
23
Knob WPL-D7009801
...
24
Knob WPL-D7009802
...
25
Escutcheon-Mt Kpr WPL-D7273103
...
26
Gasket-Mt Kpr WPL-A3261001
...
27
Slide-Control WPL-B5622804
...
28
Clip-Cable WPL-M0110505
...
29
Wiring Harness WPL-C8743901
...
30
Wire-Jumper WPL-A3221101
...
31
Clamp, Tube WPL-M0102305
...
32
Grommet-Mt Kpr WPL-C8835501
...
33
Supt-Ladder WPL-C8742701
...
34
Ladder-R Side WPL-C8741801
...
35
Ladder-L Side WPL-C8741803
...
36
Gasket WPL-A3189314
...
37
Gasket-Air Duct WPL-C8763602
...
38
Screw WPL-M0231117
...
39
Screw WPL-M0210916
...
40
Screw WPL-M0216539
...
41
Screw WPL-WP3400094
...
42
Screw WPL-WP489349
...
43
Rivet A WPL-M0010202
...
44
Screw WPL-W11233072
