Amana ESRFC14C-A (BOM: P7395304W A)

Model: ESRFC14C-A (BOM: P7395304W A)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

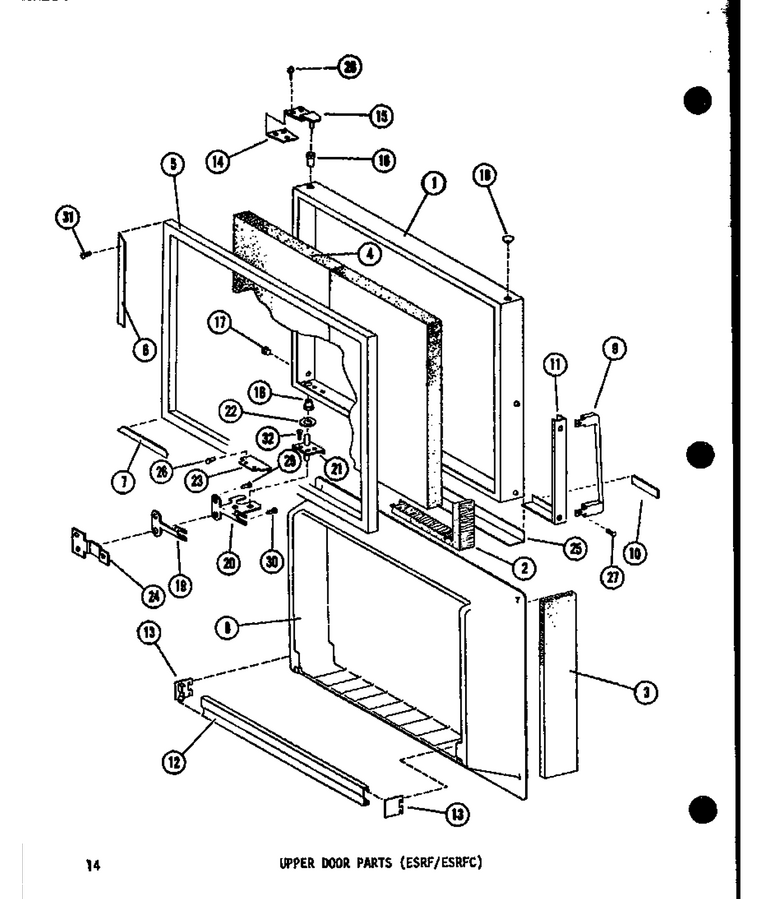

05 - Upper Door Parts (esrf/esrfc)

...
...
1
D00r Fr G-T-Esr14d WPL-D7395704
...
2
Insulation Ft. K WPL-B0523563
...
3
Insulation WPL-B5629037
...
4
Foam Slab WPL-C8767001
...
5
Gasket WPL-D3928219
...
6
Retainer-Gasket WPL-D3928114
...
7
Retainer-Gasket WPL-D3928118
...
8
Inner Dr Panel WPL-D7263101
...
9
Handle WPL-D7254201
...
10
Nameplate WPL-C8757303
...
11
Handle Pad Kit WPL-D7257902
...
12
Retainer, Package WPL-D3976702
...
13
Support K WPL-C3680903
...
14
Shim-Top Hinge K WPL-A3270302
...
15
Hinge WPL-B5744301
...
16
Bushing WPL-C3652902
...
17
Plug WPL-M0310717
...
18
Plug WPL-M0310608
...
19
Shim K WPL-A3143501
...
20
Center Hinge Assy WPL-C8800201
...
21
Hinge Kit WPL-B5640902
...
22
Washer Hinge K WPL-B5779601
...
23
Stop Door WPL-A3139801
...
24
Kit- Tap P WPL-R0194684
...
25
Cap Door WPL-D7266502
...
26
Machine Screw WPL-M0205631
...
27
Screw WPL-M0222317
...
28
Kit, Screw WPL-R9800670
...
29
Screw WPL-M0226831
...
30
Screw WPL-M0203458
...
31
Screw WPL-WP98165
...
32
Screw K WPL-M0205441

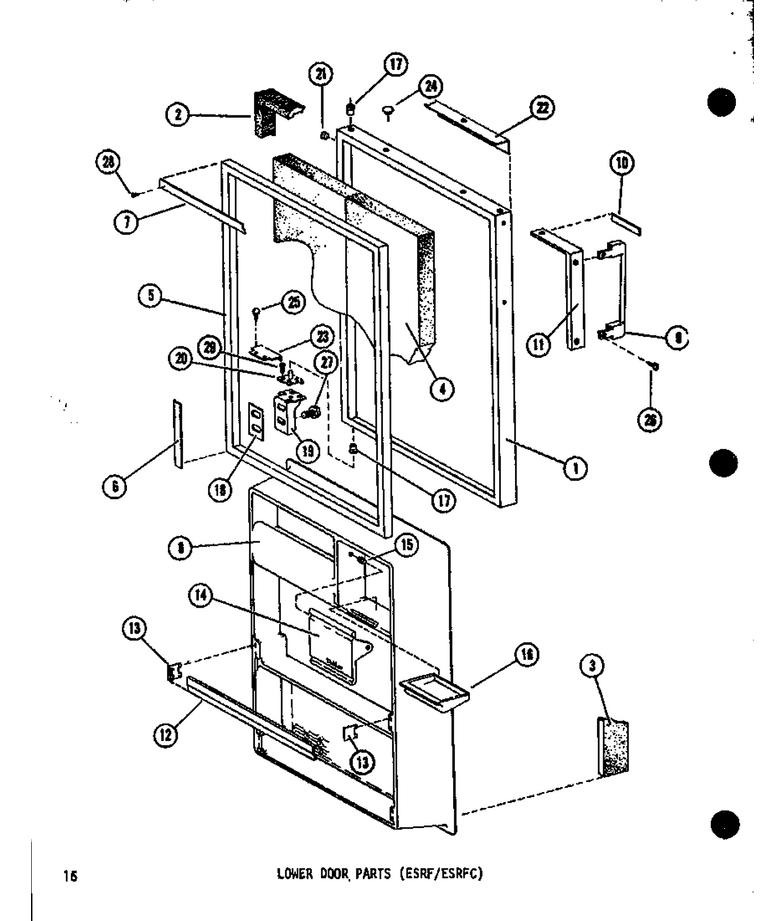

04 - Lower Door Parts (esrf/esrfc)

...
...
1
Door-Ref C-T-Esrfc14 WPL-D7395722
...
2
Insulation Ft. K WPL-B0523563
...
3
Insulation WPL-B5629037
...
4
Foam Slab WPL-D7293701
...
5
Gasket WPL-D3928220
...
6
Retainer-Gasket WPL-D3928115
...
7
Retainer-Gasket WPL-D3928118
...
8
Panel, Door WPL-D7263201
...
9
Handle WPL-D7254202
...
10
Nameplate WPL-C8757301
...
11
Handle Pad Kit WPL-D7257901
...
12
Retainer WPL-D3976726
...
13
Support - Cream Lh WPL-B5631705
...
14
Door-Butter WPL-D7026403
...
15
Pivot WPL-A3084701
...
16
Buttertray WPL-67004412A
...
17
Bushing, Hinge Pin WPL-C3652901
...
18
Kit,btm Hinge Shim WPL-B5744801
...
19
Brkt-Btm Hinge WPL-C8800301
...
20
Hinge Kit WPL-B5640902
...
21
Plug WPL-M0310717
...
22
Cap Door WPL-D7266501
...
23
Stop Door WPL-A3139801
...
24
Plug Button, Hinge Bushing Aut WPL-M0310604
...
25
Machine Screw WPL-M0205631
...
26
Screw WPL-M0222317
...
27
Screw WPL-WP67006715
...
28
Screw WPL-WP98165
...
29
Screw K WPL-M0205441

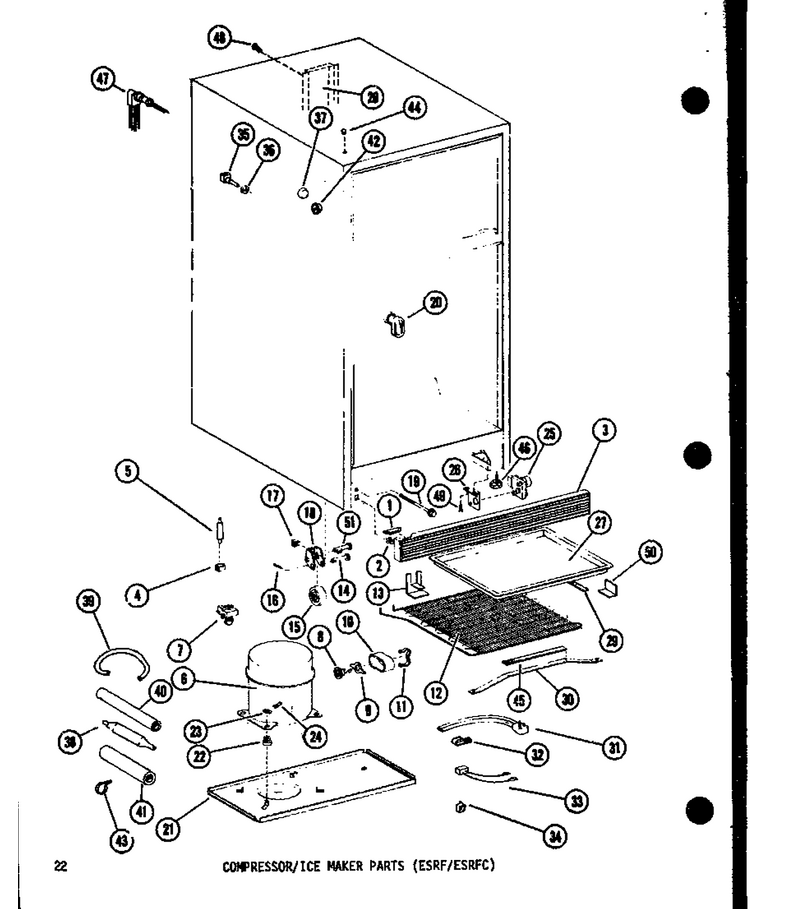

01 - Compressor/ice Maker Parts (esrf/esrfc)

...
...
NI
Wiring Harness WPL-C8744301
...
1
Grille-Toe WPL-B5641301
...
2
Clip WPL-WPM0117303
...
3
Grille Toe WPL-D7263302
...
4
Clamp-Drier WPL-M0104002
...
5
Drier WPL-WPB2150504
...
6
Compressor WPL-W10439652
...
7
Relay WPL-C3553401
...
8
Overload K WPL-C3590101
...
9
Spring K WPL-A3043601
...
10
Cover K WPL-B0559501
...
11
Strap K WPL-A3041801
...
12
Pre-Cooler WPL-D7307601
...
13
Bracket WPL-B5747001
...
14
Pin K WPL-M1200202
...
15
Roller WPL-M0520102
...
16
Cotter Pin K WPL-M1200004
...
17
Nut, Speed WPL-M0286708
...
18
Assy, Roller Bracket WPL-12452602Q
...
19
Bolt WPL-M0209235
...
20
Tunnel-Heat Ex WPL-B5749501
...
21
Support WPL-D7262802
...
22
Grommet K WPL-A3026101
...
23
Washer, Nylon K WPL-M0590101
...
24
Clip K WPL-A3140801
...
25
Timer-Def WPL-R0131577
...
26
Bracket-Timer WPL-C8821701
...
27
Drain Pan WPL-D3920001
...
28
Cover, O.c. Back, White WPL-C8807001
...
29
Gasket WPL-A3030327
...
30
Support WPL-D7308201
...
31
Insulation Block WPL-D7391501
...
32
Clamp WPL-M0103901
...
33
Wiring Harness WPL-B5730802
...
34
Clip-Cable WPL-M0110505
...
35
Fill Tube WPL-R0182123
...
36
Gasket WPL-A3278101
...
37
Cap Fill Tube WPL-B5631801
...
38
Accumulator K WPL-B0488001
...
39
Tube K WPL-C8827201
...
40
Insul Tubing 1=12`` WPL-A0329806
...
41
Insulation Per Ft K WPL-A1004101
...
42
Cap WPL-B5636301
...
43
Tie-Wire WPL-WPW10339879
...
44
Plug WPL-M0310720
...
45
Felt Q WPL-A9008324
...
47
Wiring Harness WPL-D7274701
...
48
Screw WPL-WP489464
...
49
Screw WPL-WP90767
...
50
Bracket-Cond WPL-B5709101
...
51
Rivet WPL-M1205302

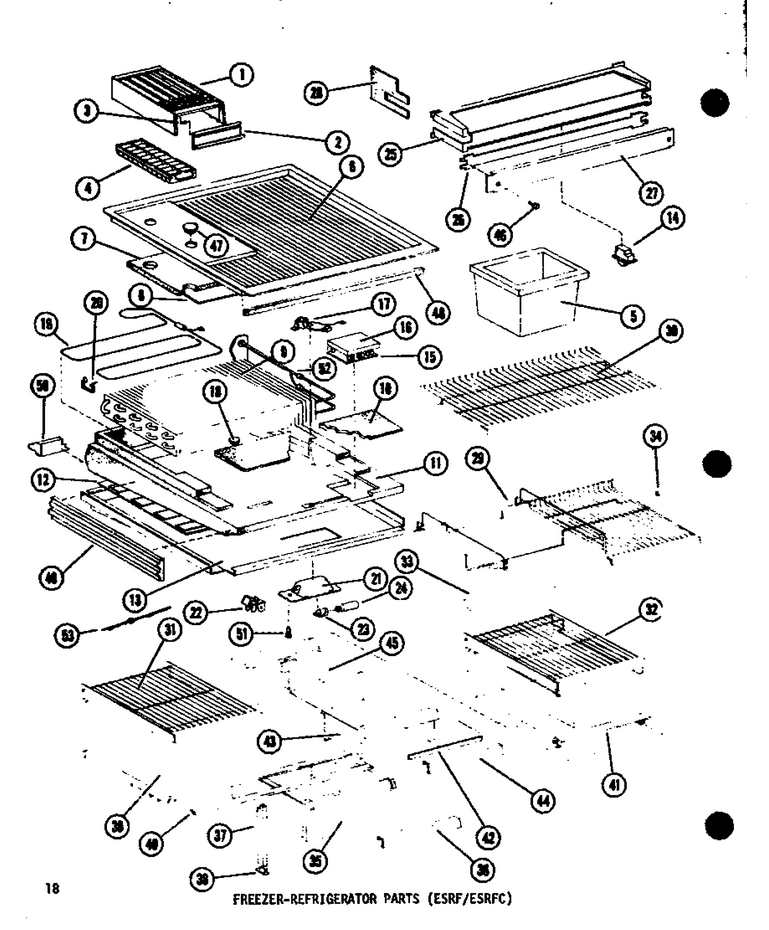

03 - Fz-Ref Parts (esrf/esrfc)

...
...
1
Tunnel-Ice Tray WPL-D7193004
...
2
Door, Tunnel WPL-C8706101
...
3
Hinge Pin WPL-A3214701
...
4
Tray WPL-WP841180A
...
5
Ice Container WPL-D7272701
...
6
Bottom-Freezer WPL-D7255103
...
7
Insulation WPL-D7478101
...
8
Barrier Sheet WPL-A3126003
...
9
Evaporator WPL-D7316201
...
10
Insulation WPL-C8744801
...
11
Drain Block WPL-D7350901
...
12
Heater-Ref Top WPL-D7351201
...
13
Top-Ref WPL-D7257801
...
14
Switch, Light WPL-C3680305
...
15
Term Bd Assy WPL-B5749302
...
16
Cover, Terminal Board WPL-B5762601
...
17
Thermostat WPL-C8731903
...
18
Drain Screen WPL-A3113702
...
19
Heater-Evap WPL-D7316501
...
20
Clip WPL-M0110301
...
21
Shield, Light WPL-R0176034
...
22
Clip, Ground WPL-B5733302
...
23
Socket-Light WPL-D7714407
...
24
Light Bulb WPL-8009
...
25
Breaker-Mullion WPL-D7275201
...
26
Center Heater Kit WPL-C8777701
...
27
Center Mull.-Pnt WPL-C8807105
...
28
Gasket Rh Mullion K WPL-B5762802
...
31
Shelf Mtkpr K WPL-D7345301
...
33
Trim Shelf K WPL-D7344502
...
35
Pan, Crisper WPL-D7261805
...
36
Trim-Crisper Handle WPL-C3696504
...
37
Support WPL-B0571002
...
38
Support Post WPL-B5749401
...
39
Crisper Top WPL-D7261303
...
40
Trim-Crisper Top WPL-B0570905
...
41
Top, Meat Keeper WPL-D7001104
...
42
Gasket (per Foot) WPL-A3030313
...
43
Pan, Meat Keeper WPL-D3975703
...
44
Trim, Handle WPL-C3623002
...
45
Sleeve, Meat Keeper WPL-D7001302
...
46
Screw WPL-WP67006715
...
47
Plug WPL-A3069103
...
48
Gasket WPL-B5759602
...
49
Gasket K WPL-B5757801
...
50
Gasket, Sealing, Divider Block WPL-B5757701
...
51
Screw WPL-WP489464
...
52
Heat Exchanger WPL-D7319603
...
53
Wiring Harness WPL-C8744701

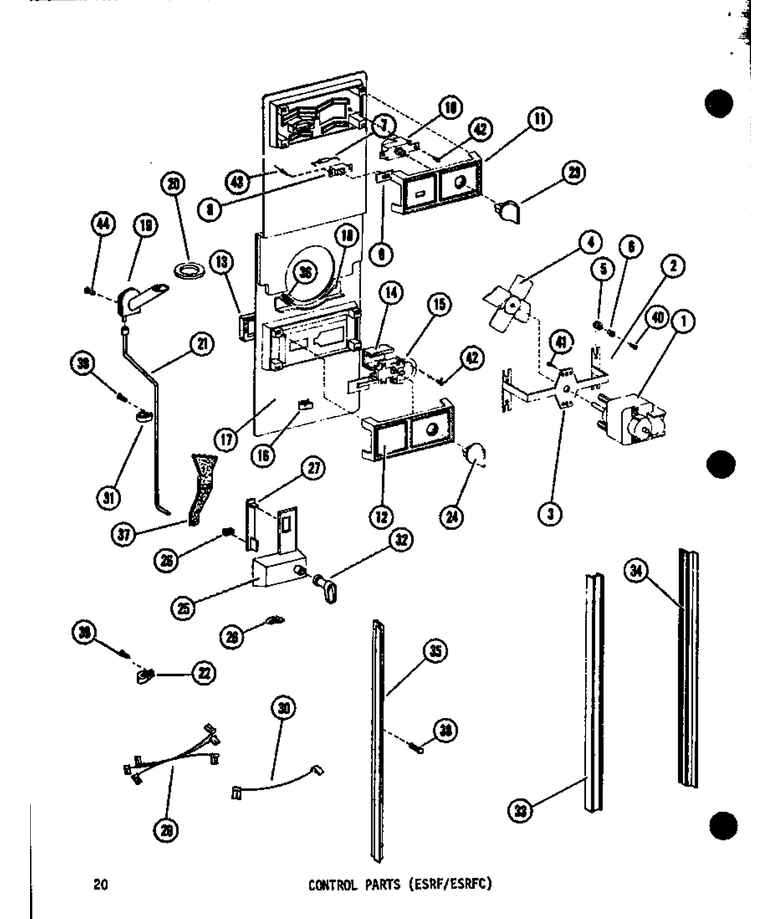

02 - Control Parts (esrf/esrfc)

...
...
1
Motor WPL-D7464903
...
2
Clip, Ground WPL-B5733302
...
3
Motor Mount WPL-C8722501
...
4
Fan Blade-Cw WPL-C8794901
...
5
Clip, Waterline WPL-12454802
...
6
Eyelet K WPL-A0381401
...
7
Diode WPL-M0305301
...
8
Switch WPL-M0341202
...
9
Plate-Switch Mtg WPL-A3259901
...
10
Control-Temp WPL-B0592307
...
11
Deflector, Air, Ref WPL-D7272501
...
12
Deflector-Air WPL-D7273403
...
13
Gasket-Damper WPL-A3260901
...
14
Insulation WPL-B5756502
...
15
Control Damper WPL-C8761101
...
16
Clip WPL-M0117701
...
17
Cover-Air Duct WPL-D7272201
...
18
Drain Trough WPL-D7292901
...
19
Elbow WPL-C3630902
...
20
Gasket WPL-A3132301
...
21
Drain Tube WPL-C8743601
...
22
Clamp WPL-M0102303
...
23
Knob WPL-D7009801
...
24
Knob WPL-D7009802
...
25
Escutcheon WPL-D7273102
...
26
Gasket-Mt Kpr WPL-A3261001
...
27
Slide-Mt Kpr WPL-B5622803
...
28
Clip-Cable WPL-M0110505
...
29
Wiring Harness WPL-C8743901
...
30
Wire-Jumper WPL-A3221101
...
31
Clamp, Tube WPL-M0102305
...
32
Grommet-Mt Kpr WPL-C8743001
...
33
Ladder-Ctr WPL-C8742201
...
34
Ladder-R Side WPL-C8741801
...
35
Ladder-L Side WPL-C8741803
...
36
Gasket WPL-A3189314
...
37
Gasket-Air Duct WPL-C8763602
...
38
Screw WPL-M0231117
...
39
Screw WPL-WP489069
...
40
Screw WPL-M0216539
...
41
Screw WPL-WP3400094
...
42
Screw WPL-M0218116
...
43
Rivet A WPL-M0010202
...
44
Screw WPL-M0214618
