Amana ESRC316B (BOM: P7350001W)

Model: ESRC316B (BOM: P7350001W)

Save Part Not Listed?
product name

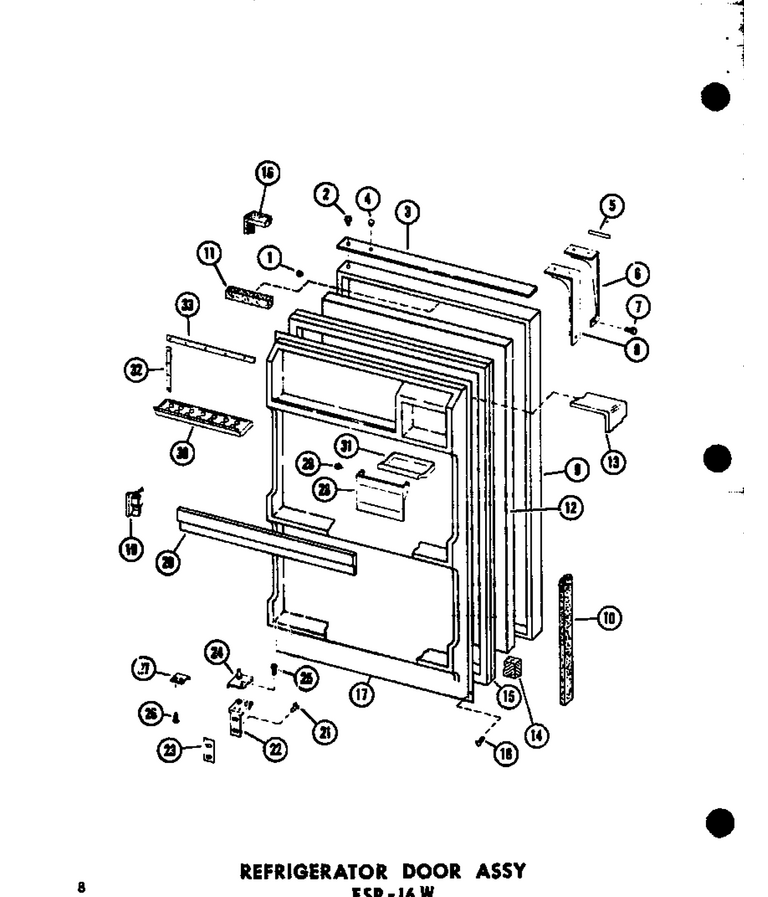

06 - Ref Door Assy

...
...
1
Plug Button (almond) WPL-M0310730
...
2
Bushing, Hinge Pin WPL-C3652901
...
3
Door Cap WPL-D3958303
...
4
Screw WPL-M0203216
...
5
Nameplate K WPL-C3675306
...
6
Handle K WPL-D7145802
...
7
Screw WPL-M0203458
...
8
Handle Pad Kit WPL-D7146002
...
9
Door Ref-G-P-Tc18b WPL-D7370520
...
10
Insulation WPL-B5629021
...
11
Insulation WPL-B5629022
...
12
Foam Slab WPL-B5612014
...
13
Insulation (1 = 1ft.) WPL-A3195001
...
14
Insulation, Batt, 1-1/2`` X 4-1 WPL-B5629028
...
15
Gasket WPL-D3928205
...
16
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
17
Door Panel K WPL-D7246301
...
18
Screw WPL-WP98165
...
19
Support- -Cream Rh WPL-B5631706
...
20
Pkg Retainer K WPL-D3976724
...
21
Screw WPL-WP67006715
...
22
Hinge Kit WPL-C8800401
...
23
Shim WPL-A3143601
...
24
Hinge Kit WPL-B5640902
...
25
Screw K WPL-M0205441
...
26
Machine Screw WPL-M0205631
...
27
Stop Door WPL-A3139801
...
28
Butter Door WPL-D7026401
...
29
Pivot WPL-A3084701
...
30
Egg WPL-D7025701
...
31
Buttertray WPL-67004412A
...
32
Retainer Gasket WPL-D3928105
...
33
Retainer Gasket WPL-D3928102

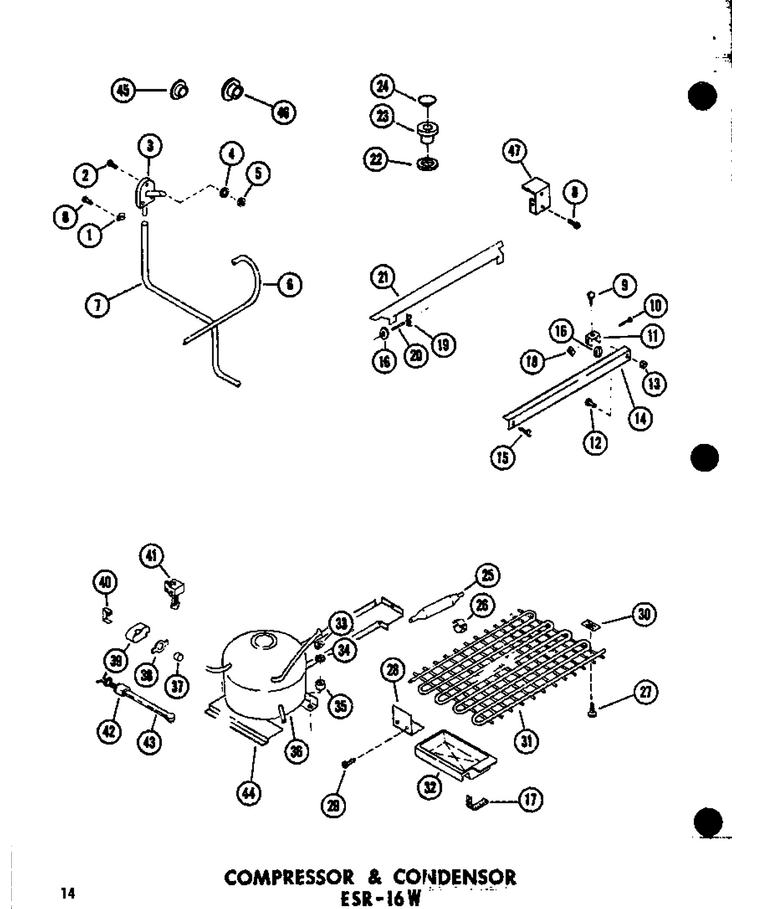

01 - Compressor & Condensor

...
...
1
Clamp WPL-M0102303
...
2
Screw WPL-M0214618
...
3
Elbow-Drain Tube WPL-C8703702
...
4
Gasket WPL-A3132301
...
5
Grommet WPL-A3128101
...
6
Heat Ex WPL-D7208001
...
7
Drain Tube WPL-C8710201
...
8
Screw WPL-WP489069
...
9
Screw WPL-M0267101
...
10
Rivet WPL-M1205302
...
11
Bracket K WPL-A3125201
...
12
Roller Bracket Kit WPL-M0222240
...
13
Nut, Self Thread WPL-M0283801
...
14
Front Rail WPL-B5627601
...
15
Screw WPL-M0294459
...
16
Roller WPL-M0520102
...
17
Gasket WPL-A3030327
...
18
Fastener WPL-M0289401
...
19
Pin, Cotter, Rear Roller WPL-M0120001
...
20
Pivot Pin K WPL-M1210001
...
21
Rail, Rear WPL-C3611301
...
22
Grommet WPL-A3138301
...
23
Drain Tube WPL-A3224901
...
24
Drain Plug WPL-B8320601
...
25
Drier WPL-WPB2150504
...
26
Clamp-Drier WPL-M0104002
...
27
Screw WPL-M0241131
...
28
Bracket-Cond WPL-B5709101
...
29
Screw WPL-WP12990527
...
30
Speed Nut WPL-M0288010
...
31
Precooler WPL-D7205601
...
32
Drain Pan WPL-D7206101
...
33
Clip K WPL-A3140801
...
34
Washer, Nylon K WPL-M0590101
...
35
Grommet K WPL-A3026101
...
36
Compressor WPL-W10439652
...
37
Overload WPL-C3561601
...
38
Spring K WPL-A3043601
...
39
Cover K WPL-B0559501
...
40
Strap K WPL-A3041801
...
41
Relay WPL-C3561701
...
42
Grommet, Cord WPL-211881
...
43
Wiring Harness WPL-D7242702
...
44
Weld Comp Supt Pnt WPL-C8820412
...
45
Plug, Button (wht) WPL-A3080002
...
46
Plug, Button (blk) WPL-A3080001
...
47
Bracket WPL-B5619901

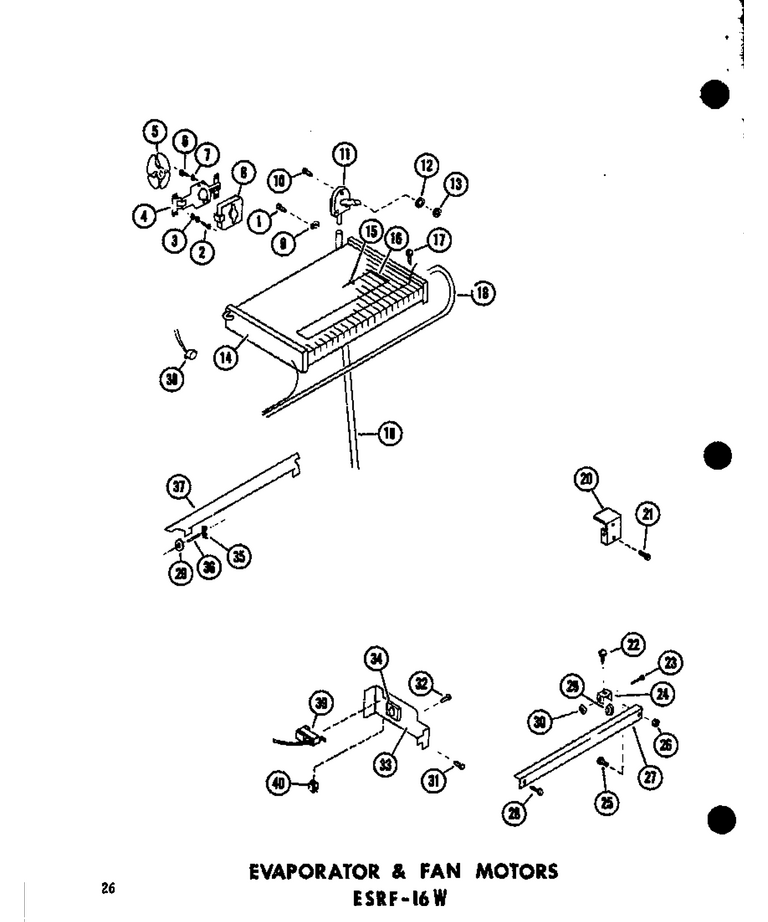

02 - Evap & Fan Motors

...
...
1
D00r Ref G-T Esr16d WPL-D7395729

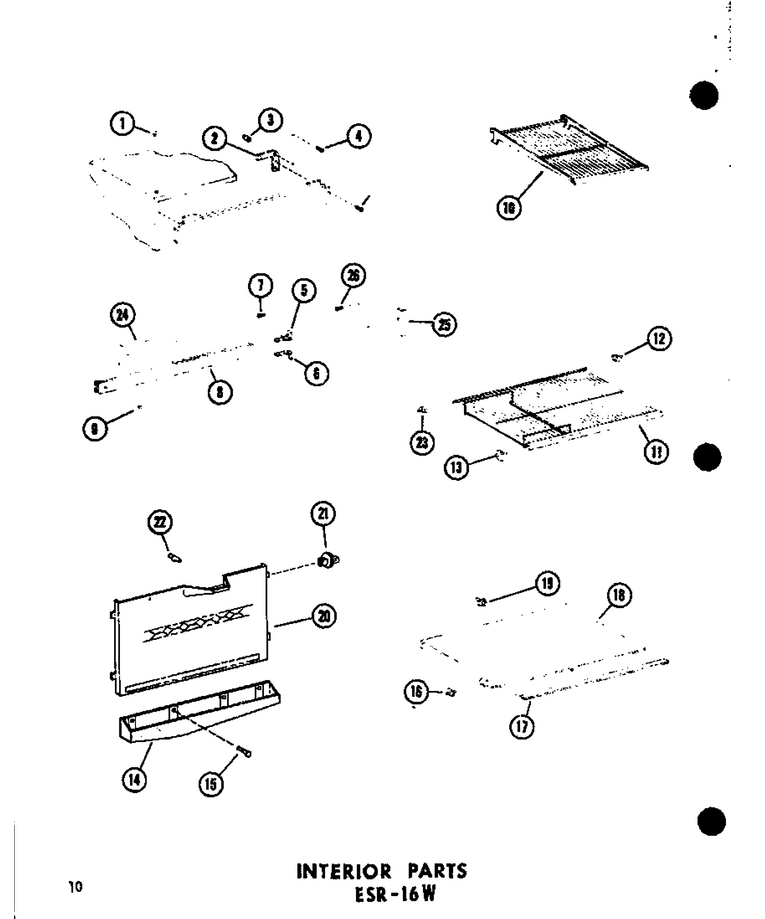

04 - Interior Parts

...
...
1
Plug WPL-M0310723
...
2
Gusset WPL-C3576901
...
3
Grommet WPL-A0381804
...
4
Sems Fastner WPL-M0252047
...
5
Angle,center Mullion WPL-B5645601
...
6
Angle,center Mullion WPL-B5645602
...
7
Screw WPL-M0227303
...
8
Ctr Mullion WPL-C8808003
...
9
Plug WPL-M0310721
...
10
Shelf-Cantilever WPL-D7349201
...
11
Shelf WPL-D7000303
...
12
Support WPL-B5633002
...
13
Shelf Support WPL-B5620401
...
14
Drip Tray WPL-D7205801
...
15
Screw (3) WPL-67006425
...
16
Support WPL-B0570501
...
17
Trim WPL-B0570901
...
18
Crisper Top WPL-D3915103
...
19
Support WPL-B5680001
...
20
Cover WPL-D3918701
...
21
Support WPL-B0570801
...
22
Bumper WPL-A3064201
...
23
Support WPL-B5633001
...
24
Drier Mullion Htr K WPL-B5636004
...
25
Top Strip Hinge WPL-B8353401
...
26
Screw WPL-M0253529

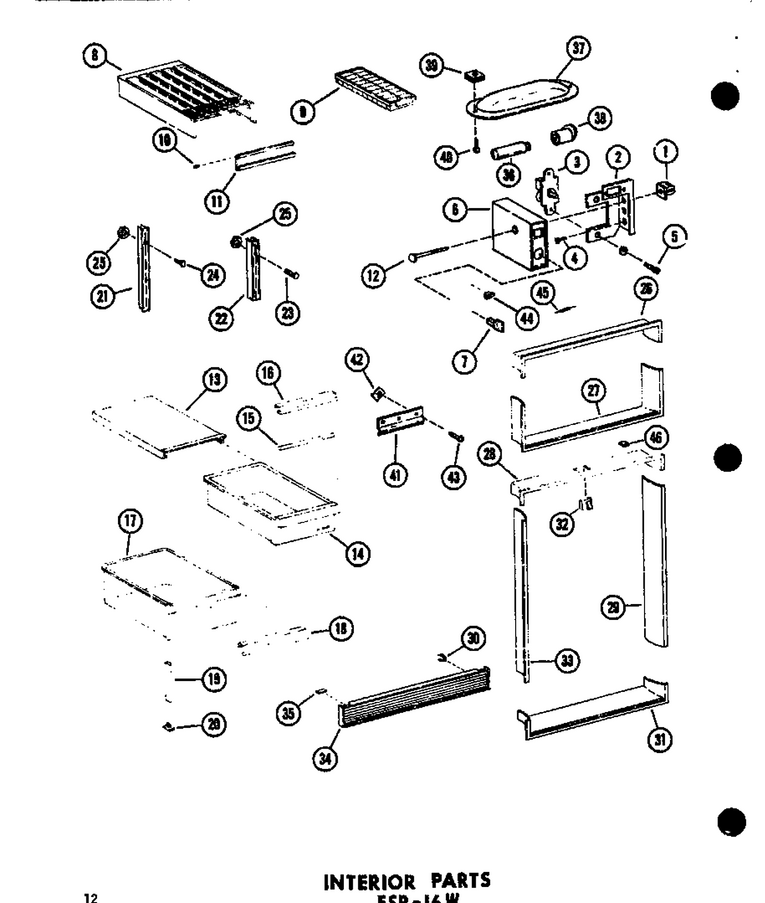

05 - Interior Parts

...
...
1
Grommet, Screw WPL-M0580007
...
2
Bracket, Control WPL-C8702602
...
3
Control WPL-C3615005
...
4
Screw WPL-WP489399
...
5
Screw WPL-WP90767
...
6
Escutcheon WPL-D7278003
...
7
Knob WPL-D7009801
...
8
Tunnel-Ice Tray WPL-D7193002
...
9
Tray WPL-WP841180A
...
10
Hinge Pin WPL-A3214701
...
11
Door, Tunnel WPL-C8706101
...
12
Screw WPL-M0230926
...
13
Top, Meat Keeper WPL-D7001104
...
14
Pan, Meat Keeper WPL-D3975703
...
15
Gasket (per Foot) WPL-A3030313
...
16
Trim, Handle WPL-C3623002
...
17
Pan, Crisper WPL-D7186701
...
18
Trim A WPL-C3696502
...
19
Support Post WPL-B0571006
...
20
Support WPL-B0571201
...
21
Ladder WPL-C8703901
...
22
Ladder-Center WPL-C8703501
...
23
Screw, Machine WPL-M0209119
...
24
Screw WPL-M0207632
...
25
Nut WPL-WP486255
...
26
Breaker Frame WPL-D3917001
...
27
Breaker Frame WPL-D3916801
...
28
Breaker Frame K WPL-D7246601
...
29
Breaker Frame WPL-D3914515
...
30
Clip WPL-WPM0117303
...
31
Breaker Frame WPL-D3916301
...
32
Switch WPL-W11384469
...
33
Breaker Frame WPL-D3914516
...
34
Grille-Toe WPL-D7070211
...
35
Grille-Toe WPL-B5641301
...
36
Light Bulb WPL-8009
...
37
Shield, Light WPL-R0176034
...
38
Socket-Light WPL-D7714407
...
39
Speed Nut WPL-M0288107
...
40
Screw (3) WPL-67006425
...
41
Clamp WPL-A0382601
...
42
Nut WPL-M0286103
...
43
Screw WPL-WP489464
...
44
Switch WPL-M0341202
...
45
Diode WPL-M0305301
...
46
Clip K WPL-M0113504

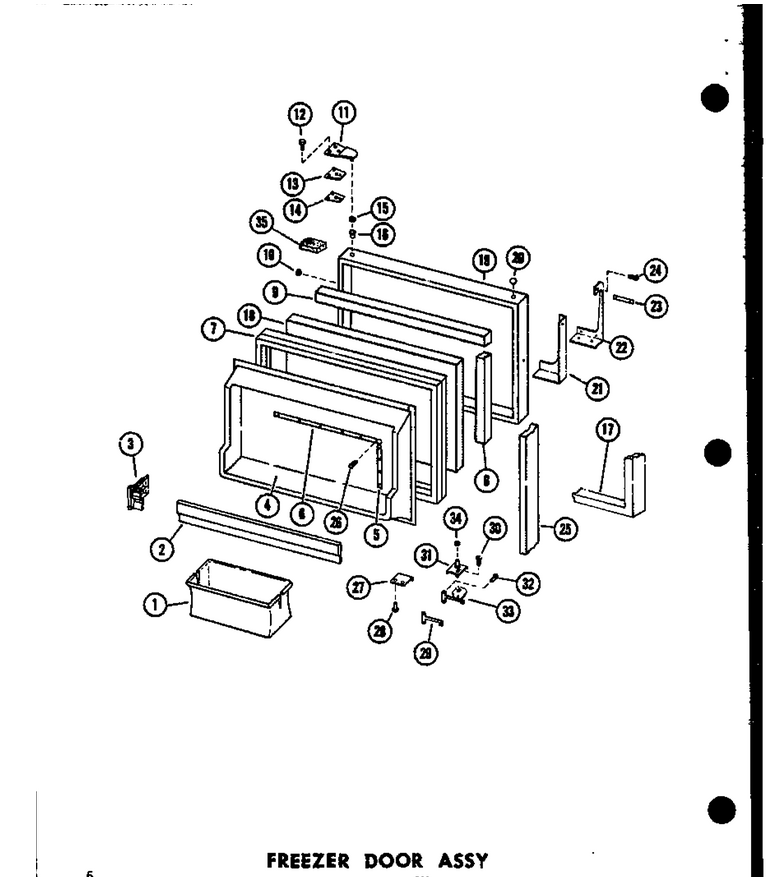

03 - Fz Door Assy

...
...
1
Ice Container WPL-D3959403
...
2
Retainer K WPL-D3976725
...
3
Support K WPL-C3680903
...
4
Inner Dr Panel K WPL-D7165402
...
5
Retainer WPL-D3928101
...
6
Retainer Gasket WPL-D3928102
...
7
Gasket, Door WPL-D3928225
...
8
Insulation WPL-B5629018
...
9
Insulation WPL-B5629022
...
10
Plug WPL-M0310719
...
11
Hinge WPL-B5744301
...
12
Kit, Screw WPL-R9800670
...
13
Shim Kit WPL-A3270303
...
14
Tap Strip WPL-A3139701
...
15
Washer WPL-M0270502
...
16
Bushing, Hinge Pin WPL-C3652901
...
17
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
18
Foam Slab WPL-B5612015
...
19
Door Fr-G-P-Tc18b WPL-D7370504
...
20
Plug WPL-M0310607
...
21
Pad-Handle WPL-D7146001
...
22
Handle K WPL-D7145801
...
23
Nameplate Q WPL-C3675302
...
24
Screw WPL-M0203458
...
25
Insulation WPL-B5629008
...
26
Screw WPL-WP98165
...
27
Stop Door WPL-A3139801
...
28
Machine Screw WPL-M0205631
...
29
Shim K WPL-A3143502
...
30
Screw K WPL-M0205441
...
31
Center Hinge Assy WPL-B5750901
...
32
Screw Phillips WPL-M0205731
...
33
Center Hinge Assy WPL-C8800201
...
34
Washer Hinge K WPL-B5779601
...
35
Insulation WPL-A3257701
