Amana ESR14C (BOM: P7395306W)

Model: ESR14C (BOM: P7395306W)

Save Part Not Listed?
product name

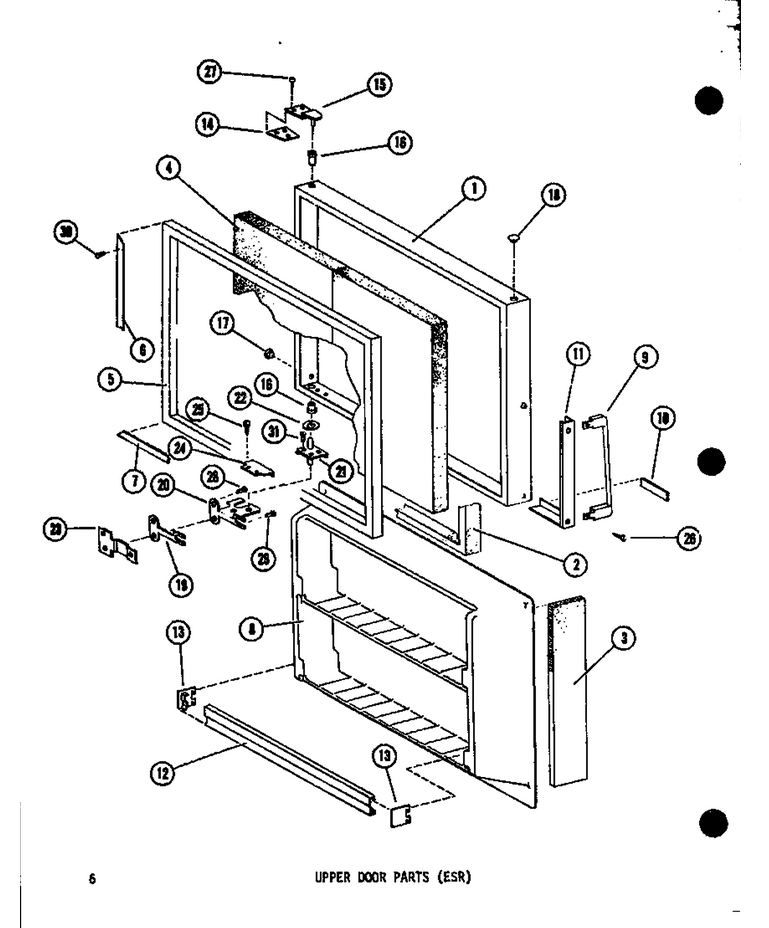

04 - Upper Door Parts (esr)

...
...
1
Door-Fr C-T-Esr14d WPL-D7395702
...
2
Insulation Ft. K WPL-B0523563
...
3
Insulation WPL-B5629037
...
4
Foam Slab WPL-C8767001
...
5
Gasket WPL-D3928219
...
6
Retainer-Gasket WPL-D3928114
...
7
Retainer-Gasket WPL-D3928118
...
8
Inner Dr Panel WPL-D7263101
...
9
Handle WPL-D7254201
...
10
Nameplate WPL-C8757303
...
11
Handle Pad Kit WPL-D7257902
...
12
Retainer-Package WPL-D3976727
...
13
Support K WPL-C3680904
...
14
Shim-Top Hinge K WPL-A3270302
...
15
Hinge WPL-B5744301
...
16
Bushing, Hinge Pin WPL-C3652901
...
17
Plug Button (almond) WPL-M0310730
...
18
Plug WPL-M0310607
...
19
Shim K WPL-A3143503
...
20
Center Hinge Assy WPL-C8800201
...
21
Center Hinge Assy WPL-B5750901
...
22
Washer Hinge K WPL-B5779601
...
23
Kit- Tap P WPL-R0194684
...
24
Stop Door WPL-A3139801
...
25
Machine Screw WPL-M0205631
...
26
Screw WPL-M0222317
...
27
Kit, Screw WPL-R9800670
...
28
Screw WPL-M0226831
...
29
Screw WPL-M0203458
...
30
Screw WPL-WP98165
...
31
Screw K WPL-M0205441

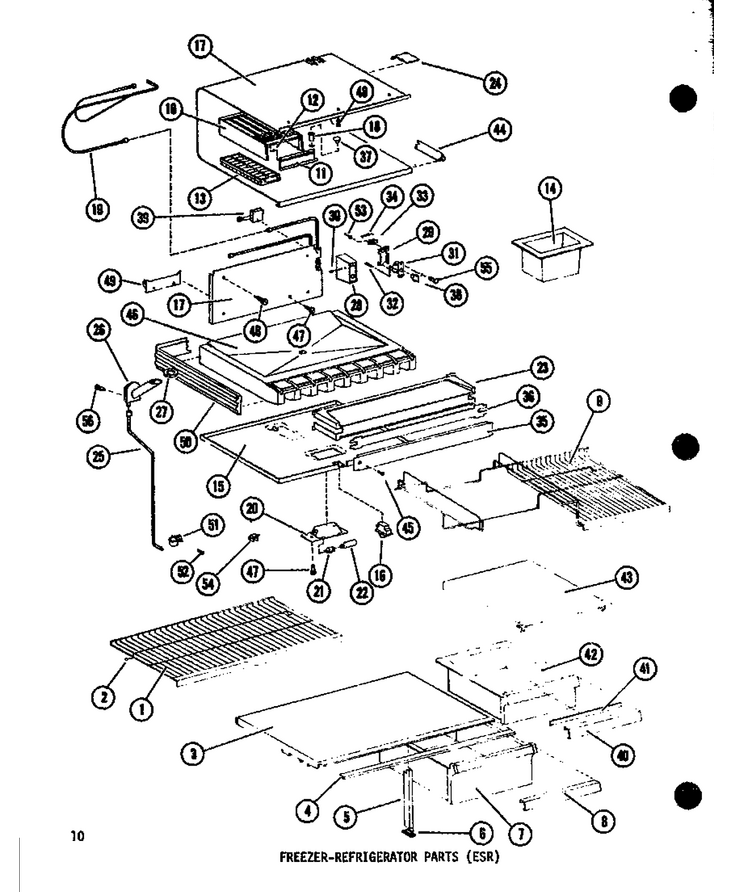

02 - Fz-Ref Parts (esr)

...
...
1
Shelf, Glide Out WPL-D7256605
...
2
Cap WPL-B5753502
...
3
Crisper Top WPL-D7261303
...
4
Trim-Crisper Top WPL-B0570905
...
5
Support WPL-B0571002
...
6
Support Post WPL-B5749401
...
7
Pan, Crisper WPL-D7261805
...
8
Trim-Crisper Handle WPL-C3696504
...
9
Shelf, Step, Meat Keeper WPL-D7381502
...
10
Tunnel-Ice Tray WPL-D7193005
...
11
Door, Tunnel WPL-C8706101
...
12
Hinge Pin WPL-A3214701
...
13
Tray WPL-WP841180A
...
14
Ice Container WPL-D7272701
...
15
Top Shelf WPL-D7272802
...
16
Switch WPL-W11384469
...
17
Evap Assy WPL-D7493003
...
18
Drain Screen WPL-C8819601
...
19
Heat Ex WPL-D7278102
...
20
Shield, Light WPL-R0176034
...
21
Socket-Light WPL-D7714407
...
22
Light Bulb WPL-8009
...
23
Breaker-Mullion WPL-D7276501
...
24
Cover Plate WPL-C8759301
...
25
Drain Tube WPL-C8756901
...
26
Elbow WPL-C3630903
...
27
Gasket WPL-A3132301
...
28
Escutcheon WPL-D7278004
...
29
Bracket, Control WPL-C8702602
...
30
Screw WPL-M0230926
...
31
Control, Temperature WPL-C3615015
...
32
Tubing Plastic K WPL-A3012526
...
33
Switch WPL-M0341202
...
34
Diode WPL-M0305301
...
35
Ctr Mullion A WPL-C8807103
...
36
Center Heater Kit WPL-C8777701
...
37
Drain Plug WPL-B8320601
...
38
Knob WPL-D7009801
...
39
Heater-Ref Evap A WPL-C8769101
...
40
Trim, Handle WPL-C3623002
...
41
Gasket (per Foot) WPL-A3030313
...
42
Pan, Meat Keeper WPL-D3975703
...
43
Top, Meat Keeper WPL-D7001104
...
44
Gasket-Evap WPL-C8758705
...
45
Screw WPL-WP67006715
...
46
Foam Block WPL-D7352102Q
...
47
Screw WPL-WP489464
...
48
Screw K WPL-M0236721
...
49
Clamp, Control Bulb WPL-B5754001
...
50
Gasket WPL-B5757802
...
51
Clamp WPL-M0102303
...
52
Screw WPL-WP489069
...
53
Rivet A WPL-M0010202
...
54
Clip, Ground WPL-B5733302
...
55
Screw WPL-WP90767
...
56
Screw WPL-M0214618

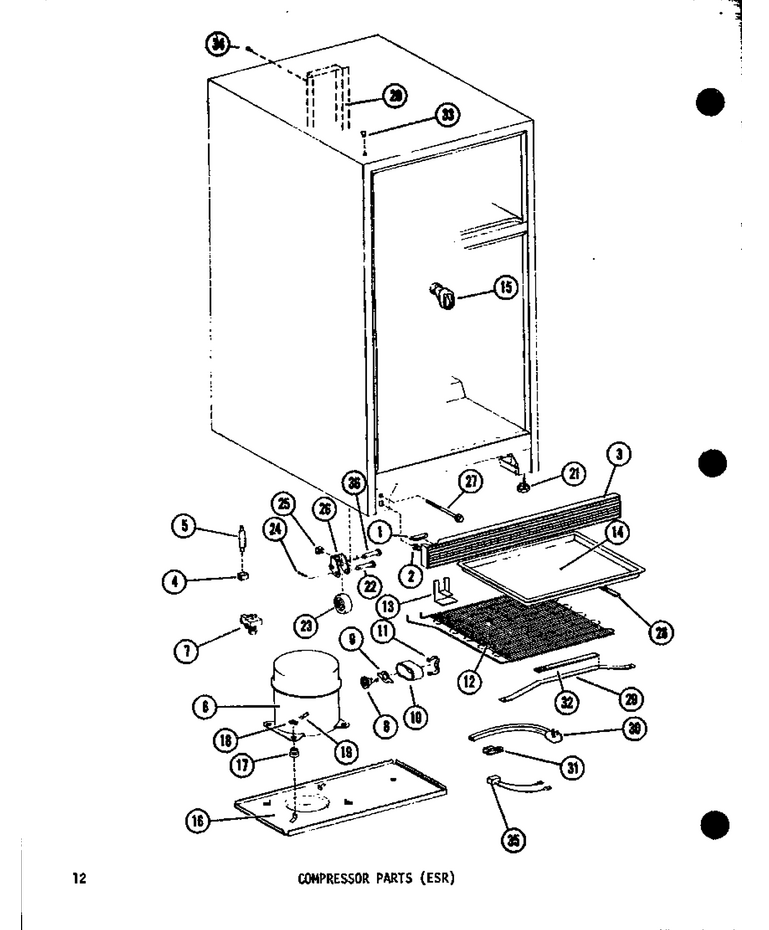

01 - Compressor Parts (esr)

...
...
1
Grille-Toe WPL-B5641301
...
2
Clip WPL-WPM0117303
...
3
Grille Toe WPL-D7263302
...
4
Clamp-Drier WPL-M0104002
...
5
Drier WPL-WPB2150504
...
6
Compressor WPL-W10439652
...
7
Relay WPL-C3561701
...
8
Overload WPL-C8768901
...
9
Spring K WPL-A3043601
...
10
Cover K WPL-B0559501
...
11
Strap K WPL-A3041801
...
12
Pre-Cooler WPL-D7307601
...
13
Bracket WPL-B5747001
...
14
Drain Pan WPL-D3920001
...
15
Tunnel-Heat Ex WPL-B5749501
...
16
Support WPL-D7262802
...
17
Grommet K WPL-A3026101
...
18
Washer, Nylon K WPL-M0590101
...
19
Clip K WPL-A3140801
...
20
Cover, O.c. Back, White WPL-C8807001
...
22
Pin K WPL-M1200202
...
23
Roller WPL-M0520102
...
24
Cotter Pin K WPL-M1200004
...
25
Nut, Speed WPL-M0286708
...
26
Assy, Roller Bracket WPL-12452602Q
...
27
Bolt WPL-M0209235
...
28
Gasket WPL-A3030327
...
29
Support WPL-D7308201
...
30
Wiring Harness WPL-D7276701
...
31
Clamp WPL-M0103901
...
32
Felt Q WPL-A9008324
...
33
Plug WPL-M0310718
...
34
Screw WPL-WP489464
...
35
Wiring Harness WPL-B5730802
...
36
Rivet WPL-M1205302

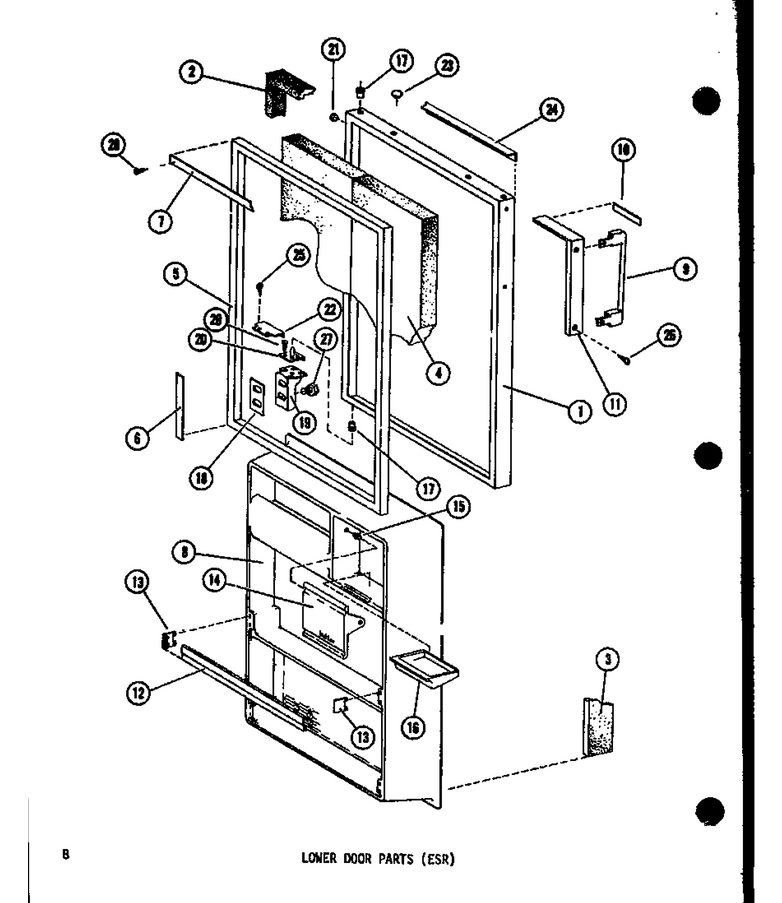

03 - Lower Door Parts (esr)

...
...
1
Door Ref W-T Esrfc14 WPL-D7395721
...
2
Insulation Ft. K WPL-B0523563
...
3
Insulation WPL-B5629037
...
4
Foam Slab WPL-D7293701
...
5
Gasket WPL-D3928220
...
6
Retainer-Gasket WPL-D3928115
...
7
Retainer-Gasket WPL-D3928118
...
8
Panel, Door WPL-D7263201
...
9
Handle WPL-D7254202
...
10
Nameplate WPL-C8757301
...
11
Handle Pad Kit WPL-D7257901
...
12
Retainer WPL-D3976726
...
13
Support - Cream Lh WPL-B5631705
...
14
Door-Butter WPL-D7026403
...
15
Pivot WPL-A3084701
...
16
Buttertray WPL-67004412A
...
17
Bushing WPL-C3652902
...
18
Kit,btm Hinge Shim WPL-B5744801
...
19
Brkt-Btm Hinge WPL-C8800301
...
20
Hinge Kit WPL-B5640902
...
21
Plug Button (almond) WPL-M0310730
...
22
Stop Door WPL-A3139801
...
23
Plug Button, Hinge Bushing Aut WPL-M0310604
...
24
Cap Door WPL-D7266501
...
25
Machine Screw WPL-M0205631
...
26
Screw WPL-M0222317
...
27
Screw WPL-WP67006715
...
28
Screw WPL-WP98165
...
29
Screw K WPL-M0205441
