Amana ESR-16 (BOM: P6030302W)

Model: ESR-16 (BOM: P6030302W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

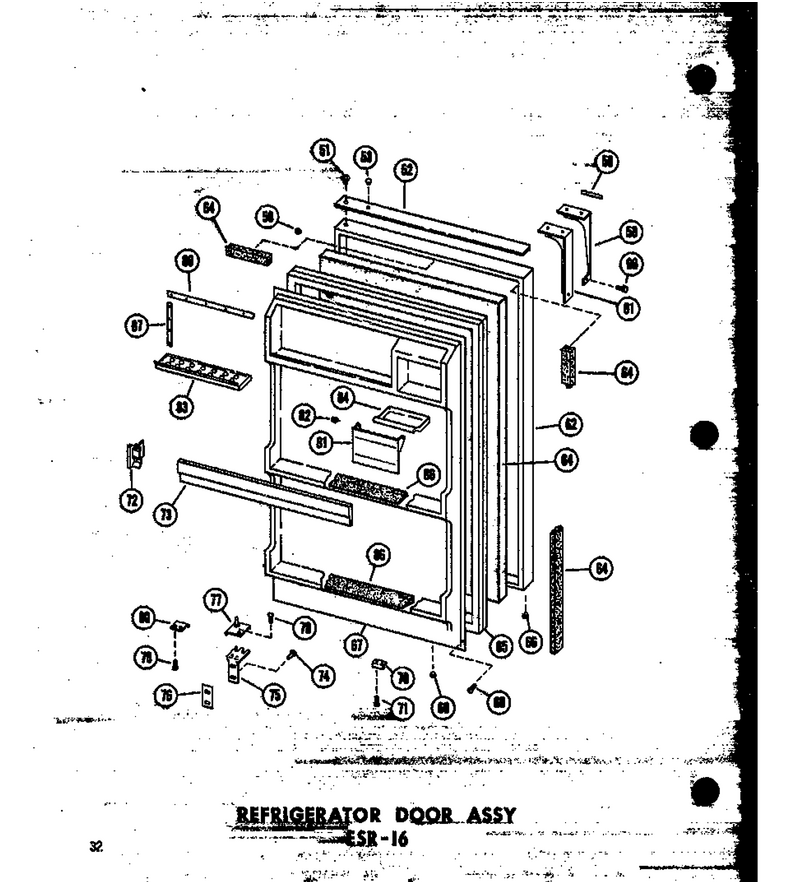

05 - Ref Door Assy Esr-16

...
...
50
Button- Pl WPL-WP67001130
...
51
Bushing, Hinge Pin WPL-C3652901
...
52
Door Cap WPL-D3958303
...
53
Screw WPL-M0203216
...
58
Nameplate K WPL-C3675306
...
59
Handle K WPL-D7145802
...
60
Screw WPL-M0203458
...
61
Handle Pad Kit WPL-D7146002
...
62
Outer Door Shell, Ref, Avocado WPL-D7057756
...
64
Foam Slab WPL-B5612014
...
65
Gasket WPL-D3928205
...
66
Plug Button, Hinge Bushing Aut WPL-M0310604
...
67
Panel, Inner Door WPL-D7165502
...
68
Screw WPL-WP98165
...
69
Plug, Button (wht) WPL-M0310308
...
70
Strike WPL-B5666401
...
71
Screw WPL-M0241205
...
72
Support - Cream Lh WPL-B5631705
...
73
Pkg Retainer K WPL-D3976724
...
74
Screw WPL-WP67006715
...
75
Hinge Kit WPL-B5640201
...
76
Shim WPL-A3143603
...
77
Hinge Kit WPL-B5640902
...
78
Screw K WPL-M0205441
...
79
Machine Screw WPL-M0205631
...
80
Stop Door WPL-A3139801
...
81
Butter Door WPL-D7026401
...
82
Pivot WPL-A3084701
...
83
Egg WPL-D7025701
...
84
Buttertray WPL-67004412A
...
86
Block, Shelf Support WPL-D7145101
...
87
Retainer Gasket WPL-D3928105
...
88
Retainer Gasket WPL-D3928102

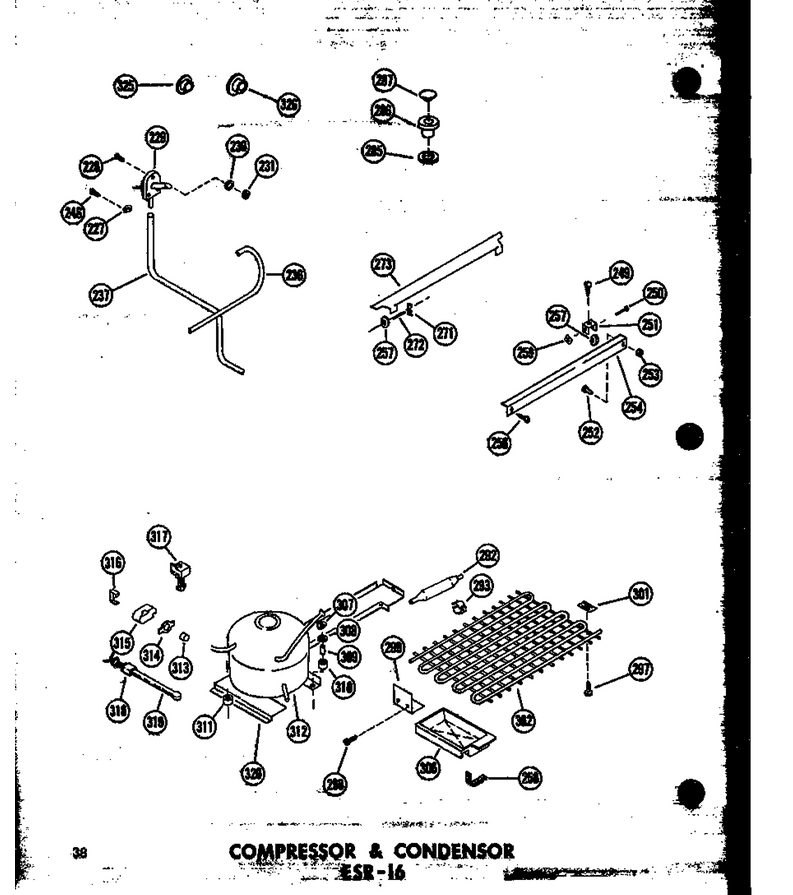

01 - Compressor & Condensor Esr-16

...
...
227
Clamp WPL-M0102303
...
228
Screw WPL-M0214618
...
229
Elbow-Drain Tube WPL-C8703701
...
230
Gasket WPL-A3132301
...
231
Grommet WPL-A3128101
...
236
Heat Ex WPL-D7208001
...
237
Drain Tube WPL-C8710201
...
246
Screw WPL-WP90767
...
249
Screw WPL-M0267101
...
250
Rivet WPL-M1205302
...
251
Bracket K WPL-A3125201
...
252
Roller Bracket Kit WPL-M0222240
...
253
Nut, Self Thread WPL-M0283801
...
254
Front Rail WPL-B5627601
...
256
Screw WPL-M0294459
...
257
Roller WPL-M0520102
...
258
Gasket WPL-A3030327
...
259
Fastener WPL-M0289401
...
271
Cotter Pin K WPL-M1200001
...
272
Pivot Pin K WPL-M1210001
...
273
Rail, Rear WPL-C3611301
...
285
Grommet WPL-A3138301
...
286
Drain Tube WPL-A3224902
...
287
Drain Plug WPL-B8320601
...
292
Drier WPL-WPB2150504
...
293
Clamp-Drier WPL-M0104002
...
297
Screw WPL-M0241131
...
298
Screw WPL-WP67006715
...
299
Bracket-Cond WPL-B5709101
...
300
Screw WPL-WP12990527
...
301
Speed Nut WPL-M0288010
...
302
Precooler WPL-D7205601
...
306
Drain Pan WPL-D7206101
...
307
Clip K WPL-A3140801
...
308
Washer, Nylon K WPL-M0590101
...
309
Sleeve K WPL-A3072001
...
310
Grommet K WPL-A3026101
...
311
Vinyl Sleeve WPL-A3164301
...
312
Compressor WPL-W10439652
...
313
Overload WPL-C3561601
...
314
Spring K WPL-A3043601
...
315
Terminal Cover WPL-B0551801
...
316
Strap K WPL-A3041801
...
317
Relay WPL-C3561701
...
318
Grommet, Cord WPL-211881
...
319
Wiring Harness WPL-D7207201
...
320
Weld Comp Supt Pnt WPL-C8820412
...
325
Plug, Button (wht) WPL-A3080002
...
326
Plug, Button (blk) WPL-A3080001

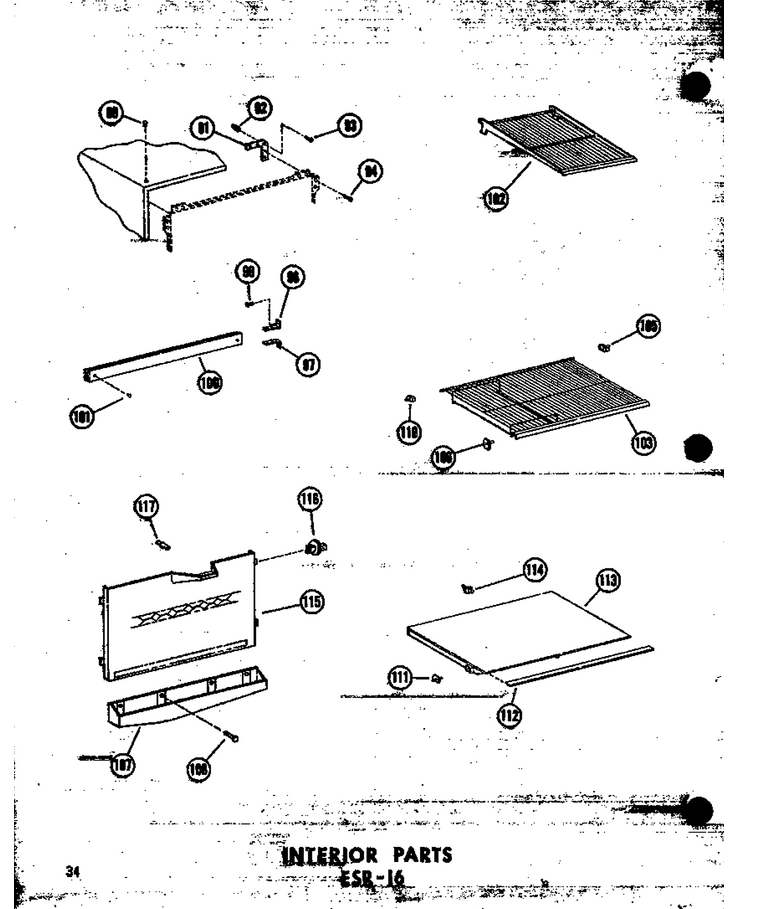

03 - Interior Parts Esr-16

...
...
90
Plug WPL-M0310710
...
91
Gusset WPL-C3576901
...
92
Grommet WPL-A0381803
...
93
Sems Fastner WPL-M0252047
...
94
Screw WPL-M0250531
...
96
Angle,center Mullion WPL-B5645601
...
97
Angle,center Mullion WPL-B5645602
...
98
Screw WPL-M0227303
...
100
Center Mullion WPL-C3633505
...
101
Plug WPL-M0310704
...
102
Shelf-Cantilever WPL-D3985702
...
103
Shelf Stationary WPL-D7000301
...
105
Support WPL-B5633002
...
106
Shelf Support WPL-B5620401
...
107
Drip Tray WPL-D7205801
...
108
Screw (3) WPL-67006425
...
111
Support WPL-B0570501
...
112
Trim WPL-B0570901
...
113
Crisper Top WPL-D3915103
...
114
Support WPL-B5680001
...
115
Cover WPL-D3918701
...
116
Support WPL-B0570801
...
117
Bumper WPL-A3064201
...
119
Support WPL-B5633001

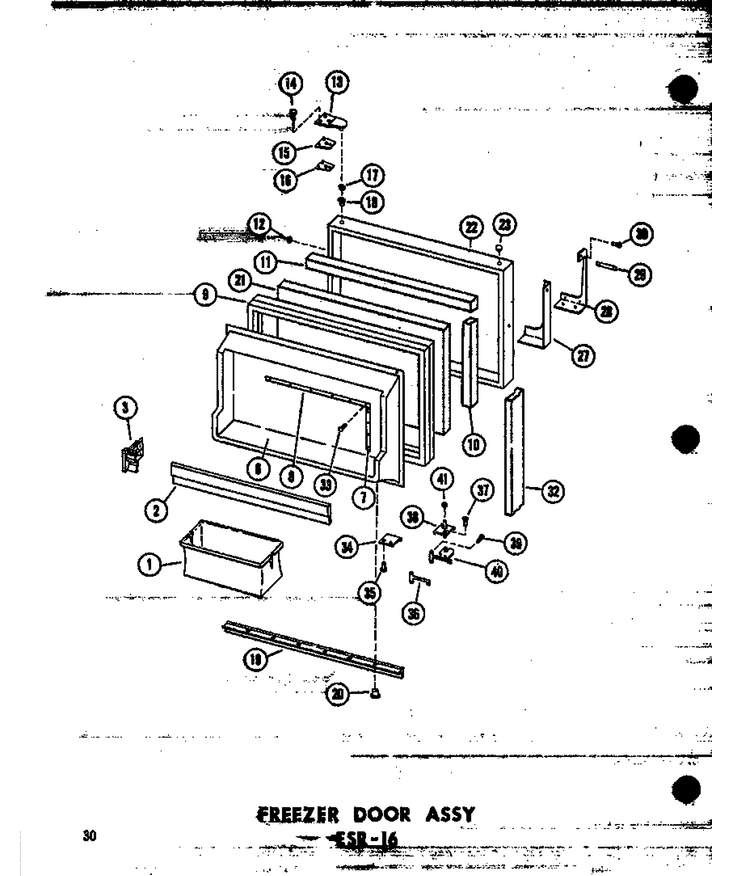

02 - Fz Door Assy Esr-16

...
...
1
Ice Container WPL-D3959403
...
2
Retainer K WPL-D3976725
...
3
Support K WPL-C3680903
...
6
Panel, Door WPL-D7165403
...
7
Retainer WPL-D3928101
...
8
Retainer Gasket WPL-D3928102
...
9
Gasket WPL-D3928206
...
10
Insulation WPL-B5629020
...
11
Insulation WPL-B5629022
...
12
Plug WPL-M0310707
...
13
Hinge, Top WPL-B5640704
...
14
Kit, Screw WPL-R9800670
...
15
Shim WPL-A3143702
...
16
Tap Strip WPL-A3139701
...
17
Washer WPL-M0270502
...
18
Bushing, Hinge Pin WPL-C3652901
...
19
Air Baffle WPL-C8712601
...
20
Rivet WPL-M0560102
...
21
Foam Slab WPL-B5612015
...
22
Door-Fr-A-P-Tm18n WPL-D7057707
...
23
Plug Button, Hinge Bushing Aut WPL-M0310604
...
27
Pad-Handle WPL-D7146001
...
28
Handle K WPL-D7145801
...
29
Nameplate Q WPL-C3675302
...
30
Screw WPL-M0203458
...
32
Insulation Ft. K WPL-A3195002
...
33
Screw WPL-WP98165
...
34
Stop Door WPL-A3139801
...
35
Machine Screw WPL-M0205631
...
36
Shim K WPL-A3143501
...
37
Screw K WPL-M0205441
...
38
Center Hinge Assy WPL-B5640402
...
39
Screw Phillips WPL-M0205731
...
40
Center Hinge Assy WPL-B5640502
...
41
Washer WPL-M0274049

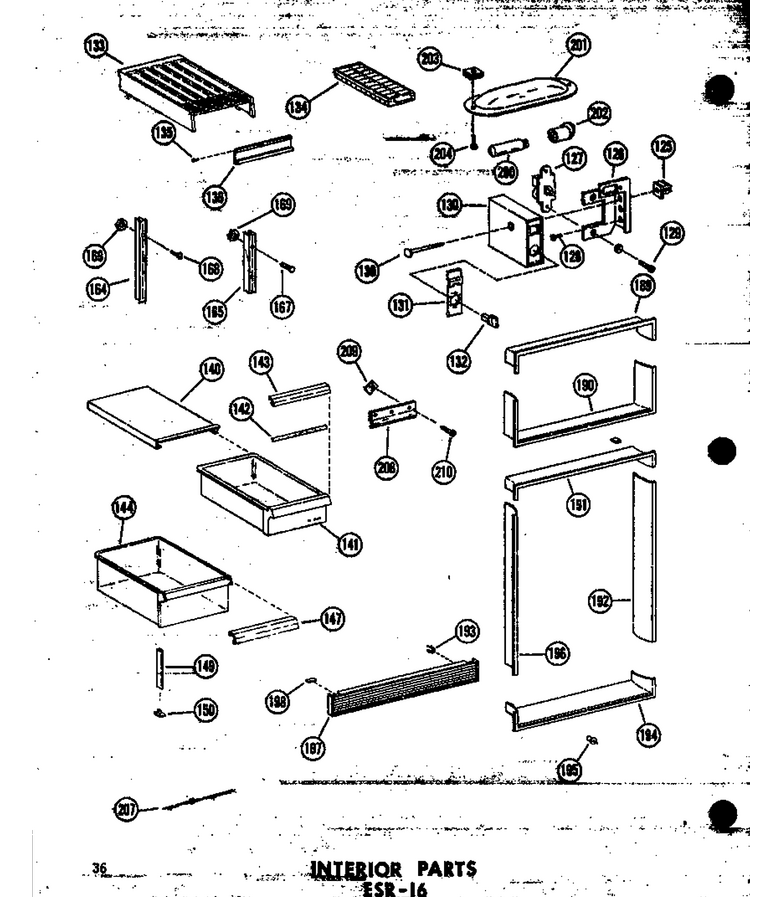

04 - Interior Parts Esr-16

...
...
125
Grommet, Screw WPL-M0580007
...
126
Bracket, Control WPL-C8702602
...
127
Control WPL-C3615005
...
128
Screw WPL-WP489399
...
129
Screw WPL-WP90767
...
130
Escutcheon WPL-B5690302
...
131
Thin Plate WPL-C3624902
...
132
Knob WPL-D7009801
...
133
Tunnel-Ice Tray WPL-D7193002
...
134
Tray WPL-WP841180A
...
135
Hinge Pin WPL-A3214701
...
136
Door, Tunnel WPL-C8706101
...
139
Screw WPL-M0230926
...
140
Top, Meat Keeper WPL-D7001104
...
141
Pan, Meat Keeper WPL-D3975703
...
142
Gasket (per Foot) WPL-A3030313
...
143
Trim, Handle WPL-C3623002
...
144
Pan, Crisper WPL-D7186701
...
145
Support-Crisper WPL-C8710401
...
147
Trim A WPL-C3696502
...
149
Support Post WPL-B0571006
...
150
Support WPL-B0571201
...
164
Ladder WPL-C8703901
...
165
Ladder-Center WPL-C8703501
...
167
Screw, Machine WPL-M0209119
...
168
Screw WPL-M0207632
...
169
Nut WPL-WP486255
...
189
Breaker Frame WPL-D3917001
...
190
Breaker Frame WPL-D3916801
...
191
Breaker Frame, Top Ref WPL-D3916701
...
192
Breaker Frame WPL-D3914515
...
193
Clip WPL-WPM0117303
...
194
Breaker Frame WPL-D3916301
...
195
Switch Light WPL-C3689702
...
196
Breaker Frame WPL-D3914516
...
197
Grille-Toe WPL-D7070202
...
198
Grille-Toe WPL-B5641301
...
200
Light Bulb WPL-A0318001
...
201
Housing, Light WPL-C3540303
...
202
Socket-Light WPL-D7714407
...
203
Speed Nut WPL-M0288010
...
204
Screw (3) WPL-67006425
...
207
Wiring Harness WPL-D7207201
...
208
Clamp WPL-A0382601
...
209
Nut WPL-M0286103
...
210
Screw WPL-WP489464
