Amana ESMC-2 (BOM: P1801109T)

Model: ESMC-2 (BOM: P1801109T)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

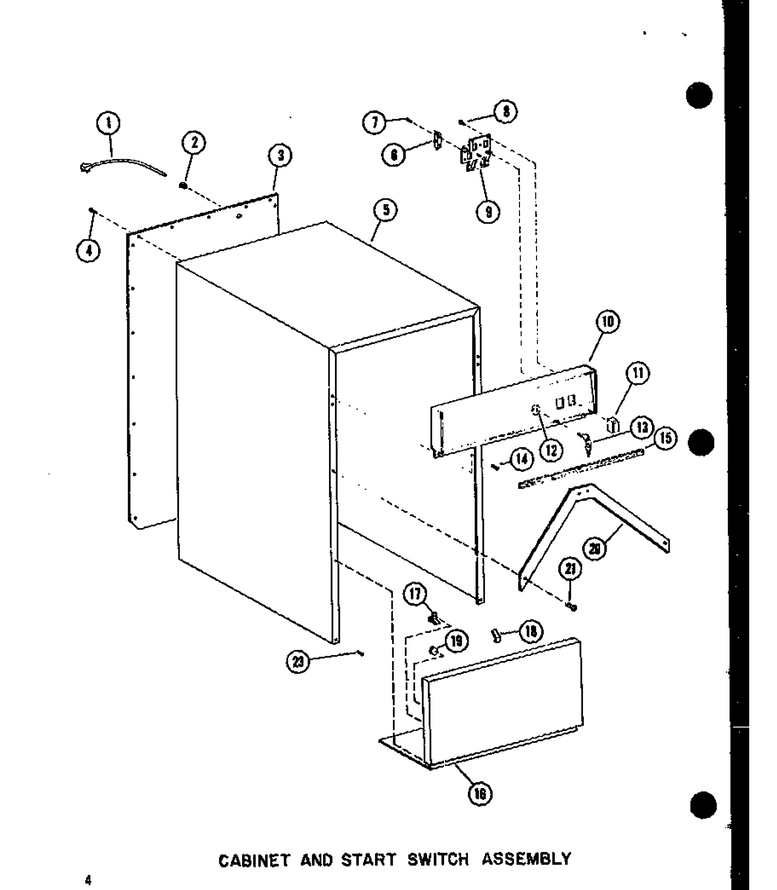

02 - Cabinet And Start Switch Assy

...
...
1
Cord Set WPL-B1614501
...
2
Strain Relief WPL-M0370001
...
3
Cabinet Back, Coppertone WPL-D1806610
...
4
Screw WPL-WP489464
...
5
Wrapper-G WPL-C1705716
...
6
Switch-Lock WPL-B1602101
...
7
Washer WPL-M0272203
...
8
Screw WPL-WPW10068250
...
9
Switch Assy K WPL-C1704901
...
10
Control Panel WPL-B1605201
...
11
Button-Orange WPL-C1704702
...
12
Lock Assembly, Hudson WPL-B1602502
...
13
Key-Hudson WPL-B1602504
...
14
Screw WPL-8169479
...
15
Gasket WPL-A3030302
...
16
Panel Front-A WPL-C1709603
...
17
Spring WPL-A1512101
...
18
Terminal WPL-M0320550
...
19
Bumper WPL-A1511501
...
20
Brace WPL-C1709501
...
21
Screw WPL-M0211530
...
23
Screw K WPL-M0253343

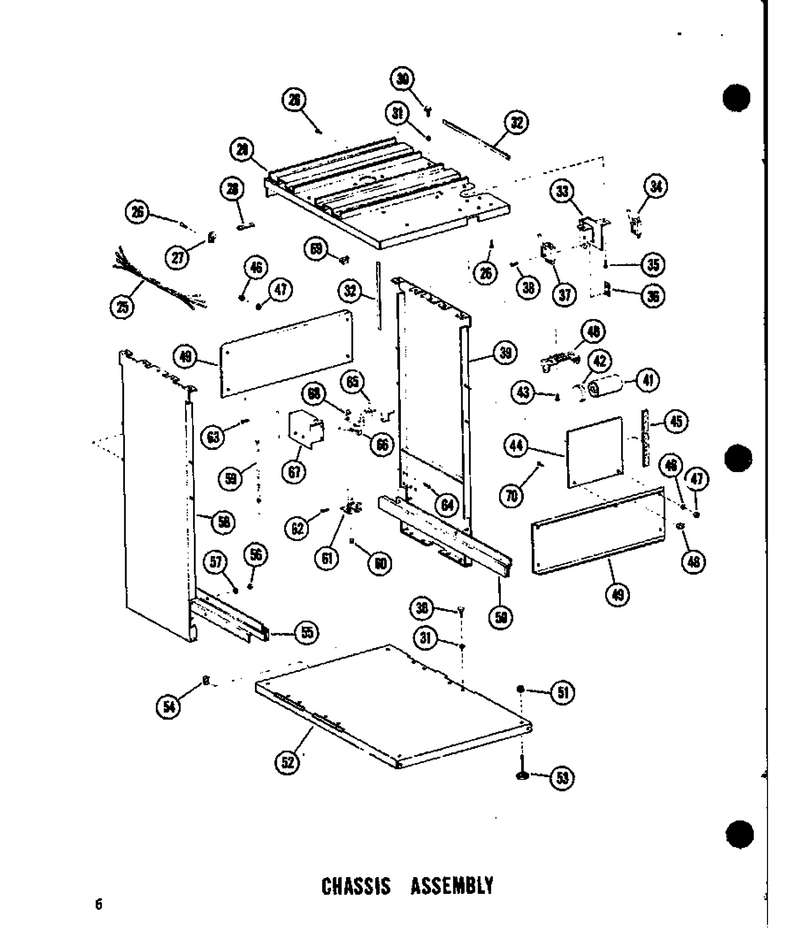

03 - Chassis Assy

...
...
25
Wiring Harness WPL-D1801802
...
29
Wldmt-Top Chassis WPL-C1701501
...
30
Screw-Machine WPL-M0204959
...
31
Washer-Lock WPL-M0272807
...
32
Sleeve K WPL-A1504602
...
33
Bracket-Switch WPL-B1603101
...
34
Switch-Top Limit WPL-B1601802
...
35
Screw K WPL-M0253543
...
36
Speed Nut WPL-M0289502
...
37
Switch-Directional WPL-B1601901
...
38
Screw WPL-M0227520
...
39
Channel Guide WPL-B1609804
...
40
Bracket-Capacitor WPL-M0370803
...
41
Capacitor WPL-M0300603
...
42
Cap, Capacitor WPL-C6450304
...
43
Screw WPL-M0234255
...
44
Spacer WPL-B1606203
...
45
Gasket WPL-A3030302
...
46
Lockwasher WPL-M0272608
...
47
Hex Nut, 5/16``-18, Track WPL-M0281011
...
48
Clip WPL-M0110502
...
49
Brace-Chassis WPL-B1600701
...
50
Track-Rh WPL-C1703902
...
51
Nut WPL-M0283308
...
52
Wldmt-Base Pan WPL-C1701402
...
53
Foot-Levelling WPL-B1601601
...
54
Speed Nut WPL-M0288411
...
55
Track-Lh WPL-C1703901
...
56
Hex Nut, 5/16``-18, Track WPL-M0281011
...
57
Lockwasher WPL-M0272608
...
58
Channel Guide WPL-B1609804
...
59
Rod Hinge K WPL-A1506403
...
60
Rivet K WPL-M0560101
...
61
Spring, Hinge K WPL-B1608102
...
62
Pop Rivet WPL-A4539611
...
63
Screw K WPL-M0251008
...
64
Screw K WPL-M0243230
...
65
Back Sw Cover K WPL-B1609101
...
66
Act. Switch K WPL-A1504302
...
67
Cover Switch K WPL-B1608201
...
68
Switch K WPL-B1606602
...
69
Clip K WPL-M0110501
...
70
Screw WPL-WP90767

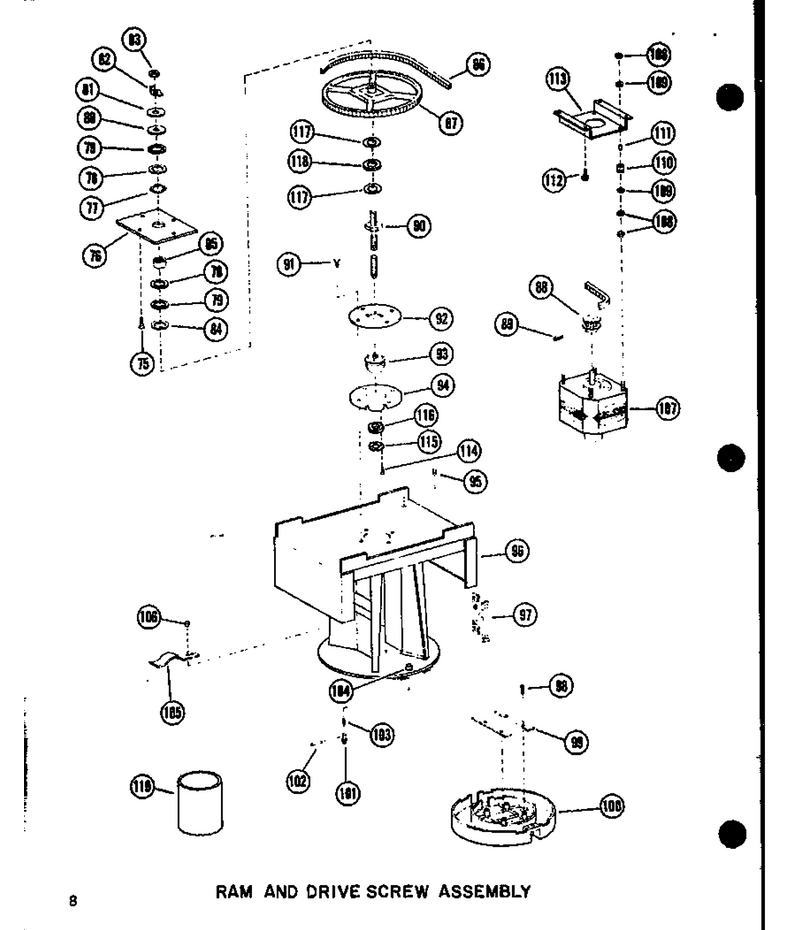

04 - Ram And Drive Screw Assy

...
...
75
Screw WPL-M0204231
...
76
Bushing-Screw Guide WPL-B1605402
...
77
Washer-Spring WPL-M0273525
...
78
Race-Bearing 030 WPL-B1602603
...
79
Bearing-Thrust WPL-B1602801
...
80
Washer-Top Bearing WPL-A1501602
...
81
Washer WPL-M0270521
...
82
Lockwasher WPL-A1507001
...
83
Hex Nut WPL-A1506701
...
84
Race-Bearing 093 WPL-B1602602
...
85
Sleeve-Bearing WPL-B1602702
...
86
Gear, Belt WPL-A1500801
...
87
Gear-84 Tooth WPL-C1700401
...
88
Gear-13 Tooth WPL-B1602901
...
89
Screw WPL-M0210117
...
90
Acme Screw Weld K WPL-B1606902
...
91
Screw WPL-M0204962
...
92
Retainer-Top Plate WPL-B1604101
...
93
Pivot Nut K WPL-B1608601
...
94
Retainer WPL-B1605502
...
95
Rivet K WPL-M0560101
...
96
Ram Guide Assy WPL-R0157084
...
97
Guide-Corner WPL-C1702201
...
98
Screw WPL-M0227731
...
99
Slide-Ram Head WPL-B1604501
...
100
Head-Ram WPL-D1800501
...
101
Pin WPL-A1502112
...
102
Pin WPL-A1502111
...
103
Spring WPL-A1502113
...
104
Stand-Off WPL-A1502114
...
105
Brake-Ram WPL-A1502801
...
106
Pop Rivet WPL-A4539611
...
107
Motor 50 Cy WPL-D1801002
...
108
Nut WPL-M0281104
...
109
Washer WPL-M0270512
...
110
Grommet-Motor WPL-M0500108
...
111
Sleeve WPL-A1502201
...
112
Screw-Machine WPL-M0204959
...
113
Bracket-Motor WPL-C1701301
...
114
Screw-Shoulder WPL-M0253618
...
115
Retainer WPL-B1611201
...
116
Wiper Wool WPL-B1611101
...
117
Washer WPL-M0270514
...
118
Washer, Polyurethane WPL-A1511301
...
119
Compactor Lube WPL-R0197001

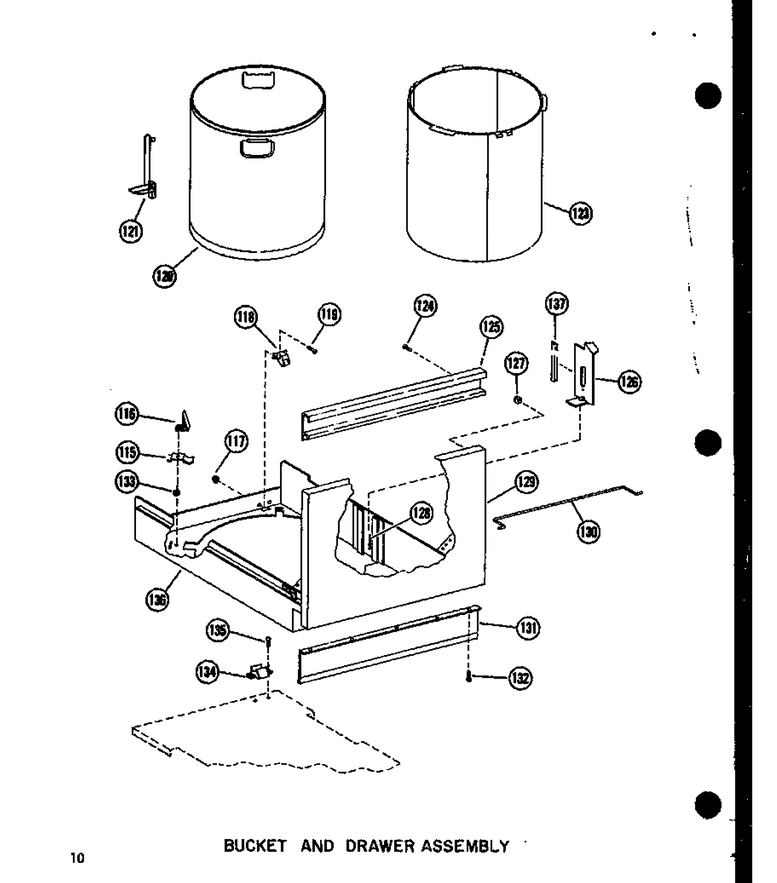

01 - Bucket And Drawer Assy

...
...
115
Spring-Trash Bucket WPL-C1700701
...
116
Locator-Bucket WPL-A1503301
...
117
Nut K WPL-M0282005
...
118
Roller Catch, Bucket Drawer WPL-A1506601
...
119
Screw A WPL-M0202516
...
120
Bucket, Trash WPL-D1805302
...
121
Bucket Latch Kit WPL-B1609302
...
123
Liner-Bucket WPL-C1708302
...
124
Screw WPL-M0211530
...
125
Handle WPL-C1700902
...
126
Safety Latch WPL-C1706001
...
127
Bumper WPL-A3033703
...
128
Spring-Latch WPL-A1506501
...
129
Door Pan-Gold WPL-C1703504
...
130
Retainer WPL-B1606001
...
131
Kick Plate WPL-C1705101
...
132
Screw WPL-W11233072
...
133
Washer WPL-M0270501
...
134
Strike K WPL-B1608401
...
135
Screw K WPL-M0253343
...
136
Weldment, Bucket Drawer WPL-C1707501
...
137
Safety Latch WPL-B1607601
