Amana ESMC-1 (BOM: P1801102T)

Model: ESMC-1 (BOM: P1801102T)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

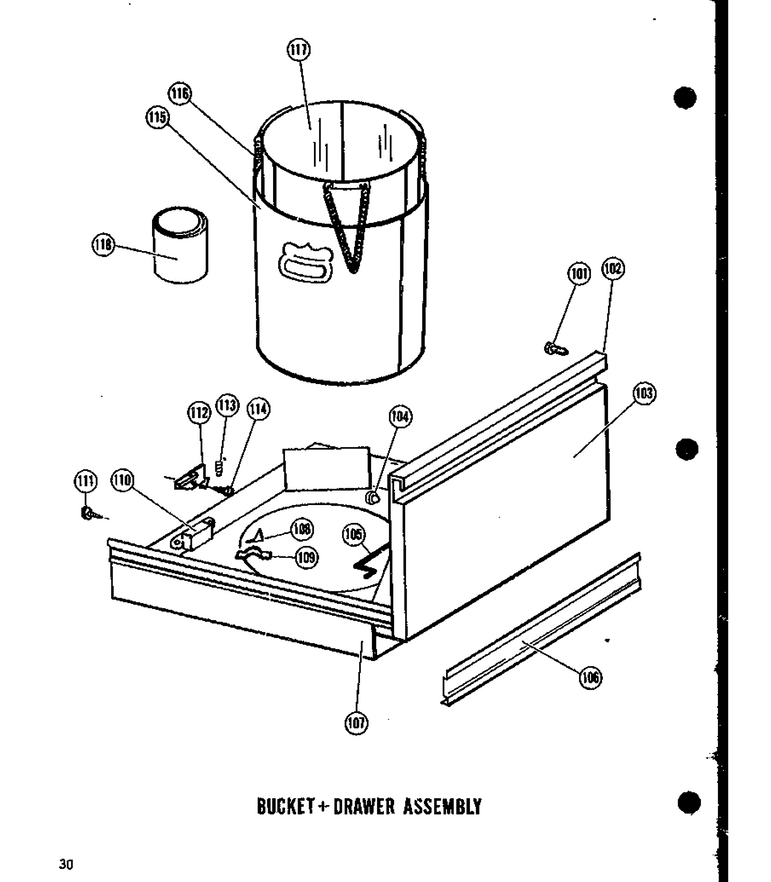

01 - Bucket + Drawer Assy

...
...
101
Screw WPL-M0211530
...
102
Handle WPL-C1700902
...
103
Door Pan-White WPL-C1703501
...
104
Bumper WPL-A3033703
...
105
Retainer WPL-B1606001
...
106
Kick Plate WPL-C1705101
...
107
Wldmt Bucket Pan WPL-C1701601
...
108
Locator-Bucket WPL-A1503301
...
109
Spring-Trash Bucket WPL-C1700701
...
110
Catch-Spring WPL-A1501901
...
111
Screw-Machine WPL-M0255014
...
112
Latch Safety WPL-B1606401
...
113
Spring-Safety Latch WPL-A1503201
...
114
Rivet A WPL-M1205103
...
115
Bucket, Trash WPL-D1800101
...
116
Spring-Bucket Liner WPL-B1605601
...
117
Liners WPL-C1701101
...
118
Compactor Lube WPL-R0197001

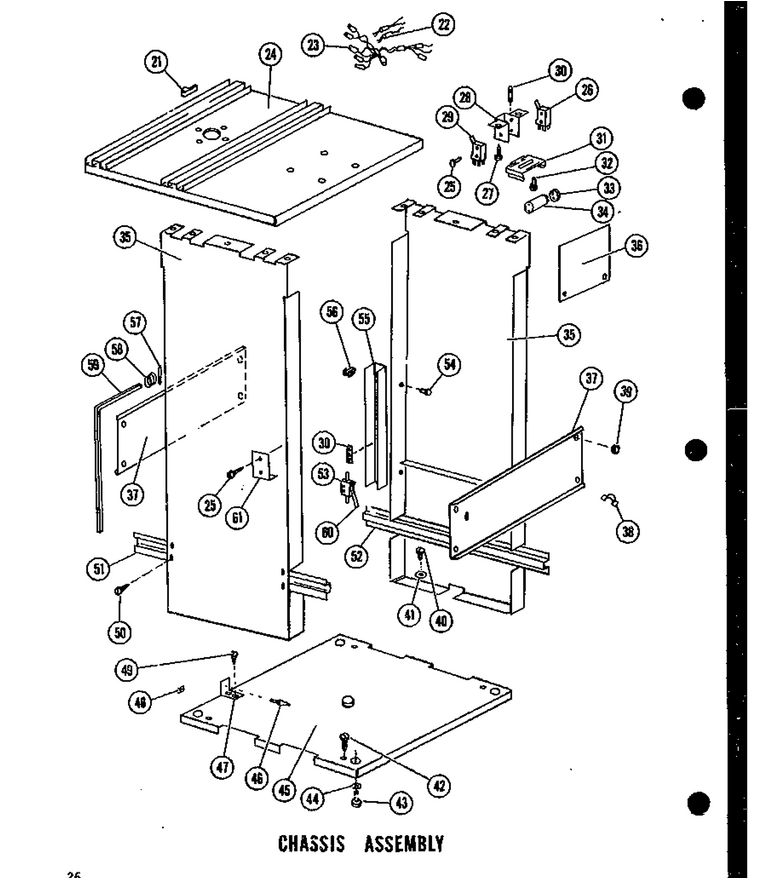

03 - Chassis Assy

...
...
21
Clamp WPL-M0102304
...
22
Connector WPL-WP75614
...
23
Wiring Harness WPL-D1801801
...
24
Wldmt-Top Chassis WPL-C1701501
...
25
Sems Fastner WPL-M0256821
...
26
Switch, Top Limit WPL-B1601801
...
27
Screw K WPL-M0253543
...
28
Bracket-Switch WPL-B1603101
...
29
Switch-Directional WPL-B1601901
...
30
Speed Nut WPL-M0289502
...
31
Bracket-Capacitor WPL-M0370803
...
32
Screw WPL-M0234255
...
33
Cap, Capacitor WPL-C6450304
...
34
Capacitor WPL-M0300603
...
35
Guide Channel WPL-B1607401
...
36
Shield WPL-B1606201
...
37
Brace-Chassis WPL-B1600701
...
38
Clip WPL-M0114901
...
39
Nut WPL-M0281007
...
40
Screw-Machine WPL-M0204959
...
41
Washer-Lock WPL-M0272807
...
42
Screw WPL-M0221255
...
43
Foot-Levelling WPL-B1601601
...
44
Nut WPL-M0283610
...
45
Base Pan, Main Frame WPL-C1701401
...
46
Strike-Bucket Pan WPL-A1502001
...
47
Strike Bracket Wld WPL-B1605801
...
48
Speed Nut WPL-M0288411
...
49
Screw K WPL-M0253543
...
50
Screw WPL-M0204954
...
51
Track-Lh WPL-C1703901
...
52
Track-Rh WPL-C1703902
...
53
Switch K WPL-B1606601
...
54
Screw WPL-W11233072
...
55
Cover, Wiring WPL-C1705201
...
56
Clip WPL-M0110502
...
57
Pin WPL-A1504401
...
58
Spring-Lock Bar WPL-A1505101
...
59
Rod, Drawer Lock WPL-A1504901
...
60
Lever-Actuator Arm WPL-A1504301
...
61
Cover Switch WPL-A1504101

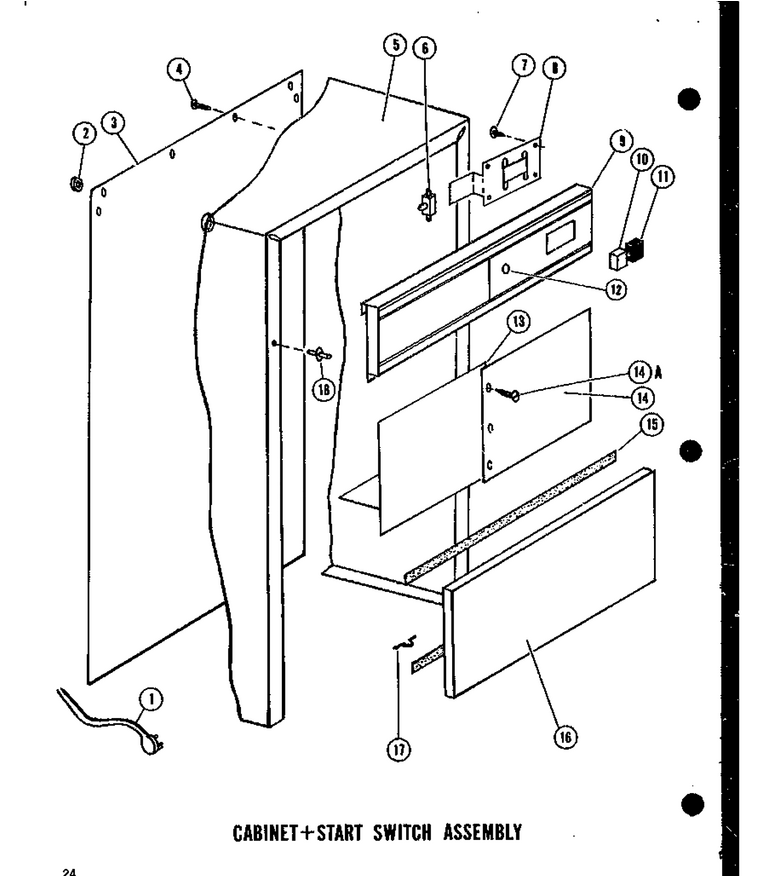

02 - Cabinet + Start Switch Assy

...
...
NI
Screw WPL-WP98165
...
1
Cord Set WPL-B1604802
...
2
Grommet, Cord WPL-211881
...
3
Back-Gold WPL-D1800304
...
4
Screw WPL-WP90767
...
5
Outer Case Autumn Gold WPL-C1705704
...
6
Switch-Lock WPL-B1602101
...
7
Screw WPL-WPW10068250
...
8
Switch Assy K WPL-C1704901
...
9
Control Panel WPL-B1605201
...
10
Button-White WPL-C1704701
...
11
Button-Orange WPL-C1704702
...
12
Lock Assembly, Hudson WPL-B1602502
...
13
Shield-Lh-White WPL-B1603201
...
14
Shield Right Hand Autumn Gold WPL-B1603304
...
15
Gasket WPL-A3030302
...
16
Door Pan-W WPL-C1703506
...
17
Spring WPL-M0100302
...
18
Strike WPL-A4680401

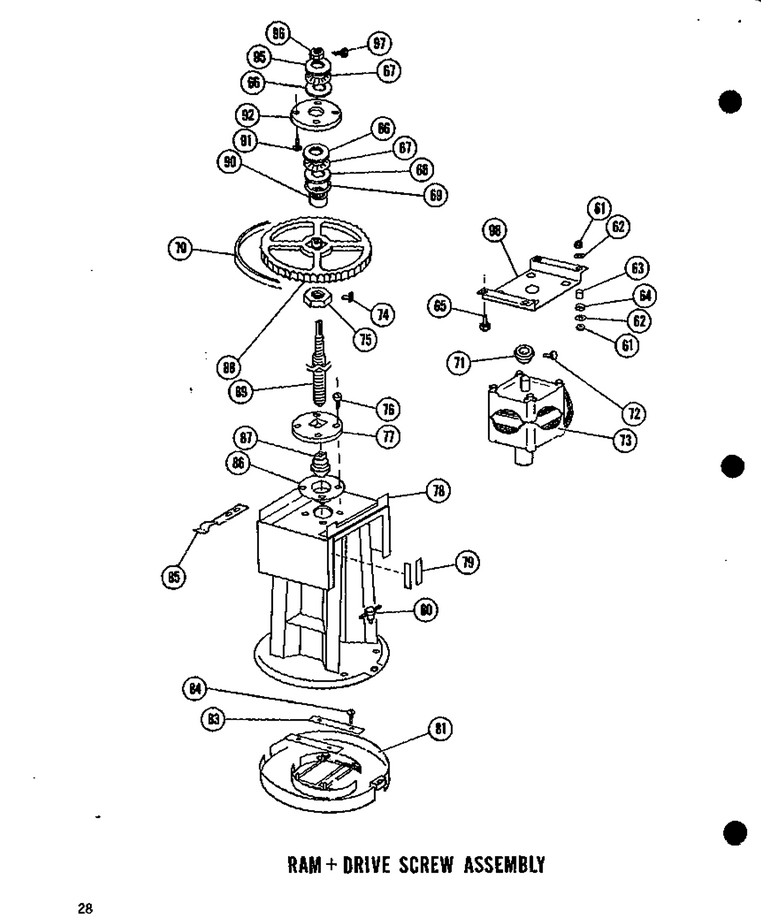

04 - Ram + Drive Screw Assy

...
...
61
Nut WPL-M0281104
...
62
Washer WPL-M0270528
...
63
Sleeve WPL-A1502201
...
64
Grommet-Motor WPL-M0500108
...
65
Screw-Machine WPL-M0204959
...
66
Race-Bearing 030 WPL-B1602603
...
67
Bearing-Thrust WPL-B1602801
...
68
Race-Bearing 093 WPL-B1602602
...
69
Washer-Spring WPL-M0273525
...
70
Gear, Belt WPL-A1500801
...
71
Gear-13 Tooth WPL-B1602901
...
72
Screw WPL-M0210117
...
73
Motor 50 Cy WPL-D1801002
...
74
Screw WPL-M0210117
...
75
Nut Hex WPL-A1501701
...
76
Screw WPL-M0204962
...
77
Retainer-Top Plate WPL-B1604101
...
78
Weldment Ram Guide WPL-D1800701
...
79
Guide-Corner WPL-C1702201
...
80
Ram Catch Assy WPL-A1502101
...
81
Head-Ram WPL-D1800501
...
83
Slide-Ram Head WPL-B1604501
...
84
Screw WPL-WPW10068250
...
85
Brake-Ram WPL-A1502801
...
86
Ass`y. Retainer Bottom Plate WPL-B1605501
...
87
Nut-Pivot WPL-B1603702
...
88
Gear-84 Tooth WPL-C1700401
...
89
Screw Acme 1`` 5 Threads Per In WPL-A1501402
...
90
Sleeve-Bearing WPL-B1602702
...
91
Screw WPL-M0204231
...
92
Bushing-Screw Guide WPL-B1605402
...
95
Washer-Top Bearing WPL-A1501602
...
96
Nut-Hex WPL-M0280901
...
97
Screw WPL-M0210516
...
98
Bracket-Motor WPL-C1701301
