Amana ESBFC16D (BOM: P7493501W)

Model: ESBFC16D (BOM: P7493501W)

Save Part Not Listed?
product name

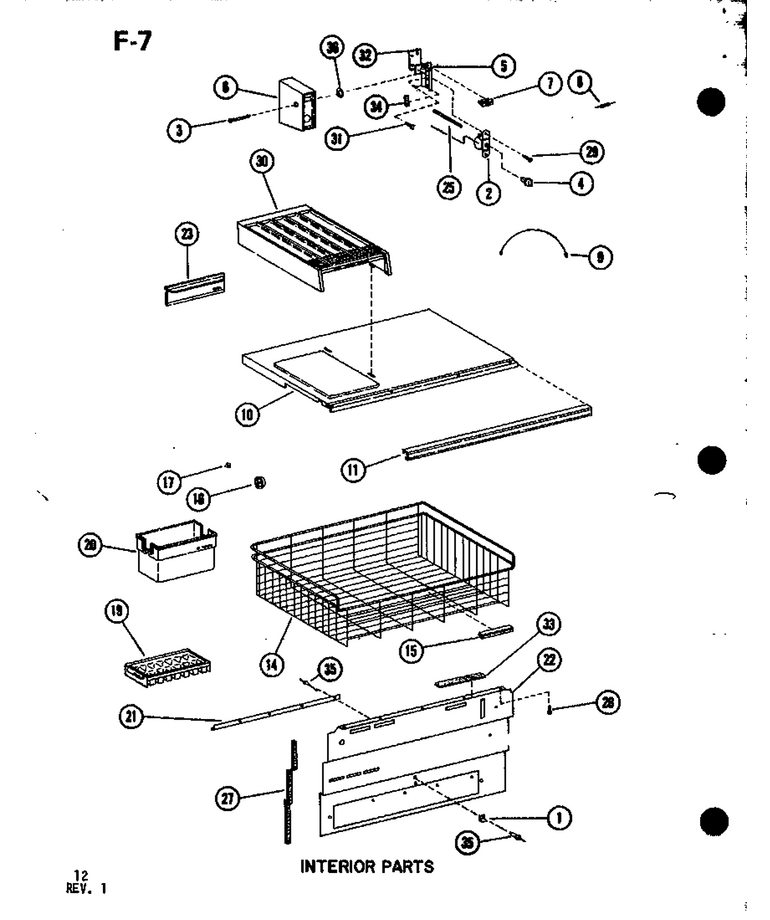

01 - Interior Parts

...
...
1
Support WPL-B5763301
...
2
Control WPL-C3615014
...
3
Screw WPL-M0230926
...
4
Knob WPL-D7009801
...
5
Bracket WPL-C8850501
...
6
Escutcheon WPL-D7278005
...
7
Switch WPL-M0341202
...
8
Diode WPL-M0305301
...
9
Wire-Jumper WPL-A3221101
...
10
Shelf Frz. Pnt. WPL-C8841904
...
11
Trim-Shelf WPL-C8832502
...
14
Basket-Fr WPL-D7297701
...
15
Handle Basket WPL-B0571806
...
16
Cap WPL-B5636301
...
17
Button- Pl WPL-WP67001130
...
19
Tray WPL-WP841180A
...
20
Ice Container WPL-D7442301
...
21
Ht Cond-Evap WPL-B5763201
...
22
Cover-Evap WPL-D7382501
...
23
Door-Fast Freeze WPL-C8847603
...
25
Cover-Cap Tube WPL-B5636608
...
27
Gasket (per Foot) WPL-A3030313
...
28
Screw (3) WPL-67006425
...
29
Screw WPL-WP90767
...
30
Net Tunnel, Ice Tray WPL-D7193001
...
31
Rivet A WPL-M0010202
...
32
Barrier-Foil WPL-B5768901
...
33
Gasket (inch) WPL-A3030301
...
34
Gasket-Per Ft WPL-A30303-35
...
35
Rivet WPL-WP210720
...
36
Washer WPL-M0270519

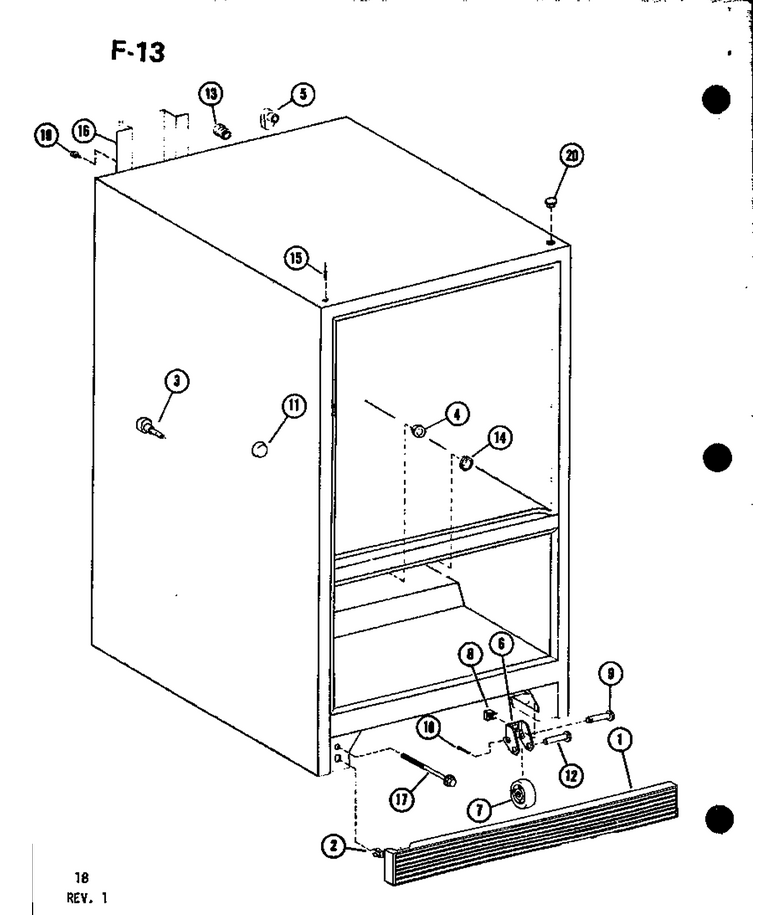

03 - Page 3

...
...
1
Evaporator WPL-D7321801
...
2
Gasket-Evap WPL-B5692303
...
3
Terminal Board WPL-B5762302
...
4
Thermostat WPL-C8770402
...
5
Heater-Evap WPL-D7295601
...
6
Clamp-Heat WPL-B5763101
...
7
Clip WPL-M0110301
...
8
Air Duct WPL-B5762501
...
9
Gasket-Per Ft WPL-M0900204
...
10
Gasket, Sealing, Divider Block WPL-B5757701
...
11
Insulation WPL-D7327102
...
12
Bottom-Ref WPL-D7296001
...
13
Wiring Harness WPL-D7493201
...
14
Clamp-Wiring WPL-A3195601
...
15
Center Mull.-Pnt WPL-C8807105
...
16
Breaker Mullion WPL-D7296902
...
17
Barrier-Mullion WPL-B5770801
...
18
Switch WPL-C3680306
...
19
Center Heater Kit WPL-C8777701
...
20
Gasket-Mullion WPL-B5763701
...
21
Clip, Waterline WPL-12454802
...
22
Eyelet K WPL-A0381401
...
23
Bracket WPL-C3681601
...
24
Motor WPL-D7241406
...
25
Fan Blade WPL-B5739301
...
26
Drip Tray WPL-D7296801
...
27
Gasket WPL-B5764901
...
28
Drain Screen WPL-A3113702
...
29
Orifice Plate WPL-D7296701
...
30
Top-Fr WPL-D7296301
...
31
Heat Ex WPL-D7324802
...
32
Hot Gas Loop WPL-D7374201
...
33
Light Bulb WPL-8009
...
34
Socket-Light WPL-D7714407
...
35
Housing-Light WPL-C8758501
...
37
Screw (3) WPL-67006425
...
38
Clip, Ground WPL-B5733302
...
39
Gasket, Sealing WPL-B5757804
...
40
Drain Tube WPL-B5758502
...
41
Plug Button WPL-B5766401
...
42
Screw WPL-M0212932
...
43
Screw WPL-M0233106
...
44
Screw WPL-WP489464
...
45
Screw WPL-WP3400094
...
46
Clamp WPL-B5794201
...
47
Screw WPL-M0210916
...
48
Cover-Evap Block WPL-B5771301
...
49
Gasket (inch) WPL-A3030301
...
50
Lock, Purse WPL-74007369
...
51
Switch WPL-W11384469
...
52
Kit, Screw WPL-R9800670
...
53
Clamp, Control Bulb WPL-B5754001

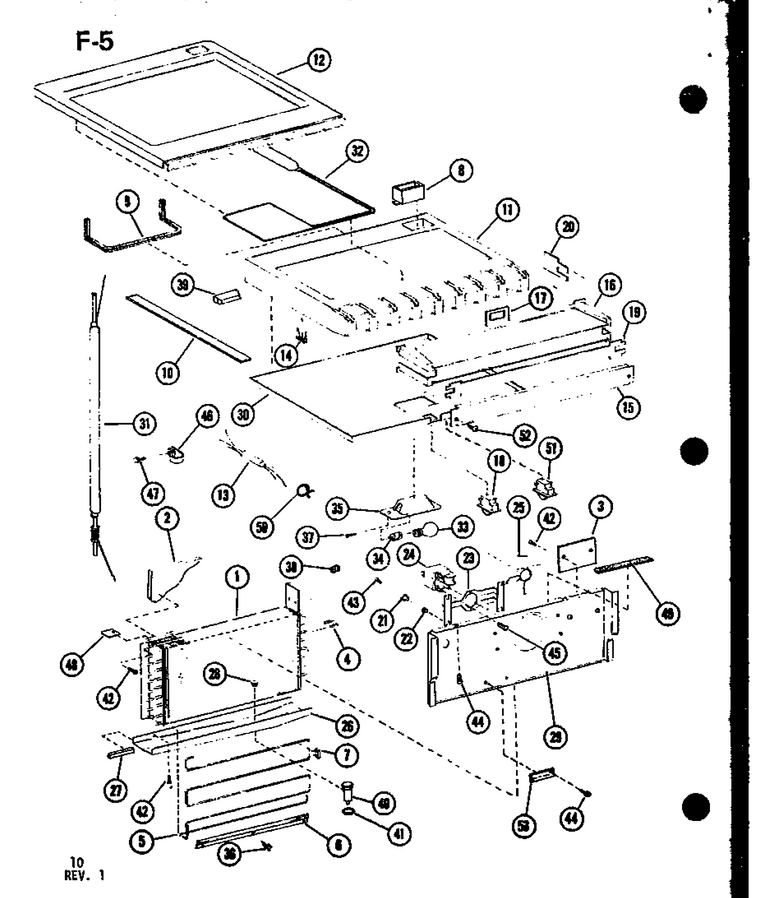

06 - Page 7

...
...
1
Grille Toe WPL-D7263303
...
2
Clip WPL-WPM0117303
...
3
Fill Tube WPL-R0182123
...
4
Grommet-Heat Ex WPL-A3091303
...
5
Tunnel-Heat Ex WPL-B5749501
...
6
Assy, Roller Bracket WPL-12452602Q
...
7
Roller WPL-M0520102
...
8
Nut, Speed WPL-M0286708
...
9
Pin K WPL-M1200202
...
10
Cotter Pin K WPL-M1200004
...
11
Cap Fill Tube WPL-B5631801
...
12
Rivet WPL-M1205302
...
13
Retainer-Tunnel WPL-A3187802
...
14
Air Tunnel WPL-A3187701
...
15
Pop Rivet, Coppertone WPL-C8839602
...
16
Cover-Hx A WPL-C8807003
...
17
Screw, Mach WPL-M0206313
...
19
Screw WPL-WP489464

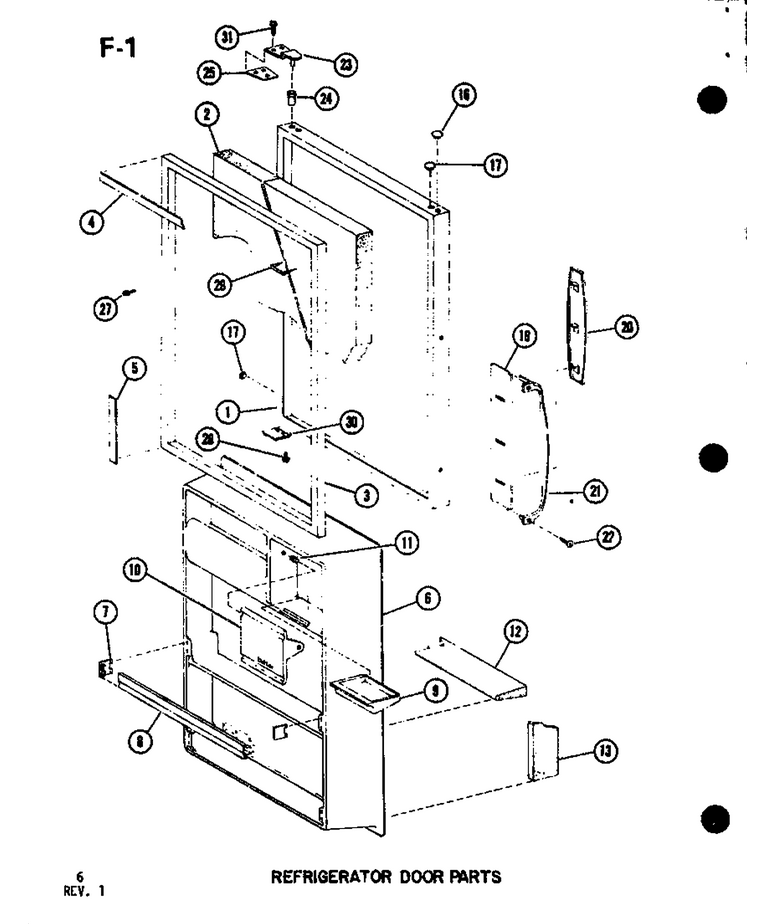

07 - Ref Door Parts

...
...
1
Door Ref-L-T-Esbfc16c WPL-C8806820
...
2
Foam Slab-Fr Door WPL-D7304601
...
3
Gasket WPL-D3928223
...
4
Retainer-Gasket WPL-D3928118
...
5
Retainer-Gasket WPL-D3928119
...
6
Inner Dr Panel WPL-D7296502
...
7
Support-Retainer Lh WPL-C8774404
...
8
Retainer WPL-D7415710
...
9
Buttertray WPL-67004412A
...
10
Butter Door WPL-D7417701
...
11
Pivot WPL-A3084701
...
12
Insulation WPL-B5629037
...
13
Insulation Ft. K WPL-B0523563
...
16
Plug WPL-M0310606
...
17
Plug Button (almond) WPL-M0310730
...
19
Pad, Handle WPL-D7415002
...
20
Nameplate, Handle WPL-B8301602
...
21
Handle WPL-D7159501
...
22
Screw WPL-M0203458
...
23
Hinge WPL-B5744301
...
24
Bushing, Hinge Pin WPL-C3652901
...
25
Shim-Top Hinge K WPL-A3270302
...
27
Screw WPL-WP98165
...
28
Machine Screw WPL-M0205631
...
29
Clamp-Wiring WPL-A3195601
...
30
Stop Door WPL-A3139801
...
31
Kit, Screw WPL-R9800670

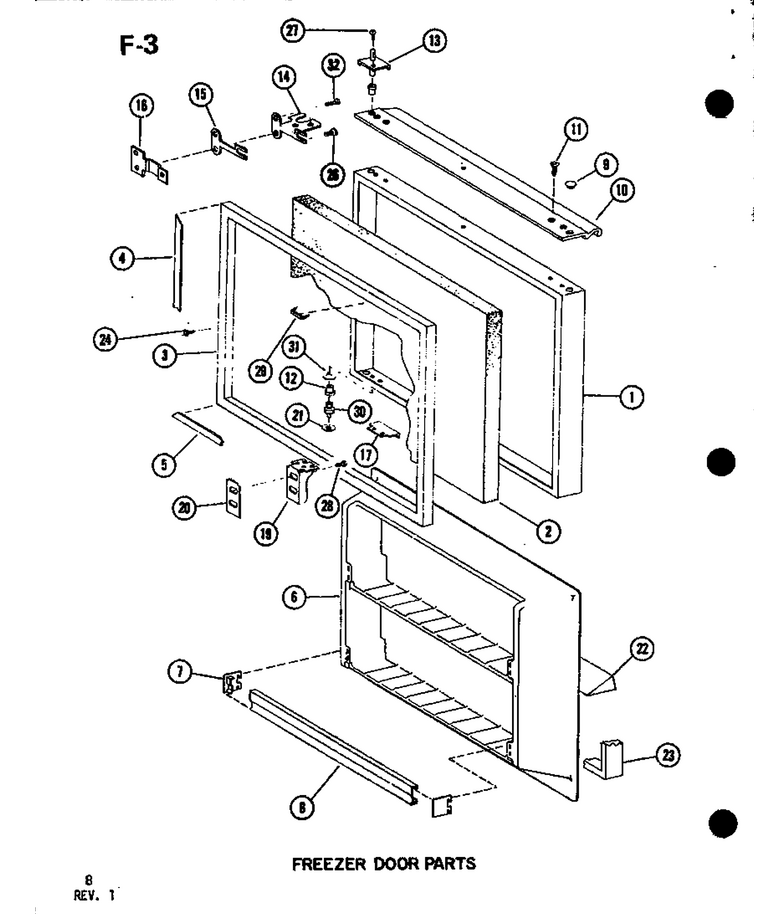

02 - Page 2

...
...
1
Door Fr-W-T-Esbfc16d WPL-C8828101
...
2
Foam Slab-Fr Door WPL-D7304501
...
3
Gasket WPL-D3928224
...
4
Retainer-Gasket WPL-D3928120
...
5
Retainer-Gasket WPL-D3928118
...
6
Inner Dr Panel WPL-D7296602
...
7
Support-Retainer Rh WPL-C8774403
...
8
Retainer-Pkg WPL-D7415712
...
9
Plug WPL-M0310610
...
10
Handle WPL-C8771002
...
11
Machine Screw WPL-M0205631
...
12
Bushing, Hinge Pin WPL-C3652901
...
13
Center Hinge Assy WPL-B5750901
...
14
Center Hinge Assy WPL-C8800201
...
15
Shim K WPL-A3143501
...
16
Kit- Tap P WPL-R0194684
...
17
Stop Door WPL-A3197801
...
19
Bracket Lower Hinge WPL-10163605
...
20
Shim WPL-B5744802
...
21
Washer Hinge K WPL-B5779601
...
22
Insulation WPL-B5629037
...
23
Insulation Ft. K WPL-B0523563
...
24
Screw WPL-WP98165
...
26
Kit, Screw WPL-R9800670
...
27
Screw K WPL-M0205441
...
28
Screw WPL-WP67006715
...
29
Clamp-Wiring WPL-A3195601
...
30
Pin, Hinge K WPL-C8814901
...
31
Washer K WPL-M0274014

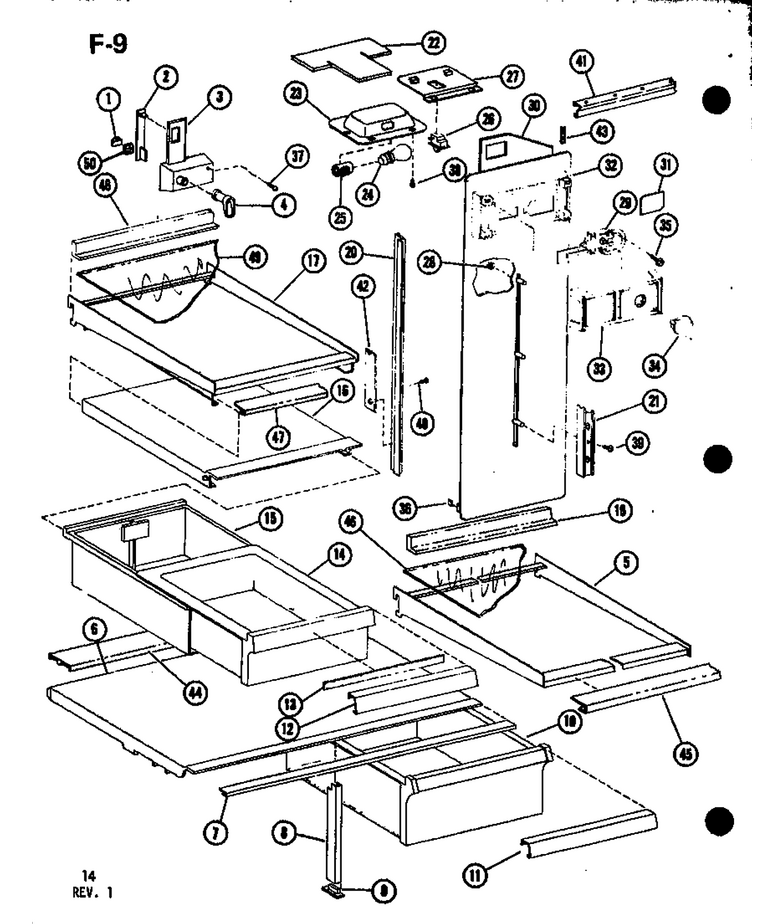

04 - Page 5

...
...
1
Clip WPL-M0117701
...
2
Slide-Control WPL-B5622804
...
3
Escutcheon-Mt Kpr WPL-D7273103
...
4
Grommet-Mt Kpr WPL-C8743003
...
5
Frame WPL-D7421001
...
6
Crisper Top WPL-D7261308
...
7
Trim-Crisper Top WPL-B0570905
...
8
Post-Crisper Top WPL-B0571007
...
9
Support WPL-B0571201
...
10
Pan, Crisper WPL-D7425601
...
11
Trim-Cr Handle WPL-C8831703
...
12
Trim-Handle A WPL-C8831704
...
13
Gasket (per Foot) WPL-A3030313
...
14
Pan, Meat Keeper WPL-D7425301
...
15
Sleeve, Meat Keeper WPL-D7343702
...
16
Top-Mt Kpr WPL-D7343603
...
17
Frame-Cant Mkr WPL-D7420801
...
19
Trim-Rear WPL-D7415104
...
20
Ladder-Side WPL-C8768702
...
21
Ladder-Center WPL-C8768801
...
22
Insulation WPL-C8778301
...
23
Light Hsg WPL-D7340301
...
24
Light Bulb WPL-8009
...
25
Socket Lamp WPL-C3642301
...
26
Switch WPL-W11384469
...
27
Cover WPL-D7297601
...
28
Clip-Push On WPL-M0118902
...
29
Control Damper WPL-C8761104
...
30
Insulation-Duct WPL-D7311102
...
31
Insulation WPL-B5756502
...
32
Painted Duct Cover WPL-D7438302
...
33
Deflector WPL-D7417601
...
34
Knob WPL-D7009802
...
35
Screw WPL-WP489349
...
36
Clip WPL-M0117701
...
37
Screw WPL-M0230926
...
38
Screw (3) WPL-67006425
...
39
Screw WPL-M0230926
...
40
Screw WPL-M0231117
...
41
Shield Light WPL-D7288102
...
42
Plate WPL-C8792901
...
43
Gasket-Per Ft WPL-A3030305
...
44
Extension WPL-D7341301
...
45
Trim-Front Shelf WPL-C8835405
...
46
Glass Shelf WPL-D7421206
...
47
Trim-Front Shelf WPL-C8835404
...
48
Trim-Back Cntlvr WPL-D7415105
...
49
Glass Shelf WPL-D7421205
...
50
Gasket-Mtkpr WPL-B5770901

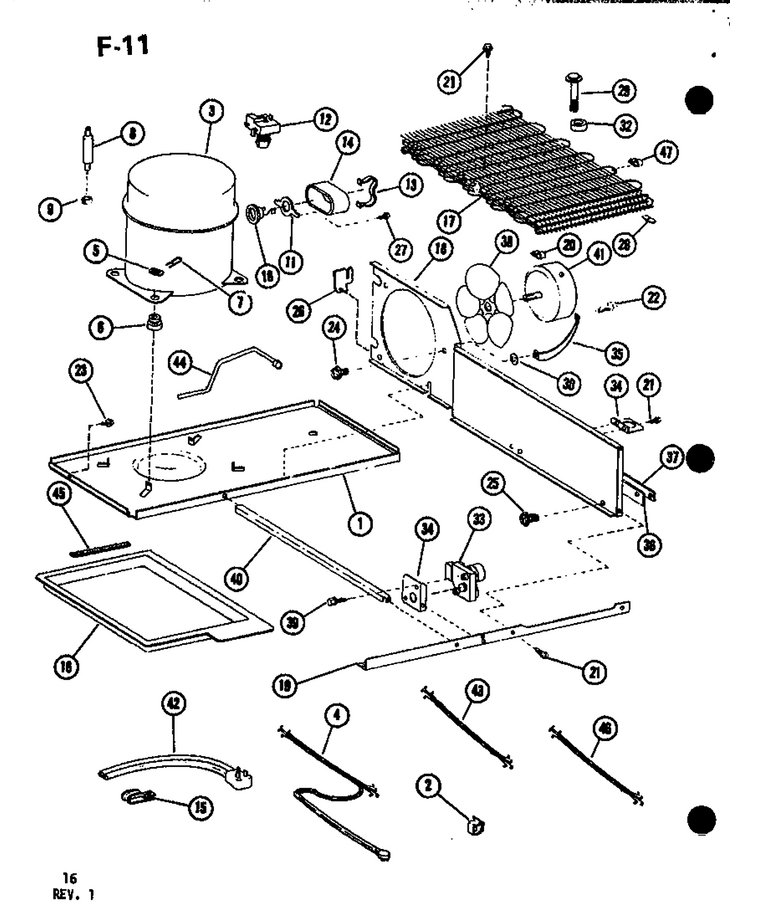

05 - Page 6

...
...
1
Support-Comp WPL-D7336901
...
2
Clip-Cable WPL-M0110505
...
3
Compressor WPL-W10439652
...
4
Wiring Harness WPL-D7388801
...
5
Washer, Nylon K WPL-M0590101
...
6
Grommet K WPL-A3026101
...
7
Clip K WPL-A3140801
...
8
Drier WPL-WPB2150504
...
9
Clamp,drier WPL-M0104001
...
10
Overload WPL-C8816901
...
11
Spring K WPL-A3043601
...
12
Relay WPL-C3553401
...
13
Strap K WPL-A3041801
...
14
Cover K WPL-B0559501
...
15
Clamp WPL-M0103901
...
16
Pan, Drain WPL-D7001001
...
17
Condenser WPL-C8860805
...
18
Fan Shroud WPL-D7334704
...
19
Front Rail WPL-D7335101
...
20
Clip-Cond WPL-A3054502
...
21
Screw WPL-WP90767
...
22
Screw WPL-WPM0223816
...
24
Screw Shoulder WPL-M0238833
...
25
Screw WPL-WP489399
...
27
Screw WPL-M0253916
...
28
Nut A WPL-M0286003
...
29
Screw WPL-M0257092
...
30
Grommet K WPL-M0500107
...
32
Spacer WPL-A3013906
...
33
Timer-Defrost WPL-D7004111
...
34
Brkt-Def Timer WPL-C8791502
...
35
Bracket, Cond Motor WPL-B0598701
...
36
Seal-Fan Shroud Q WPL-B8314102
...
37
Retainer-Seal WPL-B0599702
...
38
Fan Blade K WPL-B5772301
...
39
Screw WPL-M0213815
...
40
Side Rail WPL-C8792001
...
41
Motor-Cond WPL-833697
...
42
Power Cord WPL-R0157154
...
43
Wiring Harness WPL-D7334201
...
44
Drain Tube WPL-D7329501
...
45
Pad A WPL-B5691701
...
46
Wiring Harness WPL-D7300301
...
47
Clamp WPL-M0102301
