Amana ES92ML (BOM: P6881801R)

Model: ES92ML (BOM: P6881801R)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

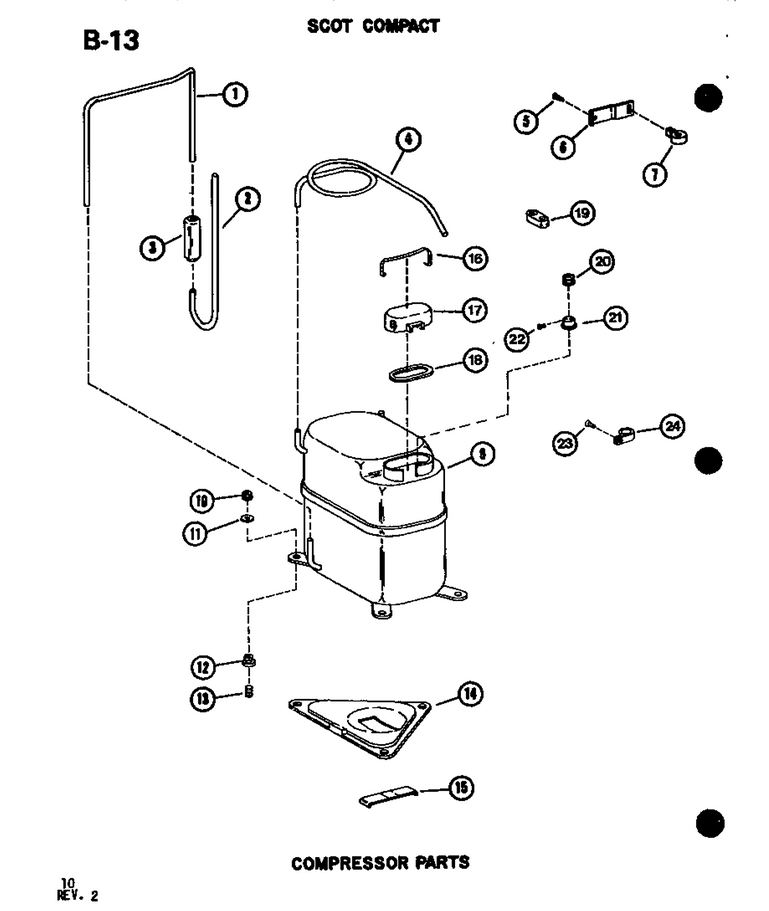

02 - Compressor Parts

...
...
1
Tube, Discharge WPL-B1345401
...
2
Tube, Discharge WPL-B1346701
...
3
Muffler WPL-C5885804
...
4
Tube, Suction WPL-D6856401
...
5
Screw WPL-WP90767
...
6
Clamp WPL-A3310502
...
7
Bumper WPL-A3311002
...
9
Compressor Ak8494e WPL-D5557408H
...
10
Nut WPL-M0283610
...
11
Washer,fibre WPL-M0274008
...
12
Grommet WPL-B4793601
...
13
Sleeve WPL-A3339901
...
14
Mtg Plate-Comp WPL-C5940301
...
15
Spring K WPL-A4635601
...
16
Strap WPL-A4635901
...
17
Cover,terminal WPL-B5187501
...
18
Gasket,cover WPL-A4673301
...
19
Spacer WPL-A0372901
...
20
Spring,overload WPL-A4674801
...
21
Overload WPL-D4976693
...
22
Screw WPL-M0206116
...
23
Screw WPL-WP90767
...
24
Clamp WPL-M0102304

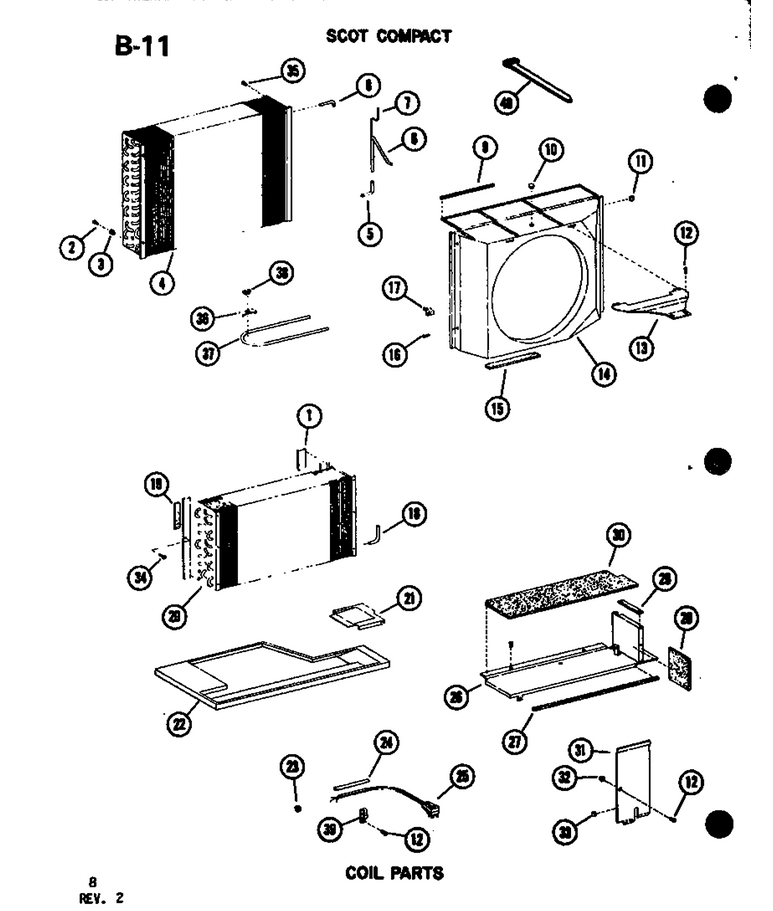

01 - Coil Parts

...
...
1
Gasket (per Foot) WPL-A3030313
...
2
Screw WPL-M0216531
...
3
Grommet WPL-A3309801
...
4
Assembly, Condenser Coil WPL-D5507702
...
5
Elbow WPL-A3311901
...
6
Strainer WPL-B4143101
...
7
Capillary WPL-D6856502
...
8
Elbow WPL-A3320801
...
9
Gasket WPL-A3030302
...
10
Plug Button K WPL-M0570801
...
11
Clip WPL-M0113603
...
12
Screw WPL-WP90767
...
13
Tie Brace Ptd WPL-C5922704
...
14
Shroud-Cond WPL-D5504102
...
15
Gasket (inch) WPL-A3030301
...
16
Screw WPL-WP98165
...
17
Fastener WPL-B1145301
...
18
Elbow WPL-A4083917
...
19
Gasket WPL-C5952402
...
20
Evaporator Assembly WPL-D9983220
...
21
Shield-Filler Block WPL-B1147101
...
22
Filler Block WPL-D5502701
...
23
Grommet WPL-M0500101
...
24
Sleeve WPL-M0321016
...
25
Cord, Power WPL-Y20057501
...
26
Cover Evap. WPL-C5936105
...
27
Gasket (1=1ft.) WPL-10839713
...
28
Insulation WPL-A3324601
...
29
Gasket WPL-A3030302
...
30
Insulation WPL-C5939602
...
31
Bracket-Ext WPL-C5939901
...
32
Grommet WPL-A3315701
...
33
Clip K WPL-M0118401
...
34
Screw WPL-WP489464
...
35
Screw WPL-M0211530
...
36
Clamp WPL-A4685101
...
37
Tube-Subcooler WPL-C5938602
...
38
Fastener WPL-M0285701
...
39
Clamp WPL-M0104501
...
40
Tie-Wire WPL-WPW10339879

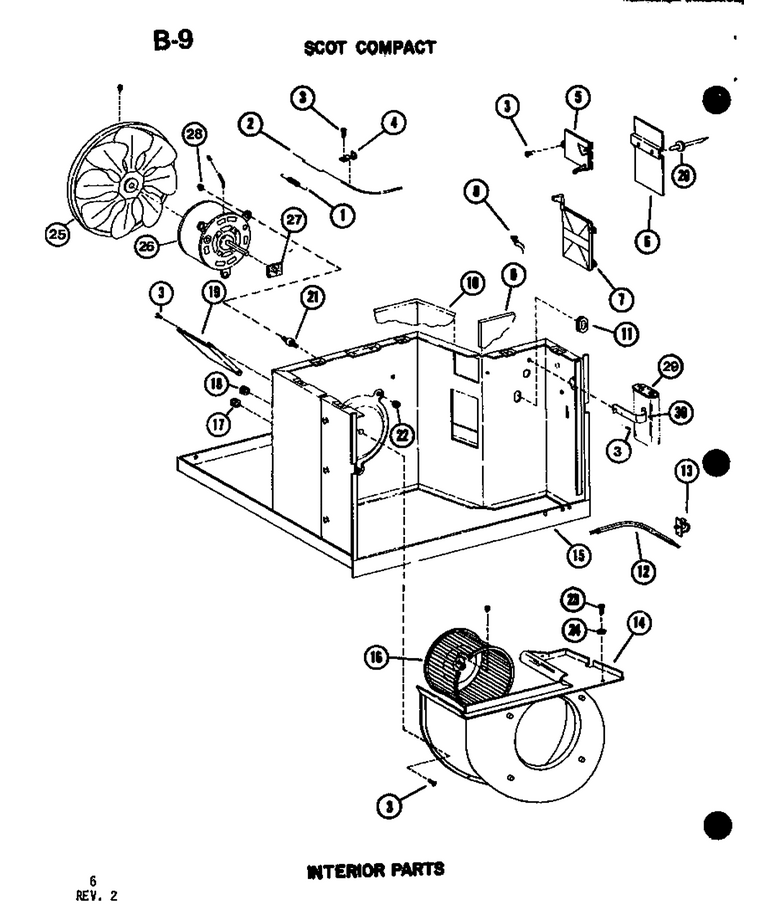

04 - Interior Parts

...
...
1
Spring WPL-A3314401
...
2
Cable-Damper Door WPL-C5941101
...
3
Screw WPL-WP90767
...
4
Clamp WPL-A3314501
...
5
Door-Damper WPL-C5924701
...
6
Barrier-Door WPL-B1164201
...
7
Door-Fresh Air WPL-C5931201
...
9
Insulation-Part Pnl WPL-D5507403
...
10
Insulation-Part Pnl WPL-D5507402
...
11
Grommet WPL-A3310201
...
12
Wiring Harness WPL-B1151604
...
13
Clip, Wire WPL-M0585101
...
14
Scroll-Evap WPL-D5502601
...
15
Base Pan WPL-D5506414
...
16
Blower Wheel WPL-C5946801
...
17
Plug Button WPL-A3080003
...
18
Grommet WPL-B5100402
...
19
Baffle WPL-B1150701
...
20
Rivet-Pop WPL-59002054
...
21
Grommet WPL-M0500601
...
22
Nut WPL-WP487939
...
23
Screw WPL-WP90767
...
24
Washer WPL-M0270504
...
25
Fan Blade WPL-C5942501
...
26
Mtr, Fan, 115 V., 60 Hz, Cw Ro WPL-C5938701Q
...
27
Gasket WPL-B5107608
...
28
Nut WPL-WP487939
...
29
Capacitor-K WPL-D6879706
...
30
Strap-Capacitor WPL-A4634204

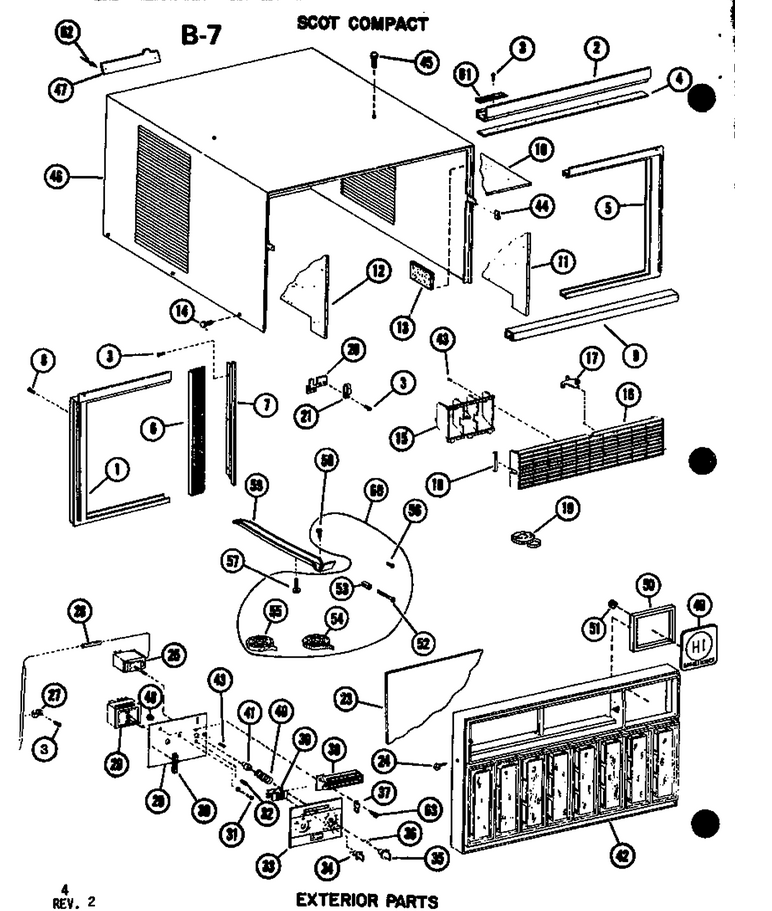

03 - Exterior Parts

...
...
NI
Frame Assy WPL-C5905809
...
1
Sliding Frame WPL-D5481109
...
2
Top Rail-Painted WPL-C5903412
...
3
Screw WPL-WP90767
...
4
Gasket (inch) WPL-A3030301
...
5
Sliding Frame WPL-D5481110
...
6
Curtain, Sliding Frame, 1 Each WPL-D5481206
...
7
Bracket, Strip Curtain, R.h. & WPL-B1124806
...
8
Screw WPL-M1250031
...
9
Bottom Rail-Painted WPL-B1124707
...
10
Insulation WPL-C5938301
...
11
Insulation WPL-C5942801
...
12
Insulation WPL-C5942701
...
13
Insulation WPL-A3316201
...
14
Screw WPL-WP489464
...
15
Air Deflector WPL-C5934401
...
16
Louver Box WPL-D5502801
...
17
Slide WPL-B5183001
...
18
Spring Tension WPL-M0117501
...
19
Retainer WPL-A4542805
...
20
Bracket-Cord Clamp WPL-B1151301
...
21
Clamp WPL-M0104501
...
23
Filter, Air Inlet WPL-B1151101
...
24
Thumb Screw K WPL-M0234916
...
25
Thermostat WPL-B4795203
...
26
Sleeve WPL-WPM0321014
...
27
Clamp WPL-M0102304
...
28
Switch Rotary WPL-B1328302
...
29
Control Bracket WPL-C6228201
...
30
Gasket (per Foot) WPL-A3030303
...
31
Sems Fastner WPL-M0255015
...
32
Screw WPL-M0232012
...
33
Escutcheon WPL-C5938008
...
34
Knob WPL-B1151001
...
35
Knob K WPL-D7009805
...
36
Clip,retainer WPL-M0115902
...
37
Clamp WPL-A3314501
...
38
Bracket WPL-C5940901
...
39
Slide-Damper Door WPL-C5940801
...
40
Spring WPL-A4663604
...
41
Bushing WPL-A3073601
...
42
Front Assy WPL-D5507113
...
43
Screw WPL-M0229004
...
44
Speed Nut WPL-M0288412
...
45
Screw WPL-M0219031
...
46
Outer Case Pntd WPL-D5509005
...
47
Nameplate WPL-B4115501
...
48
Nut WPL-WP488130
...
49
Medallion-Hi Eff WPL-B1237601
...
50
Bezel Medallian WPL-B1237703
...
51
Speed Nut A- K WPL-M0287901
...
52
Screw WPL-M0212062
...
53
Spacer K WPL-A4065501
...
54
Gasket WPL-A3030302
...
55
Gasket WPL-10839702
...
56
Screw WPL-M0213032
...
57
Screw WPL-M0200001
...
58
Screw WPL-M0211020
...
59
Support, Safety WPL-11075307
...
60
Accessory Assy WPL-A3306902
...
61
Gasket (per Foot) WPL-10839706
...
62
Pop Rivet WPL-A4539603
...
63
Screw WPL-WP90767
