Amana ES624-3R (BOM: P6711901R)

Model: ES624-3R (BOM: P6711901R)

Save Part Not Listed?
product name

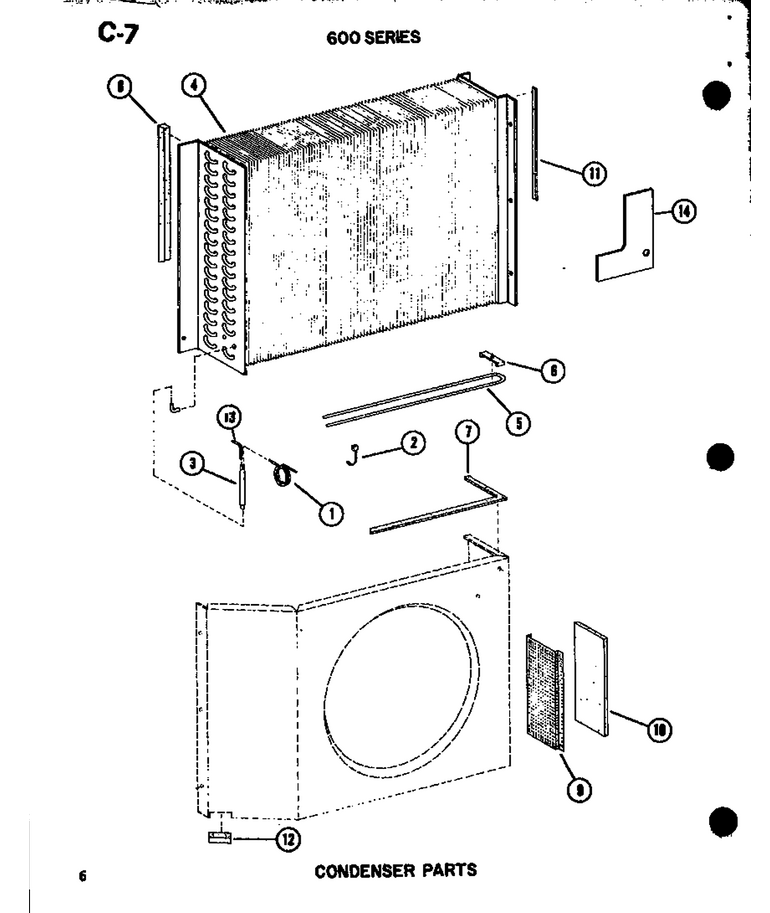

03 - Condenser Parts

...
...
1
Capillary Preform WPL-C6164801
...
2
Tie-Wire WPL-WPW10339879
...
3
Strainer WPL-B5159307
...
4
Condenser Assy WPL-D5533402
...
7
Gasket,per Ft WPL-A30303-30
...
8
Gasket WPL-10839712
...
9
Screen WPL-B5171601
...
10
Filter-Air WPL-WP876775
...
11
Gasket (inch) WPL-A3030301
...
12
Seal Strip WPL-A4017201
...
13
X$x Process Tube WPL-A4643701
...
14
Baffle WPL-A4666101

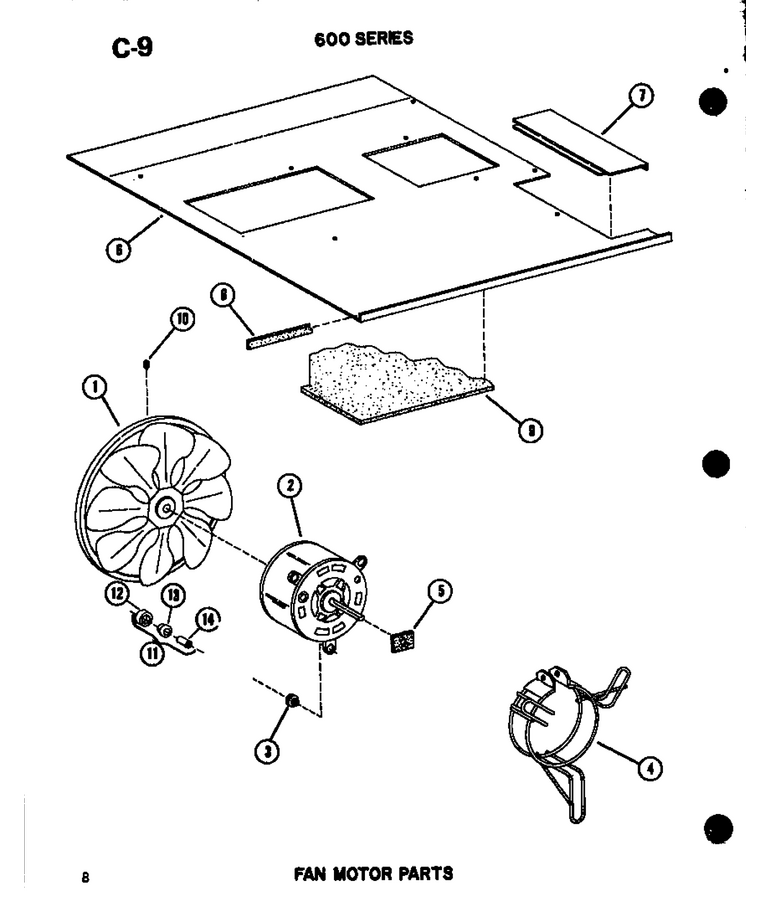

06 - Fan Motor Parts

...
...
1
Fan Blade WPL-C5970801
...
2
Motor WPL-C5971006Q
...
3
Grommet WPL-M0500601
...
5
Gasket WPL-B5107608
...
6
Top-Cover WPL-D5434603
...
7
Panel Access Pntd WPL-B5185102
...
8
Gasket WPL-B1106205
...
9
Insulation WPL-B5170301
...
10
Set Screw WPL-M0210102

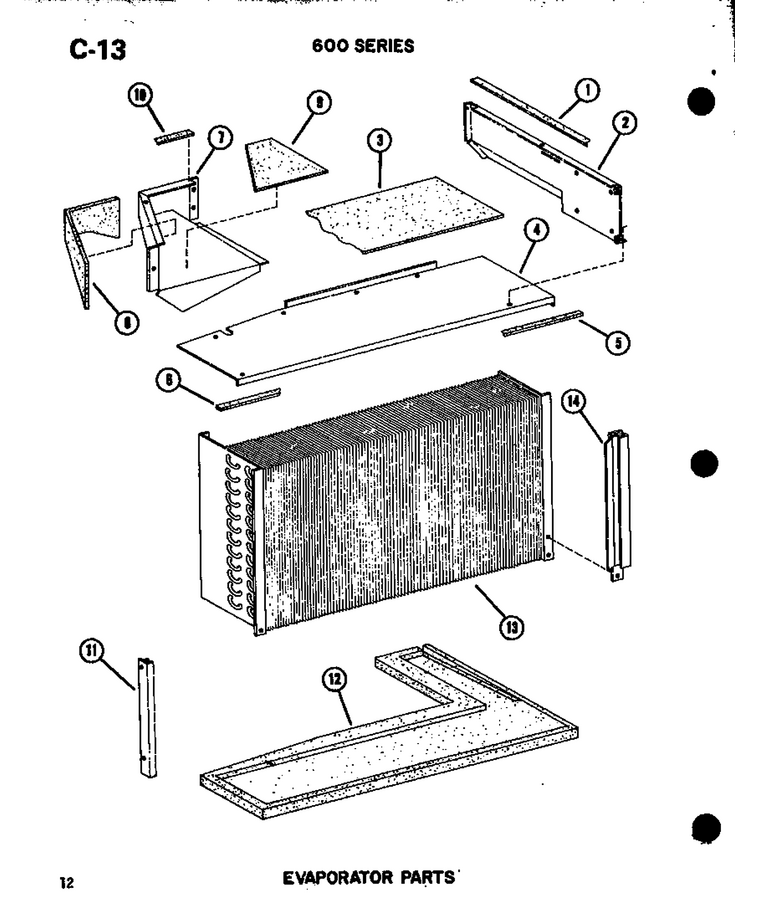

04 - Evap Parts

...
...
1
Gasket,per Ft WPL-A30303-30
...
2
Wldmt,control Brkt WPL-B5169901
...
3
Insulation WPL-B5173001
...
4
Cover Evap WPL-D5421201
...
5
Gasket WPL-A3030302
...
6
Gasket,per Ft WPL-A30303-30
...
7
Panel Ext Wld WPL-B5174402
...
8
Insulation WPL-B5174702
...
9
Insulation WPL-B5174802
...
10
Gasket (per Foot) WPL-A3030303
...
11
Retainer WPL-B5131901
...
12
Filler Block, Evap WPL-D5422301
...
13
Evaporator Assy WPL-D5574403
...
14
Retainer WPL-B5178405

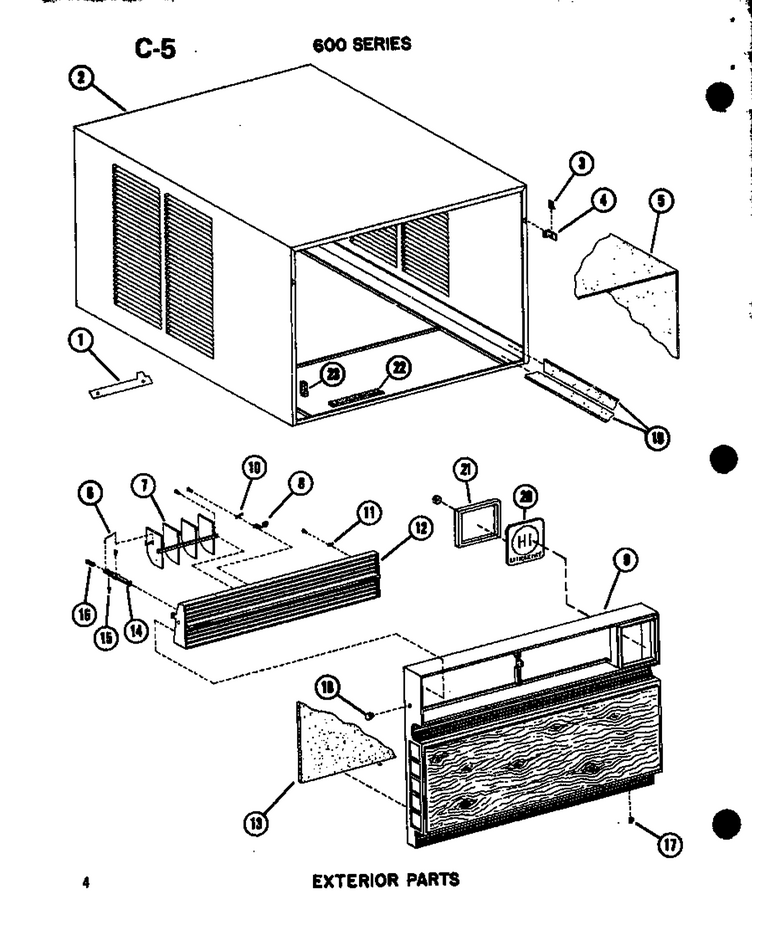

05 - Exterior Parts

...
...
1
Nameplate WPL-B4115501
...
2
Outer Case Weldment WPL-D5421011
...
3
Speed Nut WPL-M0288413
...
4
Strike, Cabinet Front Attachin WPL-B1150501
...
5
Insulation WPL-A4654304
...
6
Linkage Bar WPL-A4623801
...
7
Louver WPL-C5832001
...
8
Pin WPL-B5167101
...
9
Cabinet Front Assembly, Comple WPL-D5429233
...
10
Friction Clip WPL-A4664503
...
11
Retainer, Pin WPL-A4672801
...
12
Louver Horiz WPL-D5434409
...
13
Filter WPL-D5427302
...
14
Lever K WPL-B1185001
...
15
Pin K WPL-A3339201
...
16
Spring K WPL-A4624103
...
17
Hook WPL-A4577804
...
18
Thumb Screw K WPL-M0234916
...
19
Gasket, Polyethylene, Outer Ca WPL-A4591107
...
20
Medallion-Hi Eff WPL-B1237601
...
21
Bezel-Medallion WPL-B1237702
...
22
Gasket WPL-A4591122
...
23
Gasket WPL-A4591123

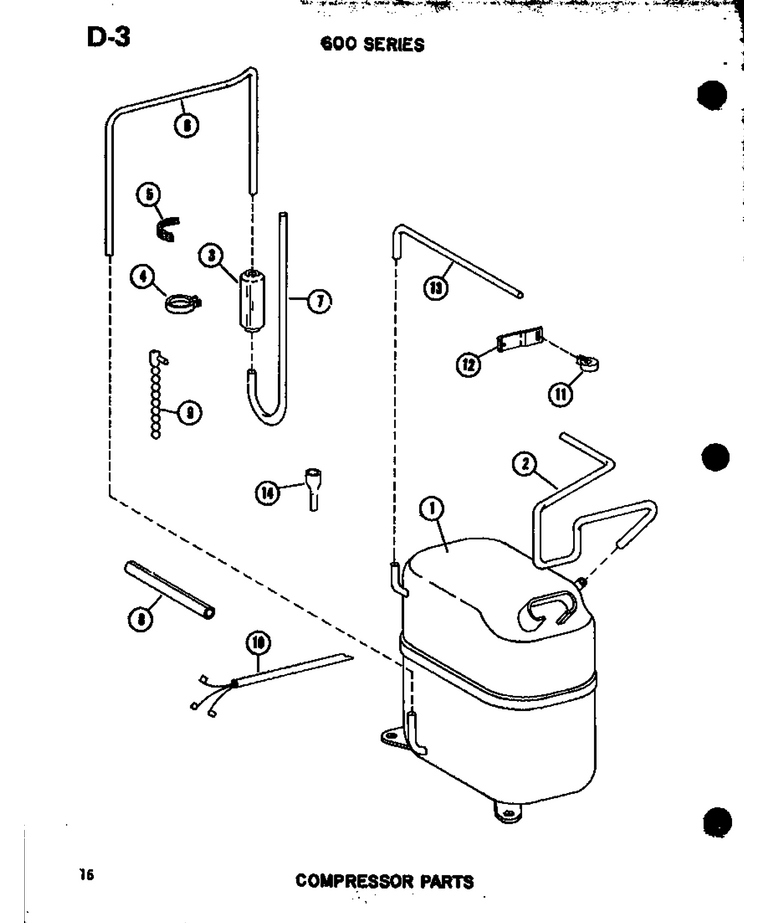

02 - Compressor Parts

...
...
1
Nut WPL-M0283610
...
2
Washer,fibre WPL-M0274008
...
3
Grommet WPL-A3314001
...
4
Spring, Compressor WPL-A3338901
...
5
Grommet WPL-A3314101
...
7
Bale Strap WPL-A4594001
...
8
Cover WPL-B5102801
...
9
Gasket WPL-A4594101

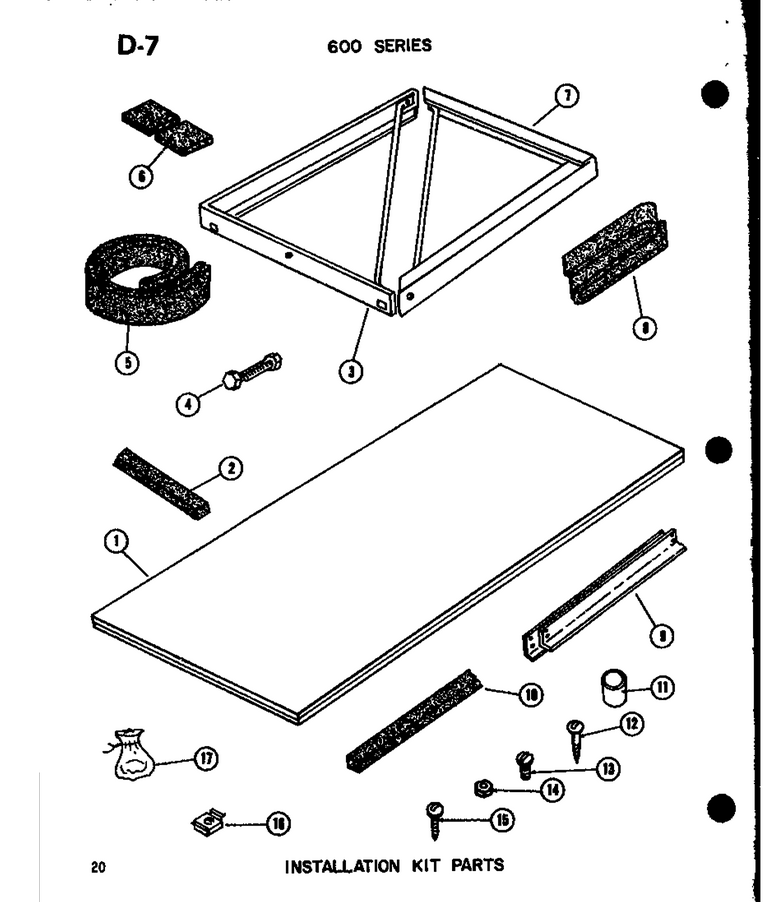

07 - Installation Kit Parts

...
...
1
Window Board WPL-A4607703
...
2
Gasket,cab Side WPL-B4764404
...
3
Angle Support And Rod Assembly WPL-C4829702
...
4
Screw Adjusting WPL-M0200003
...
5
Gasket WPL-10839702
...
7
Angle Support And Rod Assembly WPL-C4829701
...
8
Gasket,bottom Seal WPL-A4660501
...
9
Retainer Angle, Window Board WPL-B4150802
...
10
Gasket WPL-B4144502
...
11
Spacer K WPL-A4065501
...
12
Screw WPL-M0236004
...
13
Screw WPL-M0206557
...
14
Nut-Keps WPL-M0282019
...
15
Screw WPL-M0212062
...
16
Nut, Speed WPL-M0286708
...
17
Assembly, Screws, Nuts, Spacer WPL-A4662001

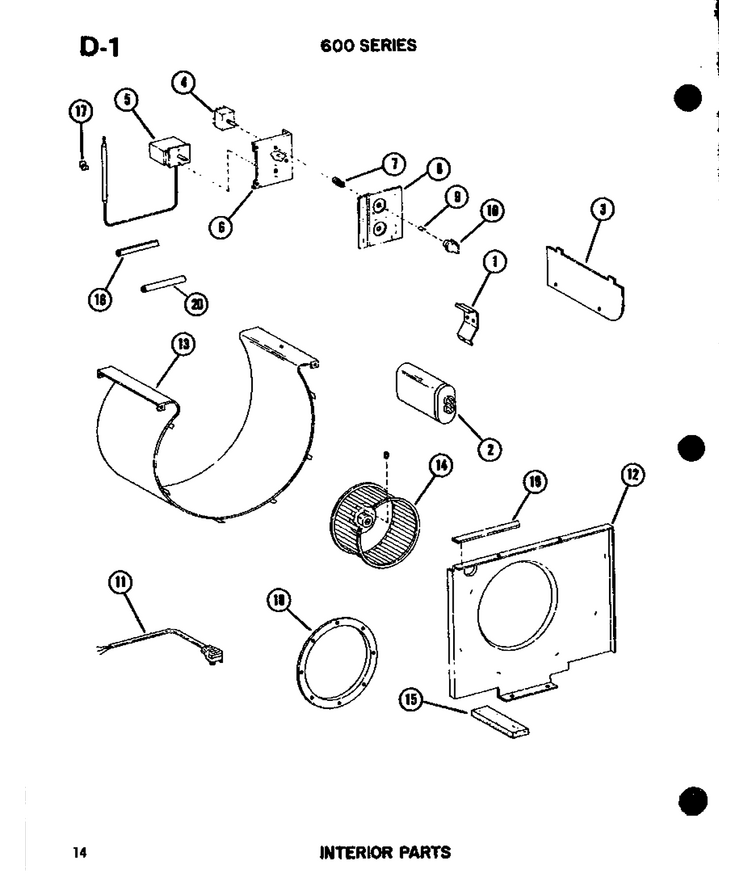

09 - Interior Parts

...
...
1
Capacitor Strap WPL-B1159702
...
2
Capacitor, Dual, 370 V., 35/5 WPL-D6711829
...
3
Panel, Control Side, Access WPL-B5170201
...
4
Switch, Rotary WPL-B5108802
...
5
Thermostat WPL-B5103801
...
6
Bracket Weld WPL-B5178201
...
7
Spring WPL-A4663601
...
8
Escutcheon WPL-B5172109
...
9
Clip,retainer WPL-M0115902
...
10
Knob WPL-D7009804
...
11
Cord, Appliance WPL-8215269
...
12
Inlet Panel WPL-D5421301
...
13
Scroll WPL-D5422201
...
14
Blower Wheel, Use D54236-2 For WPL-D5423601
...
15
Filler Block WPL-C5825501
...
17
Clamp WPL-M0103201
...
19
Gasket,per Ft WPL-A30303-30
...
20
Sleeve WPL-M0321016

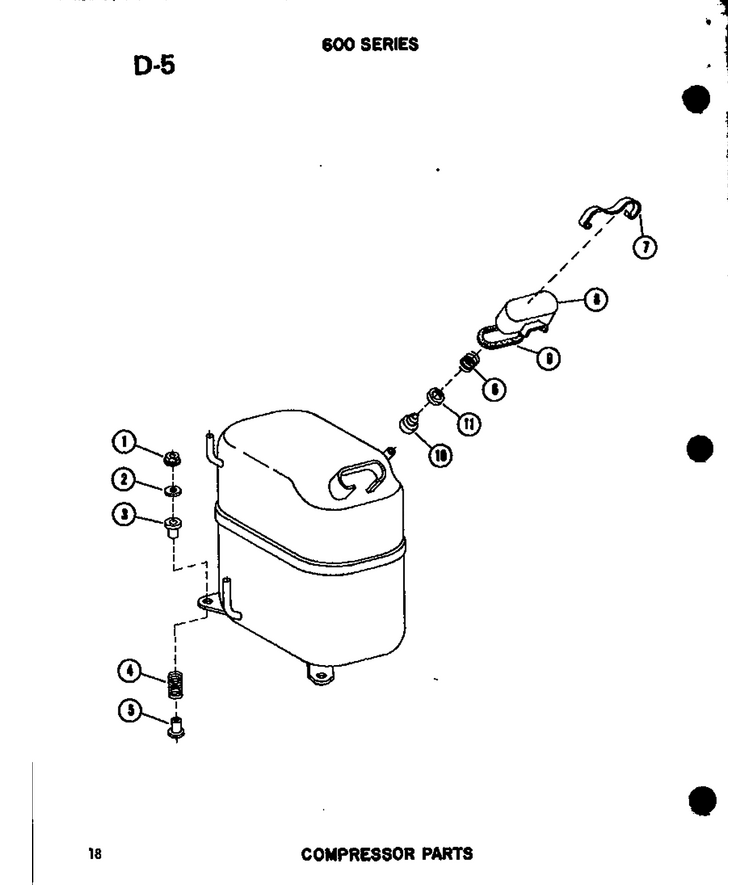

01 - Compressor Parts

...
...
1
Compressor Ah8529e WPL-D6713301
...
2
Suction Tube WPL-D6713501
...
3
Muffler WPL-C5885807
...
5
Gasket-5.875`` WPL-B1114701
...
6
Dis Tube-Top WPL-C6150101
...
7
Dis Tube-Bottom WPL-C6150201
...
9
Wire Tie WPL-M0321204
...
11
Wiring Harness-Comp WPL-C5990501
...
13
Bumper WPL-A3311002
...
14
Clamp WPL-A3310502

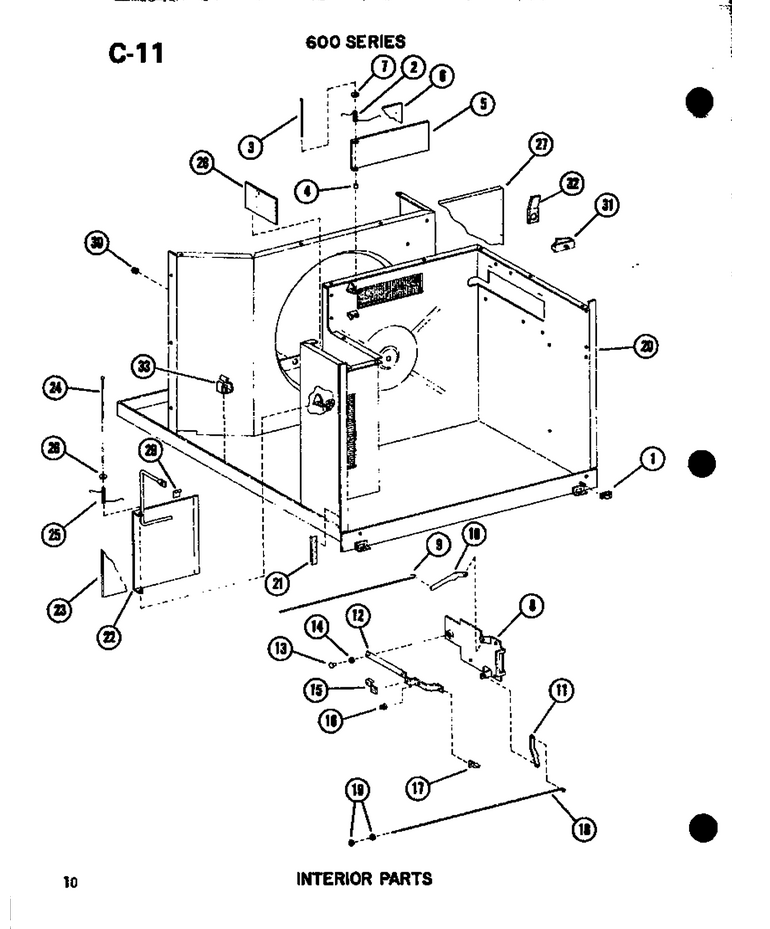

08 - Interior Parts

...
...
1
Clamp WPL-M0102101
...
2
Spring WPL-B5175301
...
3
Hinge Pin WPL-A4645902
...
4
Cap, Hinge Pin WPL-M0540101
...
5
Exhaust Door Weld WPL-B5175601
...
6
Gasket WPL-B5107612
...
7
Washer WPL-M0270519
...
8
Switch Pb A WPL-B5715401
...
9
Rod WPL-A4659701
...
10
Cam, Exhaust Air Rod WPL-A4659901
...
11
Cam, Fresh Air Rod WPL-A4659601
...
12
Cam Lever WPL-B5175202
...
13
Rivet WPL-M1205101
...
14
Washer-Spring WPL-M0273607
...
15
Actuator Cam WPL-A4673701
...
16
Grommet WPL-A3309801
...
17
Knob WPL-A4660301
...
18
Rod WPL-A4659801
...
19
Nut,acorn WPL-M0280114
...
20
Weldment, Base Pan WPL-D5422142
...
21
Gasket WPL-B1106206
...
22
Door Wldmt Pnt WPL-B5175501
...
23
Gasket WPL-B5107613
...
24
Hinge Pin WPL-A4645903
...
25
Spring WPL-B5175301
...
26
Washer WPL-M0270519
...
27
Insulation WPL-D5426604
...
28
Insulation WPL-A4658801
...
29
Bumper,door WPL-A4664701
...
30
Plug Button WPL-A3080003
...
31
Clip, Wiring Harness WPL-M0585001
...
32
Terminal WPL-M0320550
...
33
Clip K WPL-M0110501
