Amana ES218D3MT (BOM: P6753501R)

Model: ES218D3MT (BOM: P6753501R)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

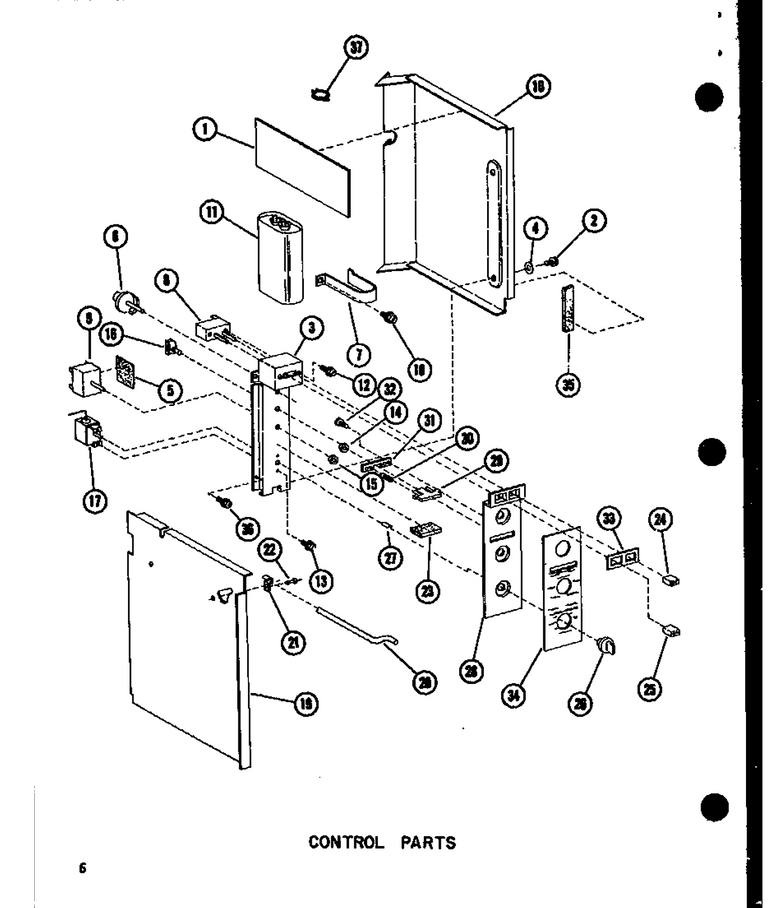

02 - Control Parts

...
...
1
Insulation-Plenum WPL-B1287401
...
2
Screw WPL-W10856125
...
3
Control Brkt WPL-D6758401
...
4
Lock Washer WPL-M0272803
...
5
Insulator WPL-A4662301
...
6
Actuator Assembly WPL-R0181107
...
7
Strap-Capacitor WPL-A4634204
...
8
Switch WPL-B5128502
...
9
Switch WPL-B1266001
...
10
Side Pnl R WPL-D6759201
...
11
Capacitor WPL-D6711863
...
12
Screw WPL-M0218116
...
13
Screw WPL-M0232012
...
14
Nut A WPL-M0281401
...
15
Palnut WPL-M0289601
...
16
Switch WPL-M0340101
...
17
Thermostat WPL-B4763504
...
18
Screw WPL-WP489399
...
19
Barrier Control WPL-D6755001
...
20
Control Rod WPL-B1286001
...
21
Clamp WPL-A3396601
...
22
Rivet-Pop WPL-59002054
...
23
Pad-Spring WPL-A3397101
...
24
Button-Off WPL-B5127303
...
25
Button-On WPL-B5127304
...
26
Knob WPL-D7009804
...
27
Clip,retainer WPL-M0115902
...
28
Escutcheon WPL-C5879701
...
29
Button WPL-B1106601
...
30
Spring WPL-M0775101
...
31
Spring-Retainer WPL-A4689601
...
32
Screw WPL-M0229004
...
33
Thin Plate WPL-A4690101
...
34
Thinplate WPL-C5881403
...
35
Gasket-Per Ft WPL-A3030332
...
36
Screw WPL-WP90767
...
37
Clip-Guide WPL-M0118701

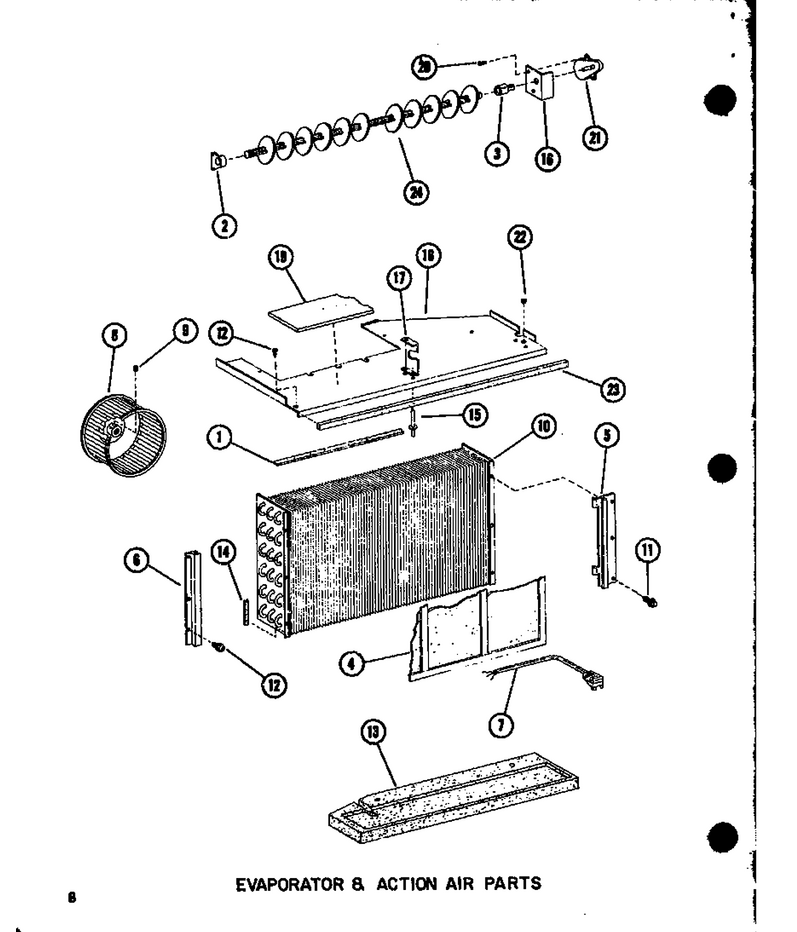

03 - Evap & Action Air Parts

...
...
1
Gasket-Per Ft WPL-A3030332
...
2
Snap Bushing WPL-A3381901
...
3
Extension WPL-A4653501
...
4
Filter WPL-D6758601
...
5
Retainer, Right Hand WPL-C6215501
...
6
Retainer, Left Hand WPL-B1287001
...
7
Cord, Power WPL-Y20057502
...
8
Blower Wheel WPL-D6762101
...
9
Set Screw WPL-M0210104
...
10
Evaporator Assembly WPL-D6761701
...
11
Screw WPL-WP90767
...
12
Screw WPL-WP489464
...
13
Filler Block WPL-D6757501
...
14
Gasket-Evap WPL-B1292201
...
15
Rivet-Pop WPL-59002054
...
16
Lever WPL-A4653301
...
17
Spacer WPL-B5170402
...
18
Evap Cover Pnt WPL-D6755102
...
19
Insulation WPL-D6759501
...
20
Screw WPL-WP90767
...
21
Motor WPL-M0370901
...
22
Snap Bushing WPL-A4554811
...
23
Gasket WPL-10839712
...
24
Deflector WPL-C5827501

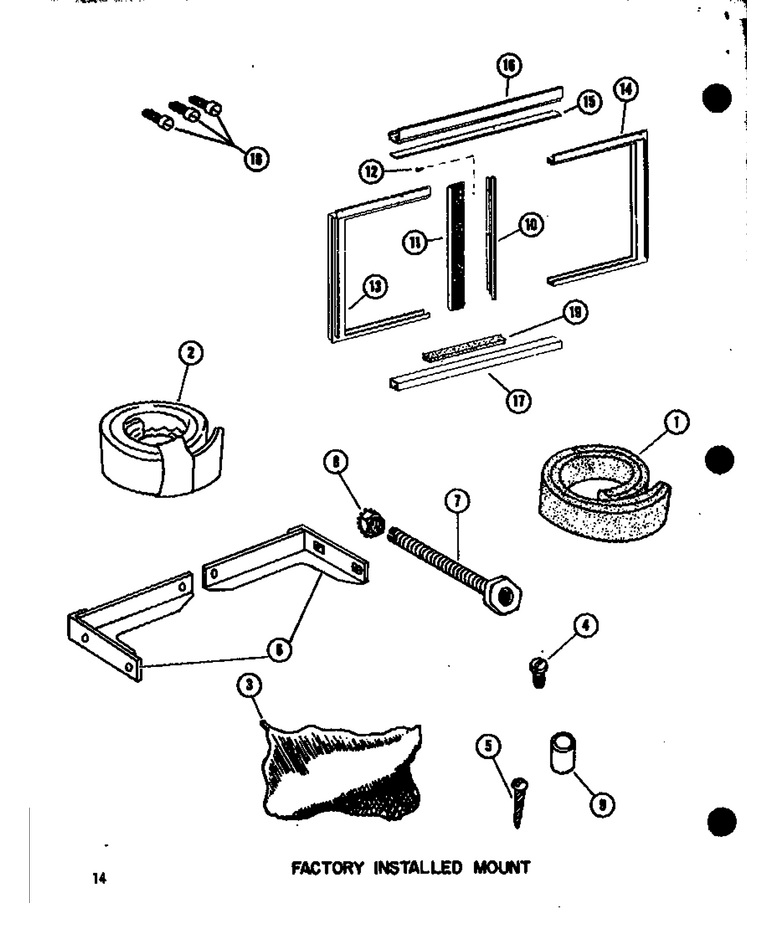

05 - Factory Installed Mount

...
...
1
Gasket WPL-10839702
...
2
Gasket WPL-A3030302
...
3
Accessory Kit WPL-B1139003
...
4
Screw WPL-M0206557
...
5
Screw WPL-M0212062
...
6
Angle Support Weldment-Painted WPL-D6752701
...
7
Screw Adjusting WPL-M0200003
...
8
Nut-Keps WPL-M0282019
...
9
Spacer K WPL-A4065501
...
10
Curtain 1 WPL-11118401
...
11
Curtain 1 WPL-11118401
...
12
Screw WPL-M1250031
...
13
Crtn Frame Kit WPL-10659812
...
14
Frame Assy WPL-C5905805
...
15
Gasket (inch) WPL-A3030301
...
16
Top Rail-Painted WPL-C5903404
...
17
Bottom Rail-Painted WPL-B1124704
...
18
Screw WPL-WP4312464
...
19
Gasket-Polyethylene WPL-A4684201

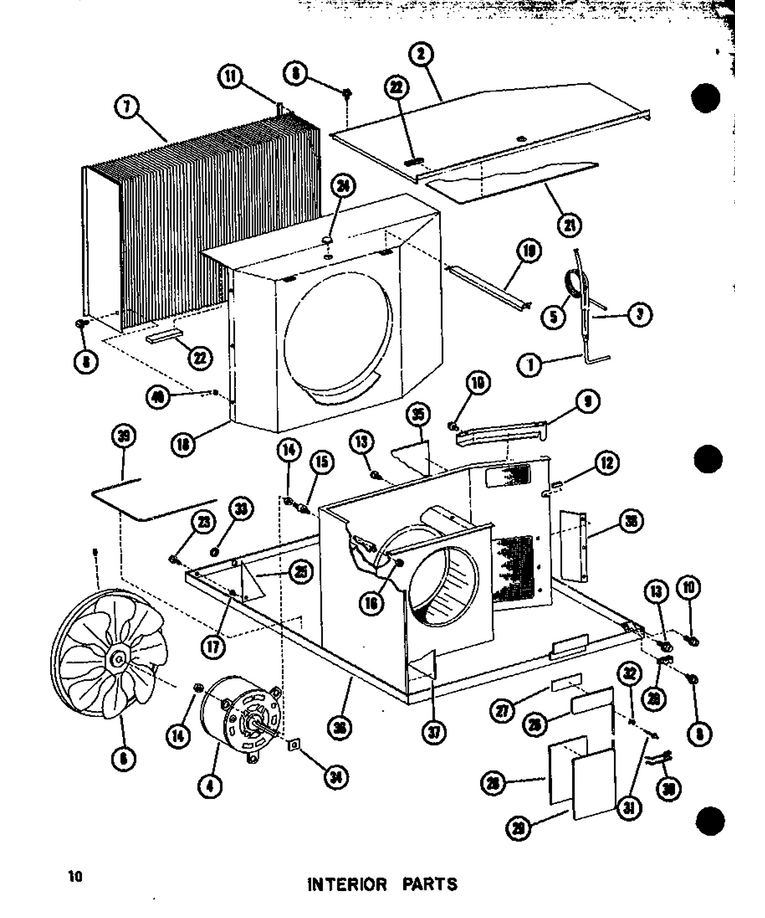

06 - Interior Parts

...
...
1
Proces WPL-A4637802
...
2
Cover-Top WPL-D6757401
...
3
Strainer WPL-B5159301
...
4
Motor WPL-C6206401
...
5
Capillary WPL-C6206501
...
6
Fan Blade- WPL-BT1086702
...
7
Condenser Assy WPL-D6760201
...
8
Screw WPL-WP90767
...
9
Channel-Wire WPL-C6206201
...
10
Screw WPL-WP90767
...
11
Gasket WPL-10839712
...
12
Gasket WPL-10839708
...
13
Screw WPL-M0233116
...
14
Nut WPL-WP487939
...
15
Grommet WPL-M0500606
...
16
Nut WPL-Y052721
...
17
Grommet WPL-A3309801
...
18
Shroud Cond. WPL-D9947103
...
19
Tie Brace WPL-B1285901
...
20
Clamp WPL-M0102101
...
21
Insulation-Top WPL-D6759801
...
22
Gasket-Per Ft WPL-A3030332
...
23
Screw (3) WPL-67006425
...
24
Plug Button K WPL-M0570801
...
25
Splash Guard WPL-B1299201
...
26
Exhst Dr Weld-Pnt WPL-C6200202
...
27
Gasket WPL-B5107602
...
28
Gasket WPL-B5107616
...
29
Vent Door-Pnt WPL-C6200302
...
30
Spring-Damper WPL-B1294401
...
31
Rivet-Pop WPL-59002054
...
32
Clamp WPL-A3396601
...
33
Plug Button WPL-A3080003
...
34
Gasket WPL-B5107608
...
35
Insulation WPL-D6759901
...
36
Base Pan Pnt WPL-D6759016
...
37
Insulation WPL-B1288801
...
38
Barrier WPL-B1290201
...
39
Tubing WPL-D6761401
...
40
Speednut WPL-M0288115

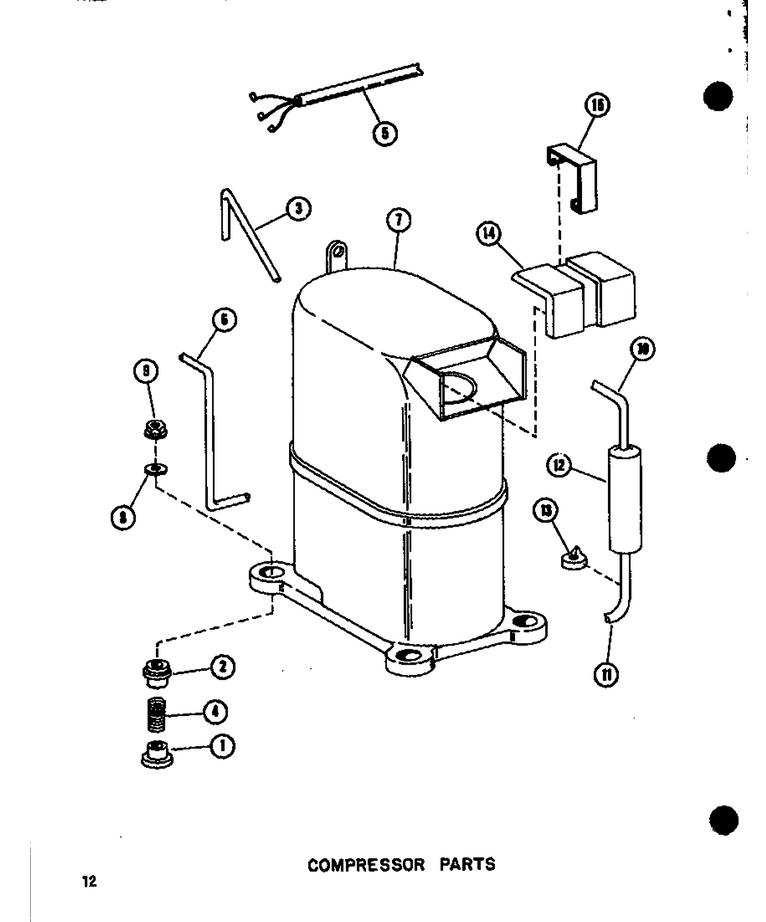

01 - Compressor Parts

...
...
1
Grommet WPL-A3314001
...
2
Grommet WPL-A3314101
...
3
Process Tube WPL-A3400001
...
4
Spring, Compressor WPL-A3338901
...
5
Wiring Harness WPL-C6202001
...
6
Suction Tube WPL-D6764601
...
7
Compressor Sen2-0175-Pfv WPL-D6762501
...
8
Washer,fibre WPL-M0274008
...
9
Nut WPL-M0283610
...
10
Discharge Tube WPL-C6206701
...
11
Discharge Tube WPL-C6206801
...
12
Muffler-Dis WPL-C5885814
...
13
Bumper WPL-A3311002
...
14
Terminal Cover WPL-C5864401
...
15
Spring WPL-A4610101

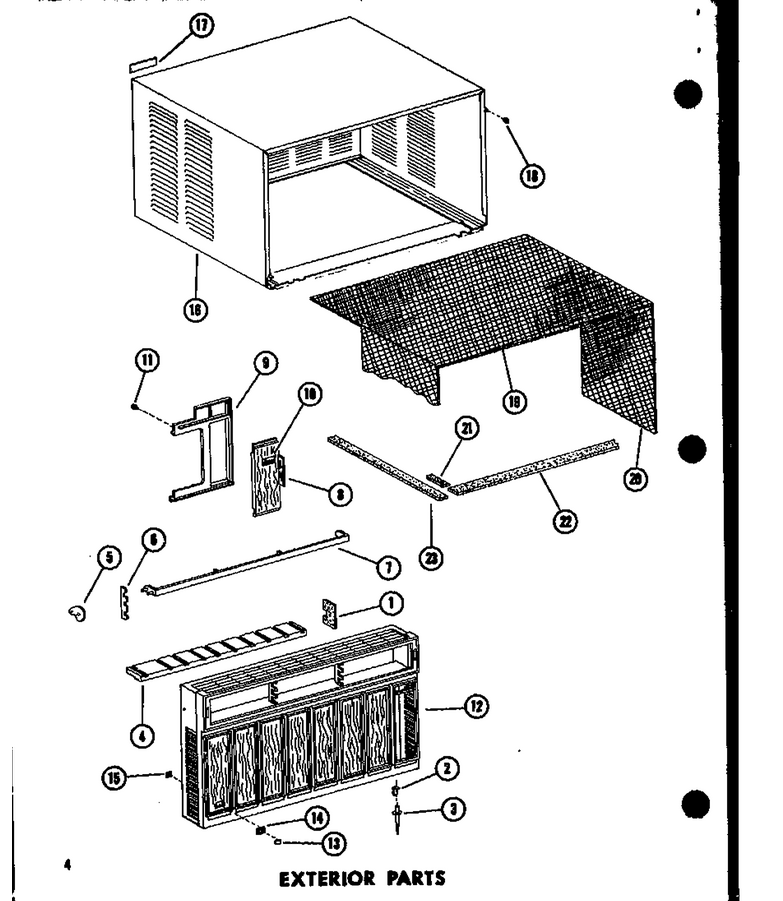

04 - Exterior Parts

...
...
1
Gasket Condenstate A WPL-B1110803
...
2
Hook, Cabinet Front Bottom To WPL-A4577806
...
3
Pop Rivet WPL-A4539602
...
4
Insulation WPL-D5473901
...
5
Wheel-Thumb WPL-A4688702
...
6
Tie Bar-Louver A WPL-A4688801
...
7
Louver, Horizontal WPL-C5878602
...
8
Door, Cabinet Front, Decorator WPL-C5879601
...
9
Retainer WPL-D6939901
...
10
Nameplate WPL-A4689701
...
11
Screw, No.6x18x1/4 (3) WPL-487010
...
12
Cabinet Front, Frame Only WPL-D5466605
...
13
Medallion-Hi Eff WPL-B1237601
...
14
Bezel-Medallion WPL-B1237702
...
15
Speed Nut A- K WPL-M0287901
...
16
Outer Case Weldment WPL-D6759101
...
17
Nameplate WPL-B4115501
...
18
Speed Nut WPL-M0288412
...
19
Insulation WPL-B1288601
...
20
Insulation WPL-B1288701
...
21
Gasket WPL-B5107615
...
22
Gasket WPL-10839707
...
23
Gasket-Polyethylene WPL-A4684201
