Amana ES2183HEL (BOM: P6753509R)

Model: ES2183HEL (BOM: P6753509R)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

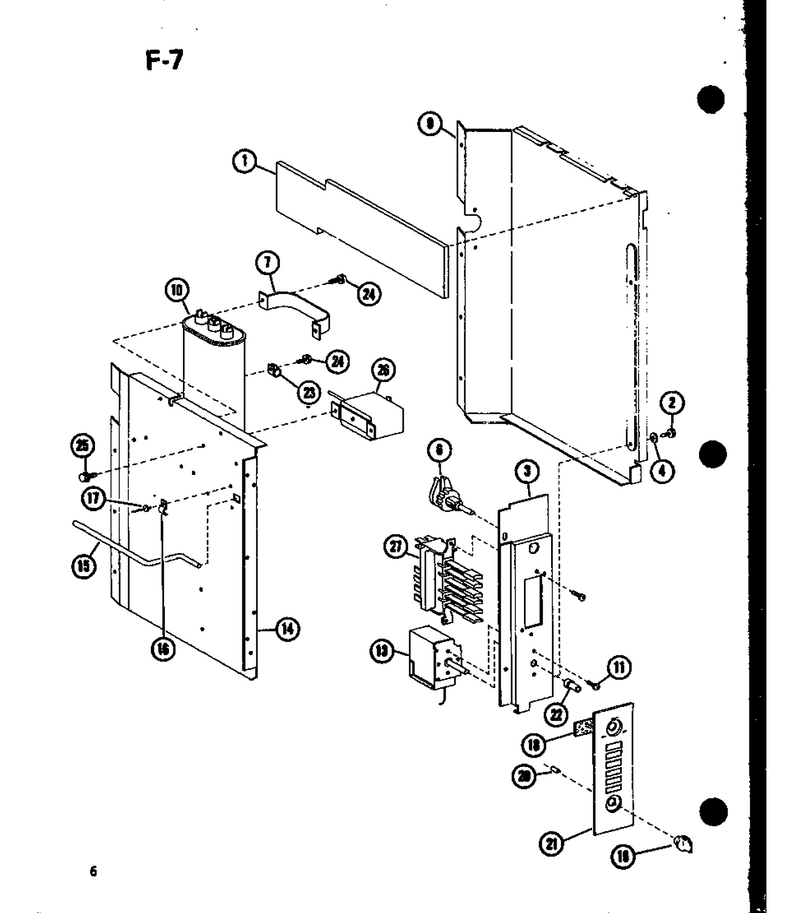

04 - Page 2

...
...
1
Insulation-Plenum WPL-B1287401
...
2
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
3
Bracket, Control WPL-D6768203
...
4
Lock Washer WPL-M0272803
...
6
Actuator Assembly WPL-D6759304
...
7
Strap K WPL-A3410501
...
9
Panel Side R-Pnt WPL-D6789402
...
10
Capacitor WPL-D6789048
...
11
Screw WPL-M0232012
...
13
Thermostat WPL-B1150204
...
14
Barrier WPL-D6790802
...
15
Rod WPL-B1312801
...
16
Clamp WPL-A3396601
...
17
Rivet-Pop WPL-59002054
...
18
Spring Pad WPL-A3397102
...
19
Knob WPL-D7009804
...
20
Clip,retainer WPL-M0115902
...
21
Escutcheon WPL-C5946705
...
22
Bushing WPL-A3073601
...
23
Clamp, Tube WPL-M0102305
...
24
Screw WPL-WP489464
...
25
Screw WPL-WP90767
...
26
Thermostat WPL-C6168404
...
27
Switch, Push Button WPL-C5940605

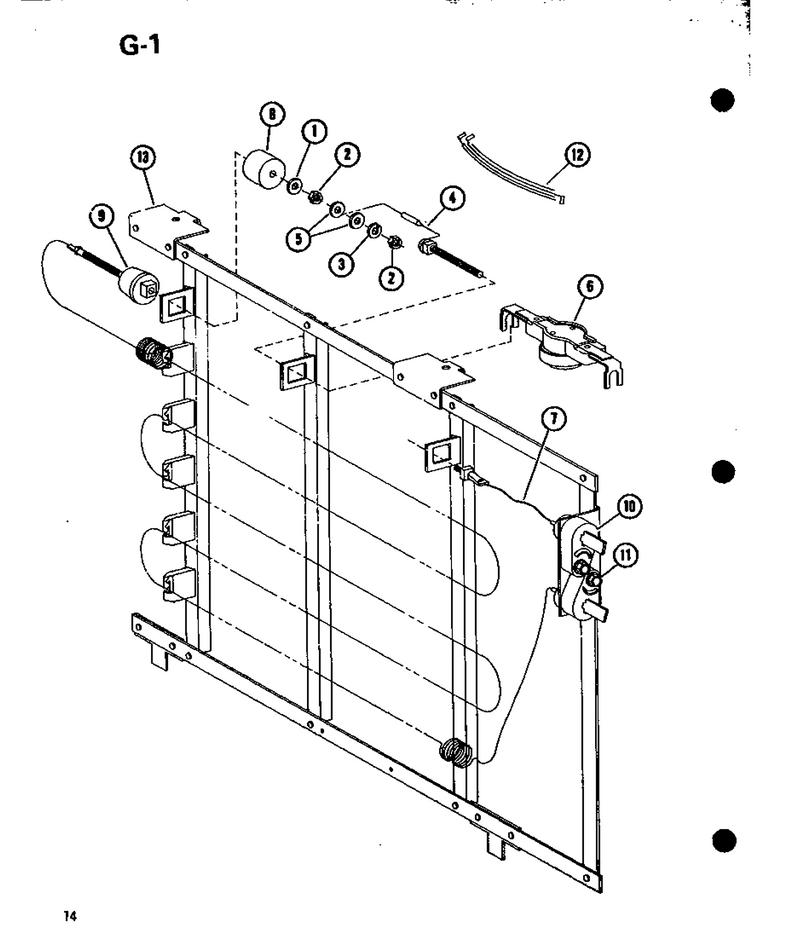

06 - Page 6

...
...
1
Lockwasher WPL-A9021601
...
2
Hex Nut WPL-A9021701
...
3
No.10 Lock Washer, Split Ring WPL-A3321701
...
4
Fusible Link Assy WPL-A3318904
...
5
Washer-Flat WPL-A9021501
...
6
Thermostat WPL-B1158404
...
7
Jumper Wire WPL-A3422101
...
8
Female Insulator WPL-A3422001
...
9
Male Insulator WPL-A3421901
...
10
Insulation WPL-B1335401
...
11
Screw WPL-WP90767
...
12
Wiring Harn Heater WPL-C5947103
...
13
Heater Assy WPL-D6831501

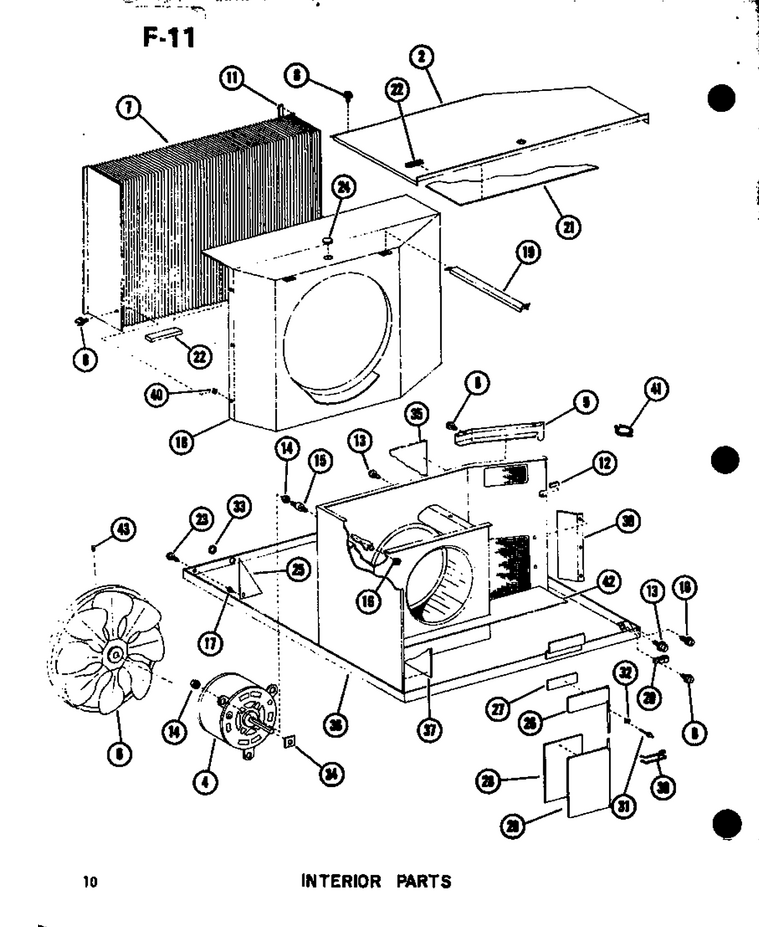

03 - Interior Parts

...
...
2
Top Cover WPL-D6813702
...
4
Mtr, Fan 208/230 V, 60 Hz, Cw WPL-C6216801Q
...
6
Fan Blade- WPL-BT1086702
...
7
Cond. Assy WPL-D6837801
...
8
Screw WPL-WP90767
...
9
Channel-Wire WPL-C6206201
...
10
Screw WPL-WP90767
...
11
Gasket WPL-10839712
...
12
Gasket WPL-10839708
...
13
Screw WPL-WP489399
...
14
Nut WPL-WP487939
...
15
Grommet WPL-B0500602
...
16
Nut WPL-Y052721
...
17
Grommet WPL-A3300801
...
18
Shroud Cond. WPL-D9947103
...
19
Tie Brace WPL-B1285901
...
20
Clamp WPL-M0103901
...
21
Insulation WPL-D6790901
...
22
Gasket-Per Ft WPL-A3030332
...
23
Screw (3) WPL-67006425
...
24
Plug Button K WPL-M0570801
...
25
Splash Guard WPL-B1299201
...
26
Exhaust Door Assy WPL-C6200501
...
27
Gasket WPL-B5107602
...
28
Gasket WPL-B5107616
...
29
Vent Door Assy WPL-C6200601
...
30
Spring-Damper WPL-B1294401
...
31
Rivet-Pop WPL-59002054
...
32
Clamp WPL-A3396601
...
33
Plug Button WPL-A3080003
...
34
Gasket WPL-B5107608
...
35
Insulation WPL-D6759901
...
36
Base Pan Weldment WPL-D6759015
...
37
Insulation WPL-B1288801
...
38
Barrier WPL-B1290201
...
40
Speednut WPL-M0288115
...
41
Clip-Guide WPL-M0118701
...
42
Plate, Refector WPL-B1335001
...
43
Set Screw WPL-M0210102

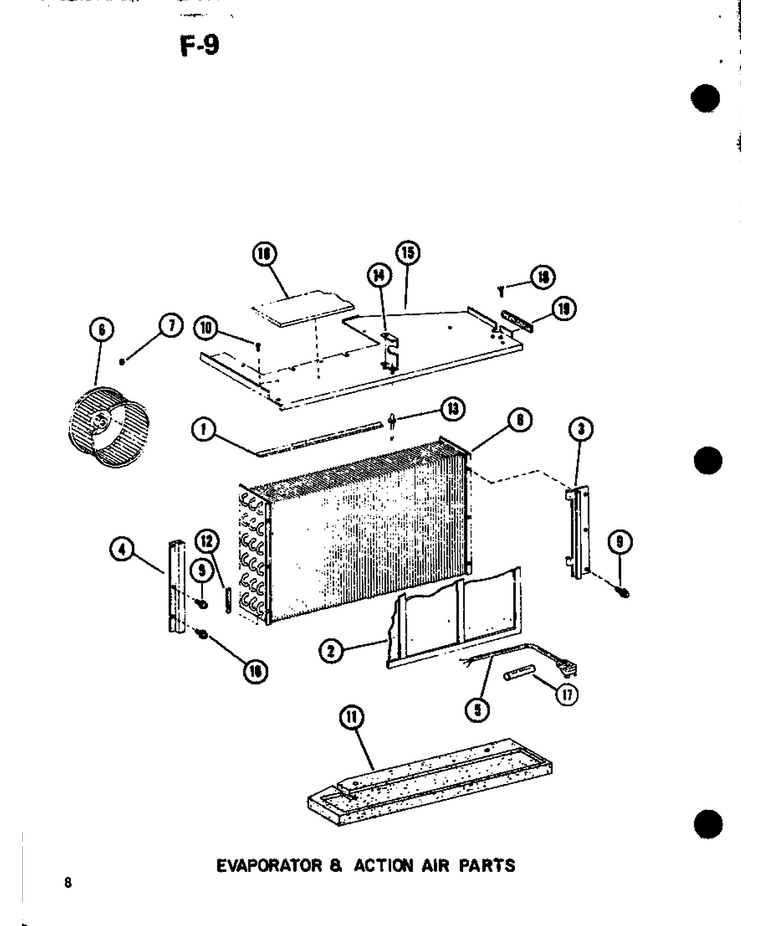

01 - Evap & Action Air Parts

...
...
2
Filter WPL-D6758601
...
3
Retainer, Right Hand WPL-C6215501
...
4
Retainer, Left Hand WPL-B1287001
...
5
Cord, Appliance WPL-8215269
...
6
Wheel, Blower WPL-10040501
...
7
Set Screw WPL-M0210104
...
8
Evap WPL-D6761702
...
9
Screw WPL-WP90767
...
10
Screw WPL-WP489464
...
11
Side Pnl Assy Q WPL-D6767601
...
12
Gasket-Evap WPL-B1292201
...
13
Rivet-Pop WPL-59002054
...
14
Spacer WPL-B5170403
...
15
Evap Cover Pnt WPL-D6755102
...
16
Insulation WPL-D6759501
...
17
Sleeve WPL-M0321015
...
18
Screw WPL-WP90767
...
19
Gasket (per Foot) WPL-10839706

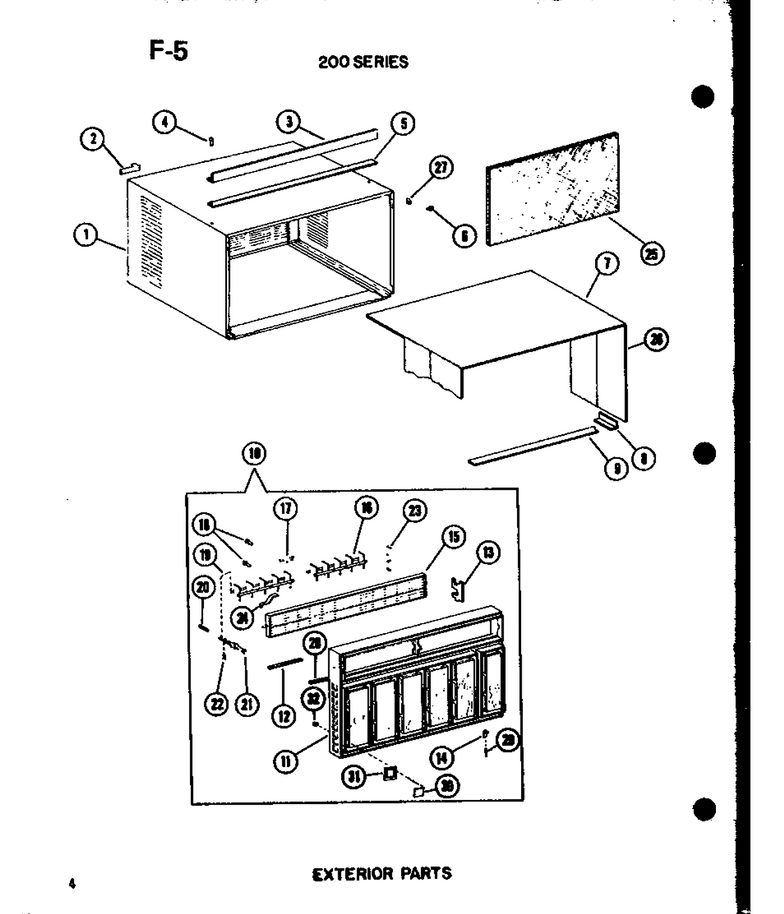

02 - Exterior Parts

...
...
1
O C Weld WPL-D6759104
...
2
Nameplate WPL-B4115501
...
3
Angle-Top WPL-B1100705
...
4
Screw WPL-WP1163839
...
5
Gasket 1 WPL-10839714
...
6
Thumb Screw K WPL-M0234916
...
7
Insulation WPL-B1288601
...
8
Gasket WPL-B5107615
...
9
Gasket WPL-10839707
...
10
Front Assembly Cabinet WPL-D5468230
...
11
Cab Front WPL-D5466829
...
12
Gasket (per Foot) WPL-A3030313
...
13
Gasket-Rh WPL-B1109602
...
14
Hook, Cabinet Front Bottom To WPL-A4577806
...
15
Louver Box WPL-D5396415
...
16
Louvers WPL-C5286601
...
17
Pin WPL-B5167101
...
18
Screw WPL-M0229004
...
19
Linkage Bar WPL-A4623801
...
20
Spring K WPL-A4624103
...
21
Lever K WPL-B1185001
...
22
Pin K WPL-A3339201
...
23
Spring WPL-A4688901
...
24
Friction Clip WPL-A4664503
...
25
Filter WPL-D6758601
...
26
Insulation WPL-B1288701
...
27
Speed Nut WPL-M0288412
...
28
Gasket (per Foot) WPL-A3030303
...
29
Pop Rivet WPL-A4539602
...
30
Medallion Htg, Cool WPL-B1338101
...
31
Bezel Medallian WPL-B1237703
...
32
Speed Nut A- K WPL-M0287901

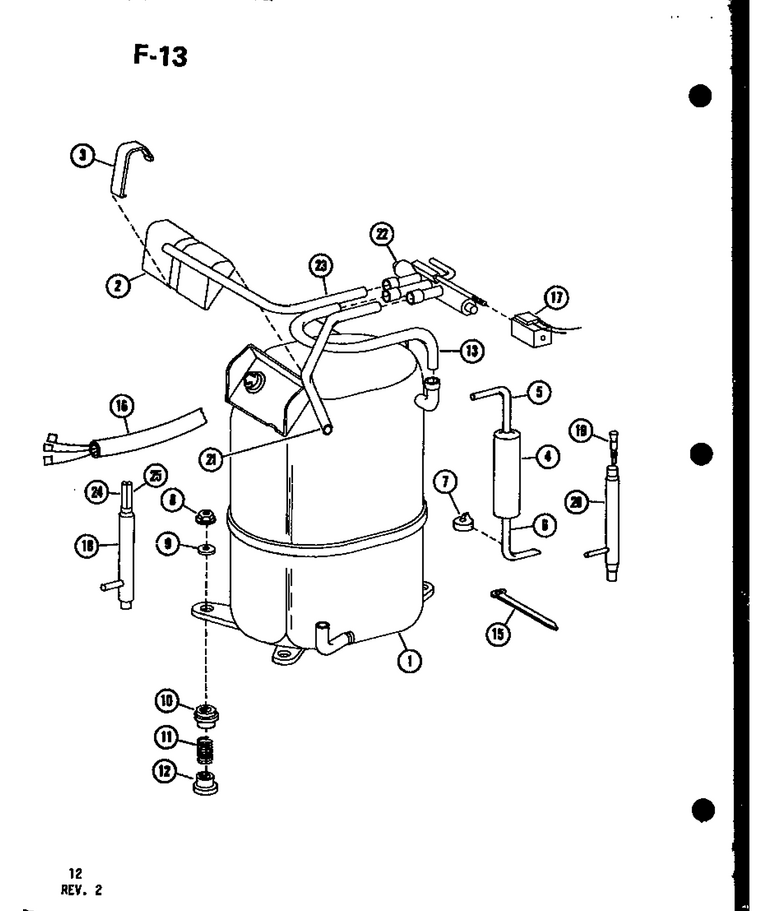

05 - Page 5

...
...
1
Compressor Res3-0175-Pfv-900 WPL-D6828402
...
2
Terminal Cover WPL-C5864401
...
3
Spring WPL-A4610101
...
4
Muffler WPL-C5885804
...
5
Tube Discharge WPL-D6832101
...
6
Tube, Discharge WPL-B1335701
...
7
Bumper WPL-A3311002
...
8
Nut WPL-M0283610
...
9
Washer,fibre WPL-M0274008
...
10
Grommet WPL-A3314001
...
11
Spring WPL-A3412201
...
12
Grommet WPL-A3314101
...
13
Suction Tube WPL-B1335501
...
15
Wire Tie WPL-M0321204
...
16
Wiring Harness Comp WPL-C6278501
...
17
Solenoid WPL-B1150404
...
18
Strainer WPL-B1257802
...
19
Check Valve WPL-B1334801
...
20
Strainer Assembly WPL-B1334901
...
21
Tube, Cond. WPL-C6285001
...
22
Reversing Valve WPL-B4765601
...
23
Tube Evap WPL-C6285201
...
24
Capillary WPL-D6838401
...
25
Capillary WPL-D6838501
