Amana ES218-3SPT (BOM: P6753502R)

Model: ES218-3SPT (BOM: P6753502R)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

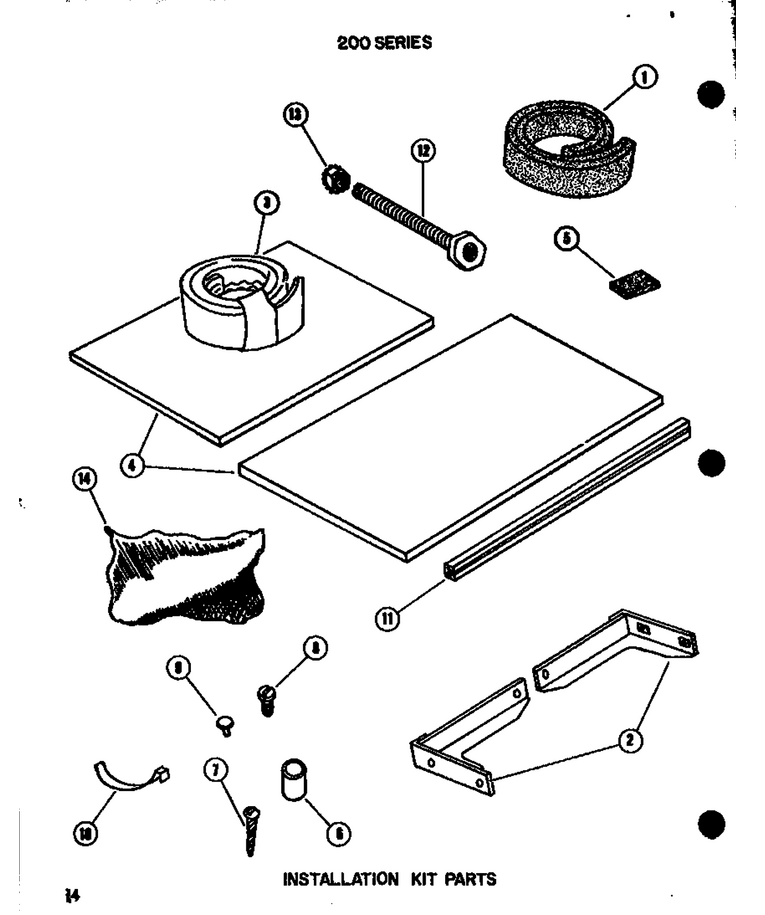

05 - Installation Kit Parts

...
...
NI
Screw Adjusting WPL-M0200003
...
1
Gasket WPL-10839702
...
2
Angle Support Weldment-Painted WPL-D6752701
...
3
Gasket WPL-B1108301
...
4
Window Board WPL-A4607701
...
5
Gasket-Polyethylene WPL-A4684201
...
6
Spacer K WPL-A4065501
...
7
Screw WPL-M0212062
...
8
Screw WPL-M0206557
...
9
Plug WPL-M0310312
...
10
Spring WPL-B1100601
...
11
Gasket WPL-B4764402
...
12
Screw Adjusting WPL-M0200003
...
13
Nut-Keps WPL-M0282019
...
14
Accessory Kit Q WPL-B1139001

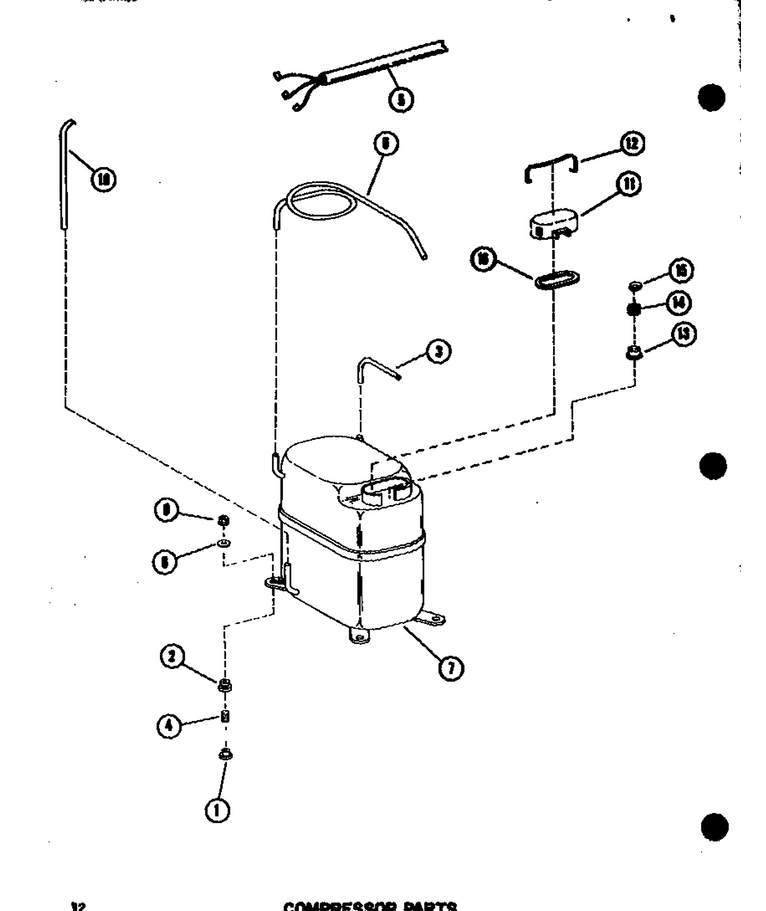

01 - Compressor Parts

...
...
1
Grommet WPL-A3314001
...
2
Grommet WPL-A3314101
...
3
X$x Process Tube WPL-A4643701
...
4
Spring WPL-A3412101
...
5
Wiring Harness WPL-C6216901
...
6
Tube Suction WPL-D6769401
...
7
Compressor, 1 H.p., 230/208 V. WPL-D5497904
...
8
Washer,fibre WPL-M0274008
...
9
Nut WPL-M0283610
...
10
Tub Discharge WPL-C6216701
...
11
Cover WPL-B4793701
...
12
Bale Strap WPL-A4587801
...
13
Overload WPL-D4976680
...
14
Spring WPL-A4587901
...
15
Adaptor WPL-A4593501
...
16
Seal WPL-A4588001

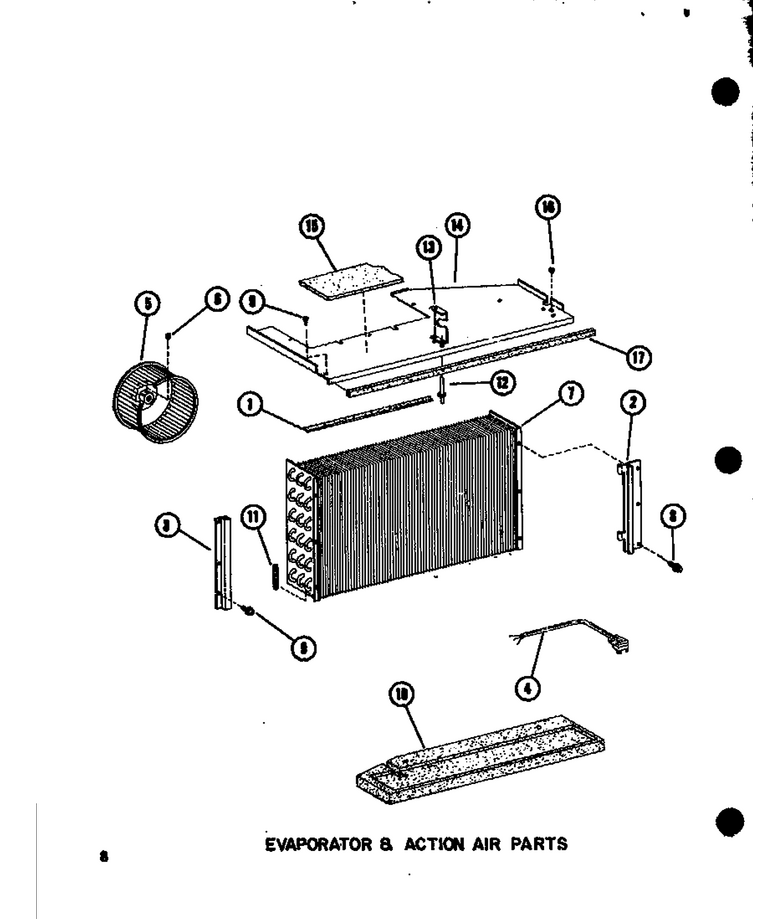

03 - Evap & Action Air Parts

...
...
1
Gasket-Per Ft WPL-A3030332
...
2
Retainer, Right Hand WPL-C6215501
...
3
Retainer, Left Hand WPL-B1287001
...
4
Cord, Power WPL-Y20057502
...
5
Wheel, Blower WPL-10040501
...
6
Set Screw WPL-M0210104
...
7
Evaporator Assembly WPL-D6761701
...
8
Screw WPL-WP90767
...
9
Screw WPL-WP489464
...
10
Filler Block WPL-D6757501
...
11
Gasket-Evap WPL-B1292201
...
12
Rivet-Pop WPL-59002054
...
13
Spacer WPL-B5170402
...
14
Evap Cover Pnt WPL-D6755102
...
15
Insulation WPL-D6759501
...
16
Snap Bushing WPL-A4554811
...
17
Gasket WPL-10839712

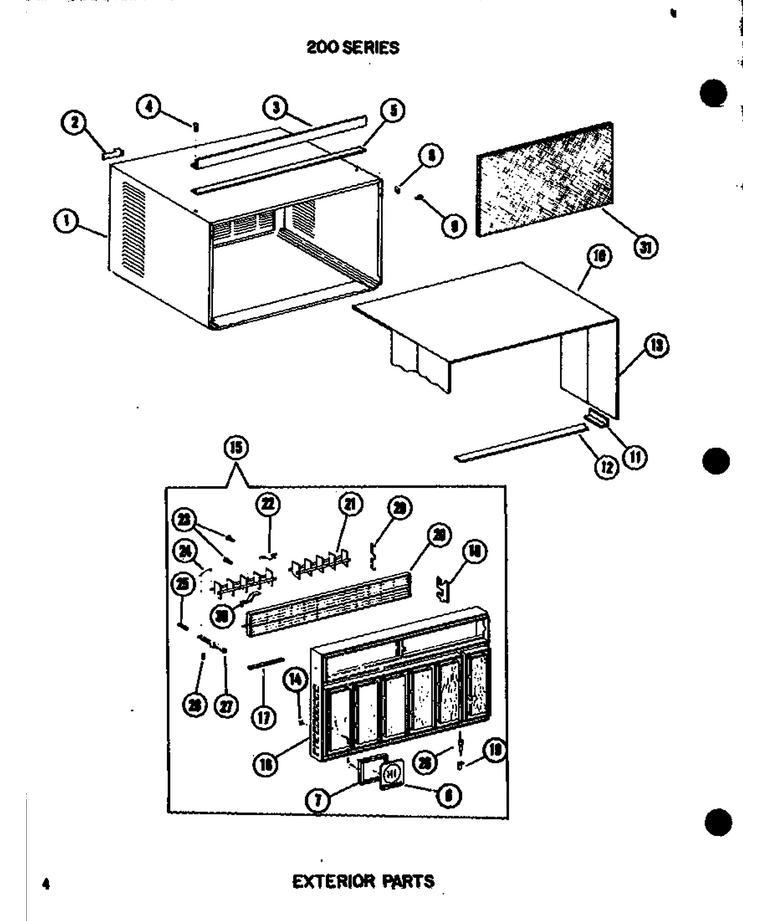

04 - Exterior Parts

...
...
1
Outer Case Weldment WPL-D6759102
...
2
Nameplate WPL-B4115501
...
3
Angle-Top WPL-B1100701
...
4
Screw WPL-WP1163839
...
5
Gasket 1 WPL-10839714
...
6
Medallion-Hi Eff WPL-B1237601
...
7
Bezel-Medallion WPL-B1237702
...
8
Speed Nut WPL-M0288412
...
9
Thumb Screw K WPL-M0234916
...
10
Insulation WPL-B1288601
...
11
Gasket WPL-B5107615
...
12
Gasket WPL-10839707
...
13
Insulation WPL-B1288701
...
14
Speed Nut A- K WPL-M0287901
...
15
Front Assy WPL-D5468222
...
16
Front WPL-D5466821
...
17
Gasket (per Foot) WPL-A3030313
...
18
Gasket-Lh WPL-B1109601
...
19
Hook, Cabinet Front Bottom To WPL-A4577806
...
20
Louver WPL-D5396420
...
21
Louvers WPL-C5286601
...
22
Pin WPL-B5167101
...
23
Screw WPL-M0229004
...
24
Linkage Bar WPL-A4623801
...
25
Spring K WPL-A4624103
...
26
Pop Rivet WPL-A4539202
...
27
Lever K WPL-B1185001
...
28
Pin K WPL-A3339201
...
29
Spring WPL-A4688901
...
30
Friction Clip WPL-A4664503
...
31
Filter WPL-D6758601

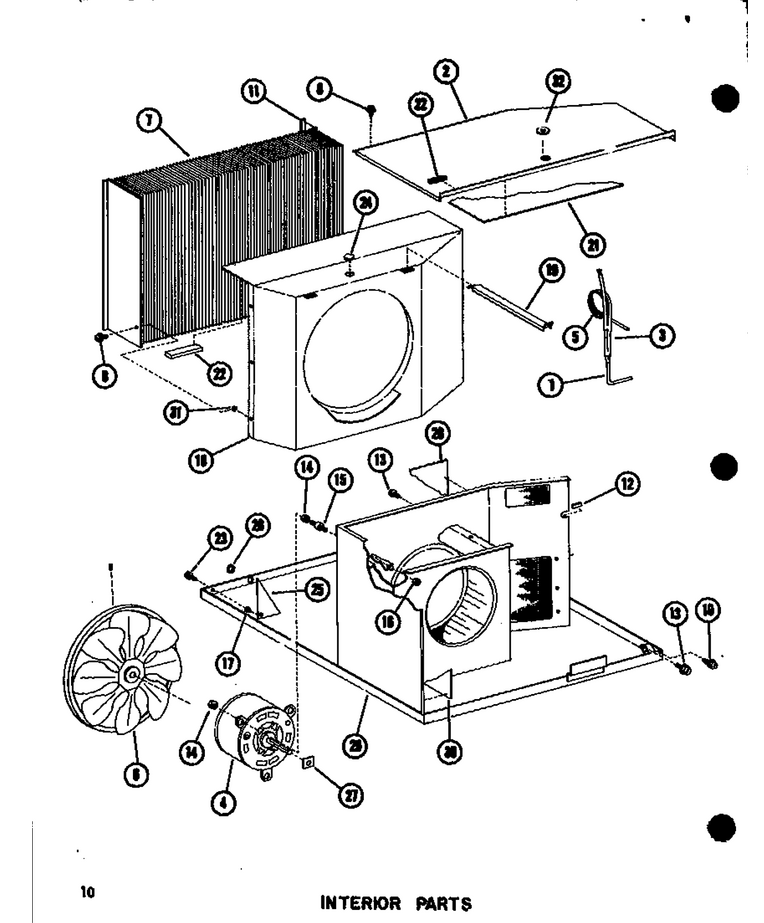

06 - Interior Parts

...
...
1
X$x Process Tube WPL-A3336001
...
2
Cover WPL-D6789501
...
3
Strainer WPL-B5159301
...
4
Mtr, Fan 208/230 V, 60 Hz, Cw WPL-C6216801Q
...
5
Capillary WPL-C6252201
...
6
Fan Blade- WPL-BT1086702
...
7
Condenser WPL-D6769301
...
8
Screw WPL-WP90767
...
10
Screw WPL-WP90767
...
11
Gasket WPL-10839712
...
12
Gasket WPL-10839708
...
13
Screw WPL-M0233116
...
14
Nut WPL-WP487939
...
15
Grommet WPL-M0500606
...
16
Nut WPL-Y052721
...
17
Grommet WPL-A3309801
...
18
Shroud Cond. WPL-D9947103
...
19
Tie Brace WPL-B1285901
...
21
Insulation WPL-D6790901
...
22
Gasket-Per Ft WPL-A3030332
...
23
Screw (3) WPL-67006425
...
24
Plug Button K WPL-M0570801
...
25
Splash Guard WPL-B1299201
...
26
Plug Button WPL-A3080003
...
27
Gasket WPL-B5107608
...
28
Insulation WPL-D6769001
...
29
Base Pan Pnt WPL-D6759011
...
30
Insulation WPL-B1288801
...
31
Speednut WPL-M0288115
...
32
Washer-Insulation WPL-A3316101

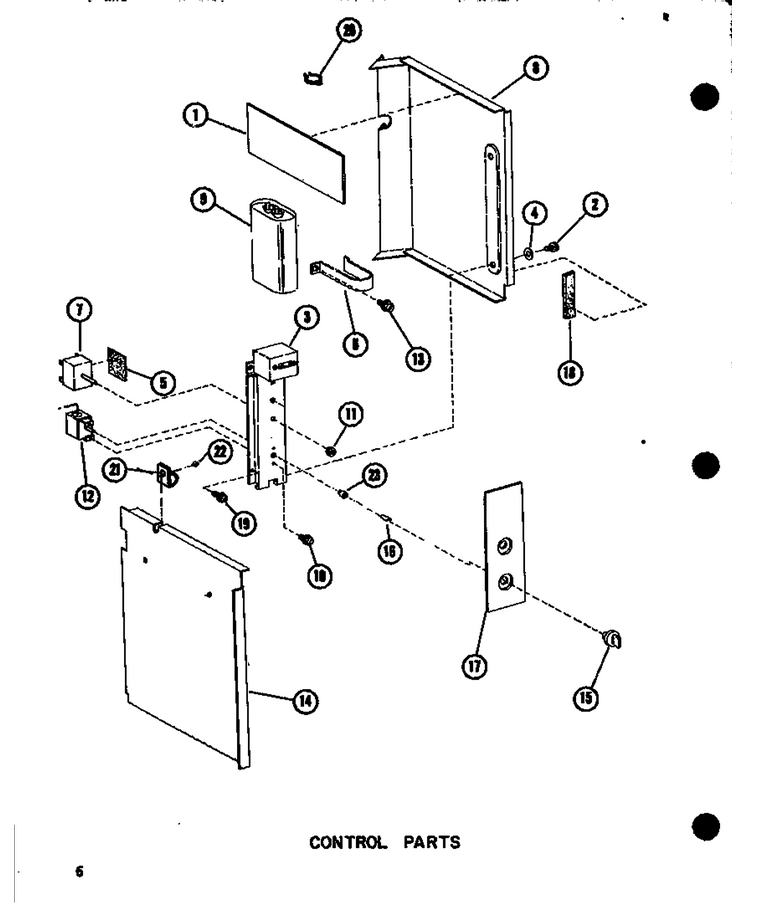

02 - Control Parts

...
...
1
Insulation-Plenum WPL-B1287401
...
2
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
3
Bracket WPL-D6769201
...
4
Lock Washer WPL-M0272803
...
5
Insulator WPL-A4662301
...
6
Strap-Cap. WPL-B5115903
...
7
Switch WPL-B5114404
...
8
Panel Side R-Pnt WPL-D6789402
...
9
Capacitor WPL-D6879716
...
10
Screw WPL-M0232012
...
11
Palnut WPL-M0289601
...
12
Thermostat WPL-B4763502
...
13
Screw WPL-WP489399
...
14
Barrier WPL-D6790801
...
15
Knob WPL-D7009803
...
16
Clip,retainer WPL-M0115902
...
17
Escutcheon WPL-C5832917
...
18
Gasket-Per Ft WPL-A3030332
...
19
Screw WPL-WP90767
...
20
Clip-Guide WPL-M0118701
...
21
Clamp, Wiring WPL-M0102310
...
22
Screw WPL-WP489464
...
23
Bushing WPL-A3073601
