Amana ES2132MK (BOM: P6753503R)

Model: ES2132MK (BOM: P6753503R)

Save Part Not Listed?
product name

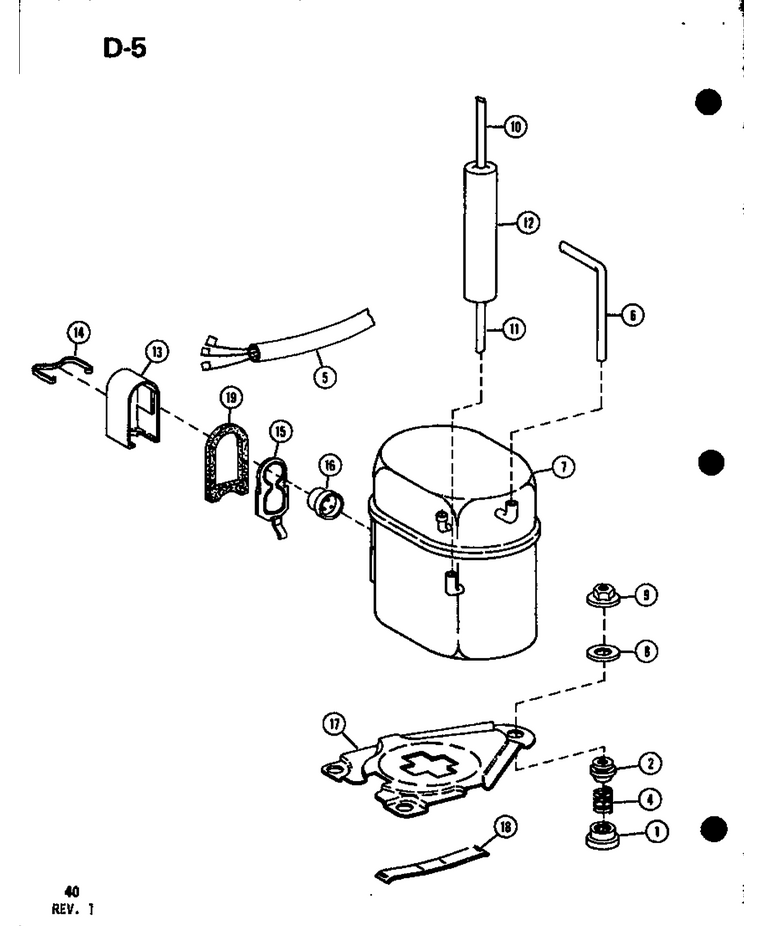

06 - Page 18

...
...
1
Grommet WPL-A3314001
...
2
Grommet WPL-A3314101
...
4
Spring WPL-A3412101
...
5
Wiring Harness WPL-C6268301
...
6
Suction Tube WPL-D6814201
...
7
Compressor Ak8514e WPL-D5557403
...
8
Washer,fibre WPL-M0274008
...
9
Nut WPL-M0283610
...
10
Tube-Discharge WPL-B1325801
...
11
Tube-Bottom Disch WPL-C6268401
...
13
Cover,terminal WPL-B5187501
...
14
Strap WPL-A4635901
...
15
Spring-Overload WPL-A3315901
...
16
Overload WPL-D4976672
...
17
Plate Compressor WPL-C6273201
...
18
Spring K WPL-A4635601
...
19
Gasket,cover WPL-A4673301

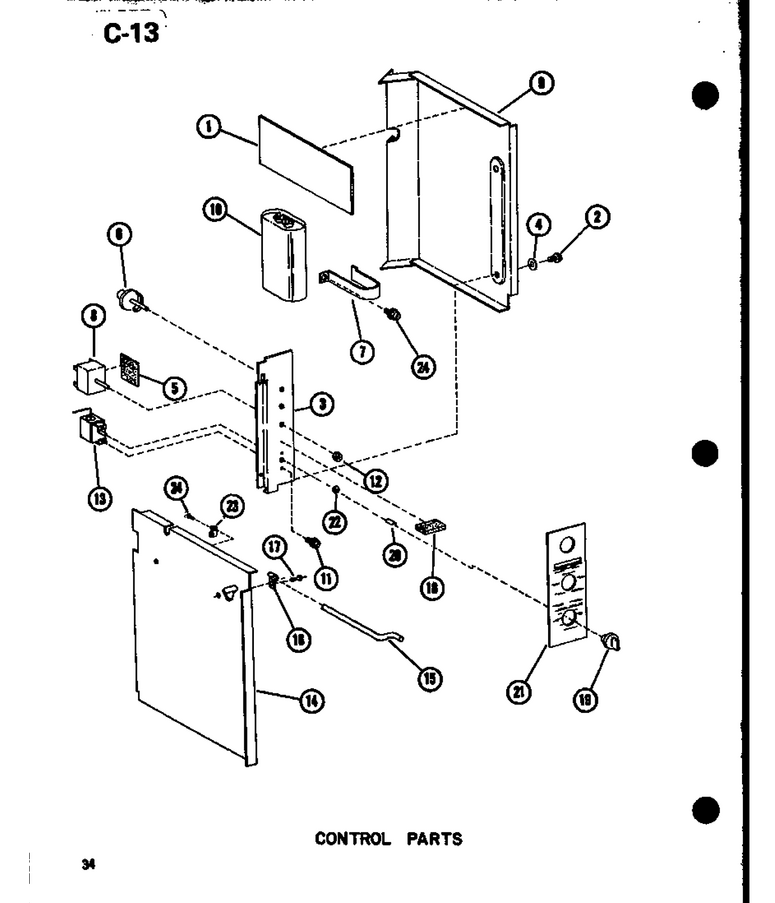

01 - Control Parts

...
...
1
Insulation-Plenum WPL-B1287401
...
2
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
3
Bracket WPL-D6769202
...
4
Lock Washer WPL-M0272803
...
5
Insulator WPL-A4662301
...
6
Actuator Assembly WPL-D6759302
...
7
Strap-Cap. WPL-B5115903
...
8
Switch WPL-B5114404
...
9
Panel Side R-Pnt WPL-D6789402
...
10
Capacitor WPL-4386874
...
11
Screw WPL-M0232012
...
12
Palnut WPL-M0289601
...
13
Thermostat WPL-B4763502
...
14
Barrier WPL-D6790801
...
15
Rod WPL-B1312801
...
16
Clamp WPL-A3396601
...
17
Rivet-Pop WPL-59002054
...
18
Spring Pad WPL-A3397102
...
19
Knob WPL-D7009804
...
20
Clip,retainer WPL-M0115902
...
22
Bushing WPL-A3073601
...
23
Clamp, Wiring WPL-M0102310
...
24
Screw WPL-WP489464

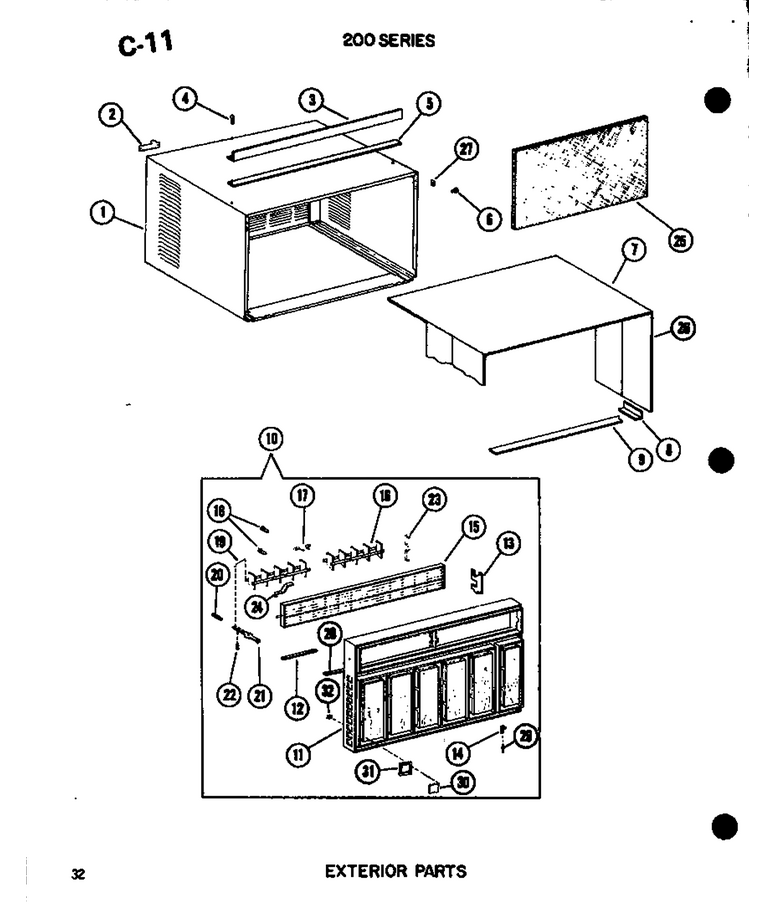

03 - Exterior Parts

...
...
1
Outer Case Weldment WPL-D6759101
...
2
Nameplate WPL-B4115501
...
4
Screw WPL-WP1163839
...
6
Thumb Screw K WPL-M0234916
...
7
Insulation WPL-B1288601
...
8
Gasket WPL-B5107615
...
9
Gasket WPL-10839707
...
10
Front Assy WPL-D5468222
...
11
Front WPL-D5466821
...
12
Gasket (per Foot) WPL-A3030313
...
13
Gasket-Rh WPL-B1109602
...
14
Hook, Cabinet Front Bottom To WPL-A4577806
...
15
Louver WPL-D5396420
...
16
Louvers WPL-C5286601
...
17
Pin WPL-B5167101
...
18
Screw WPL-M0229004
...
19
Linkage Bar WPL-A4623801
...
20
Spring K WPL-A4624103
...
21
Lever K WPL-B1185001
...
22
Pin K WPL-A3339201
...
23
Spring WPL-A4688901
...
24
Friction Clip WPL-A4664503
...
25
Filter WPL-D6758601
...
26
Insulation WPL-B1288701
...
27
Speed Nut WPL-M0288412
...
28
Gasket (per Foot) WPL-A3030303
...
29
Pop Rivet WPL-A4539602
...
30
Medallion-Hi Eff WPL-B1237601
...
31
Bezel-Medallion WPL-B1237702
...
32
Speed Nut A- K WPL-M0287901

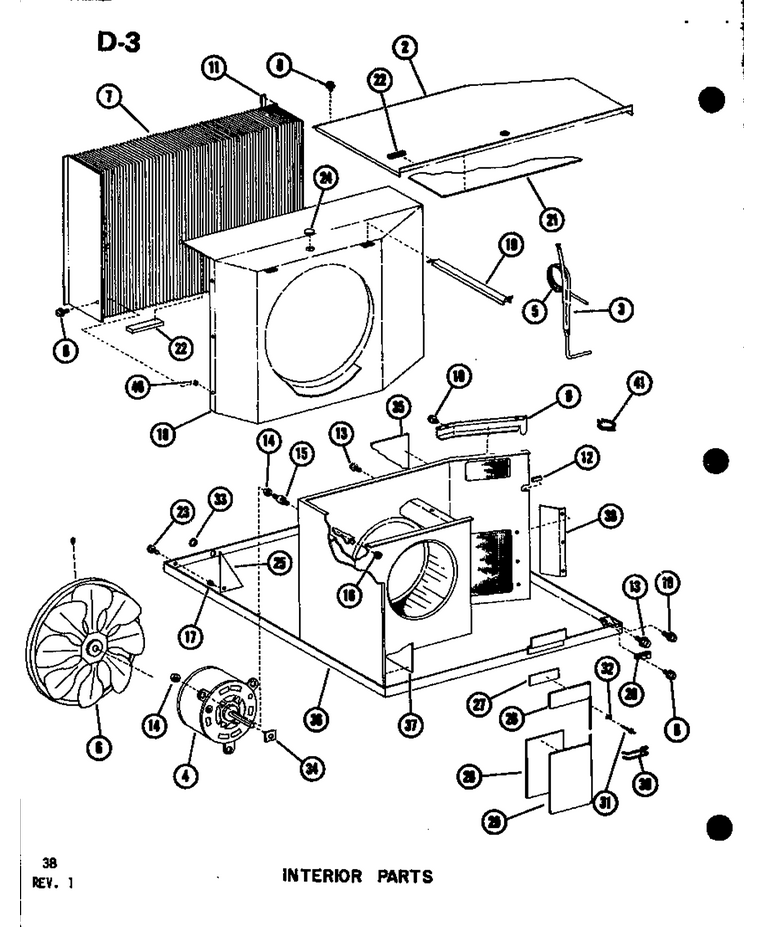

05 - Interior Parts

...
...
2
Cover WPL-D6789501
...
3
Strainer WPL-B5159301
...
4
Motor WPL-C6216803
...
5
Capillary Assy WPL-D6814101
...
6
Fan Blade- WPL-BT1086702
...
7
Condenser WPL-D6769301
...
8
Screw WPL-WP90767
...
11
Gasket WPL-10839712
...
12
Gasket WPL-10839708
...
13
Screw WPL-WP489399
...
14
Nut WPL-WP487939
...
15
Grommet WPL-M0500606
...
16
Nut WPL-Y052721
...
17
Grommet WPL-A3309801
...
18
Shroud Cond. WPL-D9947103
...
19
Tie Brace WPL-B1285901
...
21
Insulation WPL-D6790901
...
22
Gasket-Per Ft WPL-A3030332
...
23
Screw (3) WPL-67006425
...
24
Plug Button K WPL-M0570801
...
25
Splash Guard WPL-B1299201
...
26
Exhaust Door Assy WPL-C6200501
...
27
Gasket WPL-B5107602
...
28
Gasket WPL-B5107616
...
29
Vent Door Assy WPL-C6200601
...
30
Spring-Damper WPL-B1294401
...
31
Rivet-Pop WPL-59002054
...
32
Clamp WPL-A3396601
...
33
Plug Button WPL-A3080003
...
34
Gasket WPL-B5107608
...
35
Insulation WPL-D6759901
...
36
Base Pan Assy WPL-D6760806
...
37
Insulation WPL-B1288801
...
38
Barrier WPL-B1290201
...
40
Speednut WPL-M0288115
...
41
Clip-Guide WPL-M0118701

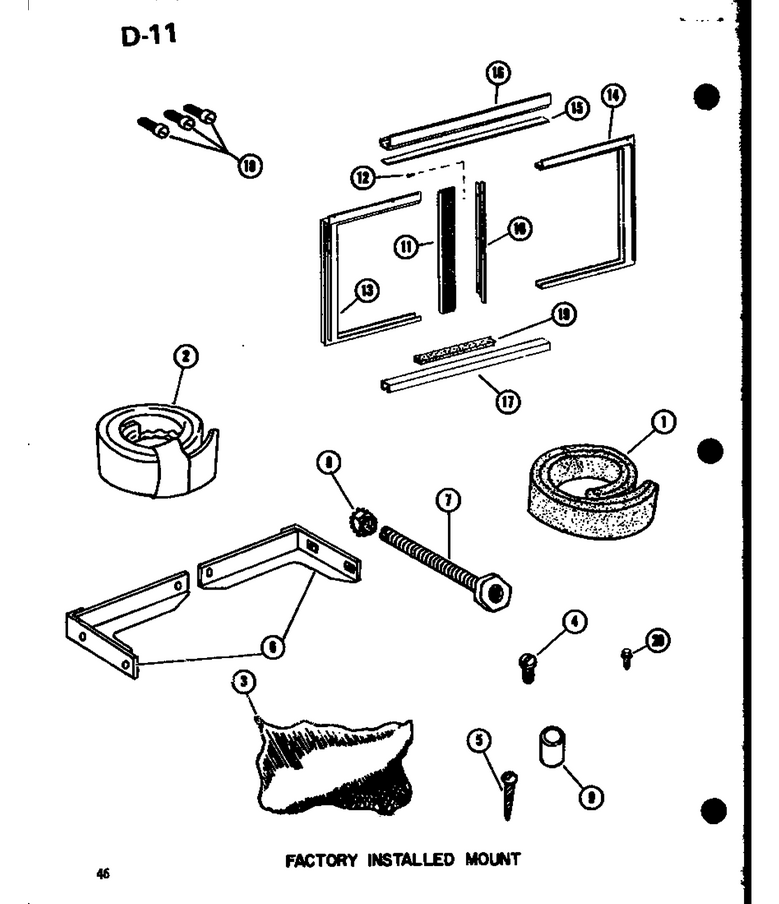

04 - Factory Installed Mount

...
...
1
Gasket WPL-10839702
...
2
Gasket WPL-A3030302
...
3
Accessory Kit WPL-B1139003
...
4
Screw WPL-M0206557
...
5
Screw WPL-M0212062
...
6
Angle Support Weldment-Painted WPL-D6752701
...
7
Screw Adjusting WPL-M0200003
...
8
Nut-Keps WPL-M0282019
...
9
Spacer K WPL-A4065501
...
10
Curtain 1 WPL-11118401
...
11
Curtain 1 WPL-11118401
...
12
Screw WPL-M1250031
...
13
Frame Assy WPL-C5905806
...
14
Frame Kit L WPL-10659811
...
15
Gasket (inch) WPL-A3030301
...
16
Top Rail-Painted WPL-C5903404
...
17
Bottom Rail-Painted WPL-B1124704
...
18
Screw WPL-WP4312464
...
19
Gasket-Polyethylene WPL-A4684201
...
20
Screw WPL-M0213032

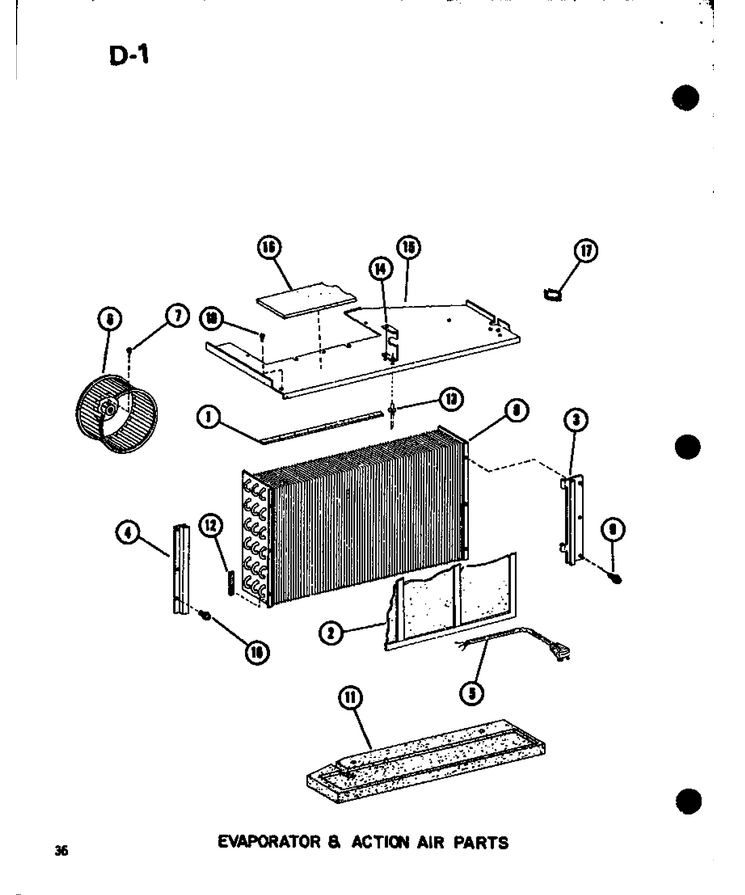

02 - Evap & Action Air Parts

...
...
1
Gasket-Per Ft WPL-A3030332
...
2
Filter WPL-D6758601
...
3
Retainer, Right Hand WPL-C6215501
...
4
Retainer, Left Hand WPL-B1287001
...
5
Cord, Power WPL-Y20057501
...
6
Wheel, Blower WPL-10040501
...
7
Set Screw WPL-M0210104
...
8
Evaporator Assy WPL-D6788801
...
9
Screw WPL-WP90767
...
10
Screw WPL-WP489464
...
11
Filler Block WPL-D6757501
...
12
Gasket-Evap WPL-B1292201
...
13
Rivet-Pop WPL-59002054
...
14
Spacer WPL-B5170402
...
15
Evap Cover Pnt WPL-D6755102
...
16
Insulation WPL-D6759501
...
17
Clip K WPL-M0118401
