Amana EM3100.000 (BOM: EM3100.00 0)

Model: EM3100.000 (BOM: EM3100.00 0)

Save Part Not Listed?
product name

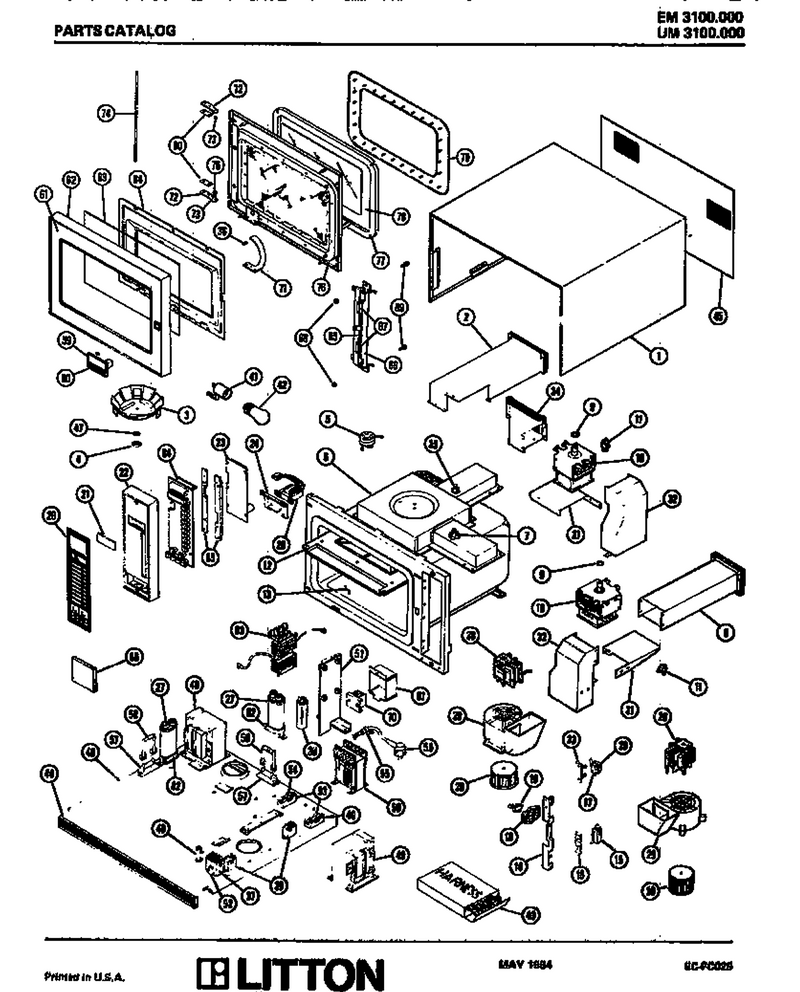

01 - Page 1

...
...
NI
Not Available WPL-M5D363
...
1
Ia Screw 10ab WPL-M1D369
...
2
Clip (10) WPL-M1D680
...
3
Stirrer Blade Kit WPL-M44D15
...
4
Nut, Push WPL-Y04100035
...
5
Gasket WPL-M2D252
...
6
Cavity Assy WPL-M77D117
...
7
Antenna Pin Side Kit WPL-M2D566
...
8
Not Available WPL-M65D274
...
9
Gasket-Rf WPL-M2D296
...
10
Kit, Magnetron WPL-M57D34
...
11
Screw Thrm WPL-M1D666
...
12
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
13
Shelf Kit WPL-M50D38
...
14
Nut WPL-WP488130
...
15
Spacer, Switch WPL-M8D190
...
16
Strike, Latch WPL-M8D191
...
17
Switch Logic WPL-M14D267
...
18
Sw-Monitor M14d212 WPL-M14D212
...
19
Screw WPL-WP489474
...
20
Switch, Door Interlock-Upper WPL-M14D266
...
21
Shield Lt/rt WPL-M2D622
...
22
Screw, Casting Mtg. WPL-M1D766
...
23
Screw, Casting Mtg. WPL-M1D766
...
24
Lamp Acc Door Kit WPL-M20D294
...
25
Nut WPL-WP488130
...
26
Panel Dec WPL-43489P01
...
27
Capacitor-Doubler WPL-10366913
...
28
Kit, Blower Motor WPL-R0150121
...
29
Screw, Housing Mtg. WPL-M1D319
...
30
Wheel, Blower M35d39 WPL-36300P01
...
31
Deflector Air WPL-M65D276
...
32
Clip (10) WPL-M1D680
...
33
Not Available WPL-M1D295
...
34
No.8 T X 1/4`` Screw WPL-M1D486
...
35
Screw, Tf WPL-M0231704
...
36
Cushion WPL-M2D452
...
37
Relay Sec/intlk WPL-M16D105
...
38
Lock Washer WPL-M0272803
...
39
Relay WPL-38806P01
...
40
Res Asy Service M3d60 WPL-M3D60
...
41
Screw (25) WPL-M1D5
...
42
Lamp, Cavity WPL-M9D54
...
43
H.v. Lead Kit WPL-M5D350
...
44
Air Filter Kit WPL-M48D13
...
45
Ia Screw 10ab WPL-M1D369
...
46
Fuse- 3 Am WPL-Y0078733
...
47
Wshr-Rubber WPL-32383P01
...
48
.187 Dia Pop Rivet Steel WPL-M1D349
...
49
Ia Screw No.10-32 WPL-M1D370
...
50
Ia Screw No.10-32 WPL-M1D370
...
51
Screw-8-32x WPL-M1D765
...
52
Screw (25) WPL-M1D268
...
53
Nut K WPL-M0282005
...
54
Fuse 20 A WPL-WPM0805101
...
55
Strain Relf WPL-26632P01
...
56
Powercord 250v 10/16 Amps WPL-1738379615
...
57
Hv Rect 12kv 750max WPL-1330000301
...
58
Resistor, Bleeder-Line Filter WPL-M3D45
...
59
No.10 X 3/8`` Set Screw WPL-M1D904
...
60
Handle Inlay WPL-M7D712
...
61
Dr Inlay Gold Kit WPL-M7D368
...
62
Casting, Outer Door WPL-M70D59
...
63
Outer Window WPL-M51D47
...
64
Nut, Mask Mtg. WPL-M10760
...
65
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
66
Bushing M2d46 WPL-25788P01
...
67
Spring Latch Kit WPL-M2D198
...
68
Nut, Locking WPL-M1D859
...
69
Screw Adjust M1d744 (10) WPL-M1D744
...
70
Termnl Block WPL-M4D55
...
71
Screw Bkt Mtg WPL-M1D336
...
72
Hinge M8d212 (2per) WPL-94115P01
...
73
Bearing Flng (10) WPL-M1D112
...
74
Rod Hinge M52d157 WPL-31618P01
...
75
Flat Washer WPL-M1D117
...
76
Net Use 10897701 Dr Pnl K WPL-M70D66
...
77
Choke Filler WPL-33775P01
...
78
Window, Inner WPL-M51D34
...
79
Nut K WPL-M0282005
...
80
Gasket, Hinge Mtg. WPL-M25D65
...
81
Cover-Connector WPL-45532P01
...
82
Nut K WPL-M0282005
...
83
Triac - Comm/jetwave Lst Iv WPL-4070001301
...
84
Screw (25) WPL-M1D549
...
85
Screw (25) WPL-M1D549
...
86
Screw WPL-M1D867
