Amana EHT3302L (BOM: P1142446N L)

Model: EHT3302L (BOM: P1142446N L)

Save Part Not Listed?
product name

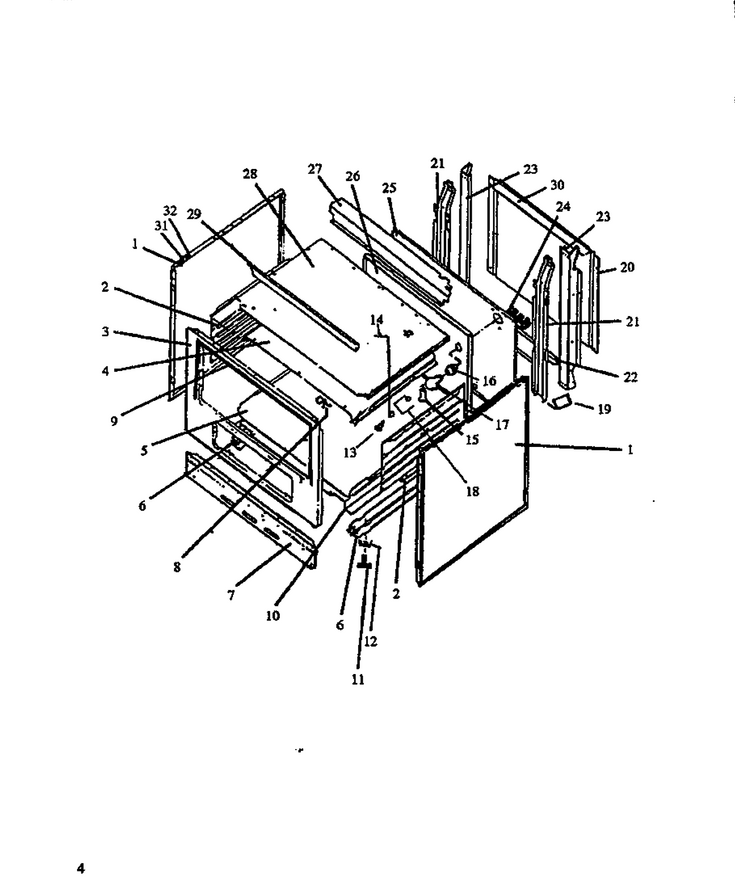

01 - Page 1

...
...
1
Sub 311003w, Panel-Side, White WPL-Y06533800W
...
2
Liner,oven Side WPL-0311807
...
3
Front Frame WPL-Y0311756
...
4
Liner, Oven Top WPL-310096E
...
5
Liner, Oven Bottom WPL-88898CG
...
6
Rail, Base WPL-06554900
...
7
Toe Panel (J) WPL-0052744
...
8
Clip, Capillary WPL-0088050
...
9
Seal- Oven WPL-31958801
...
10
Support, Oven Bottom Insul. WPL-Y0088820
...
11
Leg, Leveling WPL-Y0062362
...
12
Snap-In Tee Nut WPL-Y0088571
...
13
Shoulder Screw WPL-0088779
...
14
Support Rod WPL-0087023
...
15
Tube, Vent WPL-Y0311771
...
19
Kit, Anti-Tip WPL-07687600
...
20
Cover Wire WPL-Y0088833
...
21
Vertical Sup. (J) WPL-0052742
...
22
Bottom Wire Cover Support WPL-Y0088832
...
23
Support, Rear, Vertical {j} WPL-0056477
...
24
Block-Term WPL-WP8203546
...
25
Main Back, Elec. WPL-Y0311857
...
26
Liner, Oven Back WPL-88893CG
...
27
Burner Box, Rear Cover WPL-Y0311875
...
28
Bottom, Burner Box WPL-0311758
...
29
Extension, Burner Box WPL-Y0311755
...
30
Extension, Main Back WPL-0311757
...
31
Stud, Locating - Nylon WPL-0311086

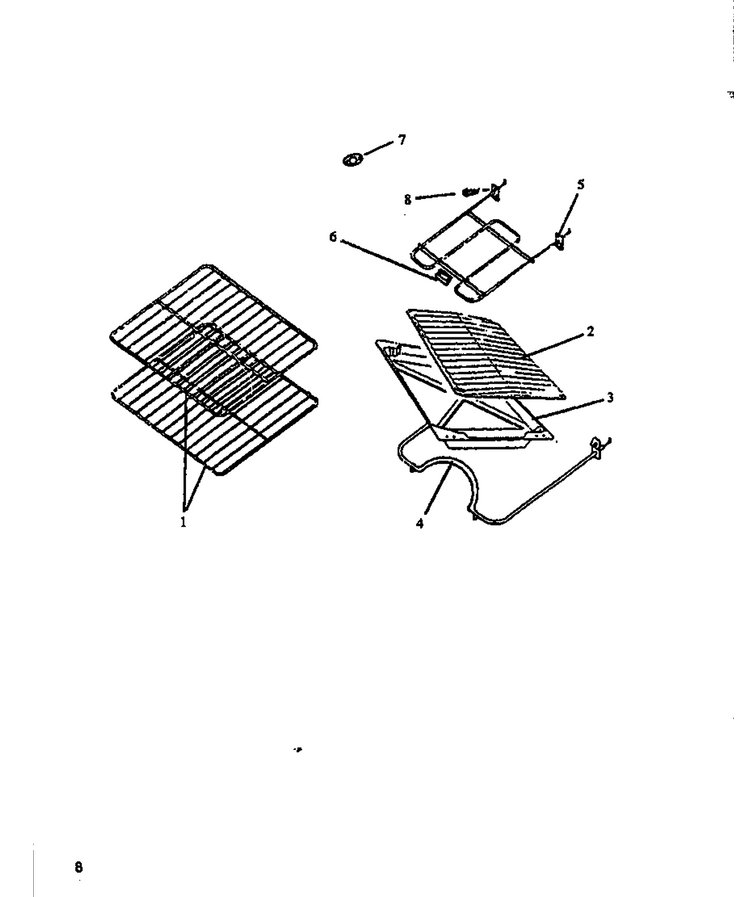

03 - Page 3

...
...
1
Rack, Oven, 30`` WPL-Y07671200
...
2
Procelain Broiler (Pan And Grid) WPL-4396923
...
3
Pan, Broiler WPL-87722CG
...
4
Element- B WPL-WPY07409600
...
5
Broil Elem WPL-WPY07431100
...
6
Clip- T-St WPL-R0000343
...
7
Disc, Thermo WPL-0053357
...
8
Screw WPL-0087709

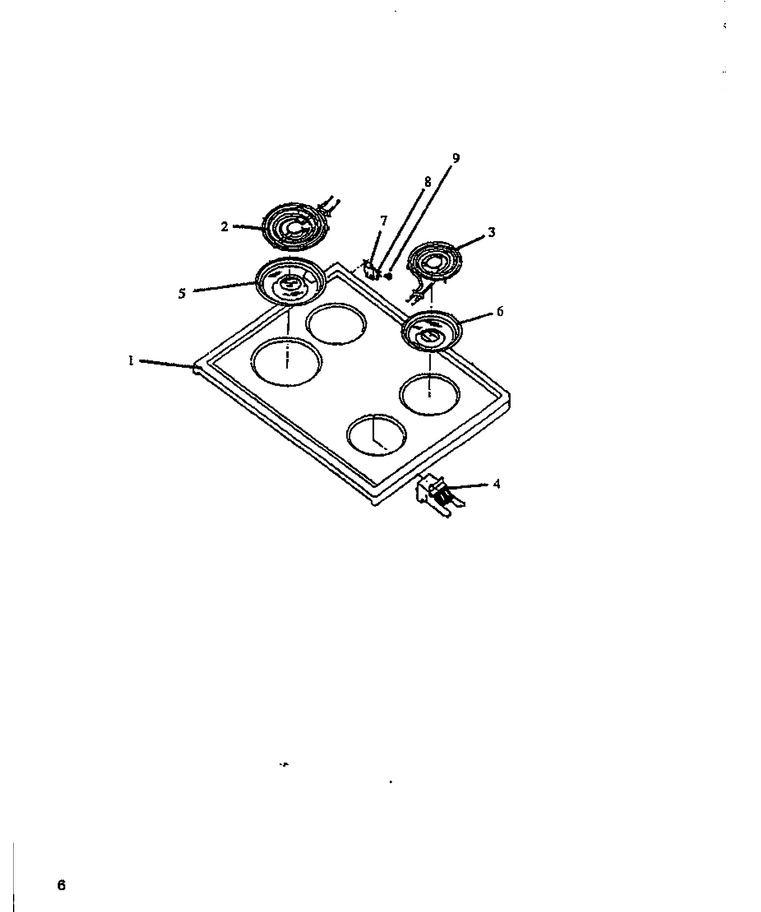

02 - Page 2

...
...
1
Main Top, Almond WPL-301747L
...
2
Elmnt-Surf WPL-WP9761346
...
3
Elmnt-Surf WPL-WPW10345407
...
4
Receptacle WPL-330031
...
5
Bowl-Drip WPL-WPW10196405
...
6
Bowl-Drip WPL-WPW10196406
...
7
Hinge, Main Top WPL-0088782
...
8
Screw No.10x1/2 Blunt WPL-Y0310363
...
9
Nut, Speed, Flat WPL-Y0310032

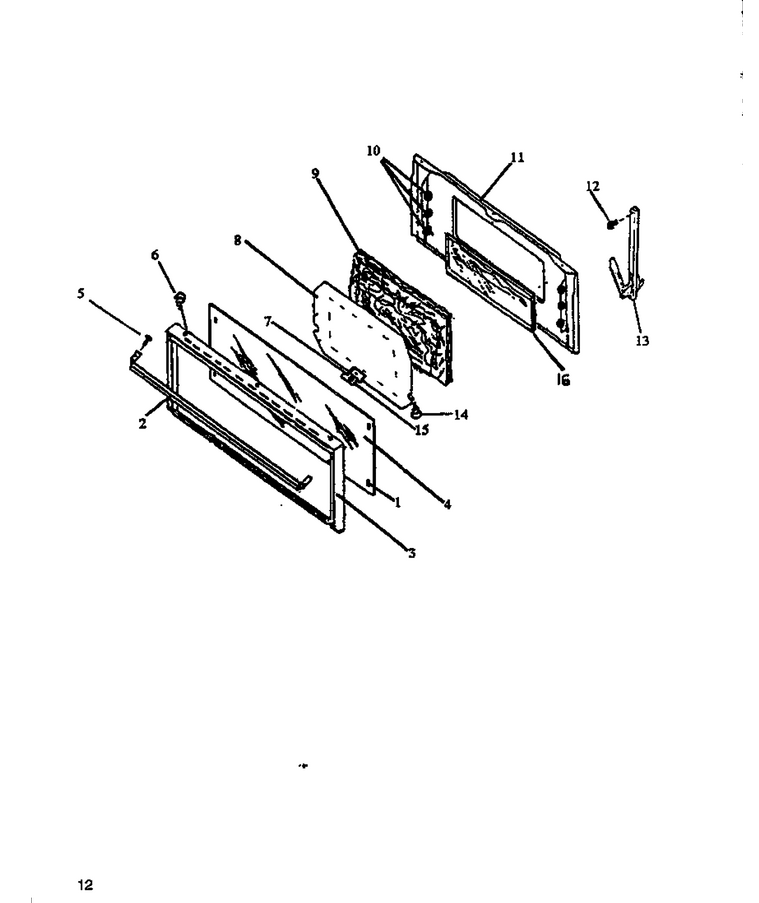

04 - Page 5

...
...
1
Bumper ``l`` Shaped WPL-Y0312836
...
2
Handle, Door WPL-Y0311764
...
3
Frame, Oven Door WPL-0311767
...
4
Glass, Oven Door WPL-0311769
...
5
Screw WPL-313806
...
6
Screw WPL-WP7101P126-60
...
7
Bracket, Bumper Mount {j} WPL-Y0311752
...
8
Baffle, Oven Door WPL-06511801
...
9
Insulation, Wrapper WPL-31975801
...
10
Bumper-Rubber 1/4`` WPL-Y02068200
...
11
Liner, Door WPL-06544300E
...
12
Screw WPL-WP4159193
...
13
Hinge, Oven Door WPL-0311802
...
14
Screw WPL-WP7101P126-60
...
15
Bumper-Rubber 1/4`` WPL-Y02068200

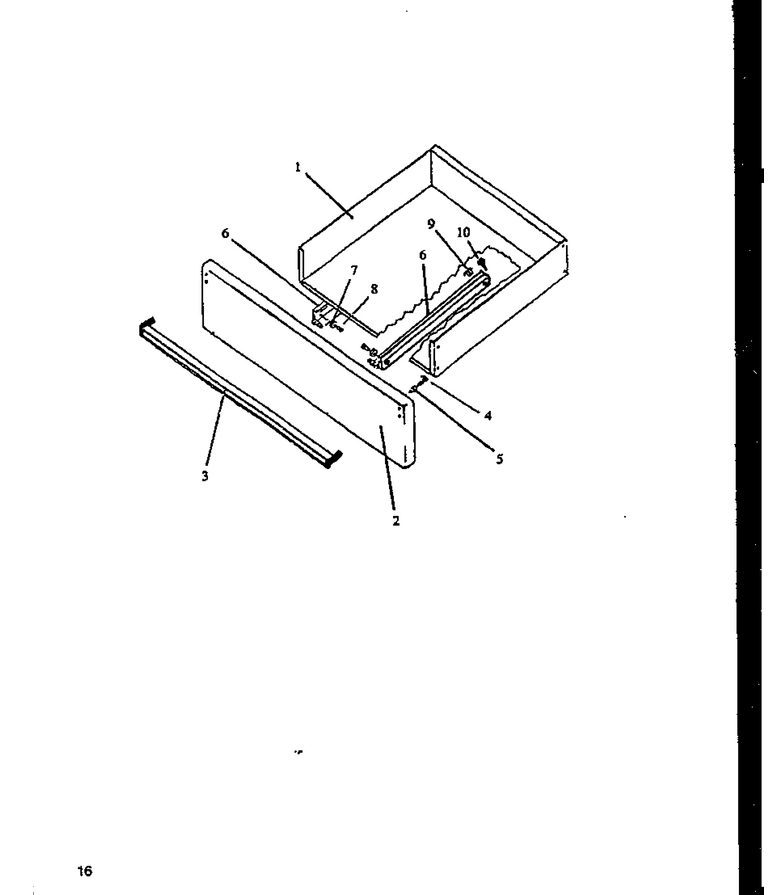

06 - Page 7

...
...
1
Storage Drawer WPL-Y0310537
...
2
Panel, Storage Drawer, Almond WPL-311786L
...
3
Handle, Door WPL-Y0311765
...
4
Screw WPL-313806
...
5
Bumper-Rubber 1/4`` WPL-Y02068200
...
6
Track, Upper L.h. (Elec) WPL-0310518
...
9
Glide, Drawer (Wht) WPL-Y07674900
...
10
Screw WPL-WP7101P126-60

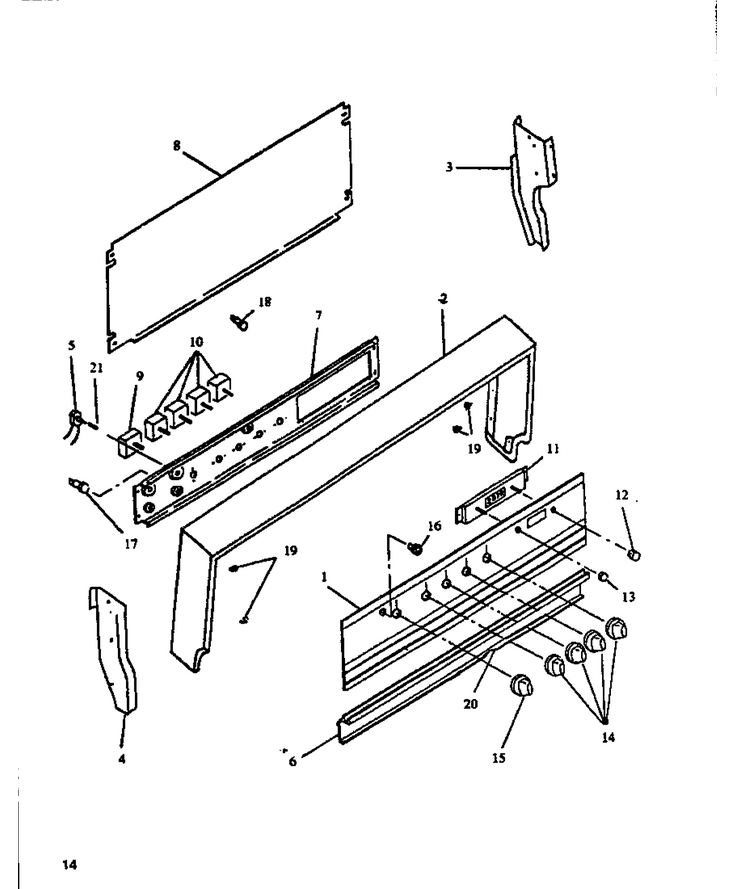

05 - Page 6

...
...
1
Glass, Backguard WPL-0311776
...
2
Backguard Frame WPL-0057325
...
3
Backguard Support, Rh WPL-0056475
...
4
Backguard Support, Lh WPL-Y0056474
...
6
Base, Backguard WPL-Y0311759
...
7
Panel, Switch Mtg. WPL-Y0311751
...
8
Wire Cover WPL-0310989
...
9
Thermostat, Oven WPL-Y07648601
...
10
Switch, Infinite WPL-0057312
...
14
Knob, Surface Unit WPL-0311774
...
15
Knob, Thermostat WPL-Y0311773
...
17
Light, Indicator WPL-Y0088777
...
18
Light, Pilot WPL-0088640
...
19
Bumper-Rubber 1/4`` WPL-Y02068200
...
20
U-Clip, Safe Edge WPL-31750803
