Amana EHS346-OF (BOM: EHS3460OF)

Model: EHS346-OF (BOM: EHS3460OF)

Save Part Not Listed?
product name

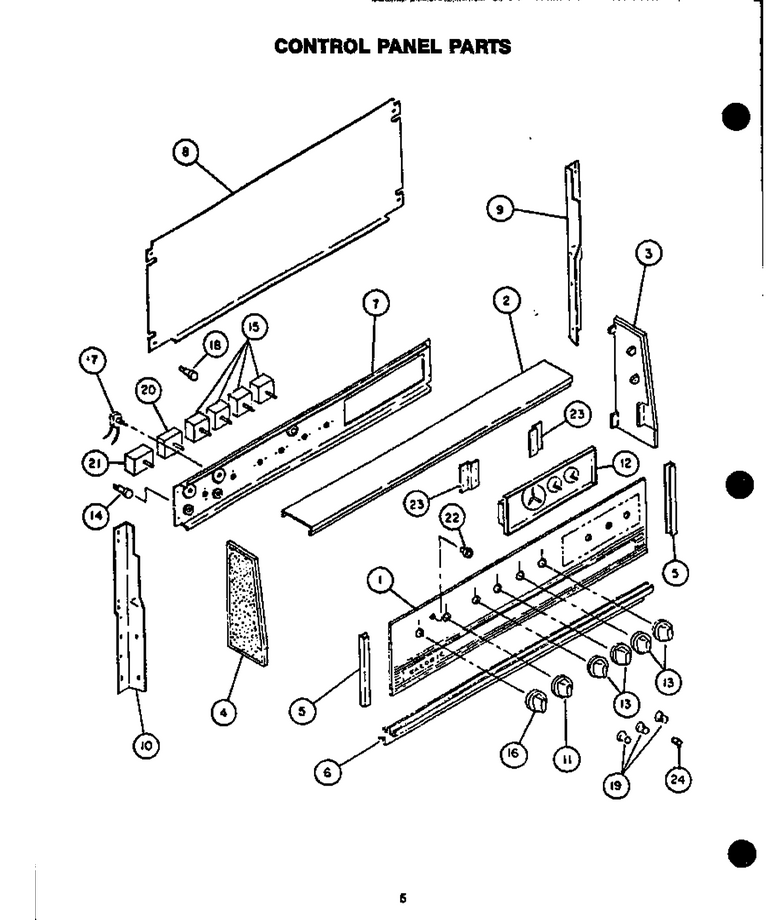

01 - Control Panel Parts

...
...
NI
Speednut WPL-Y0065052
...
1
Glass, Control Panel WPL-0060179
...
2
Trim, Top, Backguard WPL-0060623
...
3
End Cap, Bkgd.-R.h. WPL-0301002
...
4
End Cap, Bkgd.- L.h. WPL-0301001
...
5
Trim Piece, Lower WPL-0061244
...
6
Trim Piece, Lower WPL-Y0060632
...
7
Control Pnl, Backguard WPL-0058824
...
8
Cover, Backguard WPL-0058886
...
9
Support Backguard Lh WPL-Y0304123
...
10
Support, Backguard Rt WPL-Y0058920
...
11
Knob, Selector WPL-0060163
...
12
Clock, Analog WPL-0060171
...
13
Knob, Top Element WPL-Y0060235
...
14
Indicator Light, Oven WPL-W10124419
...
15
Switch, Infinite WPL-0071745
...
16
Knob, Oven Control/thermostat WPL-0059909
...
17
Kit, Light Switch WPL-0060303
...
18
Indicator Light WPL-Y0071820
...
19
Knob- Cloc WPL-315210B
...
20
Switch, Selector WPL-Y0063417
...
21
Thermostat WPL-Y0063415
...
22
Bezel, Panel Switch WPL-0065051
...
23
Bracket, Clock Mtg. WPL-0061264

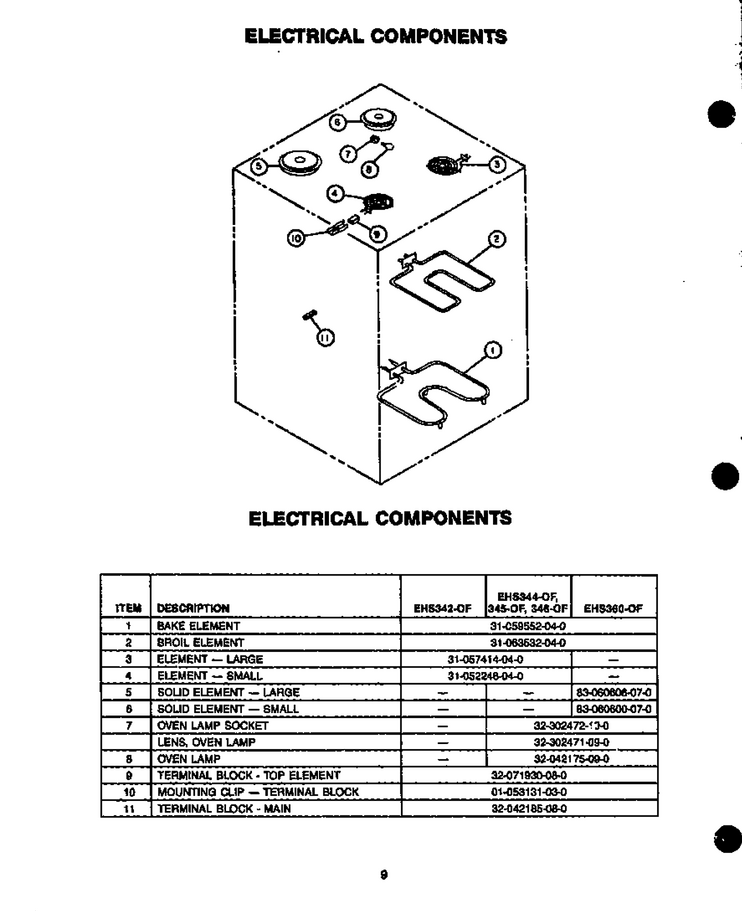

02 - Electrical Components

...
...
1
Element- B WPL-WP77001094
...
2
Broil Elem WPL-WPY0063532
...
3
Elmnt-Surf WPL-WPW10259865
...
4
Elmnt-Surf WPL-WPW10259868
...
7
Light- Ove WPL-WP74011278
...
8
Light Bulb WPL-8009
...
9
Receptacle WPL-330031
...
10
Bracket WPL-W10116809
...
11
Term Blk 1m-Min WPL-0042185

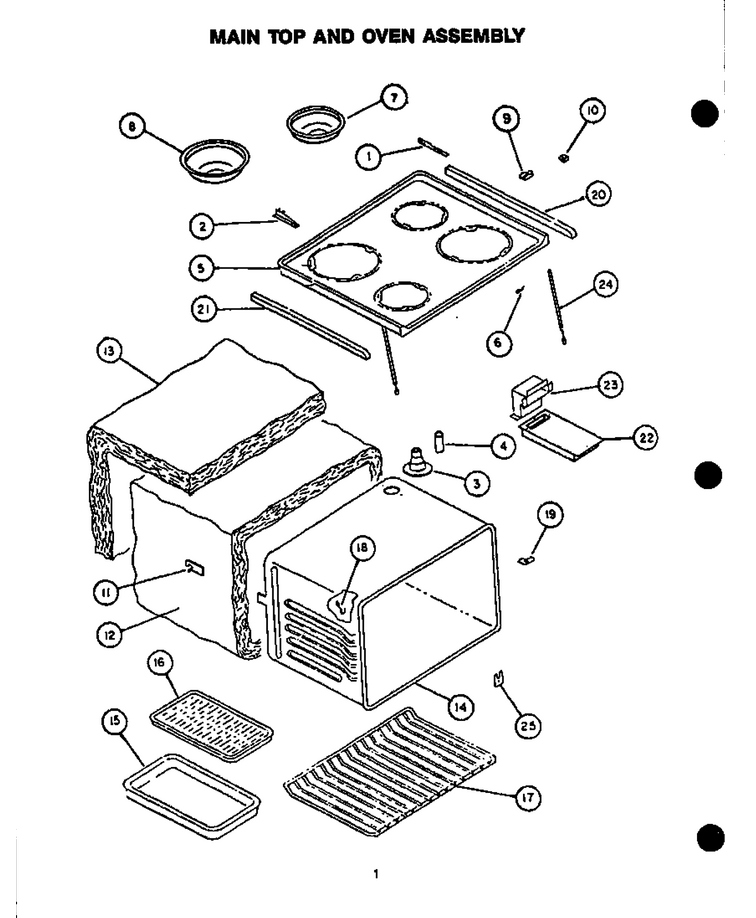

05 - Page 1

...
...
1
Bracket Assembly WPL-0091517
...
2
Bracket Assembly WPL-0091518
...
3
Tube, Vent Extension WPL-0060633
...
4
Vent Adaptor WPL-Y0059799
...
5
Main Top - Almond WPL-0059465
...
6
Pin, Support Rod WPL-0071668
...
7
Bowl-Drip WPL-WPW10196406
...
8
Pkg. 160, B.b. 8`` WPL-X042142
...
9
Wire Clamp WPL-0071203
...
10
Nut, Type ``u`` WPL-Y0096604
...
11
Bracket, Oven Cavity WPL-Y0058852
...
12
Insulation, Oven Wrap WPL-Y0301031
...
13
Insulation, Top & Rear WPL-Y0301032
...
14
Oven Shell WPL-W10124600
...
15
Sub 11161cg, Broiler Pan WPL-Y0011161
...
16
Procelain Broiler (Pan And Grid) WPL-4396923
...
17
Rack-Oven WPL-WP314763J
...
18
Backsplash, Upper WPL-Y0067503
...
19
Chip Cover WPL-0300278
...
22
Flue Box WPL-Y0060627
...
23
Flue Box WPL-Y0060631
...
24
Support, Maintop WPL-Y0315430
...
25
Capillary Hole Cover WPL-Y0063351

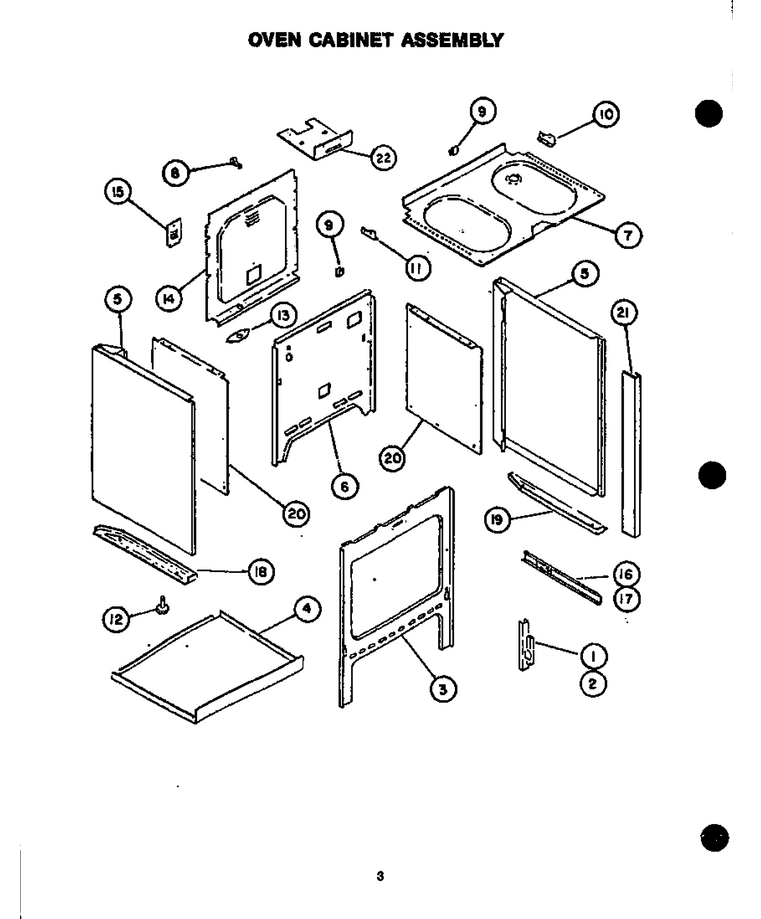

03 - Oven Cabinet Assy

...
...
1
Kit, Door Hinge(Lh-Hs) WPL-Y0066953
...
2
Hinge-Door WPL-R0706011
...
3
See Note Front Frame -- (Not Replaceable) WPL-Y00000000
...
4
Ins. Retainer, Bottom WPL-Y0057531
...
5
Side Panel - Almond WPL-W10124825
...
6
Ins. Retainer, Rear WPL-0058897
...
7
See Note Drip Baffle WPL-Y00000000
...
8
Clamp, Wire-Insulate WPL-Y0068513
...
9
Cable, Clip Esm WPL-Y0091587
...
10
Bracket WPL-Y0091519
...
11
Bracket WPL-Y0091520
...
12
Leg, Leveling WPL-Y0300585
...
13
Plate, Main Inlet Wire WPL-0058311
...
14
Cover, Rear WPL-Y0058434
...
15
Plate, Access WPL-31757201
...
16
Track, Storage Drawer-L.h. WPL-Y0300474
...
17
Track, Storage Drawer-R.h. WPL-0300475
...
18
Brace, Leveling Leg (Lt) WPL-31854501
...
19
Brace, Leveling Leg (Lt) WPL-31854501
...
20
Insulation Retainer, Side WPL-Y0058999
...
21
Trim, Side Panel, Lh WPL-Y0301639
...
22
Bracket, Latch Mtg. WPL-Y0058918

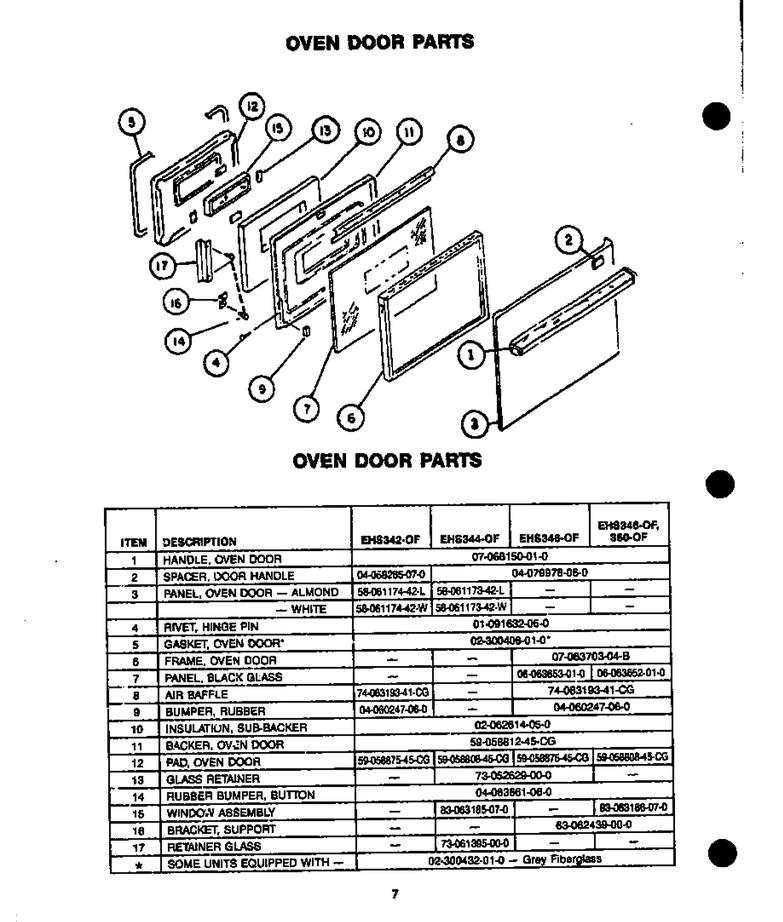

04 - Oven Door Parts

...
...
NI
Gasket, Oven Dr 82`` WPL-Y0300432
...
1
Handle, Door WPL-0068150
...
2
Spacer Door Handle WPL-Y0079978
...
4
Rivet WPL-0091632
...
5
Gasket, Oven Door WPL-0300408
...
6
Frame, Glass Door WPL-0063703
...
7
Panel, Black Glass WPL-0063652
...
8
Plate, Air Baffle WPL-0063193
...
9
Bumper, Rubber WPL-Y0060247
...
10
Insulation,door-Sub Backer WPL-0062614
...
11
Backer, Oven Door WPL-W10124800
...
12
Pad, Ov Dr W/window WPL-314693CG
...
14
Bumper, Oven Door WPL-Y0063661
...
16
Support Bracket, Glass WPL-Y0062439
