Amana EHN3892WW (BOM: P1142422NWW)

Model: EHN3892WW (BOM: P1142422NWW)

Save Part Not Listed?
product name

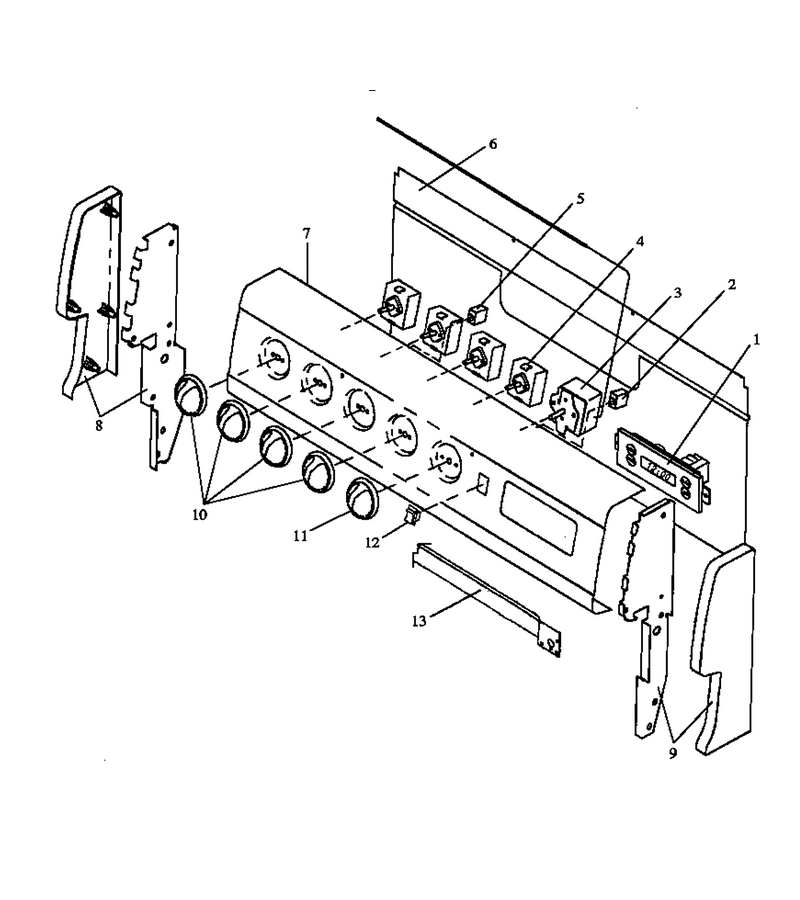

01 - Backguard Assy

...
...
NI
Screw WPL-0055047
...
1
Clock (Gray) WPL-Y07707901
...
2
Light, Indicator (Oven) WPL-Y07606700
...
3
Thermostat, Oven WPL-Y07648601
...
4
Switch, Infinite WPL-0057312
...
5
Light, Indicator WPL-Y07606704
...
6
Cover, Bkgd Rear 11`` WPL-Y06559601
...
7
Panel, Bkgd (White) WPL-07708902
...
8
Endcap, Bkgd 11`` L.h. WPL-Y06567003
...
9
Endcap, Bkgd 11`` R.h. WPL-Y06567002
...
10
Knob Infinite Switch WPL-Y07708503
...
11
Knob Thermostat WPL-Y07708502
...
12
Switch, Light (Lt Grey) WPL-Y07634802
...
13
Trim, Lower WPL-Y06559101W

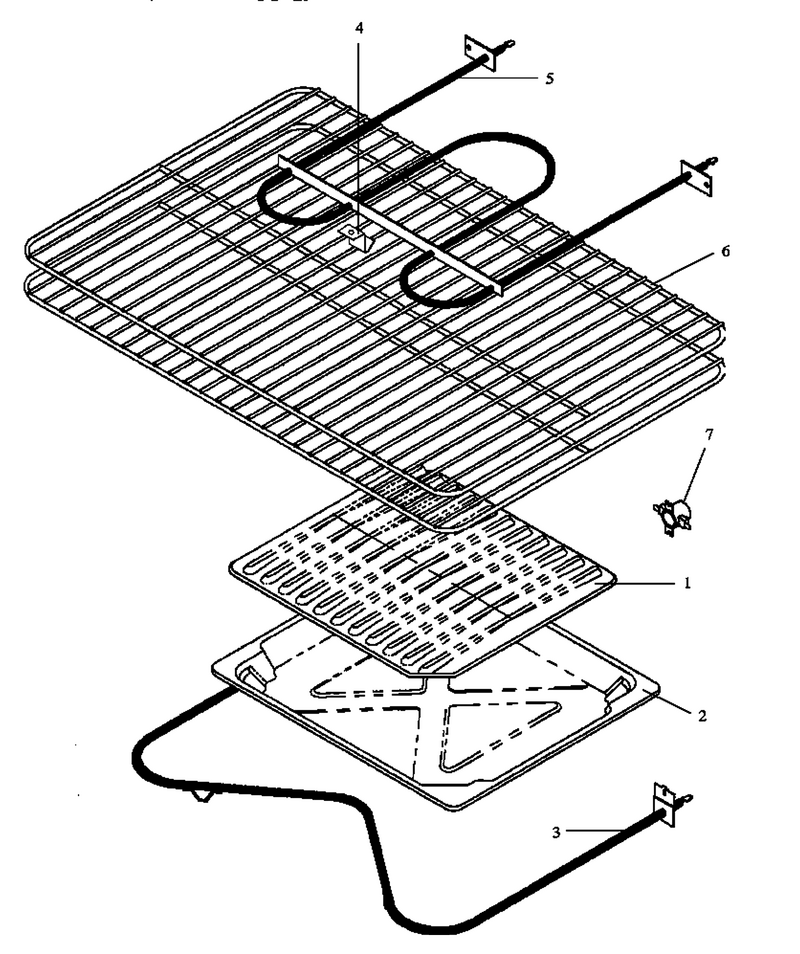

05 - Oven Components

...
...
NI
Screw WPL-WP7101P126-60
...
1
Procelain Broiler (Pan And Grid) WPL-4396923
...
2
Pan, Broiler WPL-87722CG
...
3
Element- B WPL-WPY07409600
...
4
Clip- T-St WPL-R0000343
...
5
Broil Elem WPL-WPY07431100
...
6
Rack, Oven, 30`` WPL-Y07671200
...
7
Disc, Thermo WPL-0053357

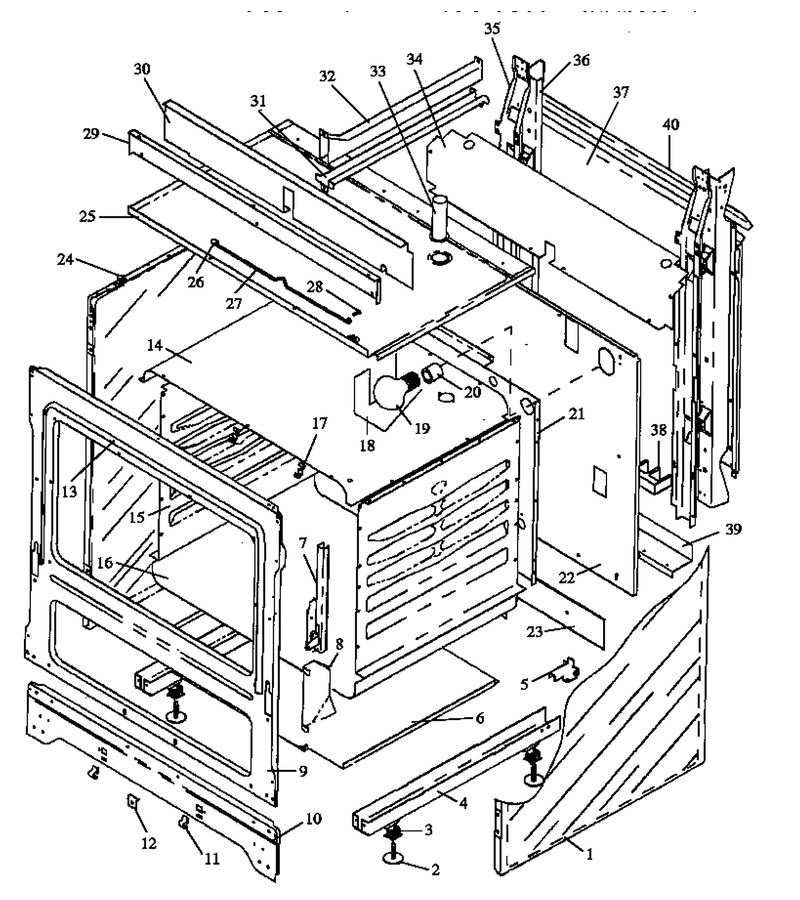

02 - Cabinet Section

...
...
NI
Screw (J) WPL-0310233
...
1
Side, Body (White) WPL-06559000W
...
2
Leg, Leveling WPL-Y0062362
...
3
Snap-In Tee Nut WPL-Y0088571
...
4
Rail, Base WPL-06554900
...
5
Kit, Anti-Tip WPL-07687600
...
6
Support, Oven Bottom Insul. WPL-Y0088820
...
7
Hinge, Oven Door WPL-0311802
...
8
Shield, Insulation {j} WPL-0310053
...
9
Front Frame, Electric WPL-Y0312154
...
10
Toe Panel (J) WPL-0052744
...
13
Seal- Oven WPL-31958801
...
14
Top, Oven Liner WPL-Y06470002E
...
15
Liner,oven Side WPL-0311807
...
16
Liner, Oven Bottom WPL-88898CG
...
17
Clip, Capillary WPL-0310802
...
18
Cage, Oven Light WPL-Y0088635
...
19
Light Bulb WPL-8009
...
20
Socket, Oven Light WPL-Y0316385
...
21
Liner, Oven Back WPL-88893CG
...
22
Back, Main Electric 30`` WPL-Y06478202
...
23
Extension, Main Back WPL-0311757
...
24
Bumper, Oven Door WPL-Y0063661
...
25
Box, Burner Elec WPL-06559700
...
26
Support Rod WPL-07712200
...
27
Support Rod WPL-07712100
...
28
Shoulder Screw WPL-0088779
...
29
Extension, Burner Box WPL-Y0312152
...
33
Tube, Vent WPL-Y0311771
...
34
Cover, Rear B.b. (30``) WPL-Y06492418
...
35
Supt. Main Back (Vert) WPL-Y06565600
...
36
Support, Rear, Vertical {j} WPL-0056477
...
37
Cover Wire WPL-Y0088833
...
38
Block-Term WPL-WP8203546
...
39
Support, Bottom Wire WPL-0312153

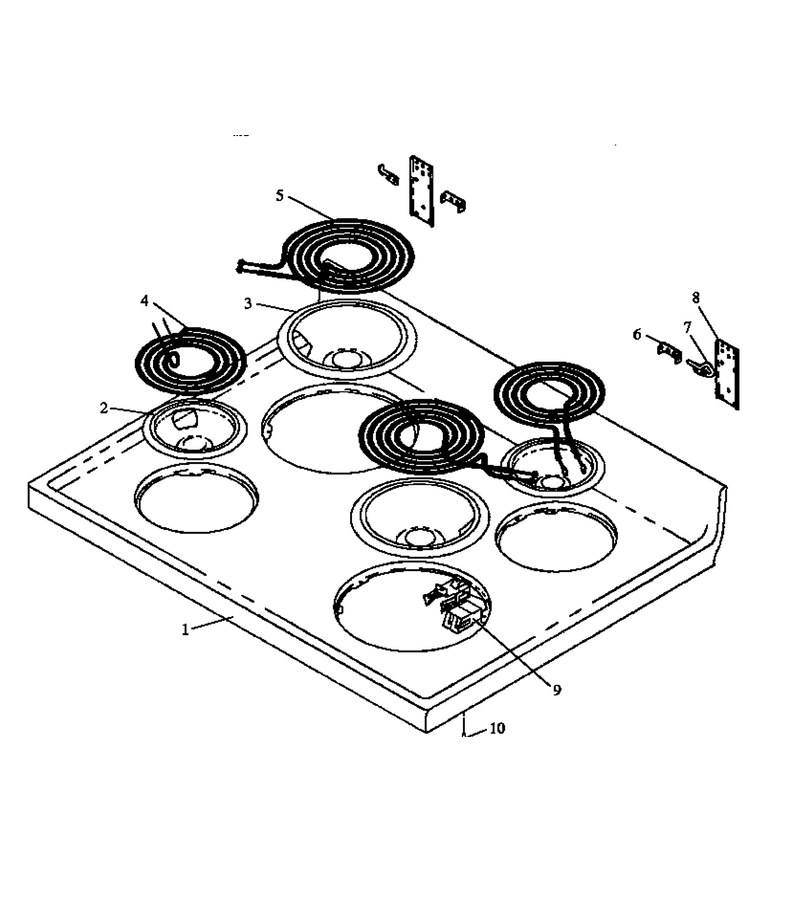

04 - Maintop Assy

...
...
NI
Clip, Speed (Doz) {j} WPL-0310033
...
1
Main Top-Electric Upswept WPL-306899W
...
2
Bowl-Drip WPL-WPW10196406
...
3
Bowl-Drip WPL-WPW10196405
...
4
Element, 6``1250w. 4 Turn WPL-Y07683200
...
5
Elmnt-Surf WPL-WP3191454
...
6
Brkt, Hinge Strap Mtg WPL-Y0306150
...
7
Hinge Arm, Right Hand WPL-07712804
...
8
Bracket, Hinge WPL-06565500
...
9
Receptacle WPL-330031
...
10
Screw, Stud WPL-31750709

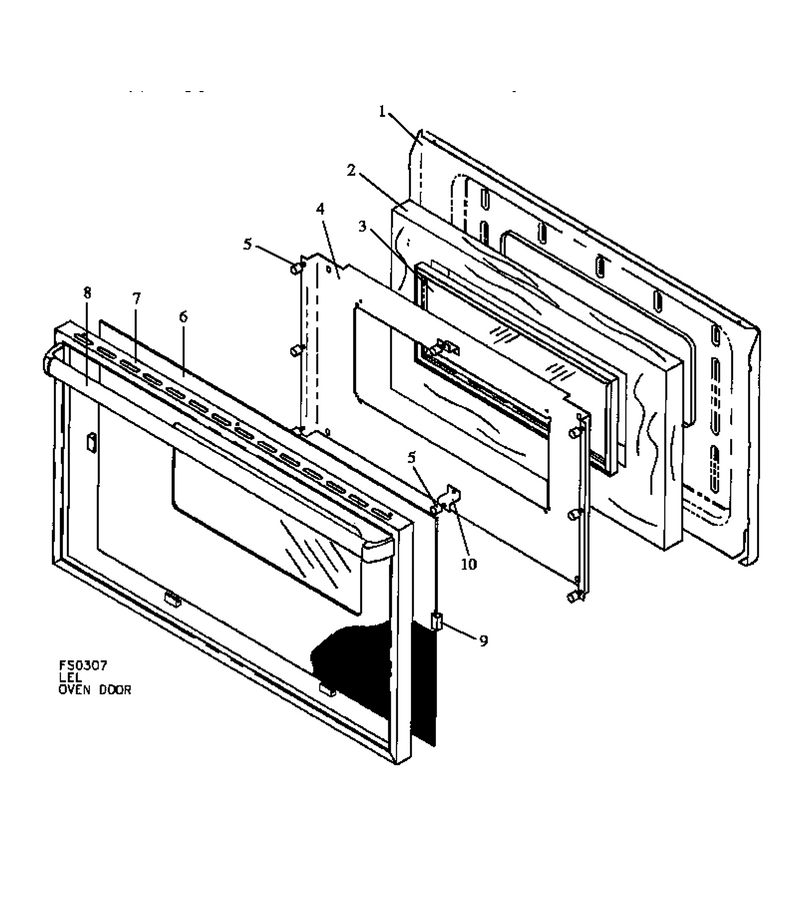

06 - Oven Door Assy

...
...
NI
Screw WPL-313806
...
1
Door, Oven WPL-Y06565300E
...
2
Insulation, Wrapper WPL-31975801
...
3
Window, Ov.dr.(2)pane WPL-Y0086785
...
4
Baffle, Oven Door WPL-06511800
...
5
Bumper-Rubber 1/4`` WPL-Y02068200
...
6
Glass, Door WPL-07707601
...
7
Frame, Door WPL-07708001
...
8
Handle, Door (Gray) WPL-Y07708101
...
9
Bumper ``l`` Shaped WPL-Y0312836
...
10
Bracket, Bumper Mount {j} WPL-Y0311752

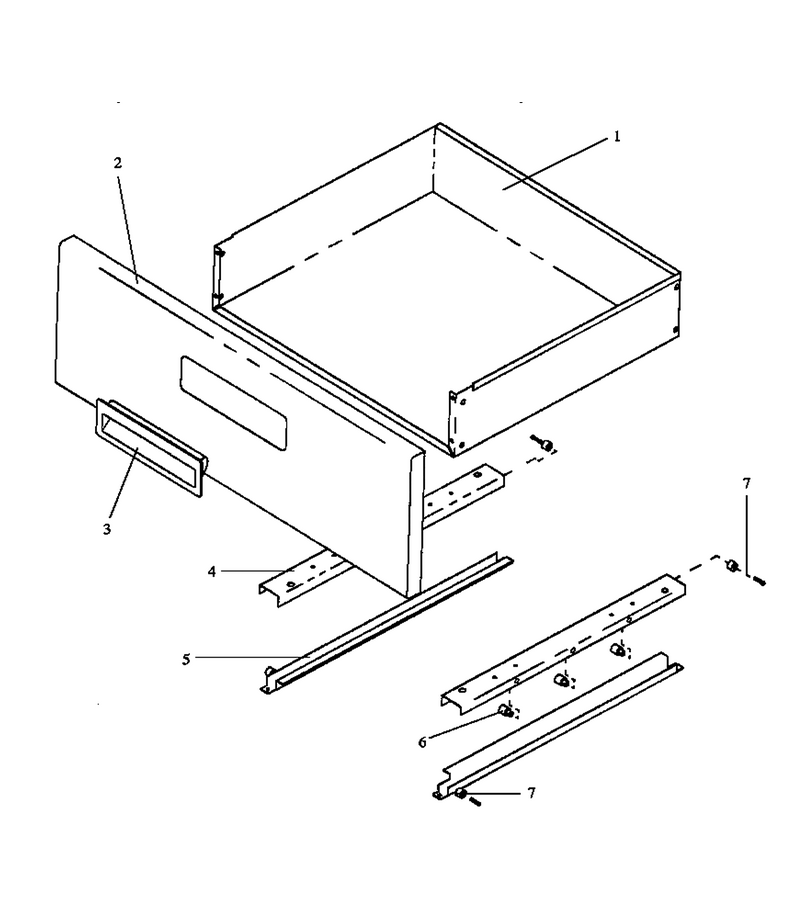

03 - Fixed Panel & Storage Drawer Assy

...
...
NI
Glide, Drawer (Wht) WPL-Y07674900
...
1
Storage Drawer WPL-Y0310537
...
2
Drawer, Storage (White) WPL-06564700W
...
3
Handle (Almond) WPL-07707201
...
4
Track, Upper R.h. (Elec) WPL-0310519
...
5
Track, Lower R.h. WPL-Y0310523
...
6
Glide, Drawer (Wht) WPL-Y07674900
...
7
See Note Roller And Rivet - Part Of Ref. No. 4 And 5 WPL-Y00000000
