Amana EHN3892L (BOM: P1143208N L)

Model: EHN3892L (BOM: P1143208N L)

Save Part Not Listed?
product name

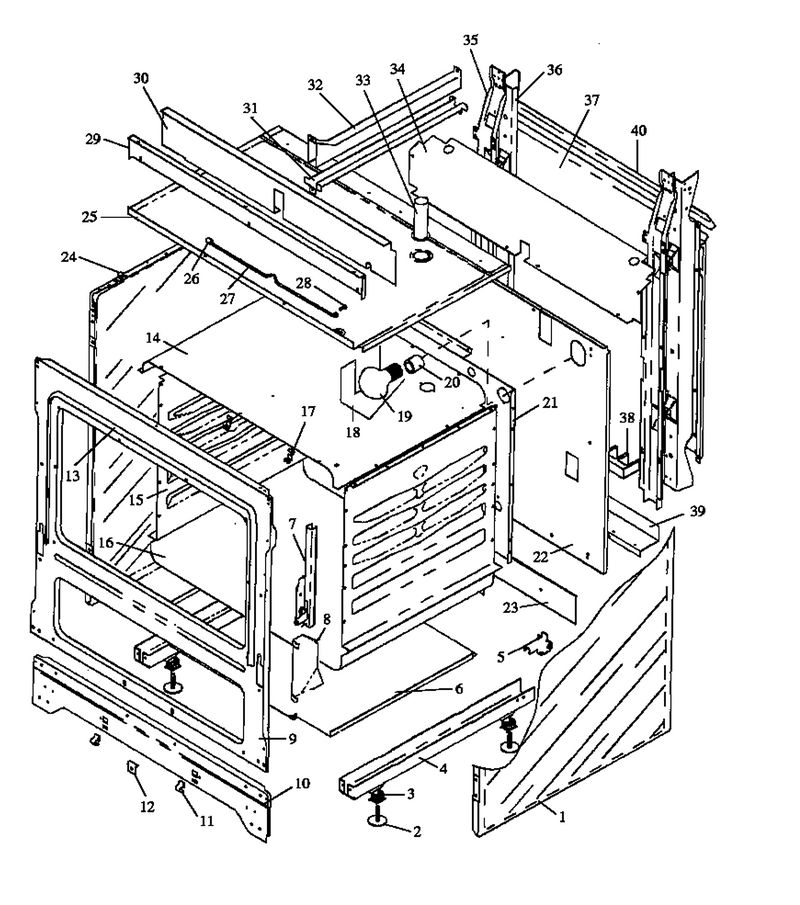

02 - Cabinet

...
...
NI
Screw No.10 X 1/2`` WPL-Y0310804
...
1
Side, Body (Almond) WPL-06559000L
...
2
Leveler WPL-W11117769
...
3
Snap-In Tee Nut WPL-Y0088571
...
4
Rail, Base WPL-06555001
...
5
Kit, Anti-Tip WPL-07687600
...
6
Support, Oven Bottom Insul. WPL-Y0088820
...
7
Hinge, Oven Door WPL-0311802
...
8
Shield, Insulation {j} WPL-0310053
...
9
Mn Frnt-Elec, `2`,enam WPL-Y06491600E
...
10
Panel, Toe 30`` (Black) WPL-Y06451602
...
13
Seal- Oven WPL-31958801
...
14
Top, Oven Liner WPL-Y06470002E
...
15
Liner,oven Side WPL-0311807
...
16
Liner, Oven Bottom WPL-88898CG
...
17
Clip, Capillary WPL-0310802
...
18
Cage-Light,ov WPL-Y008635
...
19
Light Bulb WPL-8009
...
20
Socket, Oven Light WPL-Y0316385
...
21
Liner, Oven Back WPL-88893CG
...
22
Back, Main Electric 30`` WPL-Y06478202
...
23
Extension, Main Back WPL-0311757
...
24
Bumper, Oven Door WPL-Y0063661
...
25
Box, Burner Elec WPL-06559700
...
26
Support Rod WPL-07712200
...
27
Support Rod WPL-07712100
...
28
Shoulder Screw WPL-0088779
...
29
Exten-B.b., Frt, Elec WPL-Y06491402
...
33
Tube, Vent WPL-Y0311771
...
34
Cover, Wire WPL-Y06434908
...
35
Supt. Main Back (Vert) WPL-Y06565600
...
36
Support, Rear, Vertical {j} WPL-0056477
...
37
Cover Wire WPL-Y0088833
...
38
Block-Term WPL-WP8203546
...
39
Support, Bottom Wire WPL-0312153

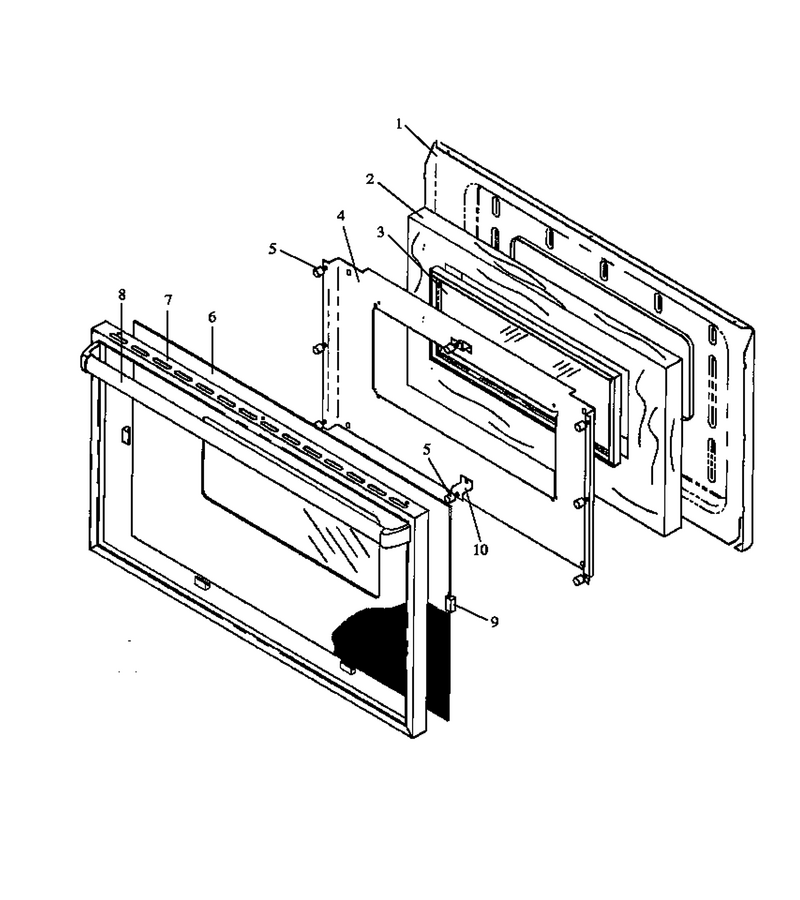

05 - Oven Door, Glass, Ehn380/389

...
...
NI
Screw, No.10-12 X 50 WPL-Y0311900
...
1
Door, Oven WPL-Y06565300E
...
2
Insulation, Wrapper WPL-31975801
...
3
Sub 88647,window Assy Door WPL-Y0088126
...
4
Baffle, Oven Door WPL-06511800
...
5
Bumper-Rubber 1/4`` WPL-Y02068200
...
6
Glass, Door (Black) WPL-Y07707600
...
7
Frame, Door (Black) WPL-07708000
...
8
Handle, Door (Black) WPL-Y07708100
...
9
Bumper ``l`` Shaped WPL-Y0312836
...
10
Bracket, Bumper Mount {j} WPL-Y0311752

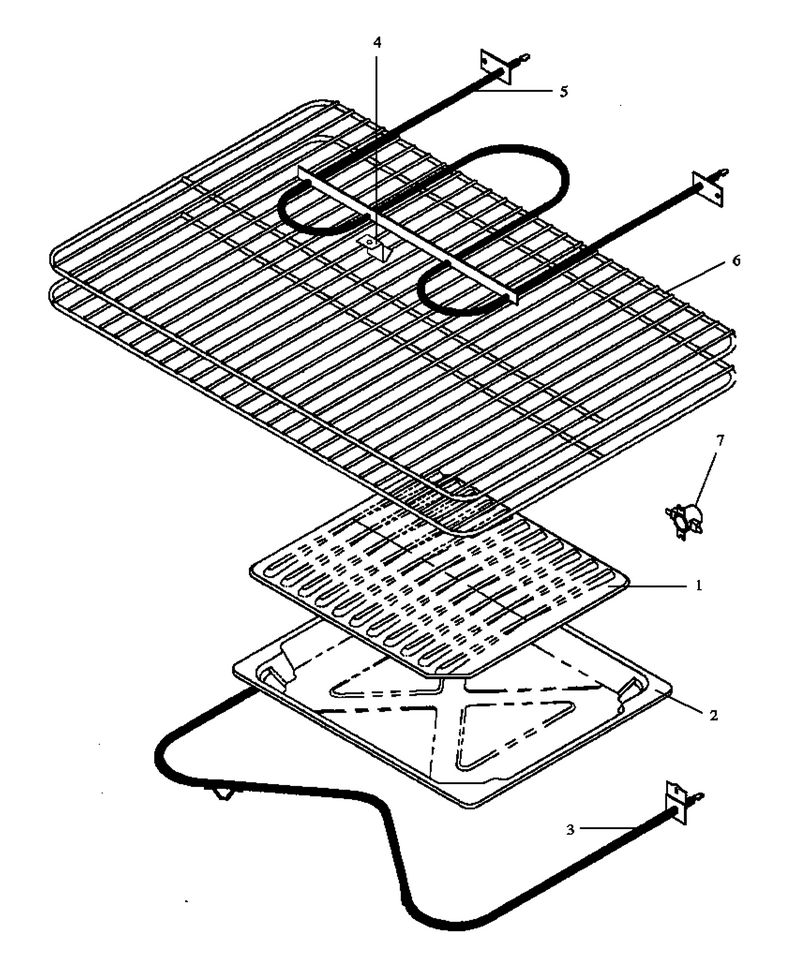

04 - Oven Components

...
...
NI
Screw No.10-16x1`` Pan Hd WPL-Y07697600
...
1
Procelain Broiler (Pan And Grid) WPL-4396923
...
2
Procelain Broiler (Pan And Grid) WPL-4396923
...
3
Element- B WPL-WPY07409600
...
4
Clip- T-St WPL-R0000343
...
5
Broil Elem WPL-WPY07431100
...
6
Rack, Oven, 30`` WPL-Y07671200
...
7
Disc, Thermo WPL-0053357

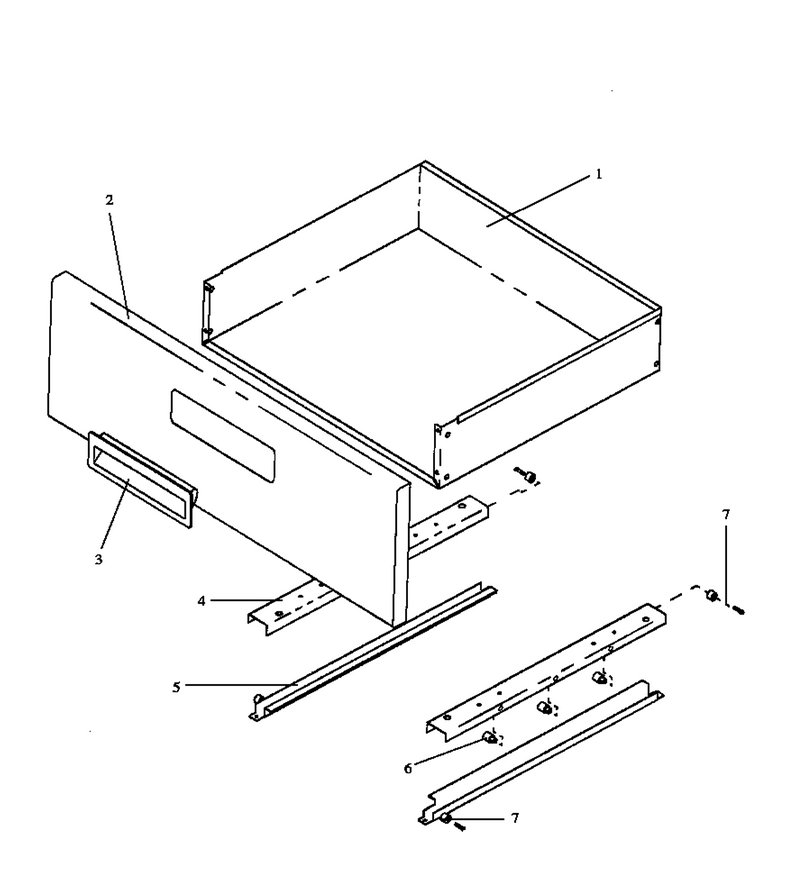

06 - Storage Drawer

...
...
NI
Screw WPL-WP7101P126-60
...
1
Storage Drawer WPL-Y0310537
...
2
Pnl, Stroage Dwr, 30`` WPL-Y06561500L
...
3
Handle (Almond) WPL-07707201
...
4
Track, Upper R.h. (Elec) WPL-0310519
...
5
Track, Lower L.h. WPL-0310522
...
6
Glide, Drawer (Wht) WPL-Y07674900

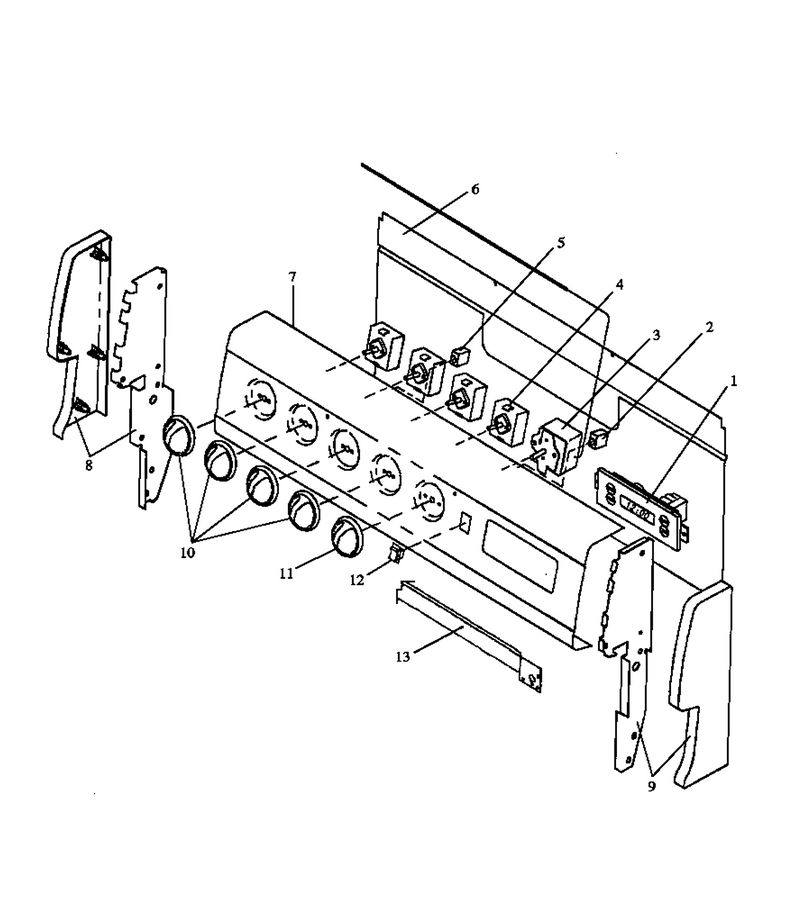

01 - Backguard, Ehn380/389

...
...
NI
Screw, No.10 X 3/8`` WPL-Y07712300
...
1
Clock (Black) WPL-Y07707900
...
2
Light-Ind, Ov, Elec WPL-31638409
...
3
Thermostat, Oven WPL-Y07648601
...
4
Switch- In WPL-WP74011243
...
5
Light, Indicator WPL-Y07606704
...
6
Cover, Bkgd Rear 11`` WPL-Y06559601
...
7
Panel, Backguard (Black) WPL-07708900
...
8
Endcap, Bkgd 11`` L.h. WPL-Y06567001
...
9
End Cap, Bkgd 11`` R.h. WPL-Y06567000
...
10
Knob, Infinite Switch WPL-Y07708501
...
11
Knob Thermostat WPL-Y07708500
...
12
Switch, Rocker WPL-Y07634800
...
13
Tim, Lower Bkgd (Black) WPL-Y06559120B

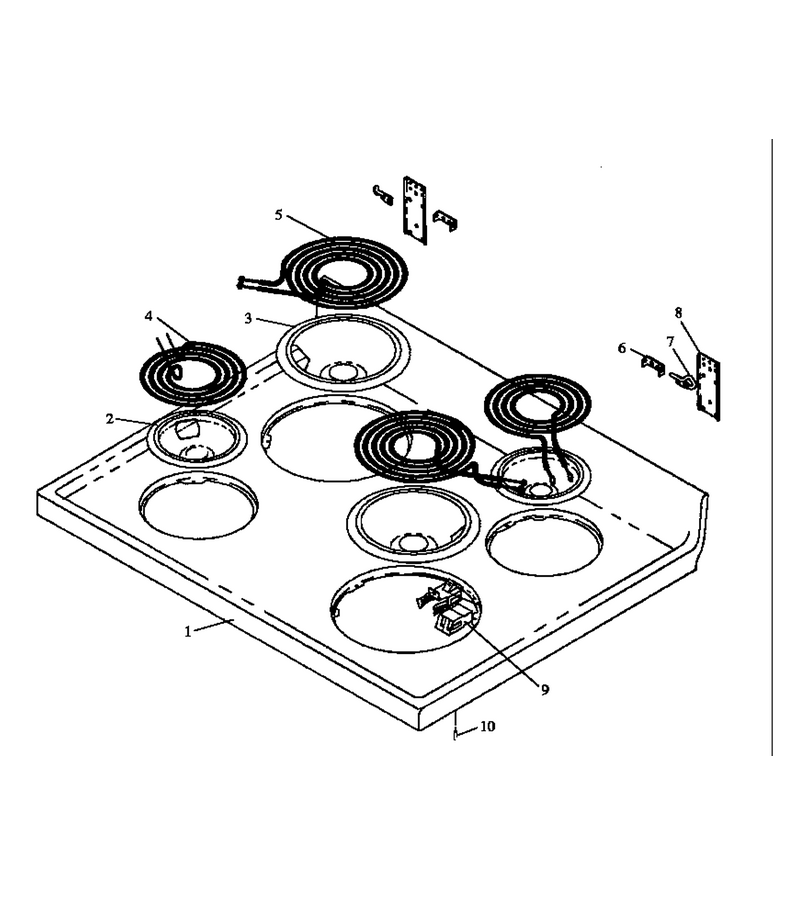

03 - Main Top

...
...
NI
Clip, Element Retainer WPL-Y0307930
...
1
Main Top-Electric Upswept WPL-306899L
...
2
Bowl-Drip WPL-WPW10196406
...
3
Bowl-Drip WPL-WPW10196405
...
4
Element, 6``1250w. 4 Turn WPL-Y07683200
...
5
Elmnt-Surf WPL-WP3191454
...
6
Bushing, Hinge Wire WPL-Y07730700
...
7
Wire, Hinge (Right) WPL-07730600
...
8
Bracket, Hinge WPL-06565500
...
9
Receptacle WPL-330031
...
10
Screw, Stud WPL-31750709
