Amana EHN3402W (BOM: P1143205N W)

Model: EHN3402W (BOM: P1143205N W)

Save Part Not Listed?
product name

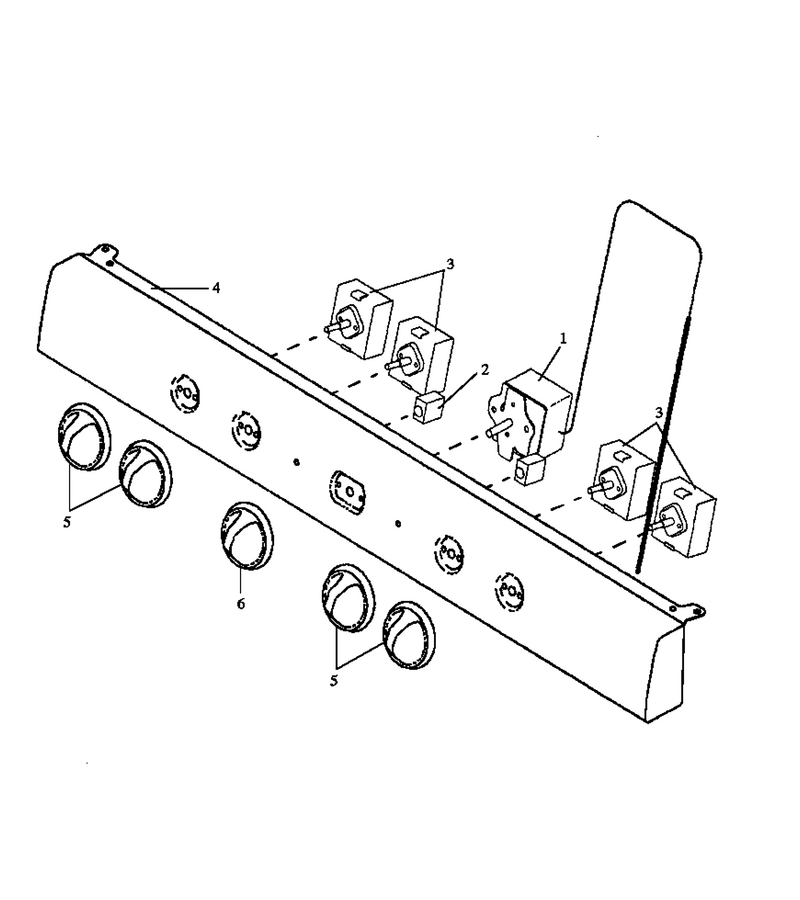

03 - Front Control Panel, Ehn330/340

...
...
NI
Screw WPL-0055047
...
1
Thermo-Elect. WPL-0088758
...
2
Light, Indicator WPL-Y07606704
...
3
Switch- In WPL-WP74011243
...
4
Panel, Manifold WPL-07710300
...
5
Knob, Infinite Switch WPL-07708601
...
6
Knob- Ther WPL-WPY0310527

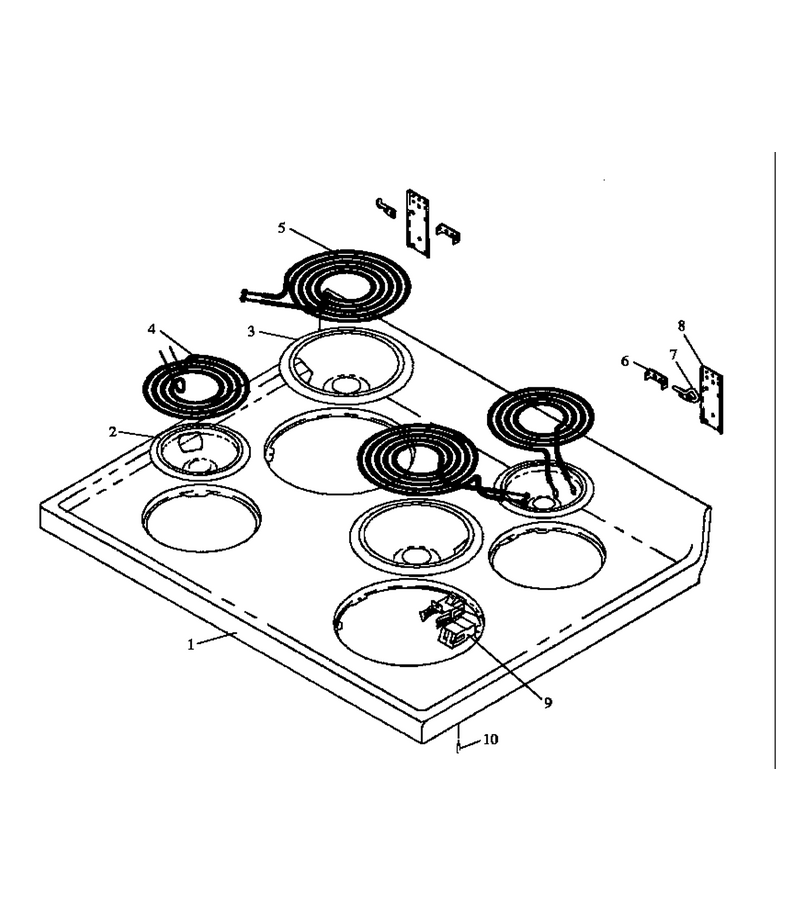

04 - Main Top

...
...
NI
Clip, Element Retainer WPL-Y0307930
...
1
Maintop (White) WPL-06558300W
...
2
Bowl-Drip WPL-WPW10196406
...
3
Bowl-Drip WPL-WPW10196405
...
4
Elmnt-Surf WPL-WPY04000036
...
5
Elmnt-Surf WPL-WPY04000035
...
6
Bushing, Hinge Wire WPL-Y07730700
...
7
Wire, Hinge (Left) WPL-07730601
...
9
Receptacle WPL-330031
...
10
Screw, Stud WPL-31750709

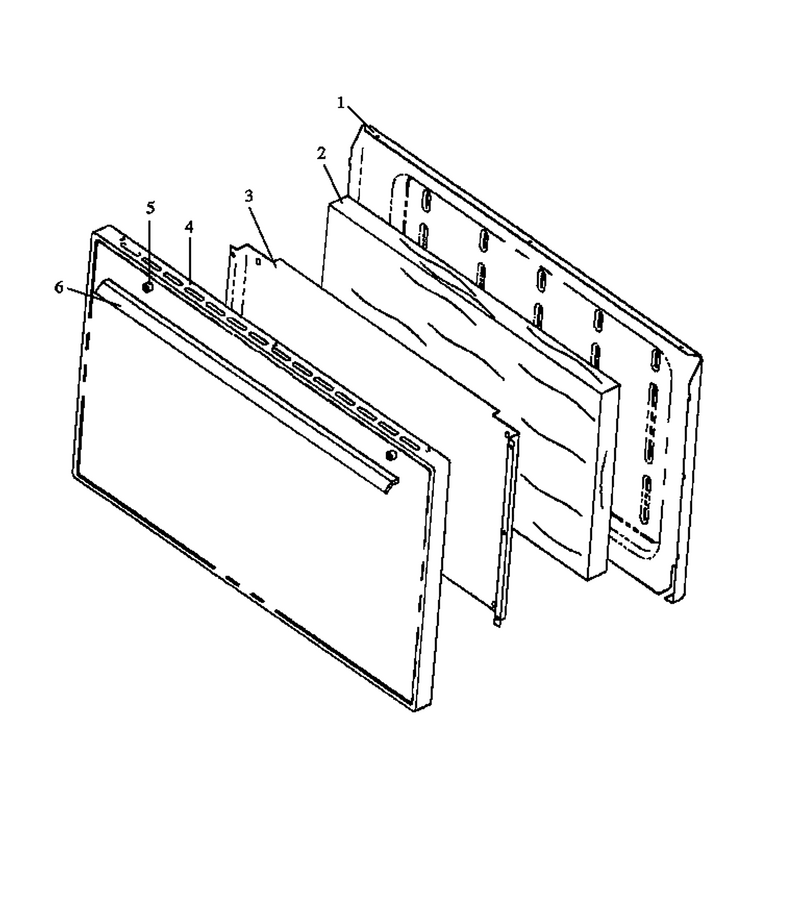

06 - Oven Door, Solid Panel Ehn330/340

...
...
NI
Screw No.10 X 1/2`` WPL-Y0310804
...
1
Liner, Oven Door WPL-Y06565000E
...
2
Insulation, Wrapper WPL-31975801
...
3
Baffle, Oven Door WPL-06511801
...
4
Panel, Door (White) WPL-06561300W
...
5
Handle Spacer, Plastic (J) WPL-Y0310818
...
6
Handle, Oven Door (J) WPL-Y0052776

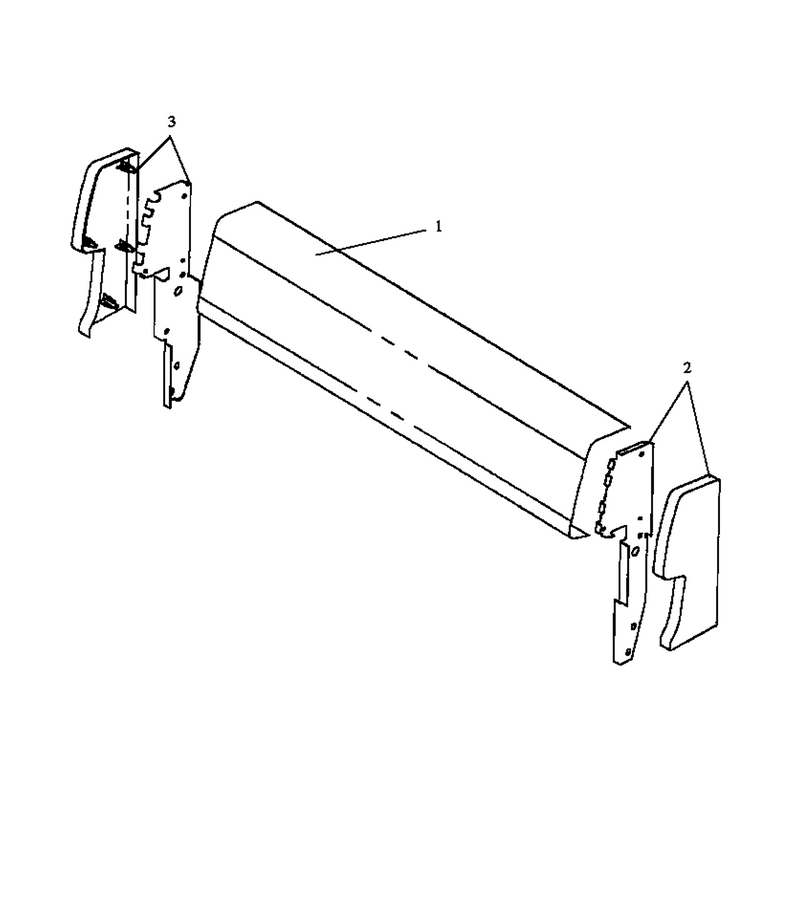

01 - Backguard, Ehn330/340

...
...
NI
Screw, No.10 X3/8`` (Black) WPL-Y07712301
...
1
Pnl, Filler 4x30 WPL-06565712B
...
2
End Cap, Bkgd 4`` R.h. WPL-Y07712604
...
3
End Cap, Bkgd 4`` L.h. WPL-Y07712605

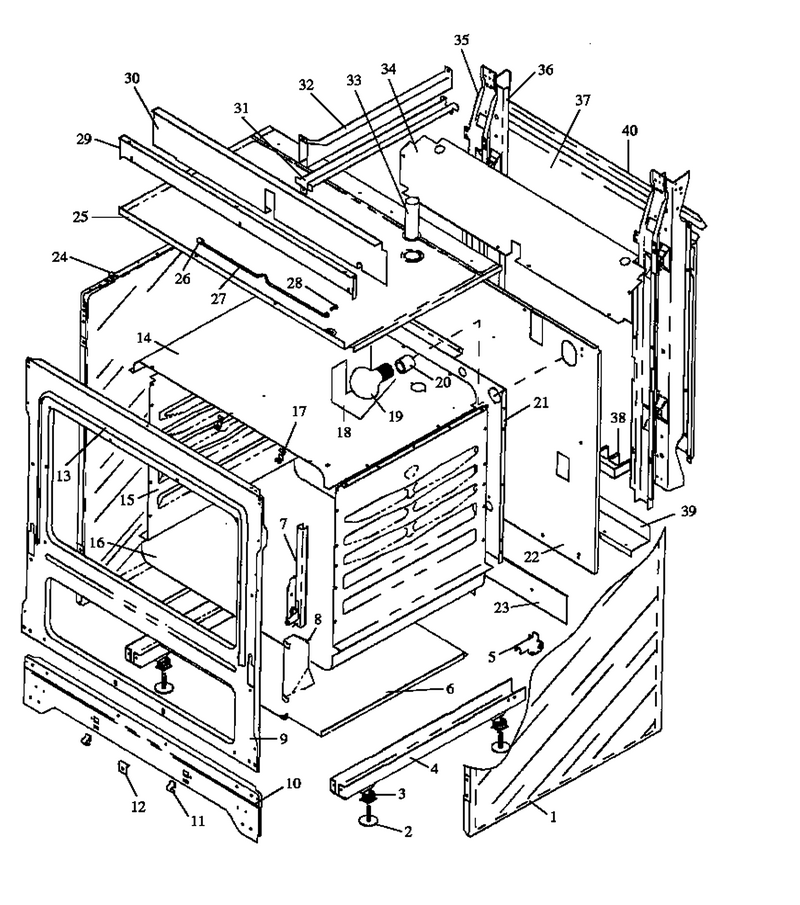

02 - Cabinet

...
...
NI
Screw WPL-W10856125
...
1
Side, Body (White) WPL-06559000W
...
2
Leveler WPL-W11117769
...
3
Snap-In Tee Nut WPL-Y0088571
...
4
Rail, Base WPL-06555001
...
5
Kit, Anti-Tip WPL-07687600
...
6
Support, Oven Bottom Insul. WPL-Y0088820
...
7
Hinge, Oven Door WPL-Y07489700
...
8
Shield, Insulation {j} WPL-0310053
...
9
Frame, Front (Enamel) WPL-06567101E
...
10
Panel, Toe 30`` (Black) WPL-Y06451602
...
11
Spring Clip WPL-Y0088664
...
12
Clip, Bracket WPL-Y06538700
...
13
Seal- Oven WPL-31958801
...
14
Top, Oven Liner WPL-Y06470002E
...
15
Liner,oven Side WPL-0311807
...
16
Liner, Oven Bottom WPL-88898CG
...
17
Clip, Capillary WPL-0310802
...
21
Liner, Oven Back WPL-88893CG
...
22
Back, Main Electric 30`` WPL-Y06478202
...
24
Bumper, Oven Door WPL-Y0063661
...
25
Box, Burner Elec WPL-06559700
...
29
Extension, Burner Box WPL-Y06559901
...
30
Cover, Switch WPL-Y06560200
...
31
Support Wire WPL-Y06565900
...
32
Channel Wire WPL-Y06566000
...
33
Tube, Oven Vent WPL-Y0056015
...
34
Cover, Wire WPL-Y06434908
...
35
Supt. Main Back (Vert) WPL-Y06565600
...
36
Support, Rear, Vertical {j} WPL-0056477
...
37
Cover Wire WPL-Y0088833
...
38
Block-Term WPL-WP8203546
...
39
Support, Bottom Wire WPL-0312153
...
40
Extension, Rear Cover WPL-06568600

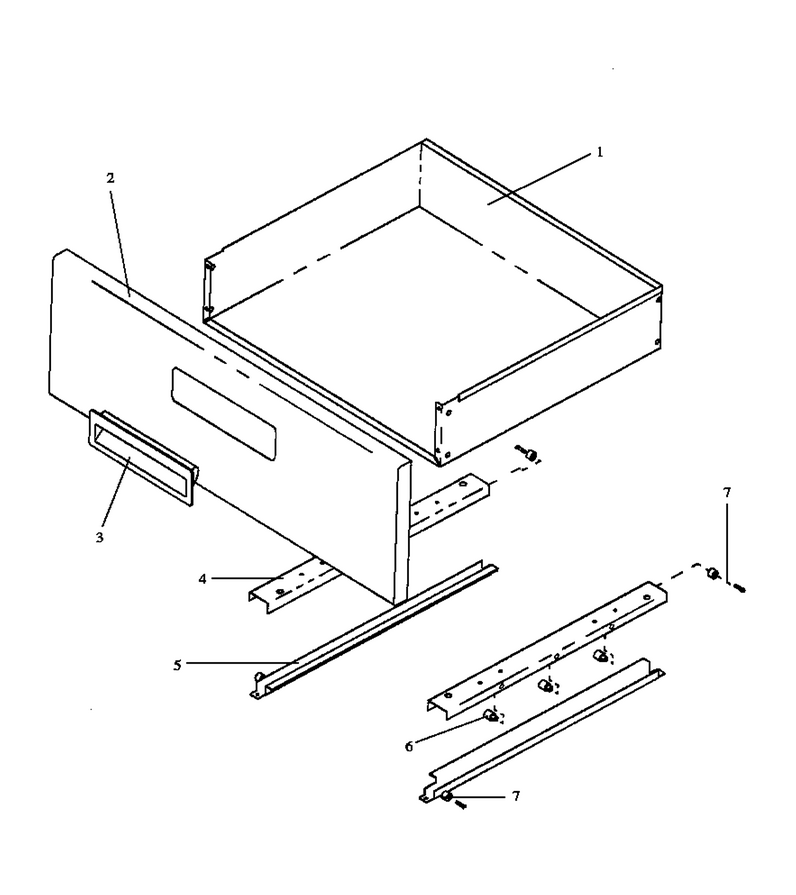

07 - Storage Drawer

...
...
NI
Screw, No.10-12 X 50 WPL-Y0311900
...
2
Panel, Fixed (White) WPL-Y06539000W

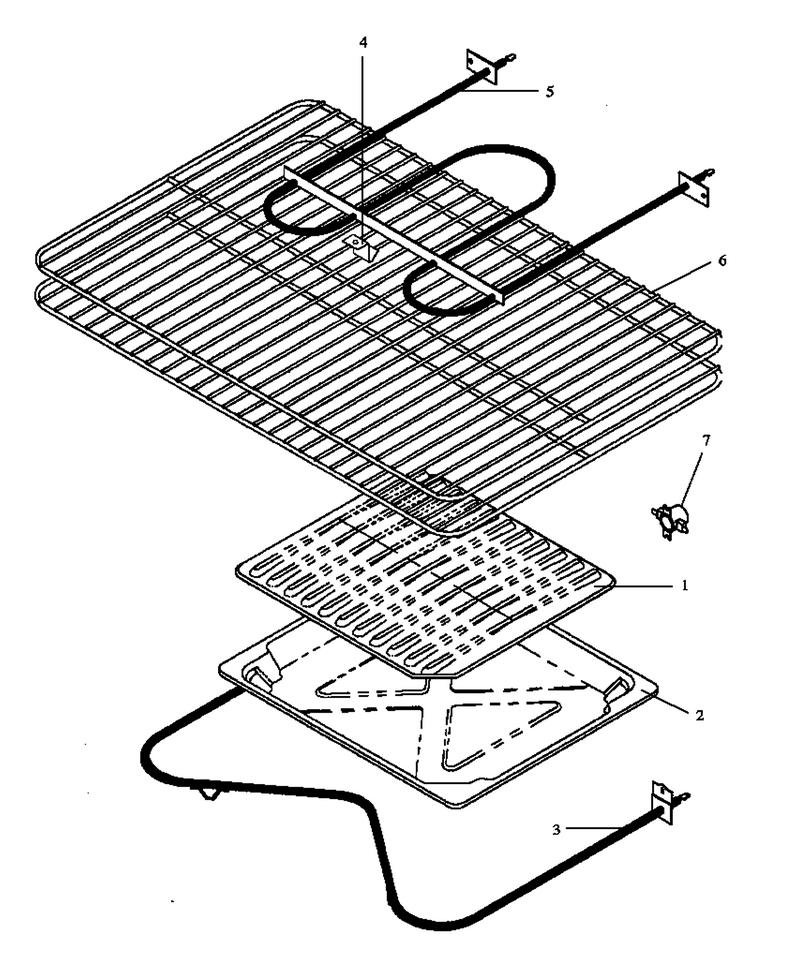

05 - Oven Components

...
...
NI
Screw WPL-WP7101P126-60
...
1
Procelain Broiler (Pan And Grid) WPL-4396923
...
2
Procelain Broiler (Pan And Grid) WPL-4396923
...
3
Element- B WPL-WPY07409600
...
4
Clip- T-St WPL-R0000343
...
5
Broil Elem WPL-WPY07431100
...
6
Rack, Oven, 30`` WPL-Y07671200
...
7
Disc, Thermo WPL-0053357
