Amana EHN3302W (BOM: P1142454N W)

Model: EHN3302W (BOM: P1142454N W)

Save Part Not Listed?
product name

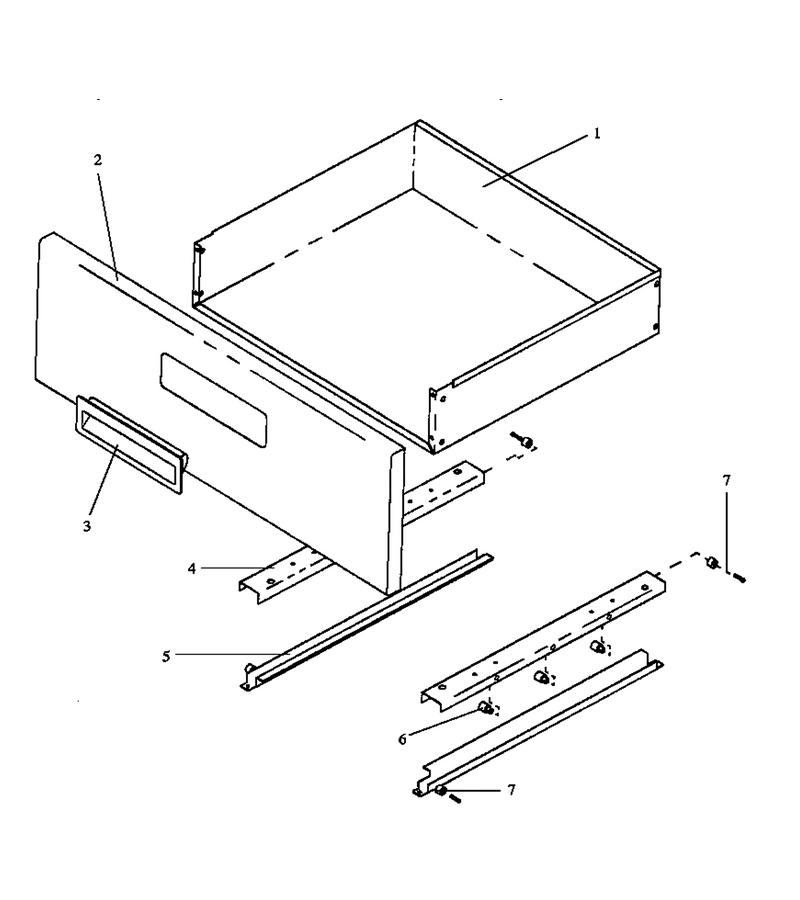

03 - Fixed Panel & Storage Drawer Assy

...
...
2
Panel, Fixed (White) WPL-Y06539000W

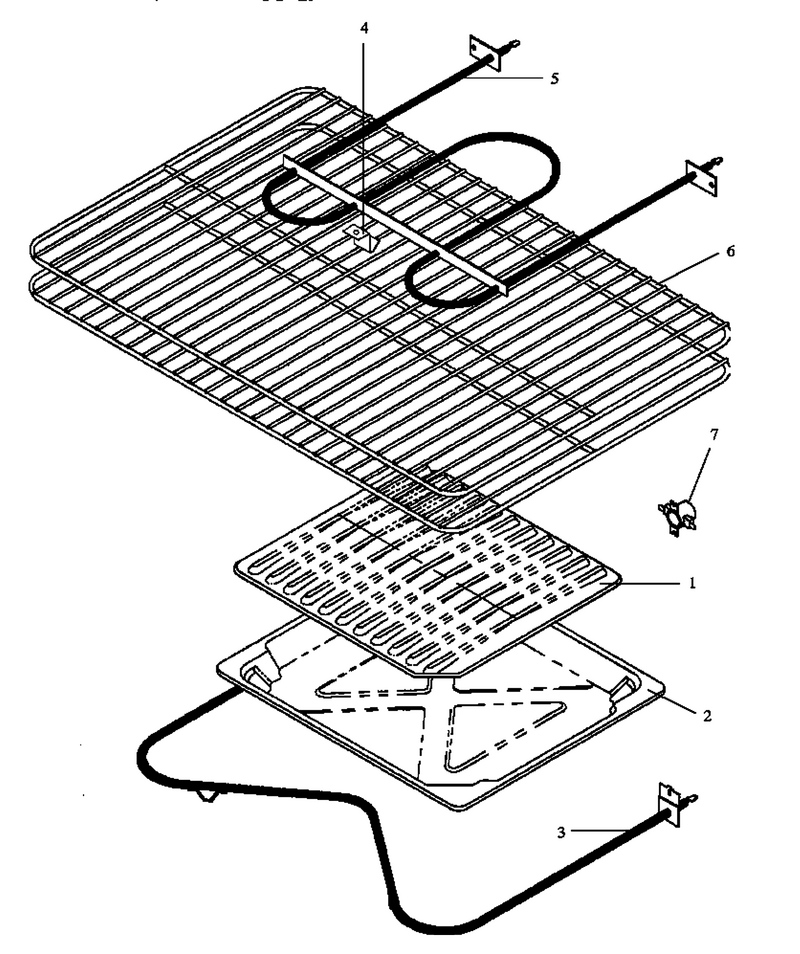

06 - Oven Components

...
...
NI
Scr- WPL-0310820
...
3
Element- B WPL-WPY07409600
...
6
Rack, Oven, 30`` WPL-Y07671200
...
7
Disc, Thermo WPL-0053357

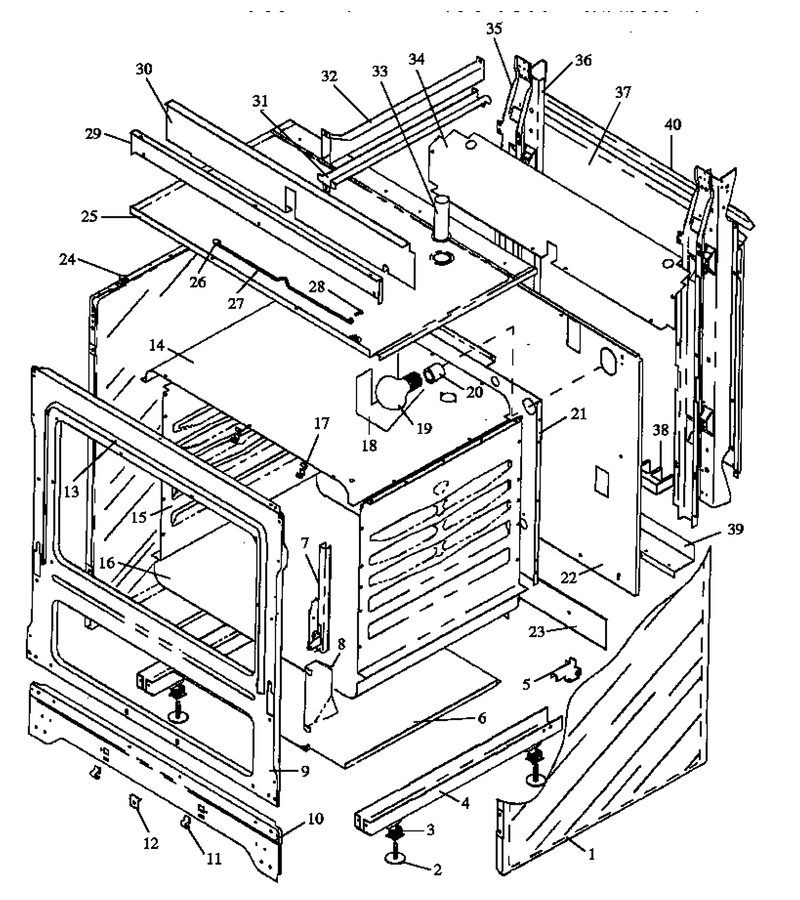

02 - Cabinet Section

...
...
NI
Screw (J) WPL-0310233
...
1
Side, Body (White) WPL-06559000W
...
2
Leg, Leveling WPL-Y0062362
...
3
Snap-In Tee Nut WPL-Y0088571
...
4
Rail, Base WPL-06554900
...
5
Kit, Anti-Tip WPL-07687600
...
6
Support, Oven Bottom Insul. WPL-Y0088820
...
7
Hinge, Oven Door WPL-Y07489700
...
8
Shield, Insulation {j} WPL-0310053
...
9
Frame, Front (Enamel) WPL-06567100E
...
10
Panel, Toe 30`` (Galv) WPL-Y06451603
...
11
Spring Clip WPL-Y0088664
...
12
Clip, Bracket WPL-Y06538700
...
13
Seal- Oven WPL-31958801
...
14
Top, Oven Liner WPL-Y06470002E
...
15
Liner,oven Side WPL-0311807
...
16
Liner, Oven Bottom WPL-88898CG
...
17
Clip, Capillary WPL-0310802
...
21
Liner, Oven Back WPL-88893CG
...
22
Back, Main Electric 30`` WPL-Y06478202
...
24
Bumper, Oven Door WPL-Y0063661
...
25
Box, Burner WPL-Y06559702
...
29
Extension, Burner Box WPL-Y06559900
...
30
Cover, Switch WPL-Y06560200
...
31
Support Wire WPL-Y06565900
...
32
Channel, Wire WPL-Y06566001
...
33
Tube, Oven Vent WPL-Y0056015
...
34
Cover, Rear WPL-Y06560000
...
35
Supt. Main Back (Vert) WPL-Y06565600
...
36
Support, Rear, Vertical {j} WPL-0056477
...
37
Cover, Wire WPL-Y06434908
...
38
Block-Term WPL-WP8203546
...
39
Support, Bottom Wire WPL-0312153
...
40
Extension, Rear Cover WPL-06568600

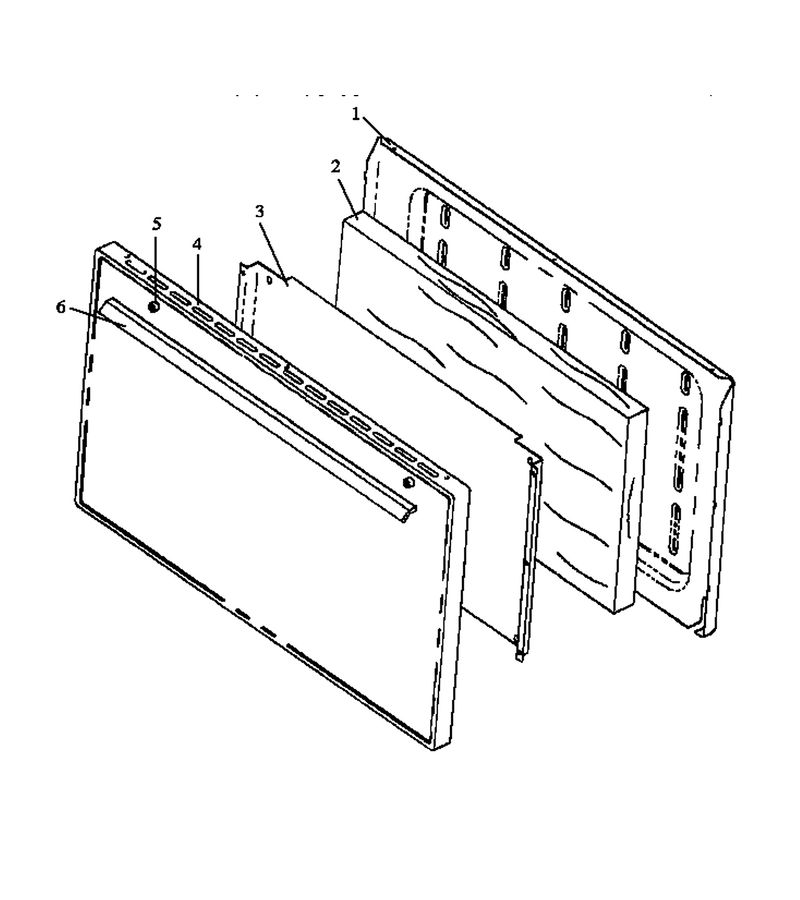

07 - Oven Door Assy

...
...
NI
Screw No.10 WPL-07596600
...
1
Liner, Oven Door WPL-Y06565000E
...
2
Insulation, Wrapper WPL-31975801
...
3
Baffle, Oven Door WPL-06511801
...
4
Panel, Door (White) WPL-Y06561301W
...
5
Handle Spacer, Plastic (J) WPL-Y0310818
...
6
Handle, Oven Door (J) WPL-Y0052776

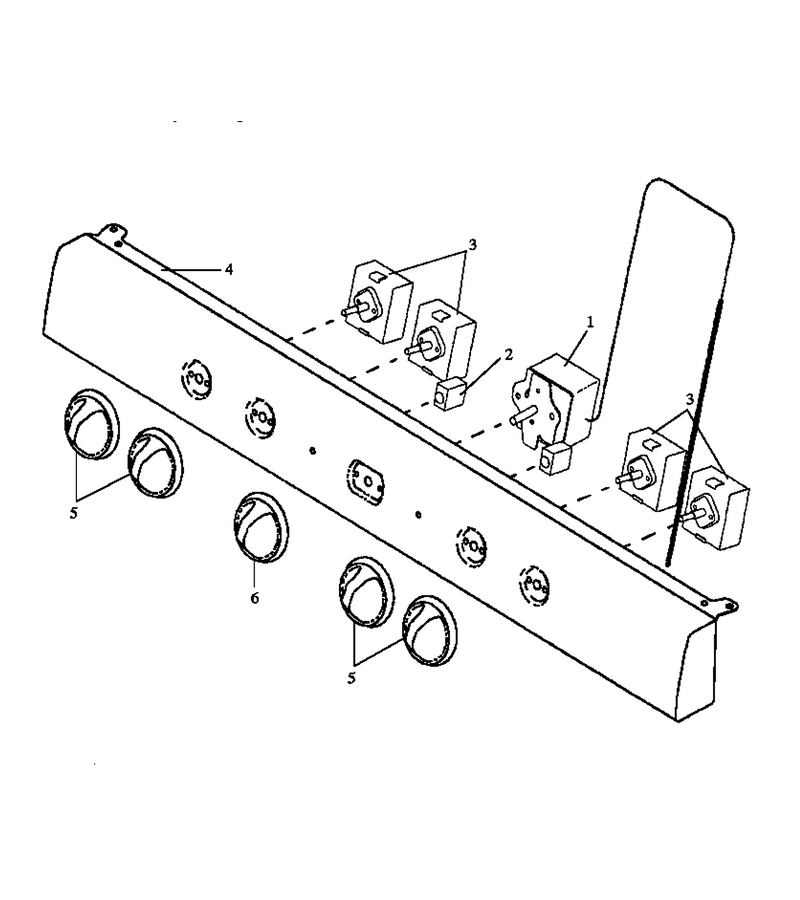

04 - Front Control Panel Assy

...
...
NI
Screw, No.10 X 3/8`` WPL-Y07712300
...
1
Thermostat WPL-Y07714400
...
2
Light, Indicator WPL-W10127320
...
3
Switch, Infinite WPL-0057312
...
4
Panel, Control WPL-07710301
...
5
Knob, Infinite Switch WPL-07612602
...
6
Knob, Thermostat WPL-Y07612702

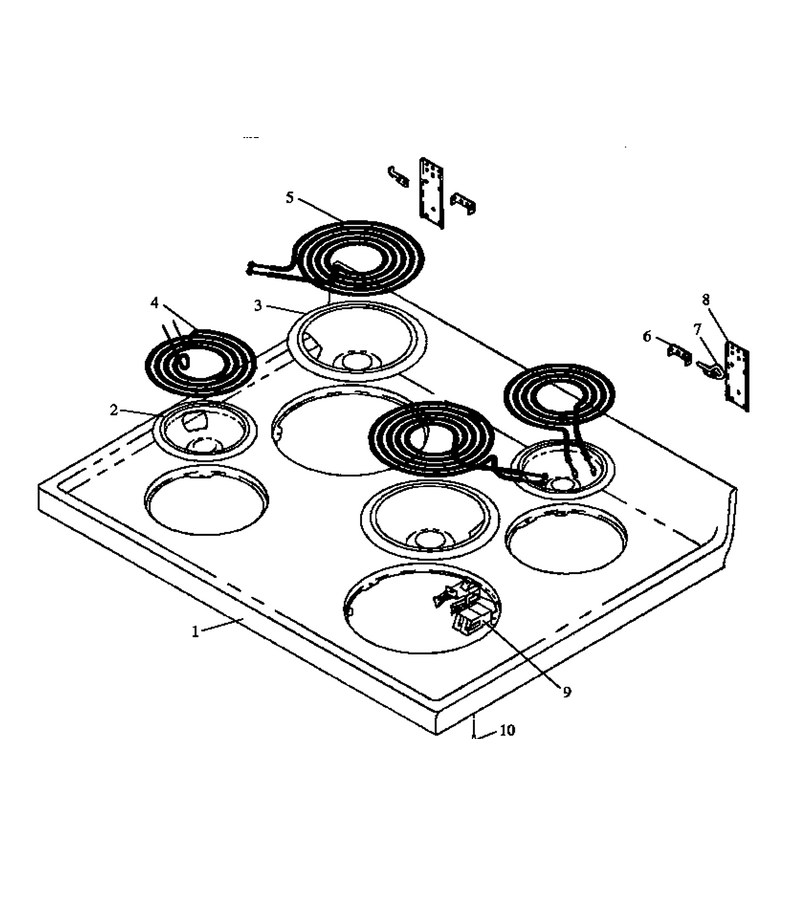

05 - Maintop Assy

...
...
NI
Clip, Speed (Doz) {j} WPL-0310033
...
1
Maintop (White) WPL-06558300W
...
2
Bowl-Drip WPL-WPW10196406
...
3
Bowl-Drip WPL-WPW10196405
...
4
Elmnt-Surf WPL-WPY04000036
...
5
Elmnt-Surf WPL-WPY04000035
...
6
Brkt, Hinge Strap Mtg WPL-Y0306150
...
7
Hinge Arm, Left Hand WPL-07712805
...
8
Bracket, Hinge WPL-06565500
...
9
Receptacle WPL-330031
...
10
Screw, Stud WPL-31750709

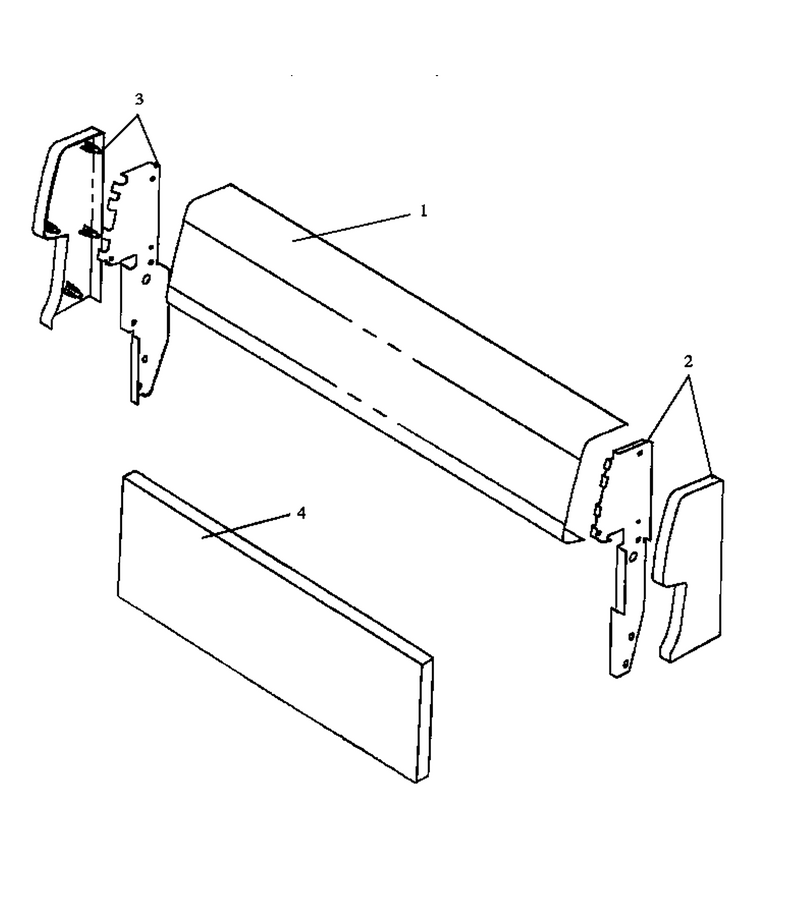

01 - Backguard Assy

...
...
NI
Screw, No.10 X3/8`` (Black) WPL-Y07712301
...
1
Pnl, Filler 4x30 WPL-Y06565714W
...
2
07712604 WPL-06566800
...
3
End Cap, Bkgd 4`` L.h. WPL-Y06566801
