Amana EHF30002L (BOM: P1130943N L)

Model: EHF30002L (BOM: P1130943N L)

Save Part Not Listed?
product name

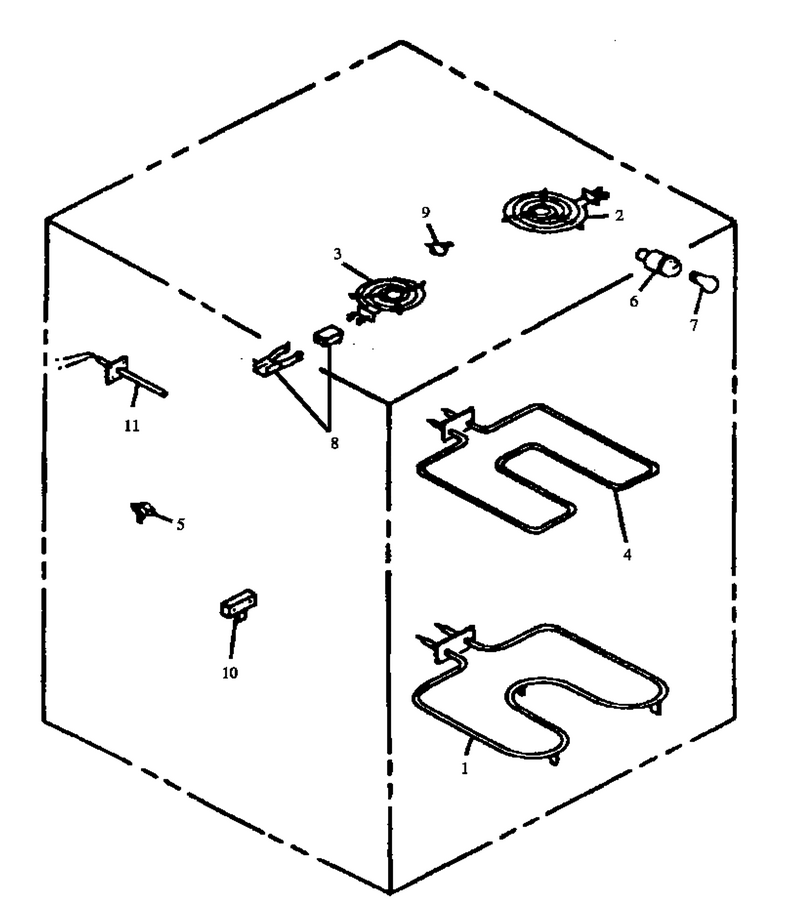

04 - Electrical Components

...
...
NI
Block-Term WPL-WPW10245259
...
1
Element- B WPL-WP77001094
...
2
Elmnt-Surf WPL-WPW10259865
...
3
Elmnt-Surf WPL-WPW10259868
...
4
Broil Elem WPL-WPY0063532
...
8
Receptacle WPL-330031
...
10
Term Blk 1m-Min WPL-0042185

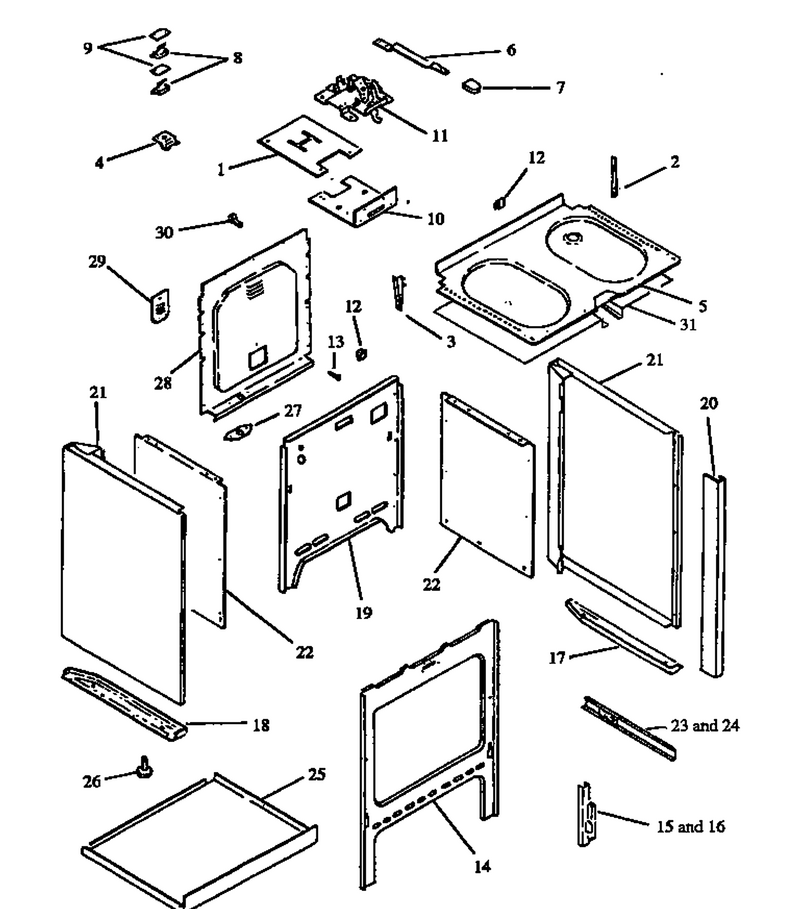

01 - Cabinet Assy

...
...
NI
Bracket WPL-Y0301028
...
2
Hinge, Strap WPL-0304502
...
3
Hinge, Strap WPL-0304502
...
5
Baffle, Drip (Enamel) WPL-31836001CG
...
12
Cable, Clip Esm WPL-Y0091587
...
13
Screw WPL-W11245710
...
15
Hinge-Door WPL-R0706011
...
16
Kit, Door Hinge(Lh-Hs) WPL-Y0066953
...
17
Brace, Leveling Leg (Rt) WPL-31854502
...
18
Brace, Leveling Leg (Lt) WPL-31854501
...
19
Insulation Retainer Rear WPL-Y0303364
...
21
Panel, Side (Alm) WPL-31825103L
...
22
Retainer, Insulation (Side) WPL-0304282
...
23
Track, Storage Drawer-L.h. WPL-Y0300474
...
24
Track, Storage Drawer-R.h. WPL-0300475
...
25
Ins. Retainer, Bottom WPL-Y0057531
...
26
Leg, Leveling WPL-Y0307594
...
27
Plate, Main Inlet Wire WPL-0058311
...
28
Cover, Rear WPL-31757101
...
29
Plate, Access WPL-31757201
...
30
Clamp, Wire-Insulate WPL-Y0068513

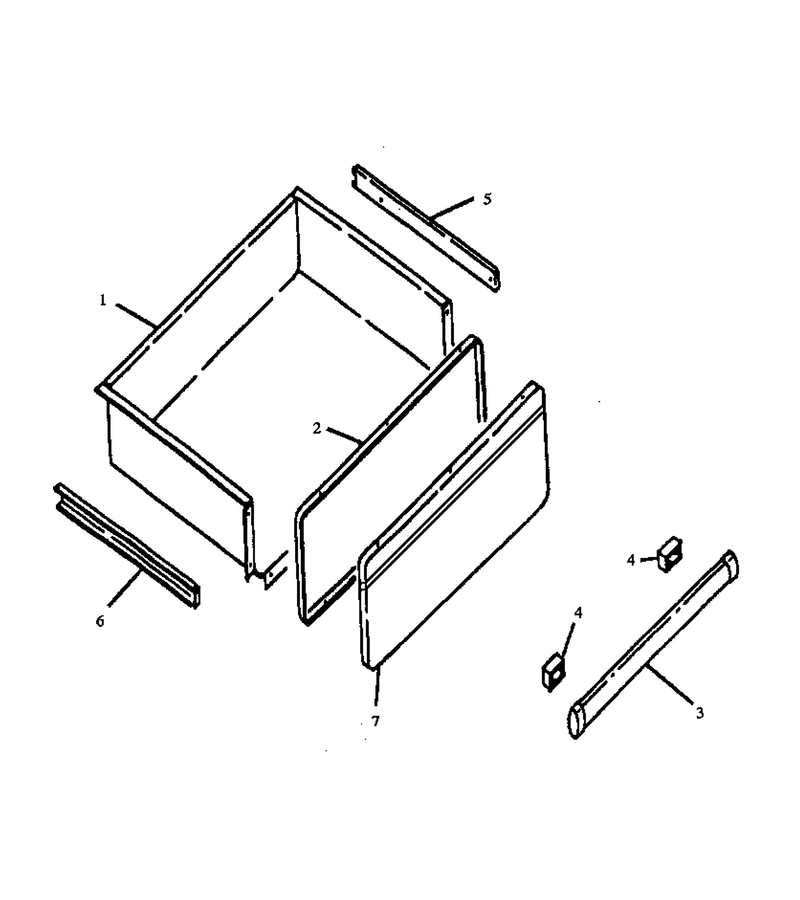

03 - Drawer Assy

...
...
NI
Screw WPL-W11245710
...
1
Wrapper, Stor Drawer WPL-306519W
...
2
Liner Drawer (Blk) WPL-Y058921B
...
3
Assy., Handle 30`` WPL-Y0070637
...
4
Spacer, Door Handle WPL-0068285
...
5
Runner, Storage Door R.h. WPL-0300477
...
6
Runner, Storage Door, L.h. WPL-Y0300476
...
7
Panel, Drawer WPL-300997W

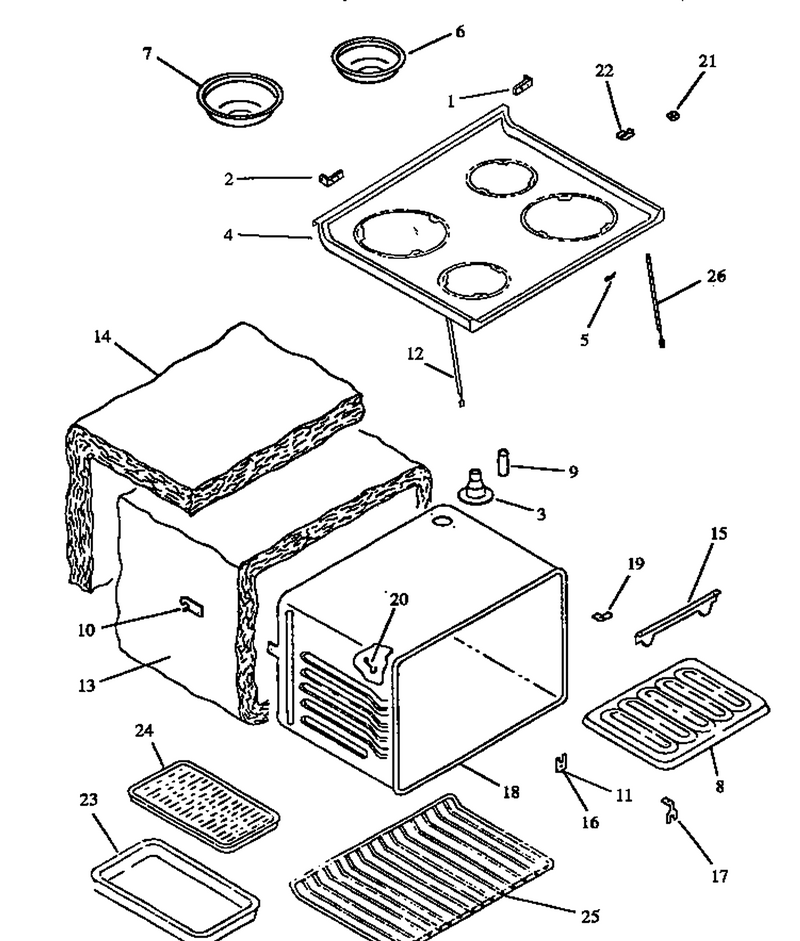

05 - Main Top And Oven Assy

...
...
NI
Screw No.8-18x3/8 Hex Hd. WPL-0305423
...
1
Brkt, Hinge Strap Mtg WPL-Y0306150
...
2
Brkt, Hinge Strap Mtg WPL-Y0306150
...
3
Vent Adaptor WPL-Y0059799
...
4
Maintop & Brkt Kit WPL-R0710287
...
5
Pin, Support Rod WPL-0071668
...
6
Burner Pan 6`` Black WPL-304980B
...
7
Burner Pan 8`` Black WPL-304981B
...
9
Tube, Vent Ext. WPL-0063336
...
10
Bracket, Oven Cavity WPL-Y0058852
...
12
Support, Maintop WPL-Y0315430
...
13
Insulation, Wrapper WPL-0300973
...
14
Insulation, Wrapper WPL-31975801
...
15
Bracket, Reflector Mounting WPL-Y0061557
...
16
Capillary Hole Cover WPL-Y0063351
...
18
Oven Shell-Enamel WPL-300809E
...
19
Chip Cover WPL-0300278
...
20
Clip, Thermo Capillary WPL-Y0067053
...
21
Cable, Clip Esm WPL-Y0091587
...
22
Wire Clamp WPL-0071203
...
23
Procelain Broiler (Pan And Grid) WPL-4396923
...
24
Procelain Broiler (Pan And Grid) WPL-4396923
...
25
Rack-Oven WPL-WP314763J
...
26
Support, Maintop WPL-Y0315430

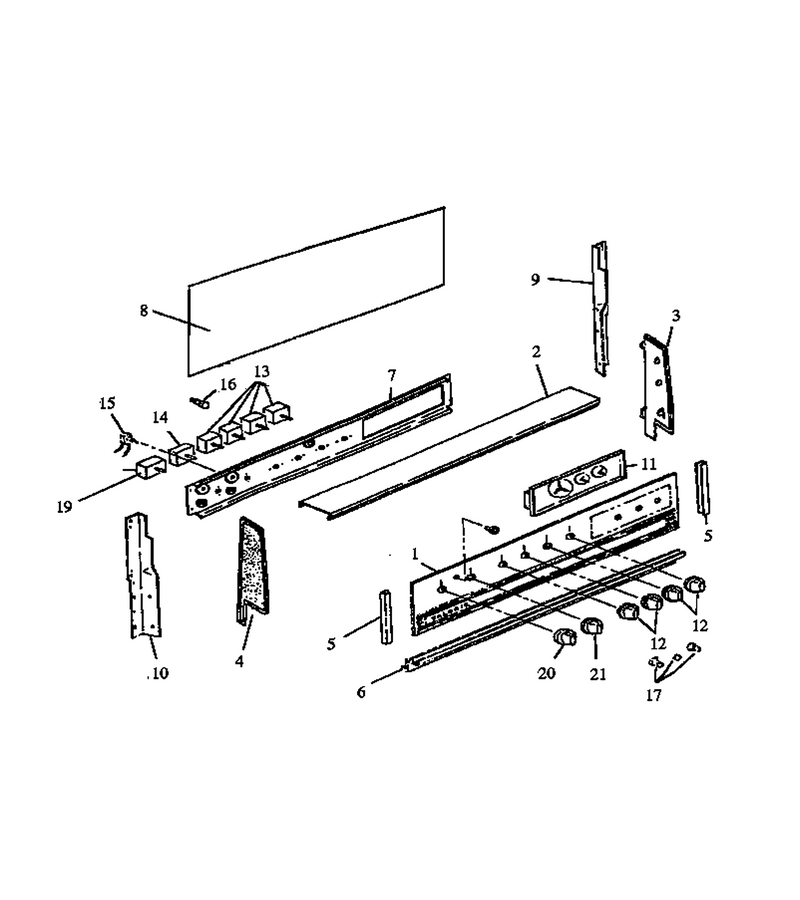

02 - Control Panel Parts

...
...
NI
Screw WPL-WP3400882
...
1
Glass Control Panel WPL-Y0305305
...
2
Top Trim Backguard WPL-305007B
...
3
Kit, End Cap Bkgd WPL-0304932
...
4
Kit, End Cap Bkgd WPL-0304931
...
5
Channel, Glass (Black) WPL-0059768
...
6
Lower Trim Backguard WPL-304976B
...
7
Backguard.cont Pnl WPL-Y0305284
...
8
Cover,backguard WPL-0305447
...
9
Support, Bkgd (Rh) WPL-0304124
...
10
Support Backguard Lh WPL-Y0304123
...
11
Clock, T.o.d. WPL-0305459
...
12
Knob, Top Element WPL-0300708
...
13
Switch, Infinite WPL-0071745
...
14
Switch, Selector WPL-Y0300900
...
16
Indicator Light WPL-Y0071820
...
17
Knob- Cloc WPL-Y07715600
...
19
Thermostat WPL-Y0063415
...
20
Knob, Thermostat WPL-0301000
...
21
Knob, Selector WPL-0300999

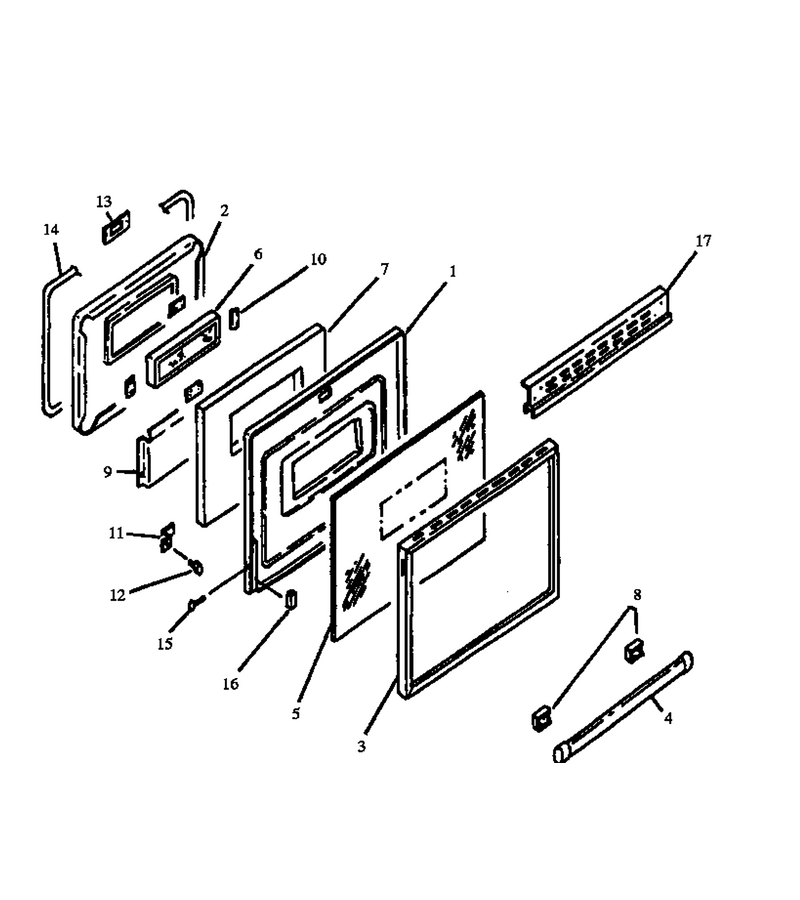

06 - Oven Door

...
...
NI
Screw, No.8 X .375 Wafer Hd(Blk) WPL-31750706
...
1
Door Backer, Electric (Cg) WPL-302723E
...
2
Pad, Ov Dr W/window WPL-314693CG
...
3
Frame, Oven Door, Black WPL-308070B
...
4
Handle, Door WPL-0303773
...
5
Panel, Black Glass WPL-0063652
...
6
Window Assy WPL-0304831
...
7
Insulation,door-Sub Backer WPL-0062614
...
8
Spacer Door Handle WPL-Y0079978
...
9
Heat Baffle, Glass (Black) WPL-306449B
...
10
Retainer, Door Glass WPL-Y0052629
...
11
Support Bracket, Glass WPL-Y0062439
...
12
Bumper, Oven Door WPL-Y0063661
...
13
Latch Plate WPL-Y0052039
...
14
Gasket, Oven Dr 82`` WPL-Y0300432
...
15
Rivet, Pop WPL-Y0302648
...
16
Bumper, Rubber WPL-Y0060247
