product name

Amana EHA312-OP (BOM: EHA3120OP)

Model: EHA312-OP (BOM: EHA3120OP)

Save Part Not Listed?
product name

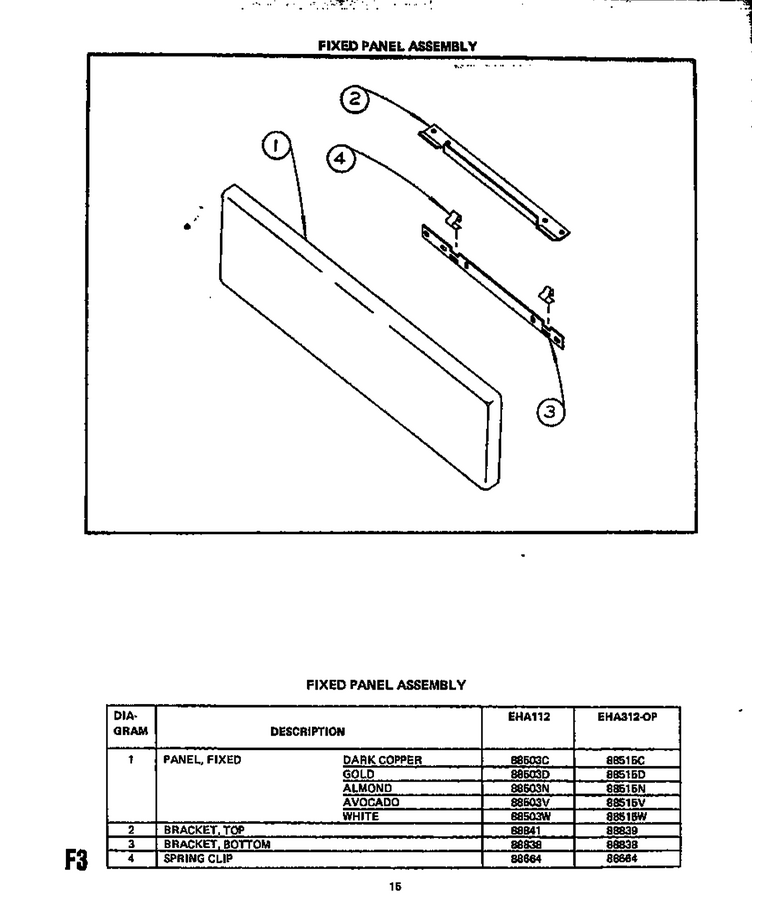

02 - Fixed Panel Assy

...
...
1
Panel Stor. D, Avocad WPL-Y088515V
...
2
Bracket, Top WPL-Y88839
...
3
Bracket, Bottom WPL-88838
...
4
Spring Clip WPL-Y0088664

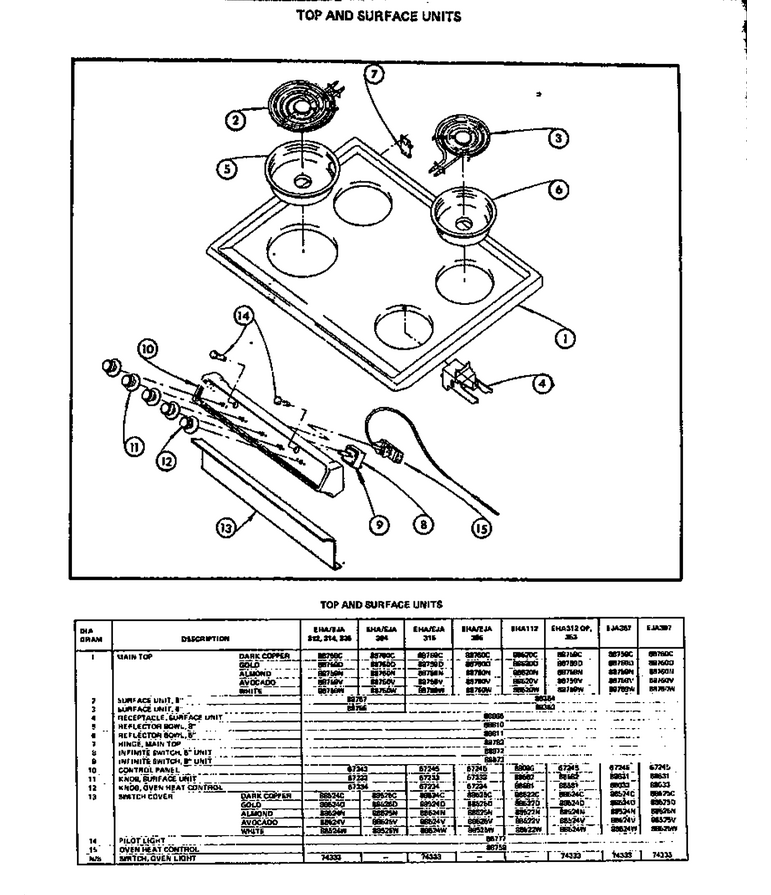

05 - Page 1

...
...
Eha315 Black Glass, Non See-Thru Door WPL-NOTE:
...
NI
Switch, Oven Licht WPL-Y74333
...
1
Main Top, Gold WPL-Y088759D
...
2
Elmnt-Surf WPL-WPY04000035
...
3
Elmnt-Surf WPL-WPY04000036
...
4
Receptacle WPL-330031
...
5
Bowl-Drip WPL-WPW10196405
...
6
Bowl-Drip WPL-WPW10196406
...
7
Hinge, Main Top WPL-0088782
...
8
Switch, Infinite WPL-0088872
...
9
Switch- In WPL-WP74011243
...
11
Knob, Infinite Switch WPL-Y0088582
...
12
X Knob, Thermostat WPL-0088581
...
14
Light, Indicator WPL-Y0088777
...
15
Thermo-Elect. WPL-0088758

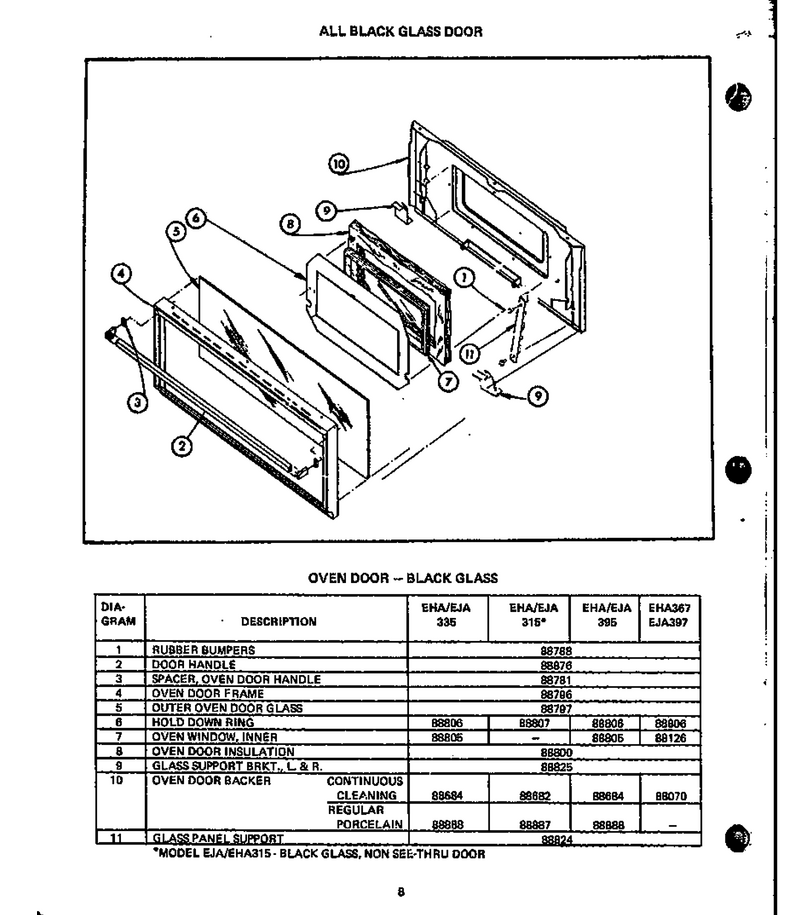

01 - All Black Glass Door

...
...
1
Sub 57319, Frame Backguard WPL-0088062
...
2
Sub 88879d Panel, Bkd., Gold WPL-Y088538D
...
3
Support, Backguard, L.h. WPL-0088666
...
4
Support, Backguard, R.h. WPL-0088667
...
6
Wire Channel WPL-Y0088816

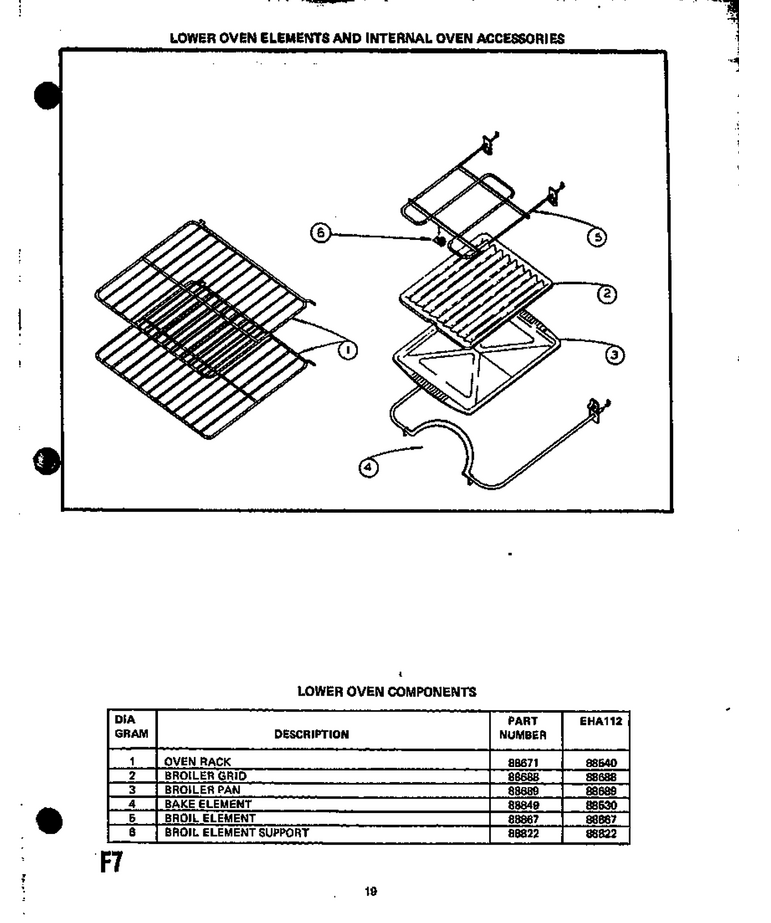

03 - Lw Oven Elements & Internal Oven Acs

...
...
1
Oven Rack WPL-Y0088671
...
2
Procelain Broiler (Pan And Grid) WPL-4396923
...
3
Procelain Broiler (Pan And Grid) WPL-4396923
...
4
Element- B WPL-WPY07409600
...
5
Broil Elem WPL-WPY07431100
...
6
Clip- T-St WPL-R0000343

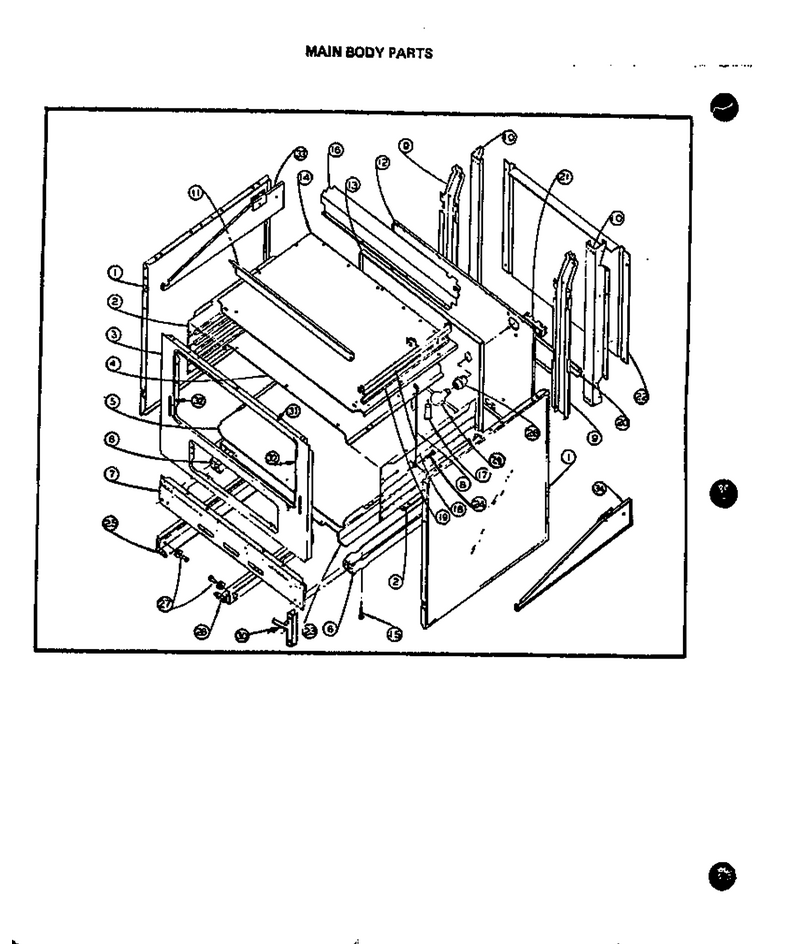

04 - Main Body Parts

...
...
Eja315 Black Glass, Non See-Thru Door WPL-NOTE:
...
1
Sub 311003w, Panel-Side, White WPL-Y06533800W
...
6
Rail, Base WPL-0088654
...
7
Base, Front Frame WPL-88655
...
8
Sub 87023, Support Rod WPL-0088790
...
9
Sub 52742, Vertical Support WPL-0088657
...
10
Rear Support WPL-0088658
...
11
Switch Cover WPL-88524C
...
12
Main Back WPL-88656
...
14
Burner Box Bottom WPL-0088661
...
15
Leg, Leveling WPL-Y0062362
...
16
Burner Box Rear Cover WPL-Y0088819
...
17
Oven Vent WPL-0088761
...
18
Wire Channel WPL-Y0088816
...
19
Wire Channel Support WPL-Y0088817
...
20
Bottom Wire Cover Support WPL-Y0088832
...
21
Block-Term WPL-WP8203546
...
22
Wire Cover, Main Back WPL-Y0088754
...
23
Support, Oven Bottom Insul. WPL-Y0088820
...
24
Shoulder Screw WPL-0088779
...
30
Hinge, Oven Door WPL-Y07489700
...
31
Sub 56091, Top Seal, Door WPL-Y0088848
...
32
Sub 56090, Gasket, Door WPL-Y0088847
