Amana EC15F (BOM: P6032105W)

Model: EC15F (BOM: P6032105W)

Save Part Not Listed?
product name

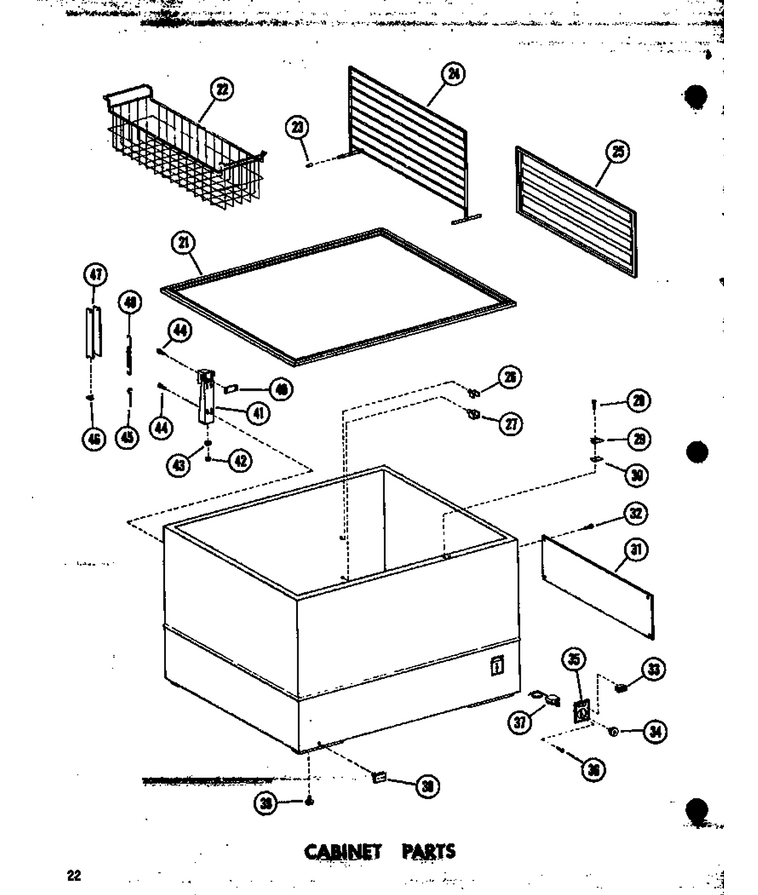

01 - Cabinet Parts

...
...
NI
Clip WPL-M0114401
...
21
Collar-Breaker WPL-B5690802
...
22
Basket WPL-D7231501
...
23
Bumper WPL-A1781101
...
24
Divider (Optional) WPL-4356477
...
25
Divider WPL-D7039601
...
26
Support WPL-B0585101
...
27
Support WPL-B0585801
...
28
Screw, Handle WPL-67006529
...
29
Strike-Lock WPL-B5728001
...
30
Shim WPL-A3063206
...
31
Machine Compt-White WPL-C8824706
...
32
Screw, No.8-32 X1/2 Nyl Hex Hd WPL-31750417
...
33
Warning Light WPL-A3072804
...
34
Knob K WPL-C3581901
...
35
Escutcheon WPL-C3582001
...
36
Screw WPL-WPW10068250
...
37
Control, Temperature WPL-C3628403
...
38
Plug WPL-B0564701
...
39
Glider Bolt WPL-M0266510
...
40
Shim WPL-A0383301
...
41
Hinge Assy-Gold WPL-C3582305
...
42
Nut WPL-M0281007
...
43
Washer WPL-M0270513
...
44
Screw WPL-M0246033
...
45
Screw WPL-M0200108
...
46
Spacer WPL-M0114501
...
47
Hinge Cover W WPL-B0583411
...
48
Hinge Spring WPL-B0551701

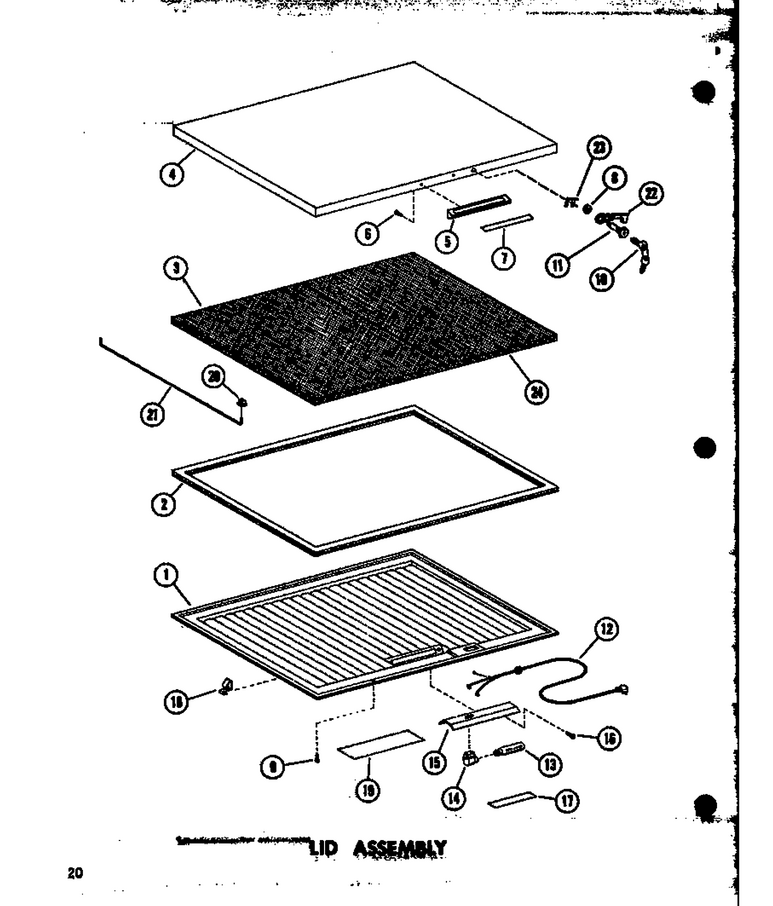

02 - Lid Assy

...
...
1
Inner Lid Panel WPL-D3945705
...
2
Gasket, Lid WPL-B0585701
...
3
Insulation Batt. WPL-B0523566
...
4
Outer Lid Shell, White WPL-D7226705
...
5
Handle WPL-D7218302
...
6
Screw-Handle WPL-M0225244
...
7
Thinplate-Handle WPL-B5676601
...
8
Washer-Plastic WPL-M0274033
...
9
Screw-Sm WPL-M0241118
...
10
Key K WPL-A3199101
...
11
Barrel Lock K WPL-B5688002
...
12
Wiring Harness WPL-B5646701
...
13
Light Bulb WPL-A3073102
...
14
Socket & Switch WPL-B0585402
...
15
Housing, Light WPL-C3581402
...
16
Screw WPL-M0211530
...
17
Lite Shield WPL-A3074101
...
18
Clip WPL-M0112201
...
19
Nameplate WPL-B0586501
...
22
Latch, Lock WPL-C3685301
...
23
Clip K WPL-A3199001
...
24
Insulation WPL-A3073002

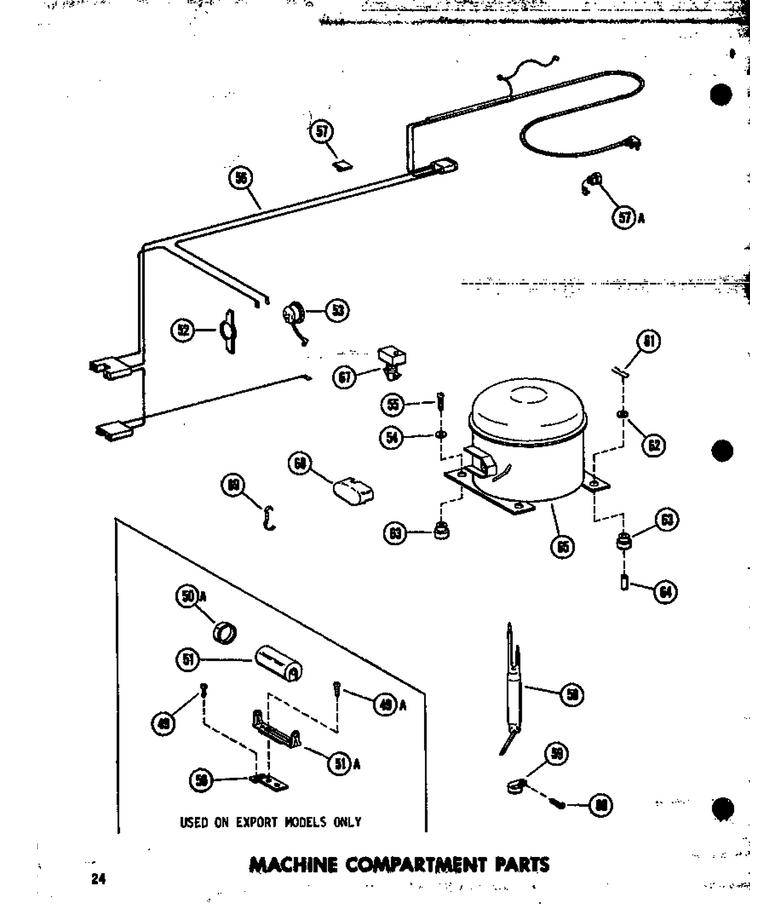

03 - Machine Compartment Parts

...
...
52
Spring K WPL-A3043601
...
53
Overload WPL-B0589801
...
54
Washer WPL-M0270519
...
55
Screw WPL-M0221461
...
56
Wiring Harness WPL-D7105002
...
57
Grommet, Cord WPL-211881
...
58
Drier WPL-WPB2150504
...
59
Clamp, Drier WPL-M0102316
...
60
Screw WPL-WP98165
...
61
Clip K WPL-A3140801
...
62
Washer, Nylon K WPL-M0590101
...
63
Grommet K WPL-A4002702
...
64
Sleeve K WPL-A3072001
...
65
Compressor WPL-D7284203H
...
67
Relay WPL-C3584801
...
68
Cover K WPL-B0559501
...
69
Strap K WPL-A3041801
