Amana EBE26AA0CEH (BOM: P1143211N W)

Model: EBE26AA0CEH (BOM: P1143211N W)

Save Part Not Listed?
product name

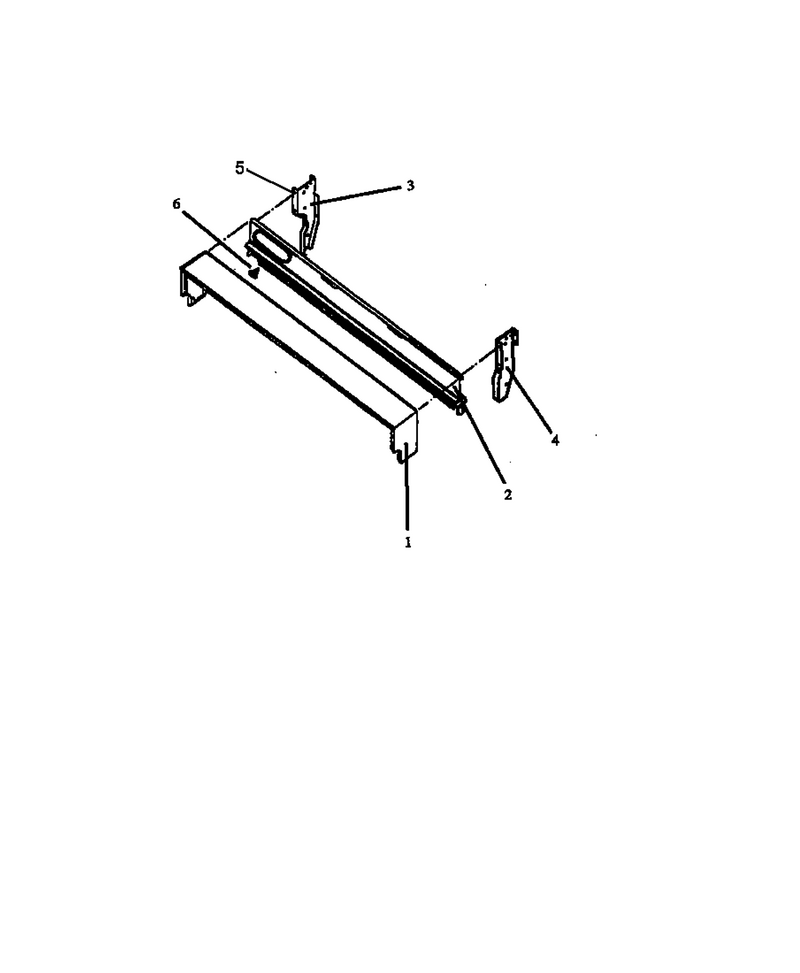

01 - Backguard Assy

...
...
NI
Angle-Supt, 14`` Lg WPL-Y00311400
...
1
Backguard Frame (J) WPL-0057319
...
2
Pnl-Filler 4 X30,caloric WPL-Y02343011B
...
3
Support, Backguard, L.h. WPL-0088666
...
4
Support, Backguard, R.h. WPL-0088667
...
5
Bumper, Oven Door WPL-Y0063661
...
6
Screw WPL-0310240

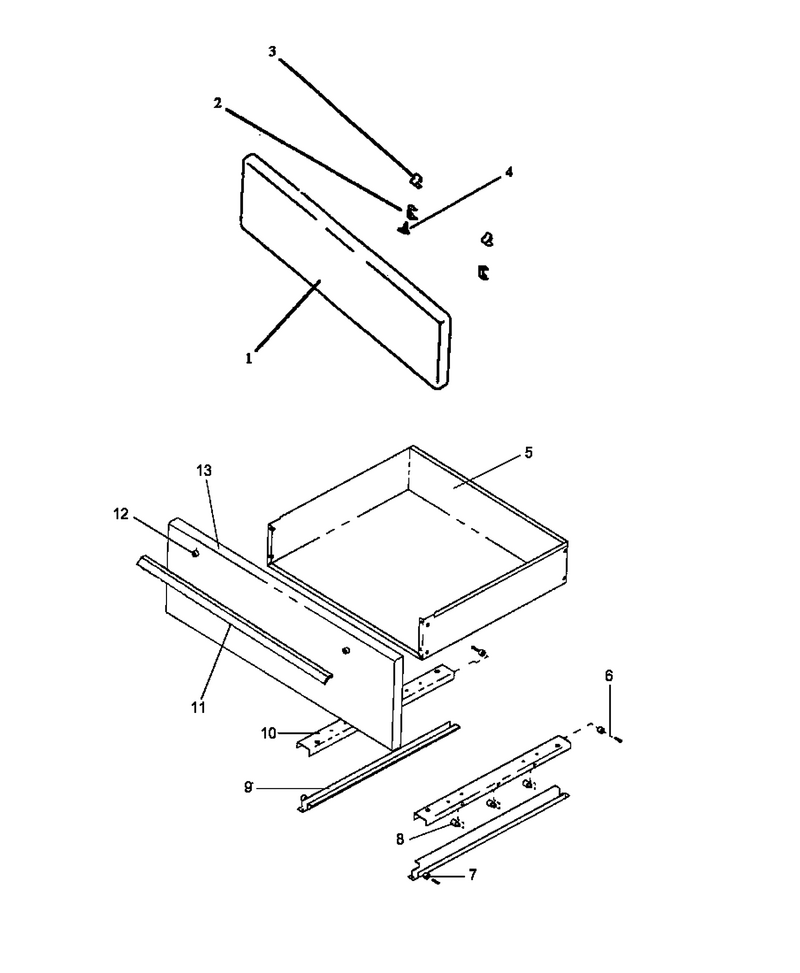

03 - Fixed Panel Assy And Storage Drawer

...
...
NI
Screw WPL-WP7101P126-60
...
4
Screw WPL-WP7101P126-60
...
5
Storage Drawer WPL-Y0310537
...
6
Pin, Broiler Roller WPL-04007001
...
7
Roller WPL-Y0311545
...
8
Glide, Drawer (Wht) WPL-Y07674900
...
9
Track, Drawer, Lh WPL-0311871
...
10
Track, Upper R.h. (Elec) WPL-0310519
...
11
Oven Door Handle, 18`` WPL-Y0088812
...
12
Handle Spacer, Plastic (J) WPL-Y0310818
...
13
Assy, Pnl Stor Dwr WPL-Y06535400W

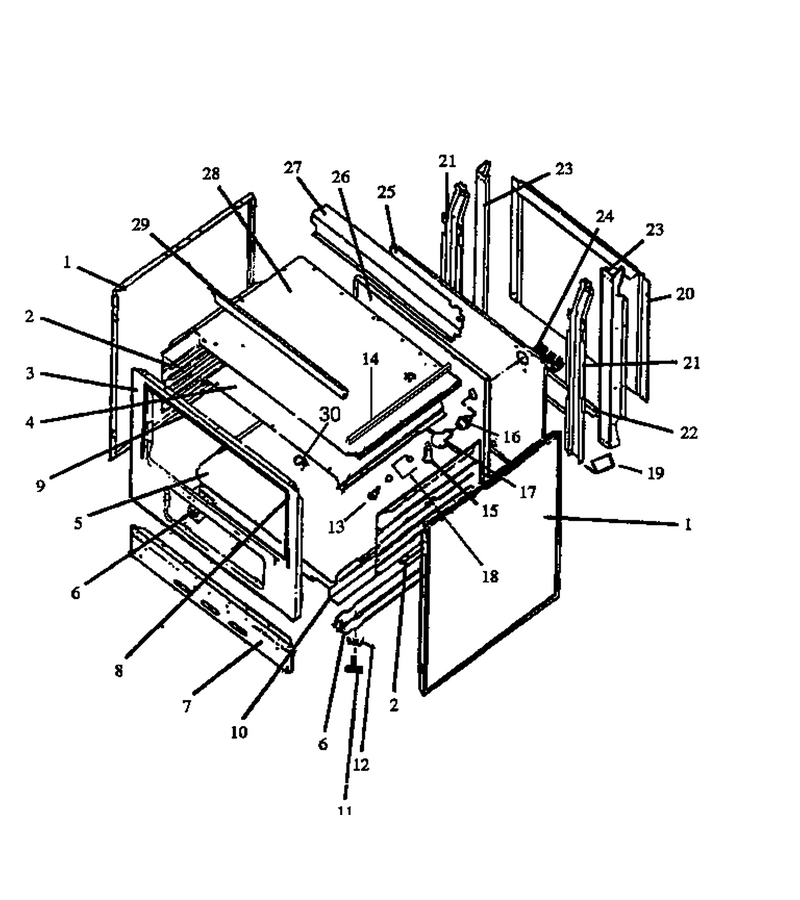

02 - Cabinet Assy

...
...
NI
U-Clip, Safe Edge WPL-31750803
...
1
Sub 311003w, Panel-Side, White WPL-Y06533800W
...
2
Liner,oven Side WPL-0311807
...
3
Main Front 30`` WPL-88751CG
...
4
Liner, Oven Top WPL-06470000E
...
5
Liner, Oven Bottom WPL-88898CG
...
6
Rail, Base WPL-06555001
...
7
Panel, Toe 30`` (Black) WPL-Y06451602
...
8
Seal, Oven-Sides WPL-Y0056090
...
9
Seal, Oven Door WPL-0056089
...
10
Support, Oven Bottom Insul. WPL-Y0088820
...
11
Leveler WPL-W11117769
...
12
Snap-In Tee Nut WPL-Y0088571
...
13
Wire Channel Support WPL-Y0088817
...
14
Wire Channel (Elec) WPL-Y06404301
...
15
Tube, Oven Vent WPL-Y0056015
...
16
Socket, Oven Light WPL-Y0316385
...
17
Light Bulb WPL-8009
...
18
Cage-Light,ov WPL-Y008635
...
19
Kit, Anti-Tip WPL-07687600
...
21
Vertical Sup. (J) WPL-0052742
...
22
Cover Wire WPL-Y0088833
...
23
Support, Rear, Vertical {j} WPL-0056477
...
24
Block-Term WPL-WP8203546
...
25
Back, Main Electric 30`` WPL-Y06478202
...
26
Liner, Oven Back WPL-88893CG
...
27
Cover, Burn Box Rear WPL-Y06409811
...
28
Bottom, Burn Box WPL-Y06492300E
...
29
Switch Cover WPL-0311066
...
30
Clip, Capillary WPL-0310802

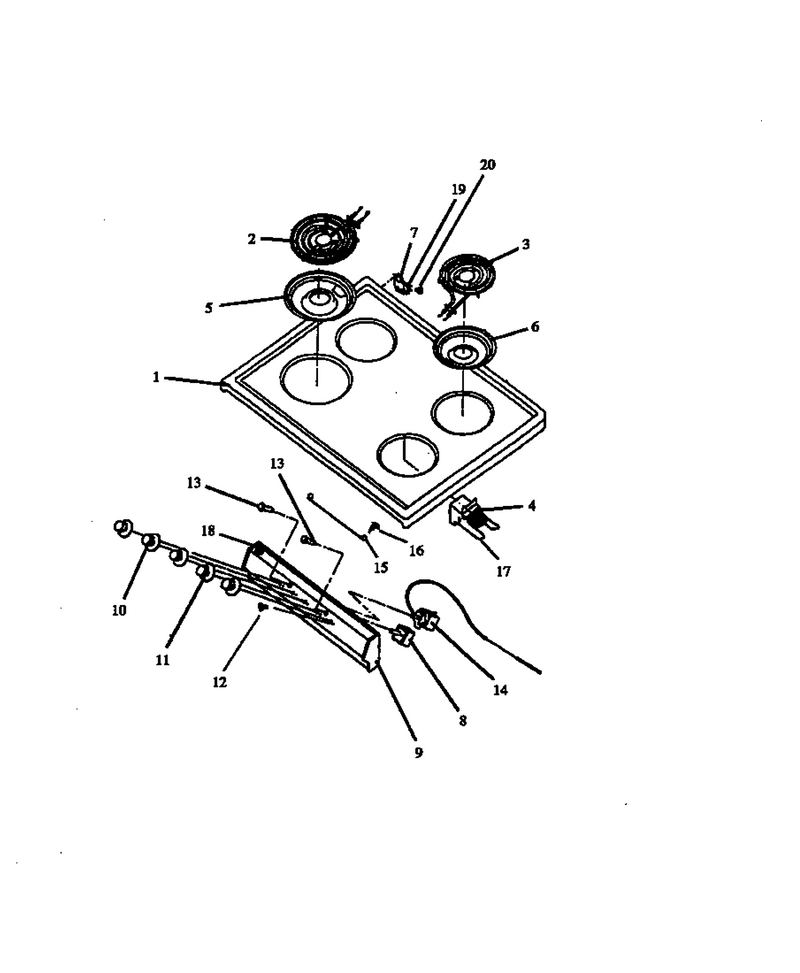

04 - Main Top Assy

...
...
NI
Screw-No.6x 1/2 Hex Hd WPL-Y07473800
...
1
Main Top (Elec 30``) WPL-Y06461012W
...
2
Elmnt-Surf WPL-WPY04000035
...
3
Elmnt-Surf WPL-WPY04000036
...
4
Receptacle WPL-330031
...
5
Bowl-Drip WPL-WPW10196405
...
6
Bowl-Drip WPL-WPW10196406
...
7
Hinge, Main Top (Blk) WPL-Y02002702
...
8
Switch- In WPL-WP74011243
...
9
Pnl, Manifold Electric WPL-0055007
...
10
Knob, Infinite Sw (`s`elec) WPL-07589503
...
11
Knob- Ther WPL-WPY0310527
...
12
Screw WPL-WP3400882
...
13
Light, Pilot WPL-0088640
...
14
Thermo-Elect. WPL-0088758
...
15
Support Rod WPL-0087023
...
16
Shoulder Screw WPL-0088779
...
17
Bracket WPL-W10116809
...
18
Switch, Rocker WPL-Y07634800
...
19
Nut, Speed, Flat WPL-Y0310032
...
20
Screw No.10x1/2 Blunt WPL-Y0310363

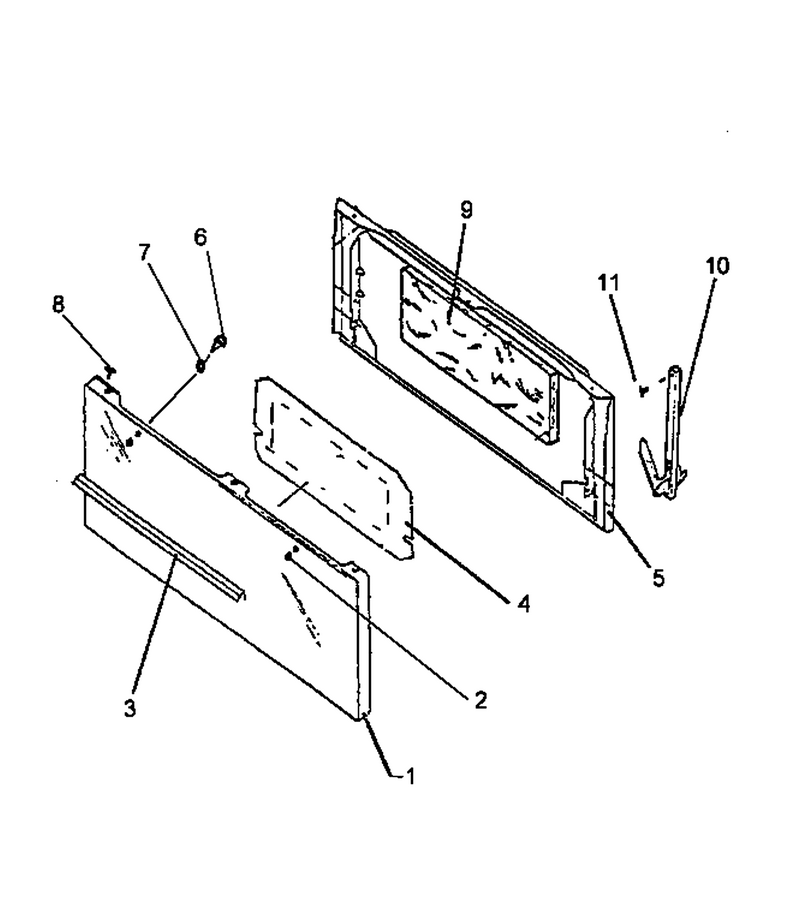

06 - Oven Door Assy

...
...
NI
Screw WPL-WP4159193
...
1
Panel-Ov Dr,sol,30``-Pnt WPL-Y06480512W
...
2
Handle Spacer, Plastic (J) WPL-Y0310818
...
3
Oven Door Handle, 18`` WPL-Y0088812
...
4
Baffle, Oven Door WPL-06511801
...
5
Backer, Oven Door WPL-06540900E
...
6
Screw, Door Handle WPL-Y0311884
...
7
See Note Wafered Washer -- (Included W/handle Screw) WPL-Y00000000
...
8
Screw No.10 X 1/2`` WPL-Y0310804
...
9
Insulation, Wrapper WPL-31975801
...
10
Hinge, Oven Door WPL-Y07489700
...
11
Screw WPL-WP7101P126-60

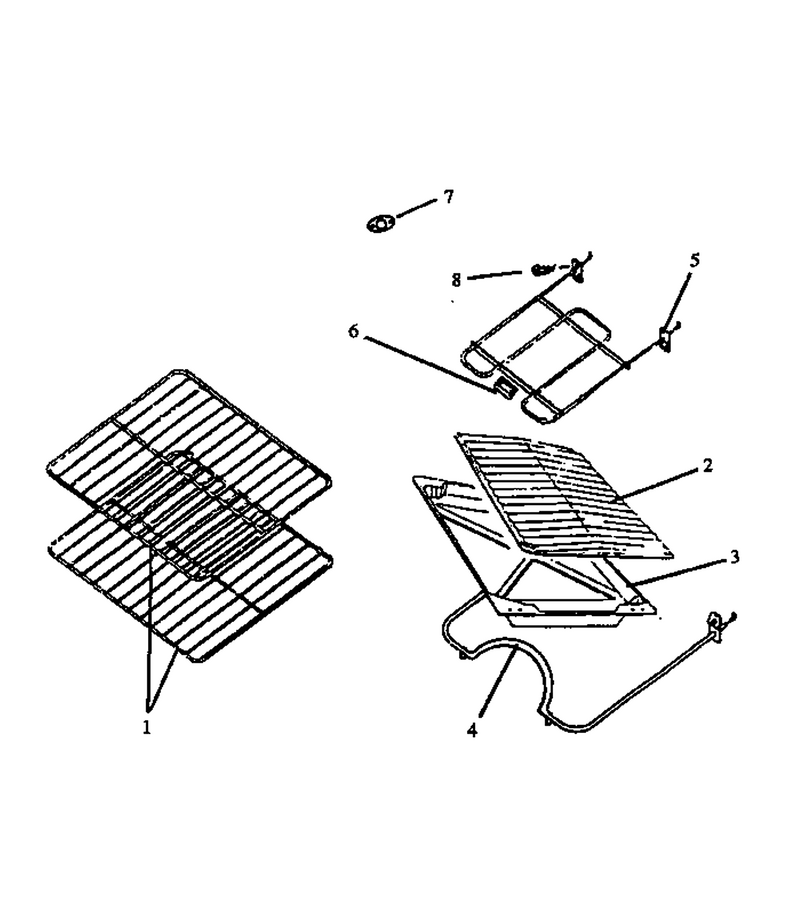

05 - Oven Components

...
...
1
Rack, Oven, 30`` WPL-Y07671200
...
2
Procelain Broiler (Pan And Grid) WPL-4396923
...
3
Pan, Broiler WPL-87722CG
...
4
Element- B WPL-WPY07409600
...
5
Broil Elem WPL-WPY07431100
...
6
Clip- T-St WPL-R0000343
...
7
Disc, Thermo WPL-0053357
...
8
Screw WPL-WP7101P126-60
