Amana EBE26AA (BOM: P1142409N L)

Model: EBE26AA (BOM: P1142409N L)

Save Part Not Listed?
product name

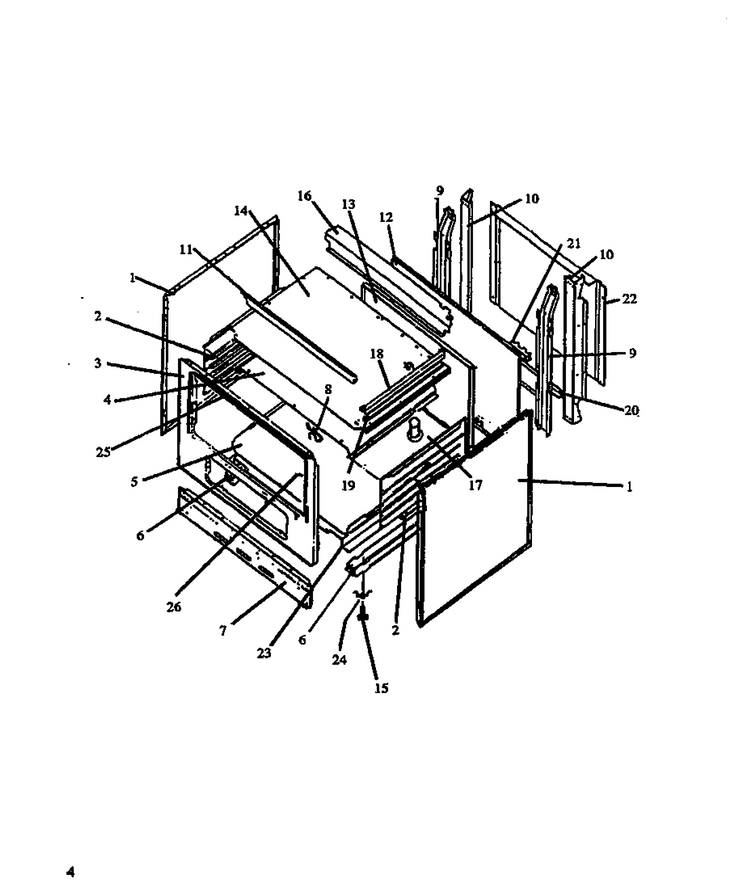

01 - Page 1

...
...
NI
Kit, Anti-Tip WPL-07687600
...
1
Sub 311003w, Panel-Side, White WPL-Y06533800W
...
2
Liner,oven Side WPL-0311807
...
4
Liner, Oven Top WPL-310096E
...
6
Rail, Base WPL-0088654
...
7
Toe Panel (J) WPL-0052744
...
8
Clip, Capillary WPL-0310802
...
9
Vertical Sup. (J) WPL-0052742
...
10
Support, Rear, Vertical {j} WPL-0056477
...
11
Switch Cover WPL-Y0086935
...
12
Back, Main Electric 30`` WPL-Y06478202
...
13
Oven Backliner WPL-311030E
...
14
Burner Box, Bottom Elect. WPL-311002E
...
15
Leg, Leveling WPL-Y0062362
...
17
Tube, Oven Vent WPL-Y0056015
...
18
Wire Channel WPL-311010E
...
19
Wire Channel Support WPL-Y0088817
...
20
Support, Bottom Wire WPL-0312153
...
21
Block-Term WPL-WP8203546
...
22
Cover Wire WPL-Y0088833
...
23
Support, Oven Bottom Insul. WPL-Y0088820
...
24
Snap-In Tee Nut WPL-Y0088571
...
25
Seal, Oven Door WPL-0056089
...
26
Seal, Oven-Sides WPL-Y0056090

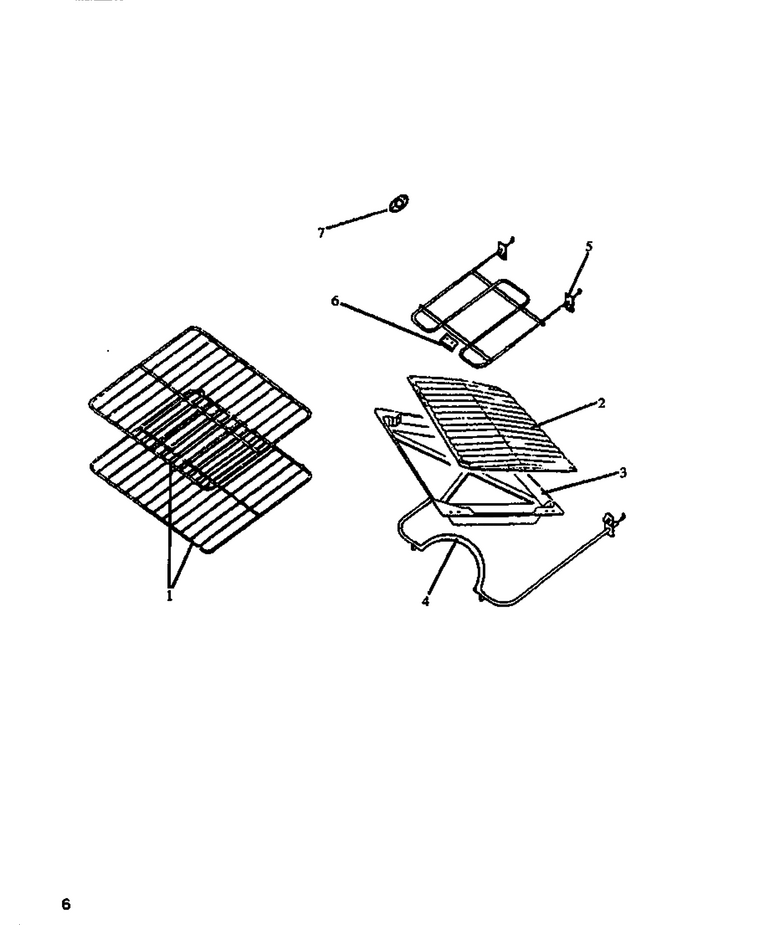

02 - Page 2

...
...
1
Rack, Oven, 30`` WPL-Y07671200
...
2
Procelain Broiler (Pan And Grid) WPL-4396923
...
3
Pan, Broiler WPL-87722CG
...
4
Element- B WPL-WPY07409600
...
5
Broil Elem WPL-WPY07431100
...
6
Clip- T-St WPL-R0000343
...
7
Disc, Thermo WPL-0053357

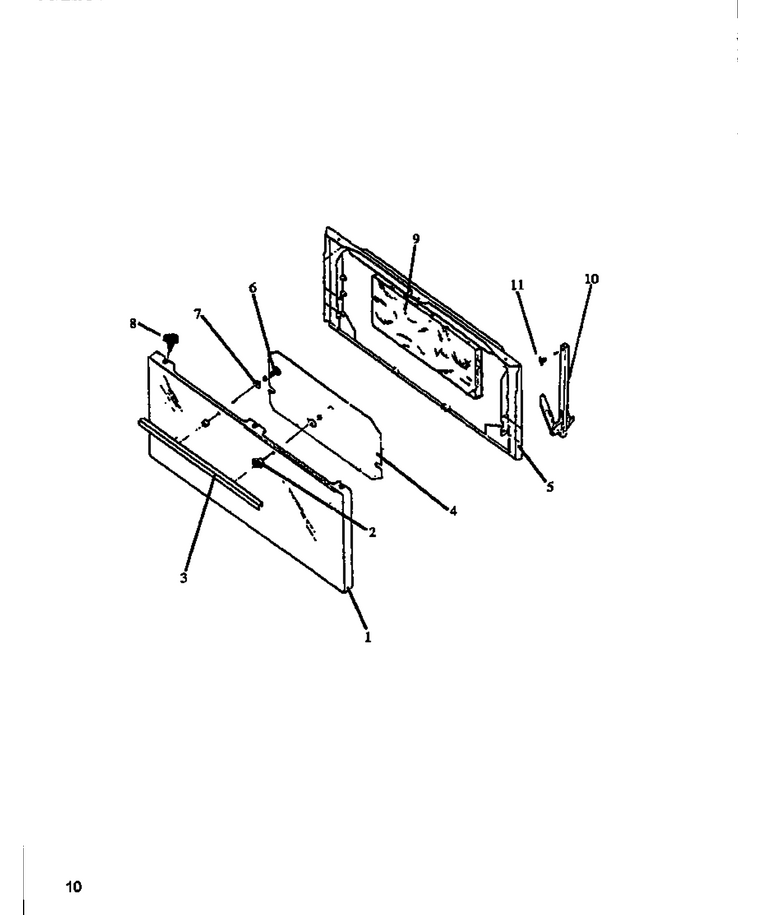

04 - Page 4

...
...
1
Panel (White) WPL-088681W
...
2
Handle Spacer, Plastic (J) WPL-Y0310818
...
3
Oven Door Handle, 18`` WPL-Y0088812
...
4
Baffle, Oven Door WPL-06511801
...
5
Backer, Oven Door WPL-06540900
...
6
Screw, Door Handle WPL-Y0311884
...
7
Screw No.10 X 1/2`` WPL-Y07691400
...
8
Screw WPL-WP7101P126-60
...
9
Insulation, Wrapper WPL-31975801
...
10
Hinge, Oven Door WPL-Y07489700
...
11
Screw WPL-WP4159193

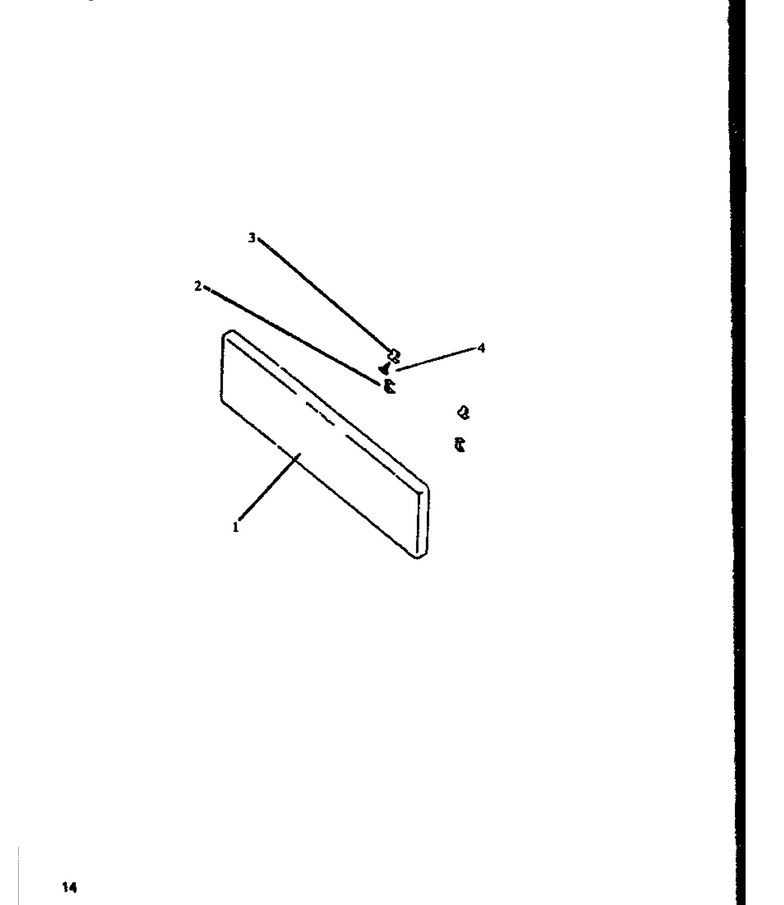

05 - Page 6

...
...
1
Panel, Fixed (White) WPL-Y06539000W
...
2
Clip, Bracket WPL-Y06538700
...
3
Spring Clip WPL-Y0088664
...
4
Screw WPL-WP7101P126-60

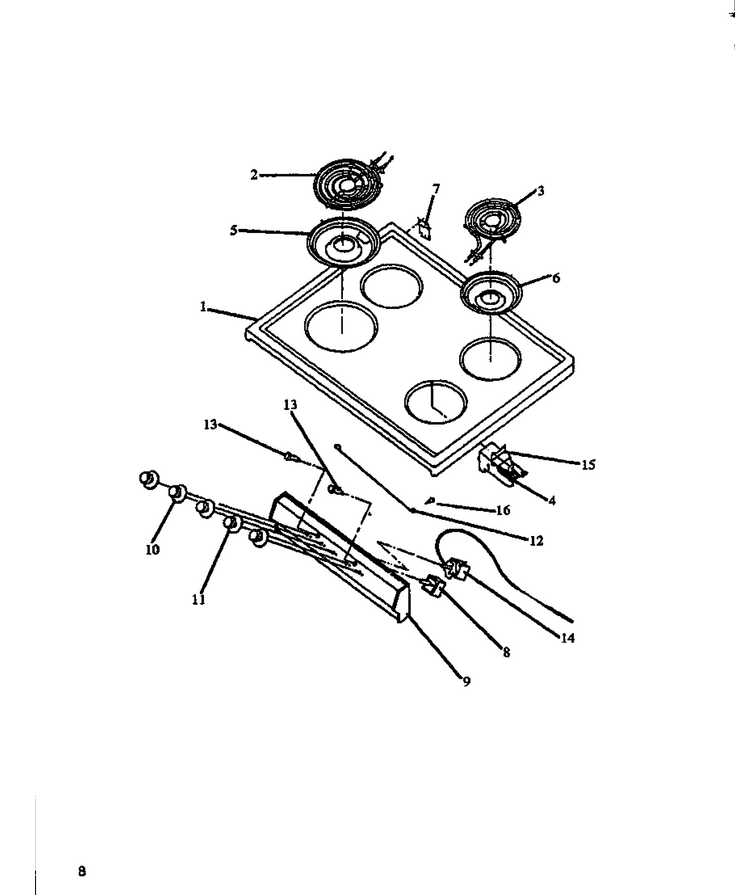

03 - Page 3

...
...
1
Main Top, 30`` (White) WPL-Y086931W
...
2
Elmnt-Surf WPL-WPY04000035
...
3
Elmnt-Surf WPL-WPY04000036
...
4
Receptacle WPL-330031
...
5
Bowl-Drip WPL-WPW10196405
...
6
Bowl-Drip WPL-WPW10196406
...
7
Hinge, Main Top WPL-0088782
...
8
Switch, Infinite WPL-0057312
...
9
Manifold Panel, 30`` WPL-Y0310481
...
10
Knob WPL-WP4179304
...
11
Knob- Ther WPL-WPY0310527
...
12
Support Rod WPL-0087023
...
13
Light, Pilot WPL-0088640
...
14
Thermo-Elect. WPL-0088758
...
15
Bracket WPL-W10116809
...
16
Shoulder Screw WPL-0088779

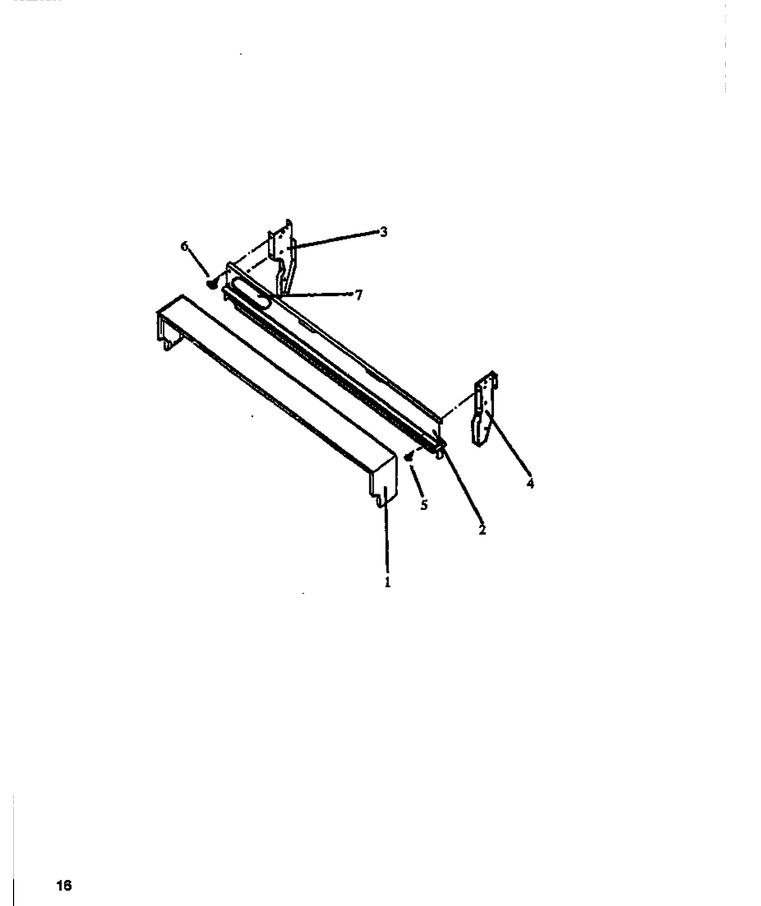

06 - Page 7

...
...
1
Backguard Frame (J) WPL-0057319
...
2
Panel, 30`` Standard WPL-Y06554303
...
3
Support, Bkgd. (Low, Lh) {j} WPL-0310811
...
4
Support, Bkgd. (Low, Rh) {j} WPL-0310812
...
5
Screw WPL-0310240
...
6
Screw No.10 X 5/16 WPL-0310234
...
7
Label, Backguard WPL-07624808
