Amana EBE24CB5 (BOM: P1142408N L)

Model: EBE24CB5 (BOM: P1142408N L)

Save Part Not Listed?
product name

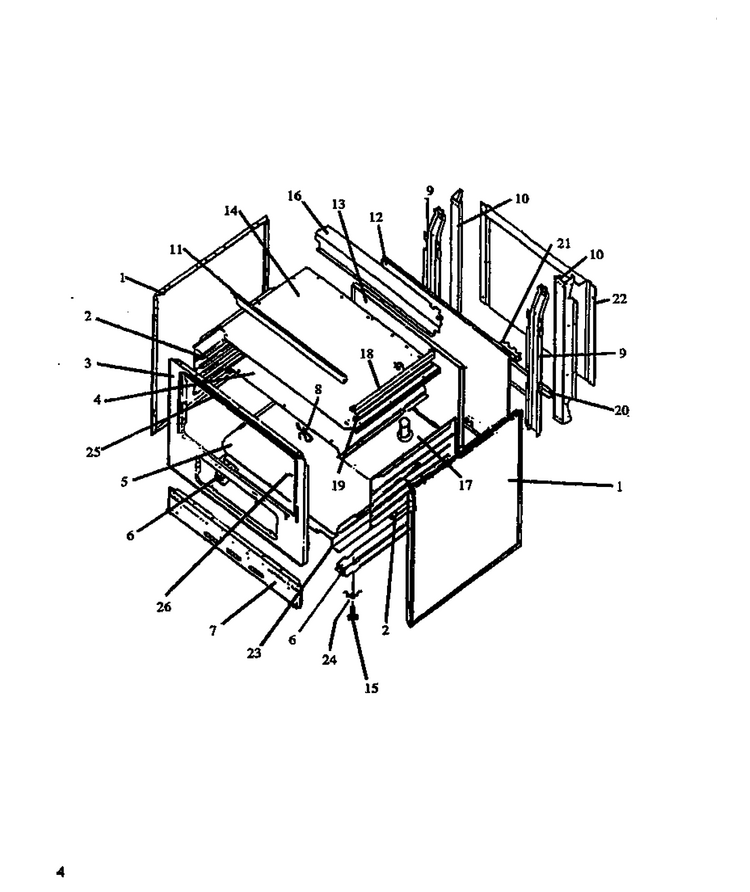

01 - Page 1

...
...
NI
Insulation, Wrapper WPL-31975801
...
1
Sub 311003w, Panel-Side, White WPL-Y06533800W
...
2
Liner,oven Side WPL-0311807
...
4
Oven Top Liner, Electric WPL-0088894
...
5
Oven Bottom (24``) (Enam) WPL-310689E
...
6
Rail, Base WPL-0088654
...
7
Panel, Base Toe 24`` WPL-Y0054693
...
8
Clip, Capillary WPL-0310802
...
9
Vertical Sup. (J) WPL-0052742
...
10
Support, Rear, Vertical {j} WPL-0056477
...
11
Cover Switch WPL-0086934
...
12
Back, Main Electric 24`` WPL-Y06478201
...
13
Oven Backliner, Porcelain WPL-311060E
...
14
Burner Box Bottom WPL-311001E
...
15
Leg, Leveling WPL-Y0062362
...
16
Cover, Burner Box Rear WPL-311013E
...
17
Tube, Oven Vent WPL-Y0056015
...
18
Wire Channel WPL-311010E
...
19
Wire Channel Support WPL-Y0088817
...
20
Support, Bottom Wire Cover WPL-Y0086753
...
21
Block-Term WPL-WP8203546
...
22
Wire Cover, Main Back WPL-Y0086751
...
23
Support WPL-Y0057214
...
24
Snap-In Tee Nut WPL-Y0088571
...
25
Seal, Oven-Top & Bottom 24`` WPL-Y0056092
...
26
Seal, Oven-Sides WPL-Y0056090

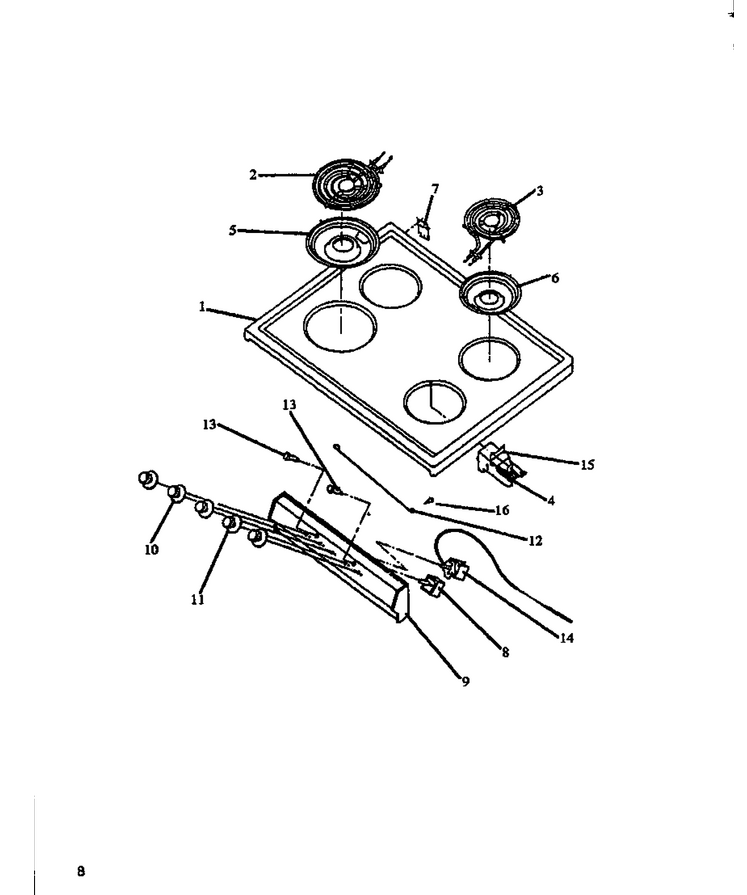

03 - Page 3

...
...
1
Top, 24`` Main Electric (Almond WPL-Y06461009L
...
2
Elmnt-Surf WPL-WPY04000035
...
3
Elmnt-Surf WPL-WPY04000036
...
4
Receptacle WPL-330031
...
5
Bowl-Drip WPL-WPW10196405
...
6
Bowl-Drip WPL-WPW10196406
...
7
Hinge, Main Top WPL-0088782
...
8
Switch, Infinite WPL-0057312
...
9
Control Pa WPL-Y07621902
...
10
Knob- Burn WPL-WPY0310526
...
11
Knob- Ther WPL-WPY0310527
...
12
Support Rod WPL-0087023
...
13
Light, Pilot WPL-0088640
...
14
Thermo-Elect. WPL-0088758
...
15
Bracket WPL-W10116809
...
16
Shoulder Screw WPL-0088779

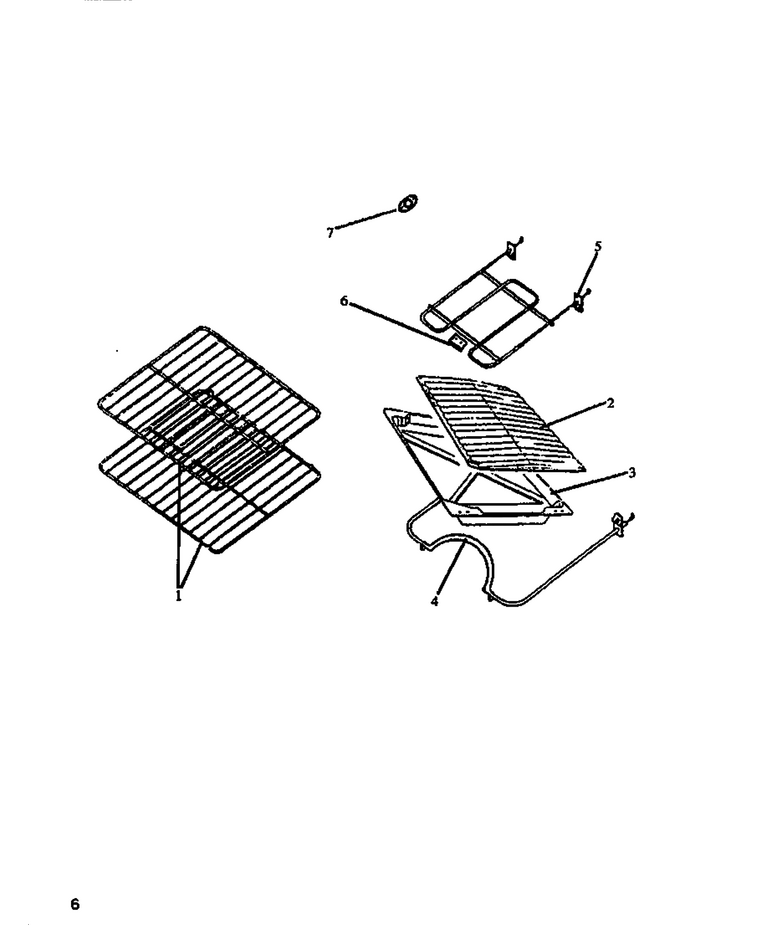

02 - Page 2

...
...
1
Oven Rack, 24`` WPL-Y0312235
...
2
Procelain Broiler (Pan And Grid) WPL-4396923
...
3
Pan, Broiler WPL-87722CG
...
4
Bake Eleme WPL-WPY07409802
...
5
Broil Elem WPL-WPY07431100
...
6
Clip- T-St WPL-R0000343
...
7
Disc, Thermo WPL-0053357

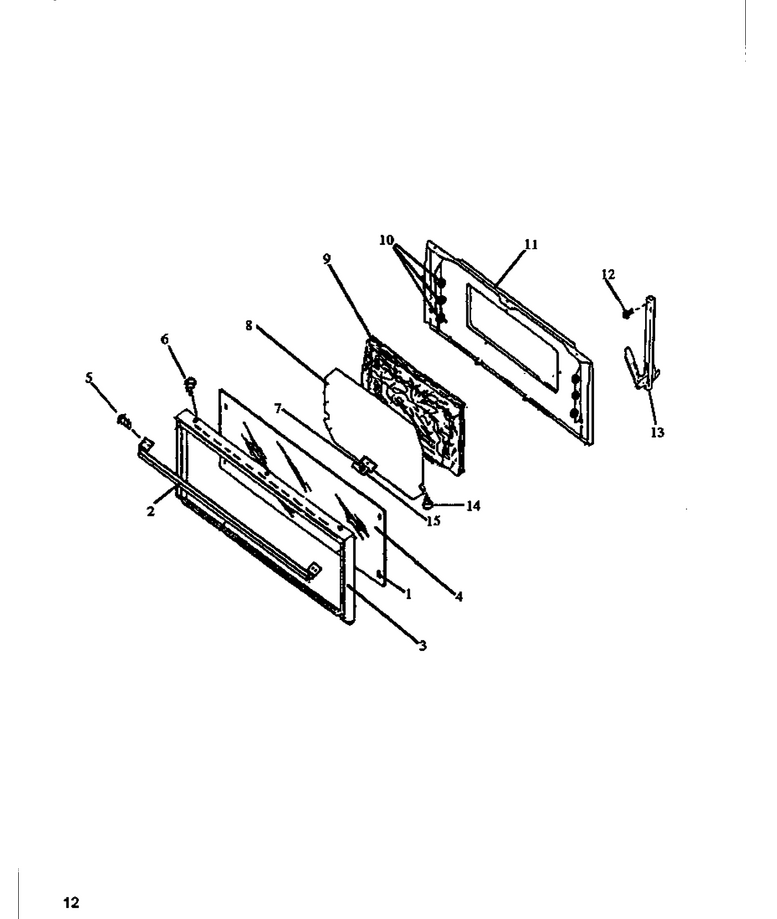

04 - Page 5

...
...
1
Bumper ``l`` Shaped WPL-Y0312836
...
2
Handle, Door (J) WPL-Y0057316
...
3
Frame, Oven Door Ss WPL-0312827
...
4
Glass Oven Door WPL-0312829
...
5
Screw WPL-WP8281236
...
6
Screw WPL-WP7101P126-60
...
7
Bracket, Bumper Mount {j} WPL-Y0311752
...
8
Baffle Door Backer WPL-0312825
...
9
Insulation, Wrapper WPL-31975801
...
10
Bumper-Rubber 1/4`` WPL-Y02068200
...
11
Backer Oven Door WPL-312821E
...
12
Screw WPL-WP4159193
...
13
Hinge, Oven Door WPL-Y07489700
...
14
Screw WPL-WP7101P126-60
...
15
Bumper-Rubber 1/4`` WPL-Y02068200

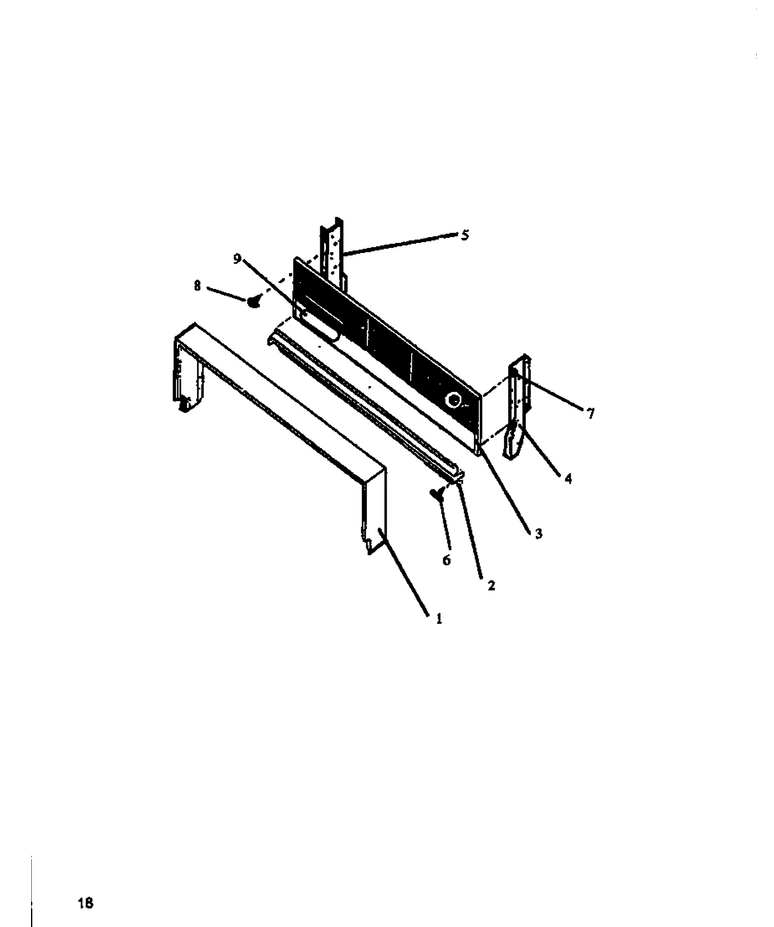

06 - Page 8

...
...
1
Frame, Backguard, 6`` WPL-Y0310466
...
2
Base- Bkgd WPL-Y02330014B
...
3
Glass, Backguard, 6`` WPL-Y0310509
...
4
Support, Backguard, 6`` Lh WPL-Y0310454
...
5
Support, Backguard, 6`` Rh WPL-Y0310453
...
6
Screw WPL-0310240
...
7
Bumper-Rubber 1/4`` WPL-Y02068200
...
8
Screw No.10 X 5/16 WPL-0310234
...
9
Label, Bkgrd WPL-07624008

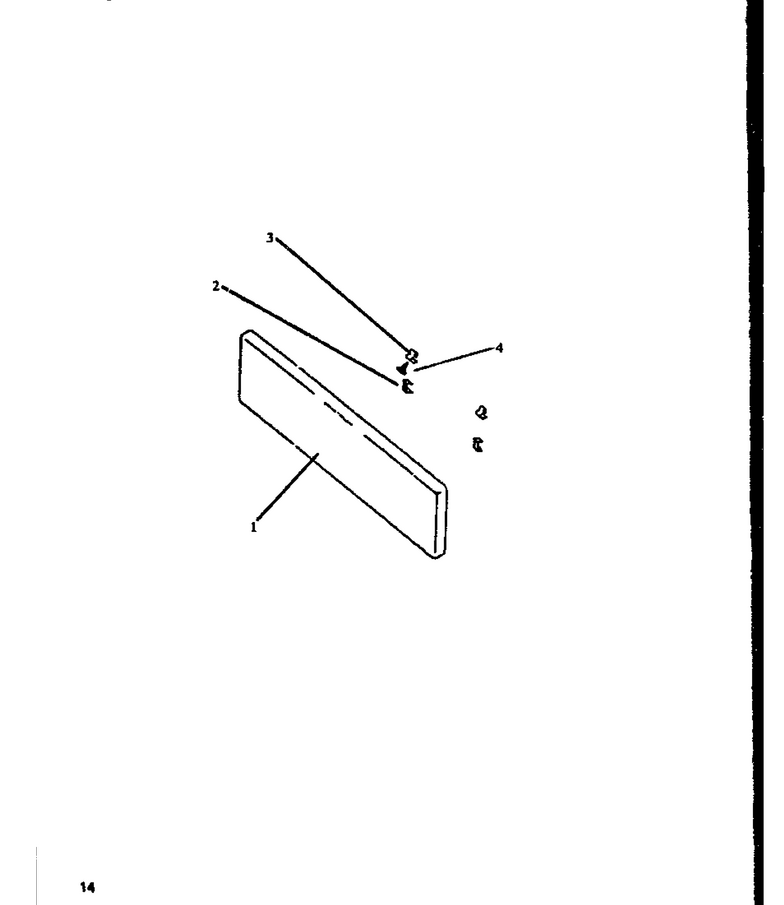

05 - Page 6

...
...
1
Panel, Fixed (White) WPL-06538900W
...
2
Clip, Bracket WPL-Y06538700
...
3
Spring Clip WPL-Y0088664
...
4
Screw WPL-WP7101P126-60
