Amana EBE24AA5 (BOM: P1142472N L)

Model: EBE24AA5 (BOM: P1142472N L)

Save Part Not Listed?
product name

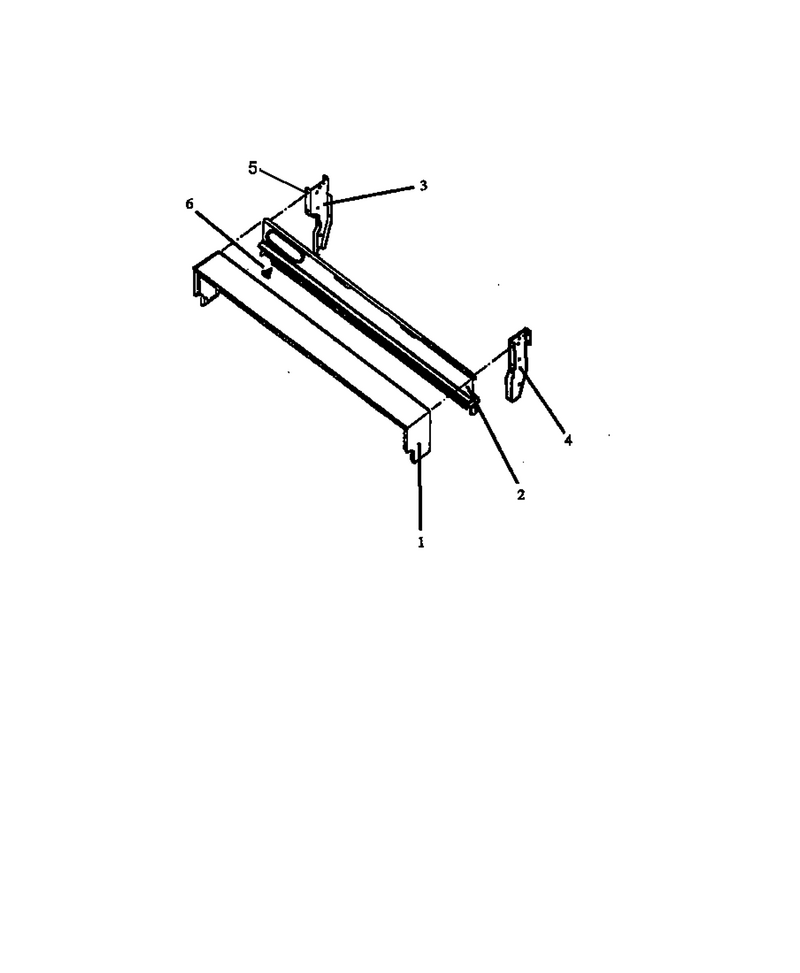

01 - Backguard Assy

...
...
NI
Screw WPL-WP7101P126-60
...
1
Backguard Frame (J) WPL-Y0057318
...
2
Filler Panel/24`` Standard WPL-Y02340011B
...
3
Support, Backguard, L.h. WPL-0088666
...
4
Support, Backguard, R.h. WPL-0088667
...
5
Bumper, Oven Door WPL-Y0063661
...
6
Screw WPL-0310240

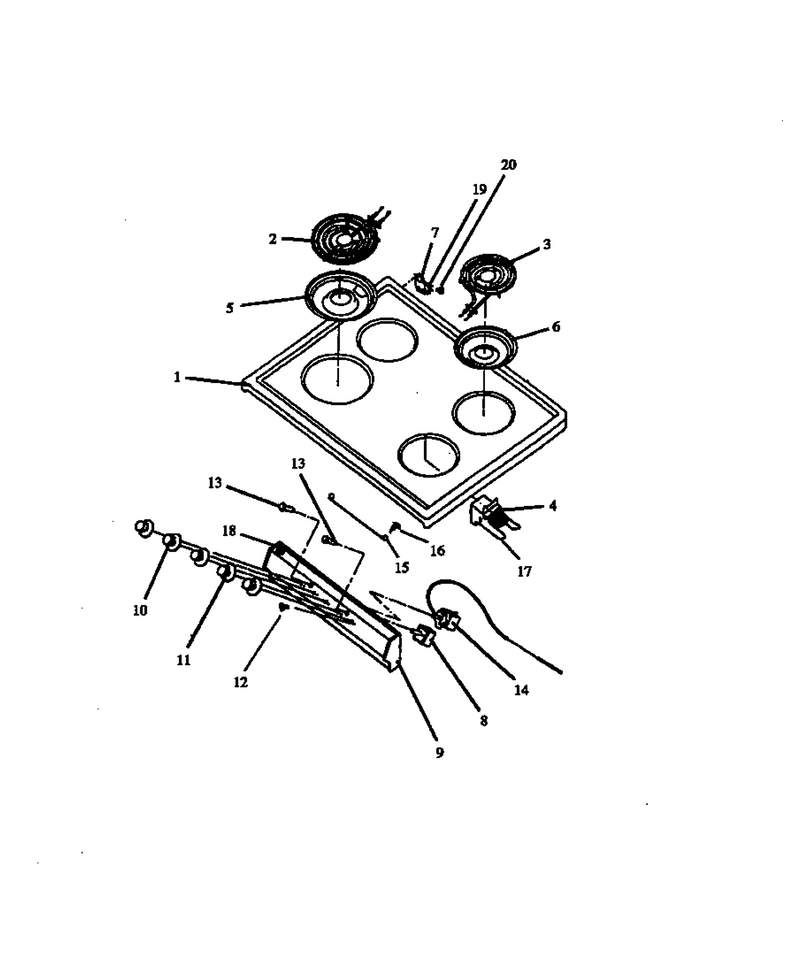

04 - Main Top Assy

...
...
NI
Screw-No.6x 1/2 Hex Hd WPL-Y07473800
...
1
Top, 24`` Main Electric (Almond WPL-Y06461009L
...
2
Elmnt-Surf WPL-WPY04000035
...
3
Elmnt-Surf WPL-WPY04000036
...
4
Receptacle WPL-330031
...
5
Bowl-Drip WPL-WPW10196405
...
6
Bowl-Drip WPL-WPW10196406
...
7
Hinge, Main Top (Blk) WPL-Y02002702
...
8
Switch- In WPL-WP74011243
...
9
Control Pa WPL-Y07621902
...
10
Knob- Burn WPL-WPY0310526
...
11
Knob- Ther WPL-WPY0310527
...
12
Screw WPL-WP3400882
...
13
Light, Pilot WPL-0088640
...
14
Thermo-Elect. WPL-0088758
...
17
Bracket WPL-W10116809
...
19
Nut, Speed, Flat WPL-Y0310032
...
20
Screw No.10x1/2 Blunt WPL-Y0310363

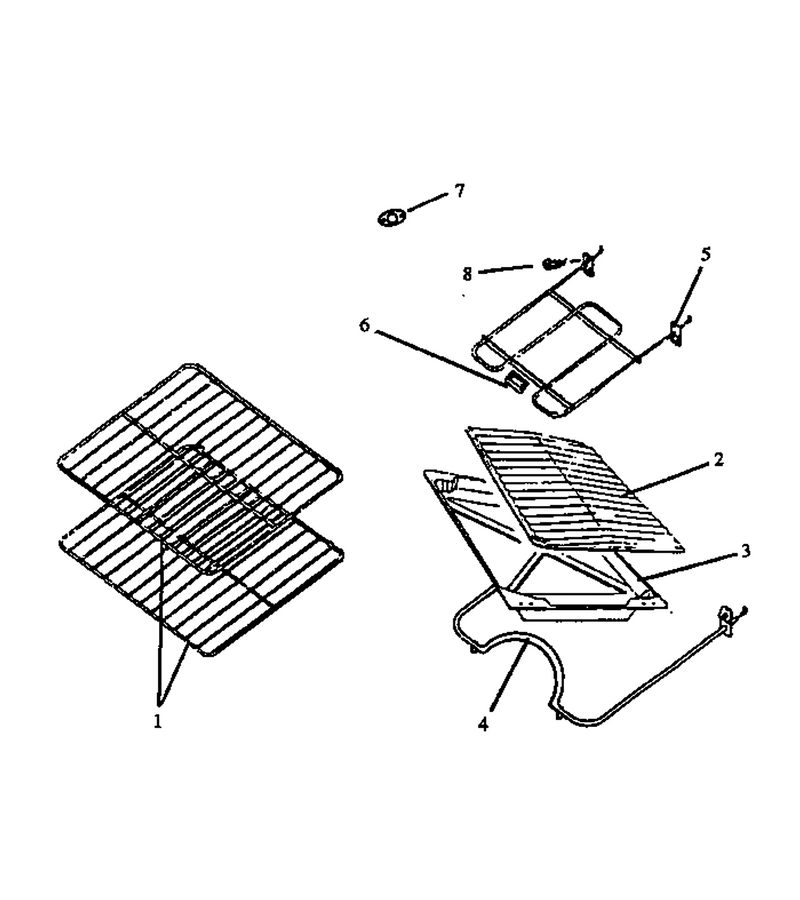

05 - Oven Components

...
...
1
Oven Rack, 24`` WPL-Y0312235
...
2
Procelain Broiler (Pan And Grid) WPL-4396923
...
3
Pan, Broiler WPL-87722CG
...
4
Bake Eleme WPL-WPY07409802
...
5
Broil Elem WPL-WPY07431100
...
6
Clip- T-St WPL-R0000343
...
7
Disc, Thermo WPL-0053357
...
8
Screw WPL-WP7101P126-60

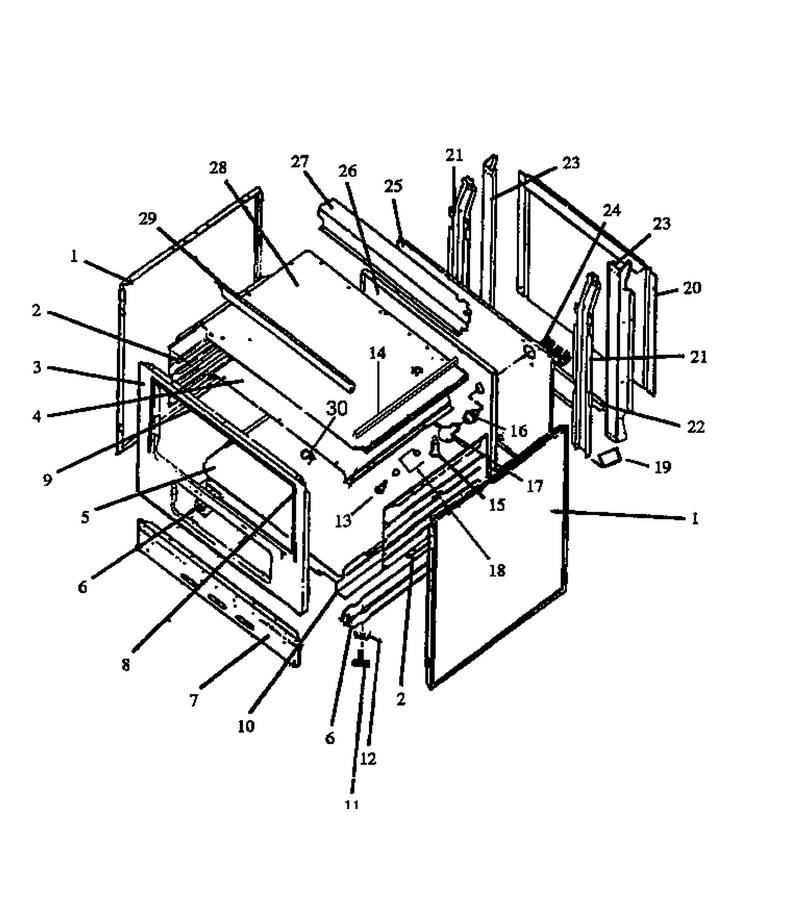

02 - Cabinet Assy

...
...
NI
U-Clip, Safe Edge WPL-31750803
...
1
Panel,body Side (Al) WPL-313762L
...
2
Liner,oven Side WPL-0311807
...
3
Frame, Main Front 24`` WPL-Y06473101E
...
4
Liner, Oven Top (24` Range) WPL-Y06469800E
...
5
Oven Bottom (24``) (Enam) WPL-310689E
...
6
Rail, Base WPL-06555001
...
7
Panel, Base Toe 24`` WPL-Y0054693
...
8
Seal, Oven-Sides WPL-Y0056090
...
9
Seal, Oven-Top & Bottom 24`` WPL-Y0056092
...
10
Support WPL-Y0057214
...
11
Leveler WPL-W11117769
...
12
Snap-In Tee Nut WPL-Y0088571
...
13
Wire Channel Support WPL-Y0088817
...
14
Wire Channel WPL-311010E
...
15
Oven Vent WPL-0088761
...
19
Kit, Anti-Tip WPL-07687600
...
20
Support, Bottom Wire Cover WPL-Y0086753
...
21
Vertical Sup. (J) WPL-0052742
...
22
Wire Cover, Main Back WPL-Y0086751
...
23
Support, Rear, Vertical {j} WPL-0056477
...
24
Block-Term WPL-WP8203546
...
25
Back, Main Electric 24`` WPL-Y06478201
...
26
Liner, Oven Rack WPL-Y06469500E
...
27
Burner Box Rear Cover WPL-Y0311033
...
28
Burner Box Bottom WPL-311001E
...
29
Cover Switch WPL-0086934
...
30
Clip, Capillary WPL-0310802

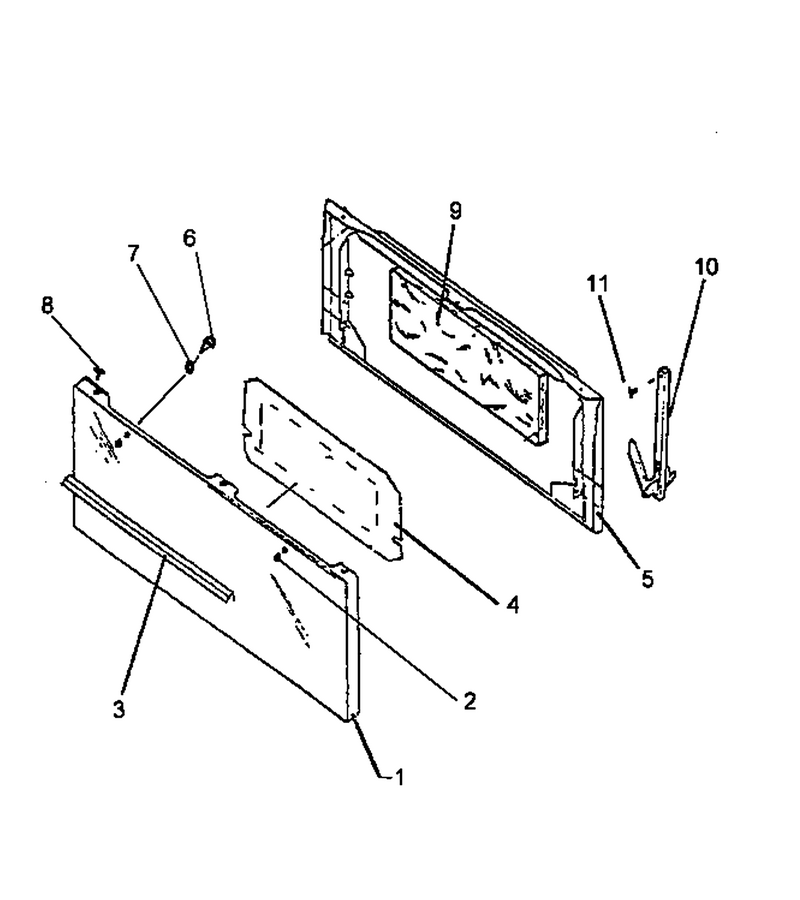

06 - Oven Door Assy

...
...
NI
Screw WPL-WP4159193
...
1
Pnl-Ov Dr,24,sol,pnt WPL-06487212L
...
2
Handle Spacer, Plastic (J) WPL-Y0310818
...
3
Handle, Oven Door (J) WPL-Y0052776
...
5
Backer Oven Door WPL-312821E
...
6
Screw, Door Handle WPL-Y0311884
...
7
See Note Wafered Washer -- (Included W/handle Screw) WPL-Y00000000
...
8
Screw No.10 X 1/2`` WPL-Y0310804
...
9
Insulation Oven Door WPL-Y0312833
...
10
Hinge WPL-Y0052778
...
11
Screw WPL-WP7101P126-60

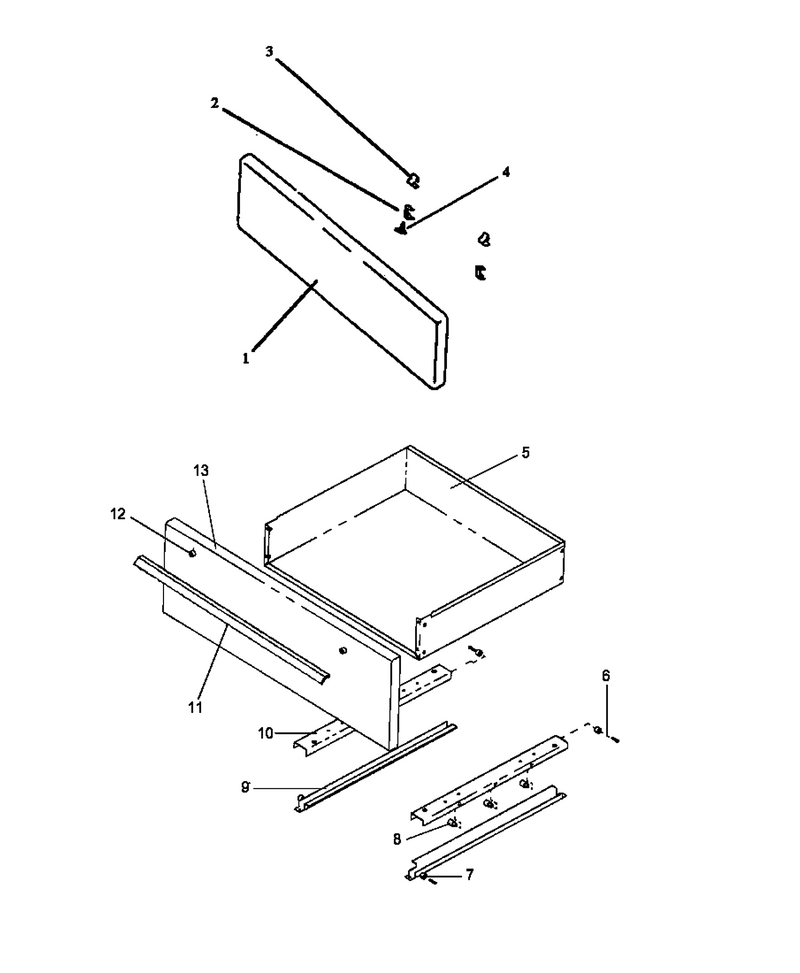

03 - Fixed Panel Assy And Storage Drawer

...
...
1
Panel-Fixed, 24`` (Alm) WPL-Y06538910L
...
2
Clip, Bracket WPL-Y06538700
...
3
Spring Clip WPL-Y0088664
...
4
Screw WPL-WP7101P126-60
