Amana EBE24AA0CEH (BOM: P1142443N W)

Model: EBE24AA0CEH (BOM: P1142443N W)

Save Part Not Listed?
product name

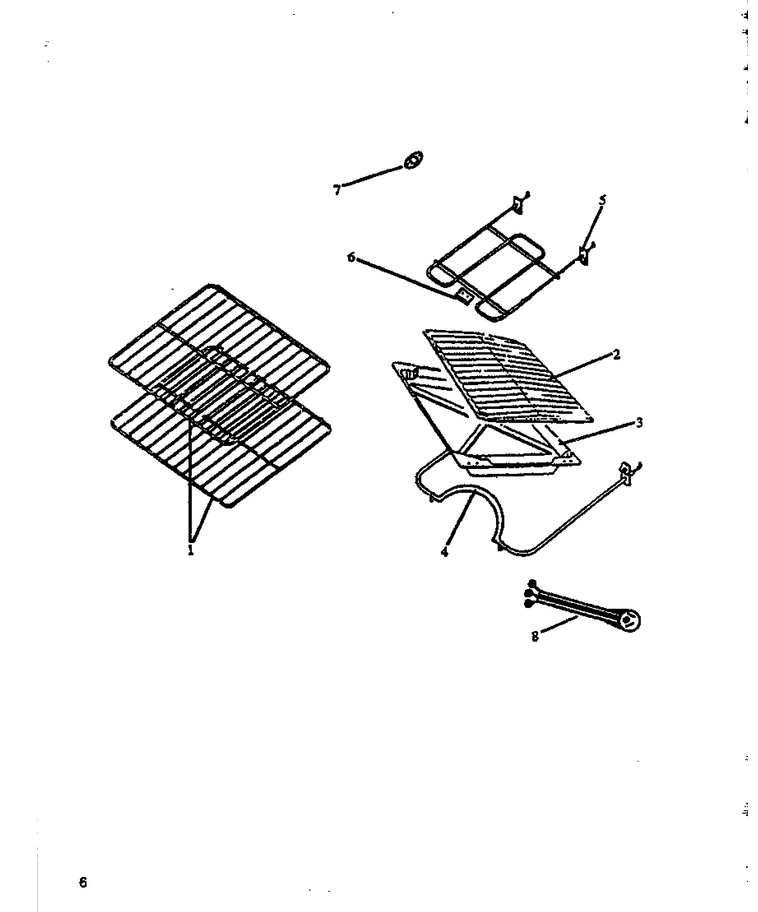

02 - Page 2

...
...
1
Rack, Oven, 30`` WPL-Y07671200
...
2
Procelain Broiler (Pan And Grid) WPL-4396923
...
3
Pan, Broiler WPL-87722CG
...
4
Bake Eleme WPL-WPY07409802
...
5
Broil Elem WPL-WPY07431100
...
6
Clip- T-St WPL-R0000343
...
7
Disc, Thermo WPL-0053357
...
8
Pigtail, ( 4`, 3 Prong) WPL-Y00919400

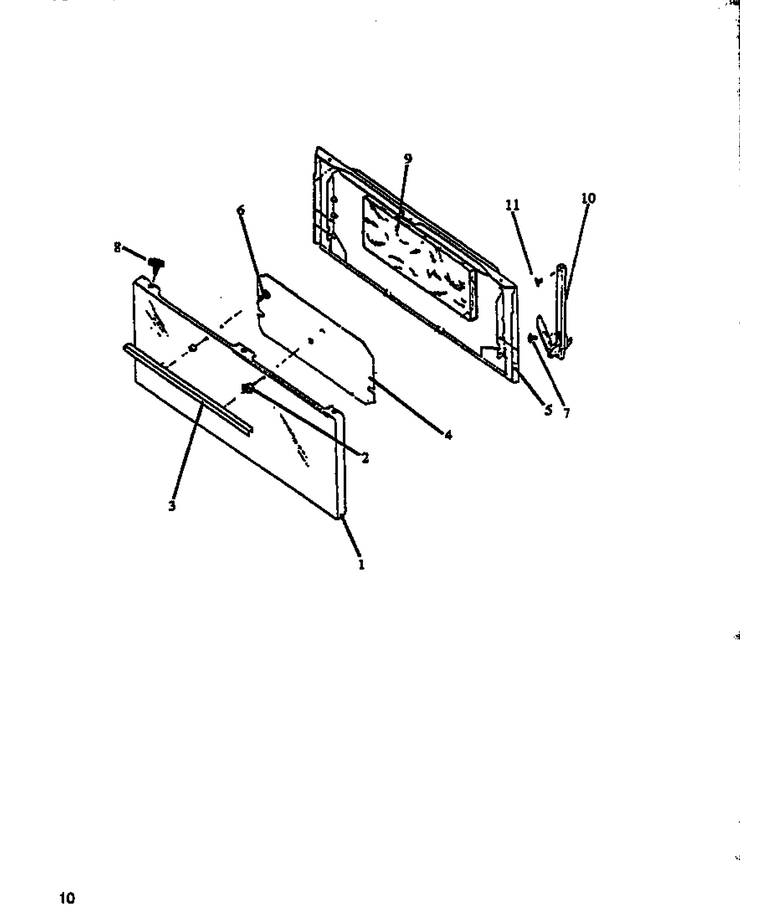

04 - Page 4

...
...
1
Door Panel Oven (White) WPL-312188W
...
2
Handle Spacer, Plastic (J) WPL-Y0310818
...
3
Oven Door Handle, 18`` WPL-Y0088812
...
4
Baffle Door Backer WPL-0312825
...
5
Backer Oven Door WPL-312821E
...
6
Screw, Door Handle WPL-Y0311884
...
7
Screw WPL-WP4159193
...
8
Screw WPL-WP7101P126-60
...
9
Insulation, Wrapper WPL-31975801
...
10
Hinge WPL-Y0052778
...
11
Screw (J) WPL-0310233

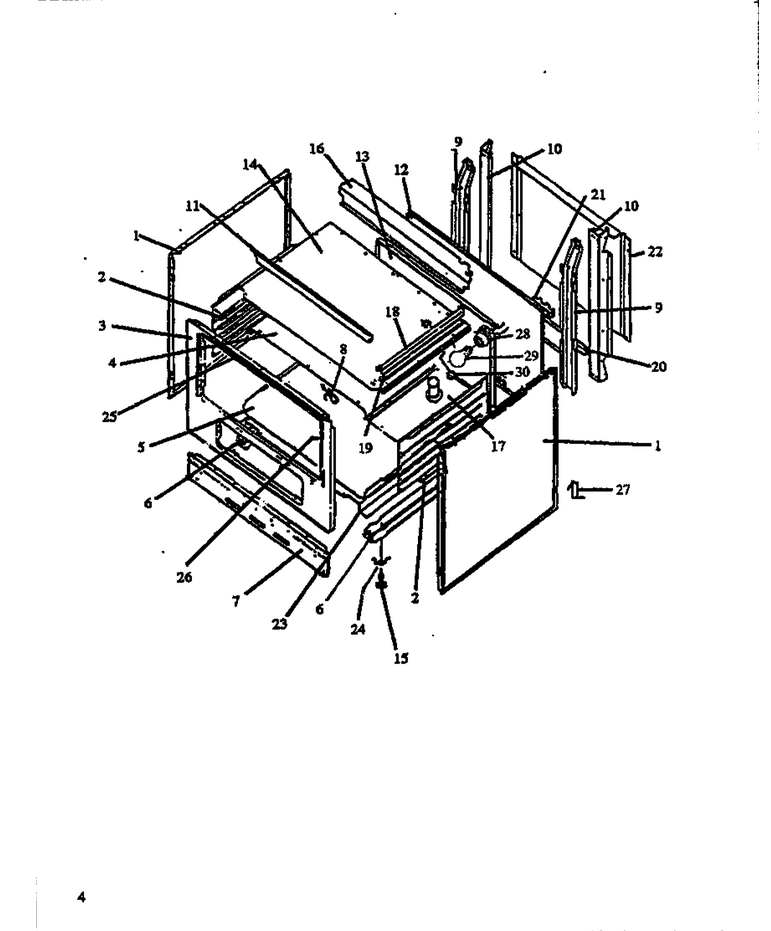

01 - Page 1

...
...
1
Sub 311003w, Panel-Side, White WPL-Y06533800W
...
2
Liner,oven Side WPL-0311807
...
5
Liner, Oven Top (24` Range) WPL-Y06469800E
...
6
Rail, Base WPL-06554900
...
7
Panel, Base Toe 24`` WPL-Y0054693
...
8
Clip, Capillary WPL-0310802
...
9
Vertical Sup. (J) WPL-0052742
...
10
Support, Rear, Vertical {j} WPL-0056477
...
11
Cover Switch WPL-0086934
...
12
Back, Main Electric 24`` WPL-Y06478201
...
13
Liner, Oven Rack WPL-Y06469500E
...
14
Burner Box Bottom WPL-311001E
...
15
Leg, Leveling WPL-Y0062362
...
16
Cover, Rear B.b. (24``) WPL-Y06409834
...
17
Tube, Oven Vent WPL-Y0056015
...
18
Wire Channel WPL-311010E
...
19
Wire Channel Support WPL-Y0088817
...
20
Support, Bottom Wire Cover WPL-Y0086753
...
21
Block-Term WPL-WP8203546
...
22
Wire Cover, Main Back WPL-Y0086751
...
23
Support WPL-Y0057214
...
24
Snap-In Tee Nut WPL-Y0088571
...
25
Seal, Oven-Top & Bottom 24`` WPL-Y0056092
...
26
Seal, Oven-Sides WPL-Y0056090
...
27
Kit, Anti-Tip WPL-07687600
...
28
Socket, Oven Light WPL-Y0316385
...
29
Light Bulb WPL-8009
...
30
Cage, Oven Light WPL-Y0088635

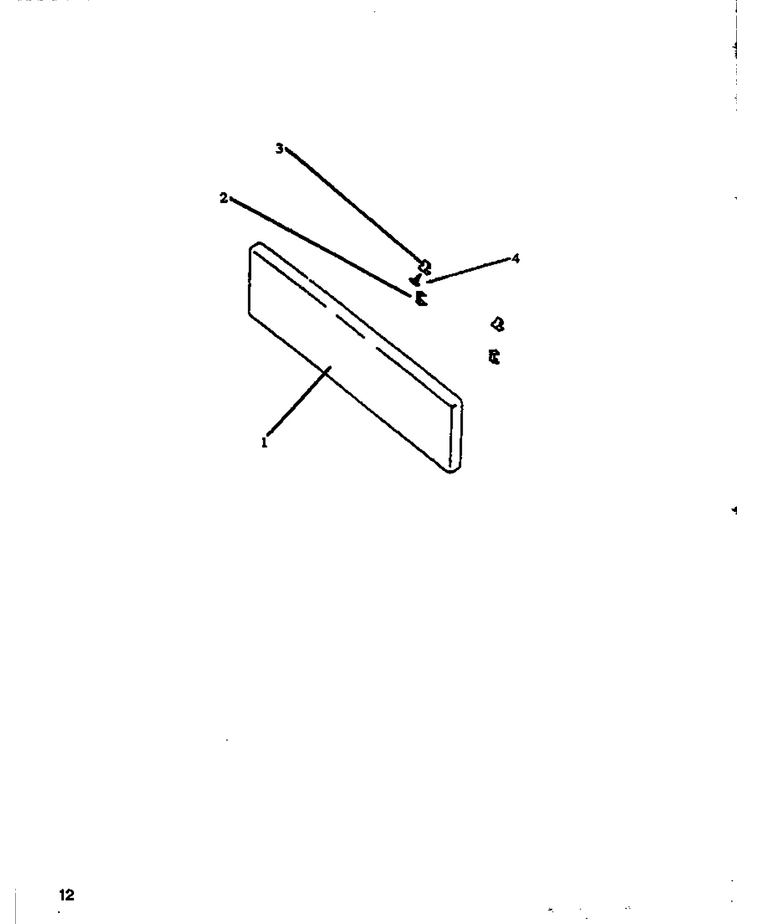

05 - Page 5

...
...
1
Panel, Fixed (White) WPL-06538900W
...
2
Clip, Bracket WPL-Y06538700
...
3
Spring Clip WPL-Y0088664
...
4
Screw WPL-WP7101P126-60

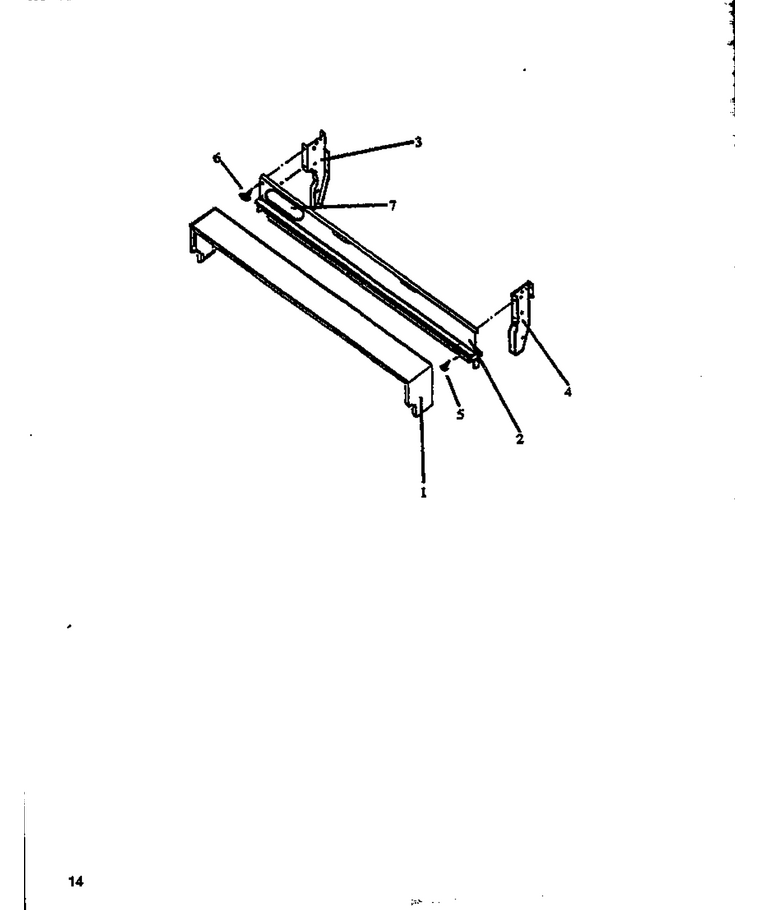

06 - Page 6

...
...
1
Backguard Frame (J) WPL-Y0057318
...
2
Filler Panel/24`` Standard WPL-Y06554302
...
3
Support, Bkgd. (Low, Lh) {j} WPL-0310811
...
4
Support, Bkgd. (Low, Rh) {j} WPL-0310812
...
5
Screw WPL-0310240
...
6
Screw No.10 X 5/16 WPL-0310234
...
7
Label, Nameplate (Caloric) WPL-07704200

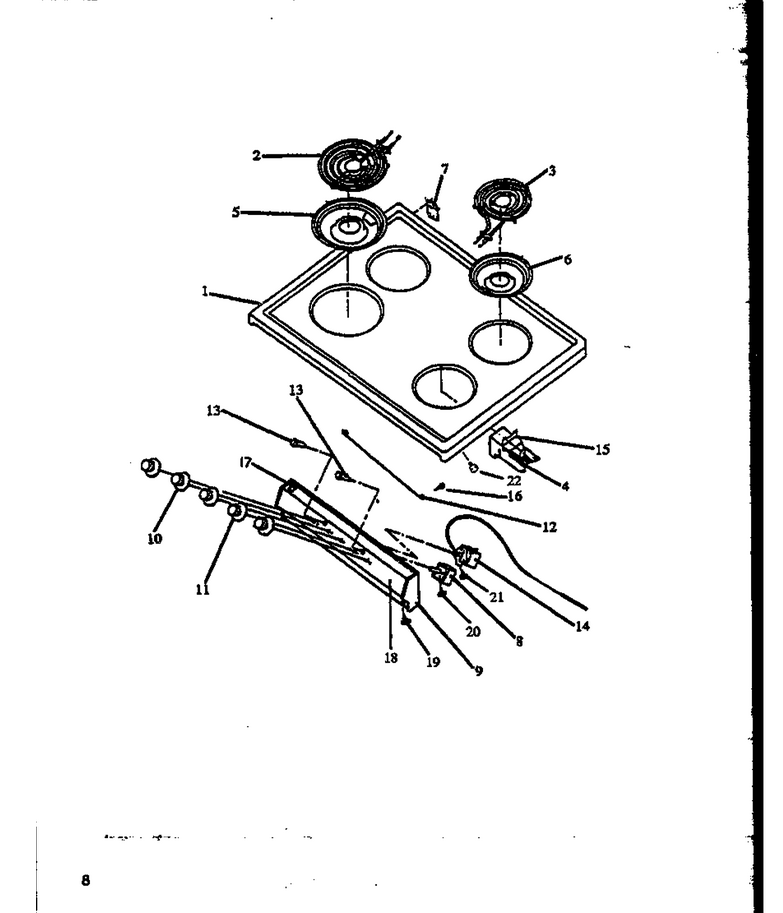

03 - Page 3

...
...
1
Main Top, White WPL-Y0646109W
...
2
Elmnt-Surf WPL-WPY04000035
...
3
Elmnt-Surf WPL-WPY04000036
...
4
Receptacle WPL-330031
...
5
Bowl-Drip WPL-WPW10196405
...
6
Bowl-Drip WPL-WPW10196406
...
7
Hinge, Main Top WPL-0088782
...
8
Switch, Infinite WPL-0055044
...
9
End Cap, Rh WPL-0086976
...
10
Knob- Top WPL-Y07589500
...
11
Knob, Thermostat WPL-Y0055034
...
12
Support Rod WPL-0087023
...
13
Light, Pilot WPL-0088640
...
14
Thermo-Elect. WPL-0088758
...
15
Bracket WPL-W10116809
...
16
Shoulder Screw WPL-0088779
...
17
Switch, Rocker WPL-Y0063997
...
18
Pnl, Manifold Electric WPL-0055005
...
19
Screw WPL-0312238
...
20
Screw, Infinite, Switch Mtg. WPL-0311874
...
21
Screw WPL-0055047
...
22
Bumper, Oven Door WPL-Y0063661
