Amana EBE24AA (BOM: P1142414N W)

Model: EBE24AA (BOM: P1142414N W)

Save Part Not Listed?
product name

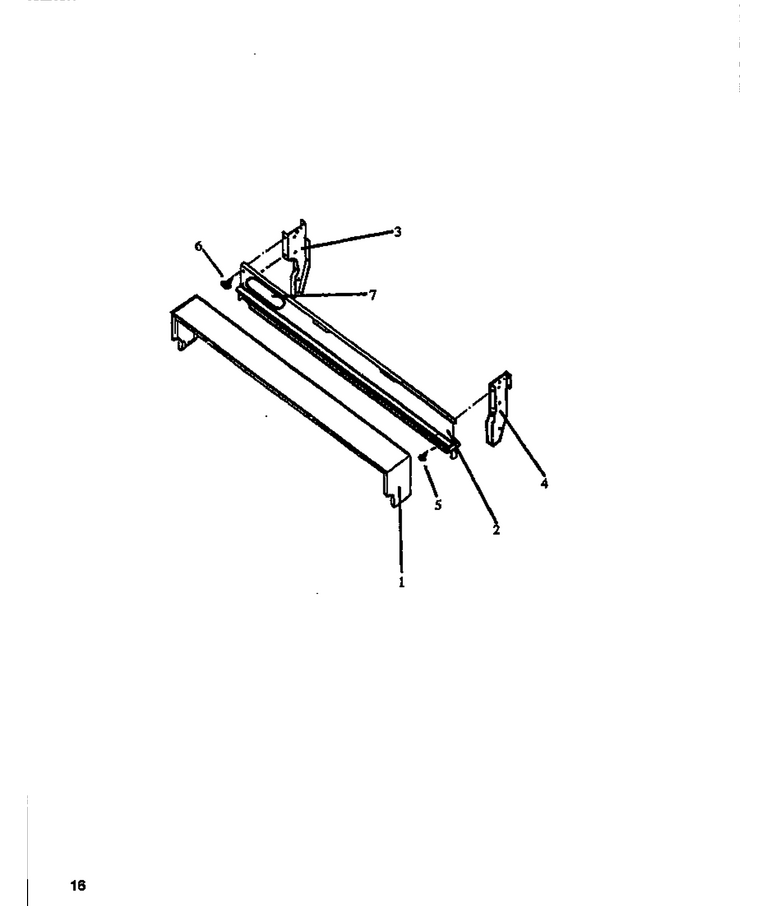

06 - Page 7

...
...
1
Backguard Frame (J) WPL-Y0057318
...
2
Filler Panel/24`` Standard WPL-Y06554302
...
3
Support, Bkgd. (Low, Lh) {j} WPL-0310811
...
4
Support, Bkgd. (Low, Rh) {j} WPL-0310812
...
5
Screw WPL-0310240
...
6
Screw No.10 X 5/16 WPL-0310234
...
7
Label, Backguard WPL-07624808

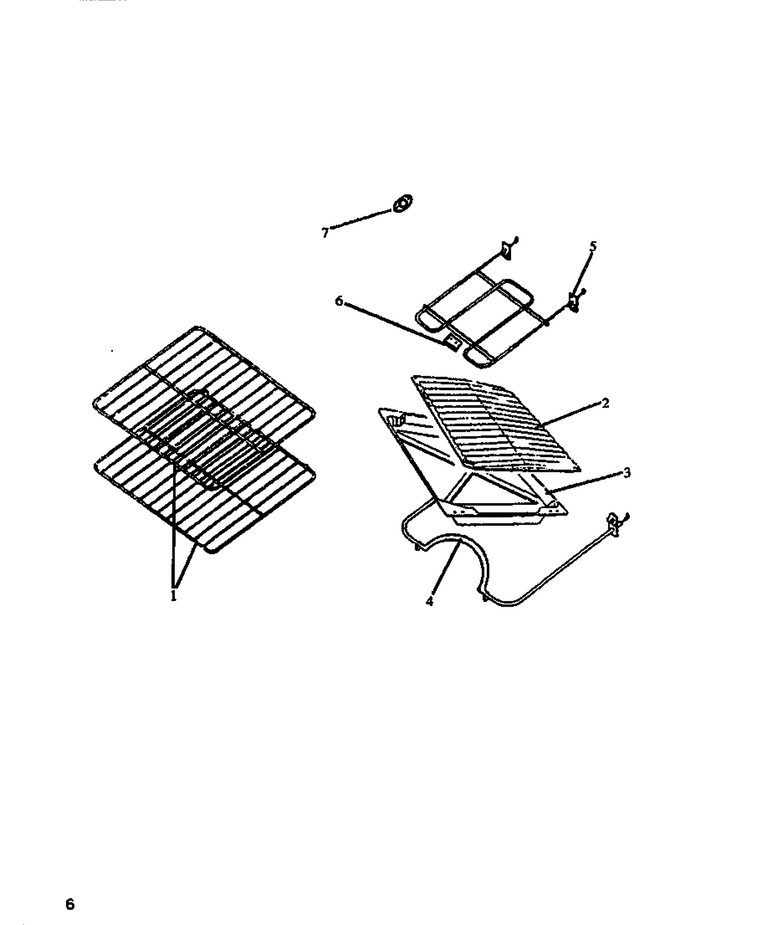

02 - Page 2

...
...
1
Oven Rack, 24`` WPL-Y0312235
...
2
Procelain Broiler (Pan And Grid) WPL-4396923
...
3
Pan, Broiler WPL-87722CG
...
4
Bake Eleme WPL-WPY07409802
...
5
Broil Elem WPL-WPY07431100
...
6
Clip- T-St WPL-R0000343
...
7
Disc, Thermo WPL-0053357

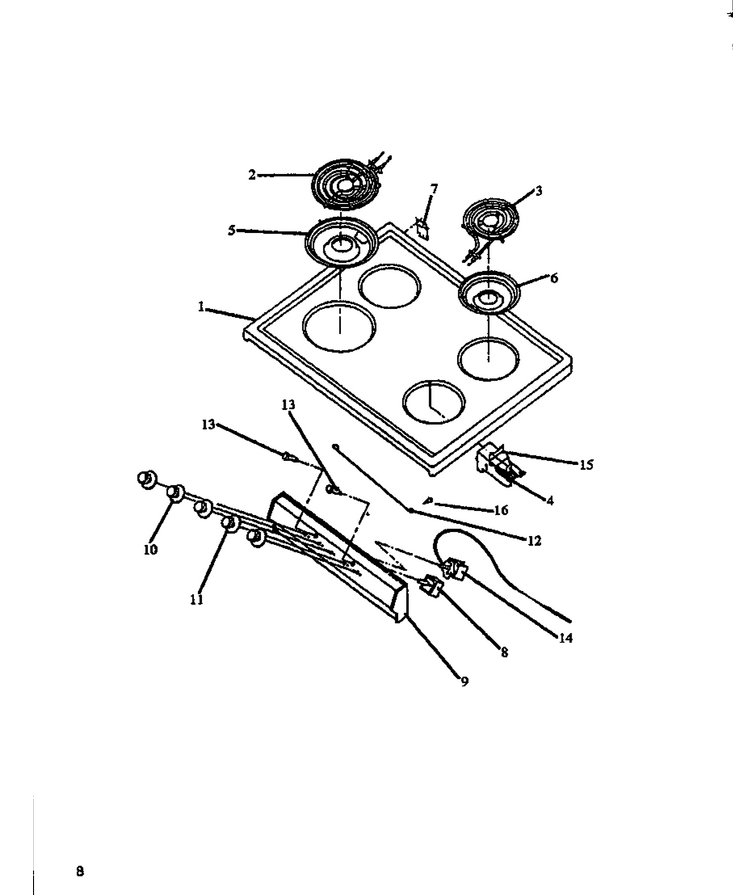

03 - Page 3

...
...
1
Top, 24`` Main Electric (White) WPL-Y06461009W
...
2
Elmnt-Surf WPL-WPY04000035
...
3
Elmnt-Surf WPL-WPY04000036
...
4
Receptacle WPL-330031
...
5
Bowl-Drip WPL-WPW10196405
...
6
Bowl-Drip WPL-WPW10196406
...
7
Hinge, Main Top WPL-0088782
...
8
Switch, Infinite WPL-0057312
...
9
Control Pa WPL-Y07621902
...
10
Knob- Burn WPL-WPY0310526
...
11
Knob, Thermostat WPL-0086943
...
12
Support Rod WPL-0087023
...
13
Light, Pilot WPL-0088640
...
14
Thermo-Elect. WPL-0088758
...
15
Bracket WPL-W10116809
...
16
Shoulder Screw WPL-0088779

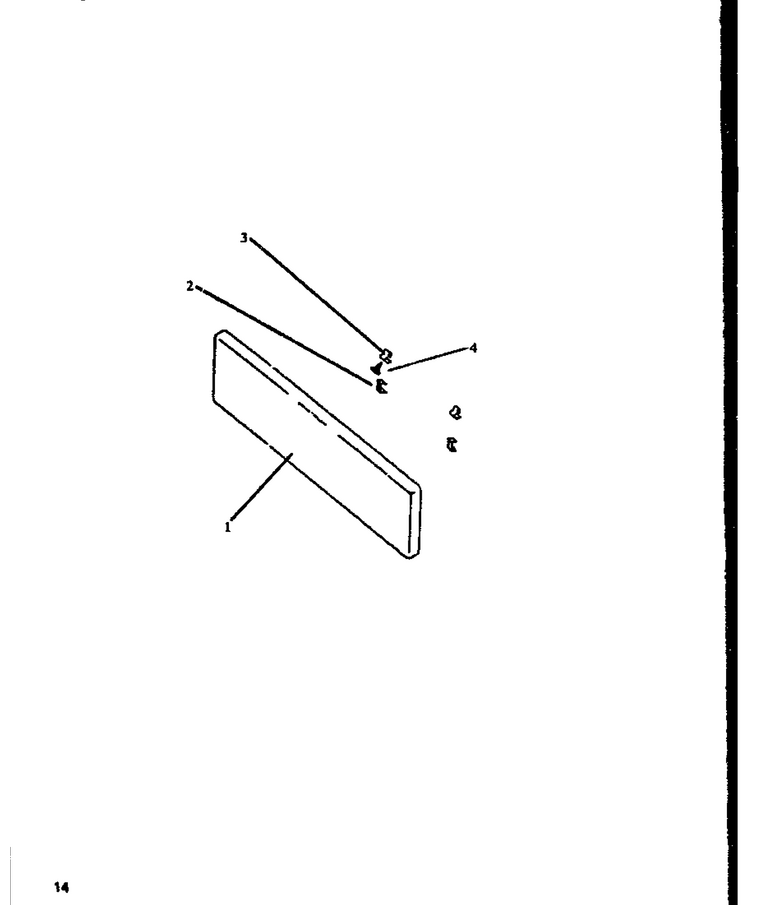

05 - Page 6

...
...
1
Panel, Fixed (White) WPL-06538900W
...
2
Clip, Bracket WPL-Y06538700
...
3
Spring Clip WPL-Y0088664
...
4
Screw WPL-WP7101P126-60

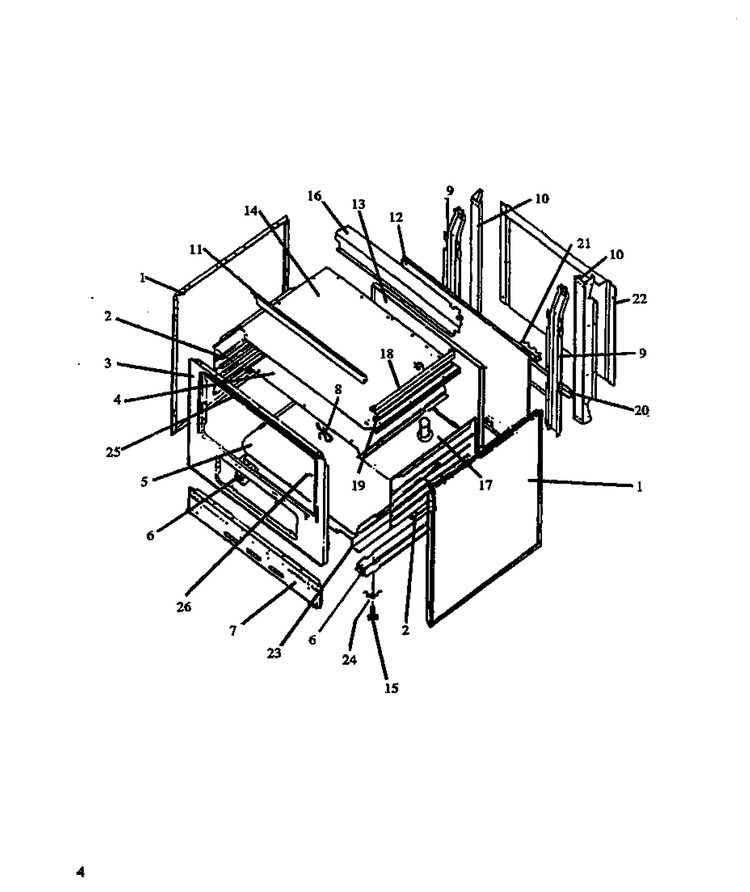

01 - Page 1

...
...
NI
Kit, Anti-Tip WPL-07687600
...
1
Panel,body Side (Al) WPL-313762L
...
2
Liner,oven Side WPL-0311807
...
4
Oven Top Liner, Electric WPL-0088894
...
5
Oven Bottom (24``) (Enam) WPL-310689E
...
6
Rail, Base WPL-0088654
...
7
Panel, Base Toe 24`` WPL-Y0054693
...
8
Clip, Capillary WPL-0310802
...
9
Vertical Sup. (J) WPL-0052742
...
10
Support, Rear, Vertical {j} WPL-0056477
...
11
Cover Switch WPL-0086934
...
12
Back, Main Electric 24`` WPL-Y06478201
...
13
Oven Backliner, Porcelain WPL-311060E
...
14
Burner Box Bottom WPL-311001E
...
15
Leg, Leveling WPL-Y0062362
...
16
Cover, Burner Box Rear WPL-311013E
...
17
Tube, Oven Vent WPL-Y0056015
...
18
Wire Channel WPL-311010E
...
19
Wire Channel Support WPL-Y0088817
...
20
Support, Bottom Wire Cover WPL-Y0086753
...
21
Block-Term WPL-WP8203546
...
22
Wire Cover, Main Back WPL-Y0086751
...
23
Support WPL-Y0057214
...
24
Snap-In Tee Nut WPL-Y0088571
...
25
Seal, Oven-Top & Bottom 24`` WPL-Y0056092
...
26
Seal, Oven-Sides WPL-Y0056090

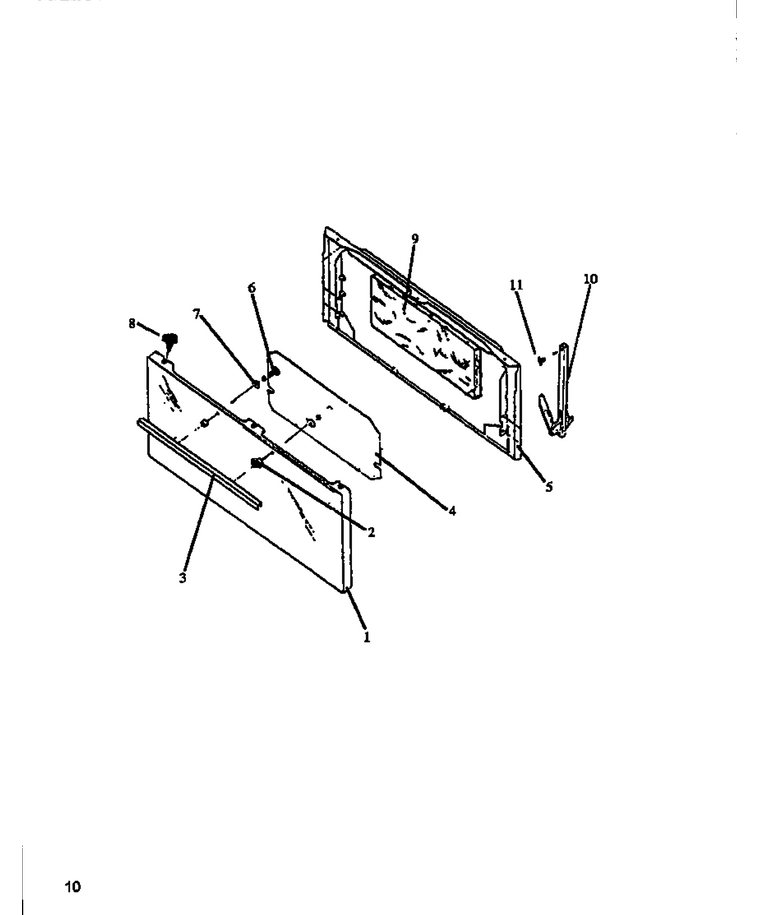

04 - Page 4

...
...
1
Pnl-Ov Dr,24,sol,enm WPL-312188L
...
2
Handle Spacer, Plastic (J) WPL-Y0310818
...
3
Handle, Oven Door (J) WPL-Y0052776
...
4
Baffle Door Backer WPL-0312825
...
5
Backer Oven Door WPL-312821E
...
6
Screw, Door Handle WPL-Y0311884
...
7
Screw No.10 X 1/2`` WPL-Y07691400
...
8
Screw WPL-WP7101P126-60
...
9
Insulation, Wrapper WPL-31975801
...
10
Hinge WPL-Y0052778
...
11
Screw (J) WPL-0310233
