product name

Amana EBE22AA (BOM: P1142413N L)

Model: EBE22AA (BOM: P1142413N L)

Save Part Not Listed?
product name

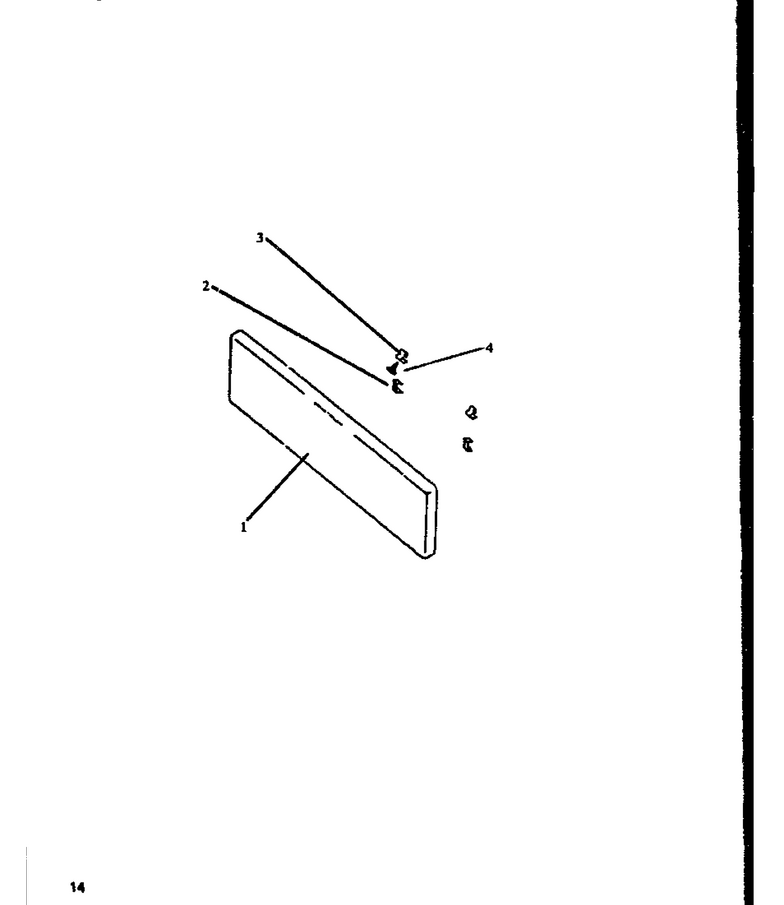

05 - Page 6

...
...
1
Panel, Fixed (White) WPL-06538800W
...
2
Clip, Bracket WPL-Y06538700
...
3
Spring Clip WPL-Y0088664
...
4
Screw WPL-WP7101P126-60

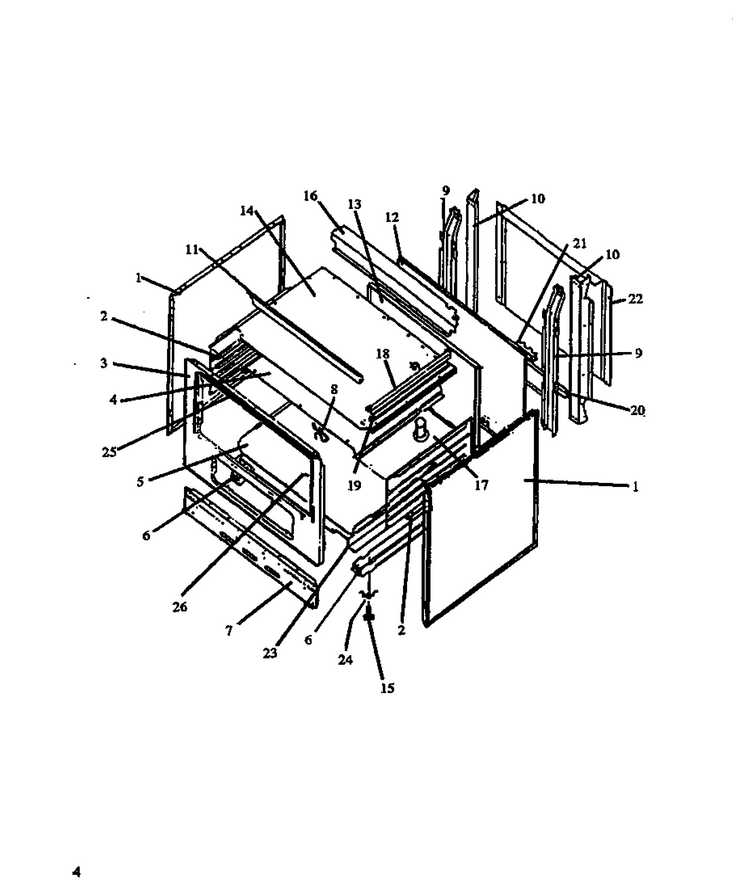

01 - Page 1

...
...
NI
Kit, Anti-Tip WPL-07687600
...
1
Sub 311003w, Panel-Side, White WPL-Y06533800W
...
2
Liner,oven Side WPL-0311807
...
4
Liner, Oven Top WPL-86924CG
...
5
Liner, Oven Bottom WPL-88898CG
...
6
Rail, Base WPL-0088654
...
7
Panel Base Toe WPL-Y0054694
...
8
Clip, Capillary WPL-0310802
...
9
Vertical Sup. (J) WPL-0052742
...
10
Support, Rear, Vertical {j} WPL-0056477
...
11
Switch Cover WPL-0086933
...
12
Shield, Main Back WPL-0311067
...
13
Liner, Oven Back (16``) WPL-Y06472600E
...
14
Burner Box, Bottom WPL-311000E
...
15
Leg, Leveling WPL-Y0062362
...
16
Cover, Rear Burner Box WPL-311014E
...
17
Tube, Oven Vent WPL-Y0056015
...
18
Wire Channel WPL-311010E
...
19
Wire Channel Support WPL-Y0088817
...
20
Support, Bottom Wire Cover WPL-Y0086754
...
21
Block-Term WPL-WP8203546
...
22
Wire Cover, Main Back WPL-Y0086752
...
23
Support WPL-Y0057213
...
24
Snap-In Tee Nut WPL-Y0088571
...
25
Seal, Oven Door-Top WPL-Y0056494
...
26
Seal, Oven-Sides WPL-Y0056090

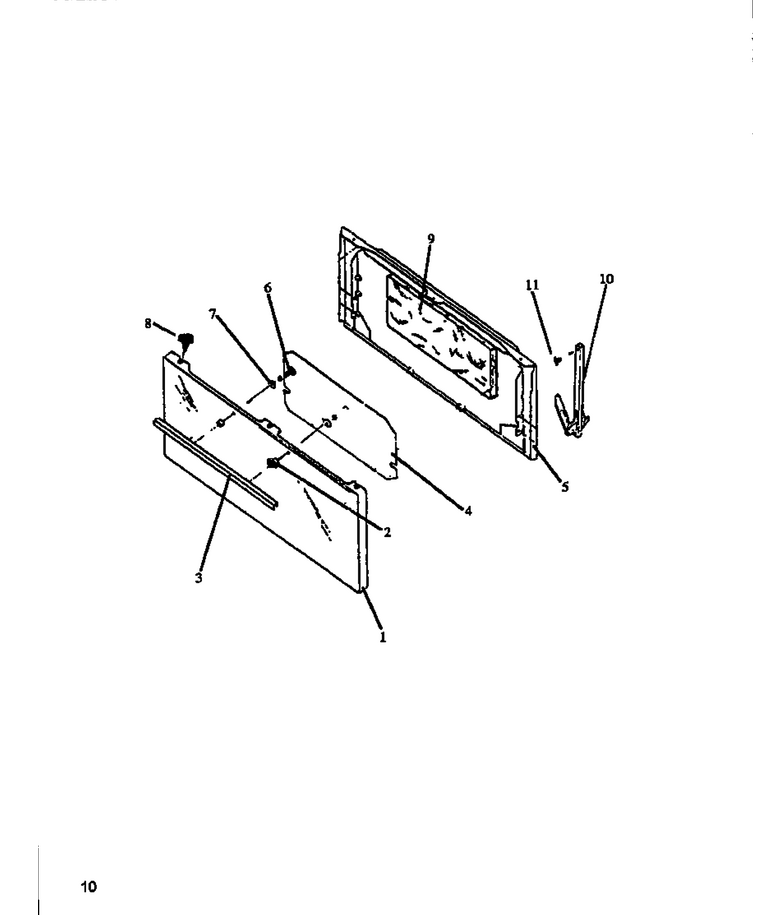

04 - Page 4

...
...
1
Panel, Oven Door (Almond) WPL-313754L
...
2
Handle Spacer, Plastic (J) WPL-Y0310818
...
3
Handle, Oven Door (J) WPL-Y0052776
...
4
Baffle, Hold Down WPL-0088842
...
5
Backer, Oven Door WPL-54680CG
...
6
Screw, Door Handle WPL-Y0311884
...
7
Screw No.10 X 1/2`` WPL-Y07691400
...
8
Screw WPL-WP7101P126-60
...
9
Insulation, Wrapper WPL-31975801
...
10
Hinge- Doo WPL-Y07580401
...
11
Screw (J) WPL-0310233

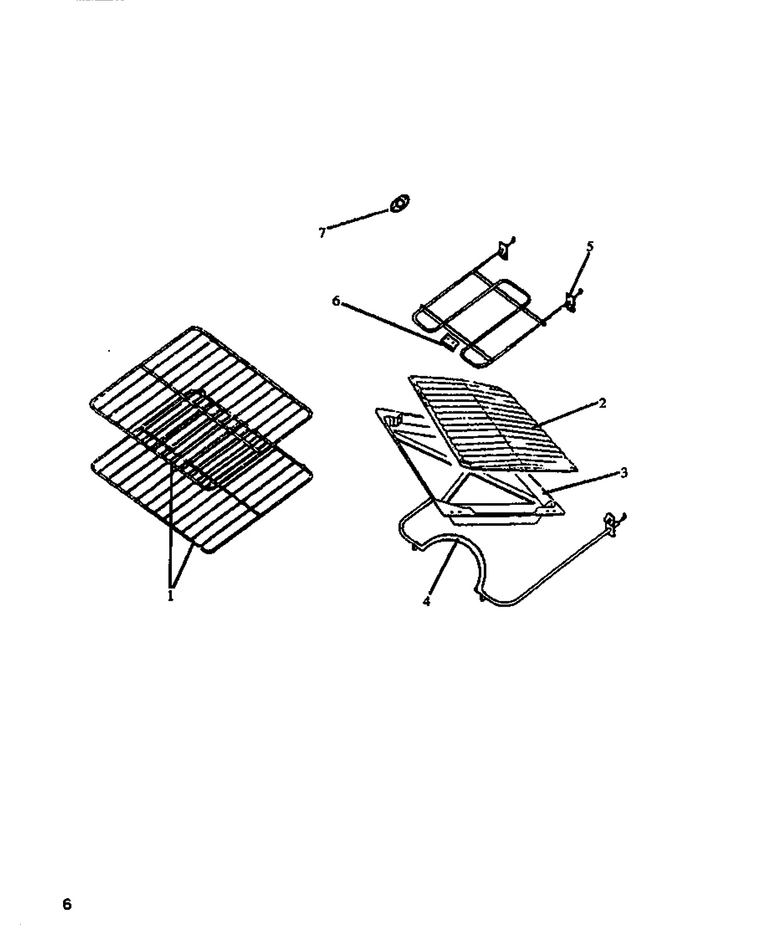

02 - Page 2

...
...
1
Rack, Oven, 20`` WPL-Y07671000
...
2
Procelain Broiler (Pan And Grid) WPL-4396923
...
3
Pan, Broiler WPL-87722CG
...
4
Element-Ba WPL-WPY07565600
...
5
Broil Elem WPL-WPY07431100
...
6
Clip- T-St WPL-R0000343
...
7
Disc, Thermo WPL-0053357

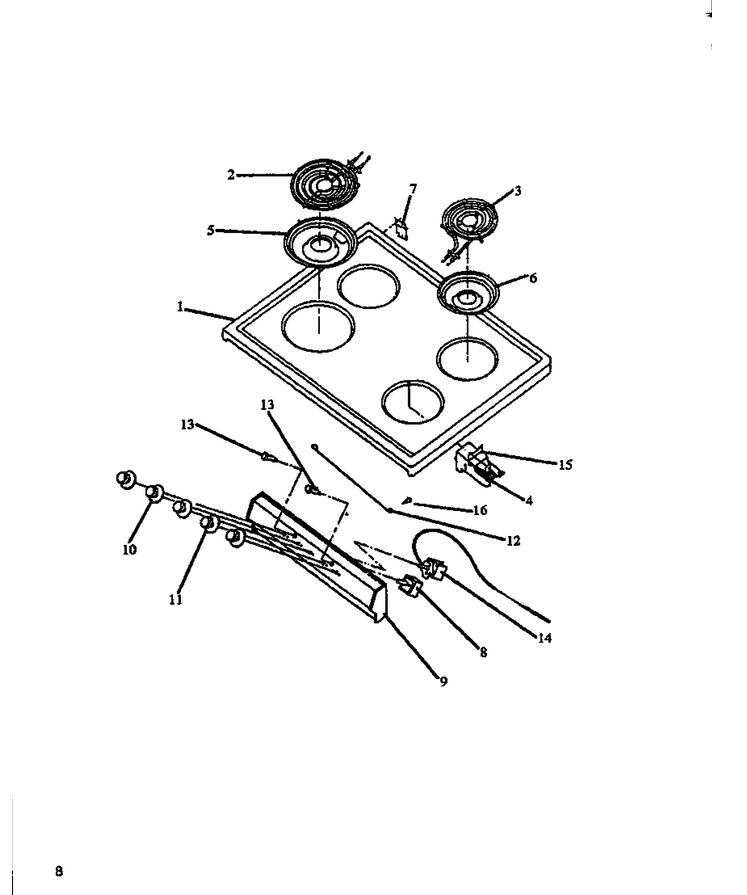

03 - Page 3

...
...
1
Top, 20`` Main Electric (Almond WPL-Y06461007L
...
2
Elmnt-Surf WPL-WPY04000035
...
3
Elmnt-Surf WPL-WPY04000036
...
4
Receptacle WPL-330031
...
5
Bowl-Drip WPL-WPW10196405
...
6
Bowl-Drip WPL-WPW10196406
...
7
Hinge, Main Top WPL-0088782
...
8
Switch, Infinite WPL-0057312
...
9
Manifold Panel, 20`` WPL-Y0310479
...
10
Knob- Burn WPL-WPY0310526
...
11
Knob- Ther WPL-WPY0310527
...
13
Light, Pilot WPL-0088640
...
14
Thermo-Elect. WPL-0088758
...
15
Bracket WPL-W10116809

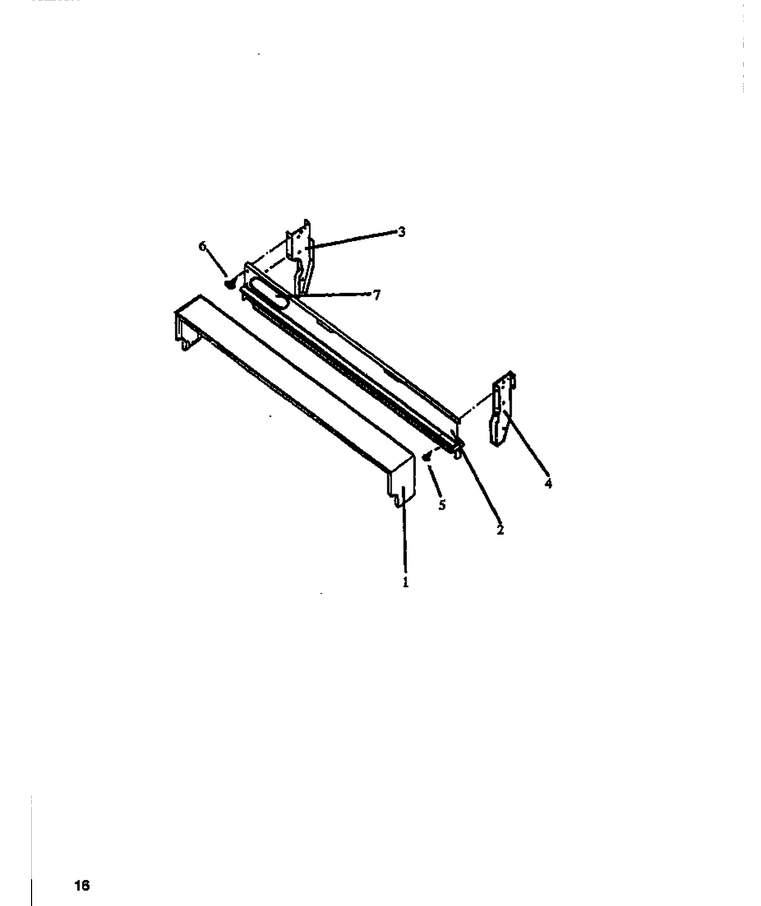

06 - Page 7

...
...
1
Backguard Frame WPL-0057317
...
2
Backguard Panel WPL-06554301
...
3
Support, Bkgd. (Low, Lh) {j} WPL-0310811
...
4
Support, Bkgd. (Low, Rh) {j} WPL-0310812
...
5
Screw WPL-0310240
...
6
Screw No.10 X 5/16 WPL-0310234
...
7
Label, Backguard WPL-07624808
