Amana E3100I.C

Model: E3100I.C

Save Part Not Listed?
product name

01 - Page 1

...
...
NI
U&c Mnl E3100i.a WPL-M94D575
...
1
Rivet, Pop WPL-A4539629
...
2
Adhesive WPL-W10841140
...
3
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
4
Light Holder WPL-46534P01
...
5
Light Bulb WPL-59002071
...
6
Screw WPL-WP90767
...
7
Gasket WPL-A3030302
...
8
Stirrer Cover WPL-45422P01
...
9
Nut, Push WPL-Y04100035
...
10
Washer WPL-M1D565
...
11
Kit, Stirrer Blade WPL-M35D53
...
12
R F Gasket Kit WPL-M2D152
...
13
Screw WPL-WPW10001160
...
14
Wshr-Rubber WPL-32383P01
...
15
Screw WPL-WP90767
...
16
Block Term 3 Pole 2100i WPL-M5D390
...
17
Lock Washer WPL-M0272803
...
18
Strain Relf WPL-26632P01
...
19
Ia Cord-Power WPL-M26D39
...
20
Screw WPL-WP90767
...
21
Kit, Blower Motor WPL-R0150121
...
22
Housing, Blower WPL-45559P01
...
23
Wheel, Blower M35d39 WPL-36300P01
...
24
Kit,transformer WPL-M60D151
...
25
Gasket-Rf WPL-M2D296
...
26
Screw Thrm WPL-M1D666
...
27
Mag Exh Duct M65d342 WPL-94388P01
...
28
Deflector-Air M65d344 WPL-46762P01
...
29
Capacitor- WPL-WP59001168
...
30
Screw WPL-WP90767
...
31
Screw WPL-WPW10001160
...
32
Pop Rivet WPL-A4539625
...
33
Fuse WPL-WPM0805102
...
34
Screw WPL-WP90767
...
35
M65d346 Divider Air WPL-45402P01
...
36
Transition-Cav Exh Fs-10 WPL-45753P01
...
37
Shim-Hinge WPL-45540P01
...
38
Assy, Hinge WPL-4180032601Q
...
39
Outer Door Asy Kit WPL-M70D239
...
40
Door Filler Kit WPL-M55D18
...
41
Outer Window Kit WPL-M70D158
...
42
No.8 Ab X 3/8`` Screw WPL-M1D906
...
43
Window, Inner Door WPL-10785001
...
44
Spring, Door WPL-41205P01
...
45
Inlay Handle 3100i WPL-43270P03
...
46
Ia Nylon Flat Washer WPL-40370P02
...
47
No.8-32 Captive Nut(25) WPL-M1D758
...
48
Toroid (Arc Suppressor) WPL-44780P01
...
49
Assy Memb Switch WPL-4100010317
...
50
Clip WPL-5522546002
...
51
Kit, Controller WPL-M31R51
...
52
Rail Assy WPL-M52D236
...
53
Filter Air WPL-45412P01
...
54
Screw WPL-WP90767
...
55
Screw WPL-WP90767
...
56
Relay Sec/intlk WPL-M16D105
...
57
Speed Clip WPL-M8D123
...
58
Relay WPL-38806P01
...
59
Screw WPL-WPW10348409
...
60
Nut WPL-WP488130
...
61
U-Clip WPL-M2D575
...
62
Wire Harness WPL-M27D464
...
63
Wshr-Rubber WPL-32383P01
...
64
Protector, Trans Therm WPL-M4D128

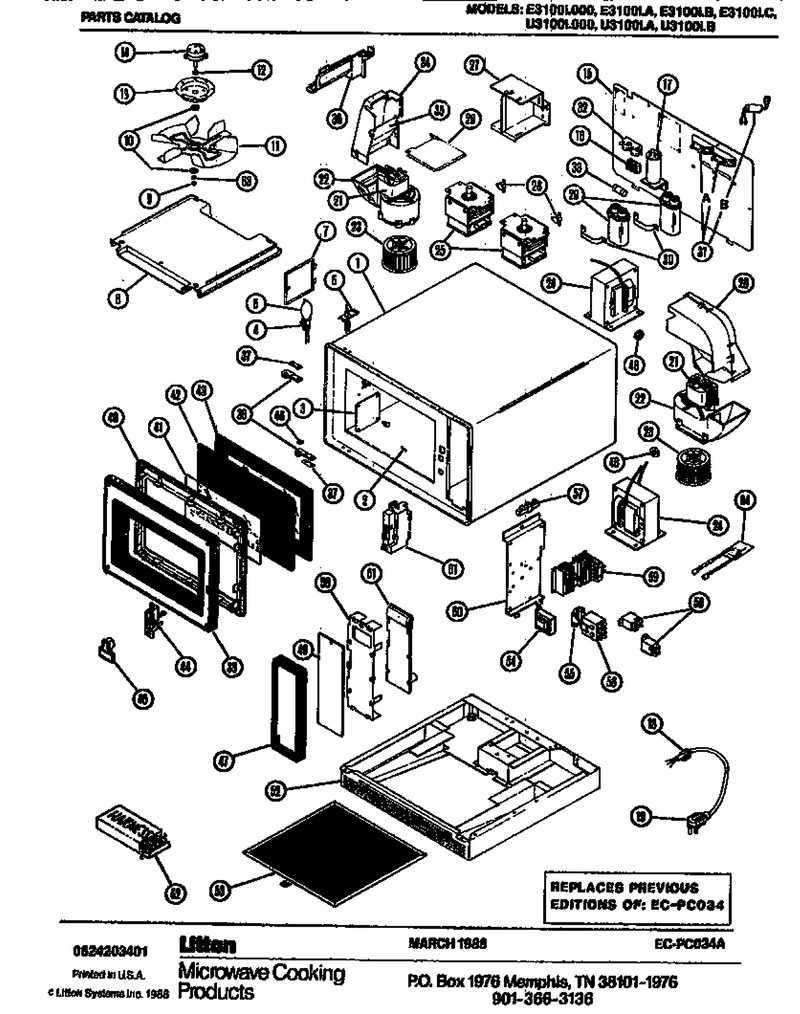

Schematic Image Zoomed
