Amana E2100I.C

Model: E2100I.C

Save Part Not Listed?
product name

01 - Page 1

...
...
NI
U&c Mnl E2100i.b WPL-M94D574
...
1
Rivet, Pop WPL-A4539629
...
2
Kit, Shelf WPL-R0156904
...
3
Lamp Lens WPL-2570000202
...
4
Light Holder WPL-46534P01
...
5
Light Bulb WPL-59002071
...
6
Screw WPL-WP90767
...
7
Clip WPL-M1D884
...
8
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
9
Nut, Push WPL-Y04100035
...
10
Washer WPL-M1D565
...
11
Kit, Stirrer Blade WPL-M35D53
...
12
R F Gasket Kit WPL-M2D152
...
13
Screw (25) WPL-M1D638
...
14
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
15
Back Panel WPL-M82D214
...
16
Strain Relf WPL-26632P01
...
17
Powercord 250v 10/16 Amps WPL-1738379615
...
18
Screw WPL-WPW10001160
...
19
Housing, Blower WPL-45559P01
...
20
Wheel, Blower M35d39 WPL-36300P01
...
21
Hv Xfmr 220v50hz 1000w WPL-M60D150
...
22
Gasket-Rf WPL-M2D305
...
23
Screw Thrm WPL-M1D666
...
24
Screw WPL-WP90767
...
25
Deflector-Air M65d344 WPL-46762P01
...
26
Screw WPL-WP90767
...
27
Rectifier WPL-WP13091701
...
28
Pop Rivet WPL-A4539625
...
29
Fuse WPL-WPM0805102
...
30
Screw WPL-WP90767
...
31
M65d346 Divider Air WPL-45402P01
...
32
Transition-Cav Exh Fs-10 WPL-45753P01
...
33
Shim-Hinge WPL-45540P01
...
34
Hinge WPL-M3D345
...
35
Fastener(10) WPL-43415P01
...
36
Door Filler Kit WPL-M55D18
...
37
Outer Window Kit WPL-M70D158
...
38
Inner Door Kit WPL-M70D83
...
39
Window, Inner Door WPL-10785001
...
40
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
41
No.10 X 3/8`` Set Screw WPL-M1D905
...
42
Ia Nylon Flat Washer WPL-40370P02
...
43
Control Panel Frame WPL-M7D853
...
44
Toroid (Arc Suppressor) WPL-44780P01
...
45
Assy Memb Switch WPL-4100010317
...
46
Backer Plt Asy WPL-4180001602
...
47
Kit, Controller WPL-M31R51
...
48
Rail Assy WPL-M52D236
...
49
Filter Air WPL-45412P01
...
50
Screw WPL-WP90767
...
51
Screw WPL-WP90767
...
52
Relay Sec/intlk WPL-M16D105
...
53
Screw (25) WPL-M1D609
...
54
Screw WPL-WPW10348409
...
55
Panel, Component WPL-10791901
...
56
Screw (25) WPL-M1D142
...
57
Wire Harness WPL-M27D463
...
58
Wshr-Rubber WPL-32383P01
...
59
Bleeder Resistor WPL-M3D62
...
60
Block Term 3 Pole 2100i WPL-M5D390
...
61
Lock Washer WPL-M0272803
...
62
Resistor WPL-31860P01
...
63
Bracket WPL-10825501
...
64
Protector, Trans Therm WPL-M4D128

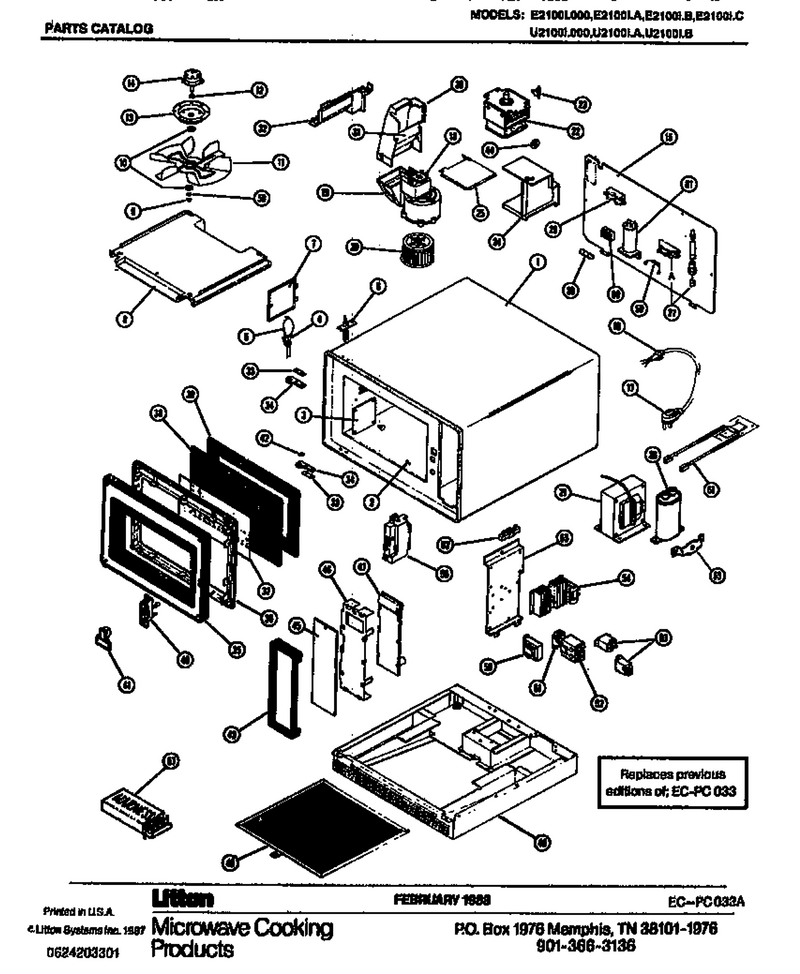

Schematic Image Zoomed
